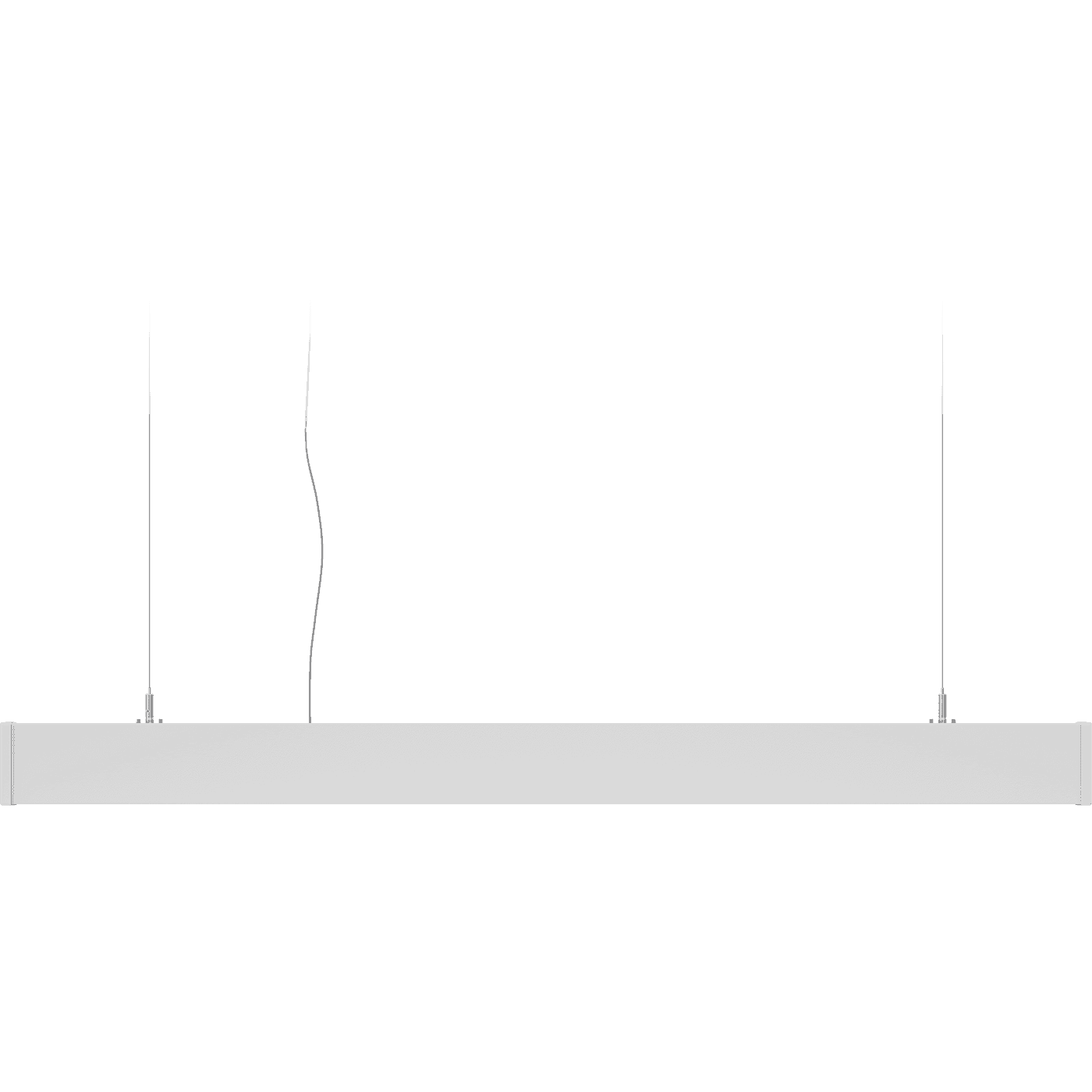

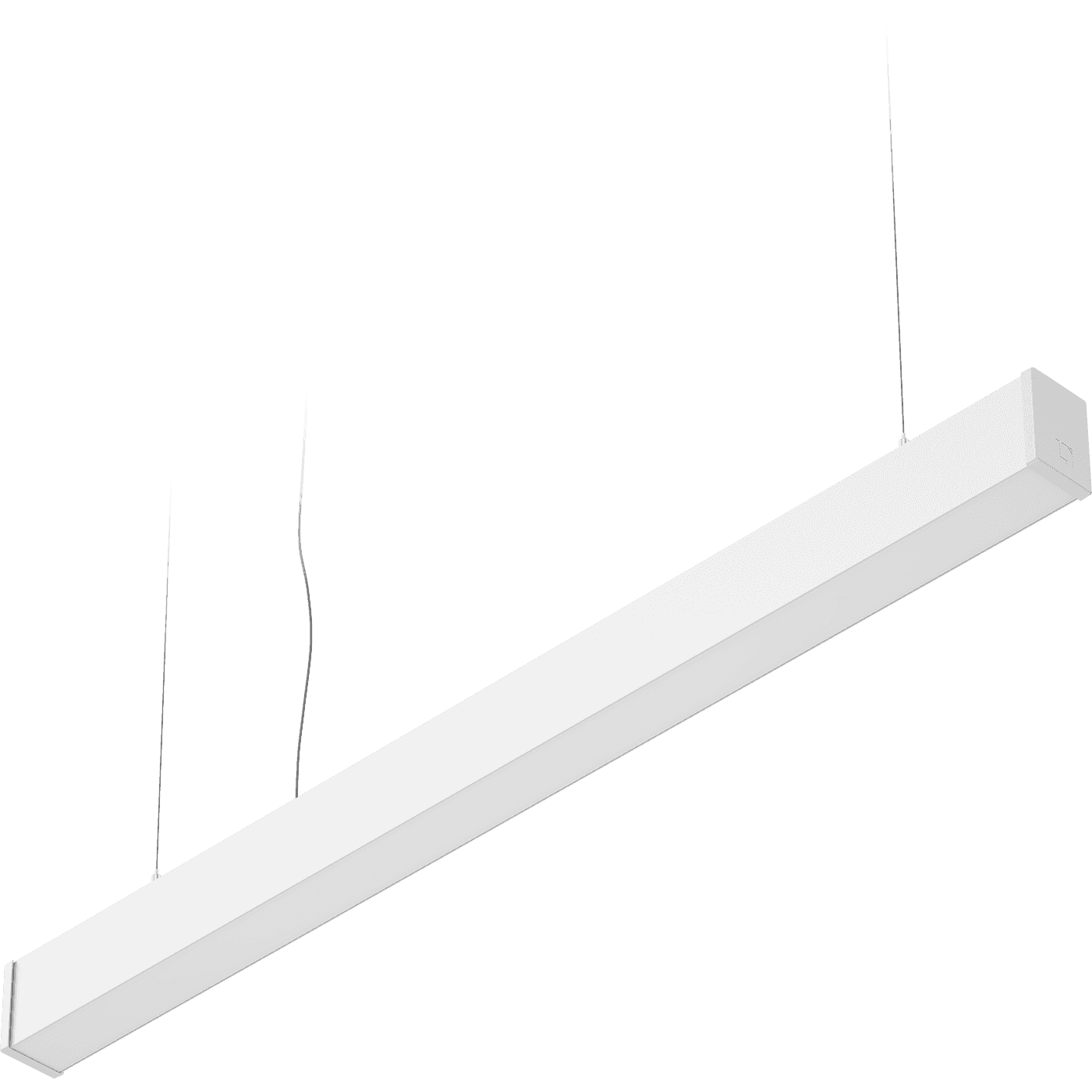

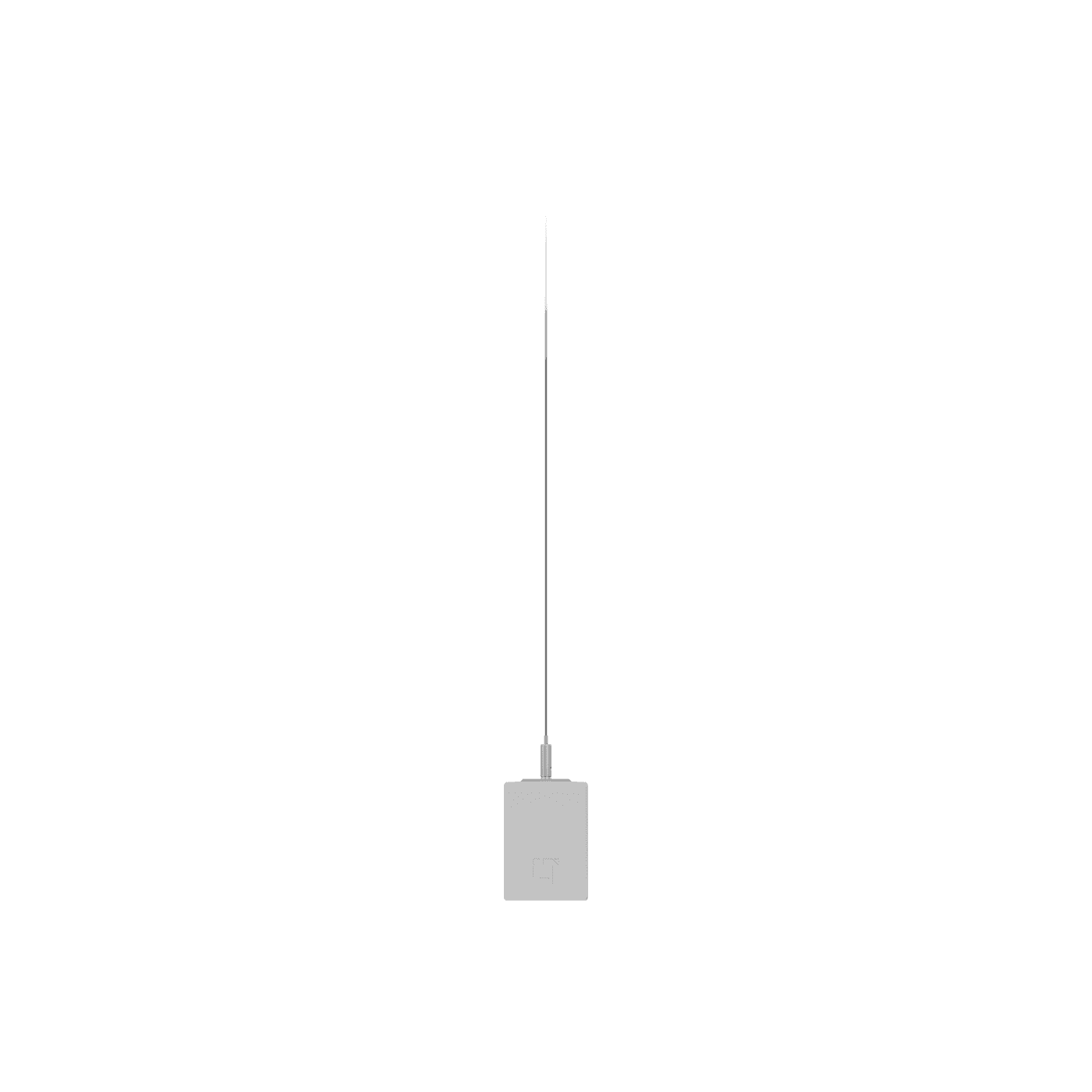

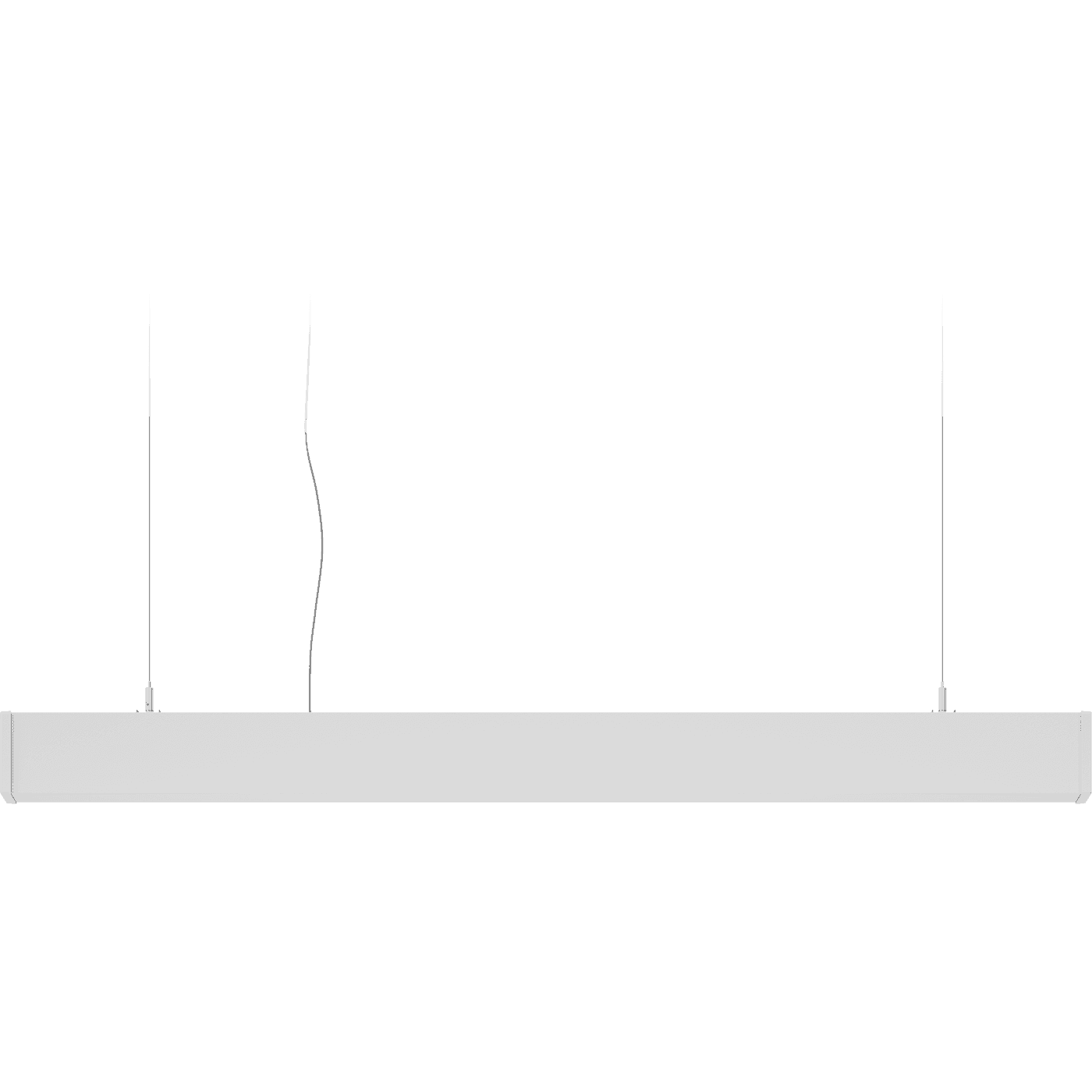

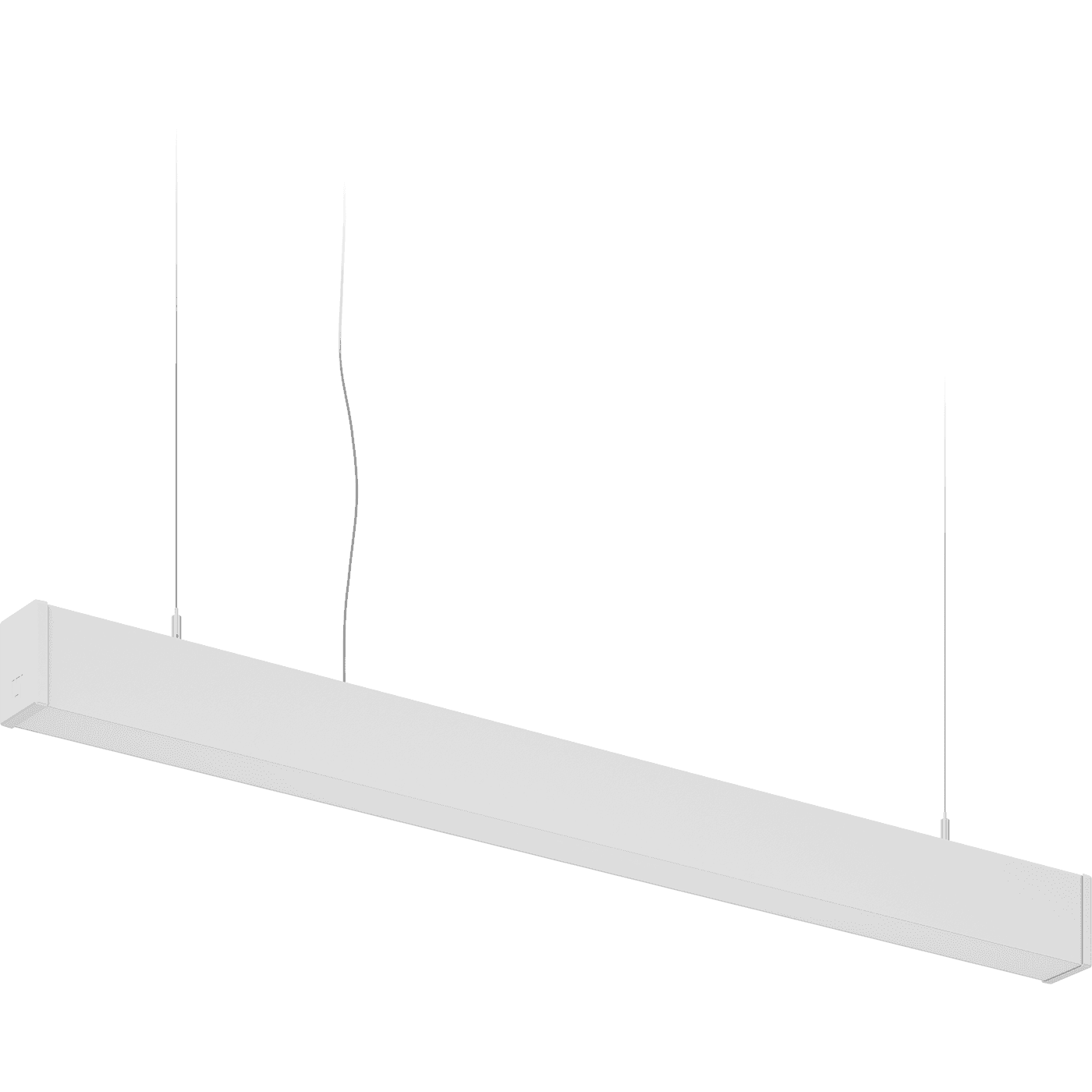

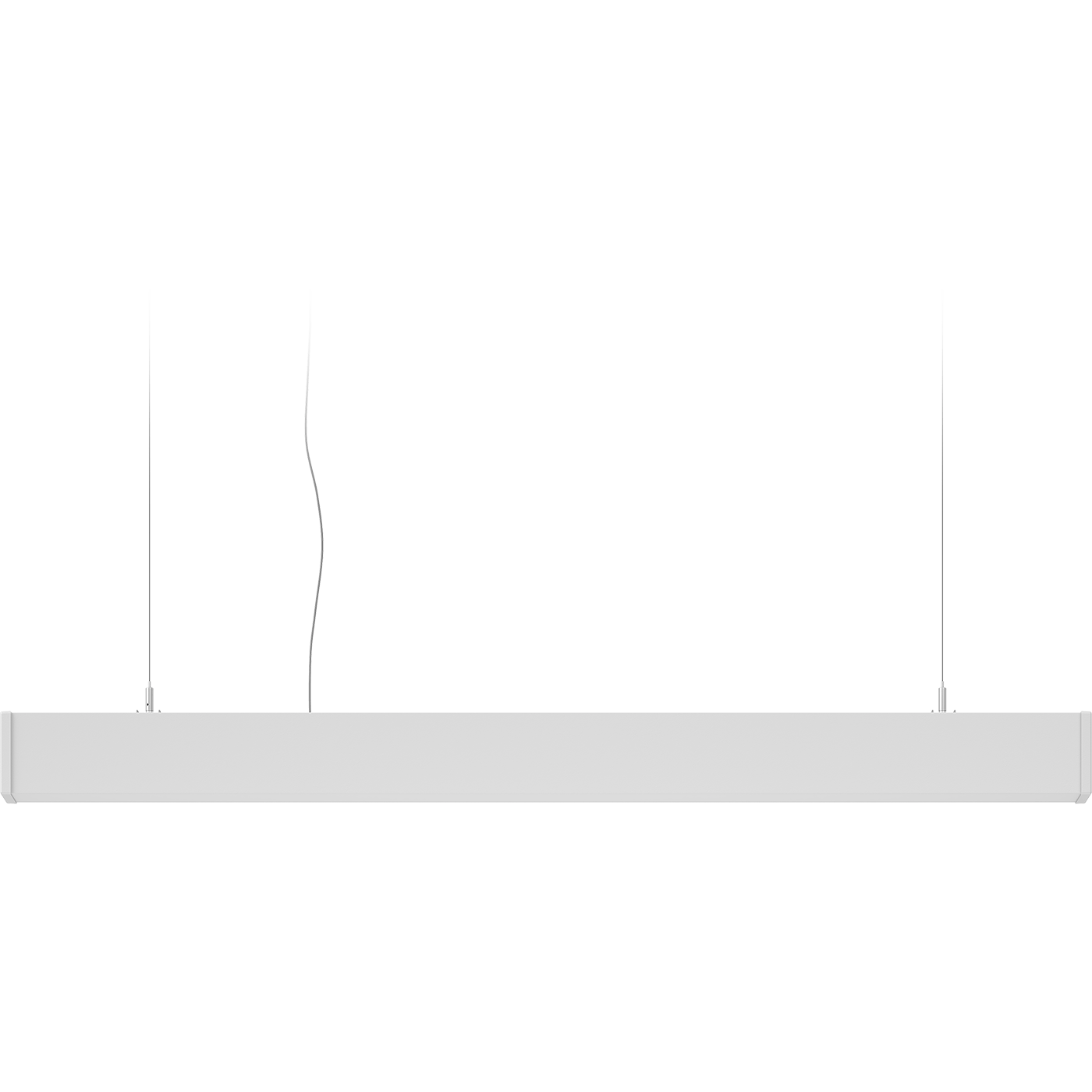

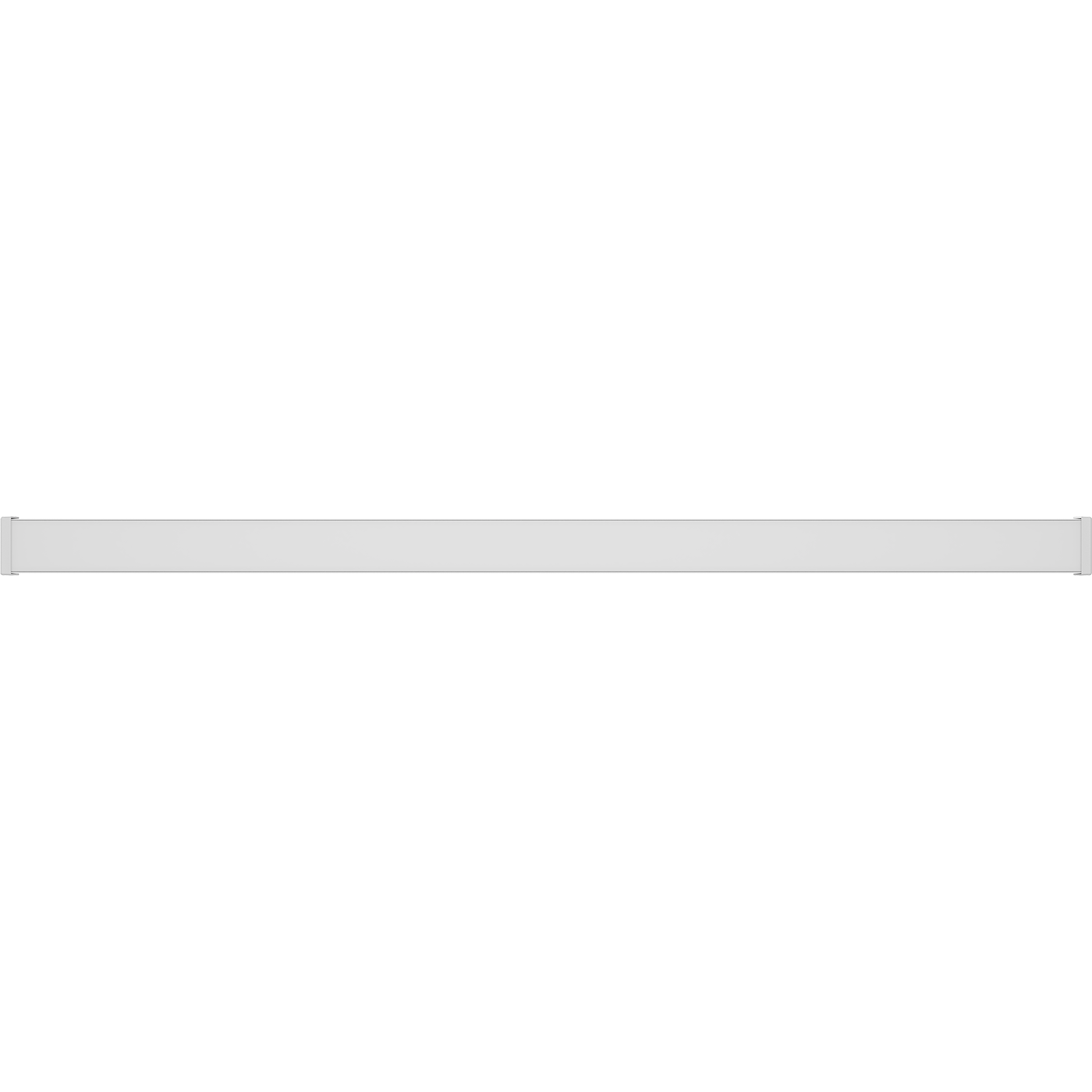

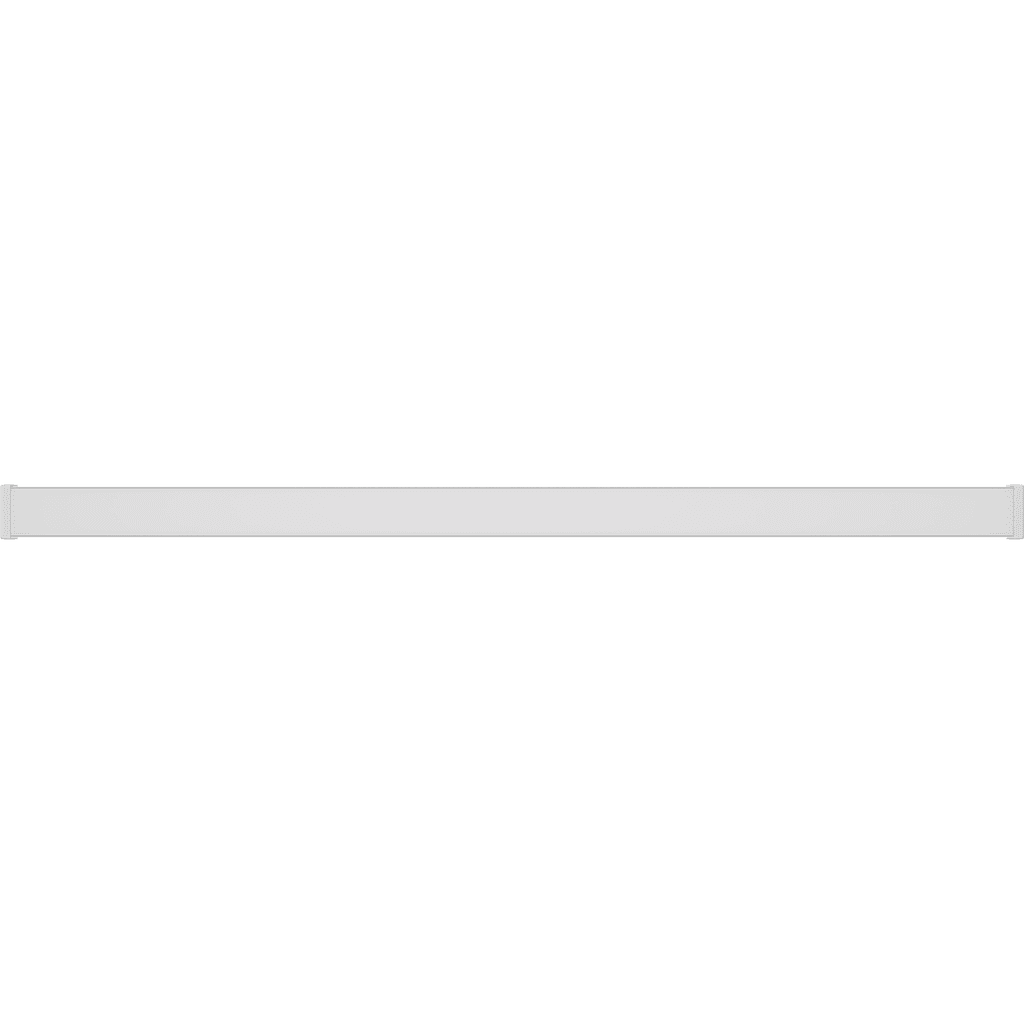

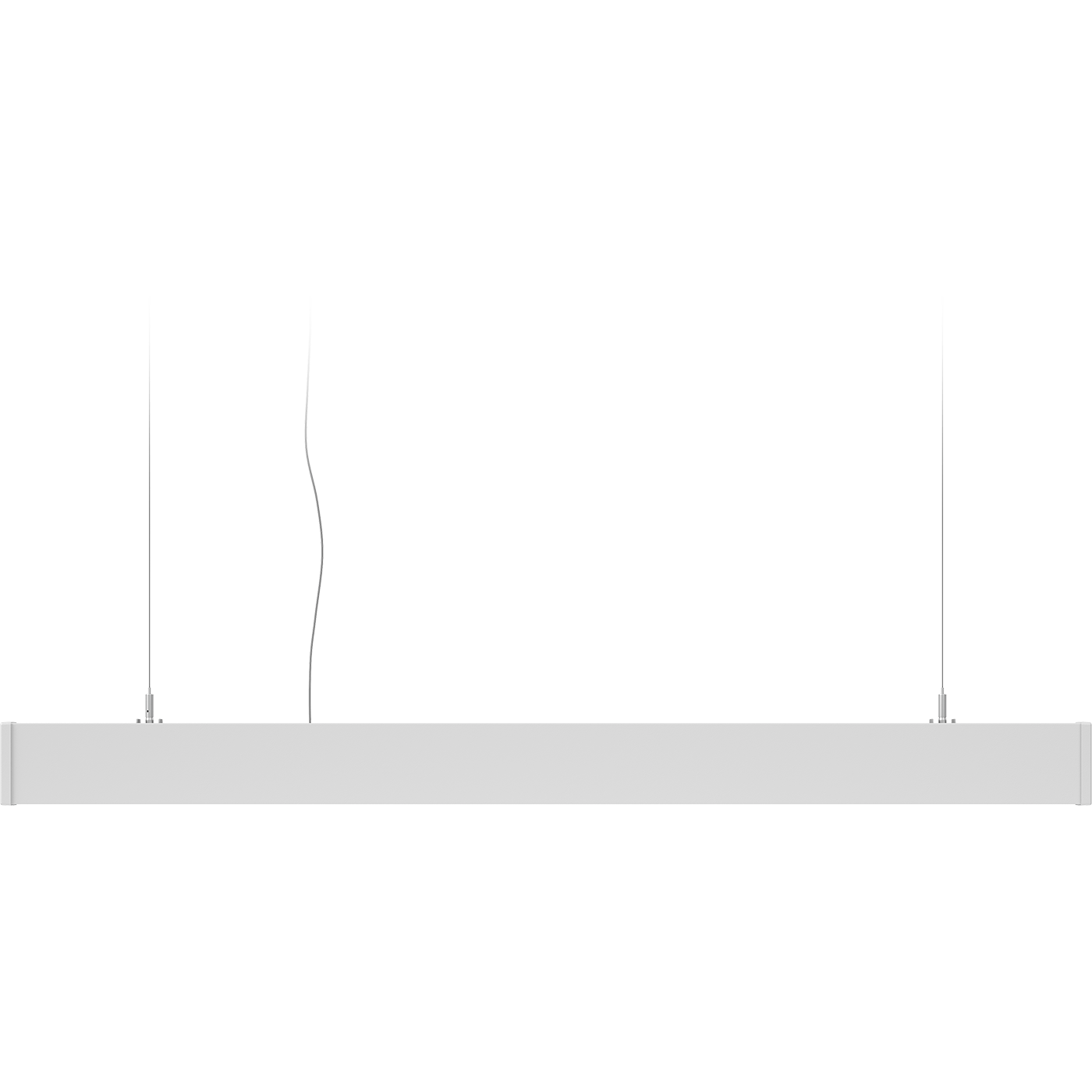

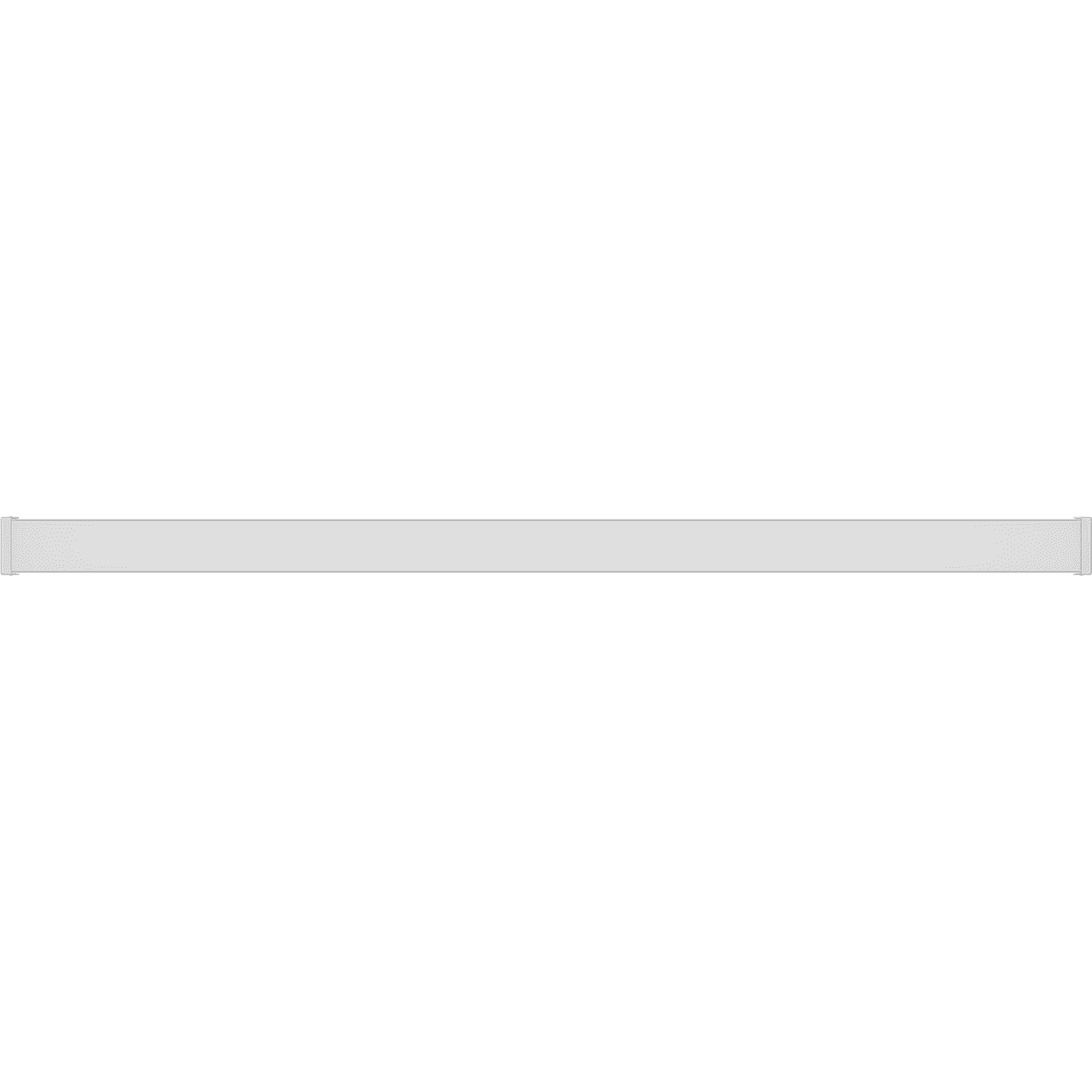

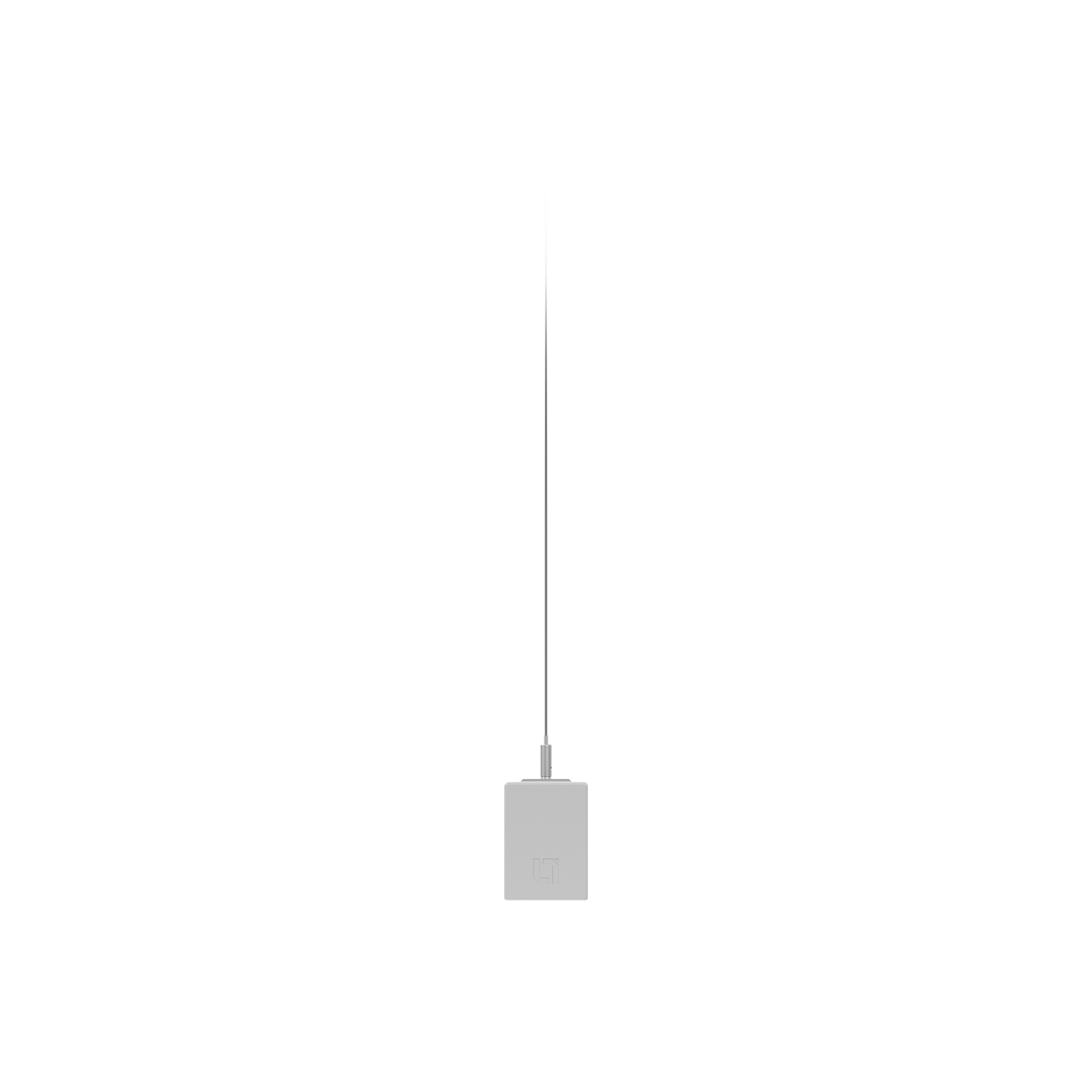

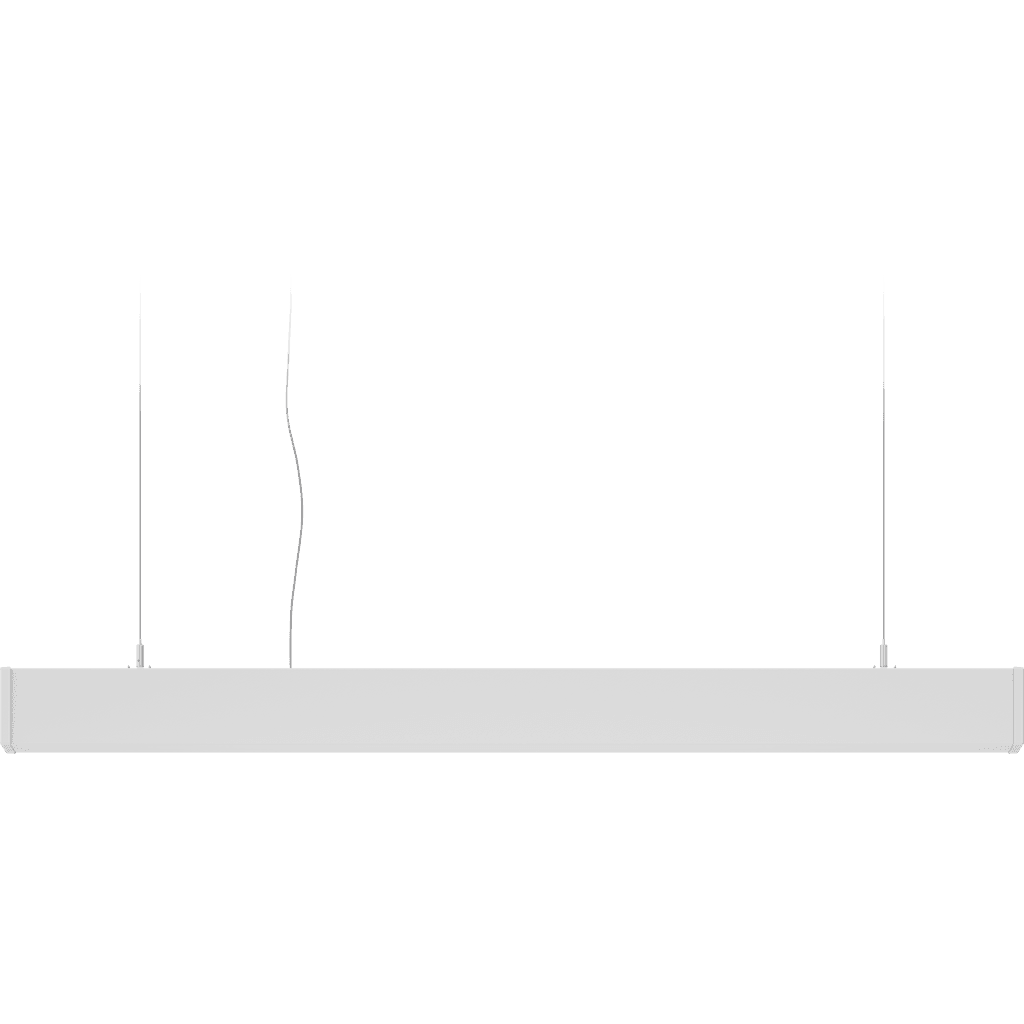

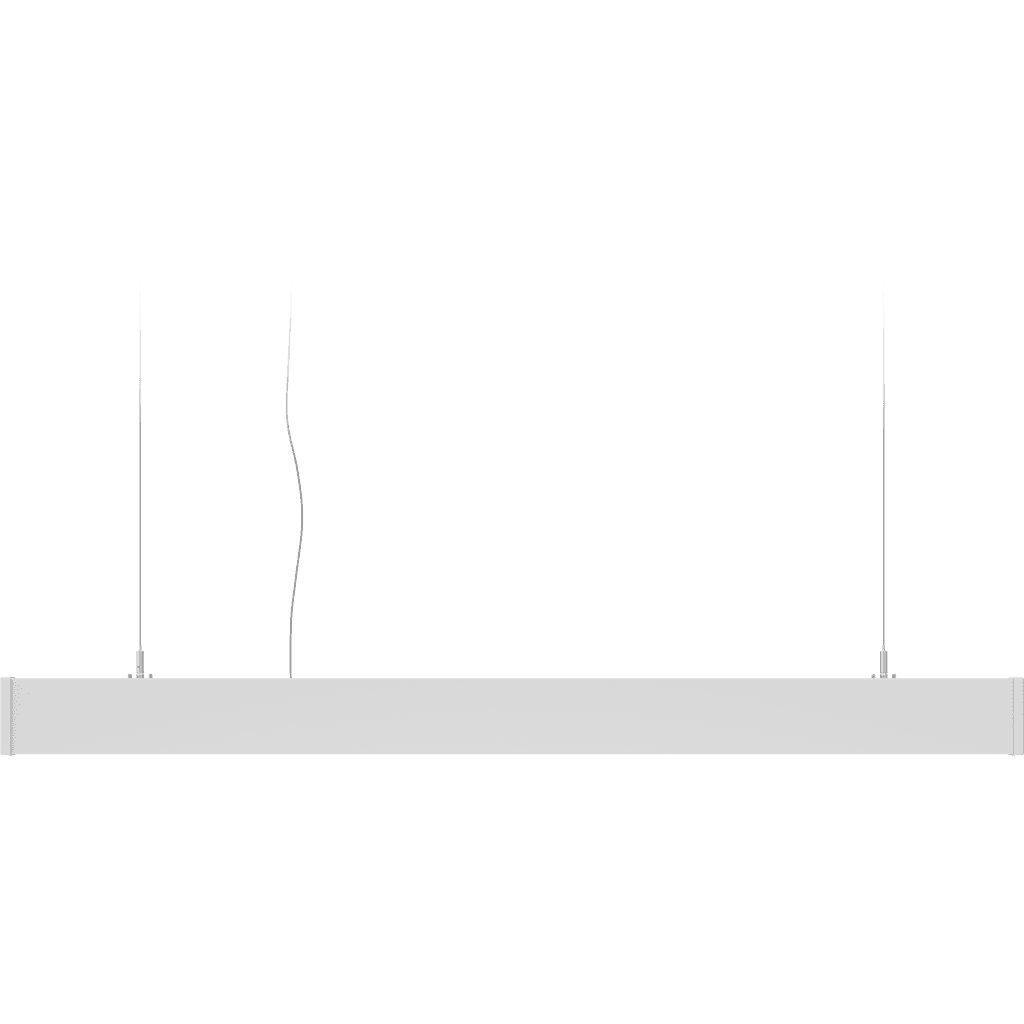

LINER 60/P (2100) 840 WH up/down
_840_wh_up_down.jpg&w=1920&q=50)
_840_wh_up_down.jpg&w=1024&q=50)
LINER 60/P (2100) 840 WH up/down
66 Wluminaire power
7200 lmlight flow
109 lm/Wenergy efficiency
code1473006010
color temperature4000
beam angleD120
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
electric shock protection
Istarting current
35 Aluminaire power
66 Wpower factor
> 0,95supply voltage
230 Velectrical
electric shock protection
I
starting current
35 A
luminaire power
66 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP40
material
Алюминий
housing color
Белый
length, mm
2115 mm
width, mm
66 mm
height, mm
93 mm
weight
6.3 kg
fire safety class
П-ІІІ
climatic performance
УХЛ4*
installation length, mm
800 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1473006010
energy efficiency class
A+
illuminating
color rendition index (CRI)
>80
light flow
7200 lm
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
energy efficiency
109 lm/W
model files
model files

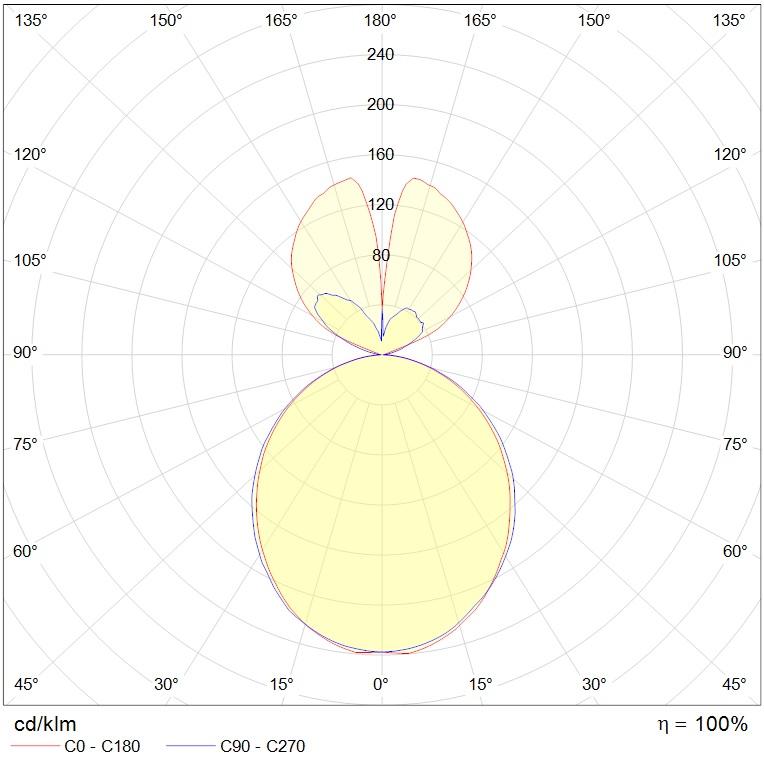

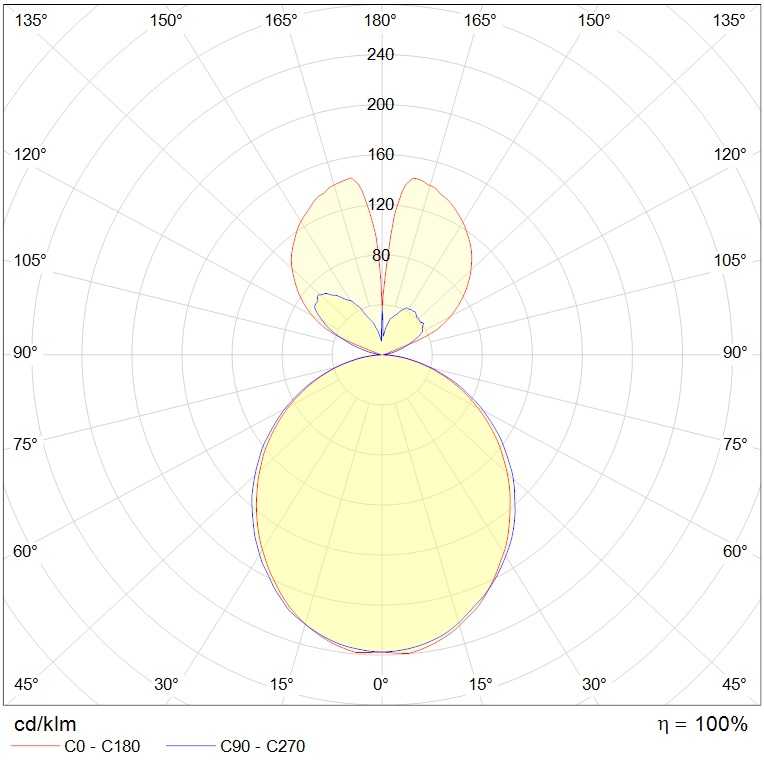

photometric files
сертификаты
photometric files
ies107 kB
jpg106.9 kB
ldt95 kB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
