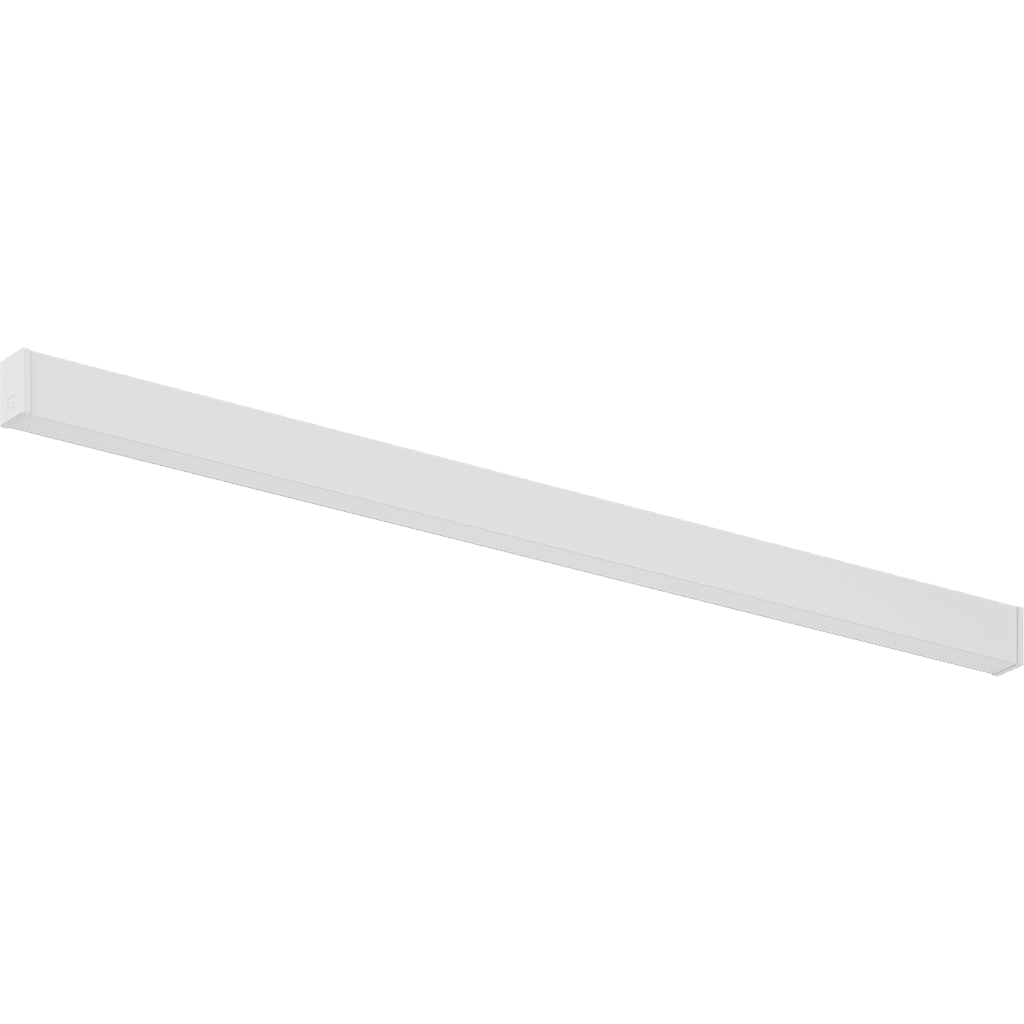

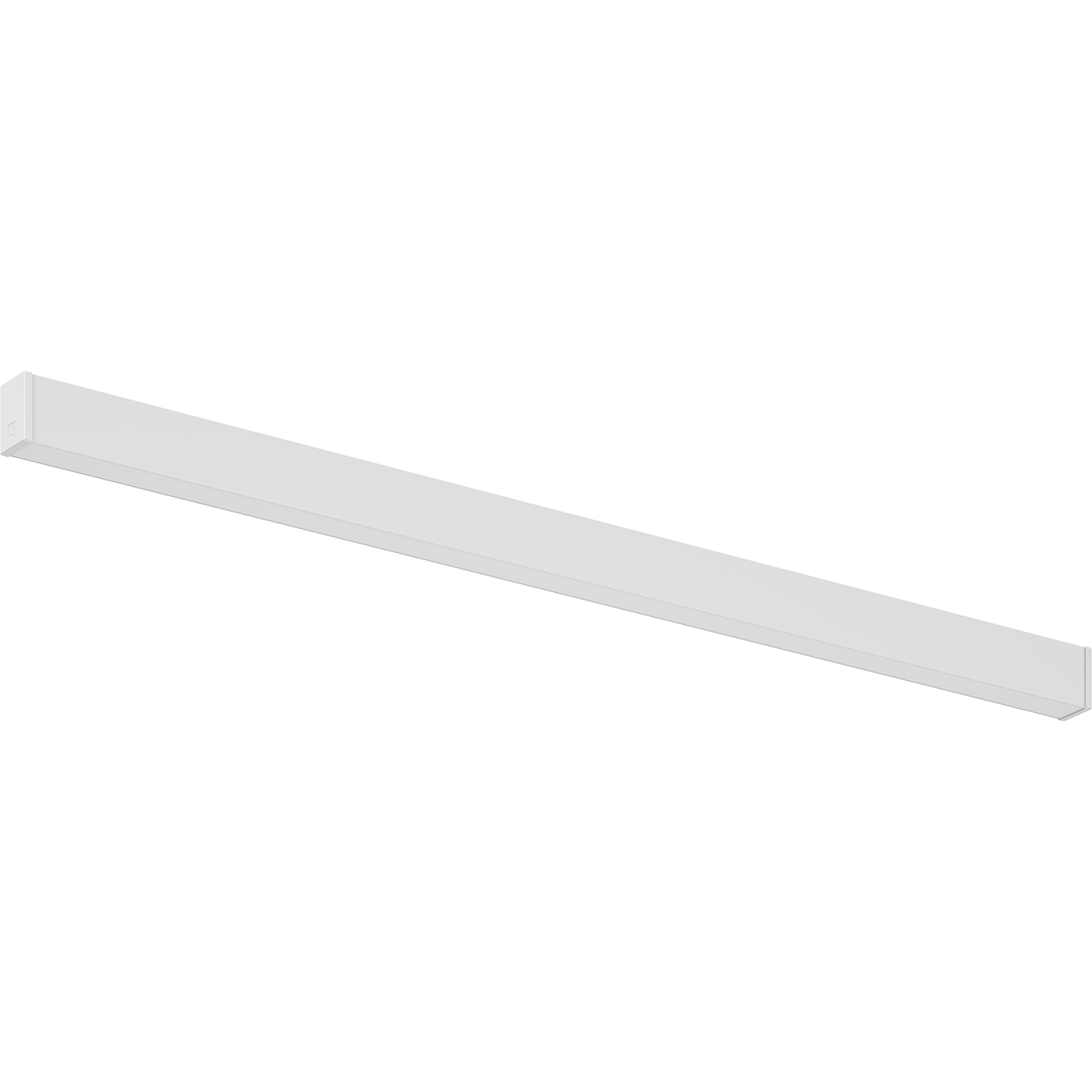

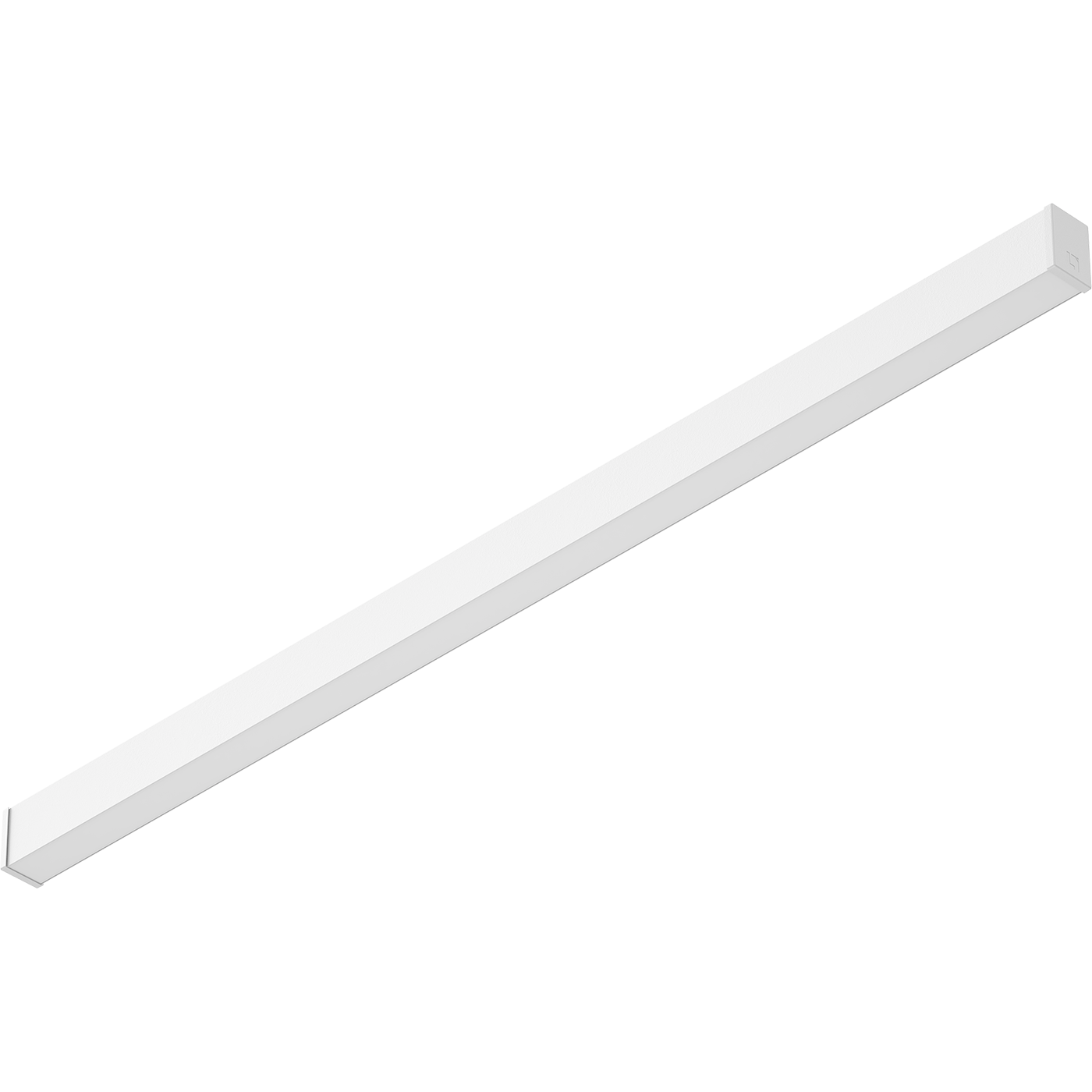

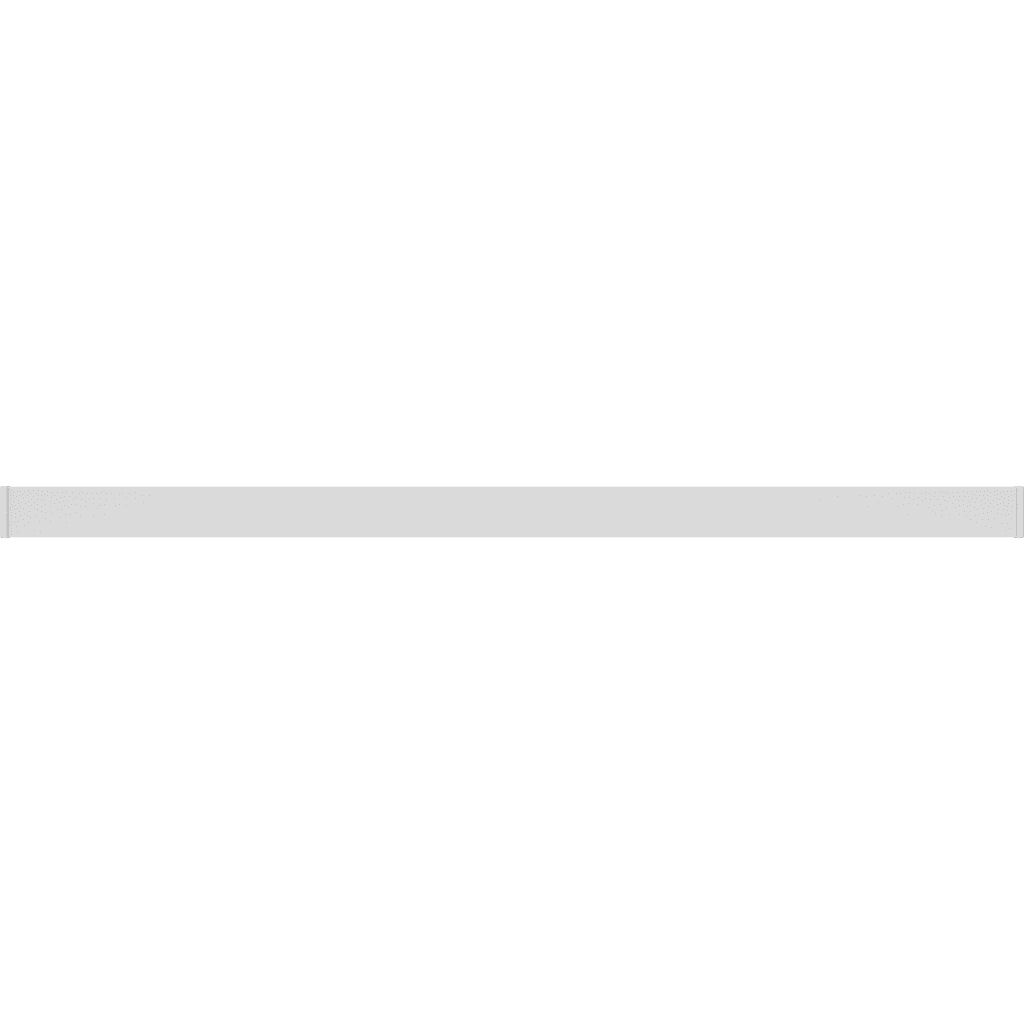

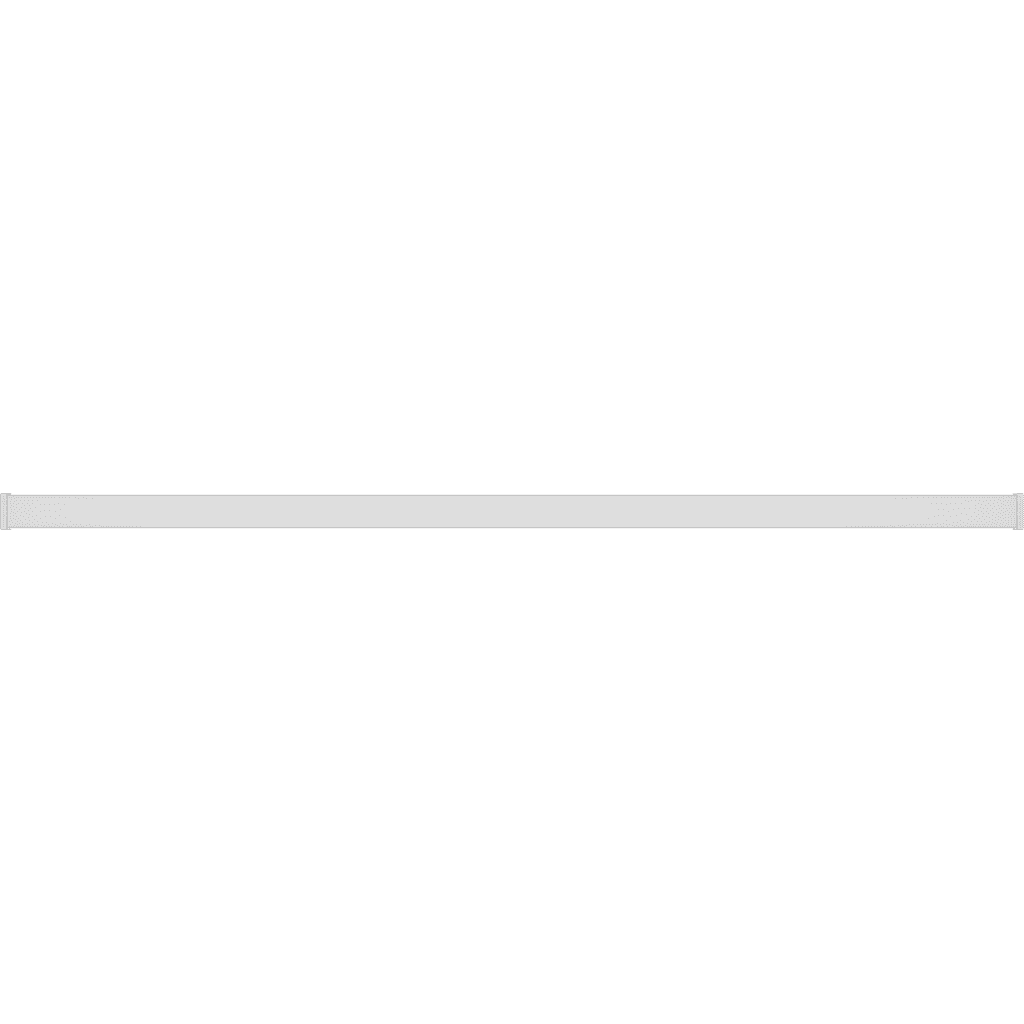

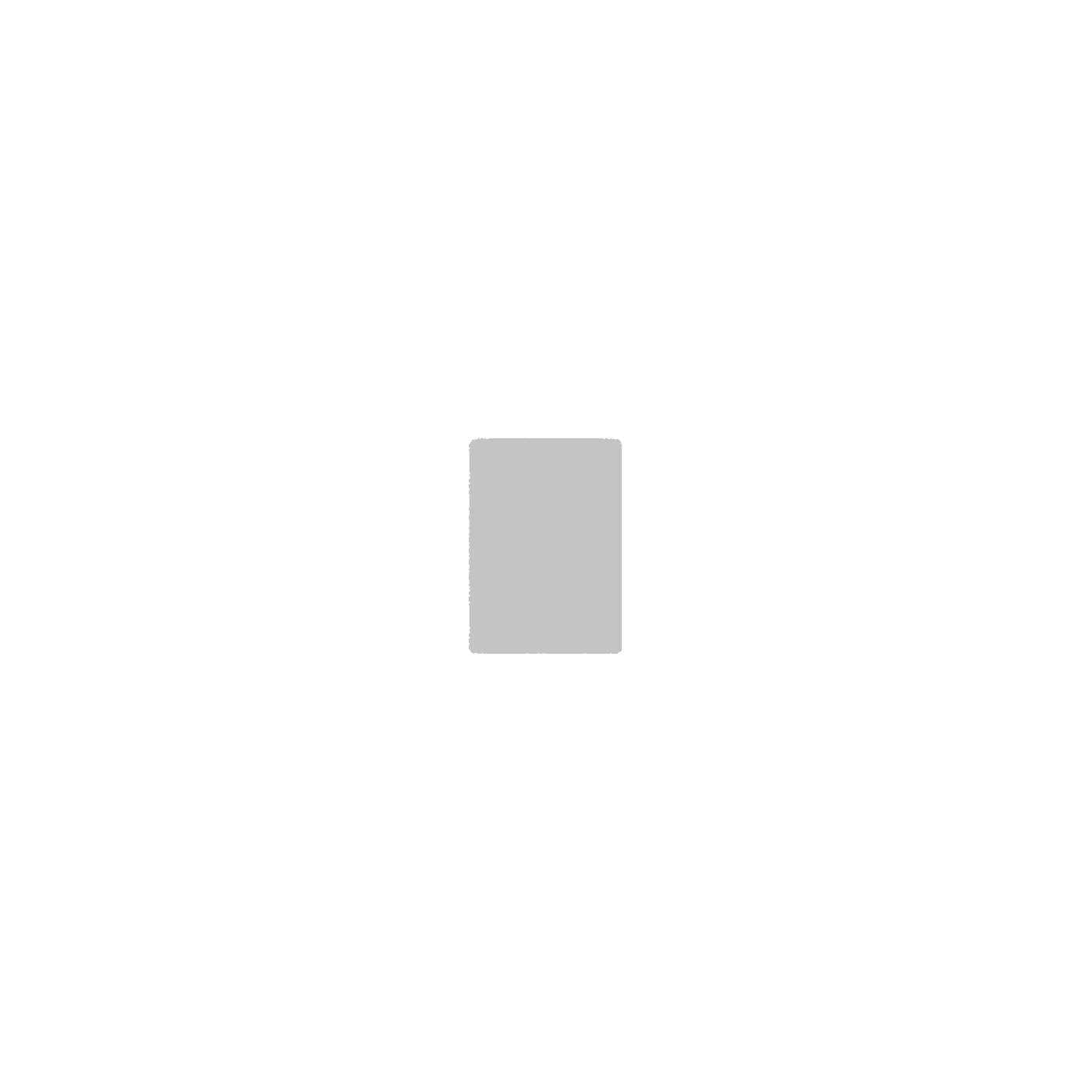

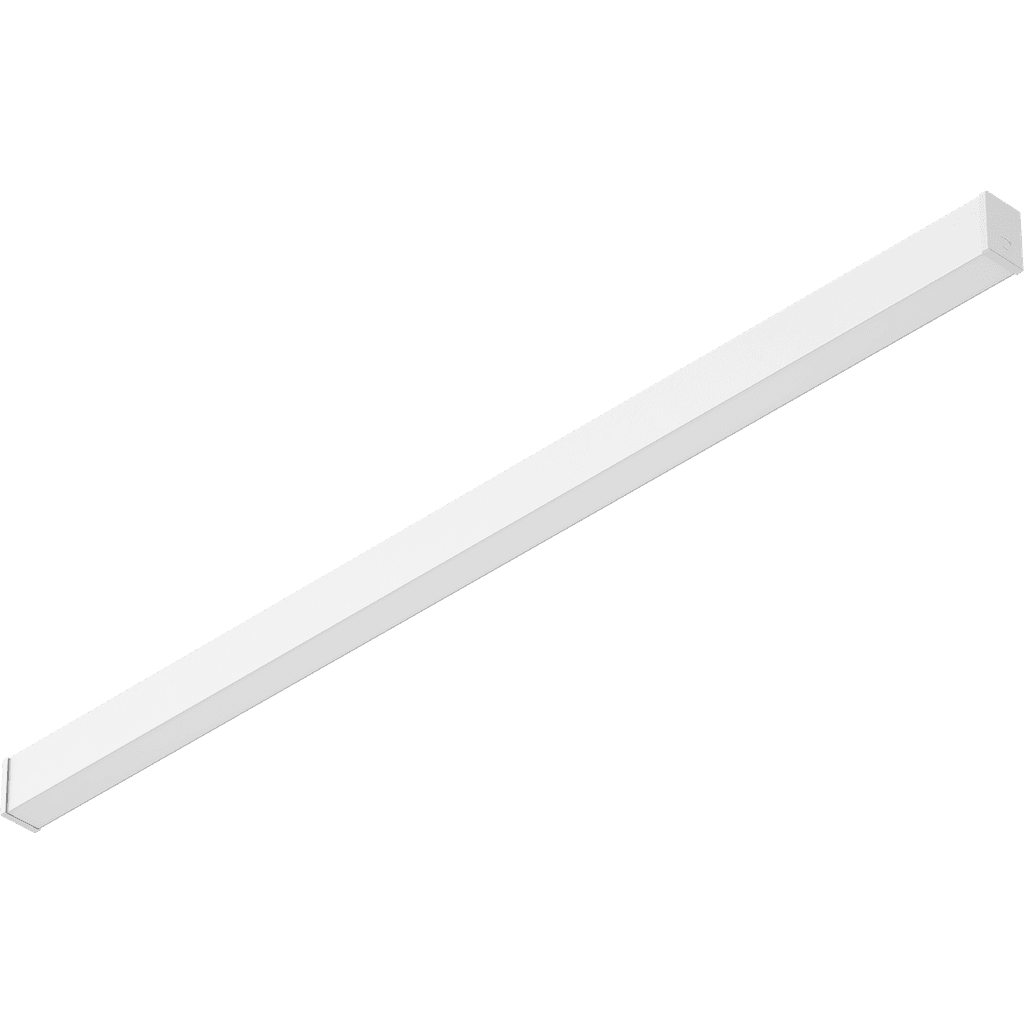

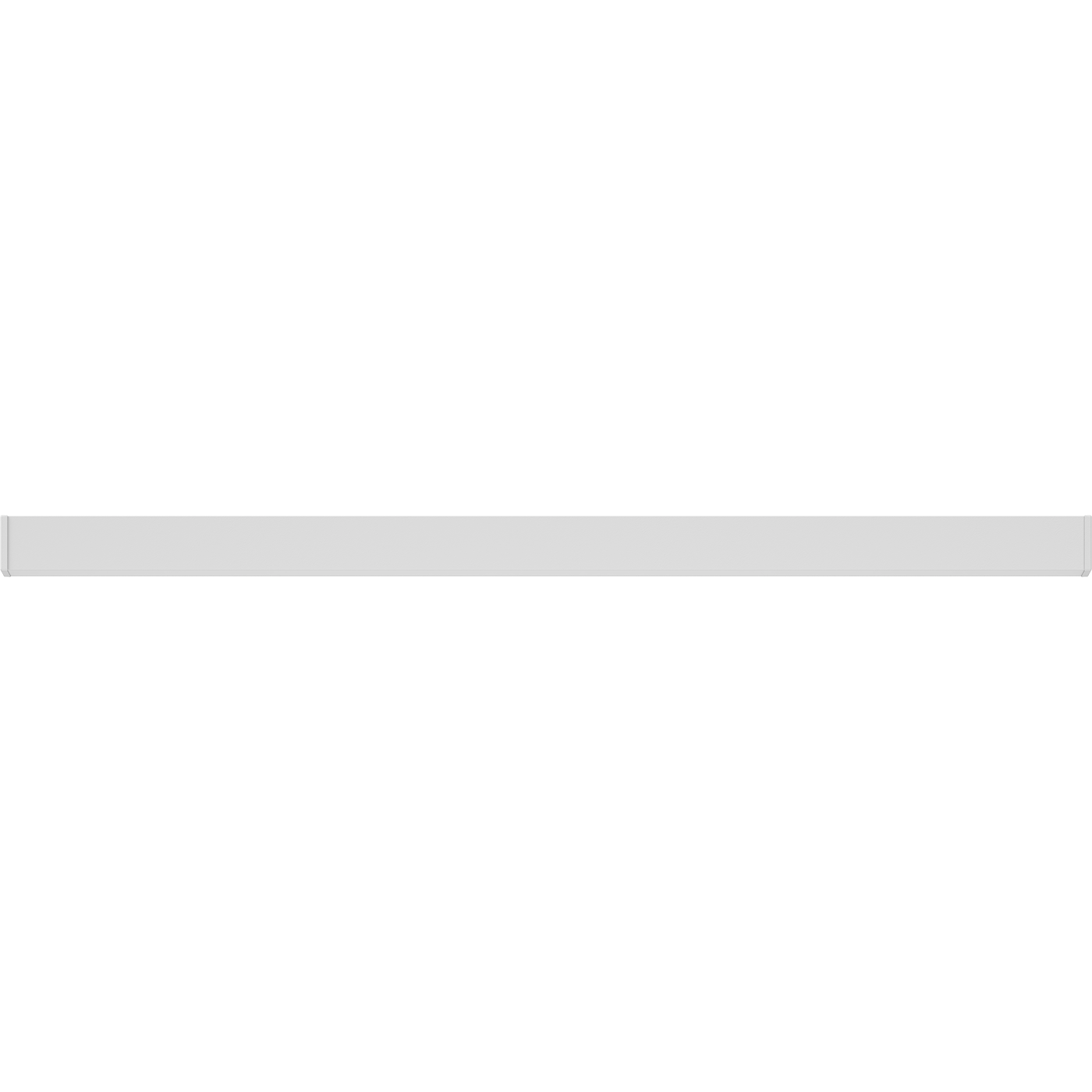

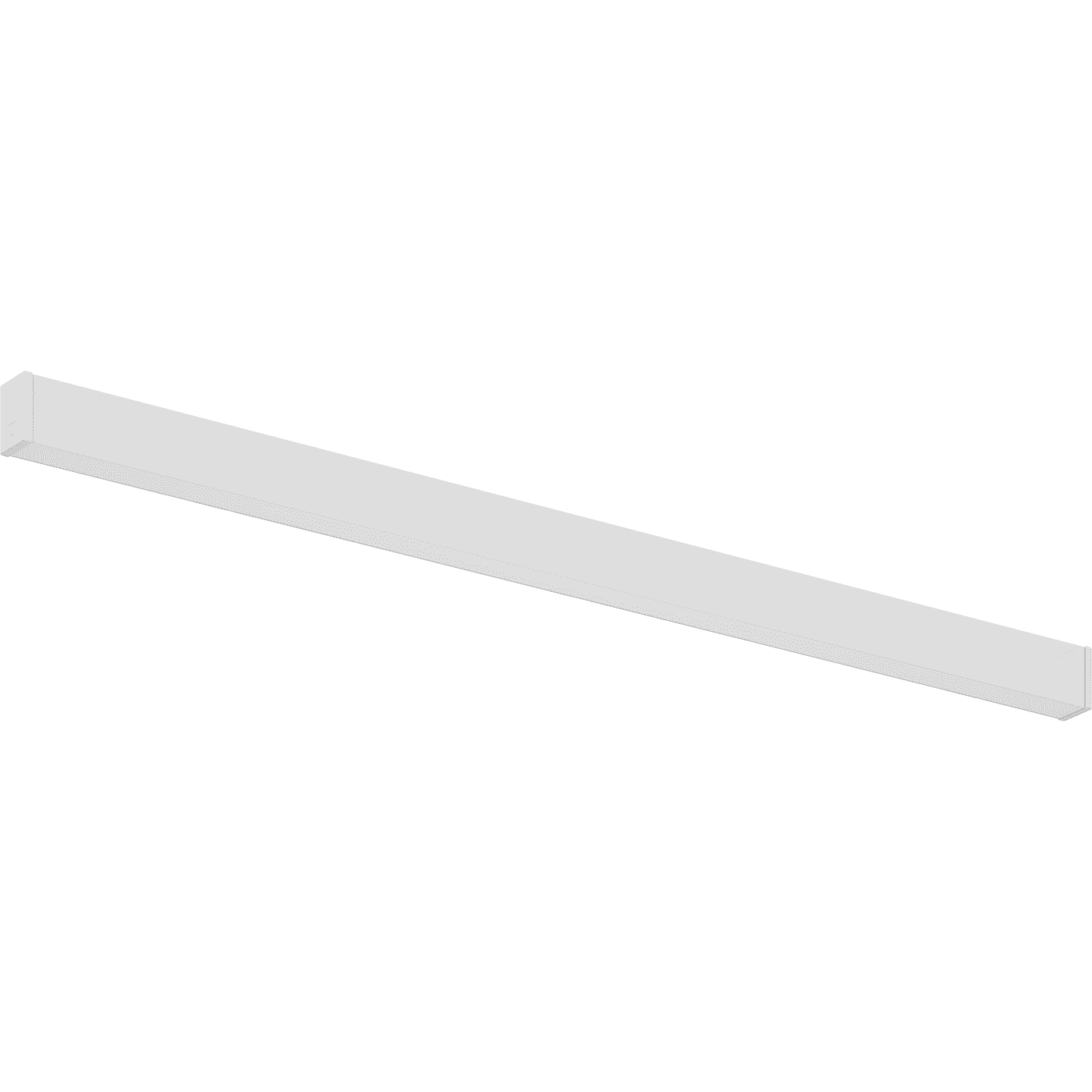

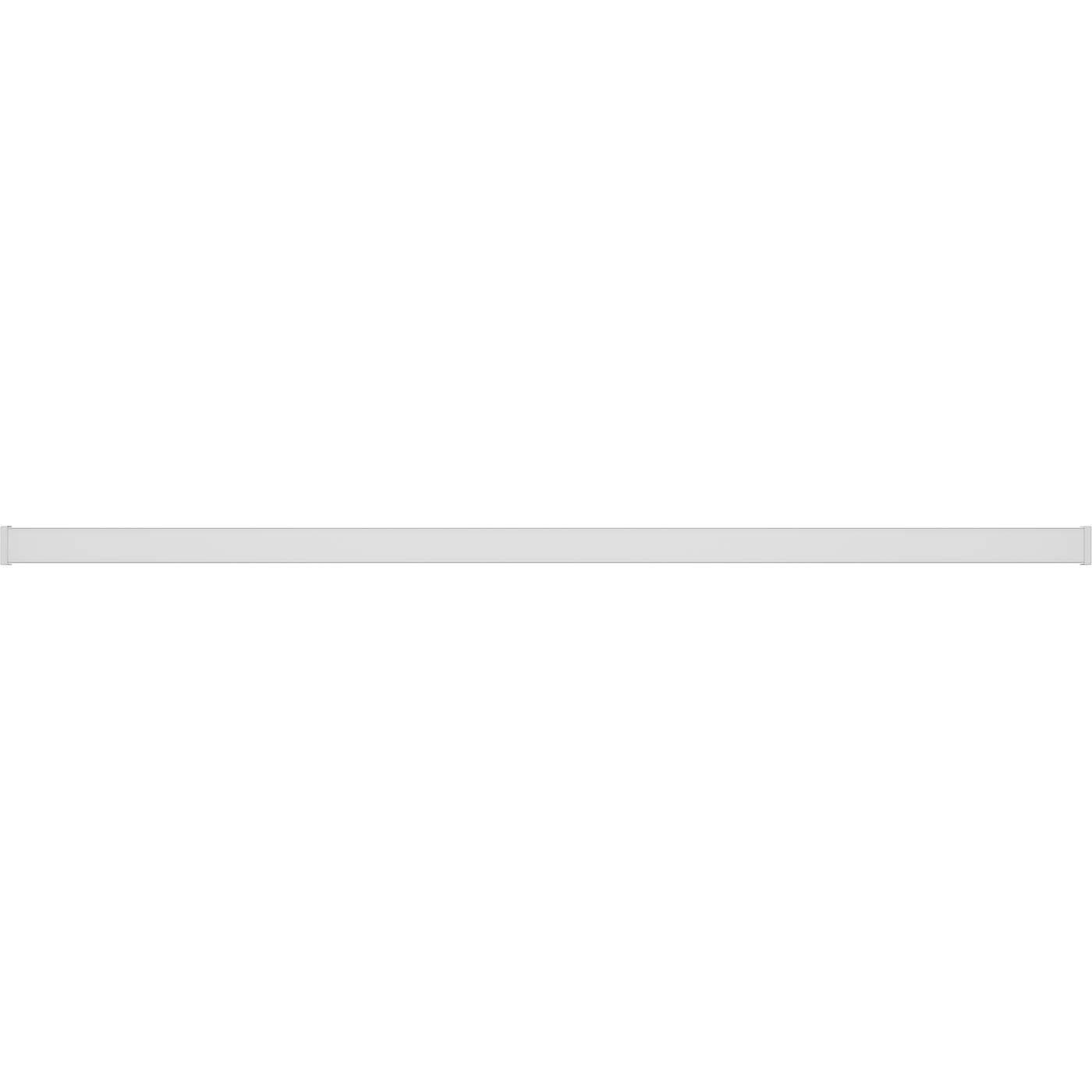

LINER 60 DR/S (600) 840 SL CC
model is discontinued
model is discontinued
LINER 60 DR/S (600) 840 SL CC
32 Wluminaire power
3200 lmlight flow
100 lm/Wenergy efficiency
code1473002850
color temperature4000 K
beam angleD120
old nameLINER/S 60 CC LED (600) S 4000K
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
100 lm/Wcolor rendition index (CRI)
>80light flow
3200 lmbeam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
3200 lm
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
32 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
1.5 mm2
constructional
length
1123 mm
width
60 mm
height
110 mm
installation length
850 mm
weight
3.2 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1473002850
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
