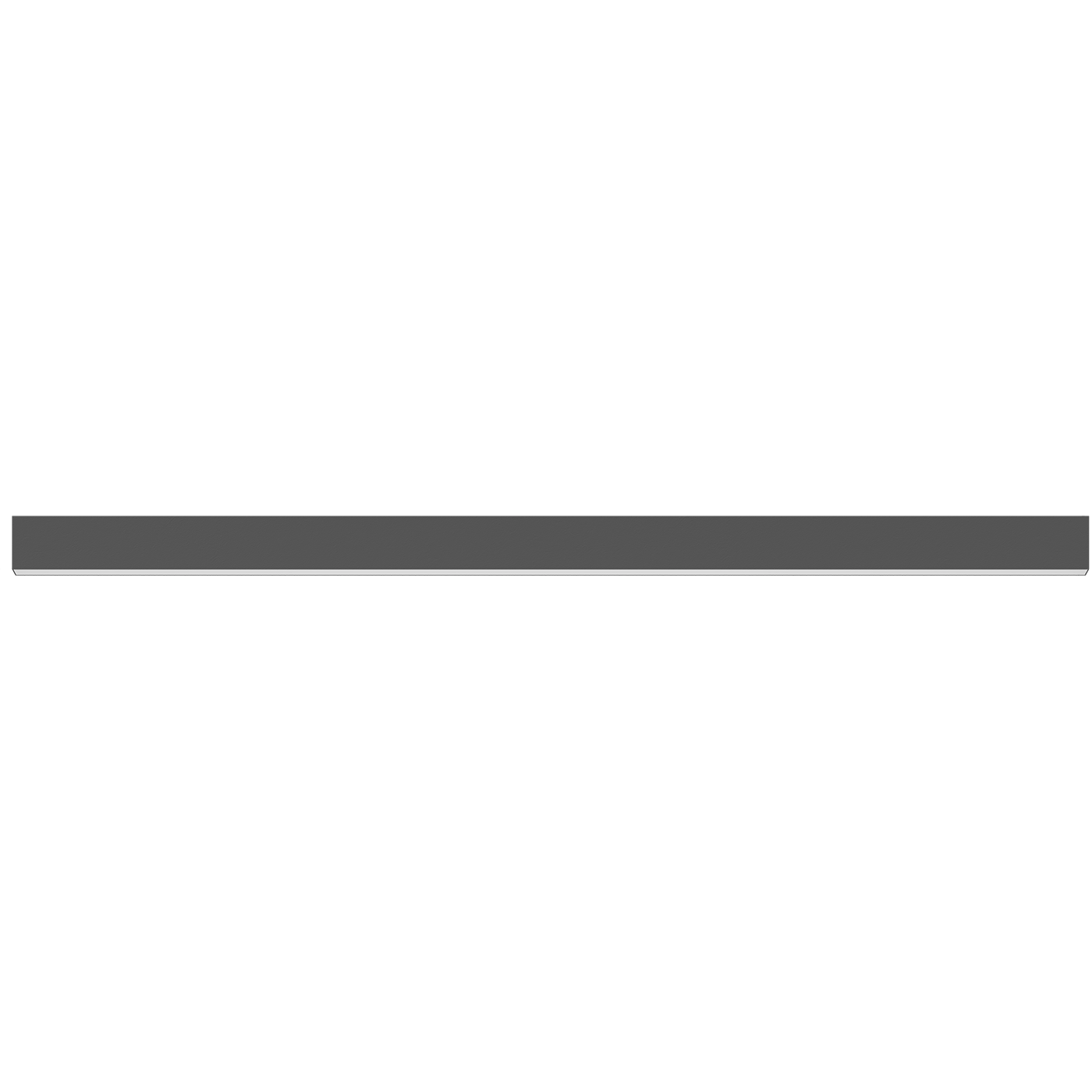

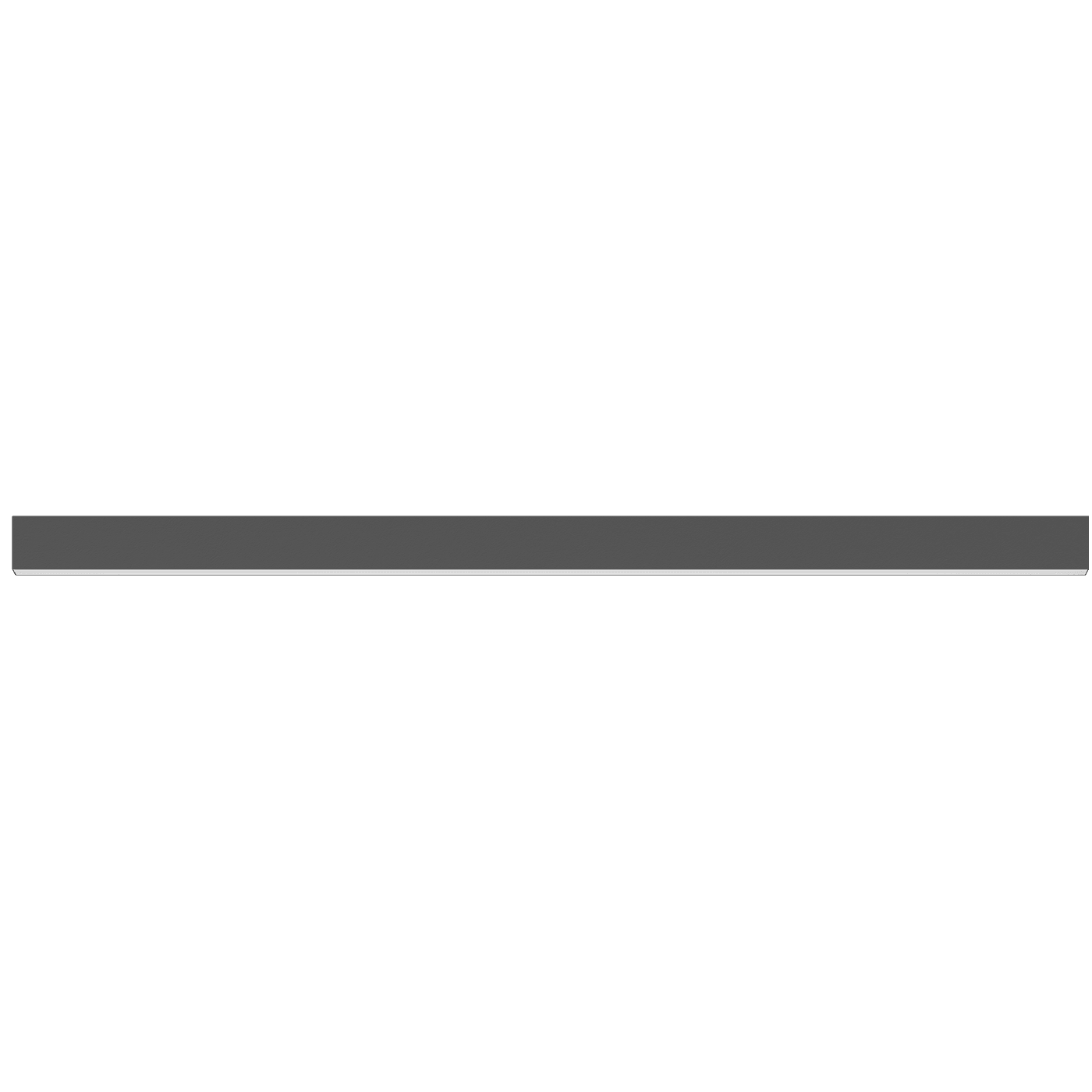

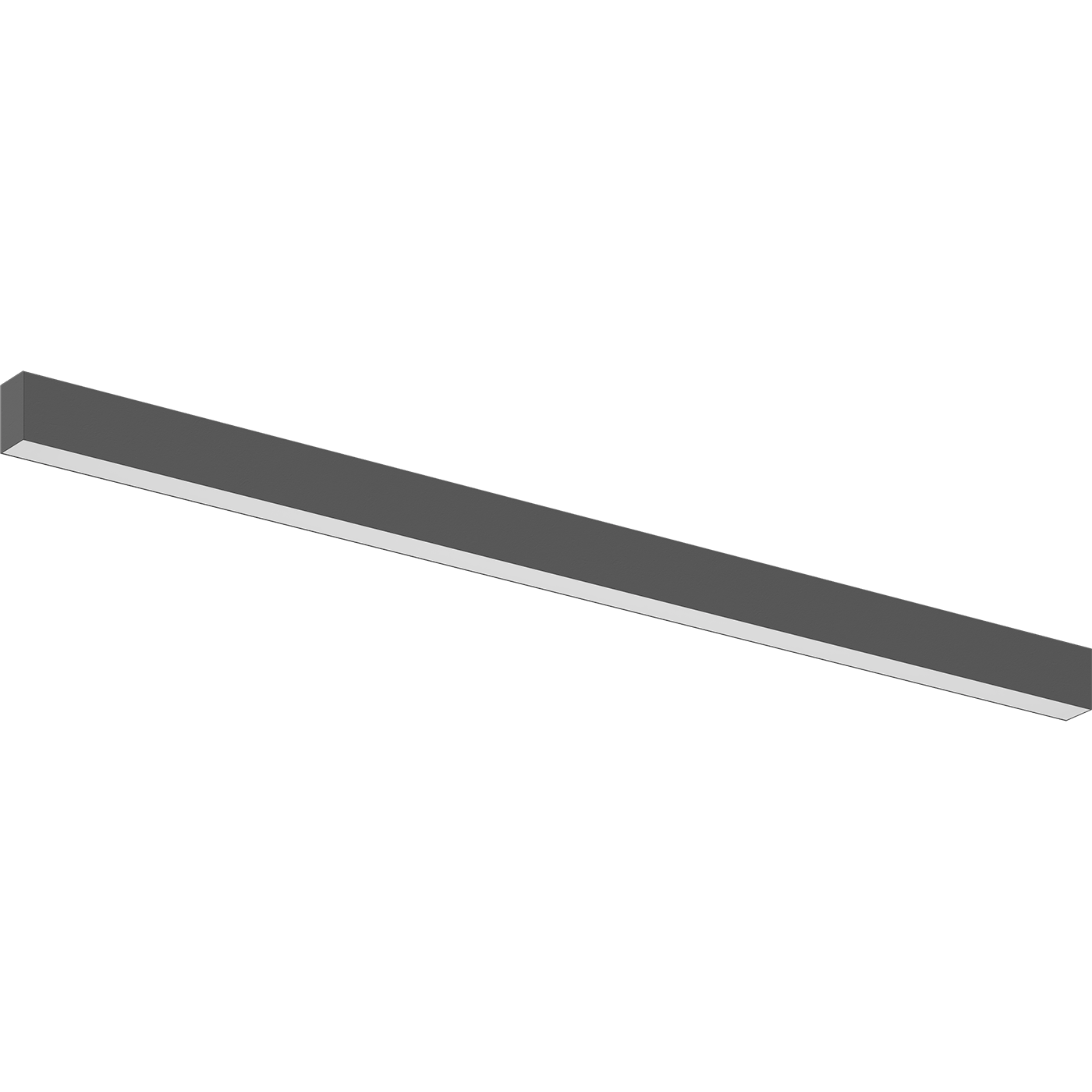

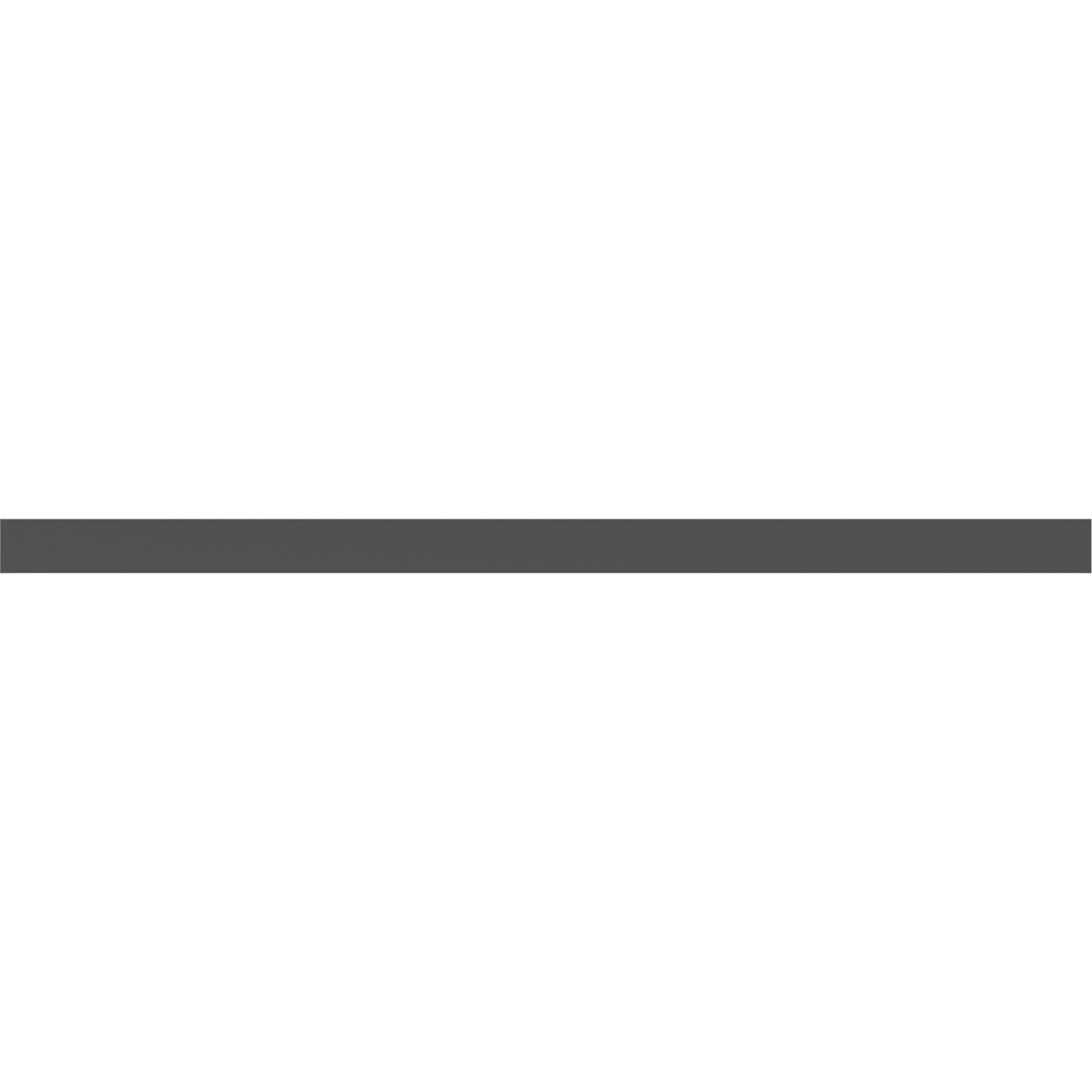

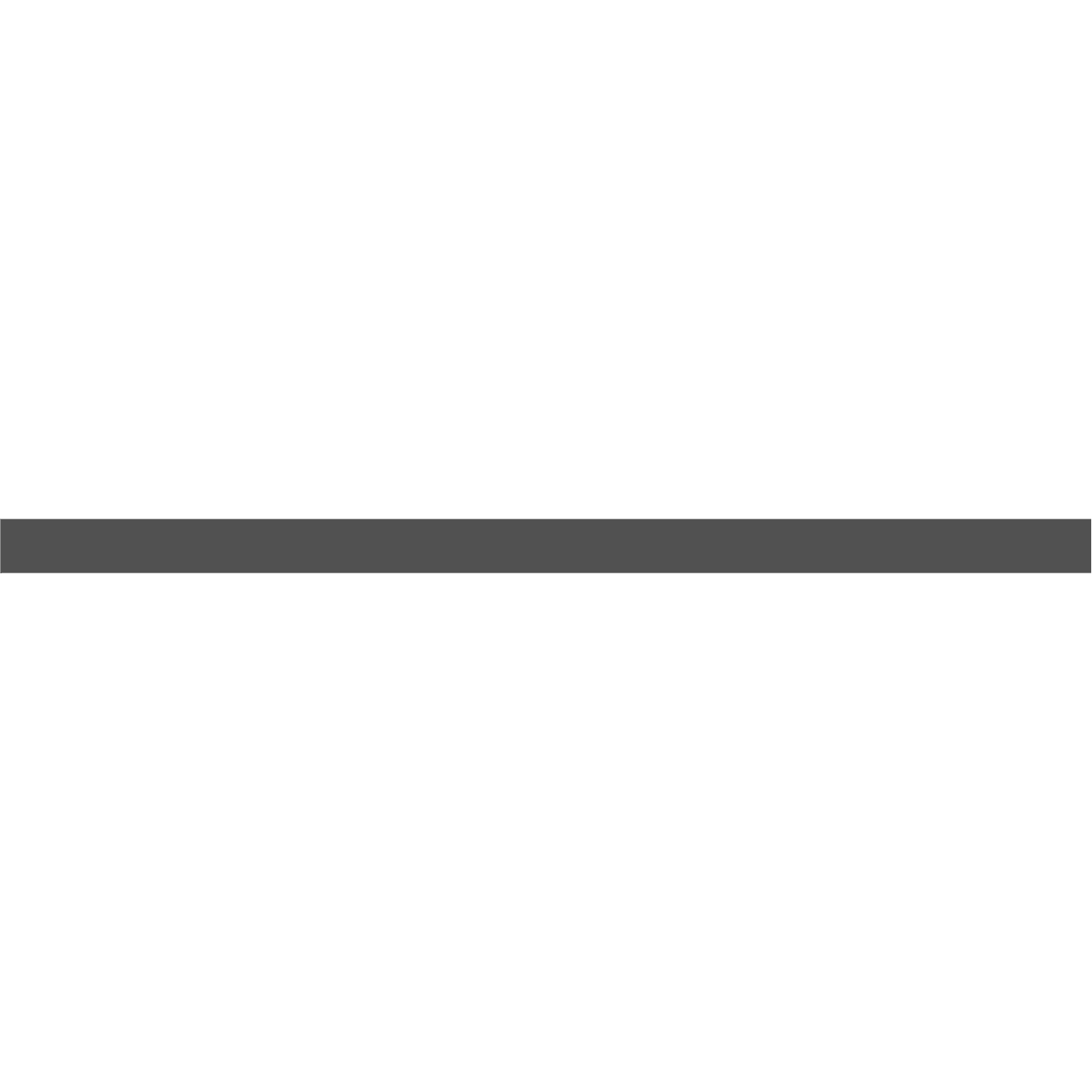

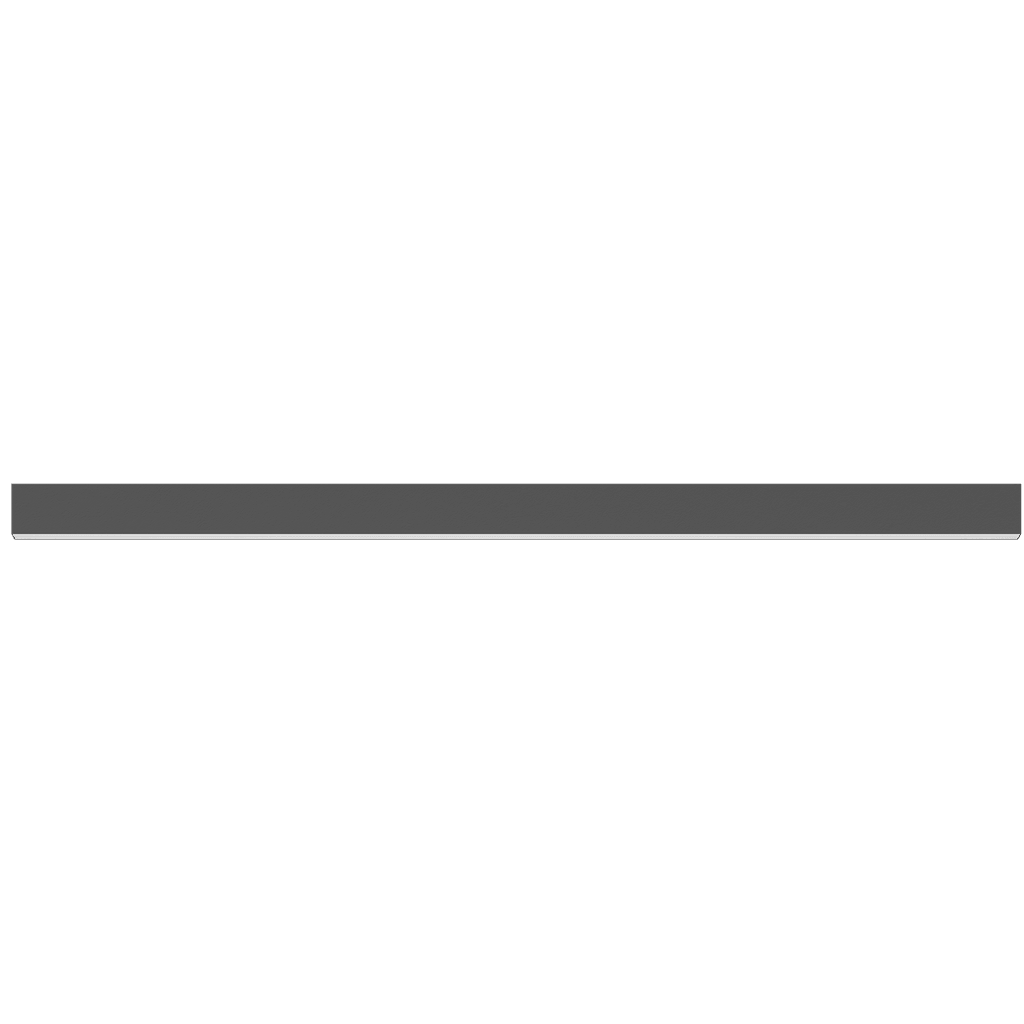

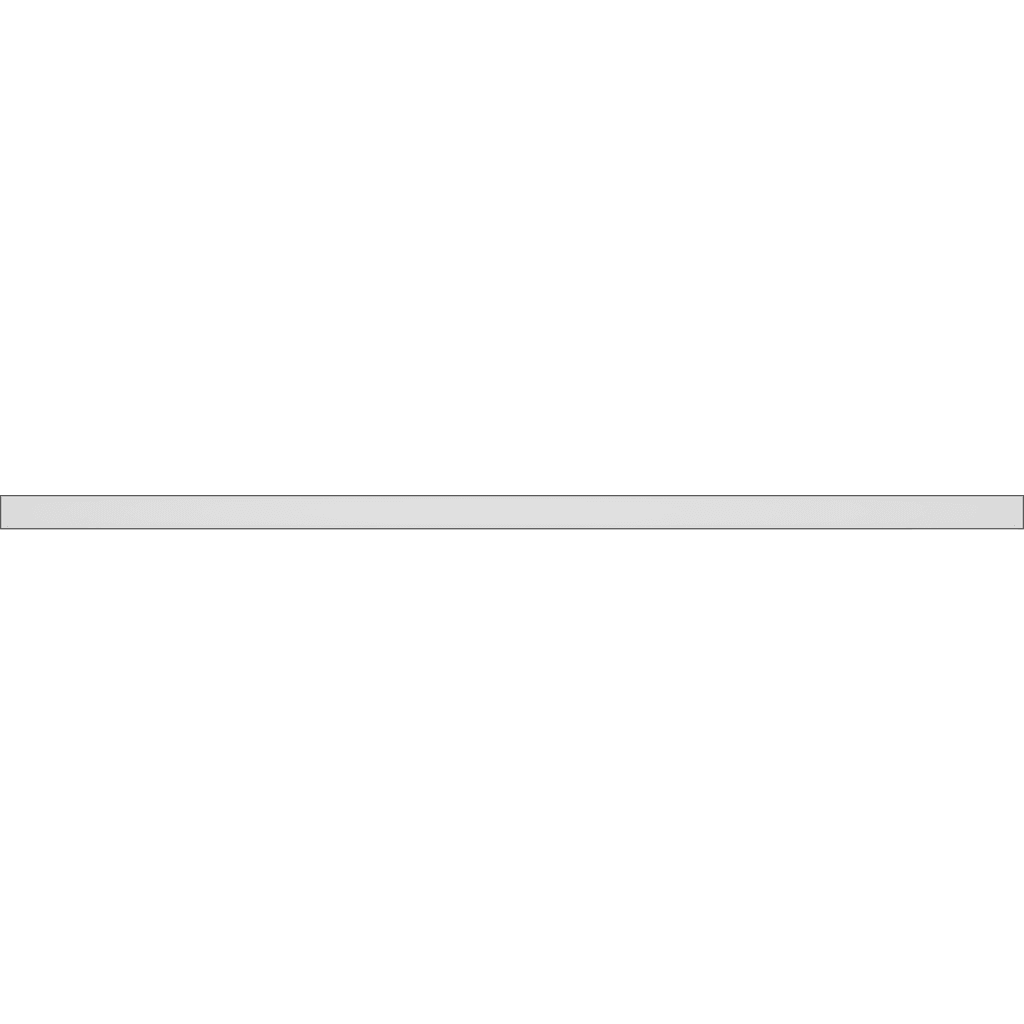

LINER 60 DR/S (1800) 840 BK
archive
_840_bk.jpg&w=1920&q=50)
_840_bk.jpg&w=1024&q=50)
archive

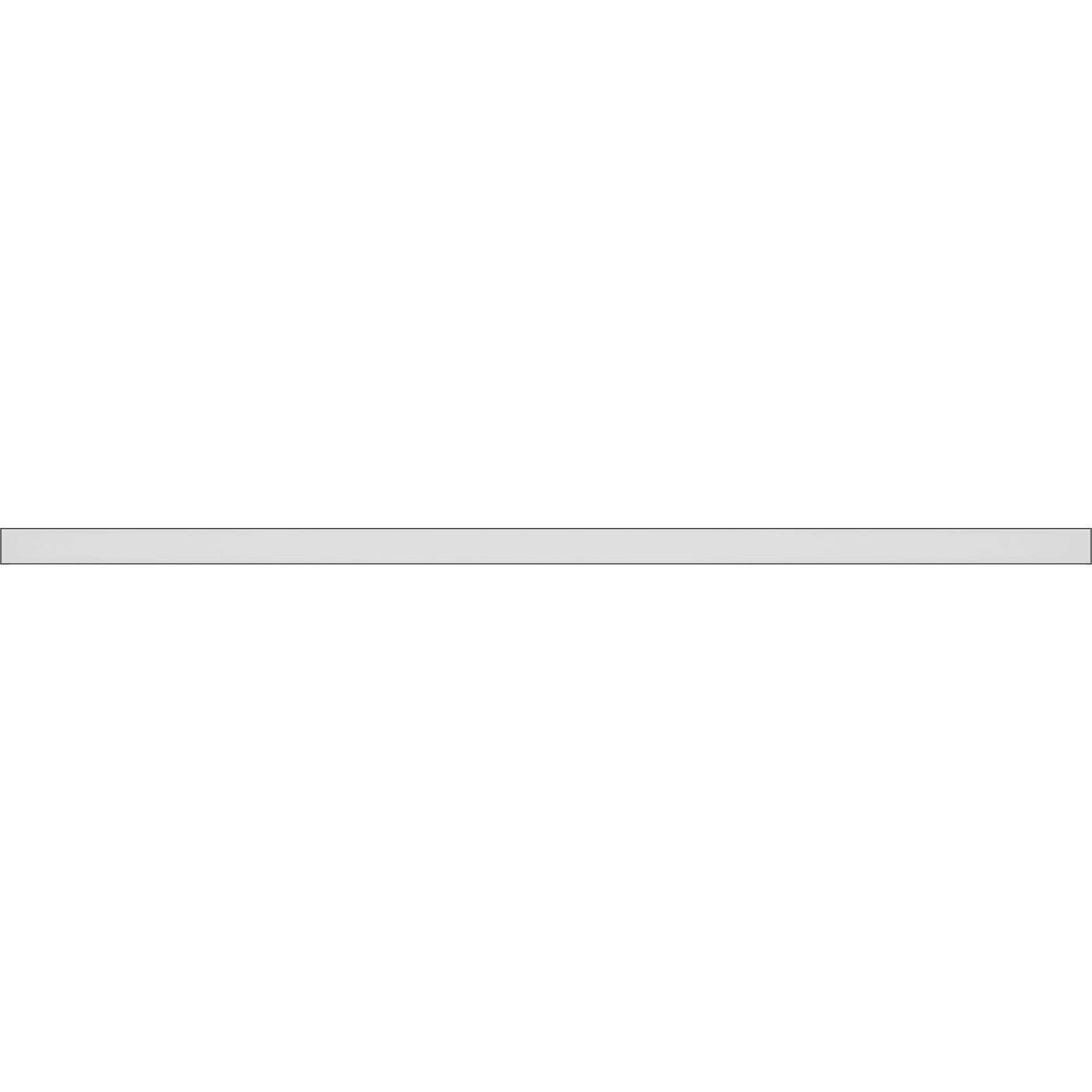

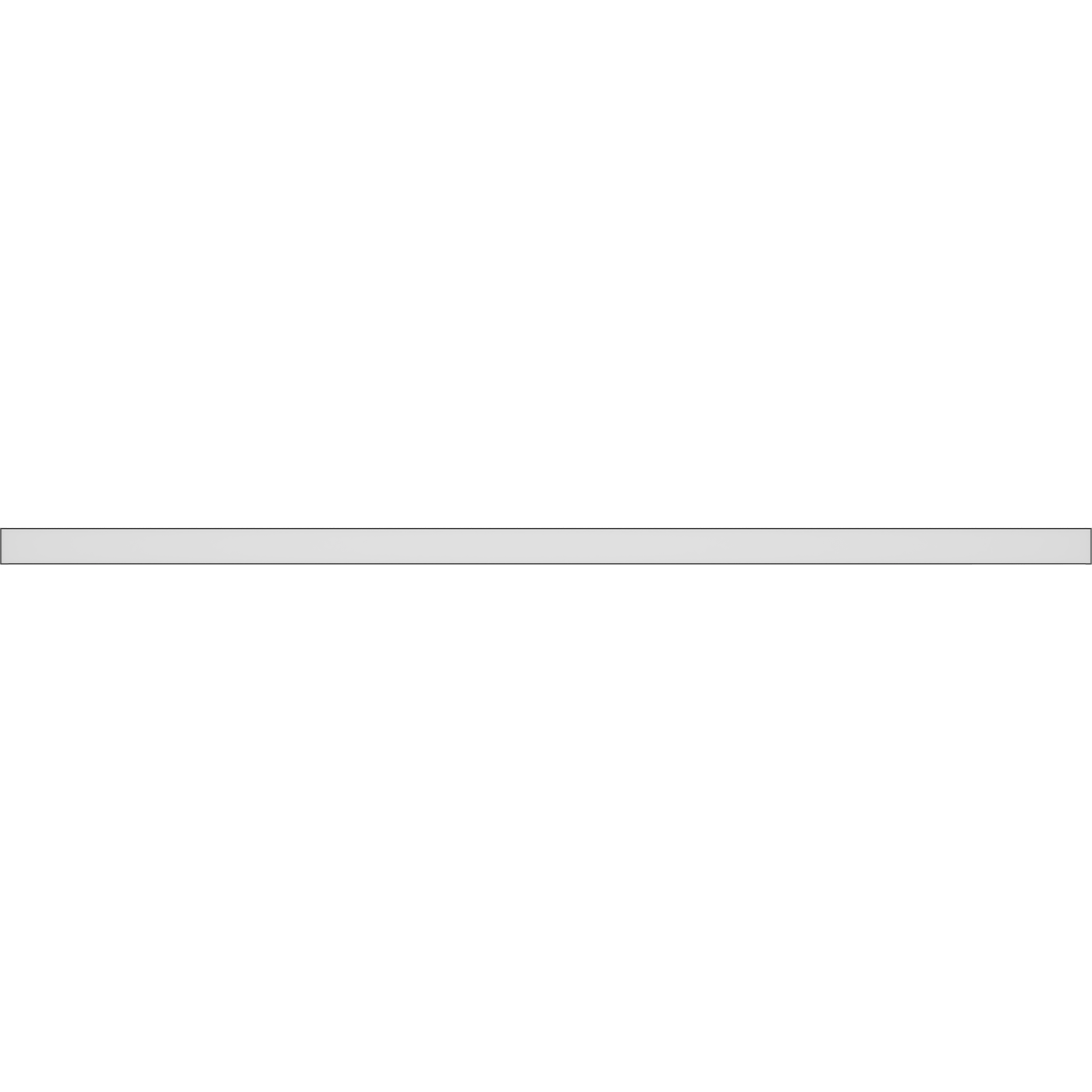

LINER 60 DR/S (1800) 840 BK
39 Wluminaire power
3750 lmlight flow
96 lm/Wenergy efficiency
code1473002830
color temperature4000
beam angleD120
old nameLINER/S 60 LED (1800) 840 BL DR
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
39 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
luminaire power
39 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
weight
5.2 kg
length, mm
1805 mm
width, mm
60 mm
height, mm
90 mm
housing color
Черный
installation length, mm
650 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1473002830
illuminating
color rendition index (CRI)
>80
light flow
3750 lm
energy efficiency
96 lm/W
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

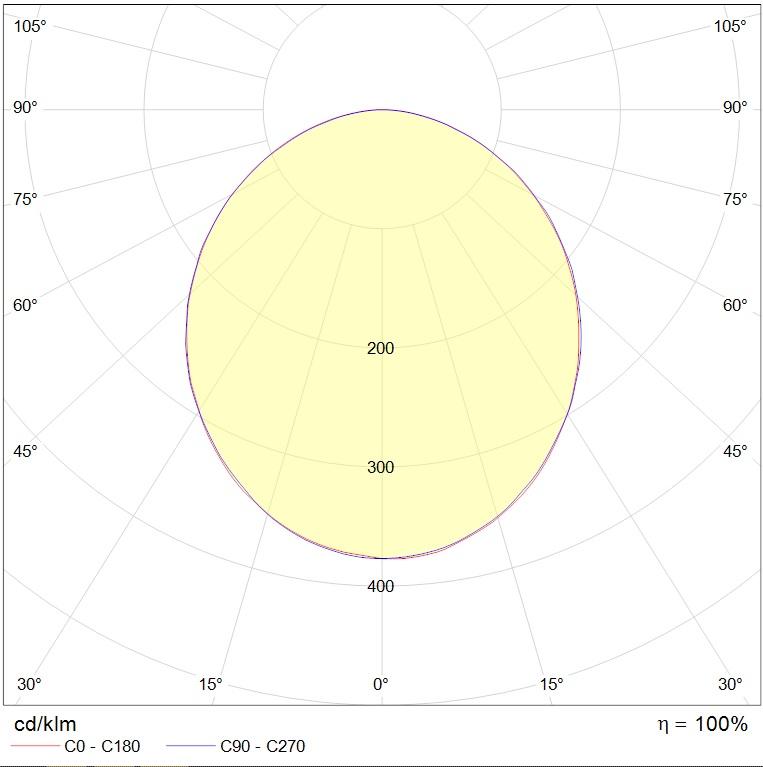

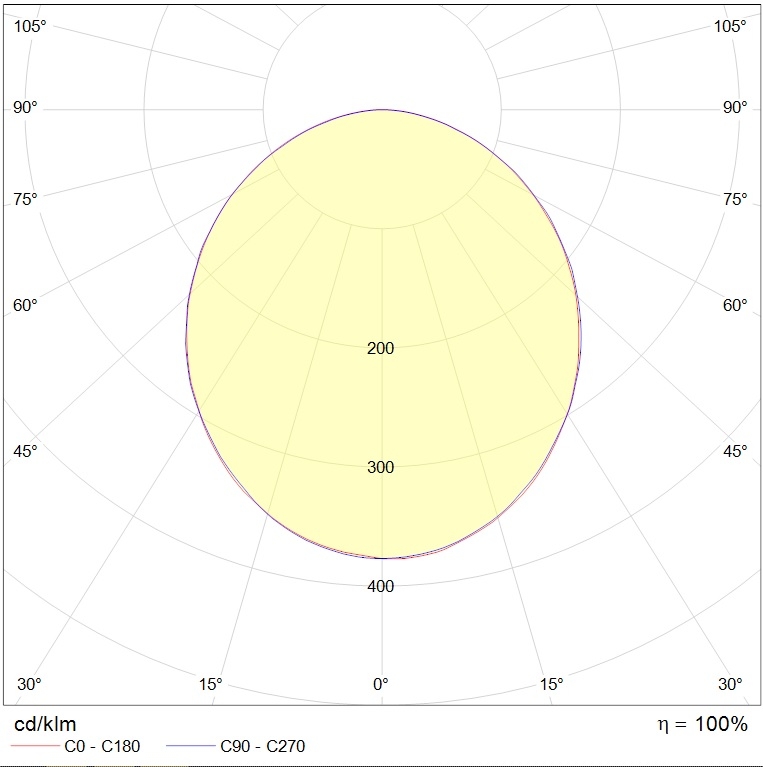

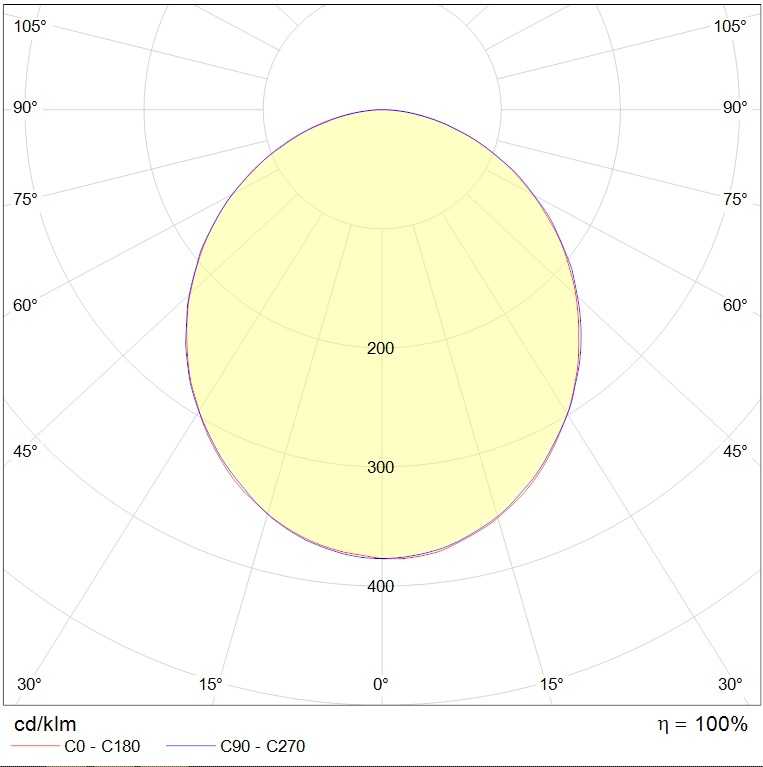

photometric files
сертификаты
photometric files
ies107 kB
jpg76.3 kB
ldt68.7 kB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
