зарегистрирована в реестре российской промышленной продукции

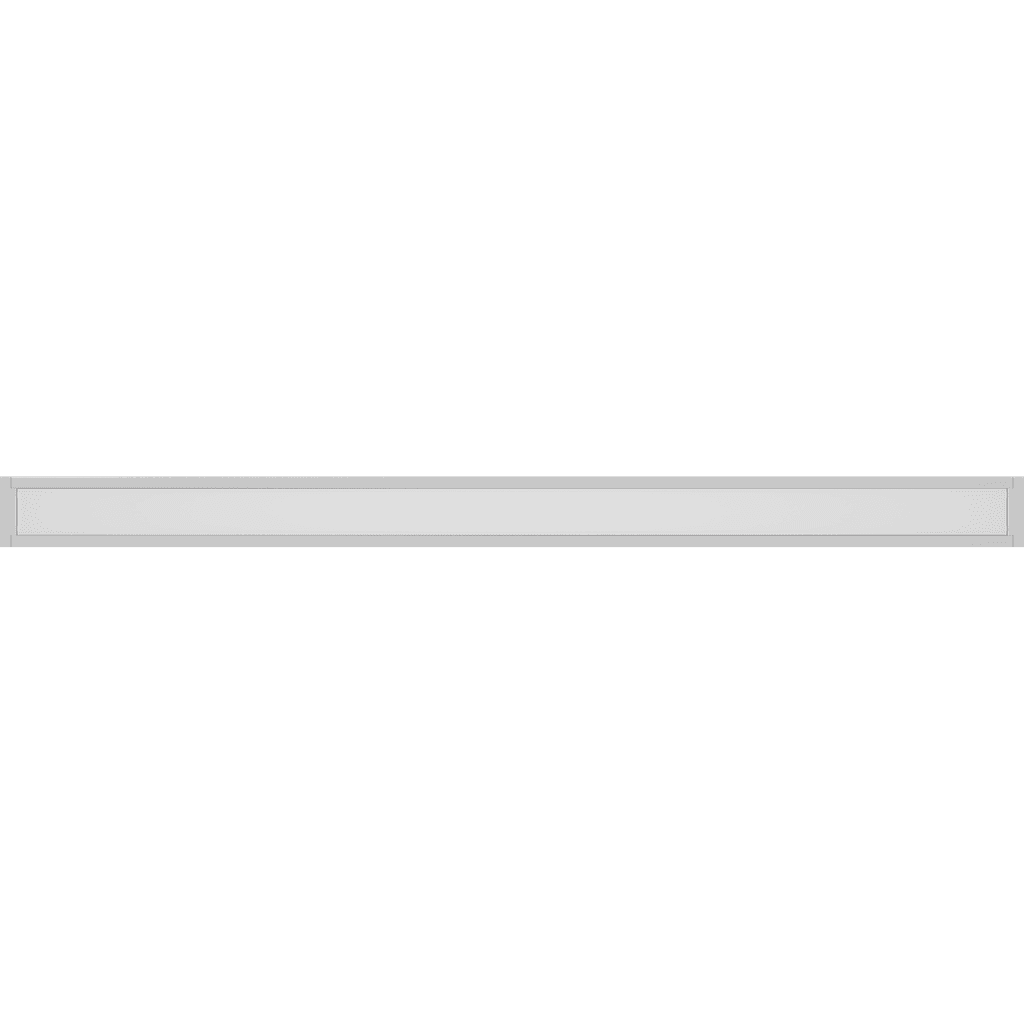

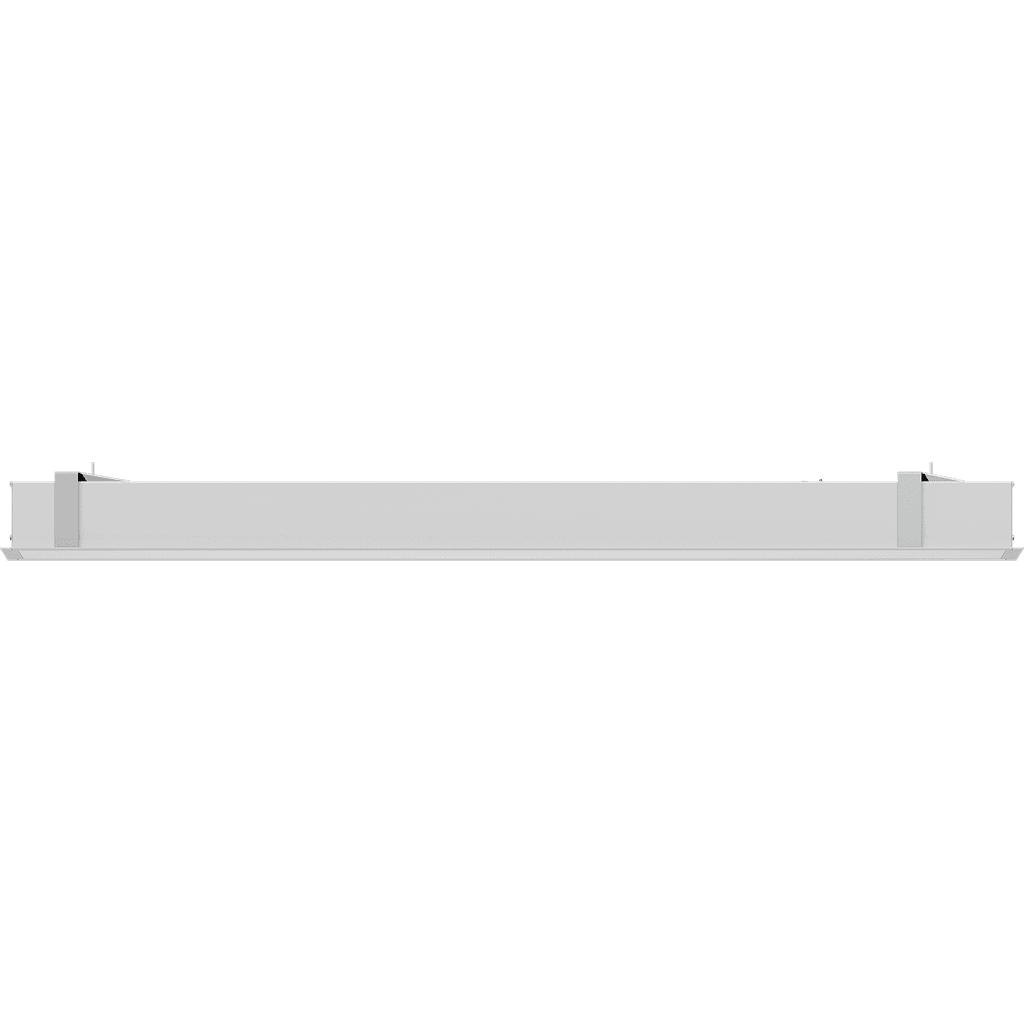

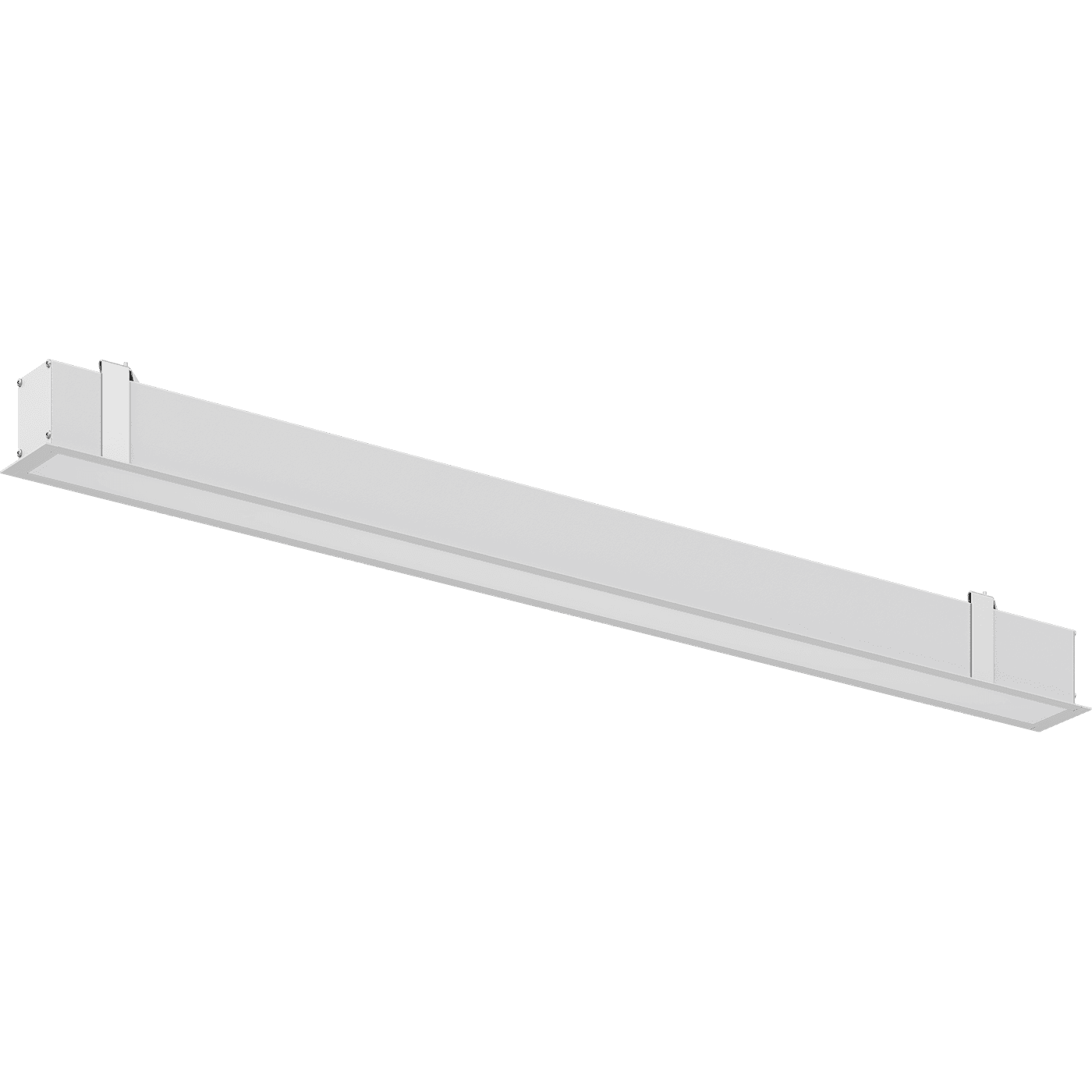

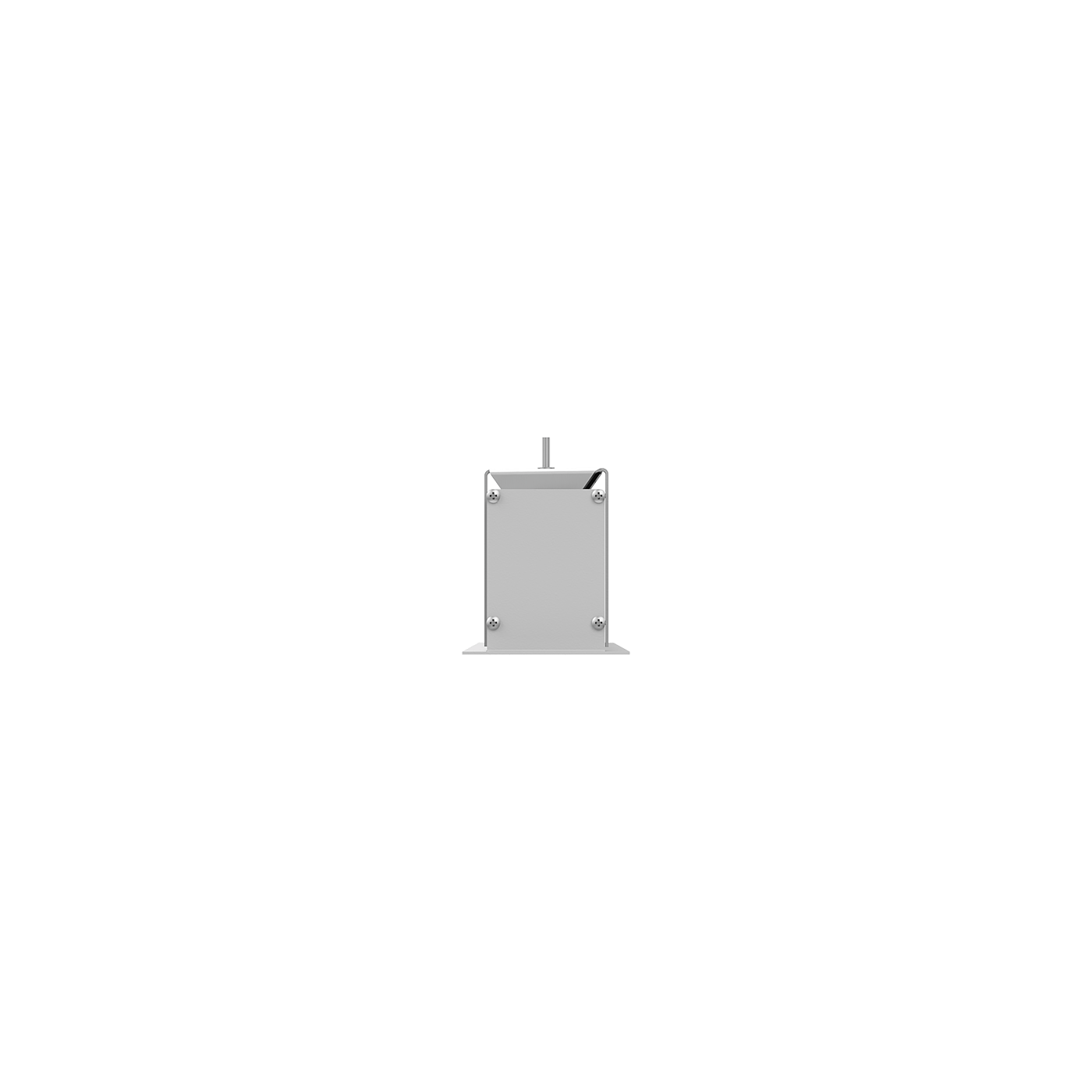

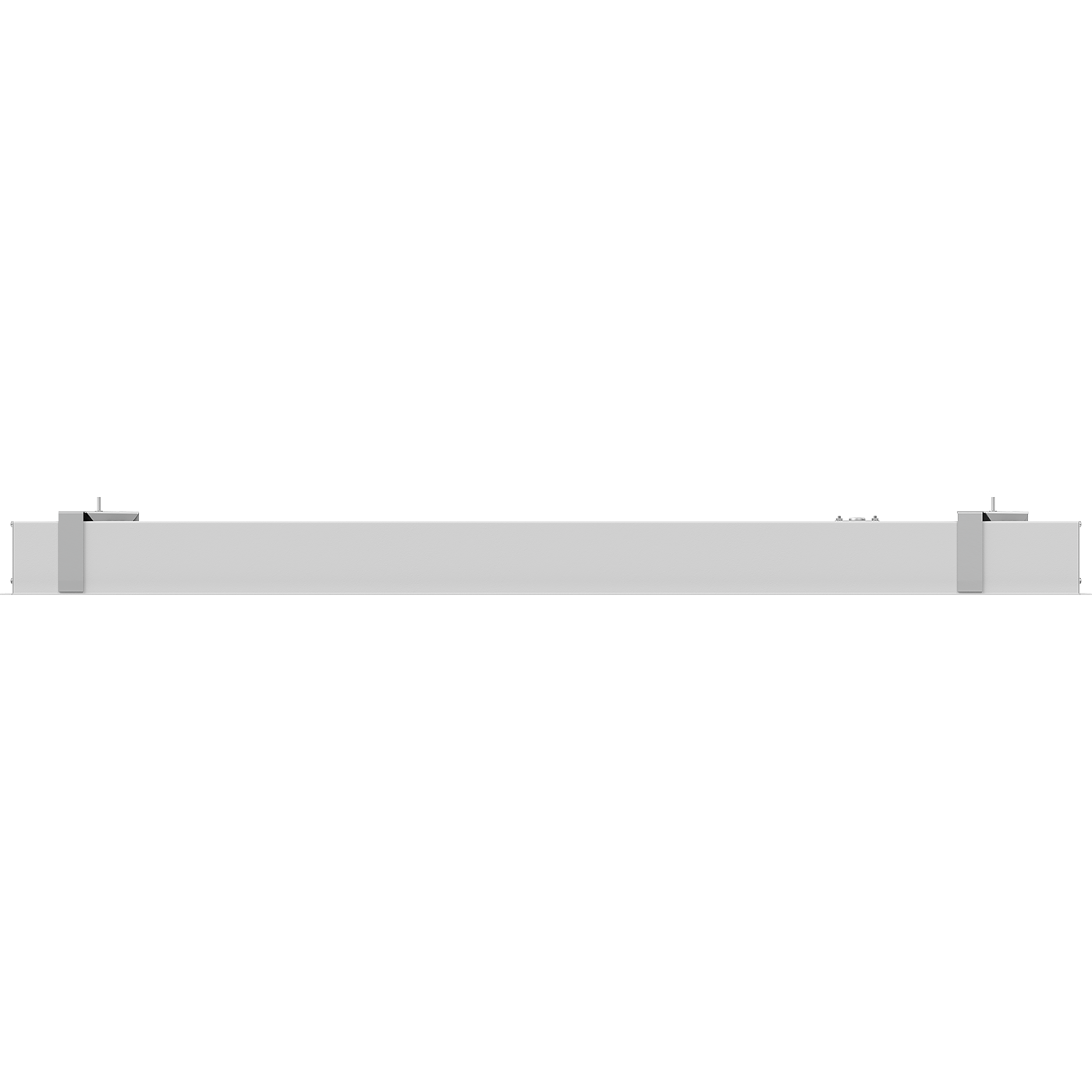

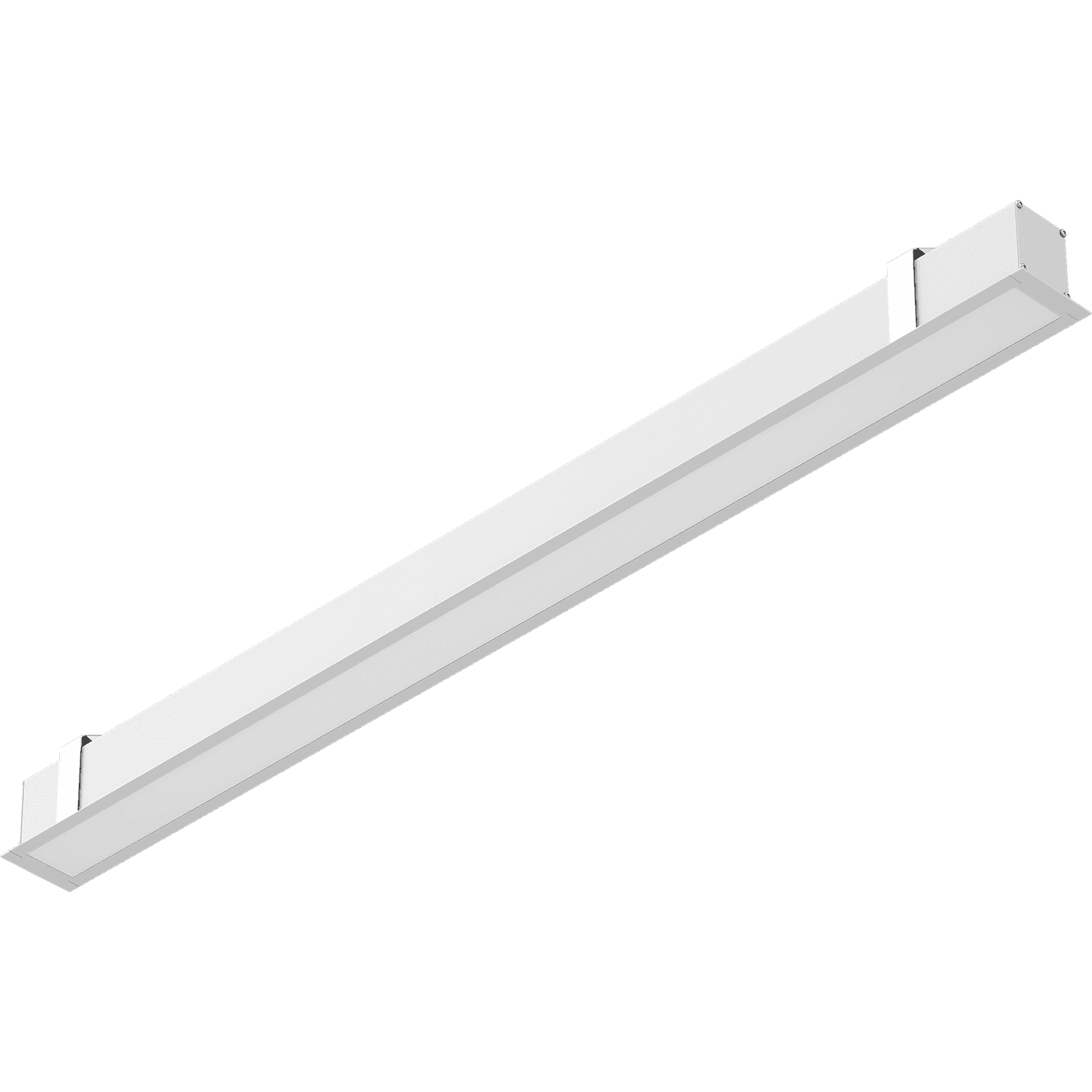

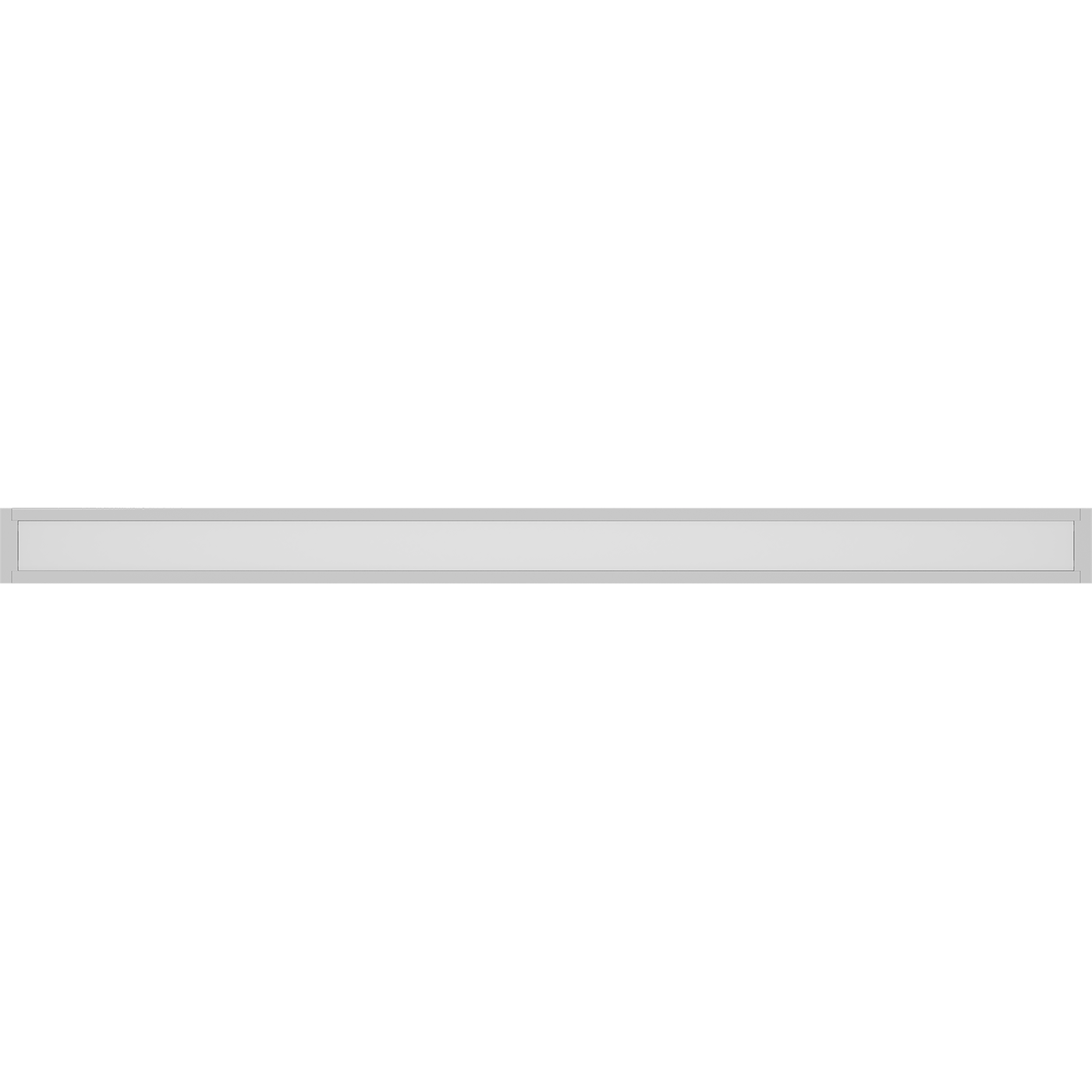

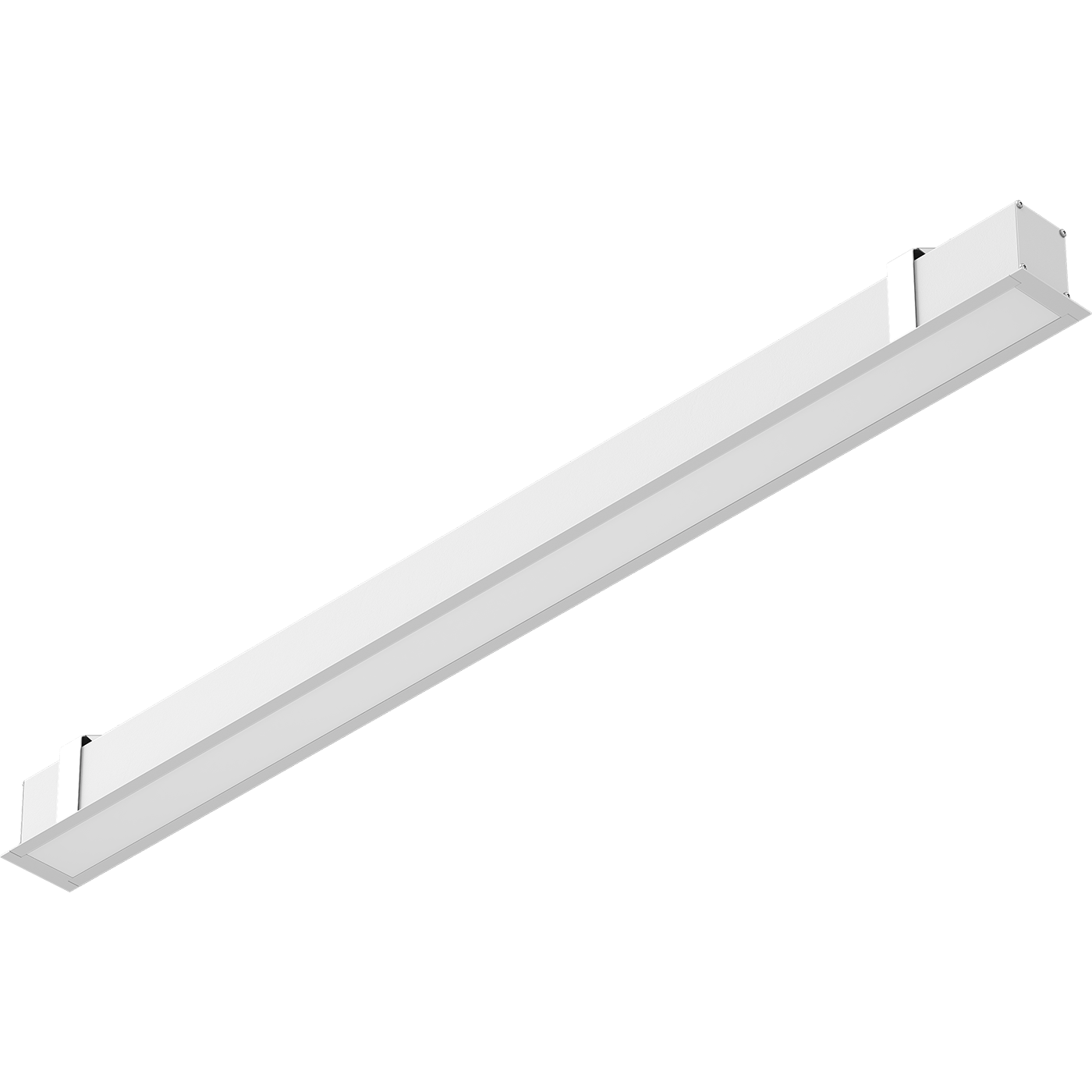

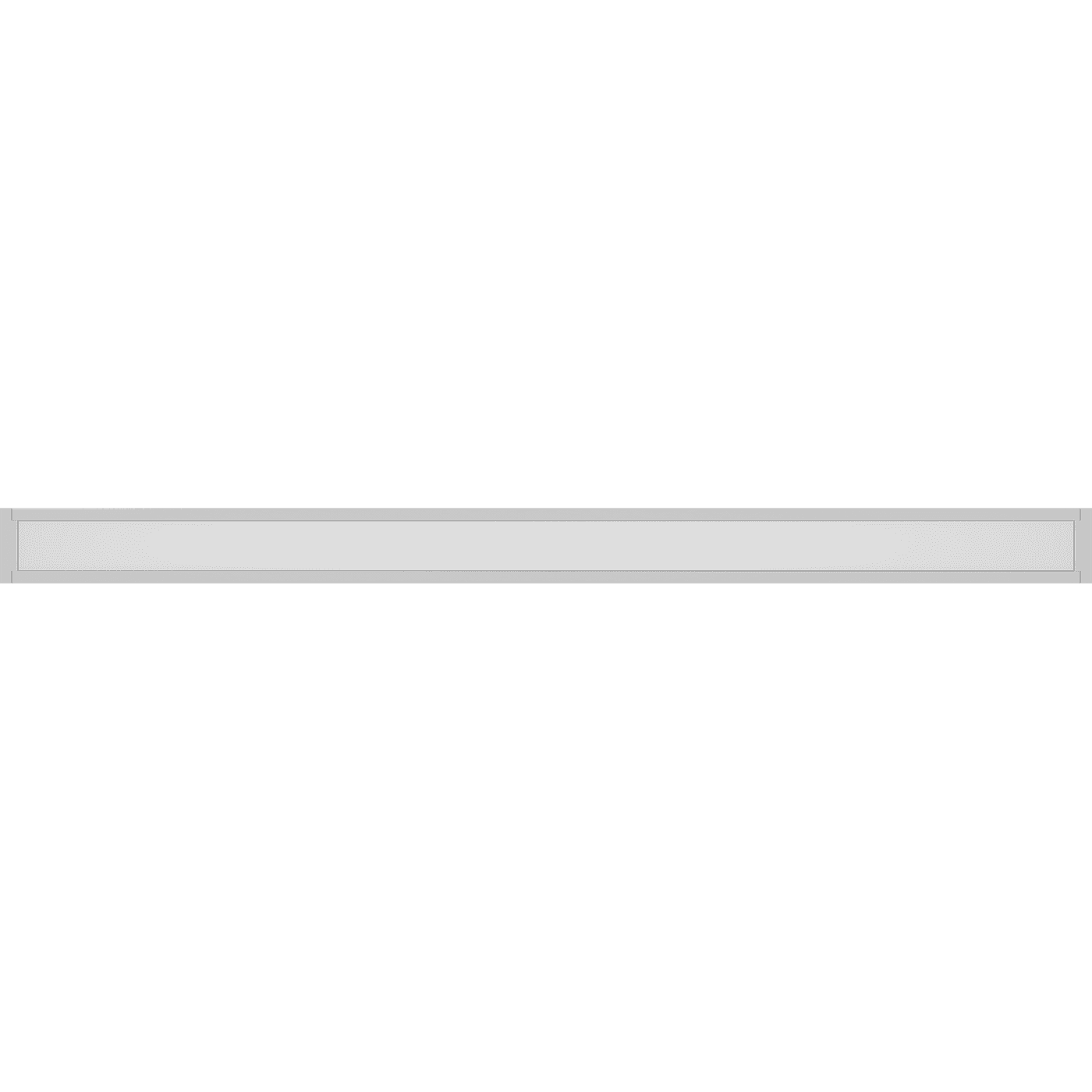

LINER 60 DR/R (1000) 24W 840 WH
зарегистрирована в реестре российской промышленной продукции
LINER 60 DR/R (1000) 24W 840 WH
24 Wluminaire power
2400 lmlight flow
100 lm/Wenergy efficiency
code
1474003830
number from the register of Russian industrial products
10537561
color temperature
4000 K
beam angle
D120
old name
LINER 60 DR/R (1000) 840 WH
performance factor
100
- main page
- catalog
- by product type
- interior lighting
- continuous light lines
- recessed
- from 50 mm to 80 mm
- LINER 60 DR/R
- LINER 60 DR/R (1000) 24W 840 WH
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
energy efficiency
100 lm/Wcolor rendition index (CRI)
>80light flow
2400 lmflickering factor
<1%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
2400 lm
flickering factor
<1%
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,95
maximum number of luminaires in a line
21
luminaire power
24 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1010 mm
width
85 mm
height
84 mm
installation length
1020 mm
installation width
65 mm
weight
3 kg
ingress protection (IP)
IP40
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Белый
mounting type
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
emergency
emergency power supply
Нет
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
warranty
60 month
energy efficiency class
A+
code
1474003830
package
Package contents
Паспорт - 1 шт.
Упаковка - 1 шт.
Светильник - 1 шт.
Комплект креплений - 1 шт.
model files
model files

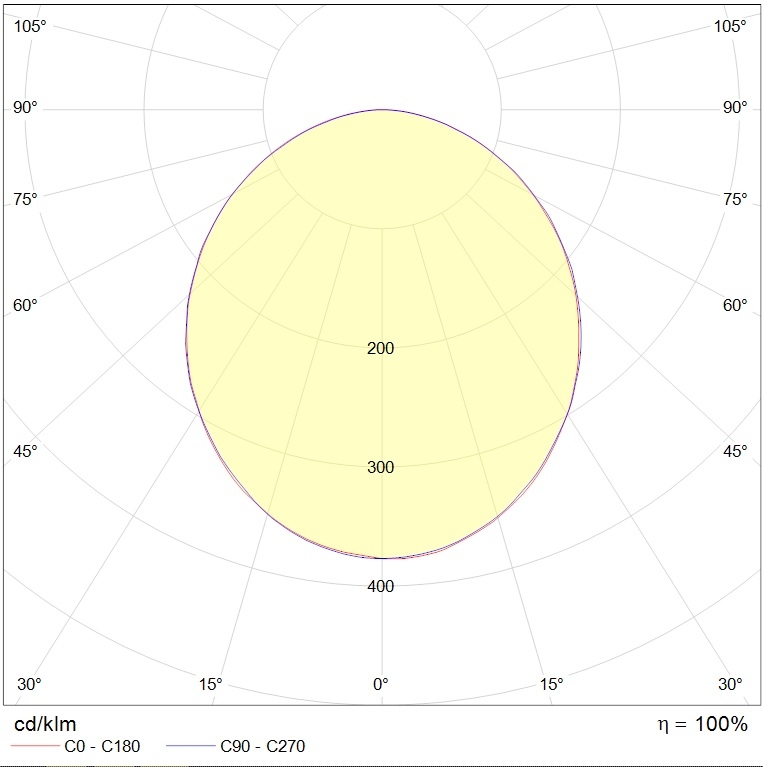

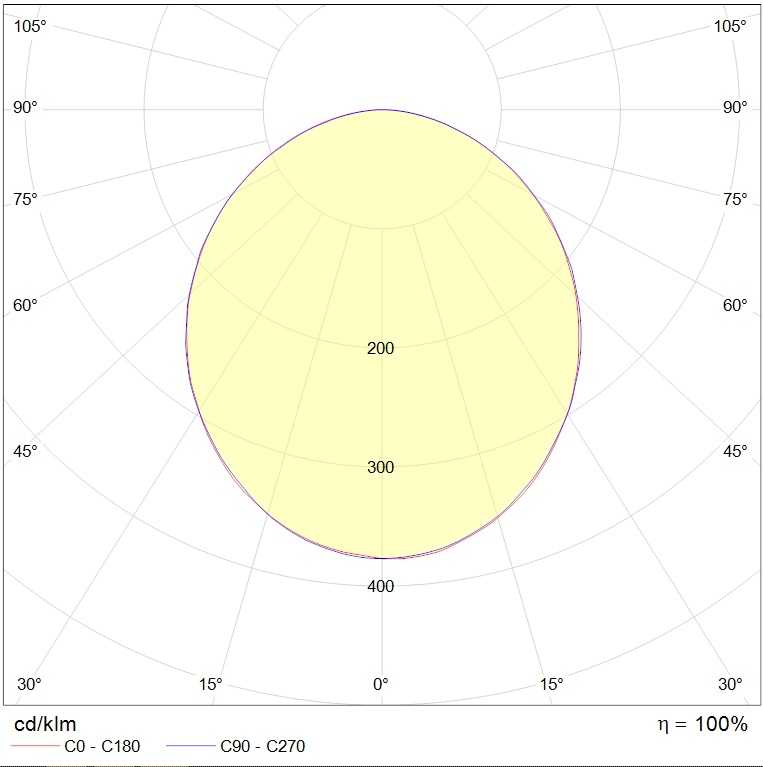

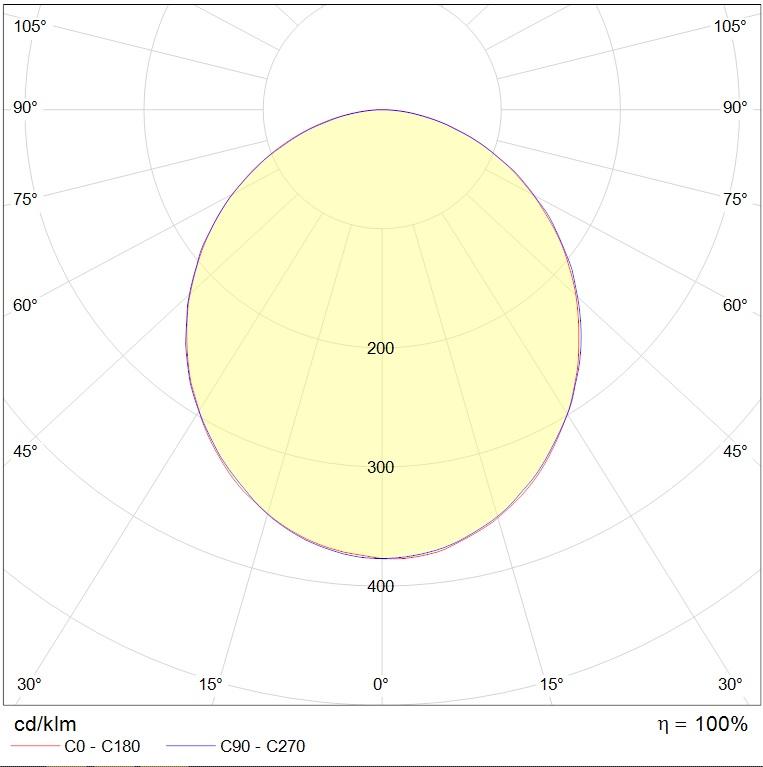

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg76.3 kB
ldt68.7 kB
csv434 B
documents
passport1.5 mB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
accessories
End cap set LINER 60/R WH0.1kgarticle: 2474000130
Diffusor LINER 60 3720 mm (in package)0.48kgarticle: 2473000380
Diffusor LINER 60 5020 mm (in package)0.65kgarticle: 2473000390
