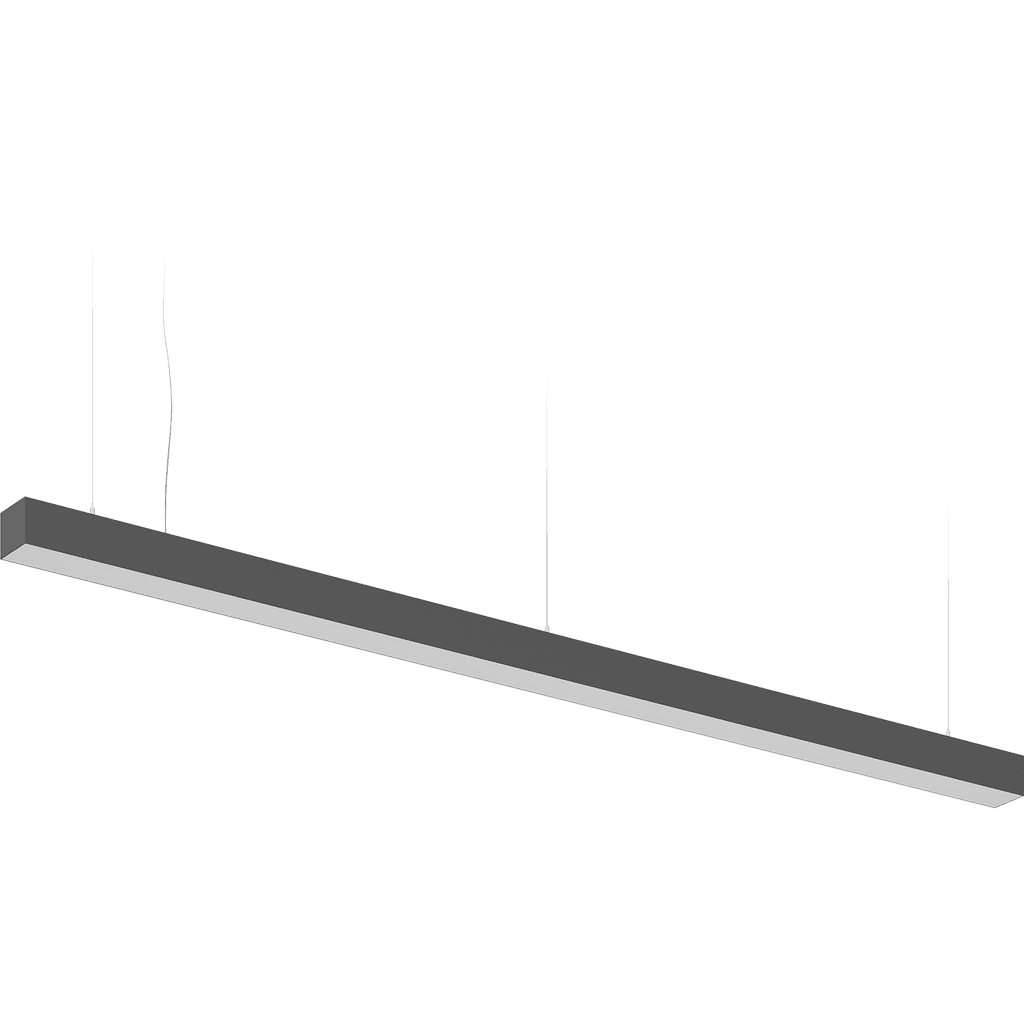

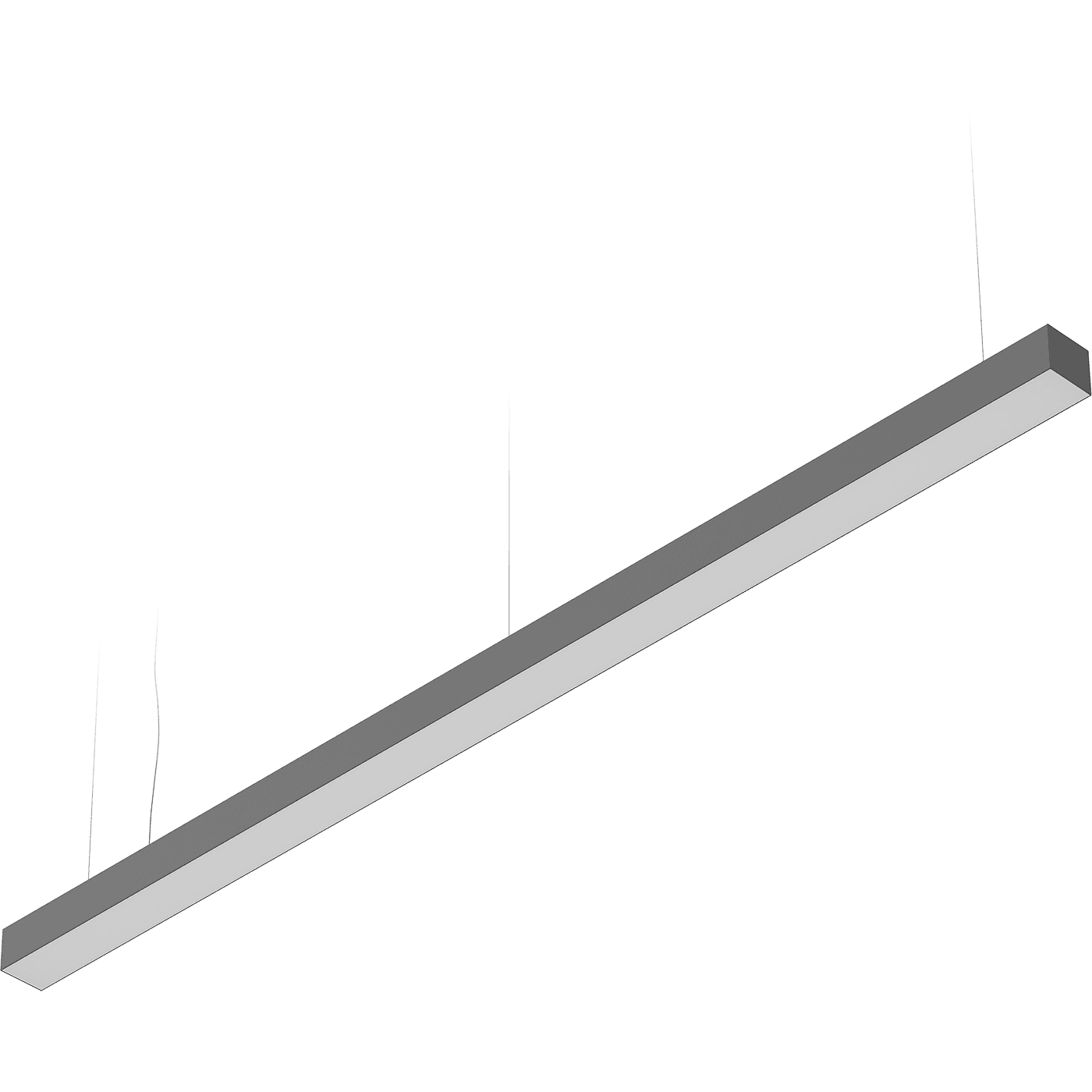

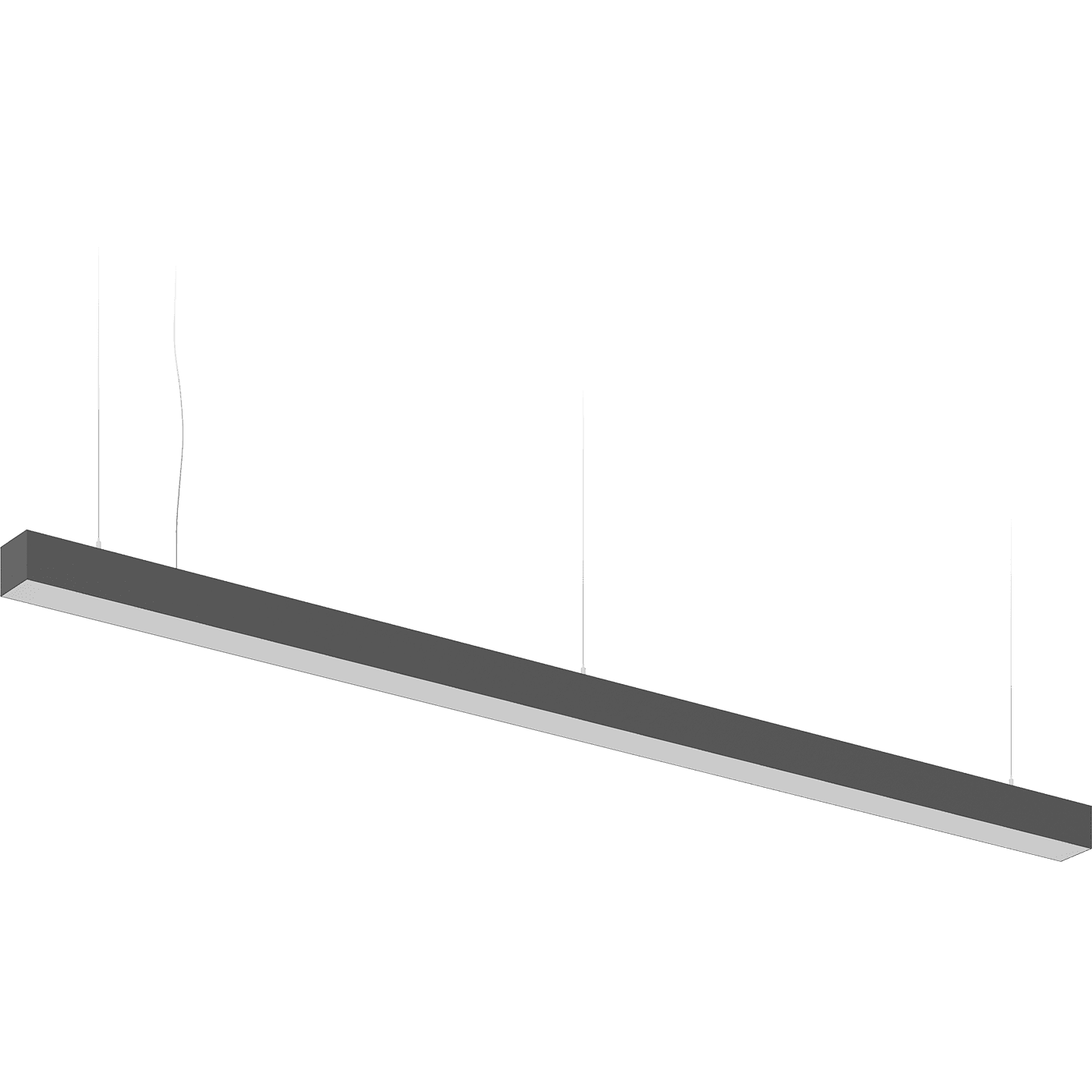

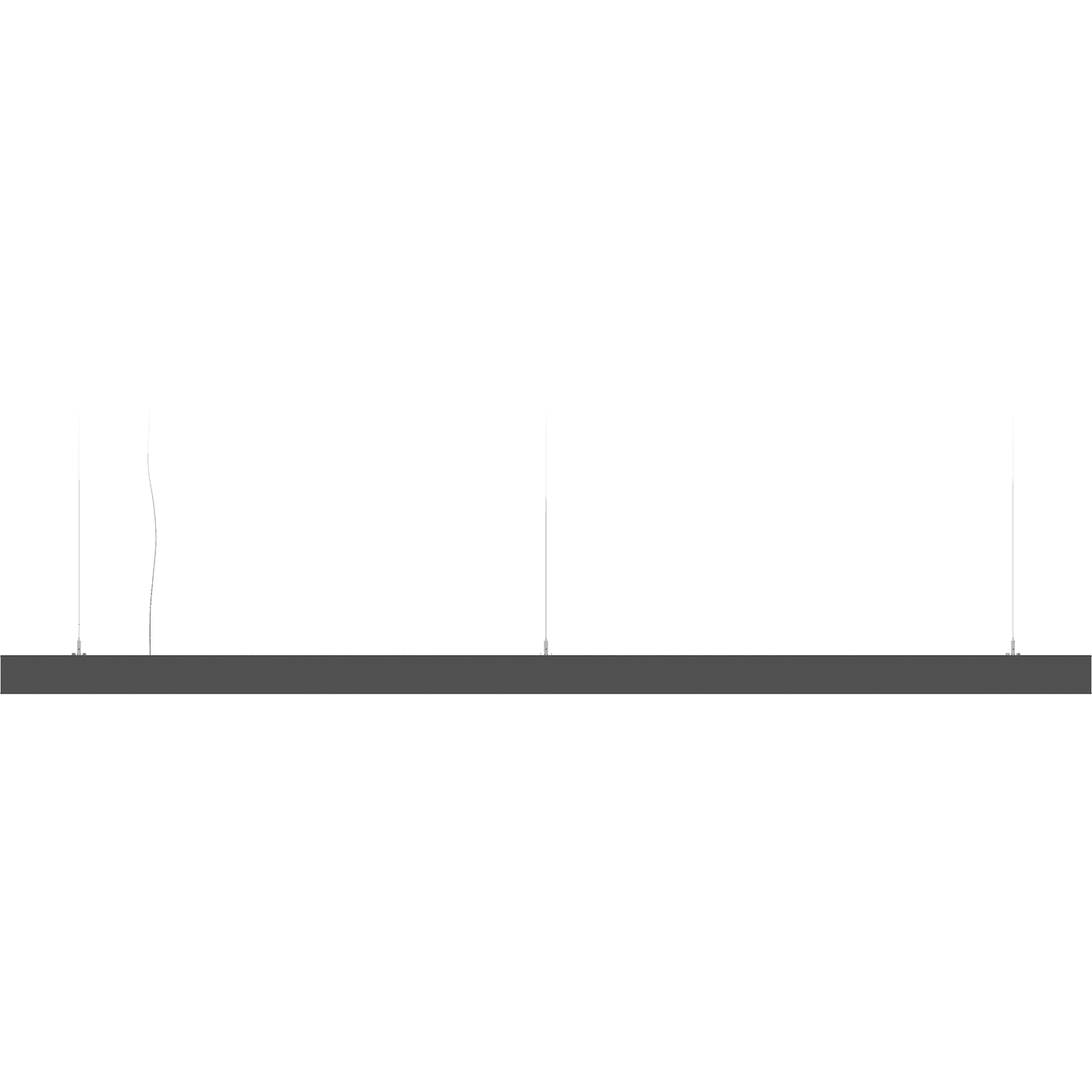

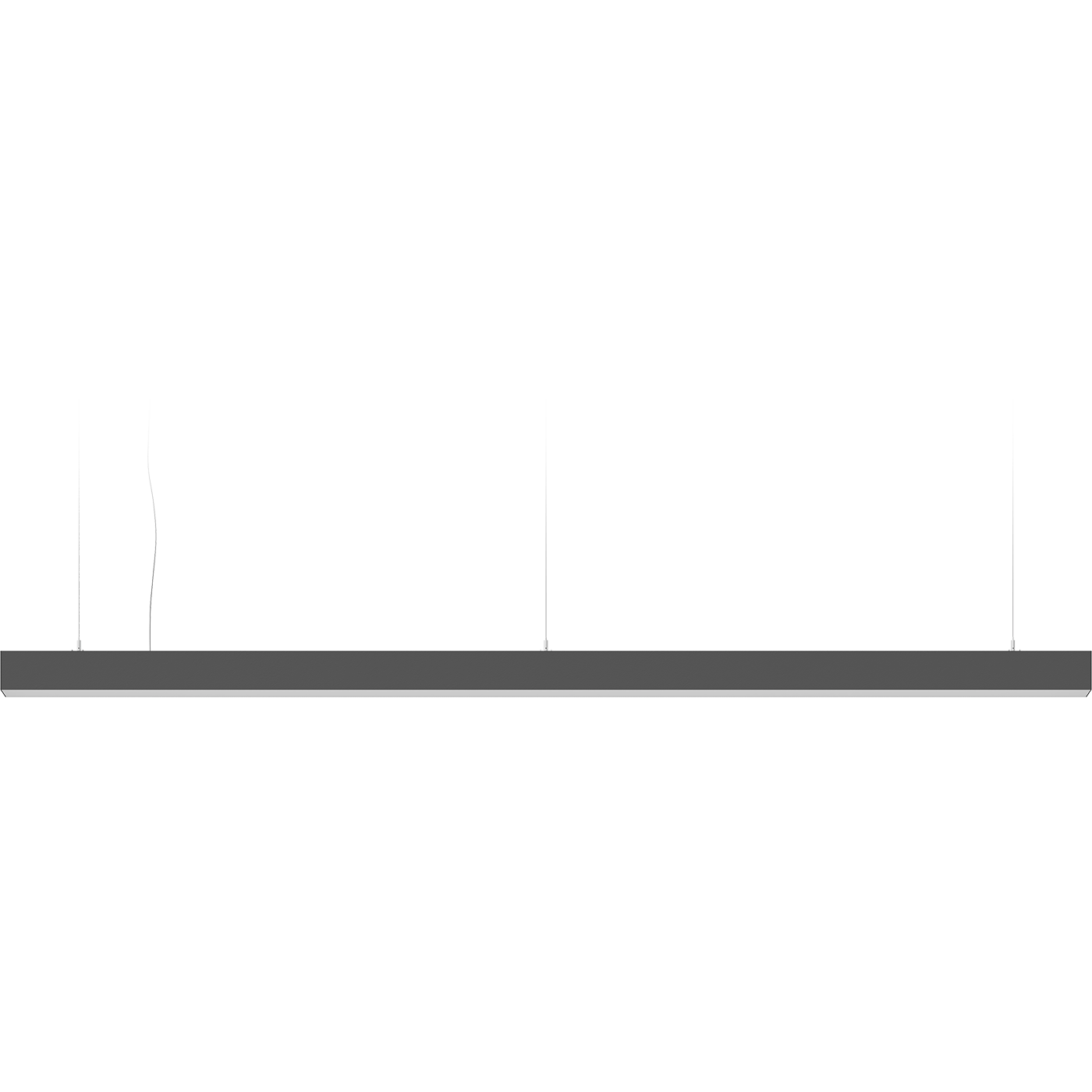

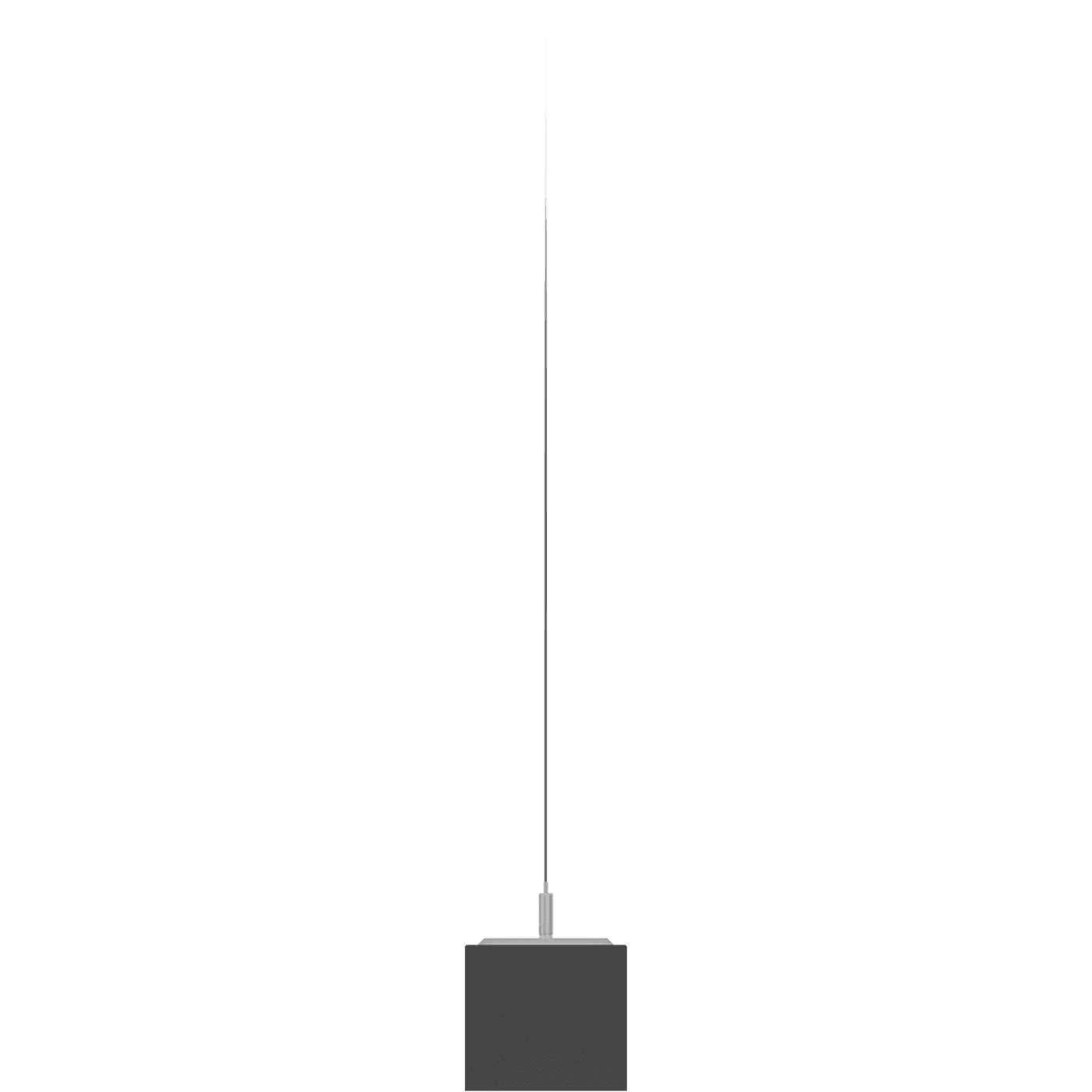

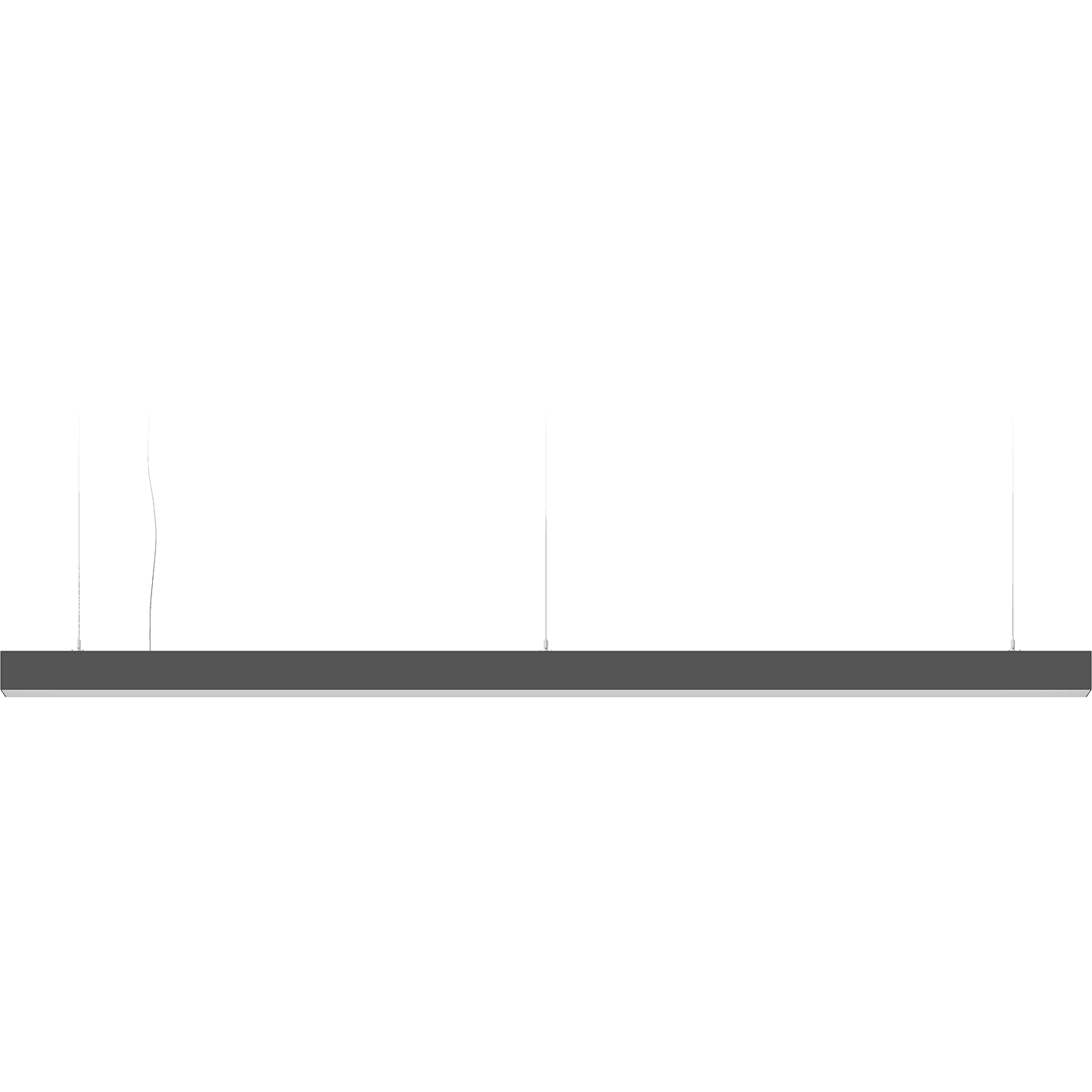

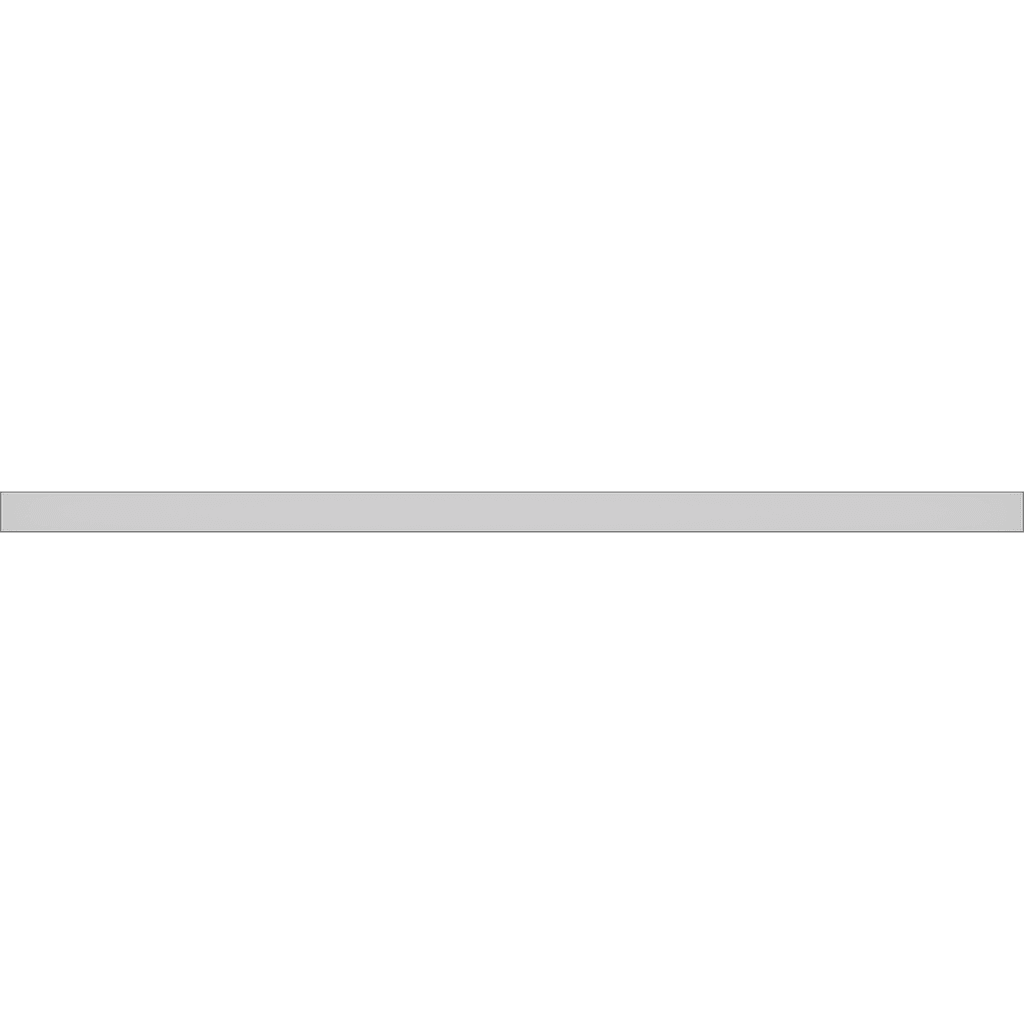

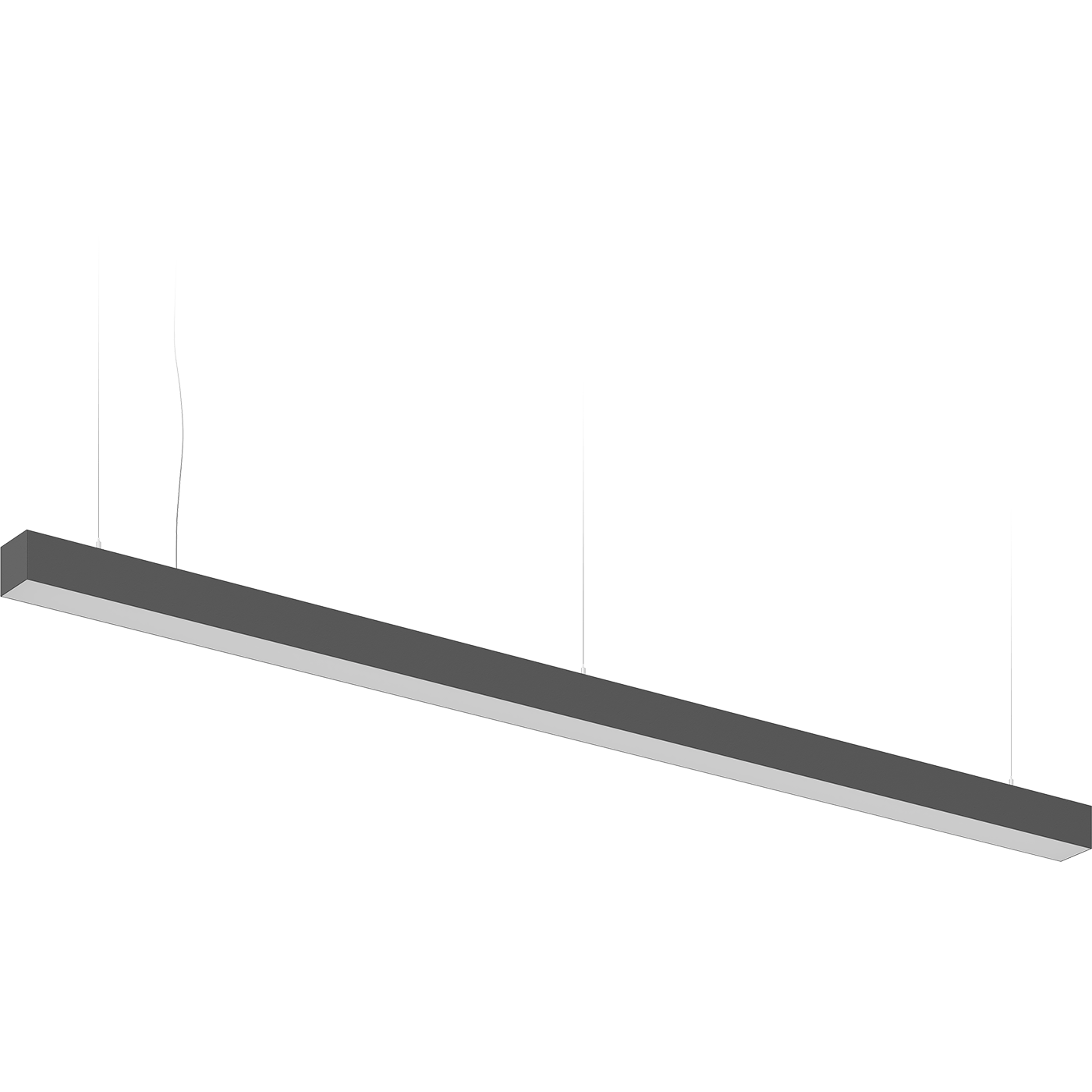

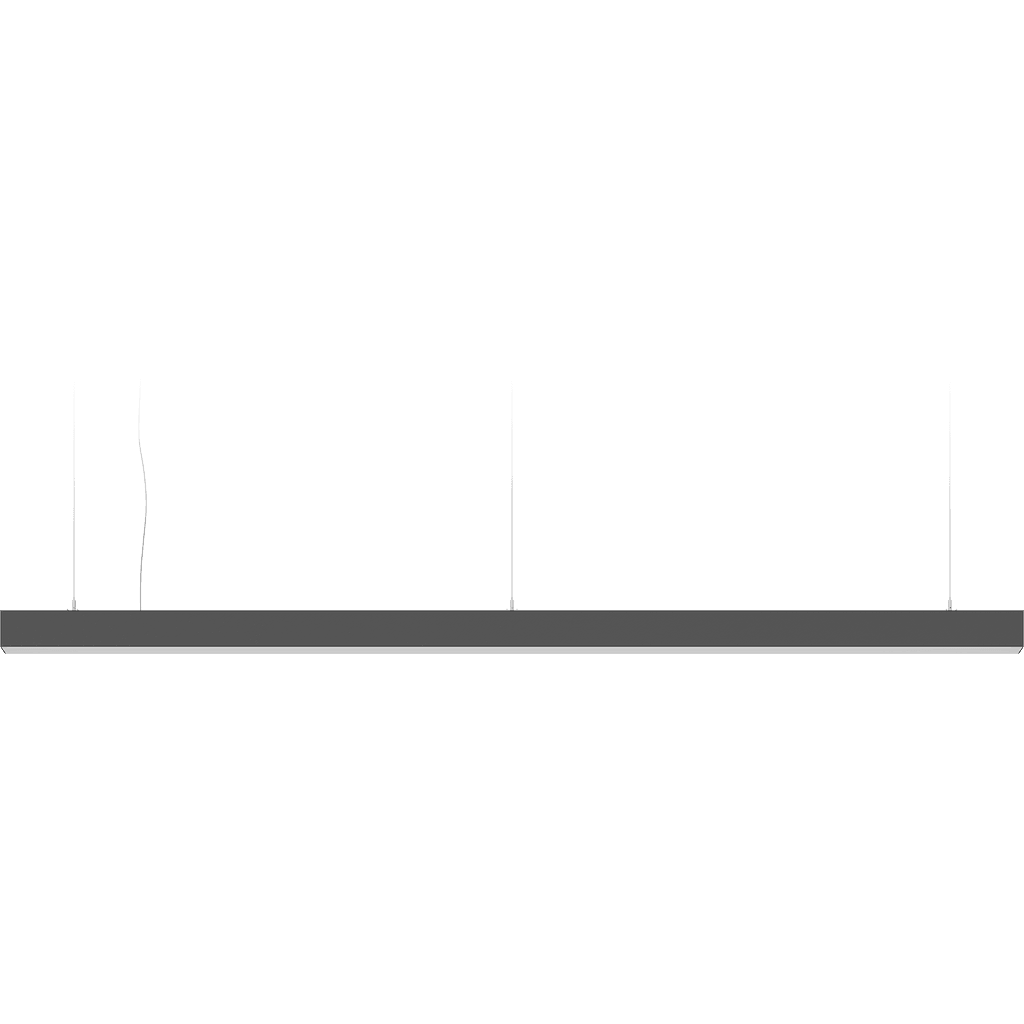

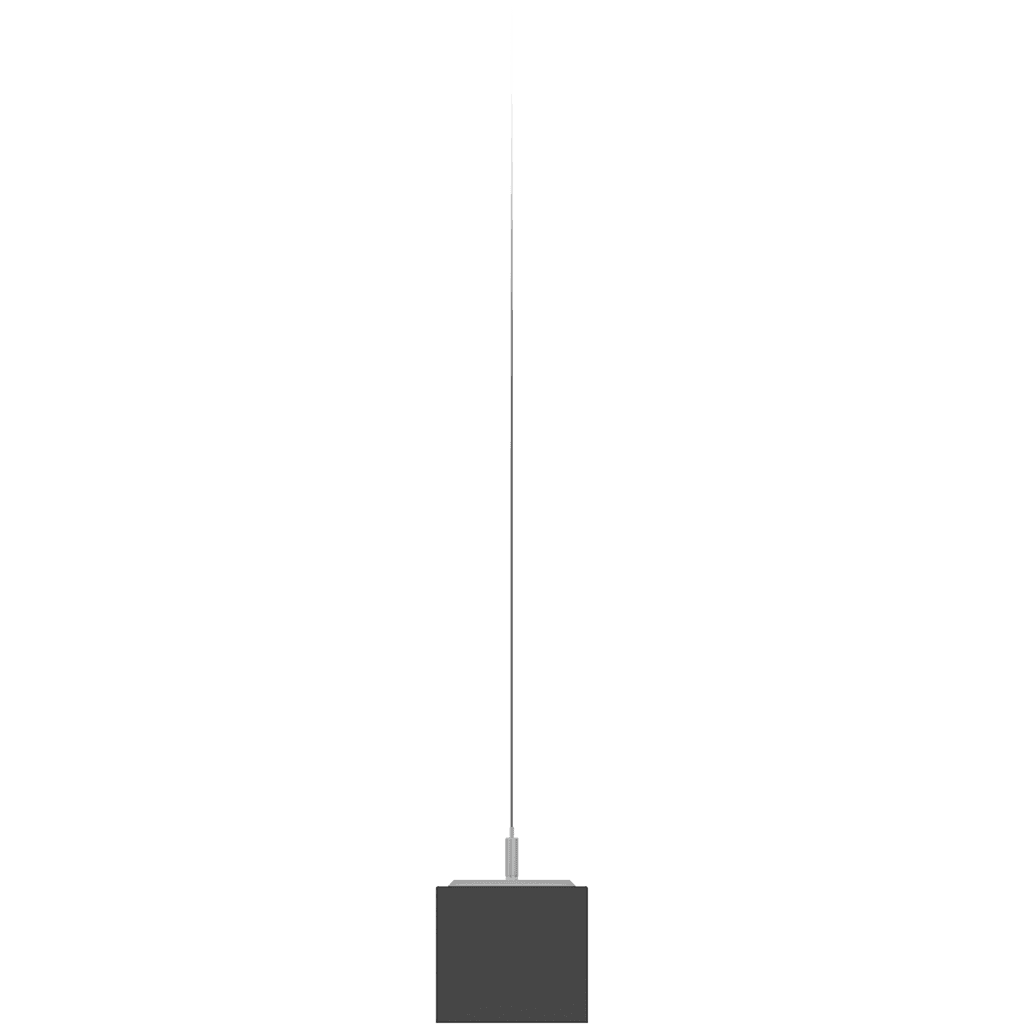

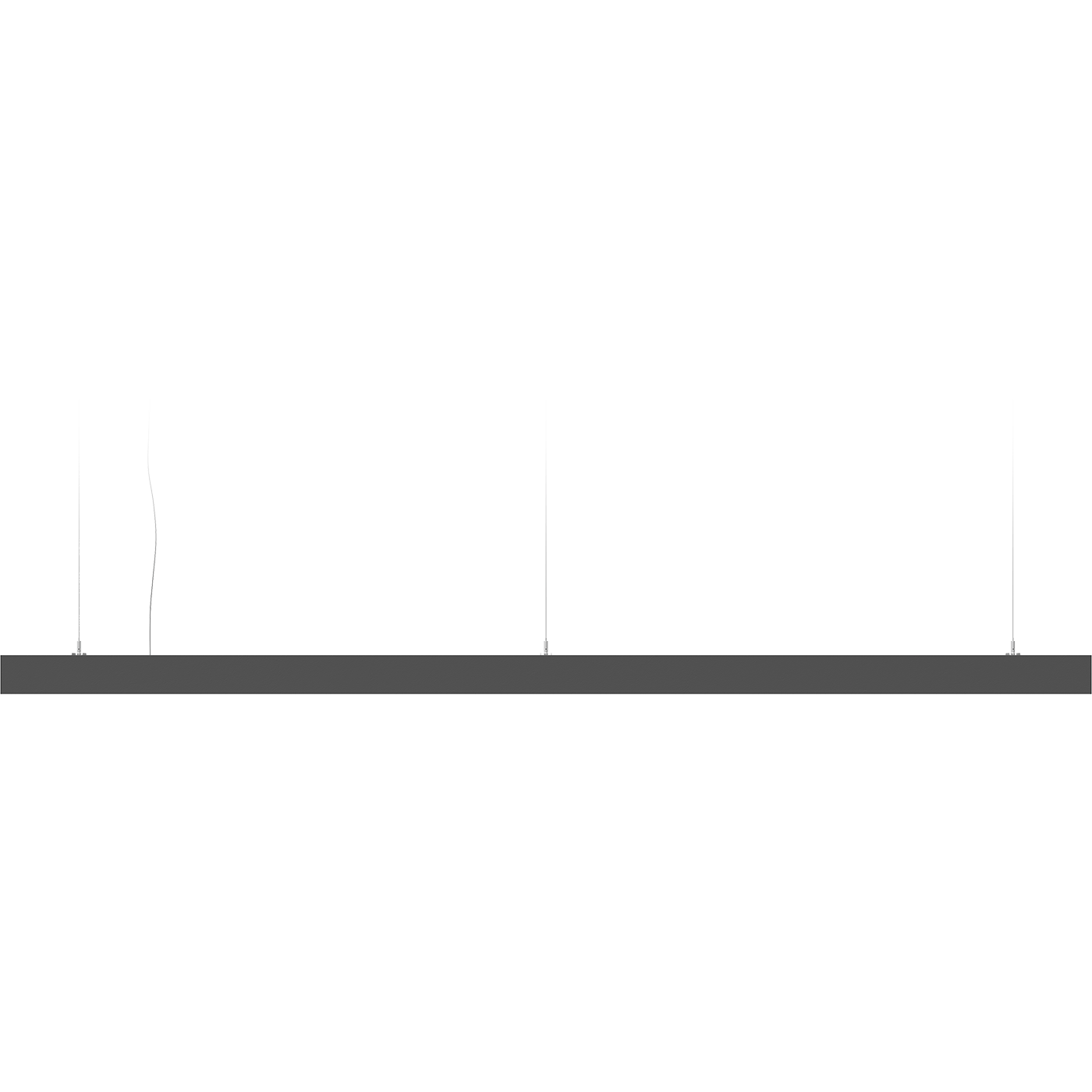

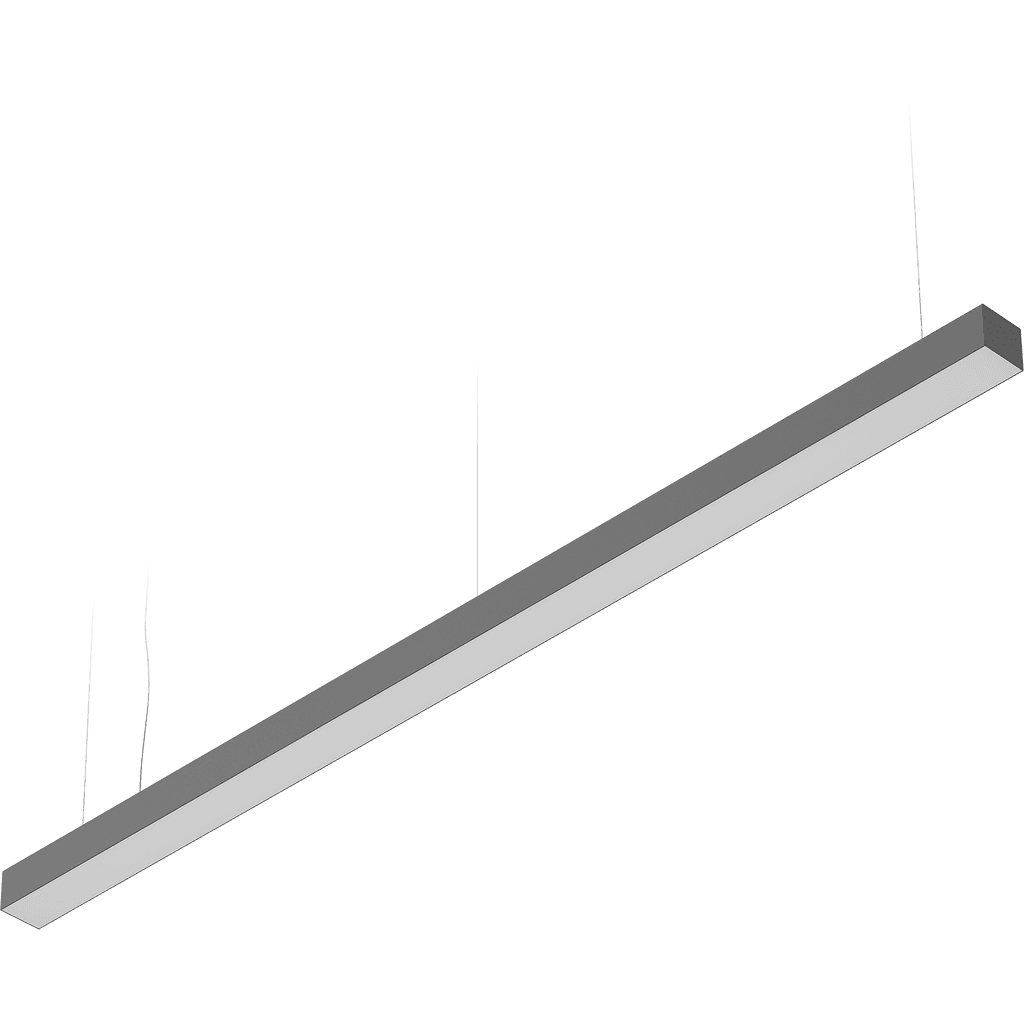

LINER 100/P (600) 840 BK up/down
_840_bk_up_down.jpg&w=1920&q=50)
_840_bk_up_down.jpg&w=1024&q=50)
LINER 100/P (600) 840 BK up/down
26 Wluminaire power
2600 lmlight flow
100 lm/Wenergy efficiency
code1473006160
color temperature4000
beam angleD120
old nameLINER 100/P (600) 840 BL up/down
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
electric shock protection
Istarting current
35 Aluminaire power
26 Wpower factor
> 0,95supply voltage
230 Velectrical
electric shock protection
I
starting current
35 A
luminaire power
26 W
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP40
material
Алюминий
housing color
Черный
length, mm
615 mm
width, mm
106 mm
height, mm
93 mm
weight
2.1 kg
fire safety class
П-ІІІ
climatic performance
УХЛ4*
installation length, mm
350 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник подвесной
warranty
60 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
code
1473006160
energy efficiency class
A+
illuminating
color rendition index (CRI)
>80
light flow
2600 lm
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
energy efficiency
100 lm/W
model files
model files

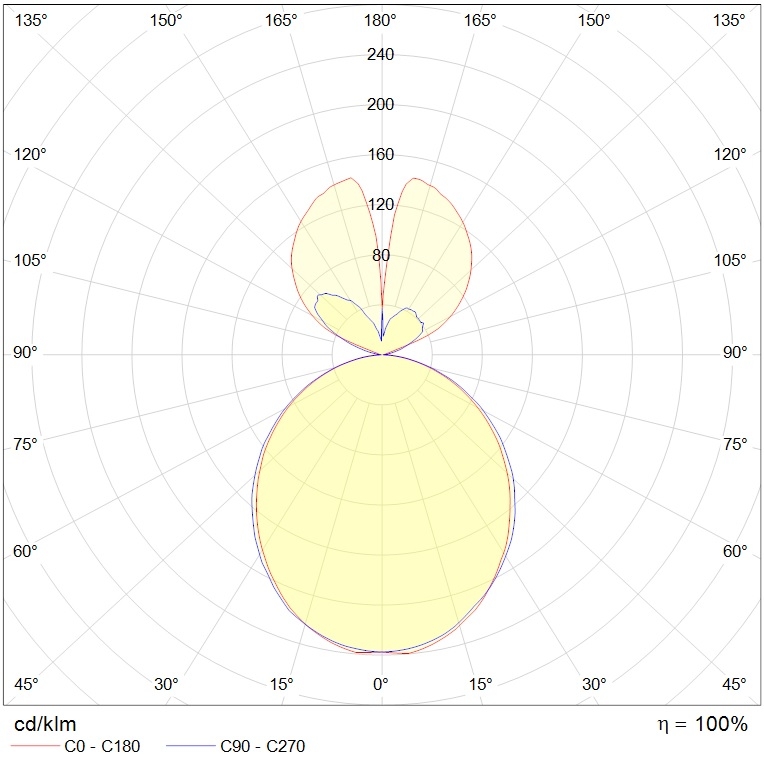

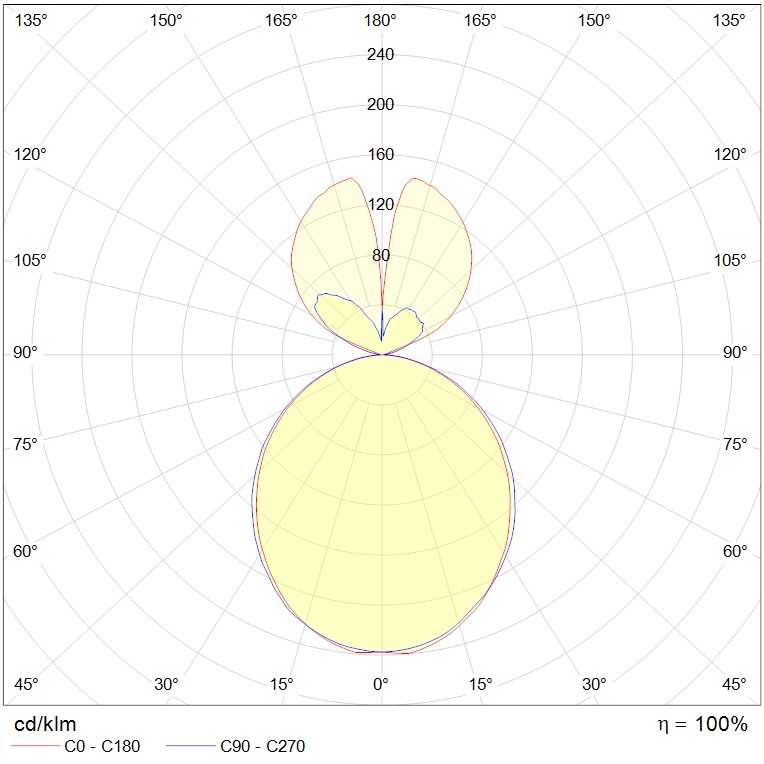

photometric files
сертификаты
photometric files
ies107 kB
jpg106.9 kB
ldt95 kB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
