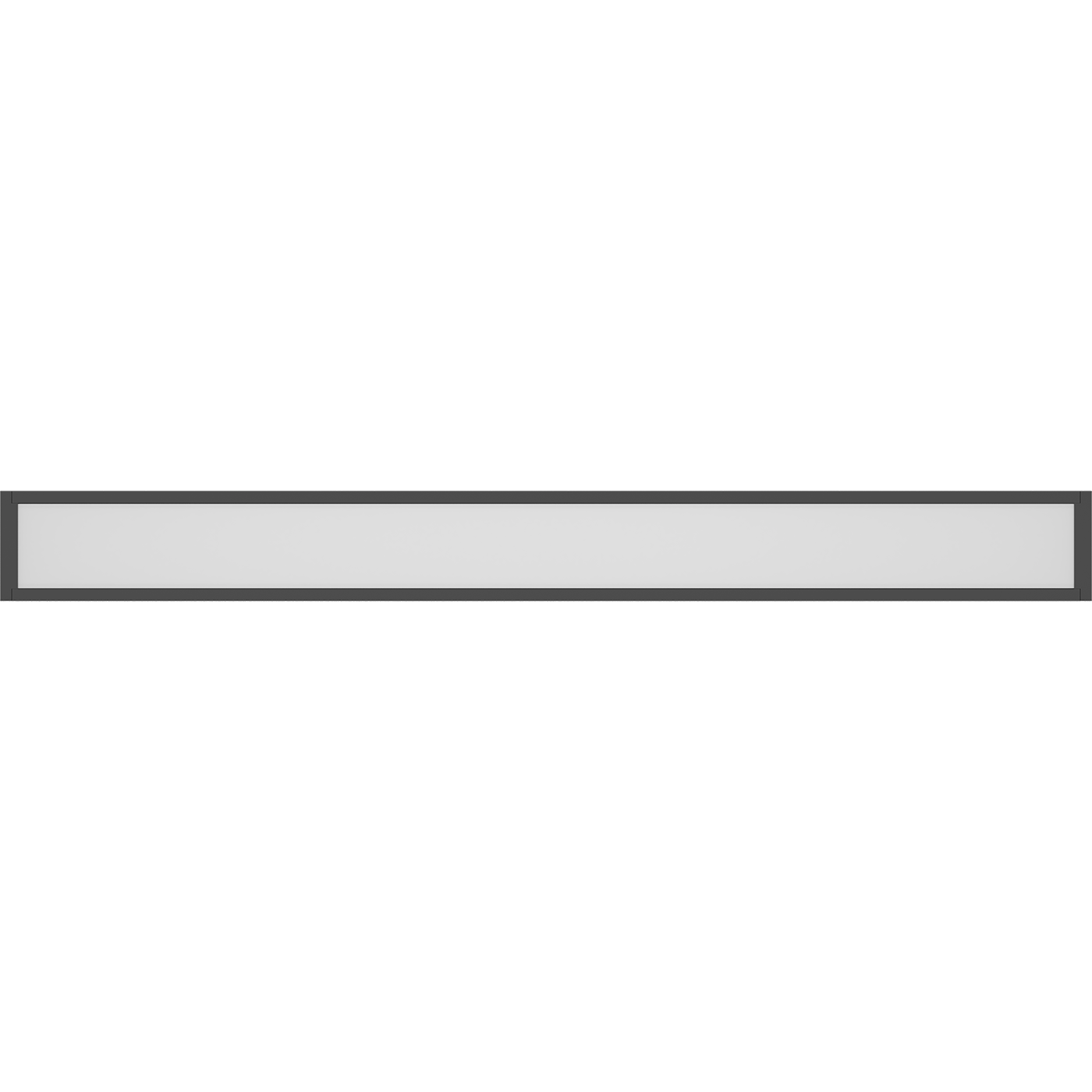

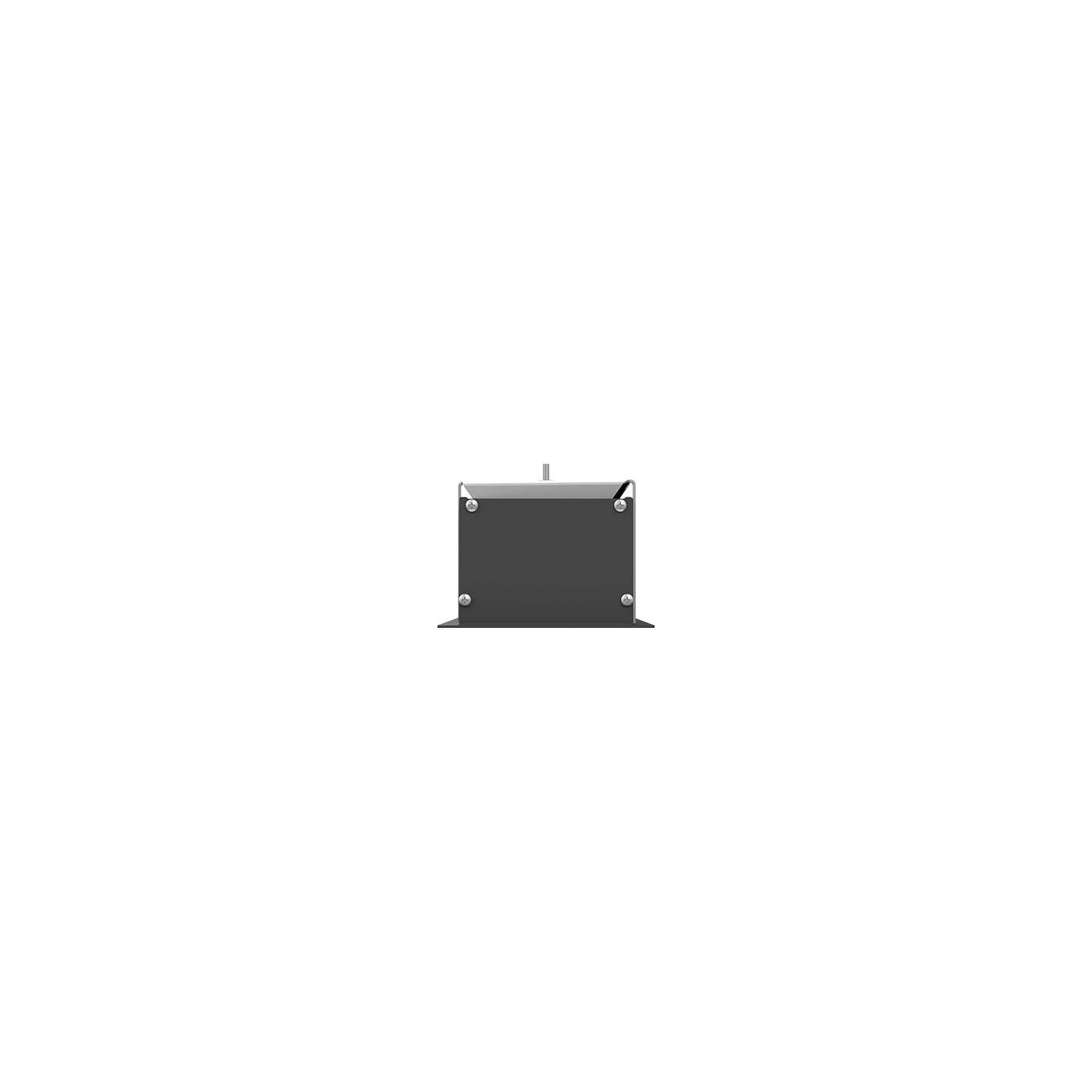

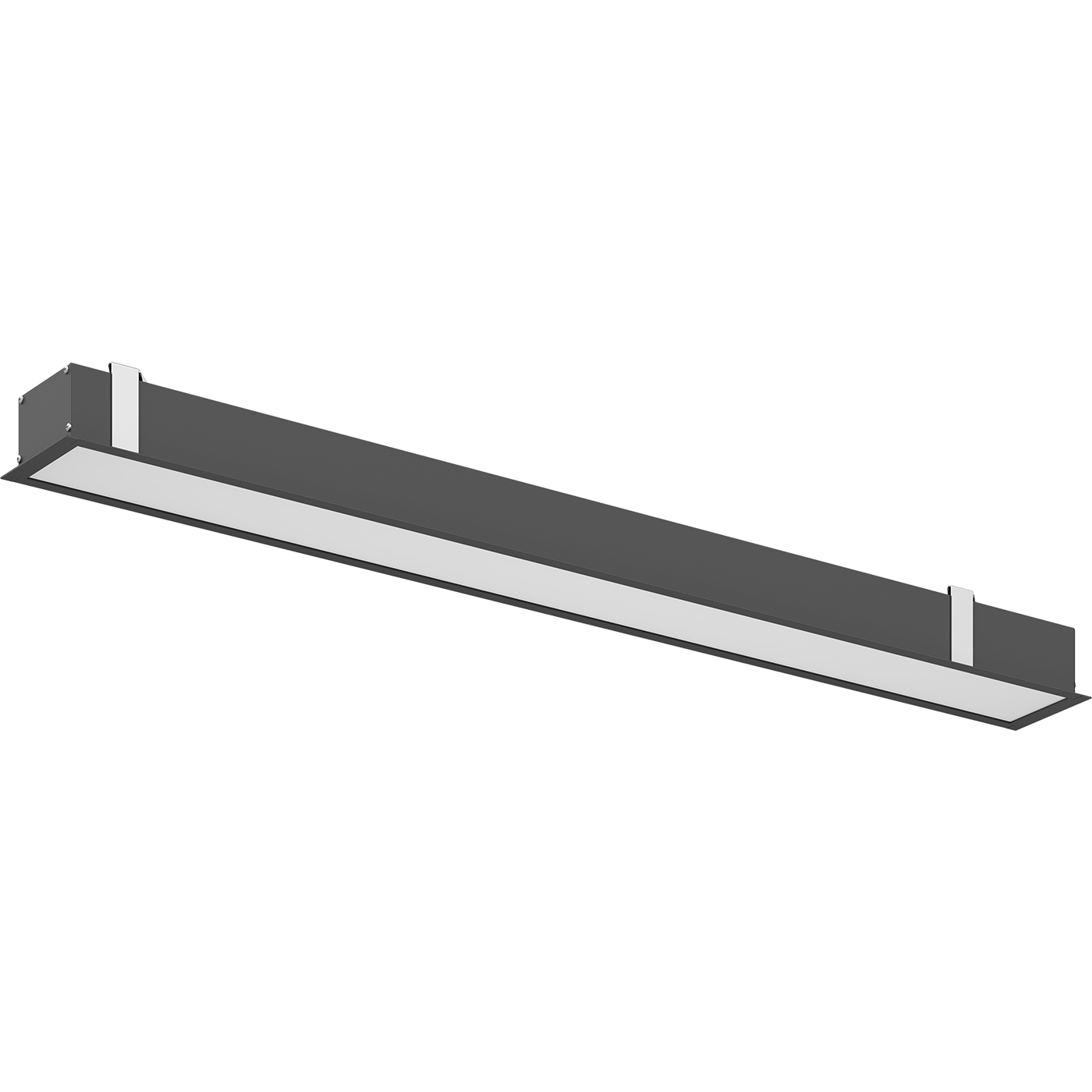

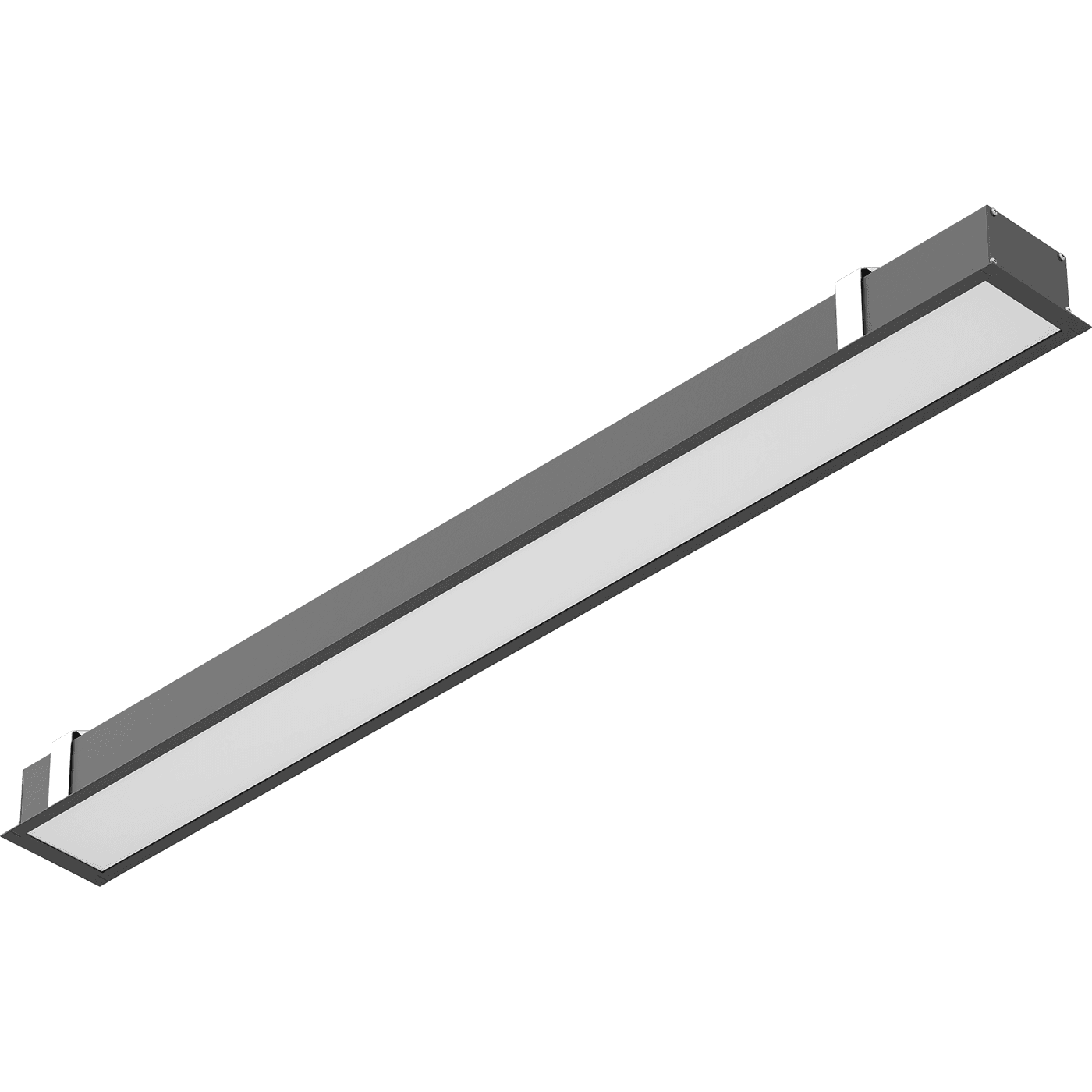

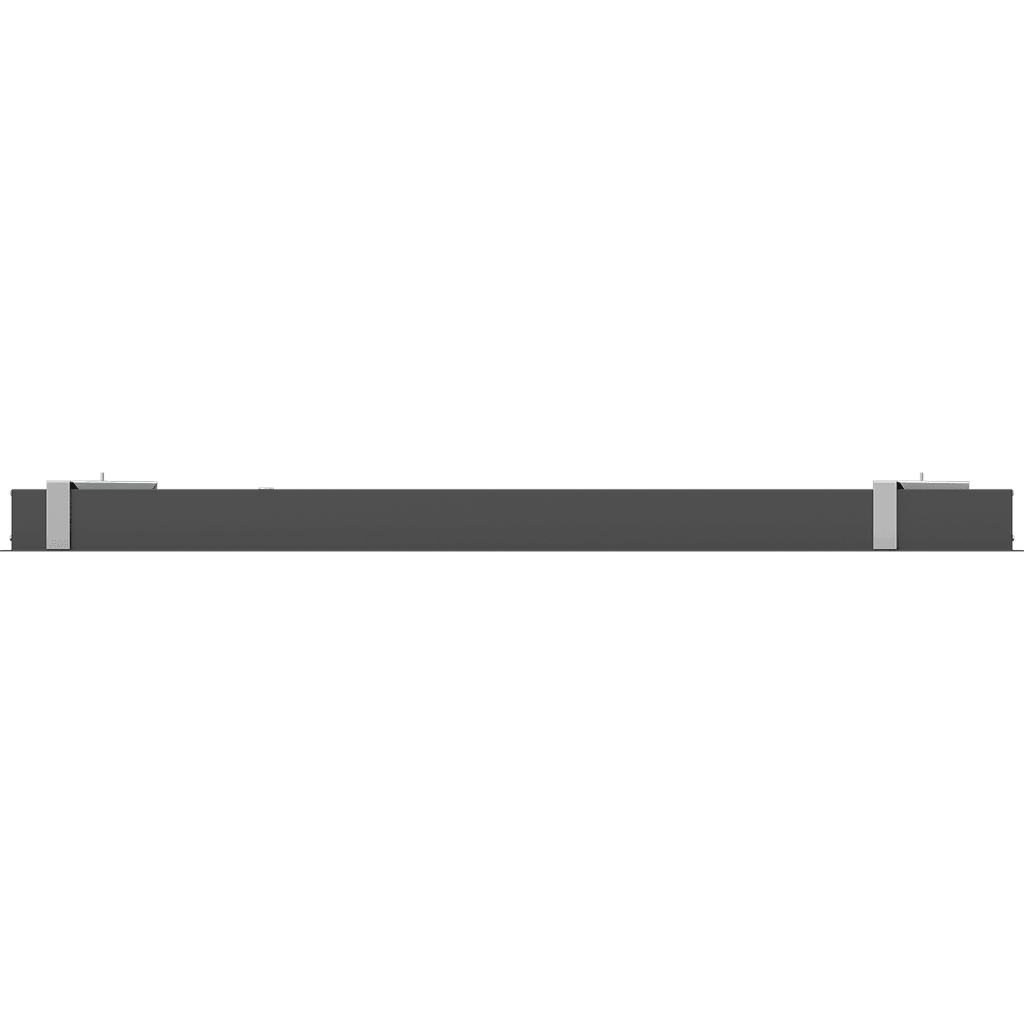

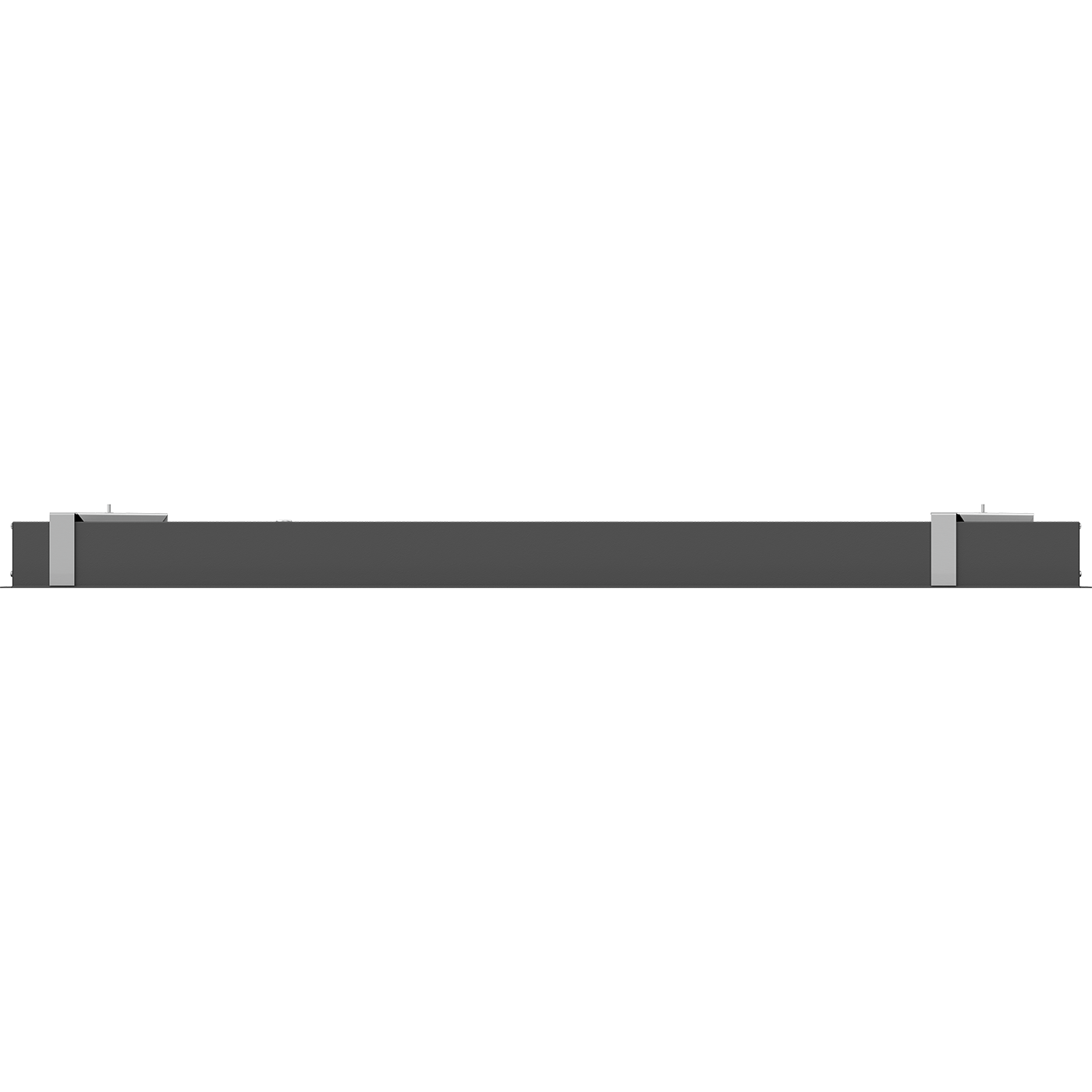

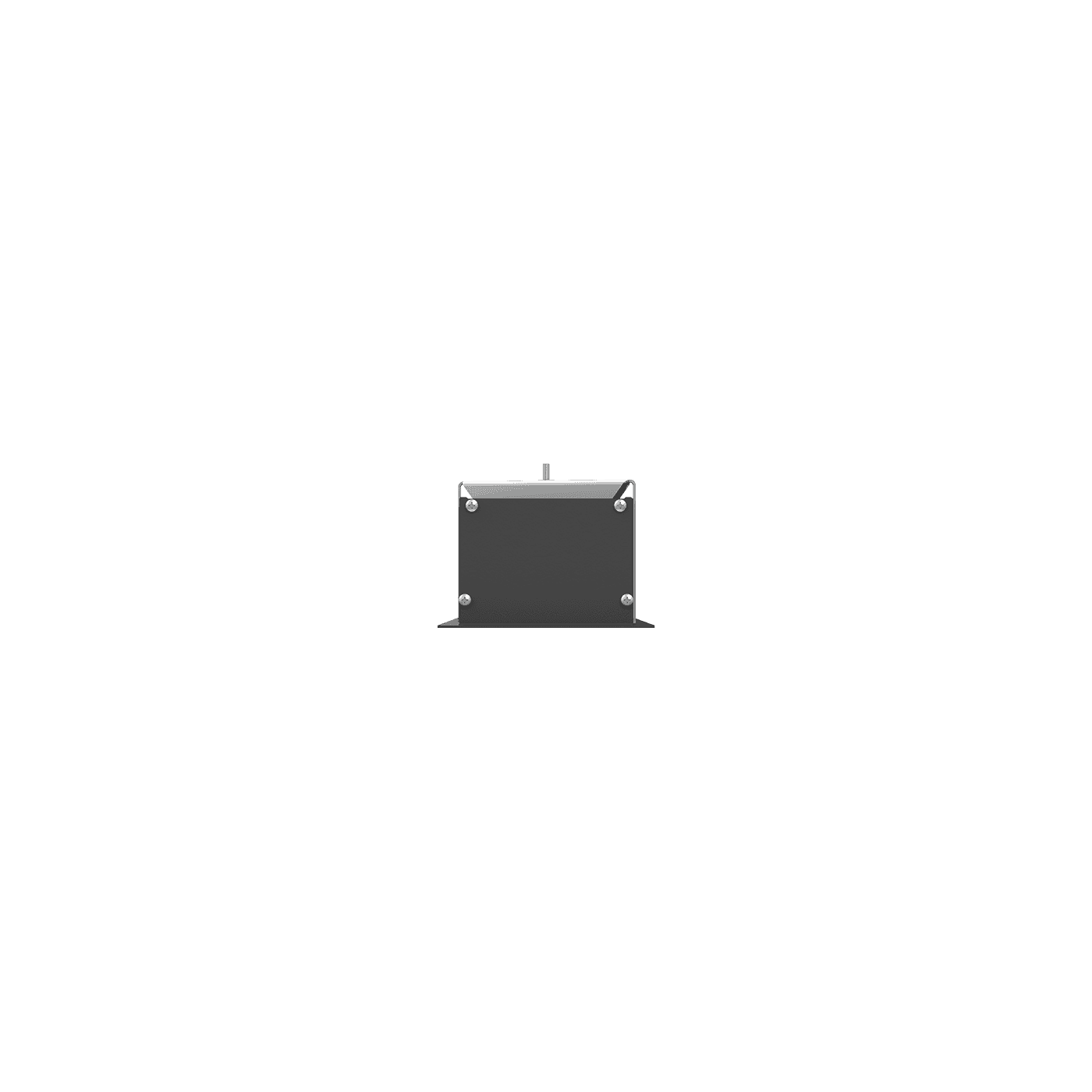

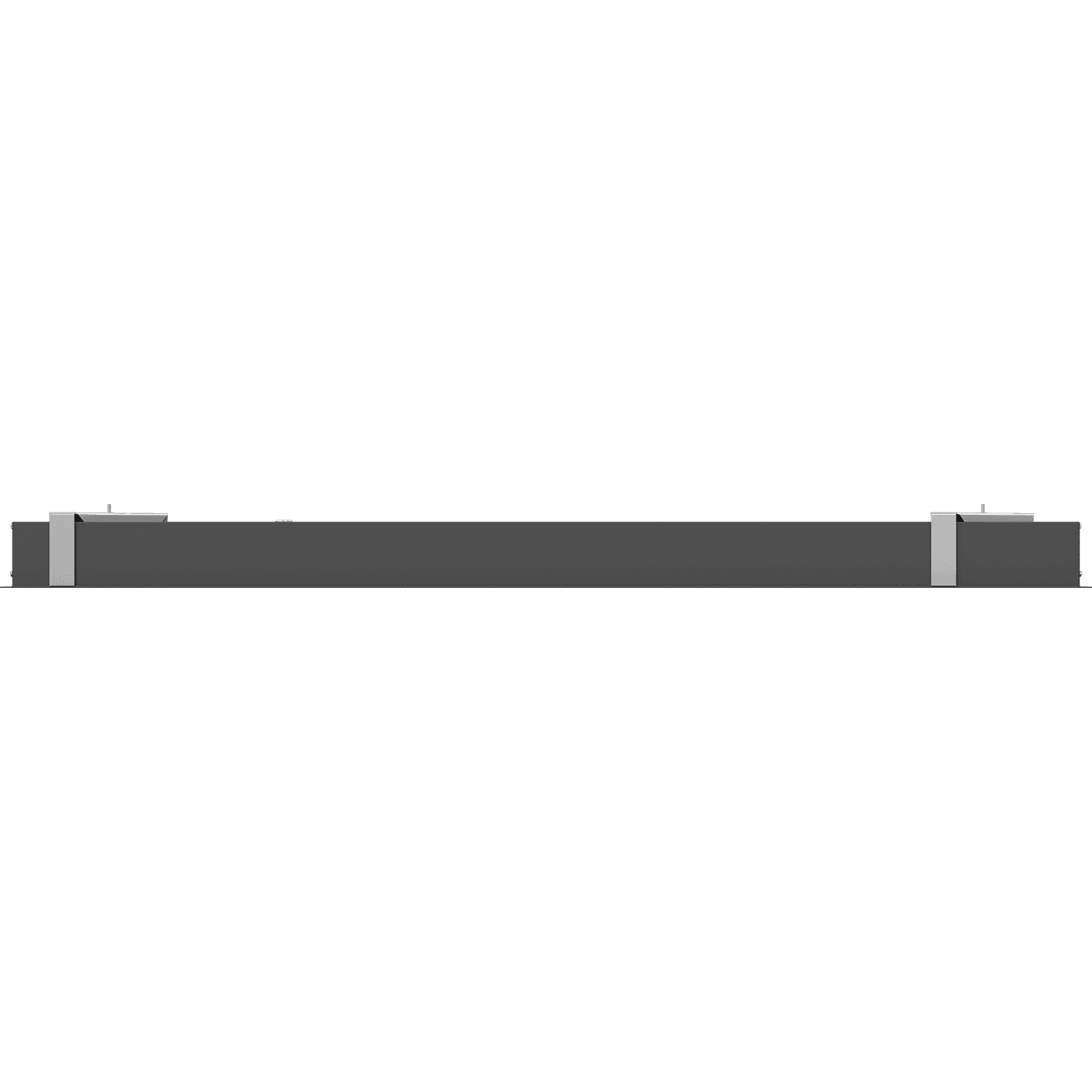

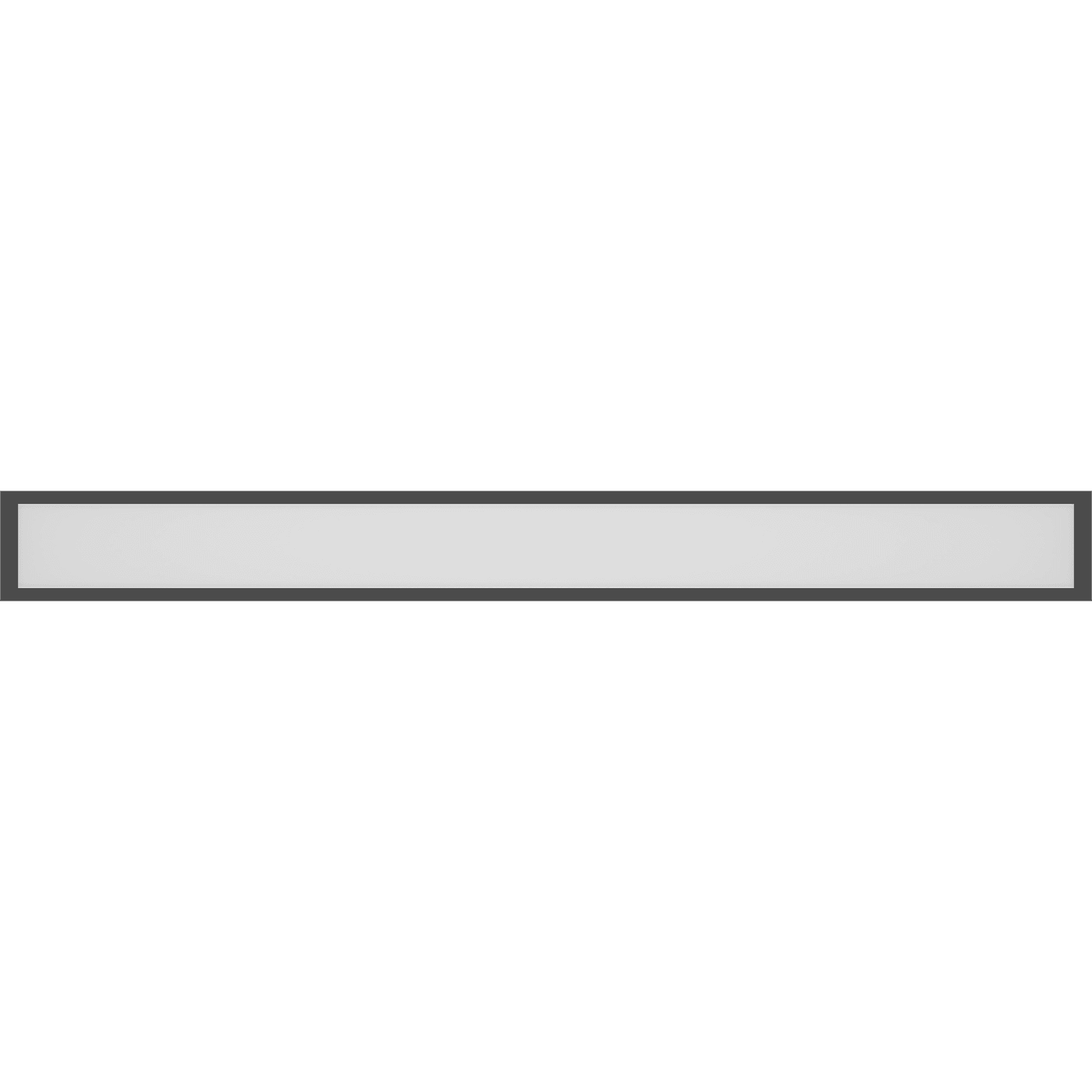

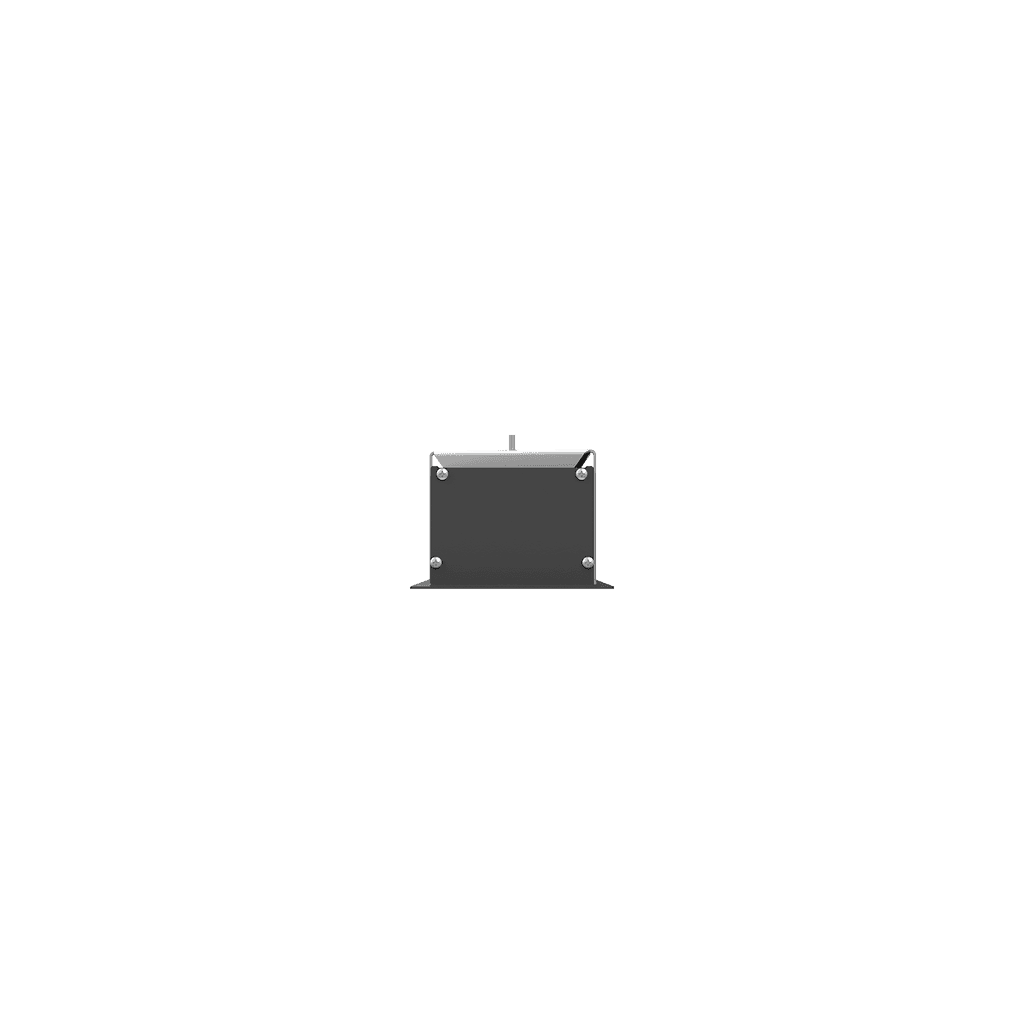

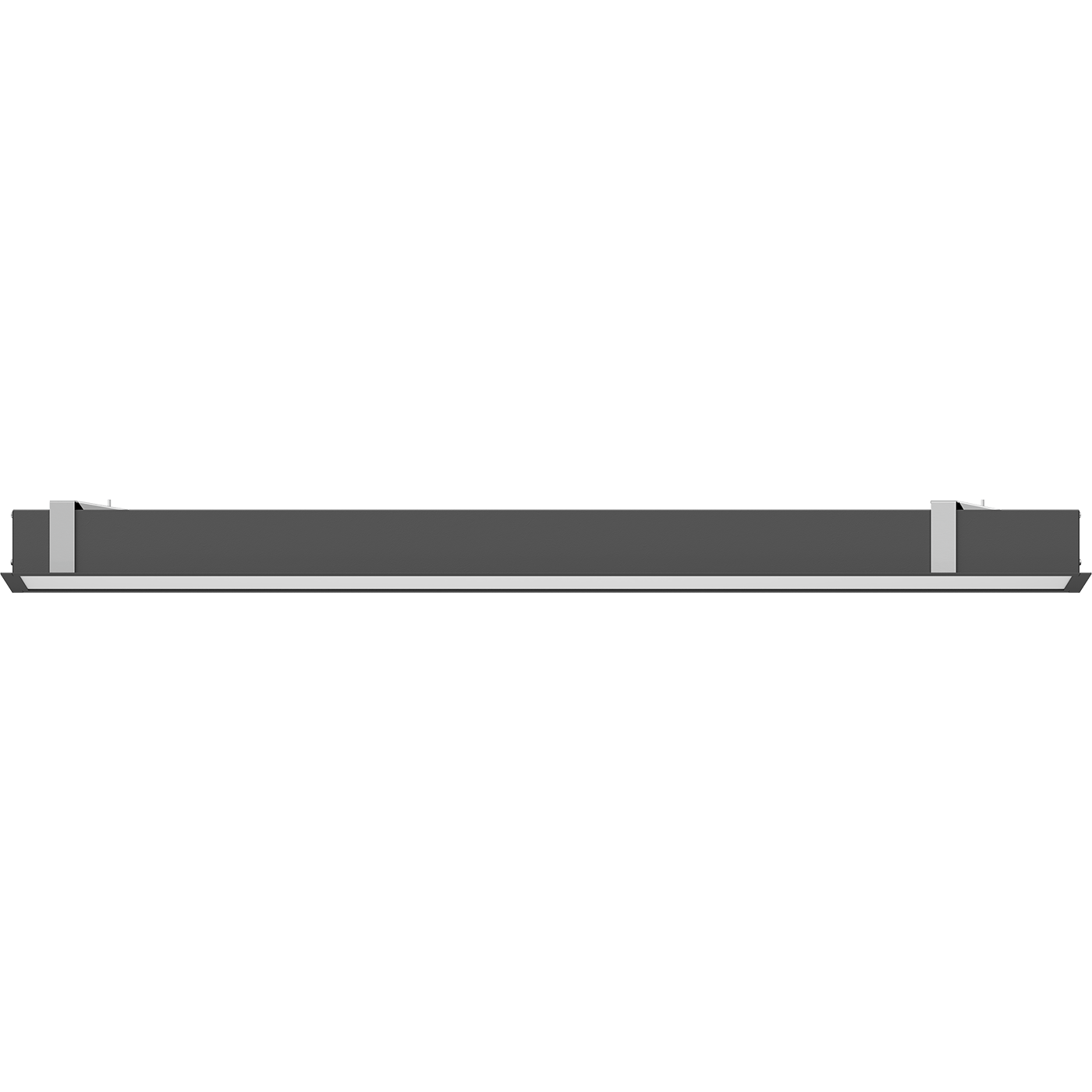

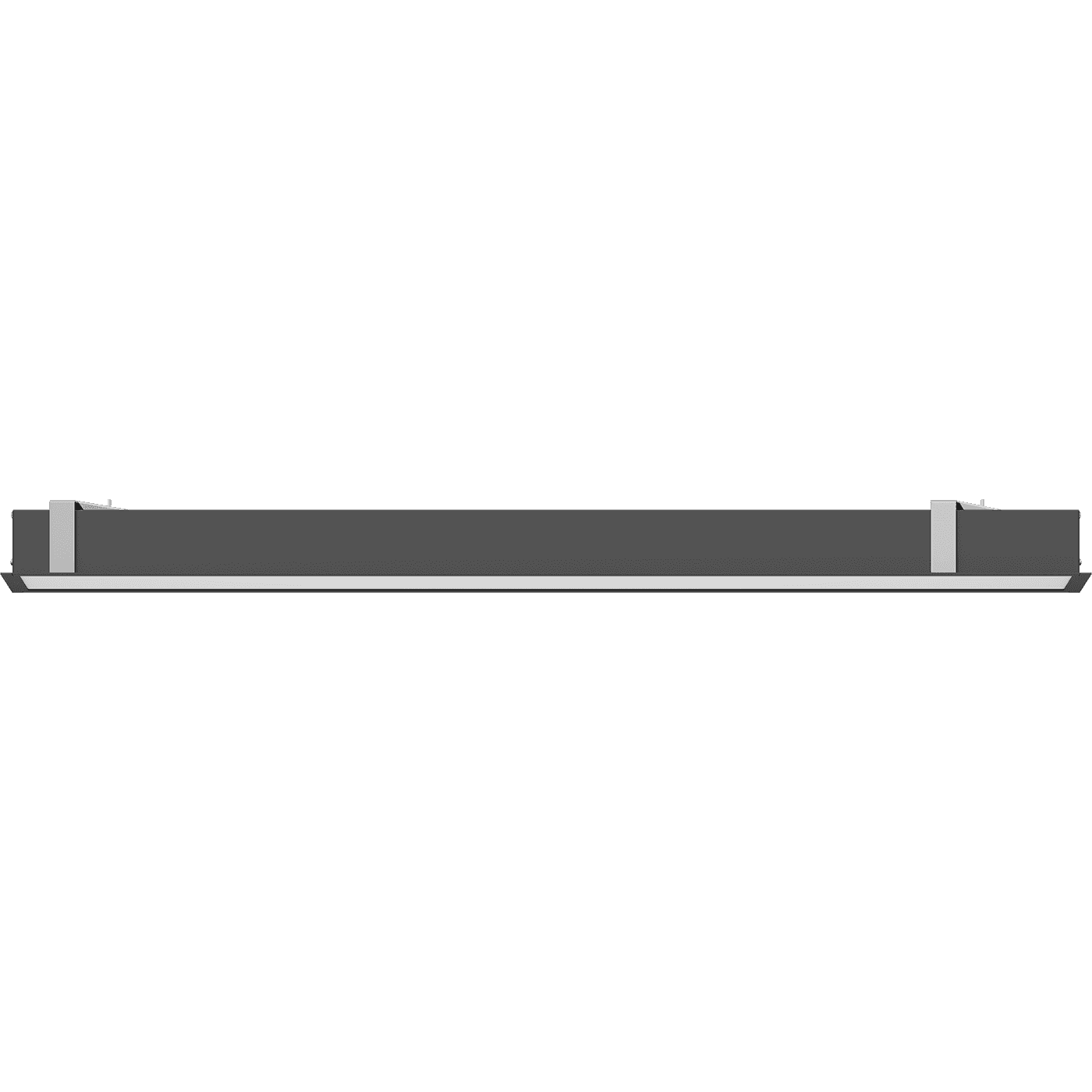

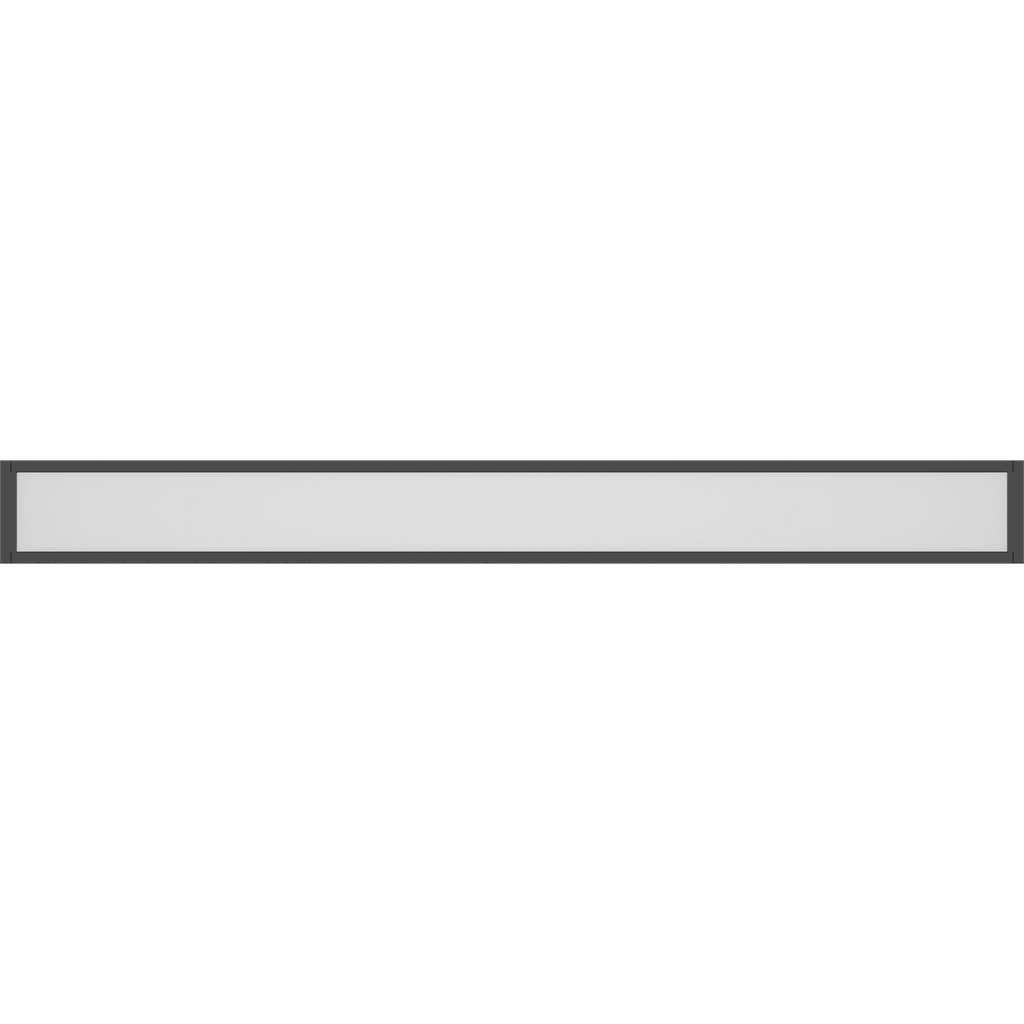

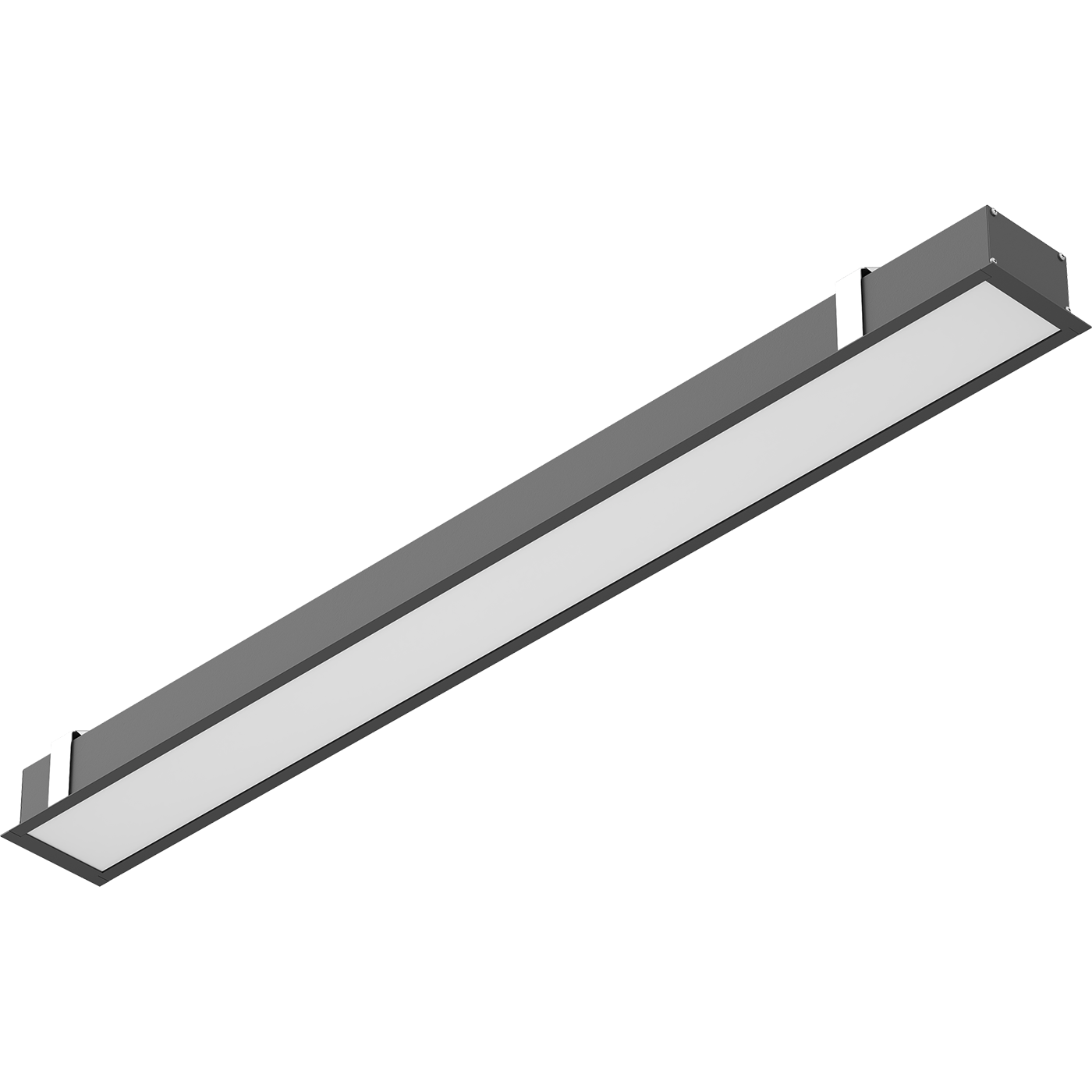

LINER 100 DR/R (1200) 840 BK
model is discontinued
_840_bk.jpg&w=1920&q=100)
_840_bk.jpg&w=1024&q=75)
model is discontinued
LINER 100 DR/R (1200) 840 BK
32 Wluminaire power
3200 lmlight flow
100 lm/Wenergy efficiency
code1474002020
color temperature4000 K
beam angleD120
old nameLINER/R 100 LED (1200) 840 BL DR
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
100 lm/Wcolor rendition index (CRI)
>80light flow
3200 lmbeam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
100 lm/W
color rendition index (CRI)
>80
light flow
3200 lm
beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
32 W
supply voltage
230 V
power factor
> 0,95
maximum cross-section of the connected cable
1.5 mm2
constructional
length
1210 mm
width
125 mm
height
76 mm
installation length
1220 mm
installation width
105 mm
weight
4.2 kg
ingress protection (IP)
IP20
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-ІІІ
material
Алюминий
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1474002020
model files
model files

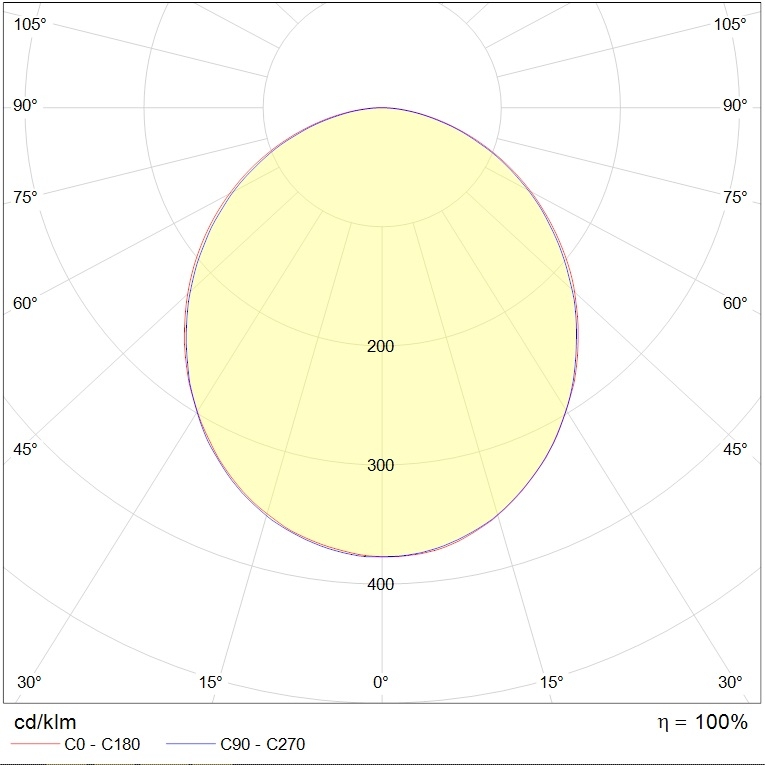

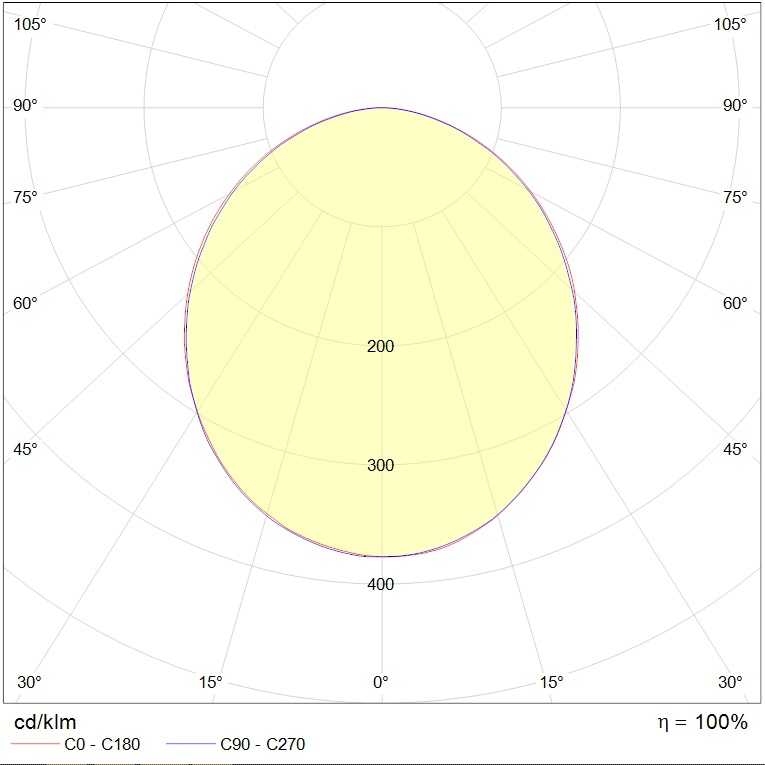

photometric files
сертификаты
photometric files
ies107 kB
jpg76.9 kB
ldt65.8 kB
сертификаты
Russian origin279 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
accessories
Diffusor LINER 100 3720 mm (in package)1.65kgarticle: 2473000210
Diffusor LINER 100 5020 mm (in package)0.8kgarticle: 2473000230
Diffusor LINER 100 10100 mm (in package)1.6kgarticle: 2473000220
