LIGHTFALL S LED 24W D50 827 BK
LIGHTFALL S LED 24W D50 827 BK
20 Wluminaire power
1700 lmlight flow
85 lm/Wenergy efficiency
code1883000020
beam angleD50
color temperature2700 K
weight2.355 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
85 lm/Wcolor rendition index (CRI)
>80light flow
1700 lmflickering factor
<5%beam angle
D50color temperature
2700 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
85 lm/W
color rendition index (CRI)
>80
light flow
1700 lm
flickering factor
<5%
beam angle
D50
color temperature
2700 K
light source type
LED
emission color
Белый
electrical
luminaire power
20 W
electric shock protection
I
starting current pulse time
350 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
142-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,90
constructional
fire safety class
П-ІІІ
diameter
186 mm
height
123 mm
installation diameter
105 mm
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
material
Алюминий
climatic performance
УХЛ2*
ingress protection (IP)
IP65
shock resistance (IK)
IK08/5 Дж
weight
2.355 kg
common
code
1883000020
warranty
60 month
energy efficiency class
A
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
model files
model files

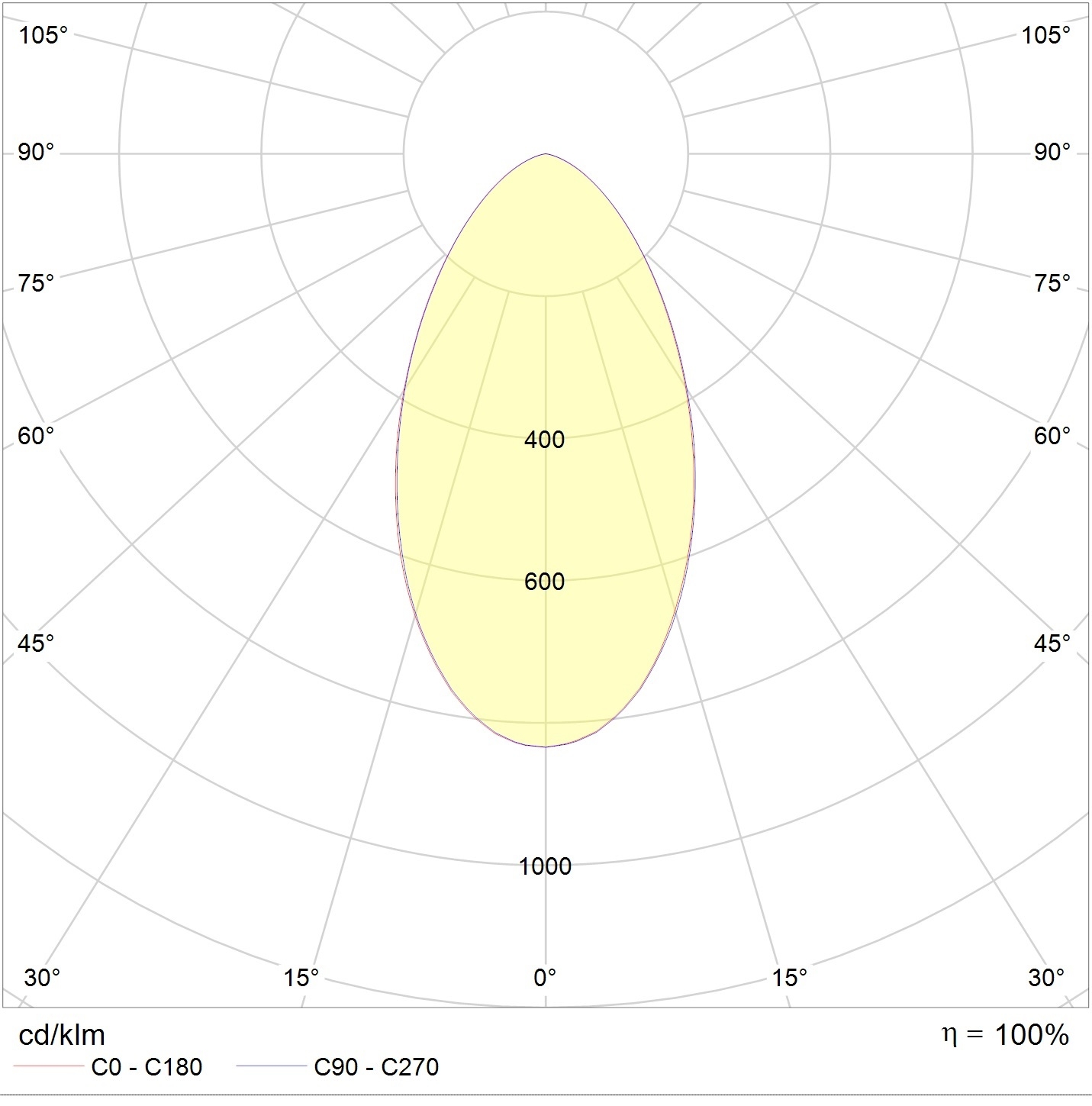

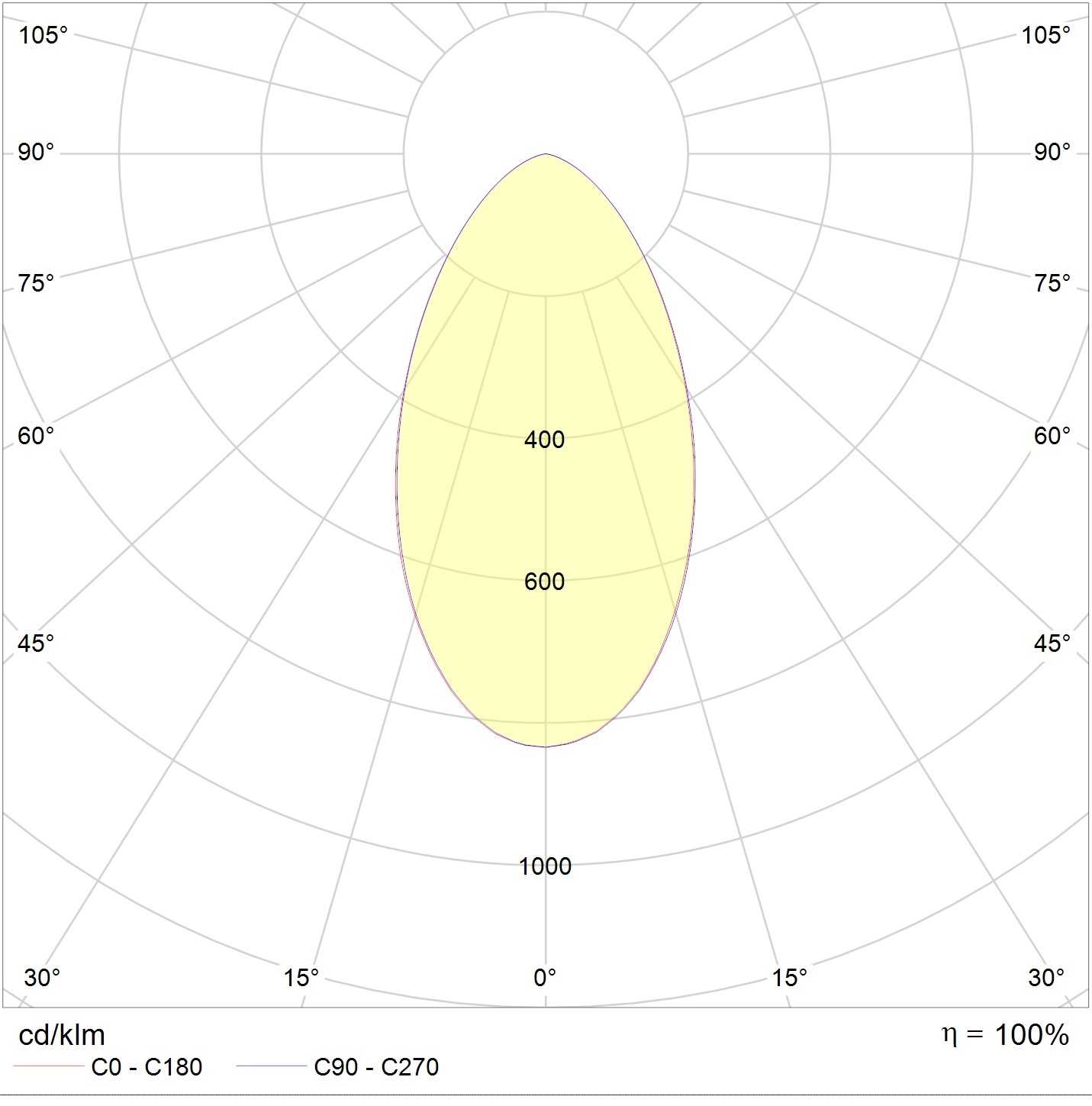

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg186.7 kB
ldt71.2 kB
documents
passport2.9 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
