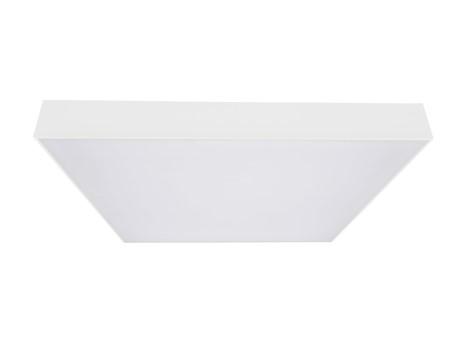

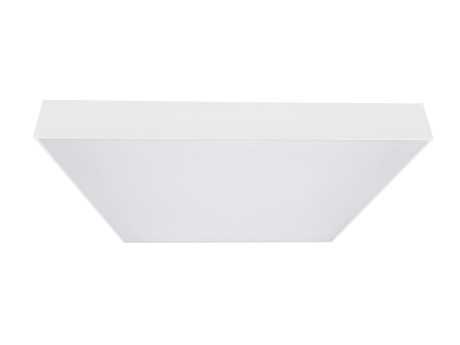

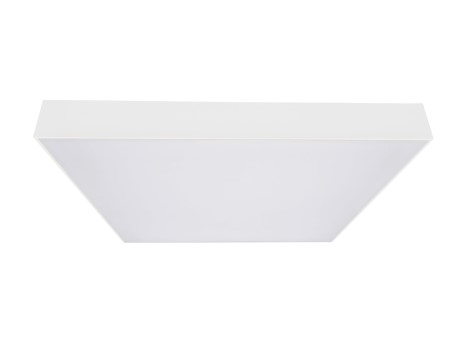

LIGHTBOX R LED 600x600 WH 36W IP54/IP54 4000K
model is discontinued
model is discontinued
LIGHTBOX R LED 600x600 WH 36W IP54/IP54 4000K
36 Wluminaire power
3690 lmlight flow
103 lm/Wenergy efficiency
code1734000430
color temperature4000
beam angleD120
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
103 lm/Wcolor rendition index (CRI)
>80light flow
3690 lmflickering factor
<5%beam angle
D120color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
103 lm/W
color rendition index (CRI)
>80
light flow
3690 lm
flickering factor
<5%
beam angle
D120
color temperature
4000
light source type
LED
emission color
Белый
electrical
starting current pulse time, µs
100 mks
electric shock protection
I
luminaire power
36 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable, sq. mm
2.5
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
starting current
45 A
constructional
length, mm
600 mm
width, mm
600 mm
height, mm
80 mm
installation length, mm
600 mm
installation width, mm
600 mm
weight
4.4 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
fire safety class
П-I,II,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от +5 до +35 C
service life, hour
50 000 h
energy efficiency class
A+
ETIM class
Настенно-потолочный светильник
code
1734000430
model files
model files
documents
сертификаты
documents
passport256.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016583.2 kB
Fire Safety Certificate1.7 mB
