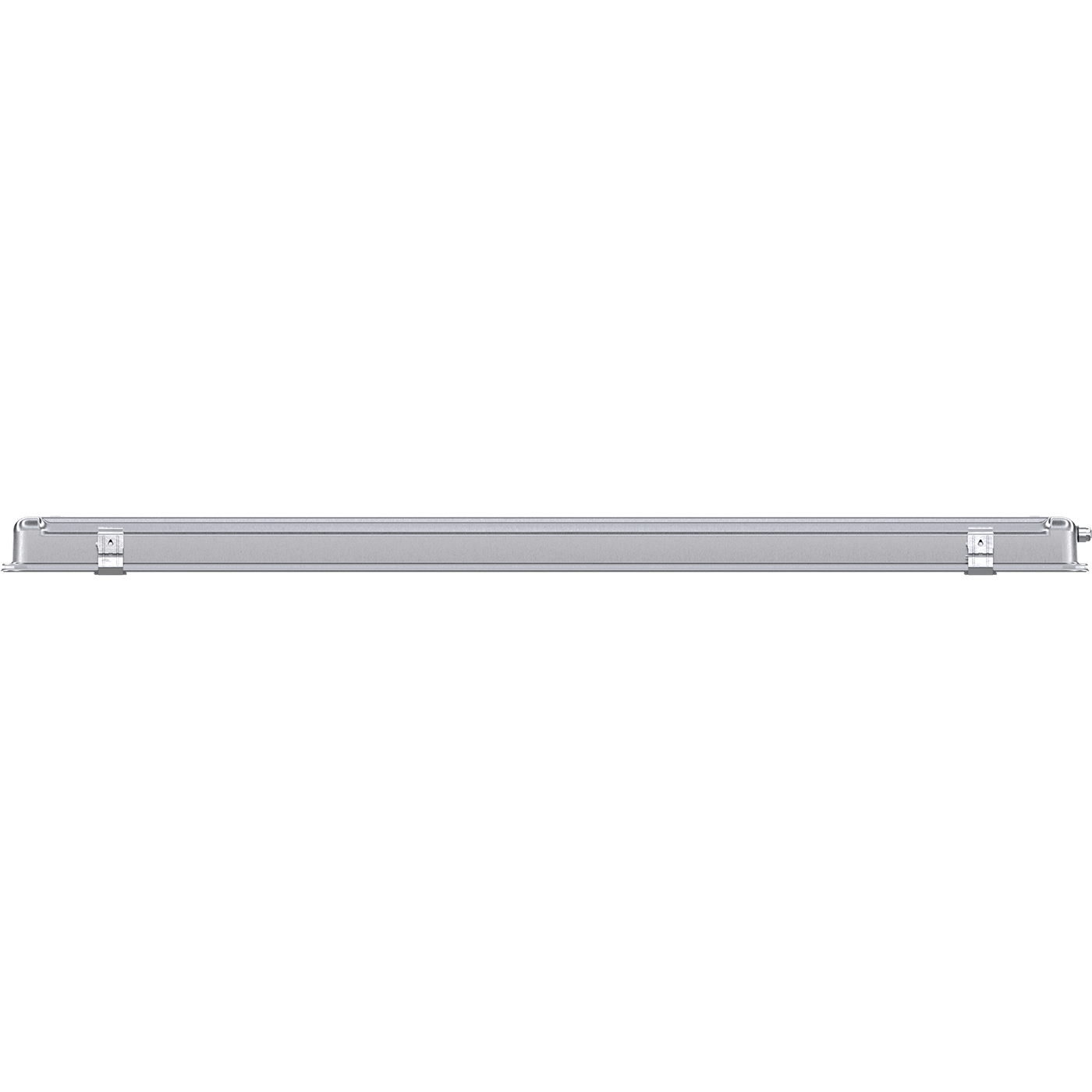

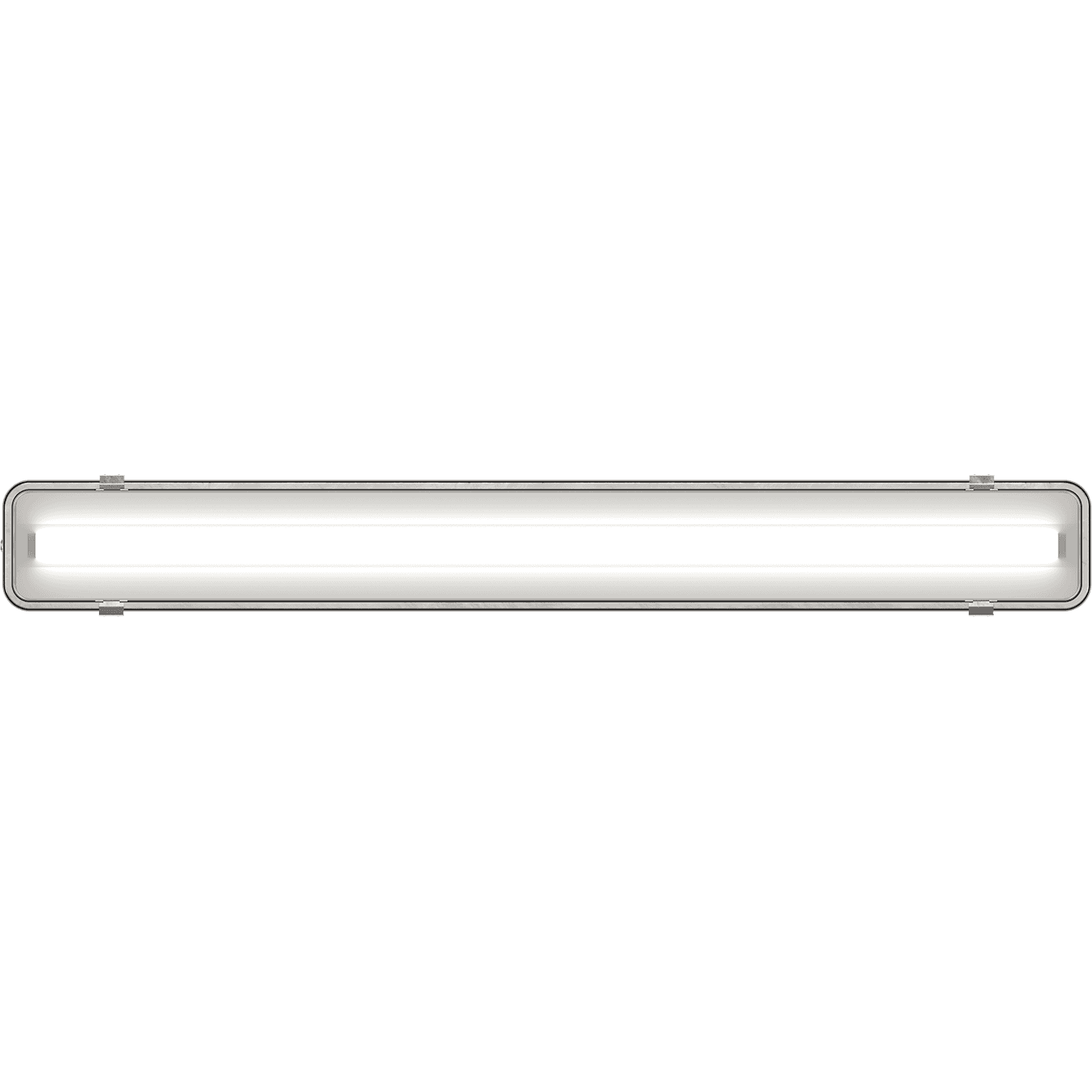

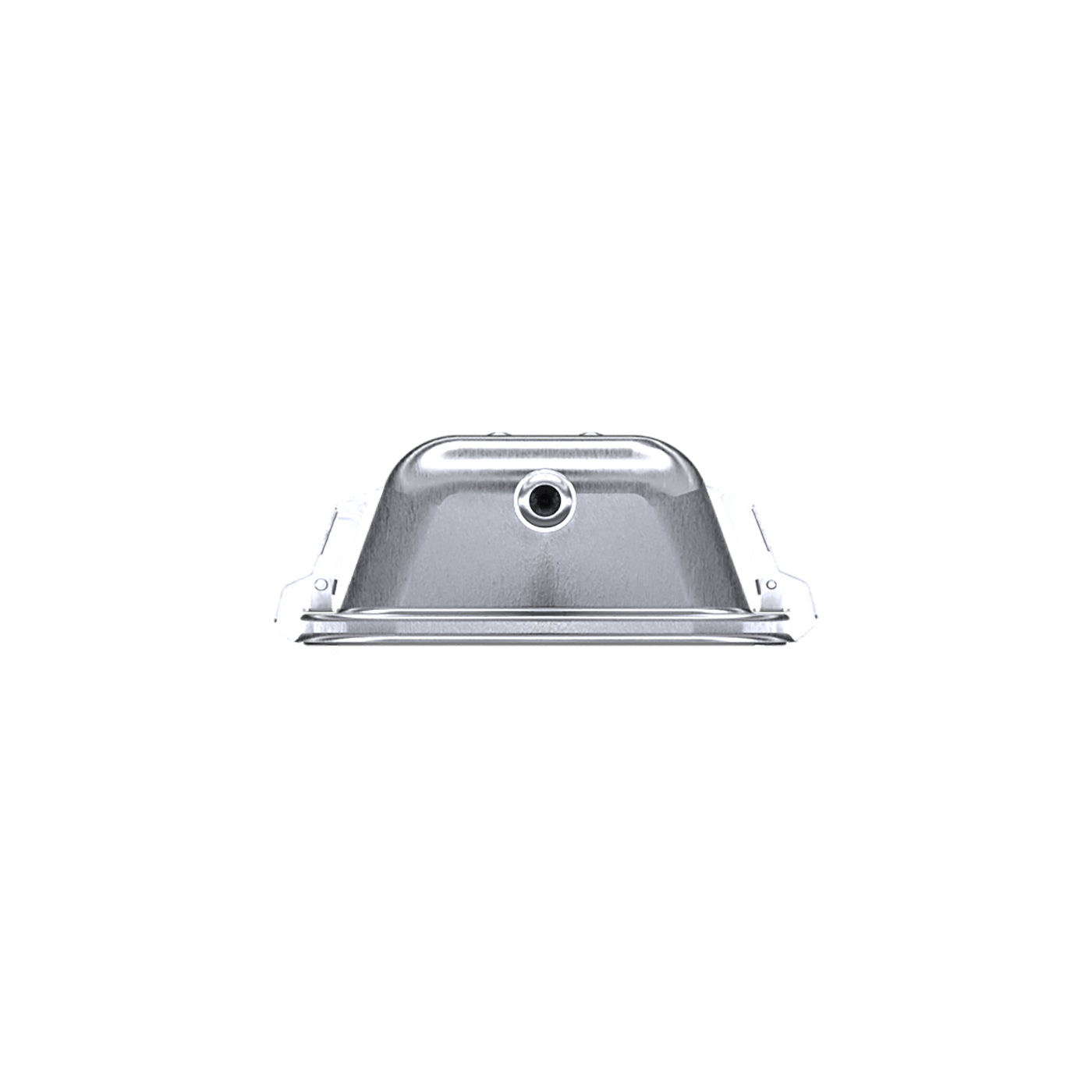

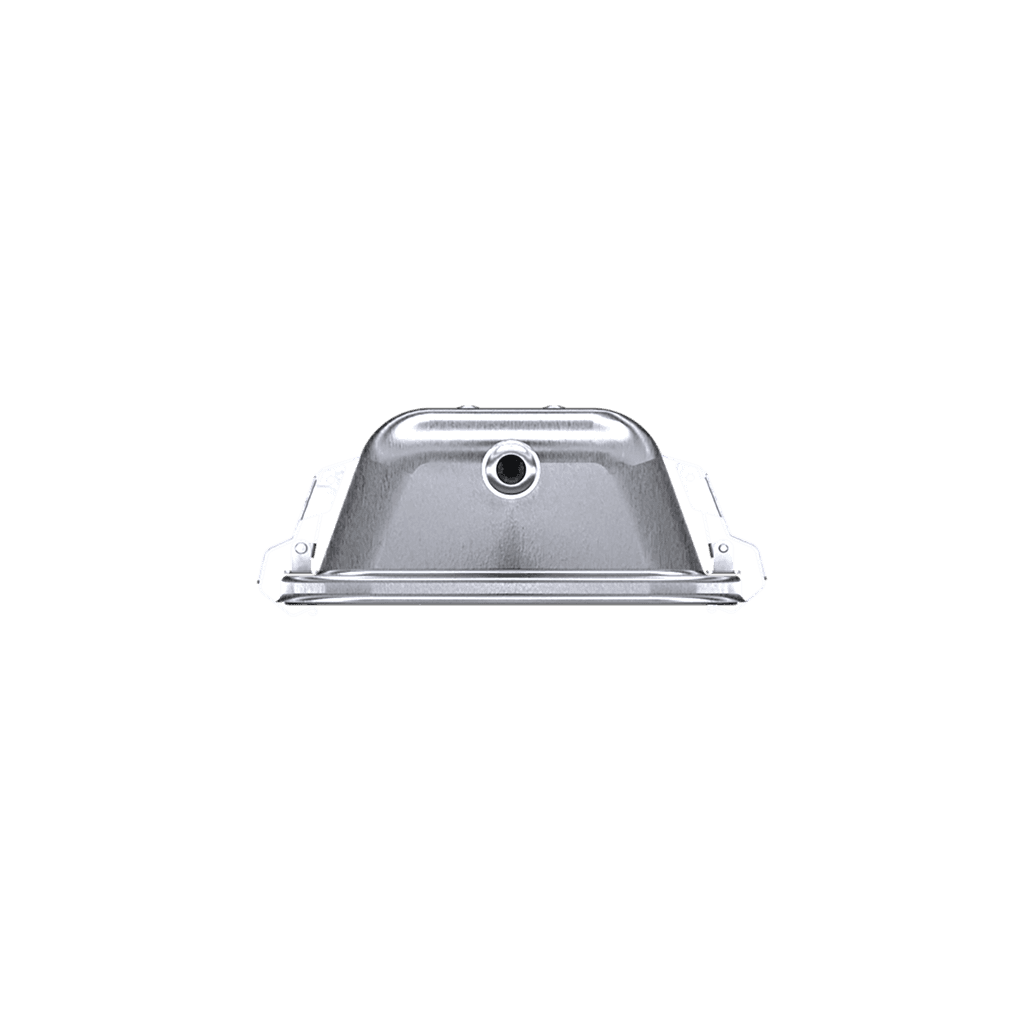

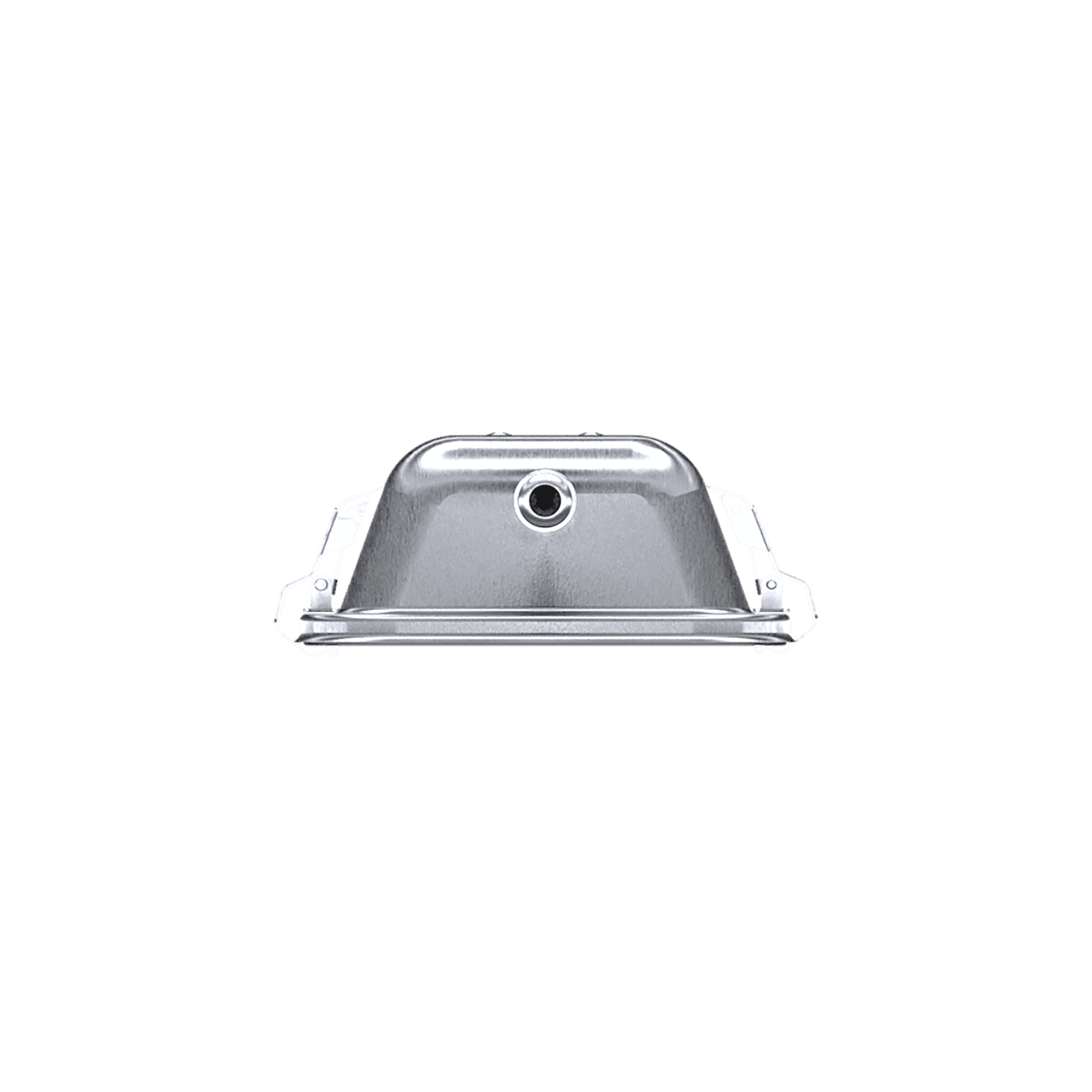

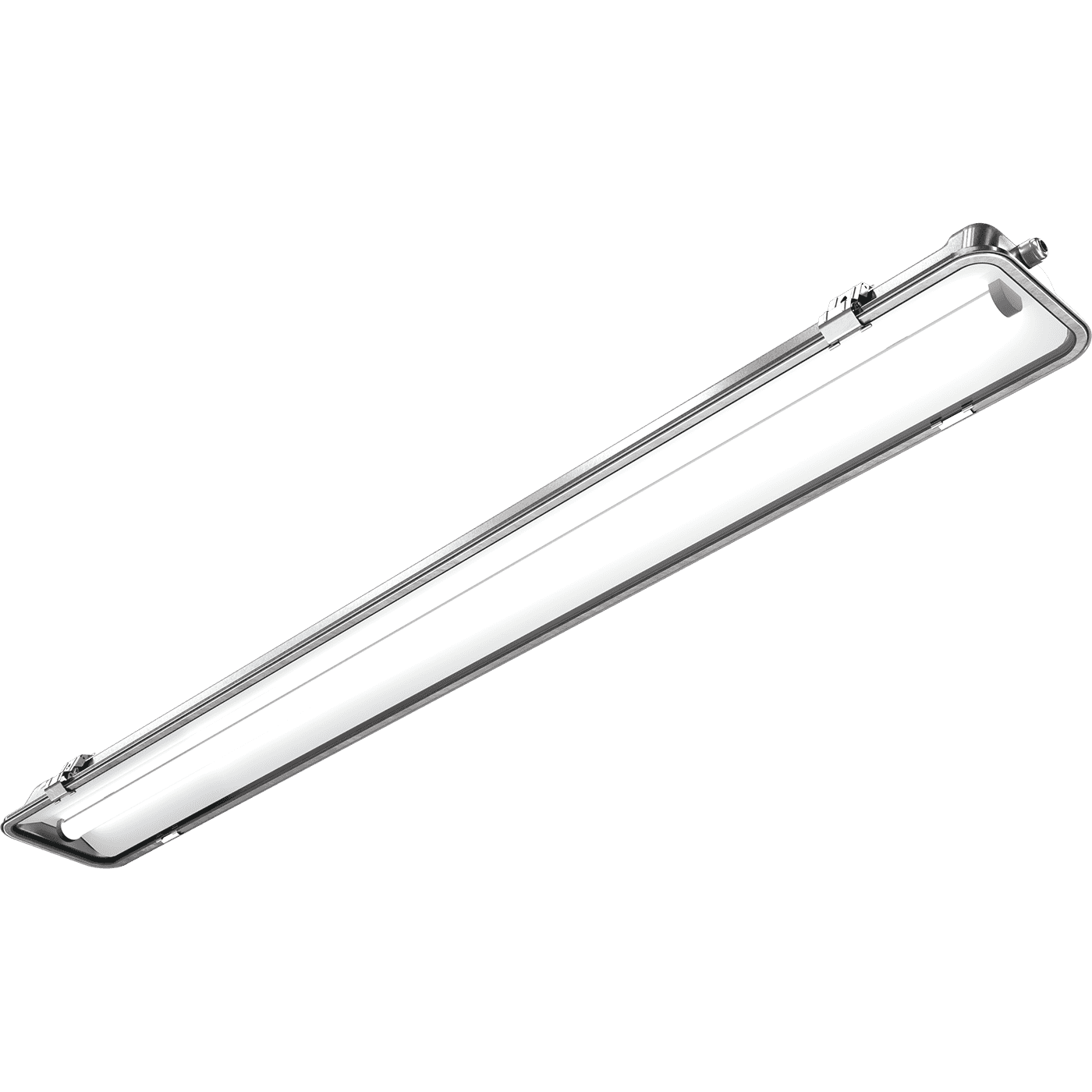

LHT 1500 5000K
LHT 1500 5000K
66 Wluminaire power
7600 lmlight flow
115 lm/Wenergy efficiency
code
1499000590
color temperature
5000 K
beam angle
D120
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
emission color
Белыйlight source type
LEDlight flow
7600 lmcolor rendition index (CRI)
>80flickering factor
<1%energy efficiency
115 lm/Wbeam angle
D120color temperature
5000 Killuminating
emission color
Белый
light source type
LED
light flow
7600 lm
color rendition index (CRI)
>80
flickering factor
<1%
energy efficiency
115 lm/W

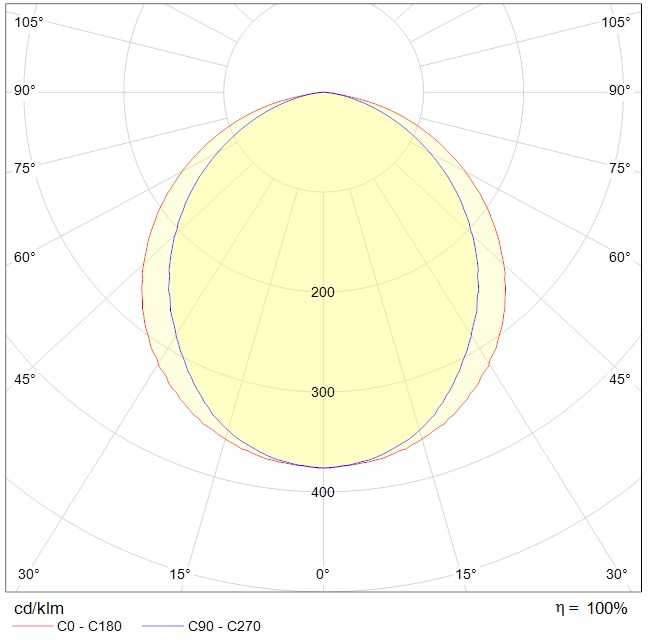

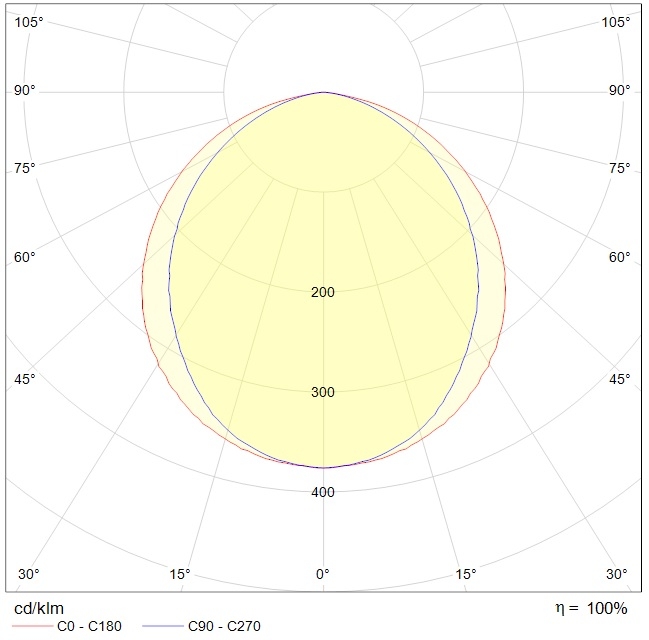

beam angle
D120
color temperature
5000 K
electrical
luminaire power
66 W
electric shock protection
I
power factor
> 0,95
maximum cross-section of the connected cable
2.5 mm2
starting current
30 A
supply voltage
230 V
starting current pulse time
250 µs
constructional
ingress protection (IP)
IP54
shock resistance (IK)
IK08/6,5 Дж
climatic performance
УХЛ2*
fire safety class
П-I,II,IIа
length
1600 mm
width
210 mm
height
90 mm
material
Сталь нержавеющая
housing color
Серый
mounting type
weight
9.7 kg
emergency
emergency power supply
Нет
common
code
1499000590
ETIM class
Настенно-потолочный светильник
energy efficiency class
A+
service life
50 000 h
temperature range
от -40 до +40 C
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Комплект креплений - 1 шт.
model files
model files
CAD/BIM files

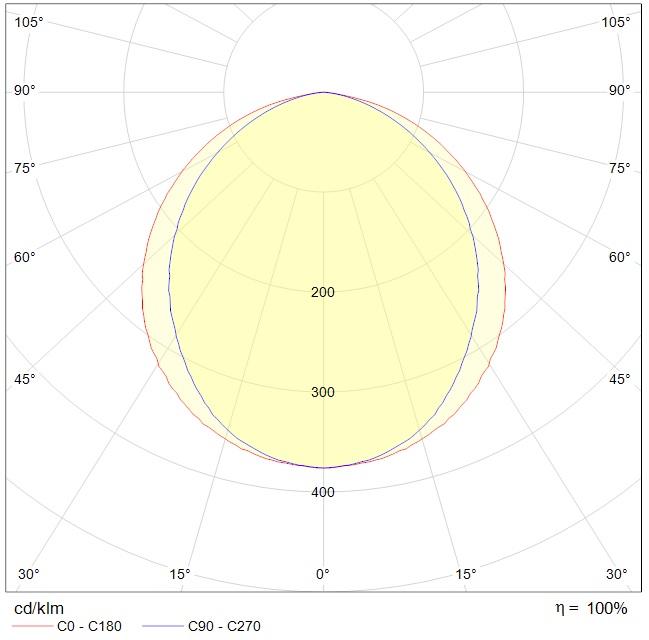

photometric files
documents
сертификаты
CAD/BIM files
model 3dMax1.3 mB
photometric files
ies330.5 kB
jpg64.2 kB
ldt203.5 kB
csv423 B
documents
passport1.9 mB
сертификаты
Certificate of Russian maritime register of shipping1.3 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.1 mB
Declaration of Conformity EAEU TR 037/2016521.7 kB
