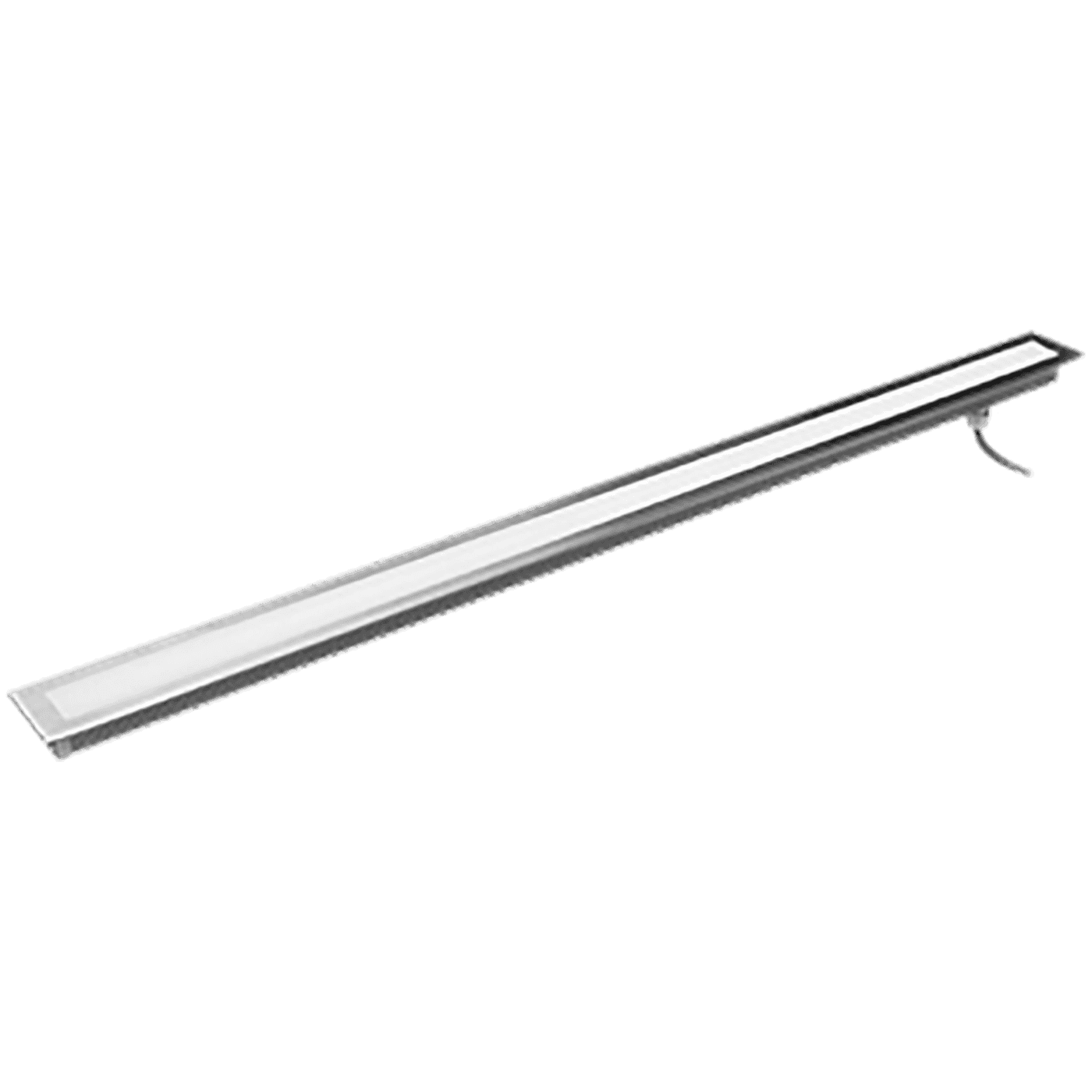

LEGATO LED 18W D45x35 730 SL
archive
archive
LEGATO LED 18W D45x35 730 SL
18 Wluminaire power
1000 lmlight flow
56 lm/Wenergy efficiency
code1100400050
beam angleD45x35
color temperature3000
weight3 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
20 Astarting current pulse time, µs
0.1 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
230-240 Vluminaire power
18 Welectric shock protection
Ipower factor
> 0,90supply voltage
230 Velectrical
starting current
20 A
starting current pulse time, µs
0.1 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
230-240 V
luminaire power
18 W
electric shock protection
I
power factor
> 0,90
supply voltage
230 V
constructional
ingress protection (IP)
IP67
fire safety class
П-ІІІ
material
Алюминий
weight
3 kg

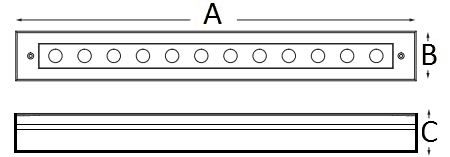

length, mm
549 mm
width, mm
68 mm
height, mm
84 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
1.5
shock resistance (IK)
IK07/2 Дж
installation width, mm
80 mm
installation length, mm
527 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1100400050
ETIM class
Светильник грунтовый
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
B
service life, hour
50 000 h
illuminating
energy efficiency
56 lm/W
color rendition index (CRI)
>70
light flow
1000 lm
flickering factor
<10%
beam angle
D45x35
color temperature
3000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS94.7 kB
model 3dMax1.1 mB

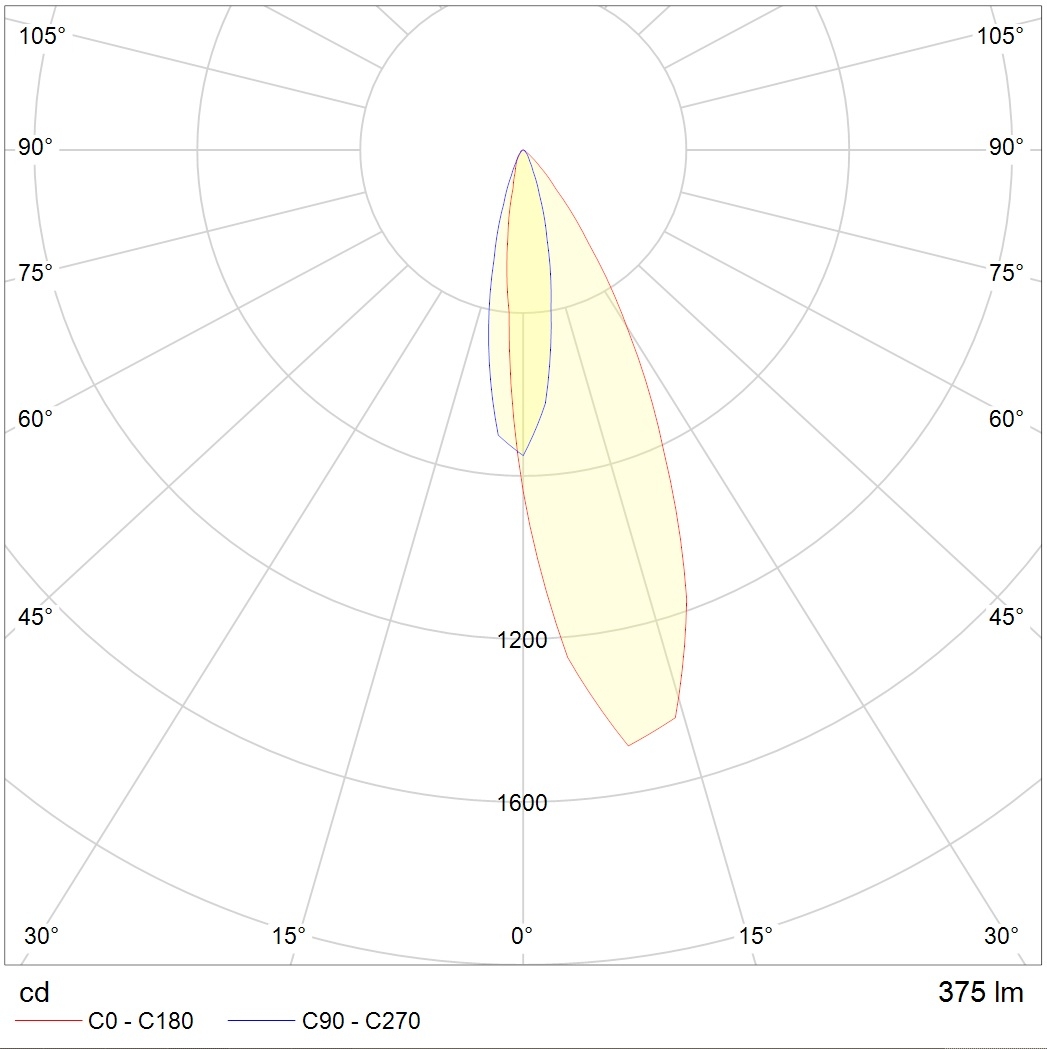

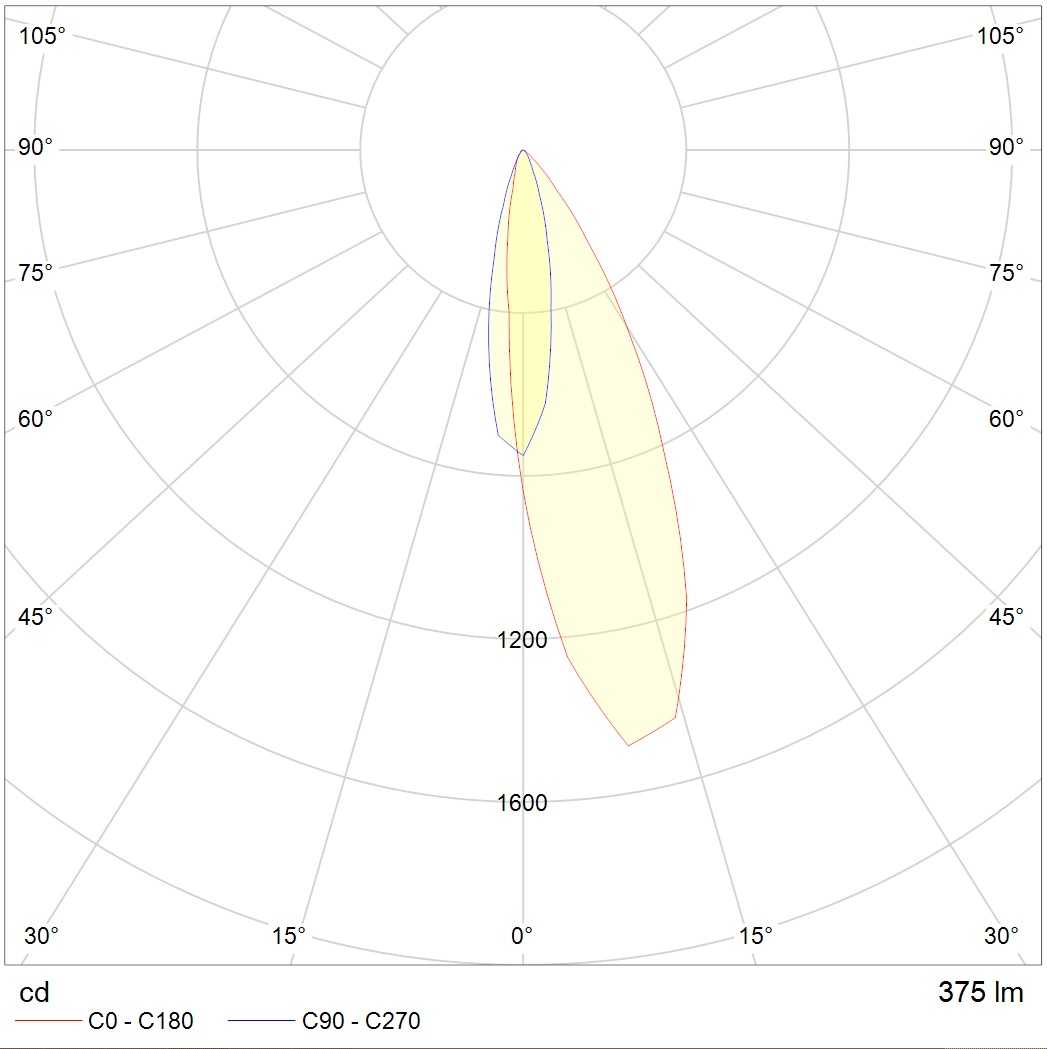

photometric files
jpg111.5 kB
ldt1.9 kB
documents
passport1.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011677.5 kB
Declaration of Conformity EAEU TR 037/2016287.3 kB
