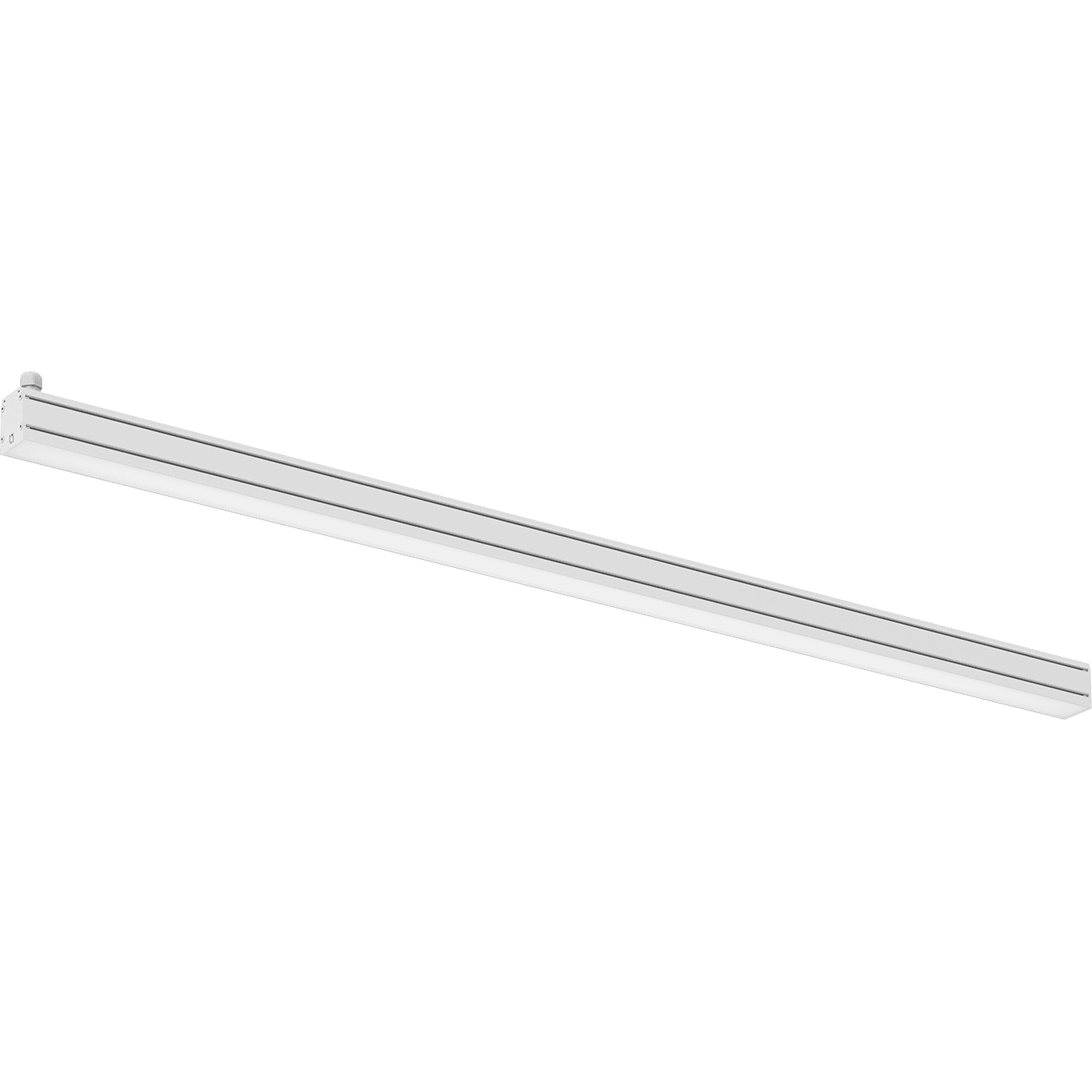

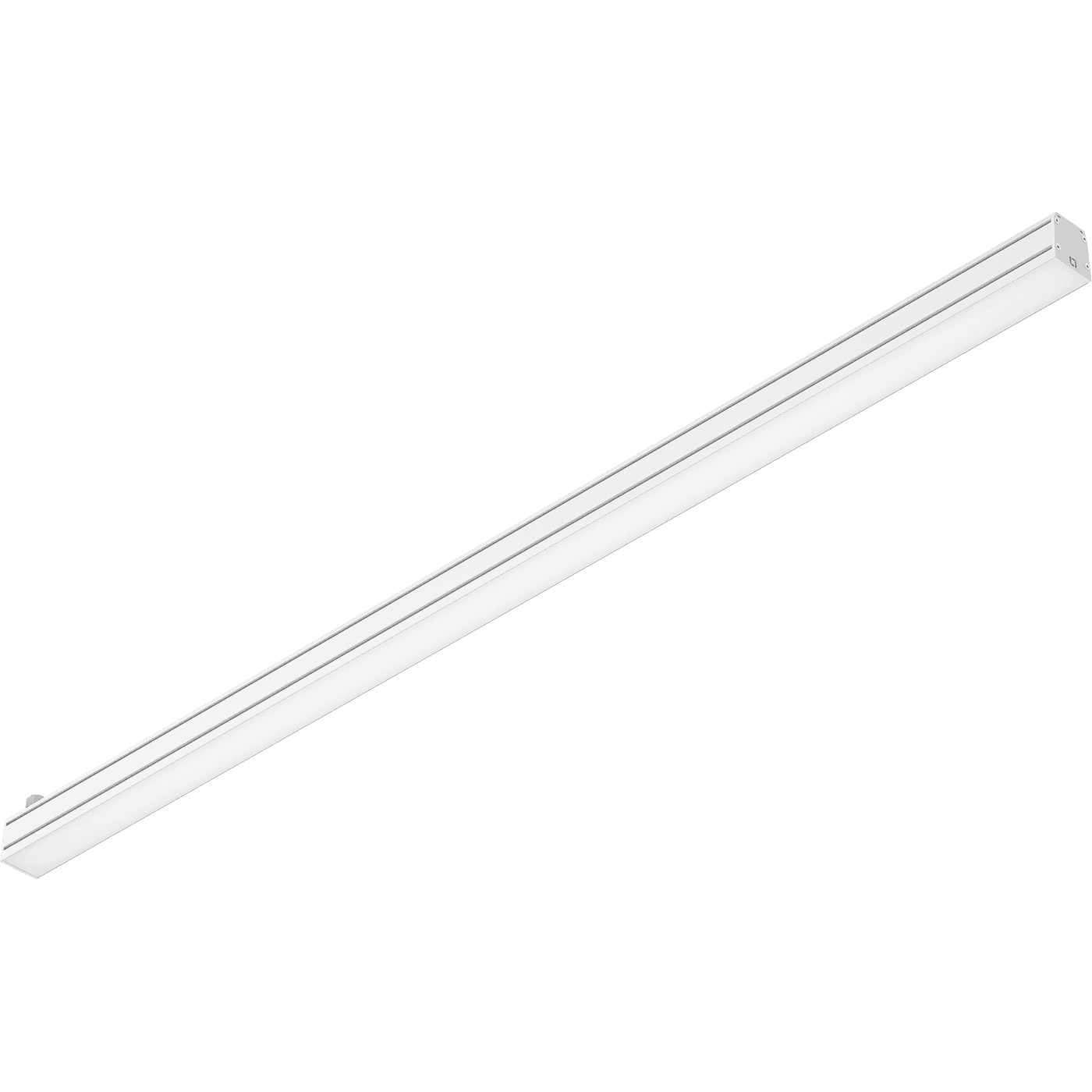

LED MALL ECO 70 IP54 4000K with one output 1m
model is discontinued
model is discontinued
LED MALL ECO 70 IP54 4000K with one output 1m
74 Wluminaire power
8200 lmlight flow
111 lm/Wenergy efficiency
code1598002980
color temperature4000 K
beam angleD100
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
111 lm/Wcolor rendition index (CRI)
>85light flow
8200 lmflickering factor
<1%beam angle
D100color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
111 lm/W
color rendition index (CRI)
>85
light flow
8200 lm
flickering factor
<1%
beam angle
D100
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,98
luminaire power
74 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
30 A
constructional
length
1500 mm
width
53 mm
height
100 mm
installation length
1300 mm
weight
3.1 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
temperature range
от -25 до +40 C
service life
50 000 h
ETIM class
Светильник (электрический блок) для магистральных систем световых линий
warranty
36 month
energy efficiency class
A+
code
1598002980
model files
model files
photometric files
documents
сертификаты

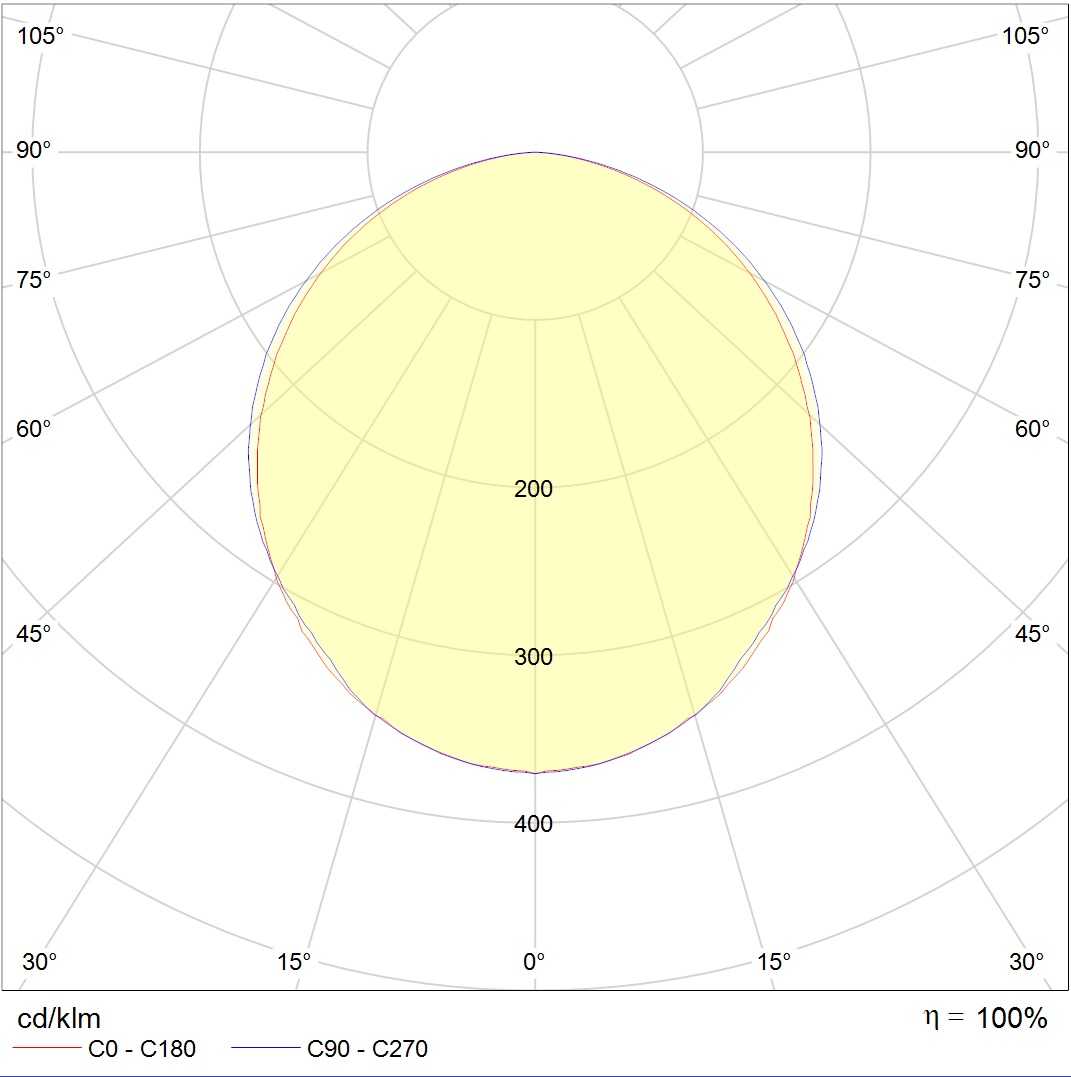

photometric files
ies134.1 kB
jpg123.9 kB
ldt84.4 kB
documents
passport1.7 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
