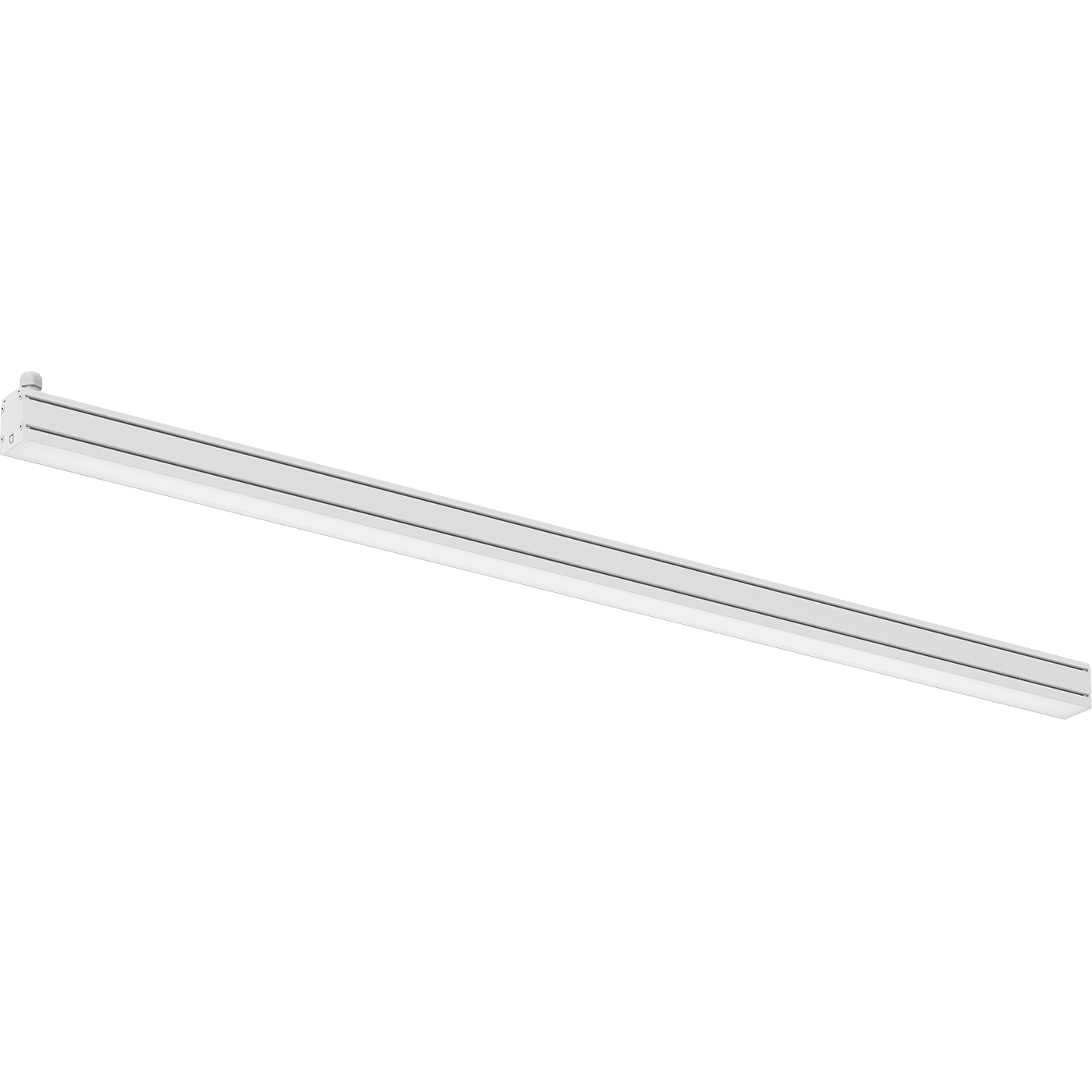

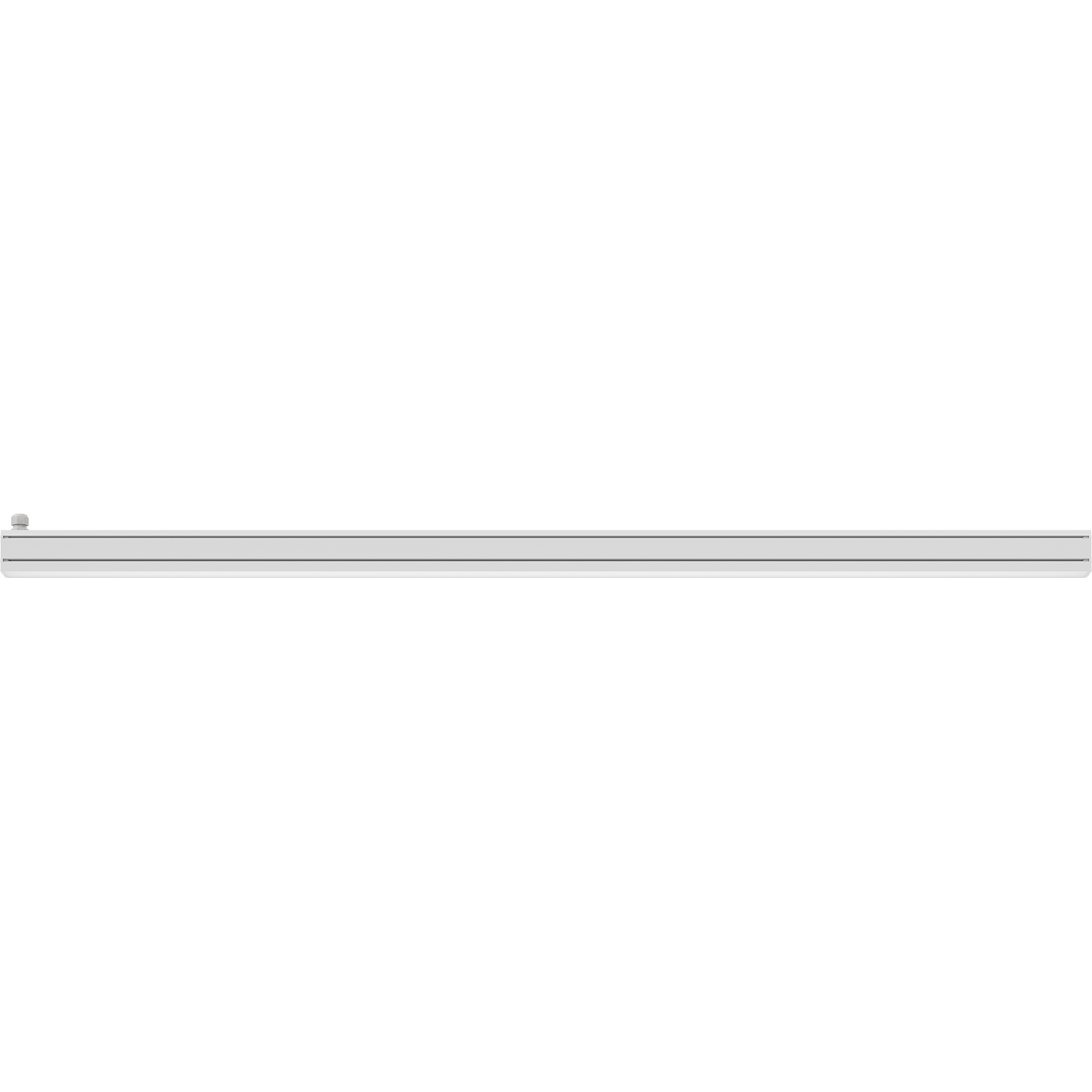

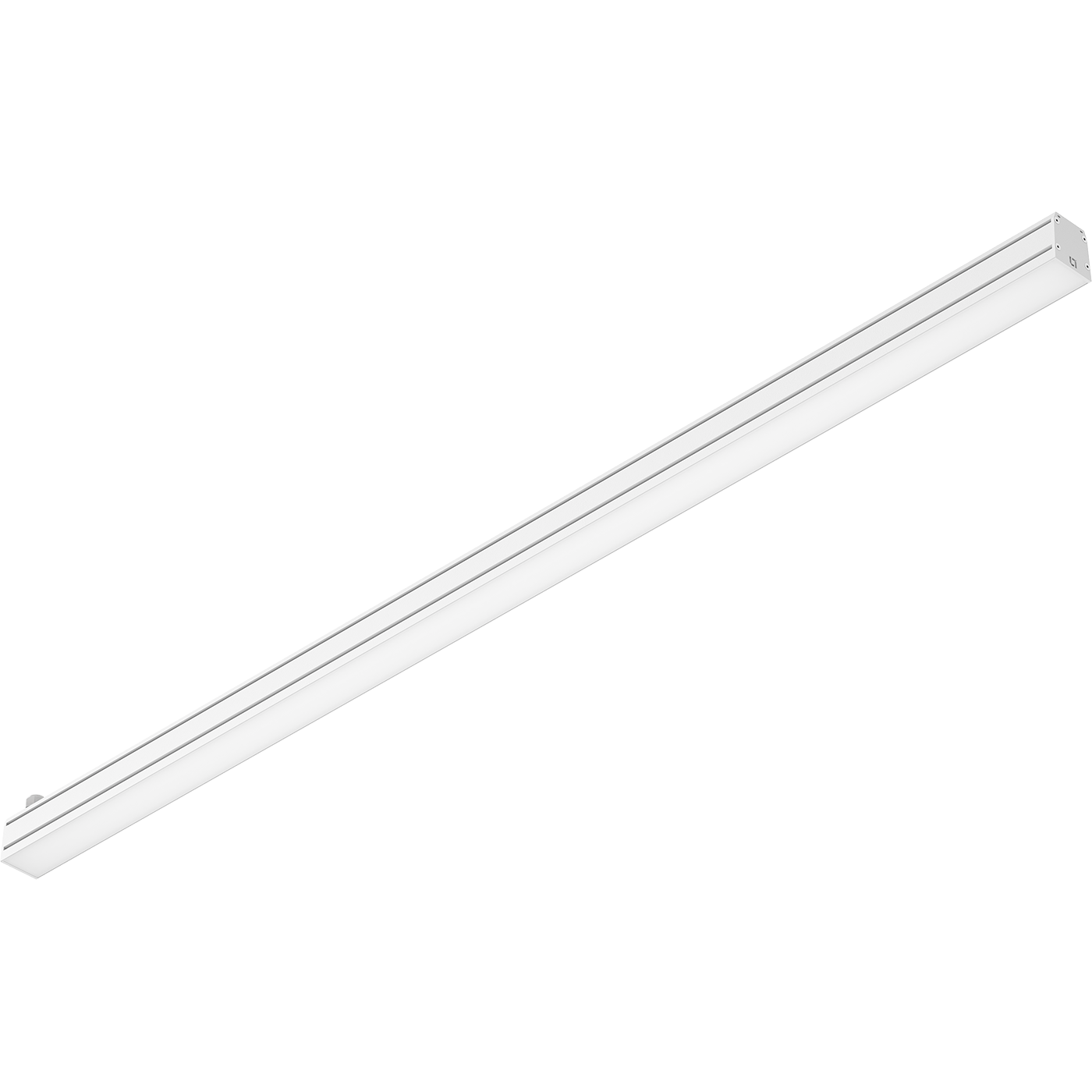

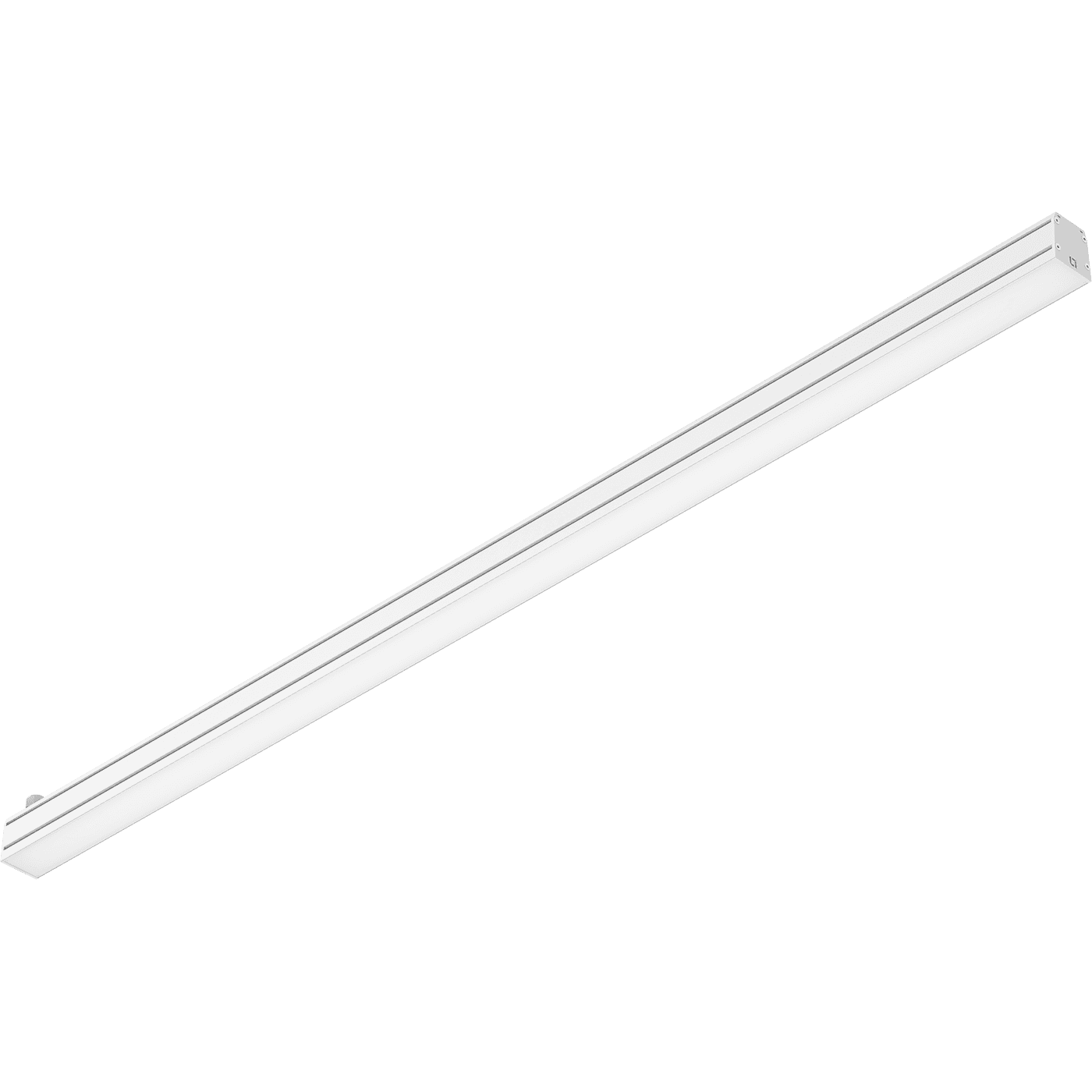

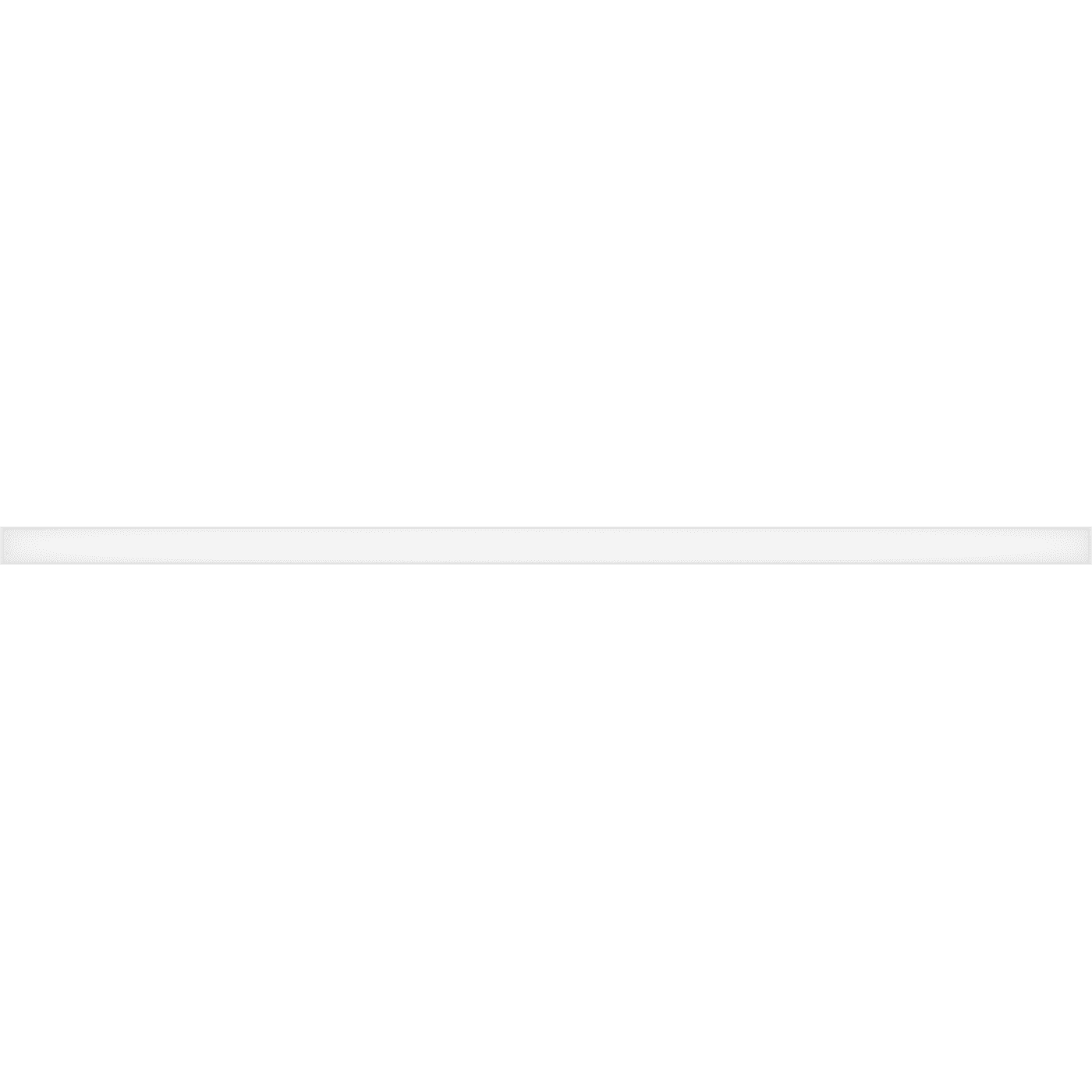

LED MALL ECO 70 D60 IP65 5000K with one output

archive
archive
LED MALL ECO 70 D60 IP65 5000K with one output
74 Wluminaire power
9500 lmlight flow
128 lm/Wenergy efficiency
code1598003170
color temperature5000
beam angleD60
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
electric shock protection
I
starting current
30 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
74 W
power factor
> 0,98
supply voltage
230 V
electrical
electric shock protection
I
starting current
30 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
74 W
power factor
> 0,98
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP65
material
Алюминий
housing color
Белый
length, mm
1500 mm
width, mm
53 mm
height, mm
100 mm
weight
3.5 kg
climatic performance
УХЛ4*
installation length, mm
1300 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Светильник (электрический блок) для магистральных систем световых линий
warranty
36 month
temperature range
от -25 до +40 C
service life, hour
50 000 h
code
1598003170
energy efficiency class
A+
illuminating
color rendition index (CRI)
>80
light flow
9500 lm
flickering factor
<5%
beam angle
D60
color temperature
5000
light source type
LED
emission color
Белый
energy efficiency
128 lm/W
model files
model files

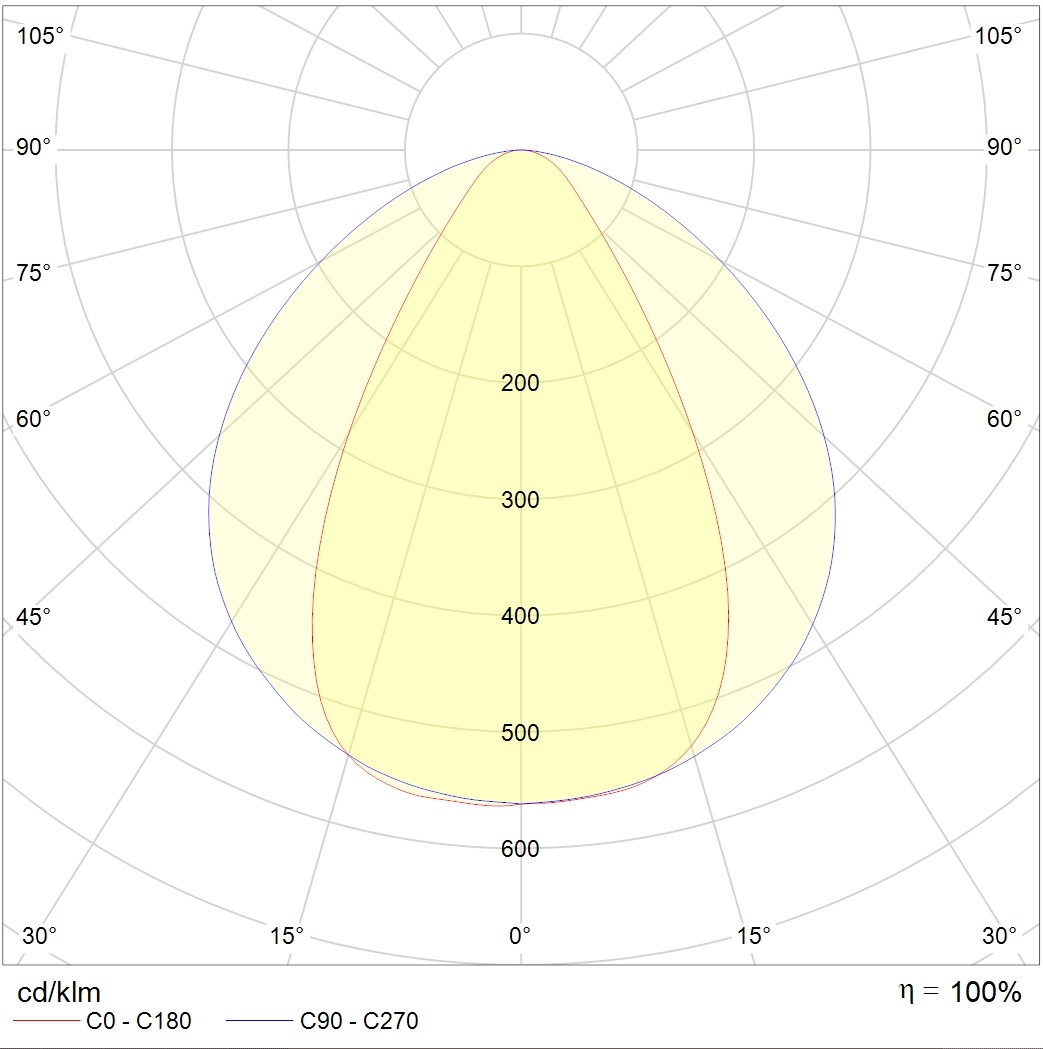

photometric files
ies328.7 kB
jpg138.2 kB
ldt218.2 kB
documents
passport1.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB

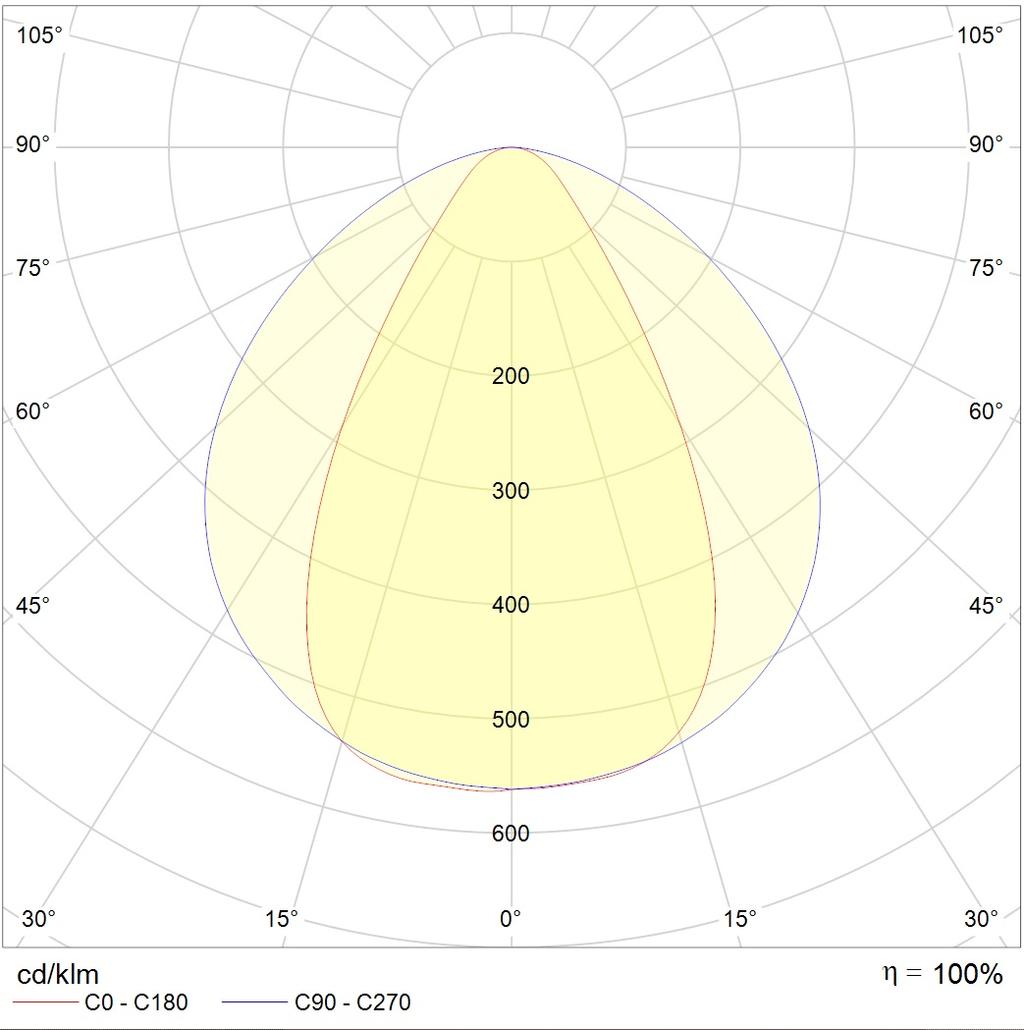

photometric files
ies328.7 kB
jpg138.2 kB
ldt218.2 kB
documents
passport1.3 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
