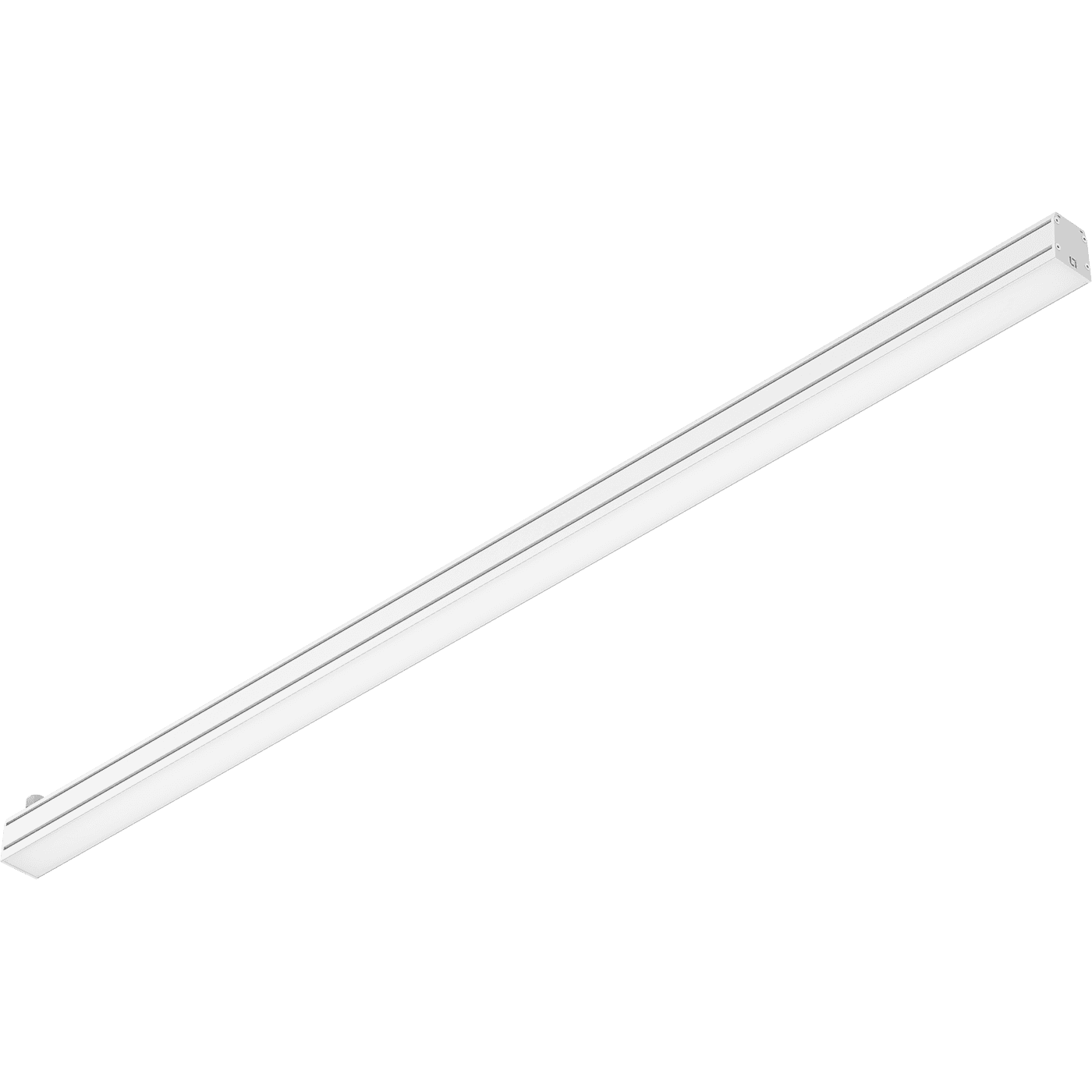

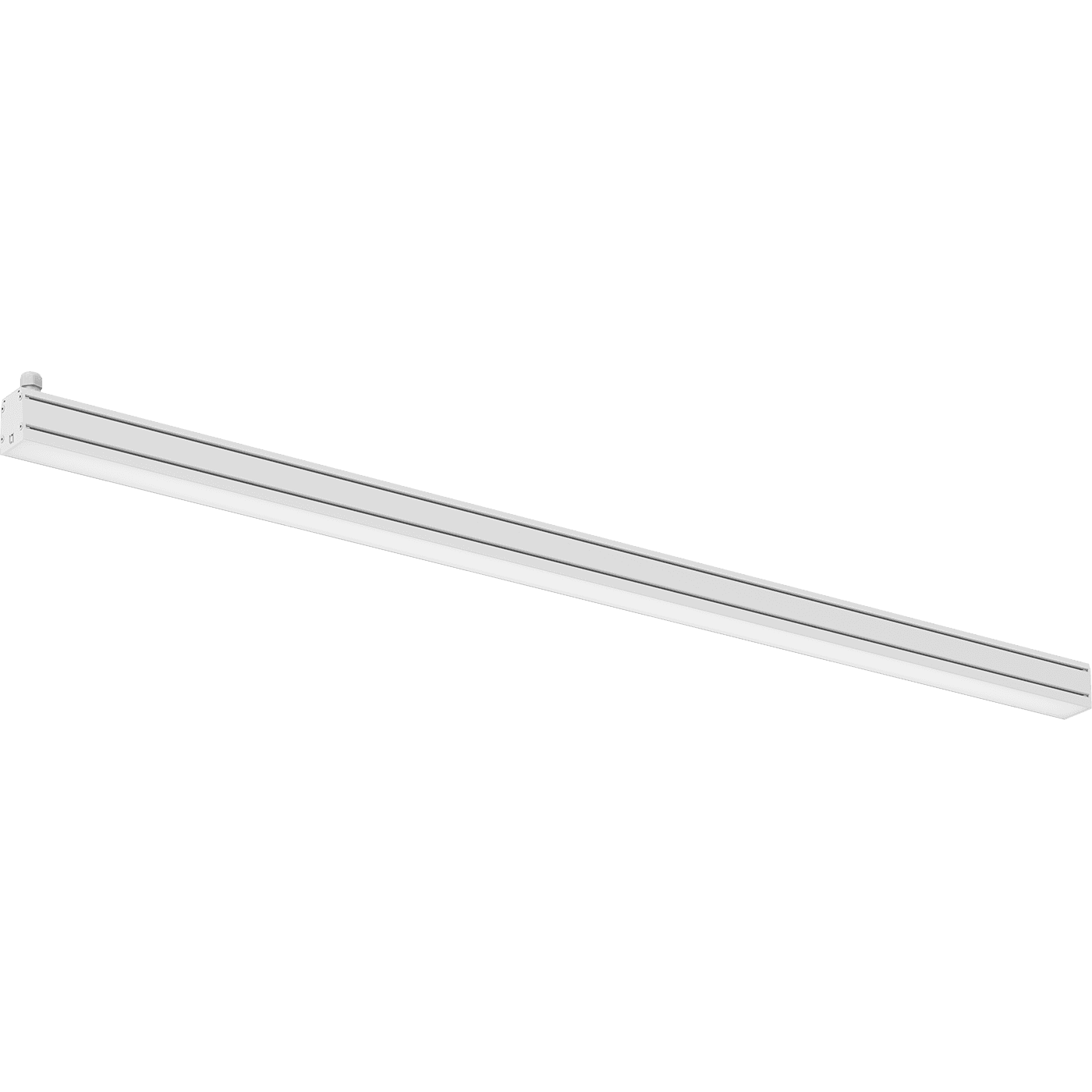

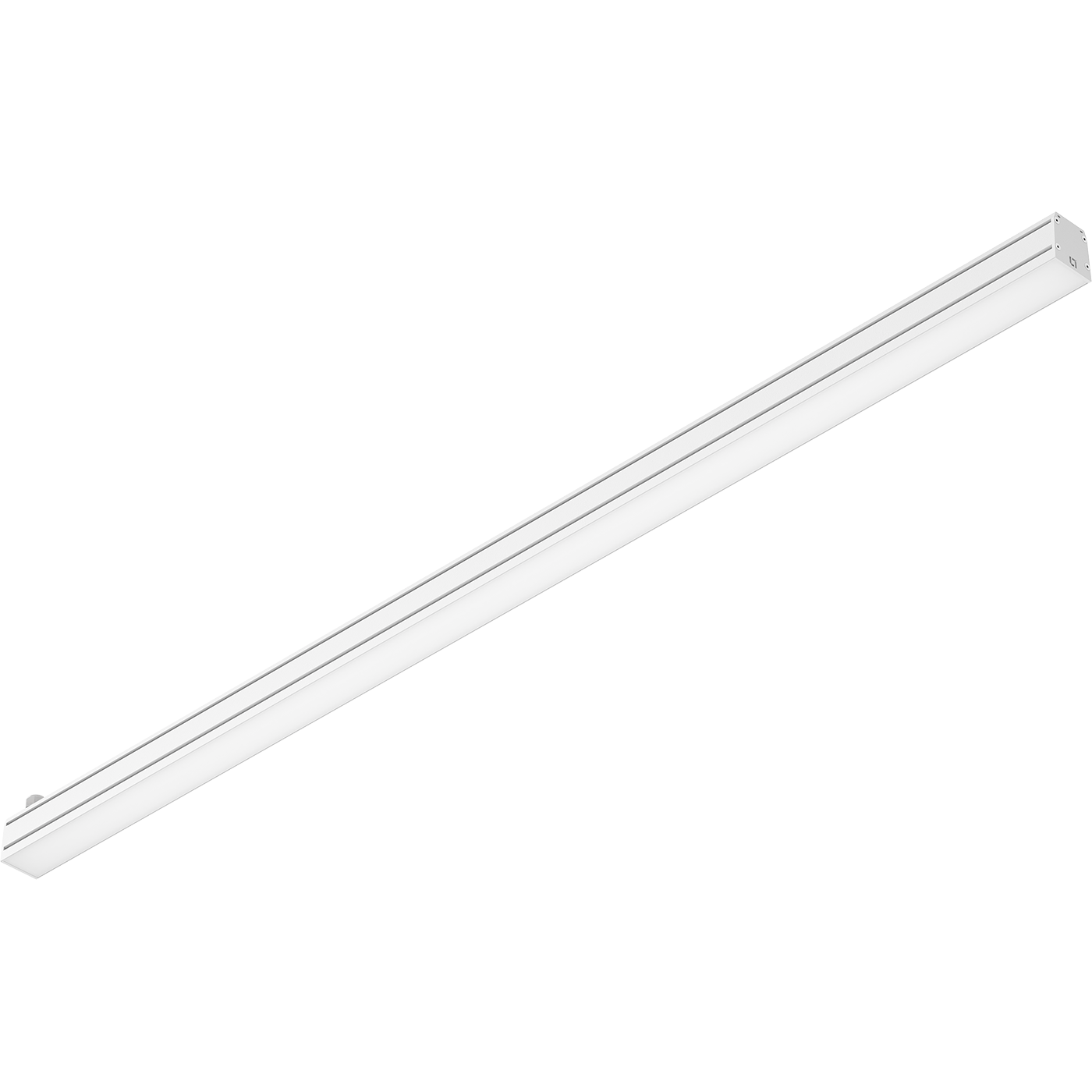

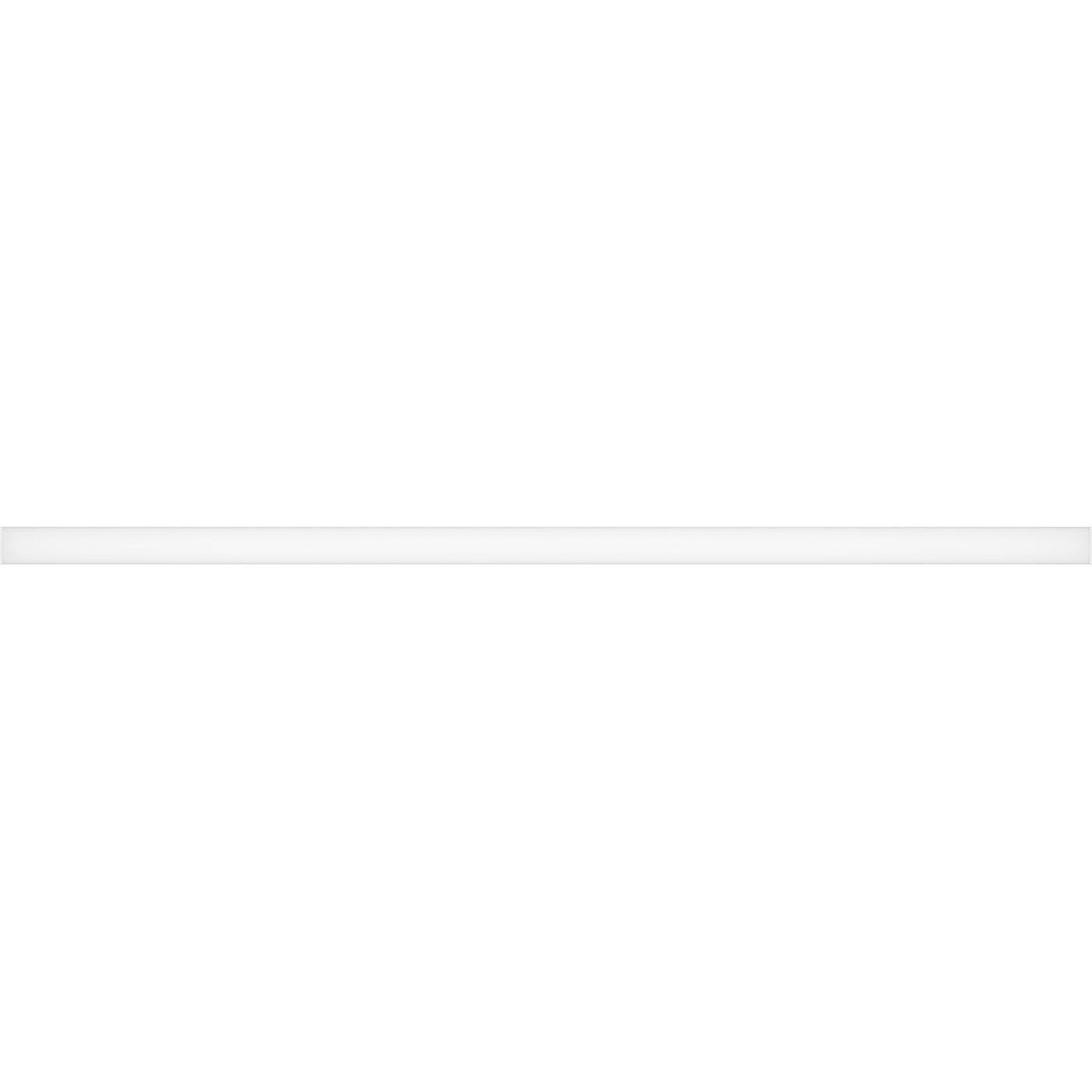

LED MALL ECO 35 IP65 4000K with one output
model is discontinued
model is discontinued
LED MALL ECO 35 IP65 4000K with one output
40 Wluminaire power
4100 lmlight flow
103 lm/Wenergy efficiency
code1598002430
color temperature4000 K

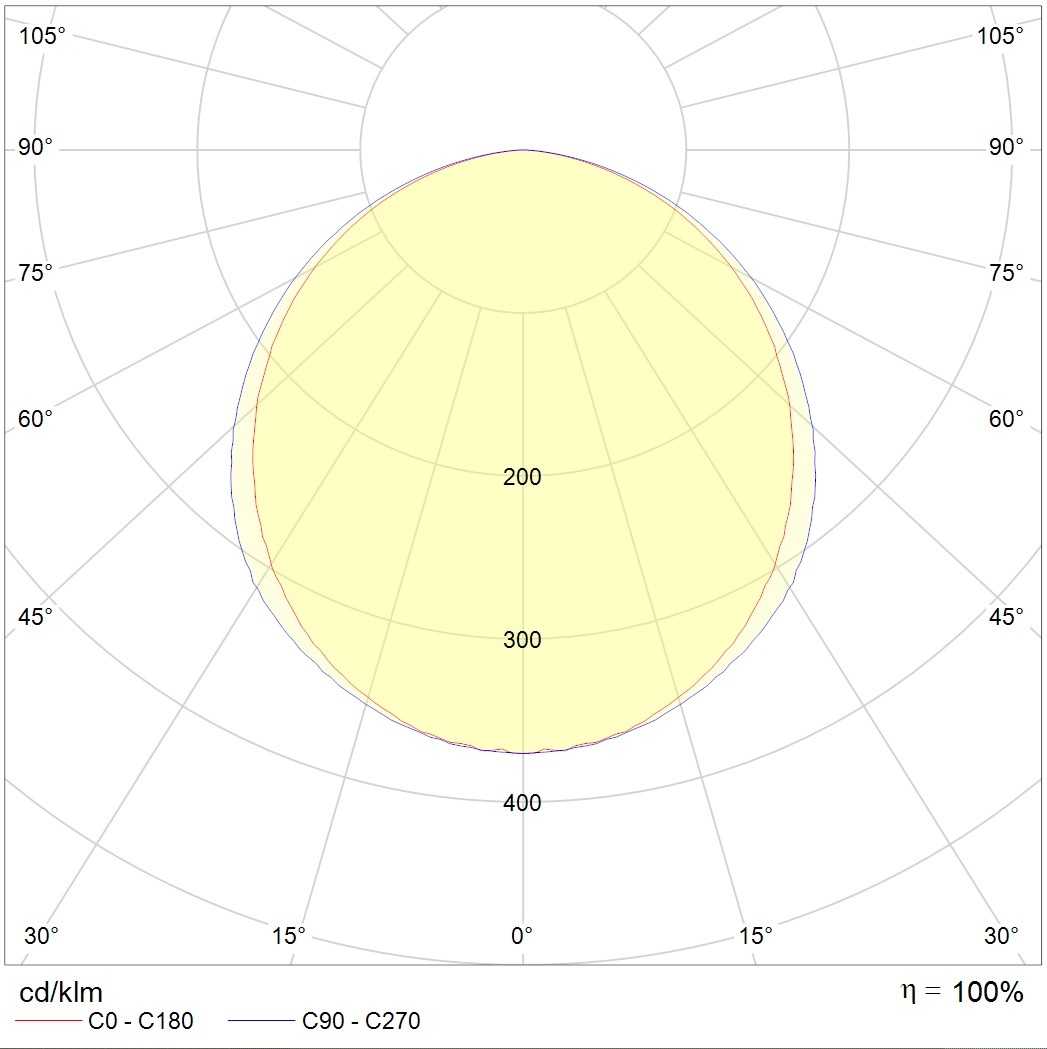

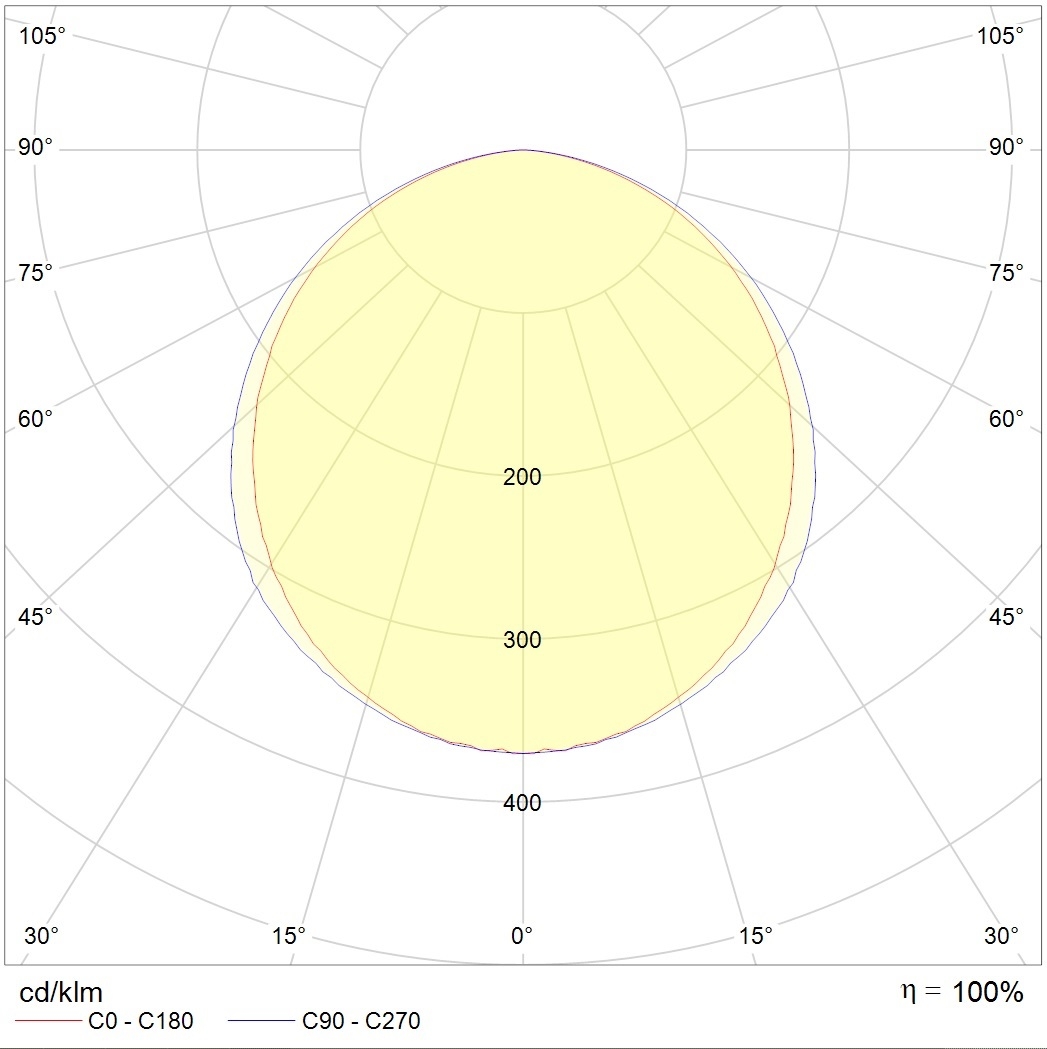

beam angleD100
performance factor100
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
103 lm/Wcolor rendition index (CRI)
>80light flow
4100 lmflickering factor
<5%beam angle
D100color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
103 lm/W
color rendition index (CRI)
>80
light flow
4100 lm
flickering factor
<5%
beam angle
D100
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,95
luminaire power
40 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1500 mm
width
53 mm
height
100 mm
installation length
1300 mm
weight
3 kg
ingress protection (IP)
IP65
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Светильник (электрический блок) для магистральных систем световых линий
warranty
36 month
energy efficiency class
A+
code
1598002430
