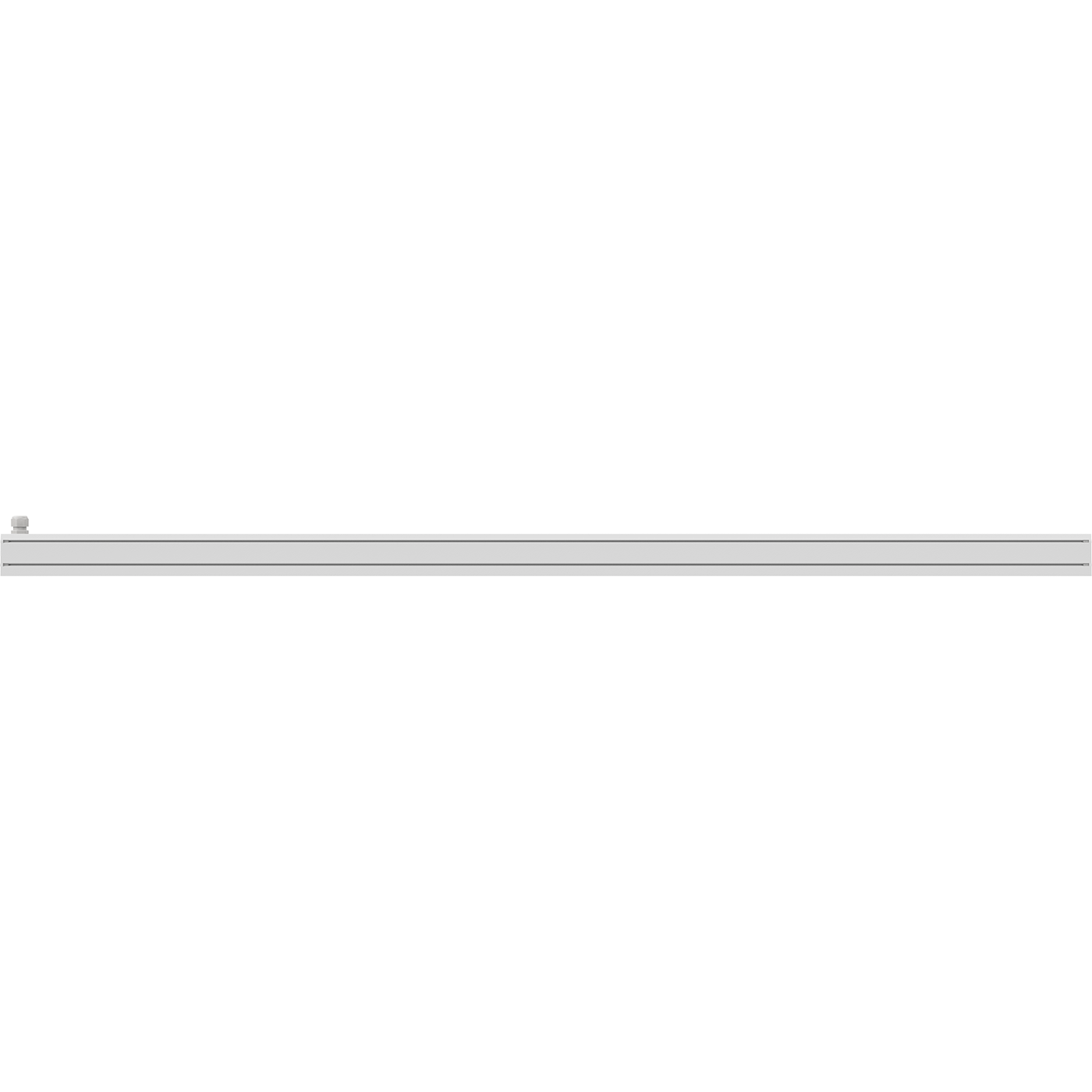

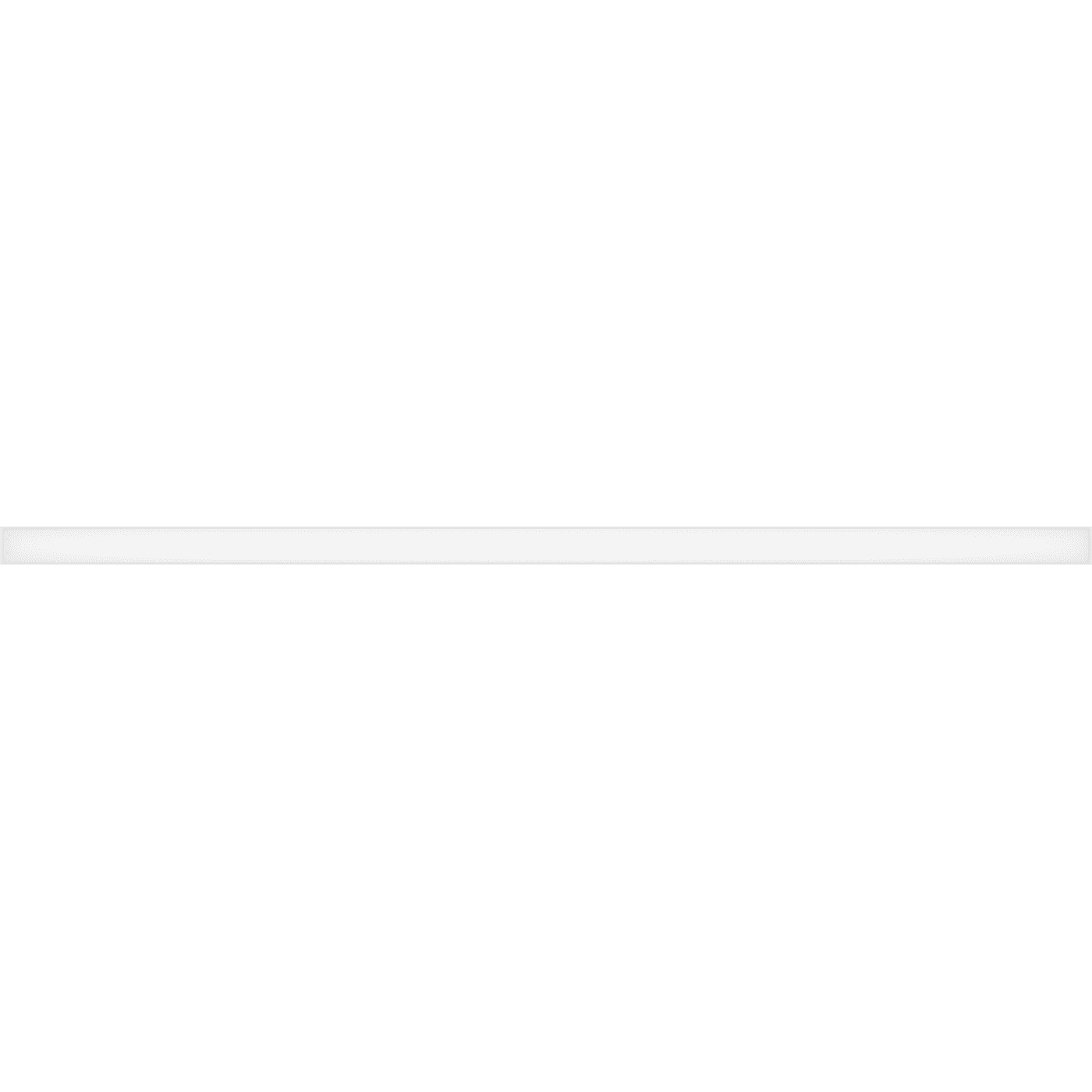

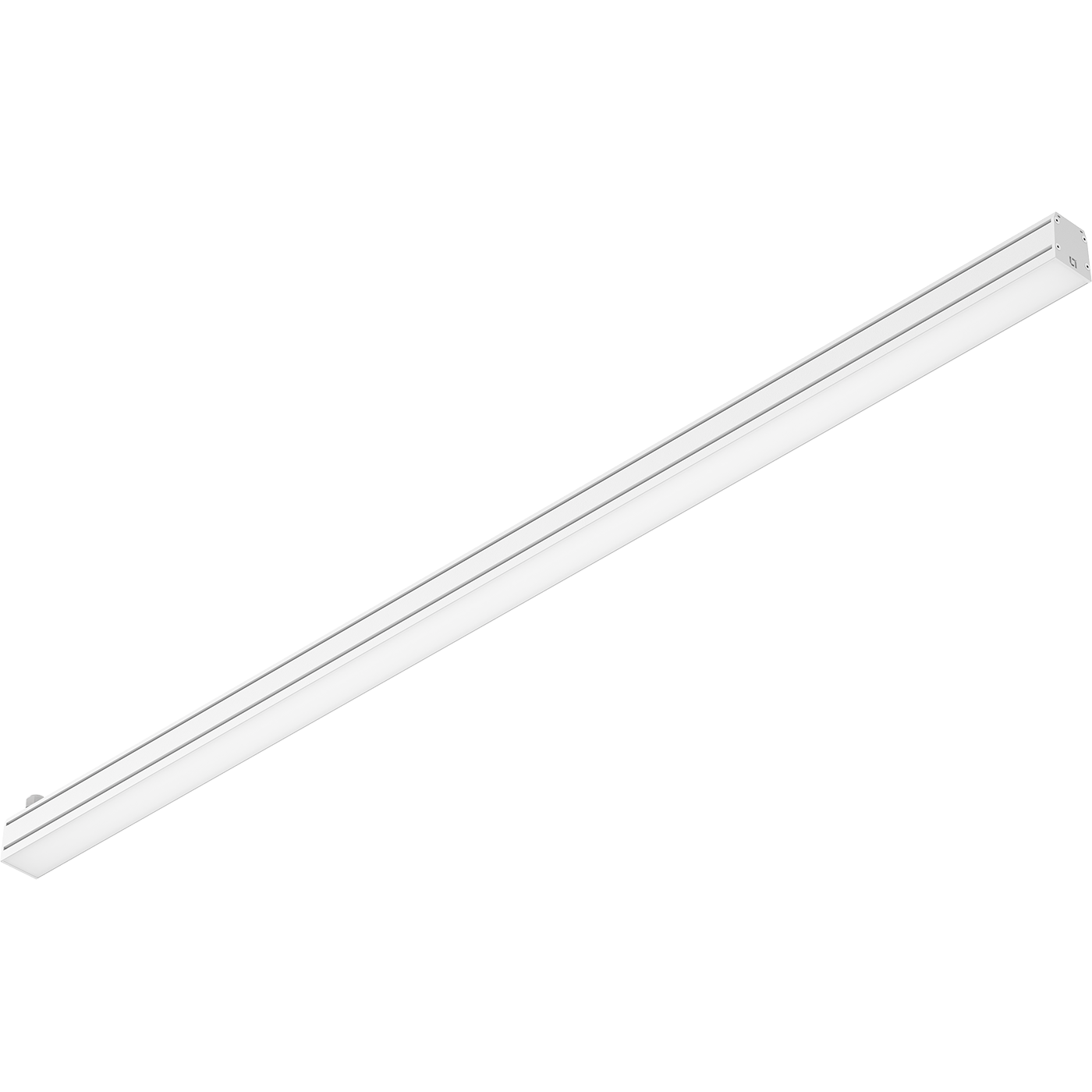

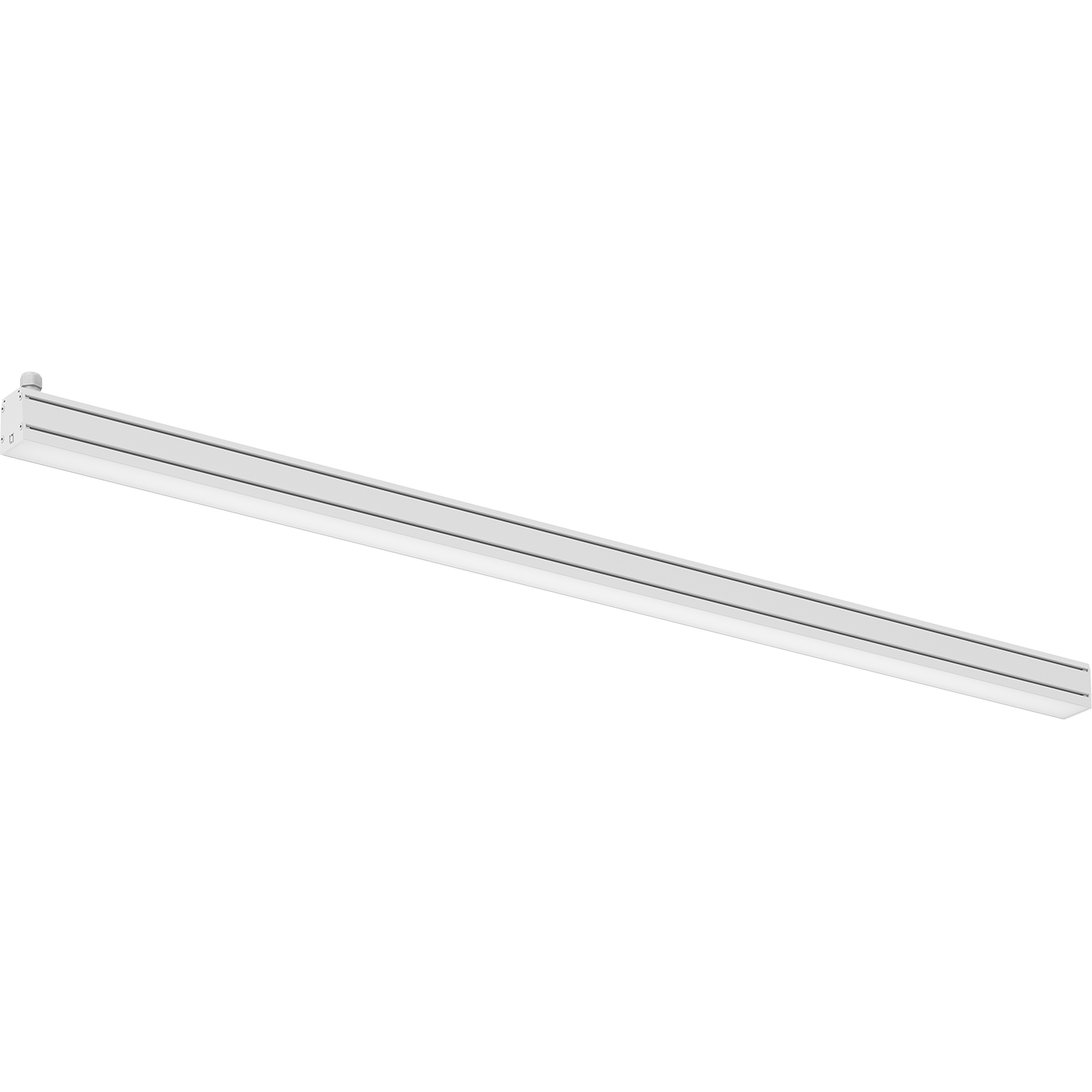

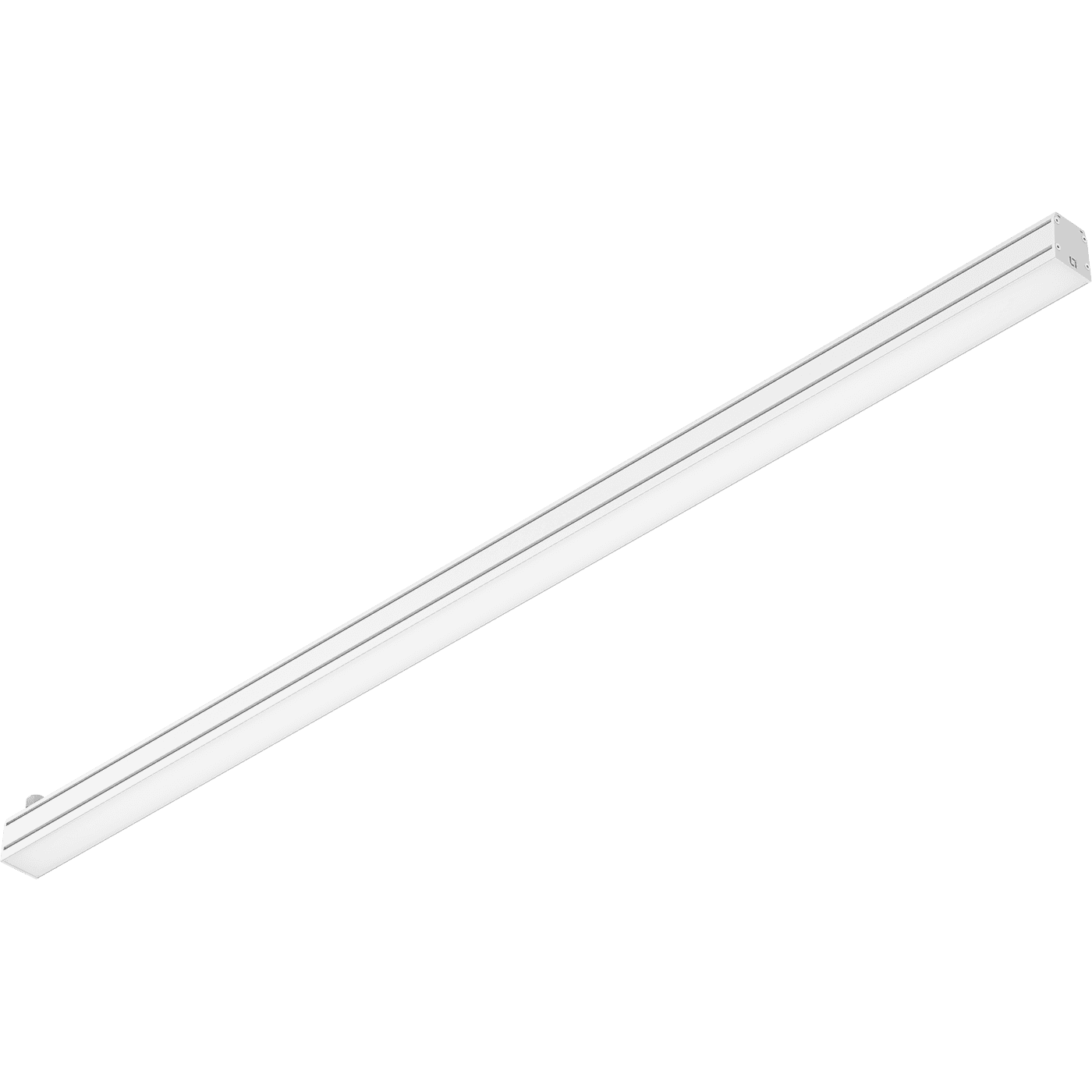

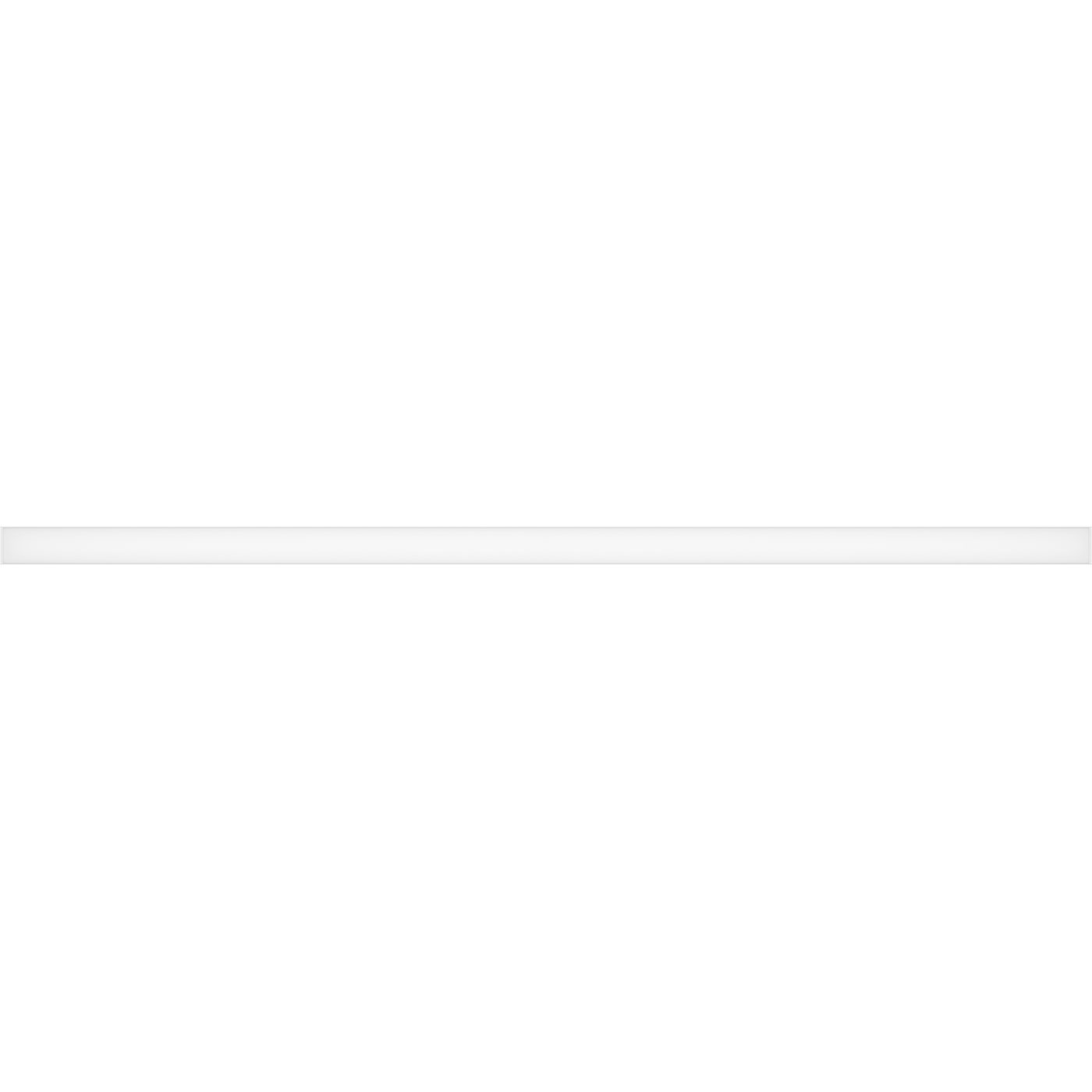

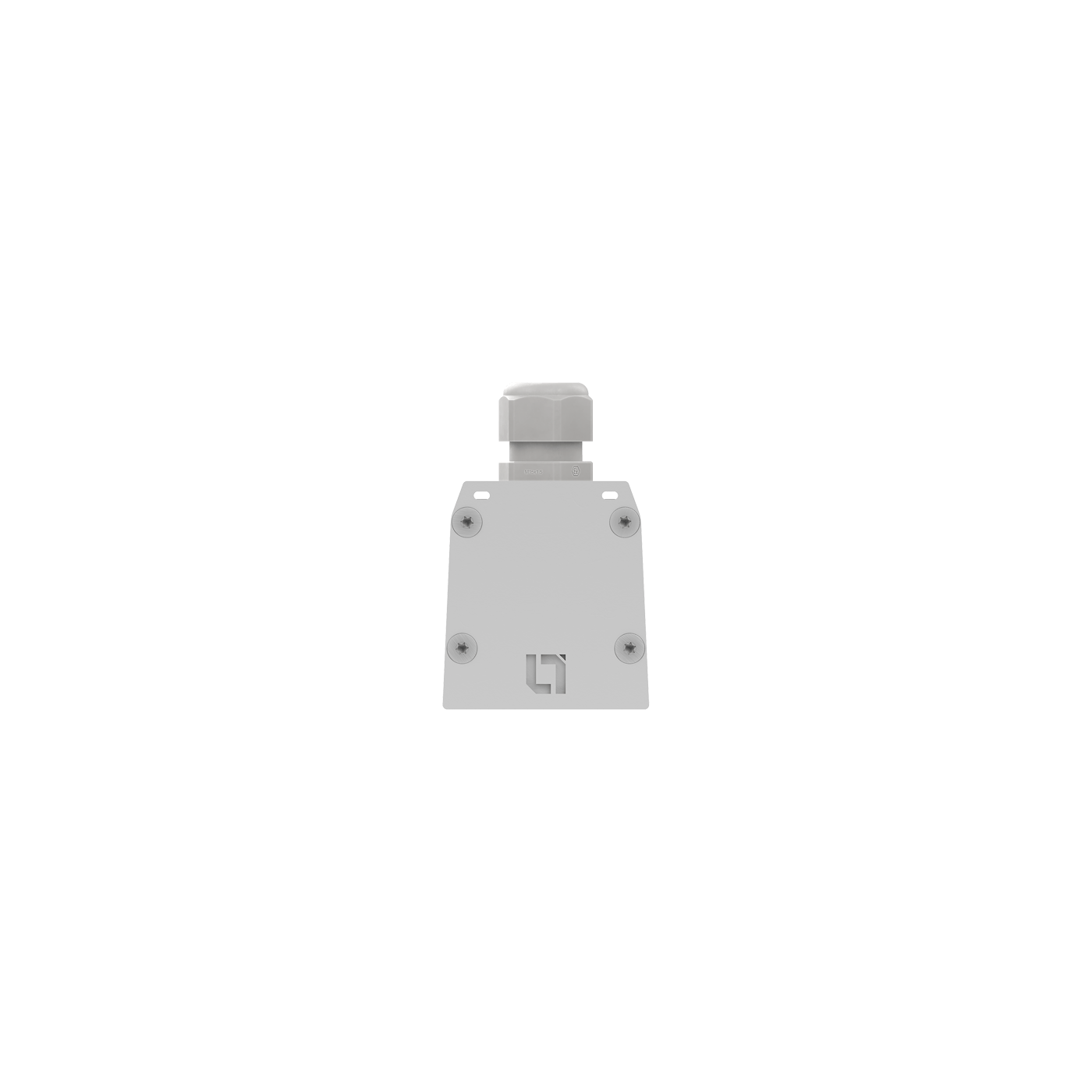

LED MALL ECO 35 IP54 HFD 4000K

LED MALL ECO 35 IP54 HFD 4000K
add to favorites
40 Wluminaire power
4100 lmlight flow
103 lm/Wenergy efficiency
code1598001370
color temperature4000
beam angleD100
number of lamps1
performance factor100
  1. main page
  2. catalog
  3. by product type
  4. interior lighting
  5. linear systems
  6. LED MALL ECO
  7. LED MALL ECO 35 IP54 HFD 4000K
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
40 W
electric shock protection
I
maximum number of luminaires in a line
31
power factor
> 0,98
supply voltage
230 V
electrical
starting current
25 A
starting current pulse time, µs
250 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
176-264 V
supply voltage, direct current
176-264 V
luminaire power
40 W
electric shock protection
I
maximum number of luminaires in a line
31
power factor
> 0,98
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP54
climatic performance
УХЛ4*
material
Алюминий
weight
3 kg
length, mm
1500 mm
width, mm
53 mm
height, mm
100 mm
housing color
Белый
installation length, mm
1200 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
ETIM class
Светильник (электрический блок) для магистральных систем световых линий
warranty
36 month
temperature range
от -25 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1598001370
illuminating
color rendition index (CRI)
>80
light flow
4100 lm
flickering factor
<5%
energy efficiency
103 lm/W
beam angle
D100
color temperature
4000
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files
CAD/BIM files
CAD model 3DS9.9 kB
model 3dMax2.9 mB

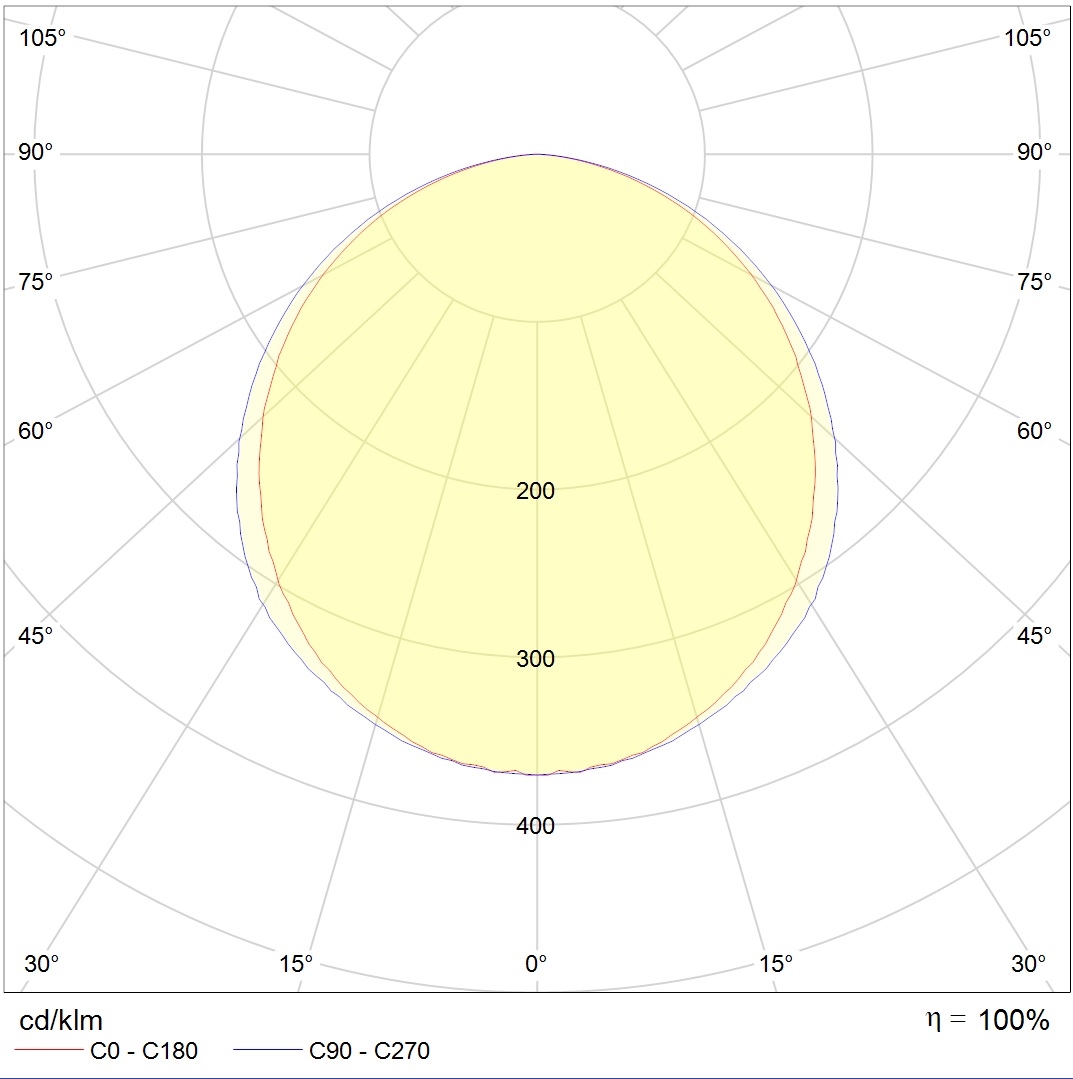

photometric files
ies134.1 kB
jpg127.6 kB
ldt83.2 kB
documents
passport1.3 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
CAD/BIM files
CAD model 3DS9.9 kB
model 3dMax2.9 mB
photometric files
ies134.1 kB
jpg127.6 kB
ldt83.2 kB
documents
passport1.3 mB
сертификаты
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.6 mB
Declaration of Conformity EAEU TR 037/2016595.1 kB
Fire Safety Certificate2.5 mB
