LED MALL ECO 35 IP54 EM 4000K
LED MALL ECO 35 IP54 EM 4000K
42 Wluminaire power
4100 lmlight flow
98 lm/Wenergy efficiency
code
1598000700
color temperature
4000 K
beam angle
D100
performance factor
100
options
свернуть все
illuminatingelectricalconstructionalemergencycommon
energy efficiency
98 lm/Wcolor rendition index (CRI)
>80light flow
4100 lmflickering factor
<1%beam angle
D100color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
98 lm/W
color rendition index (CRI)
>80
light flow
4100 lm
flickering factor
<1%
beam angle
D100
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
250 µs
power factor
> 0,95
maximum number of luminaires in a line
31
luminaire power
42 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
1.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
25 A
constructional
length
1500 mm
width
53 mm
height
100 mm
installation length
1300 mm
weight
4.3 kg
ingress protection (IP)
IP54
shock resistance (IK)
IK02/0,2 Дж
climatic performance
УХЛ4*
material
Алюминий
housing color
Белый
mounting type
Накладной
lamp socket
LED
number of lamps
1
ballast
Драйвер
Type roof
основной (опорный)
emergency
emergency power supply
Нет
operating time in emergency mode
1 h
luminous flux in emergency mode
22% lm
common
temperature range
от +5 до +35 C
service life
50 000 h
ETIM class
Светильник (электрический блок) для магистральных систем световых линий
warranty
36 month
energy efficiency class
A+
code
1598000700
model files
model files
CAD/BIM files
photometric files
documents
сертификаты
CAD/BIM files
model 3dMax2.9 mB

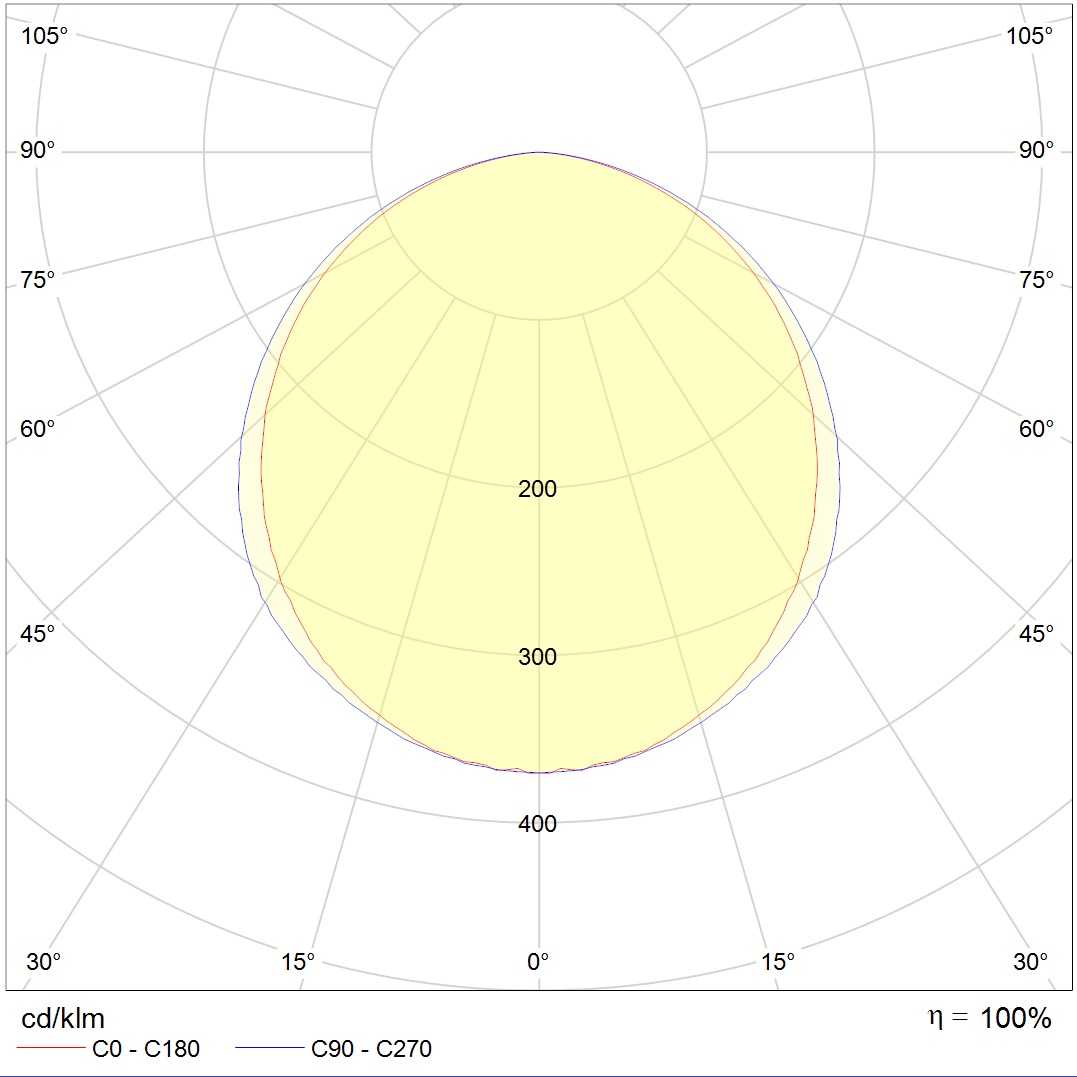

photometric files
ies134.1 kB
jpg127 kB
ldt83.2 kB
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/2011507.7 kB
Declaration of Conformity EAEU TR 037/2016528.3 kB
Fire Safety Certificate2.5 mB
