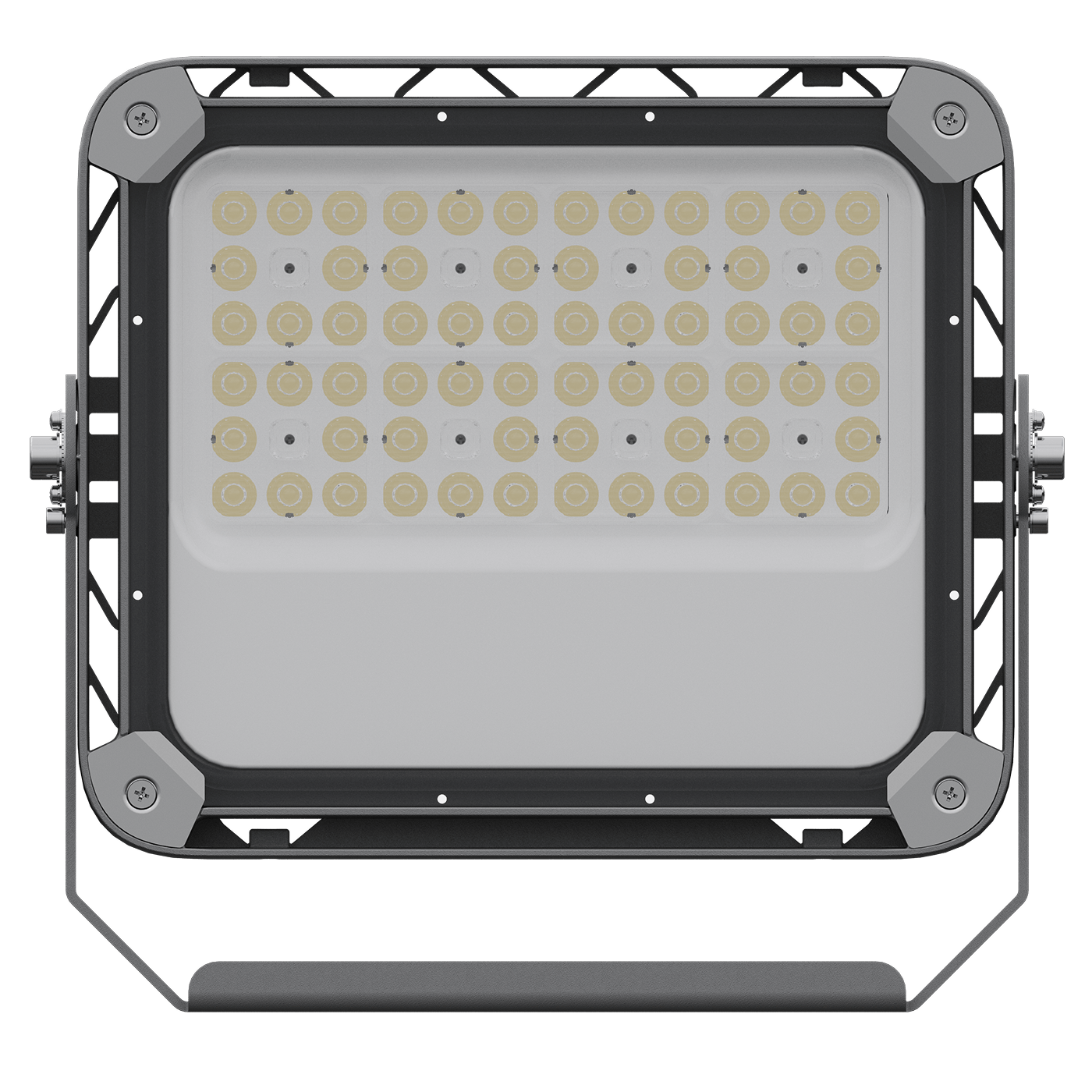

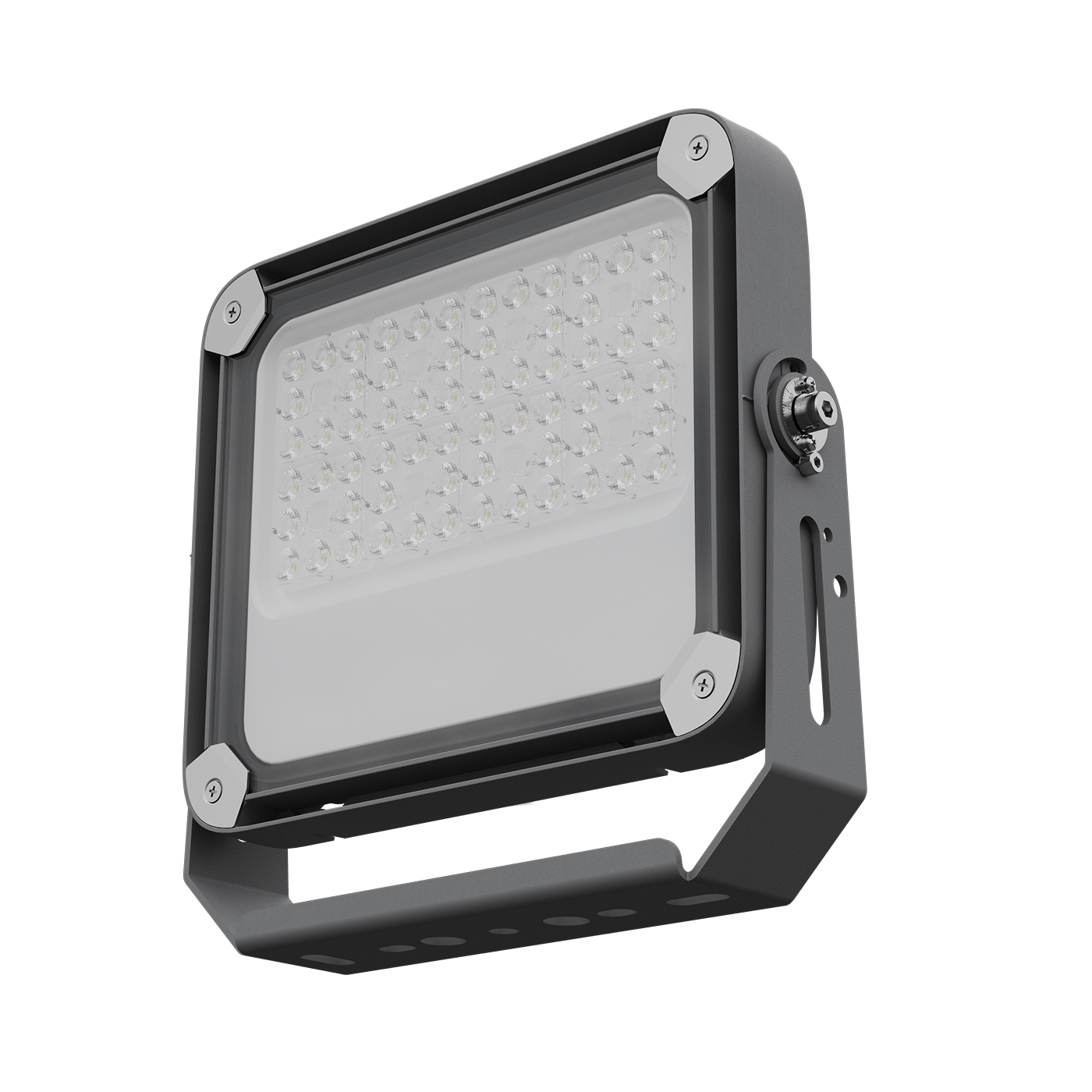

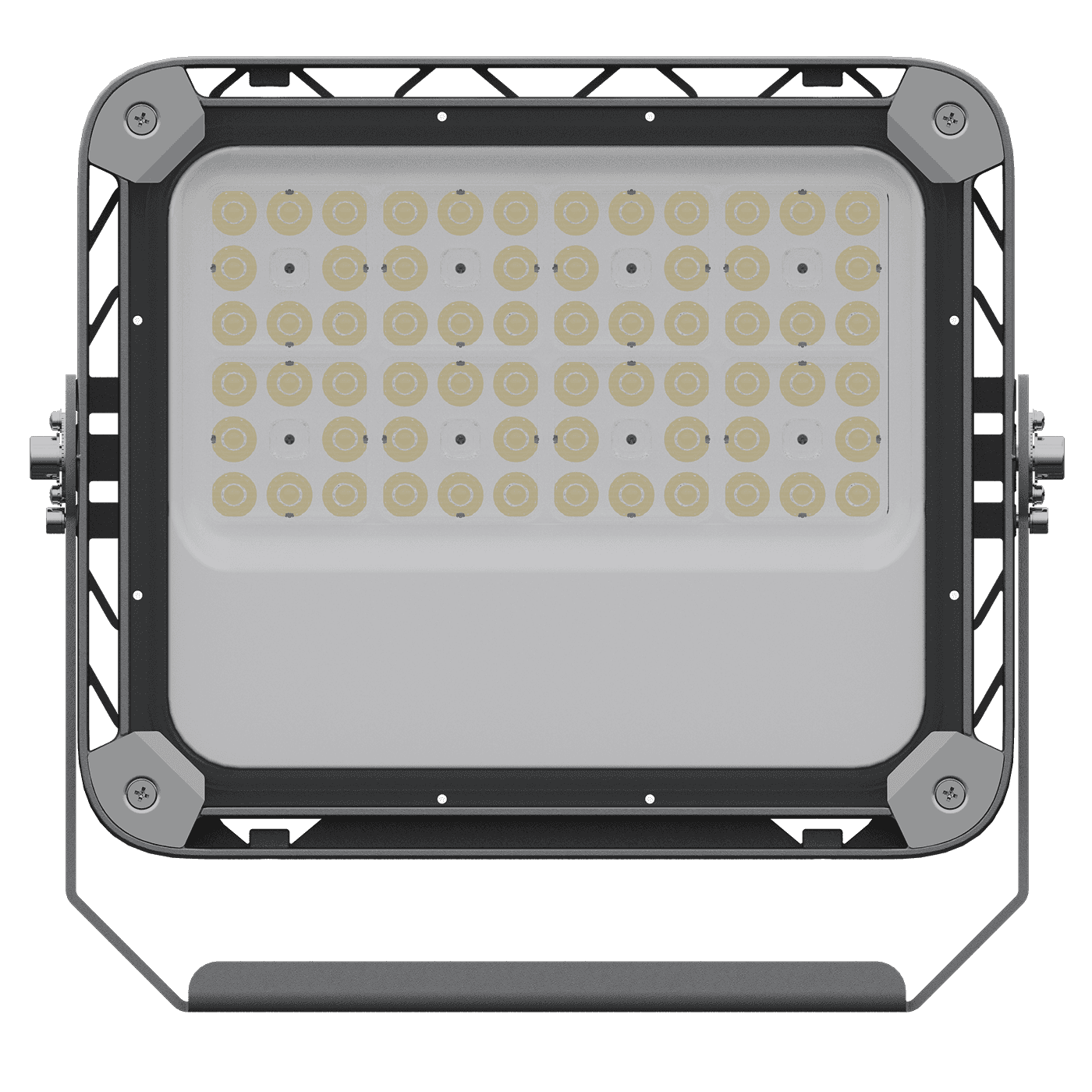

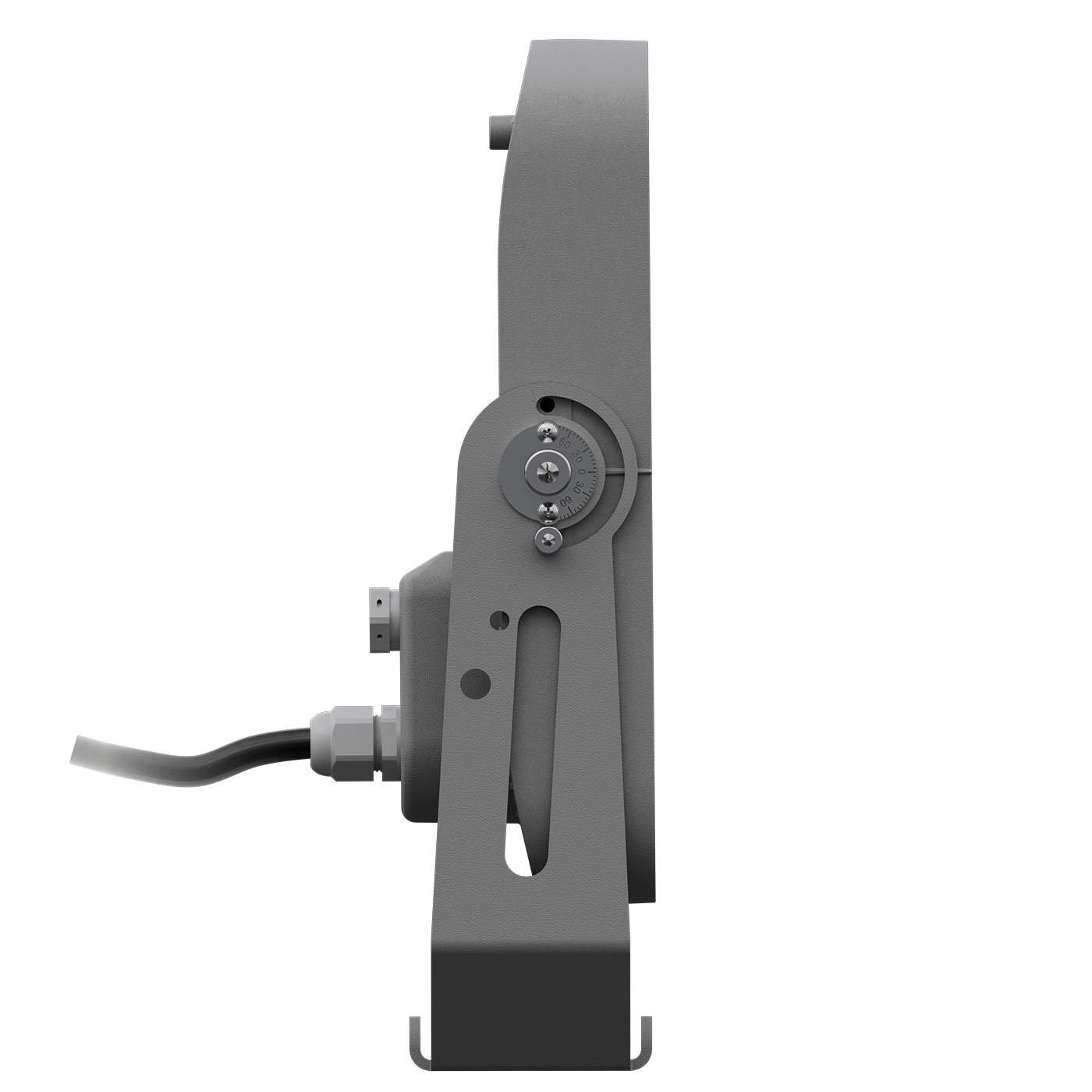

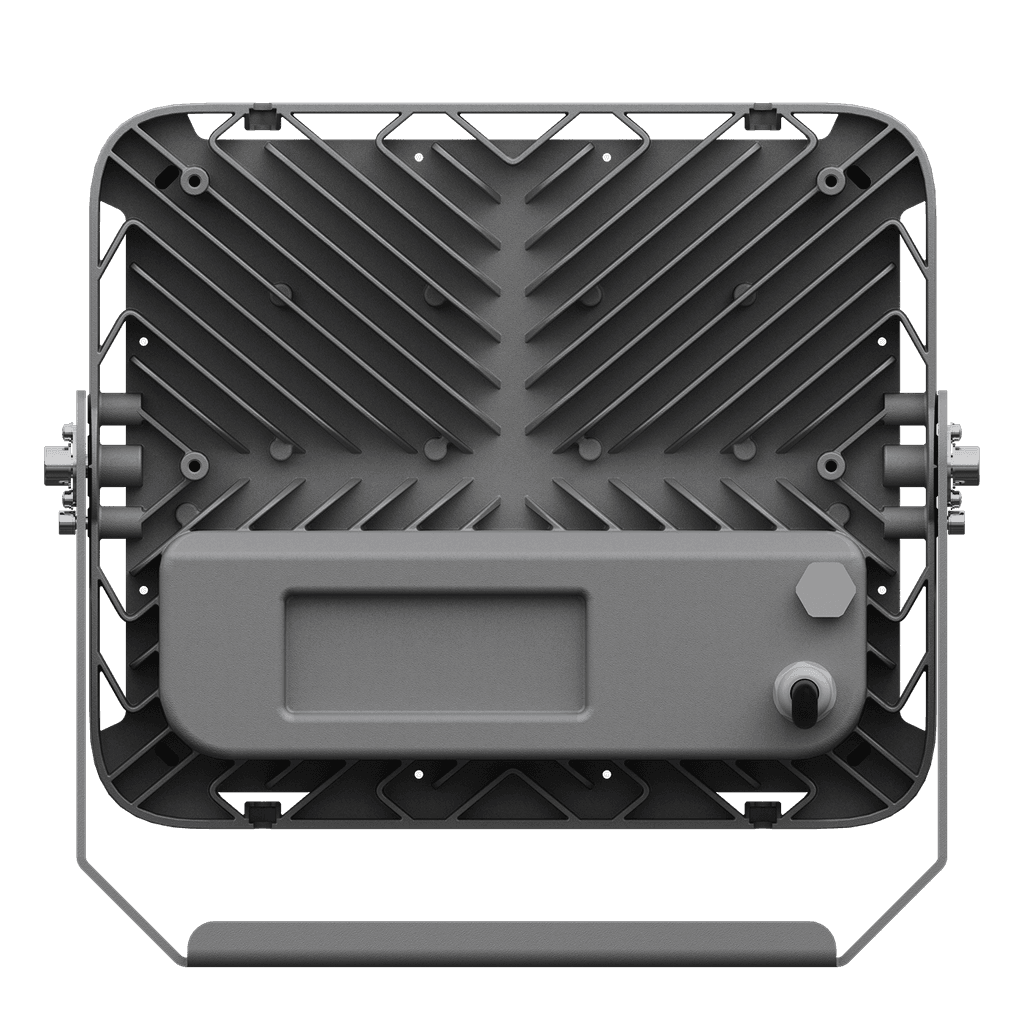

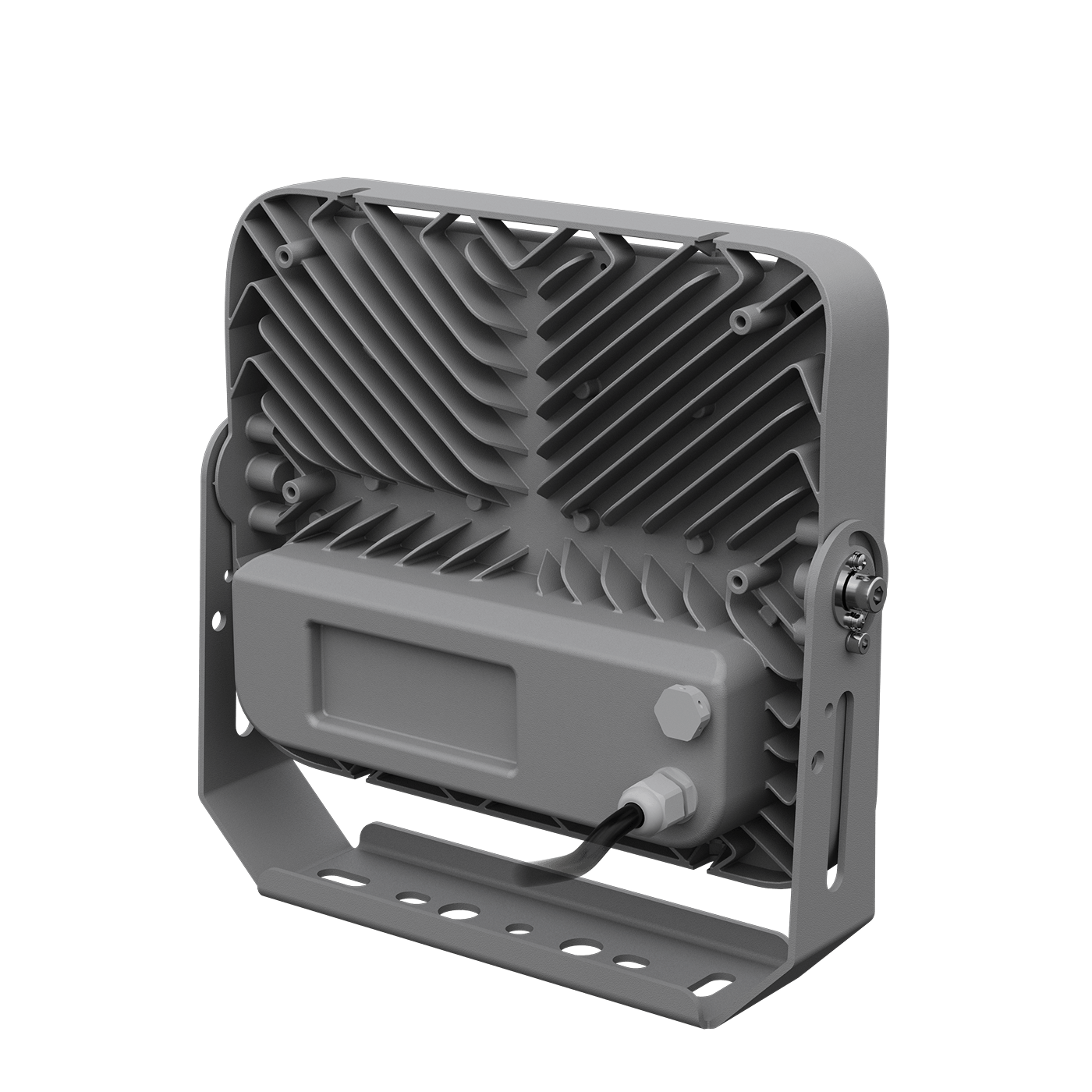

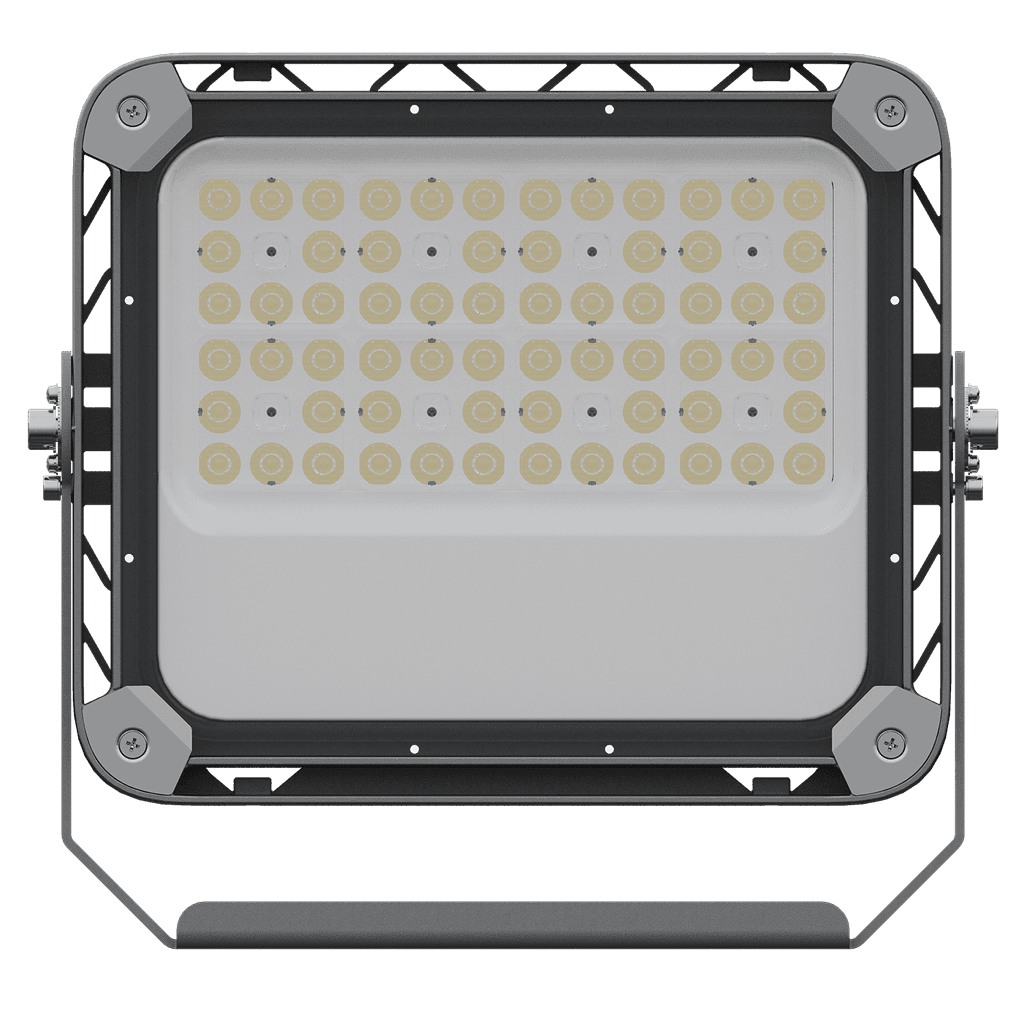

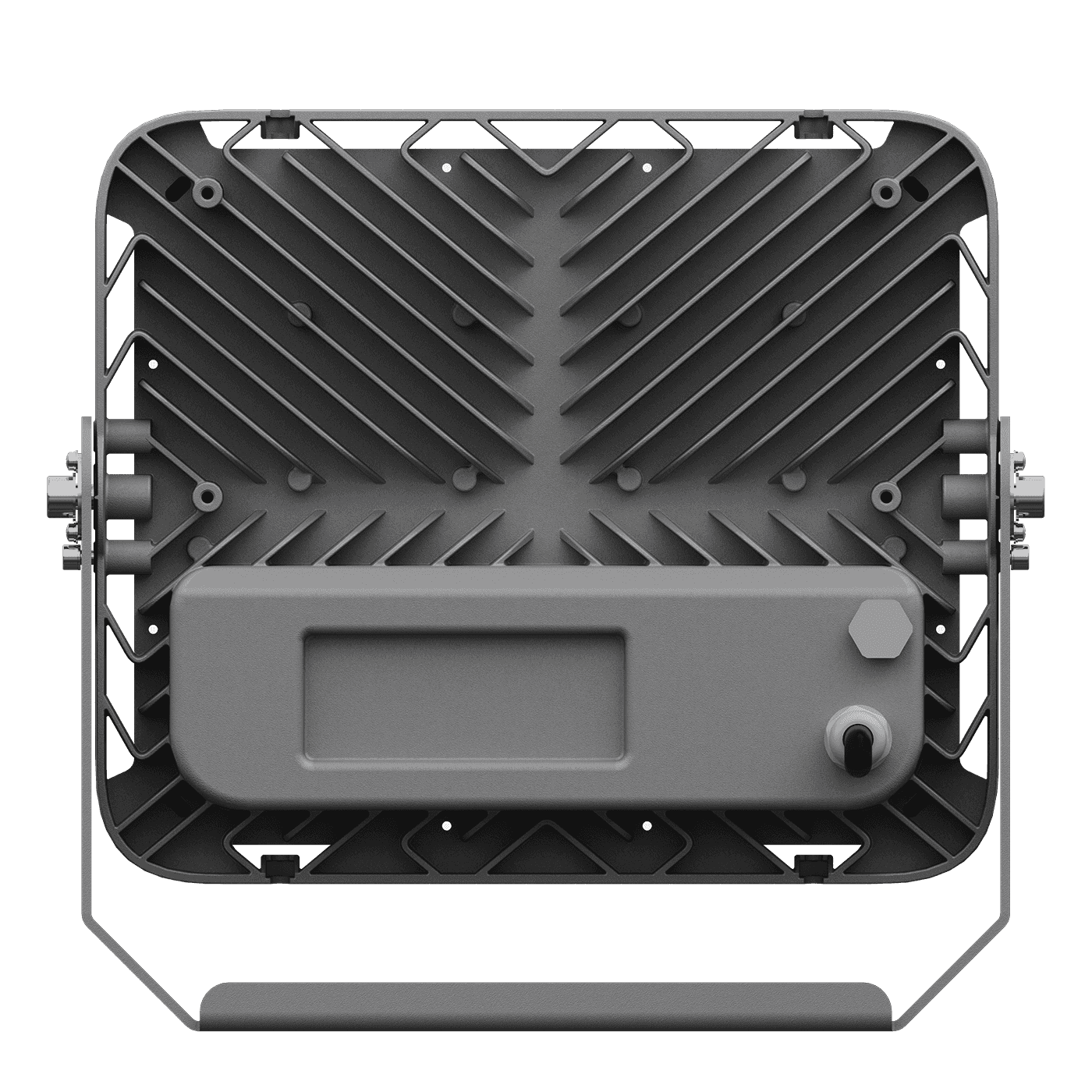

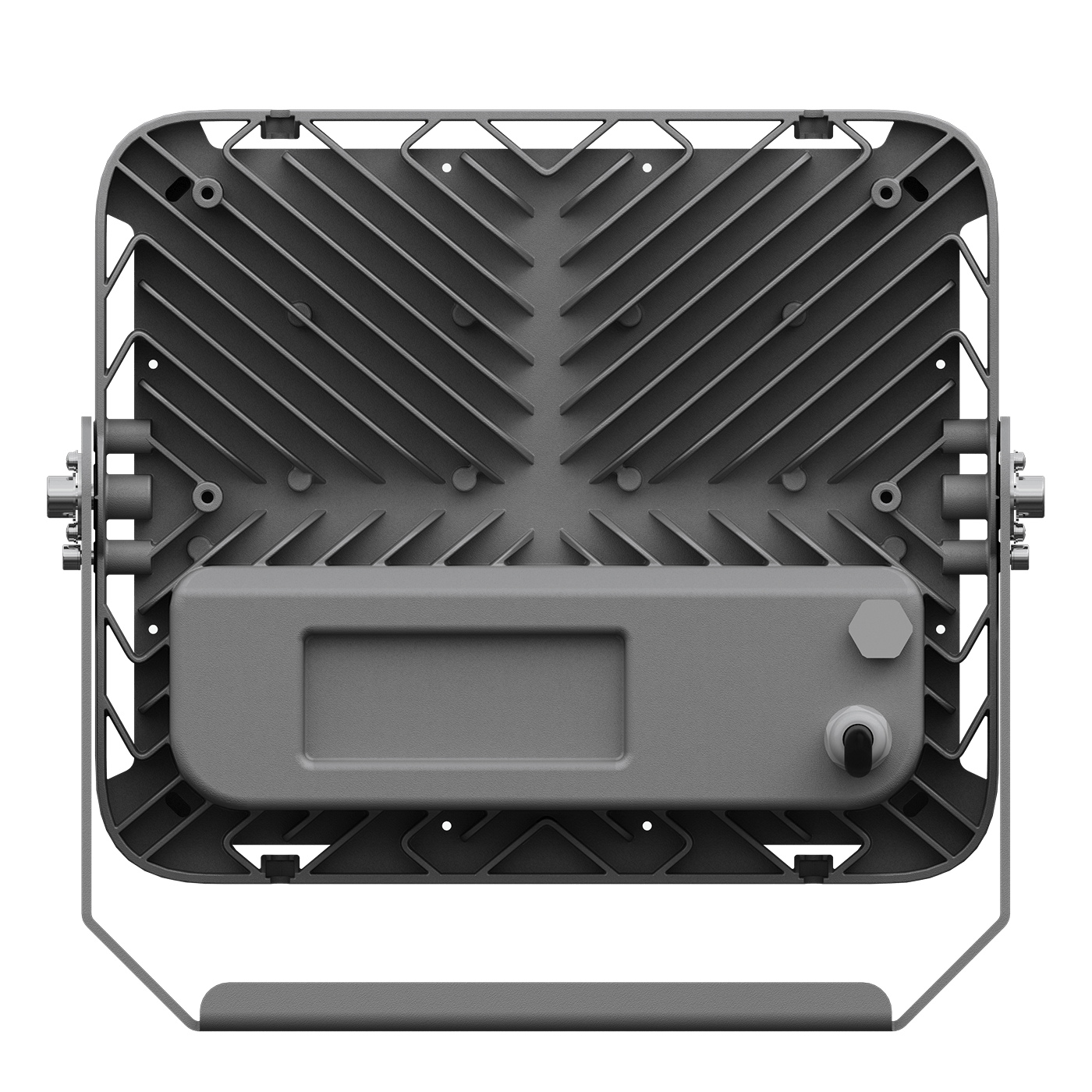

LEADER-S/SB 30W D120 840 RAL9006
LEADER-S/SB 30W D120 840 RAL9006
30 Wluminaire power
4800 lmlight flow
160 lm/Wenergy efficiency
code1350003690
beam angleD120
color temperature4000 K
weight4 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
160 lm/Wcolor rendition index (CRI)
>70light flow
4800 lmflickering factor
<5%beam angle
D120color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
160 lm/W
color rendition index (CRI)
>70
light flow
4800 lm
flickering factor
<5%

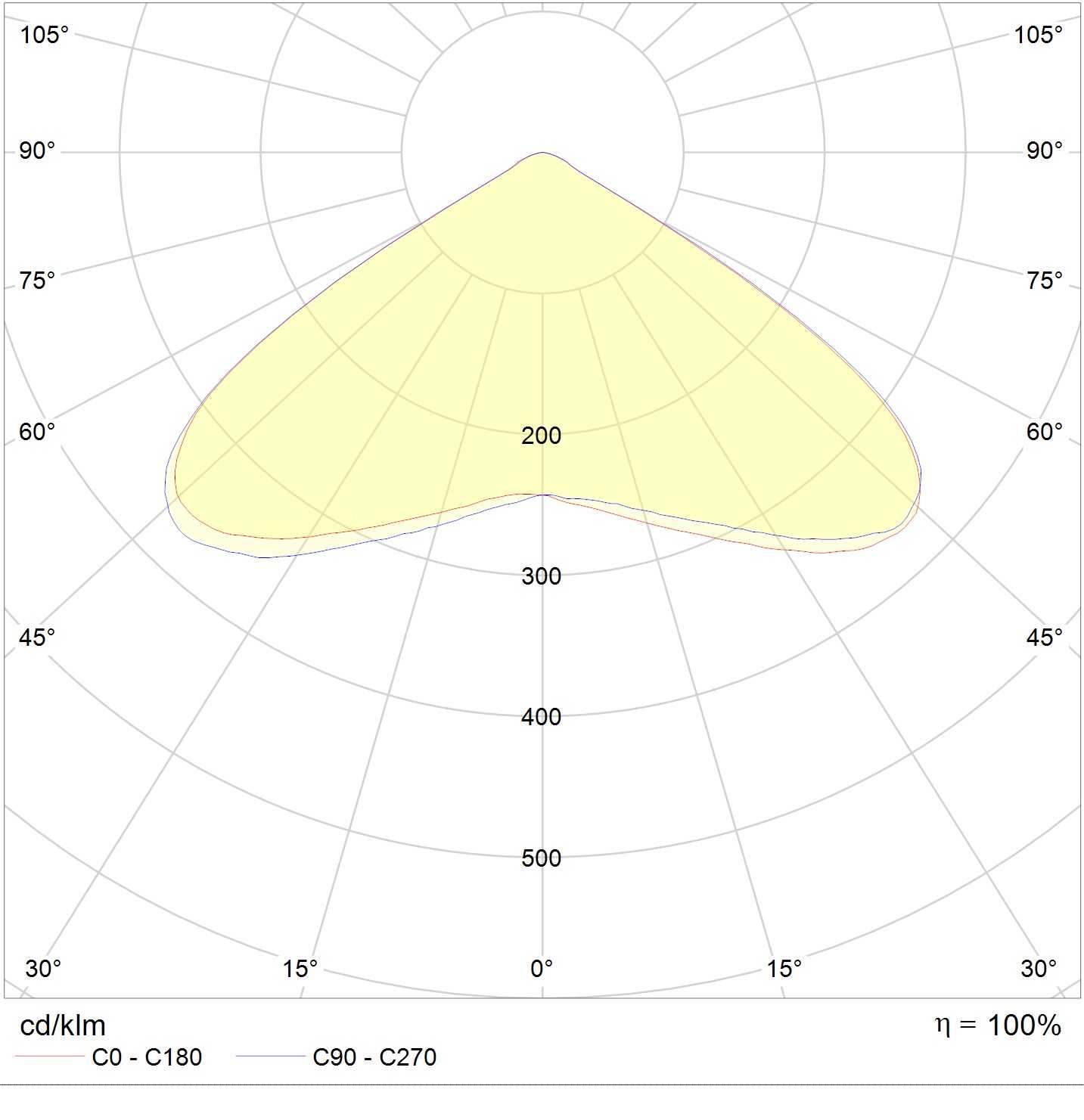

beam angle
D120
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
30 W
electric shock protection
I
starting current pulse time
350 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
142-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,95
constructional
fire safety class
П-I,II,IIa,ІІІ

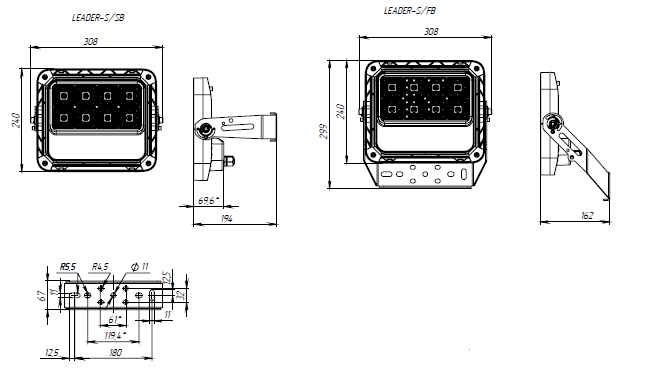

length
308 mm
height
194 mm
installation length
180 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
240 mm
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
weight
4 kg
common
code
1350003690
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

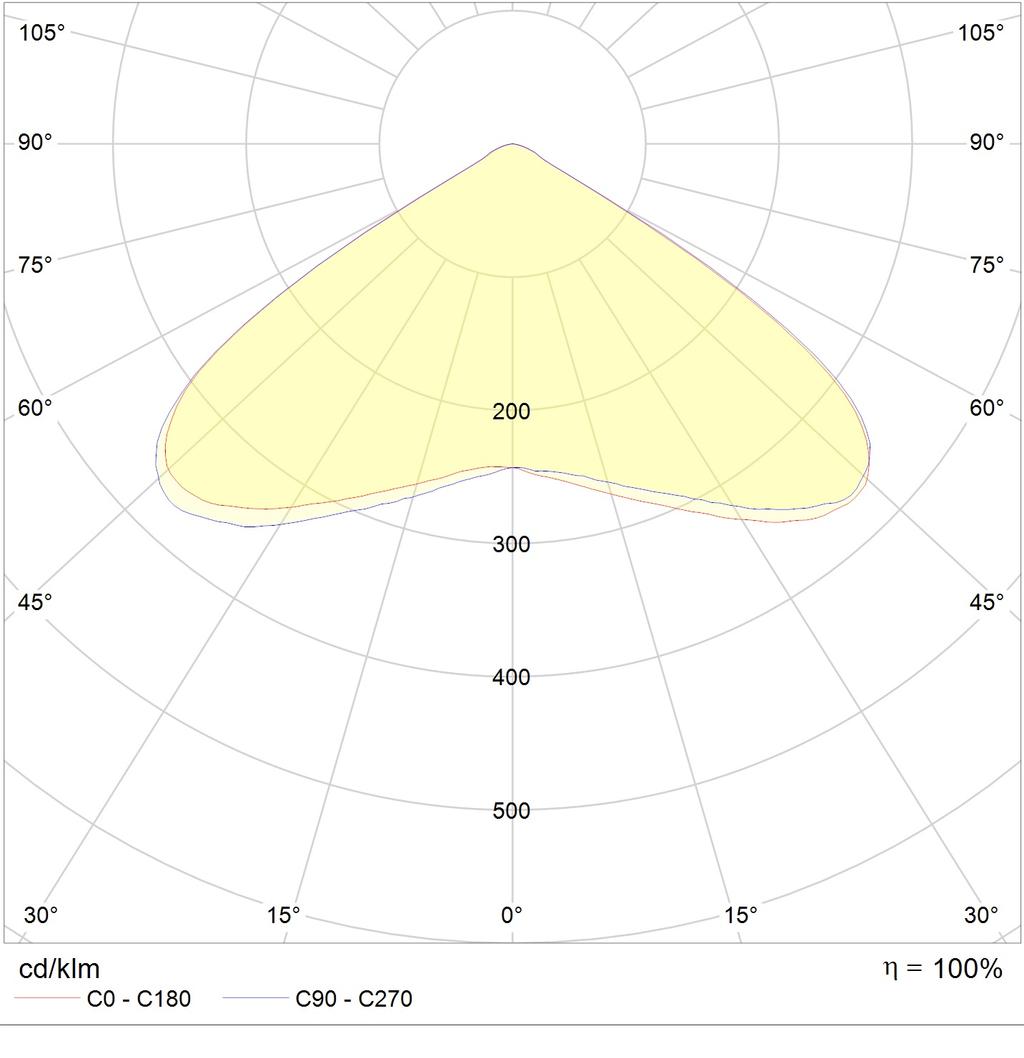

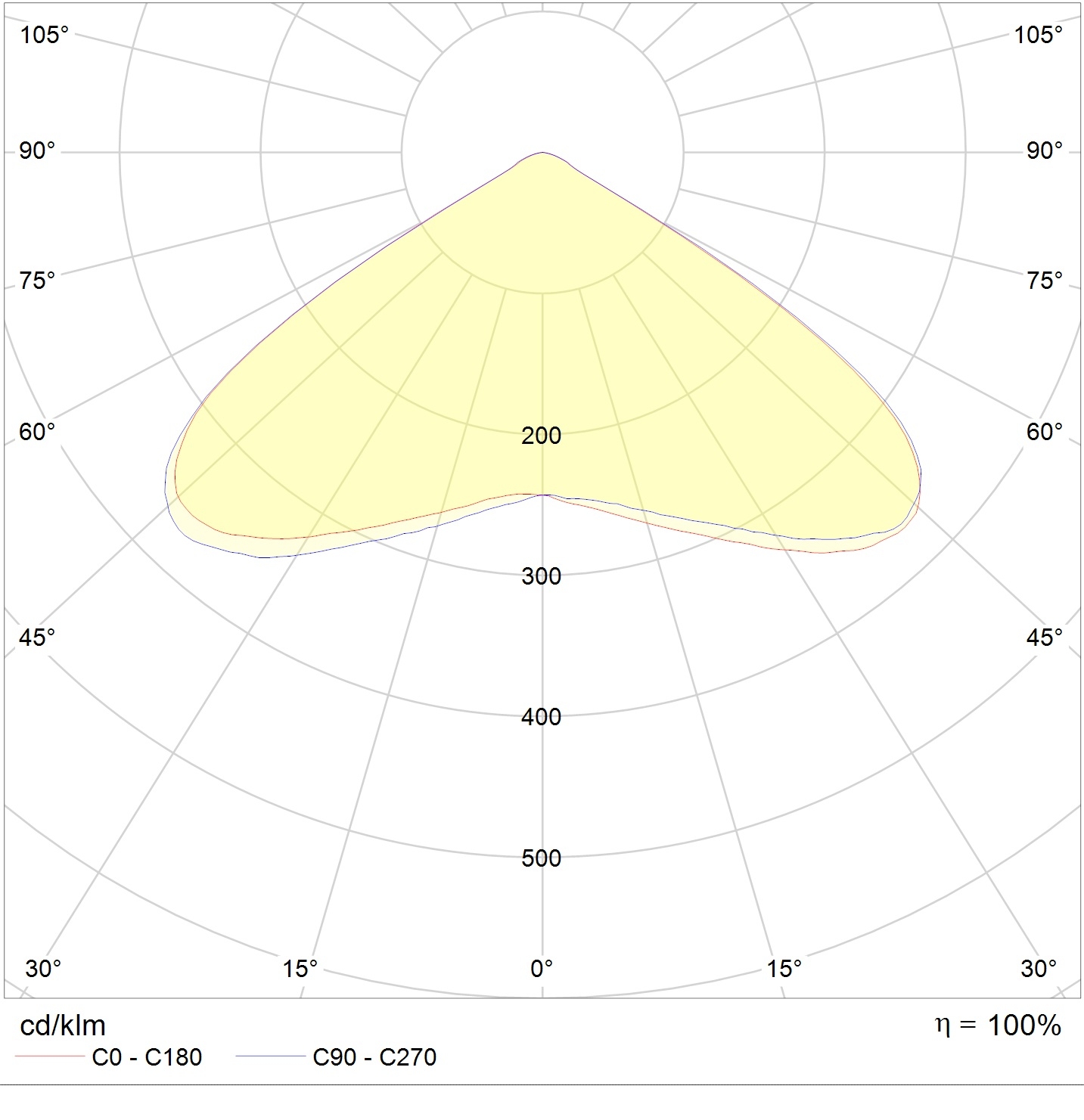

photometric files
сертификаты
photometric files
ies263.2 kB
jpg204.7 kB
ldt174.4 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
