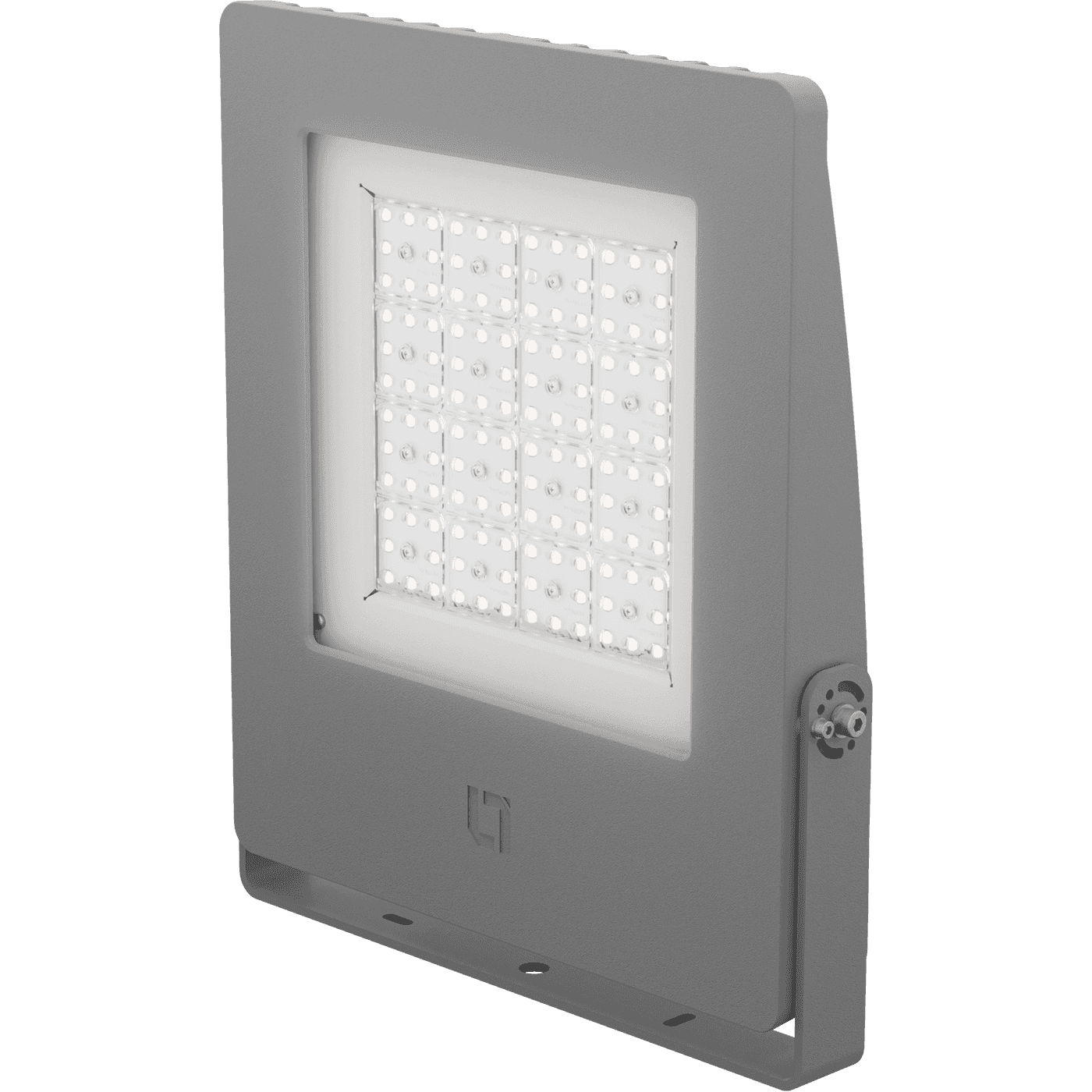

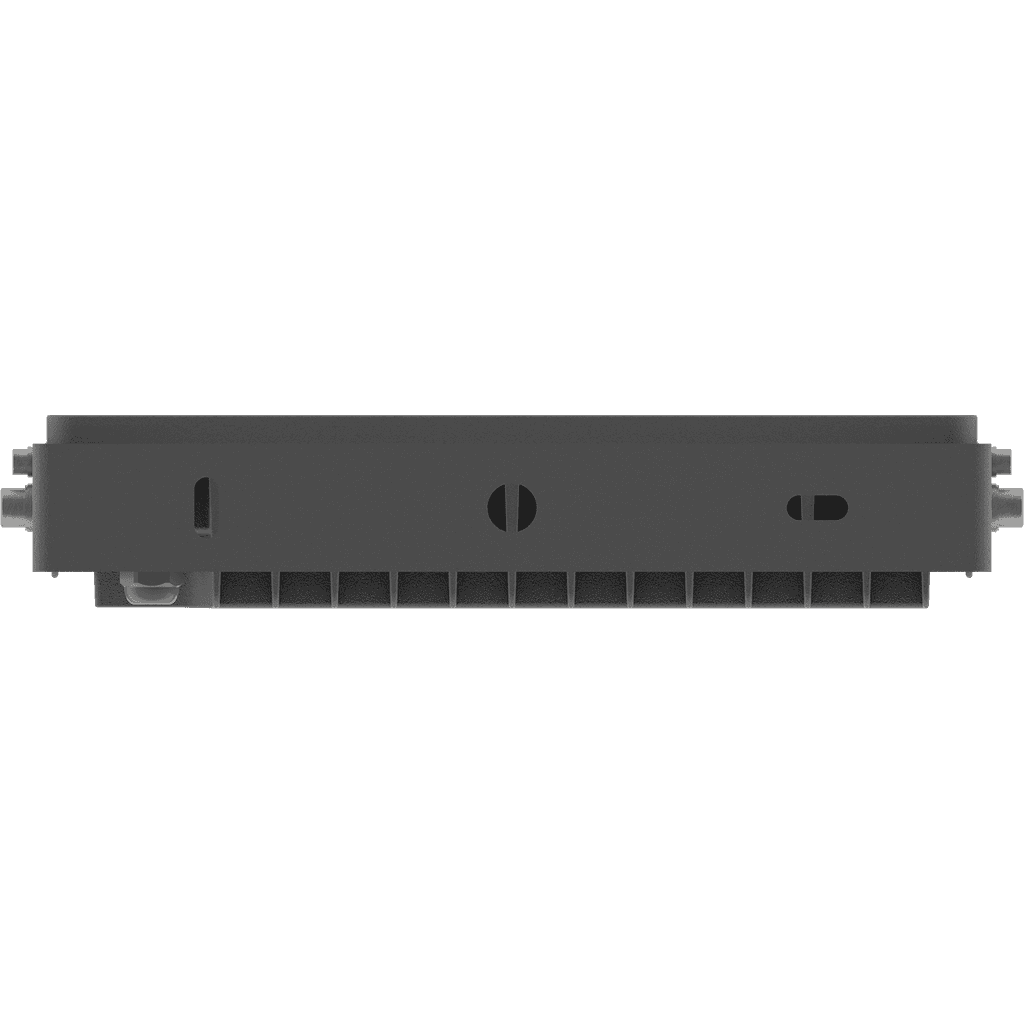

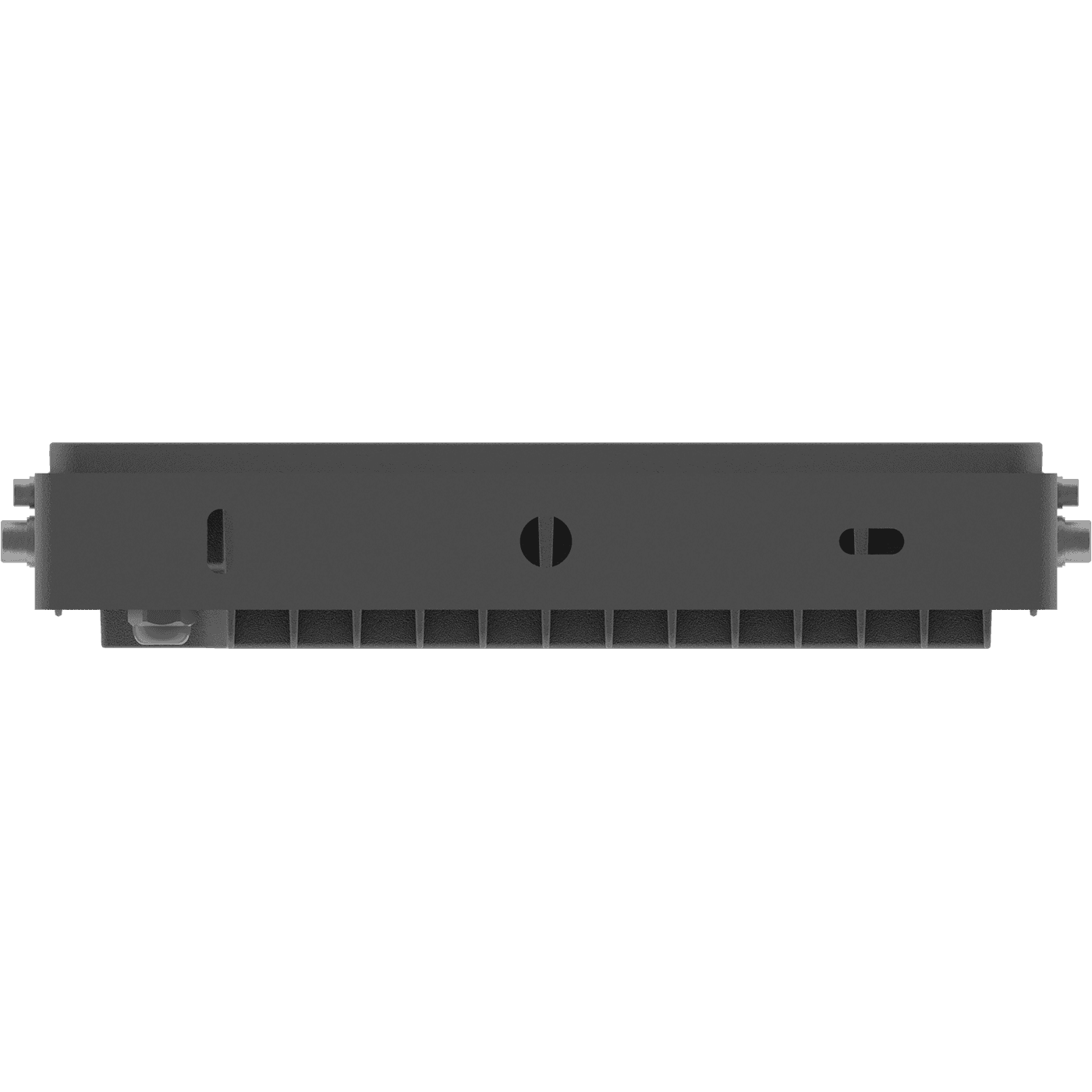

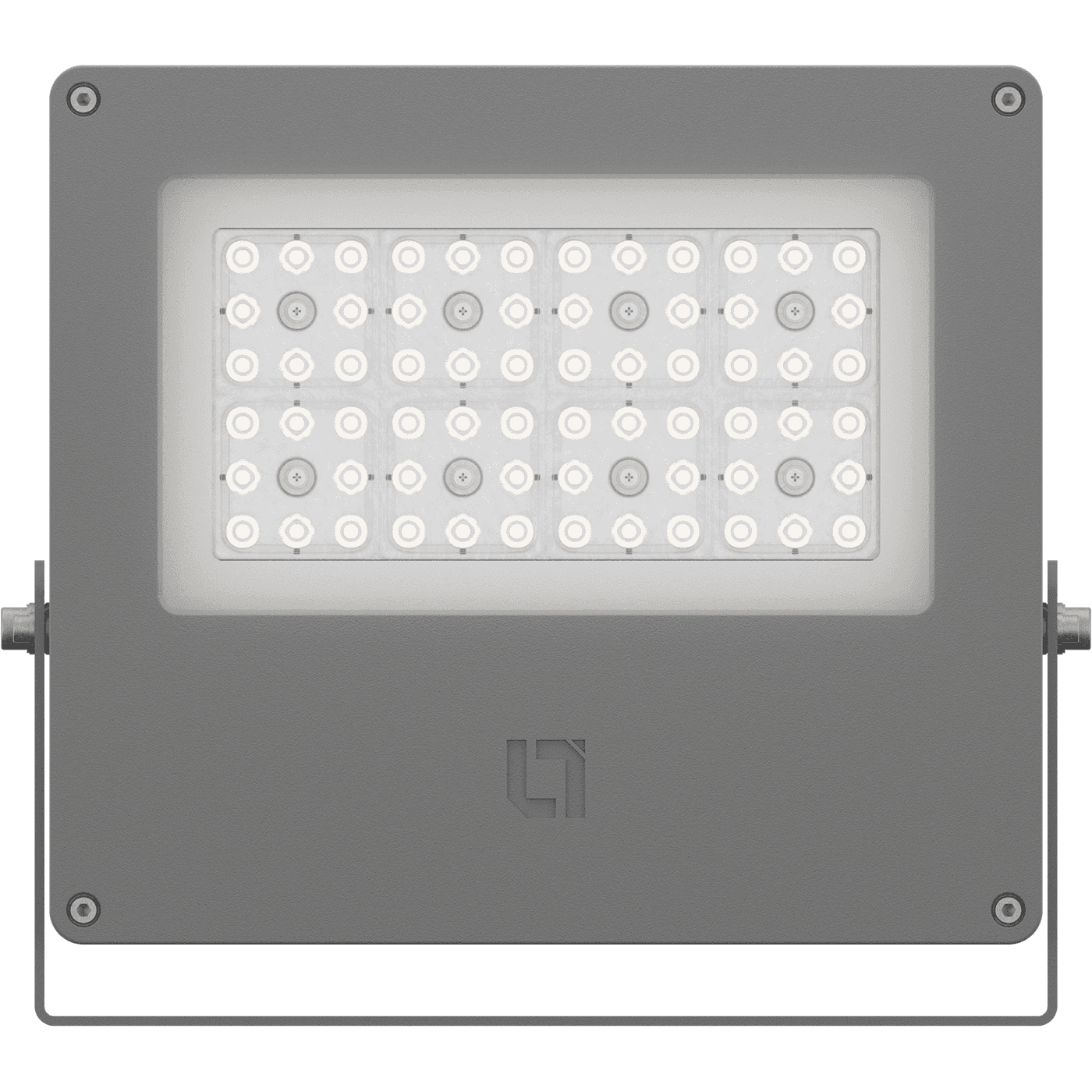

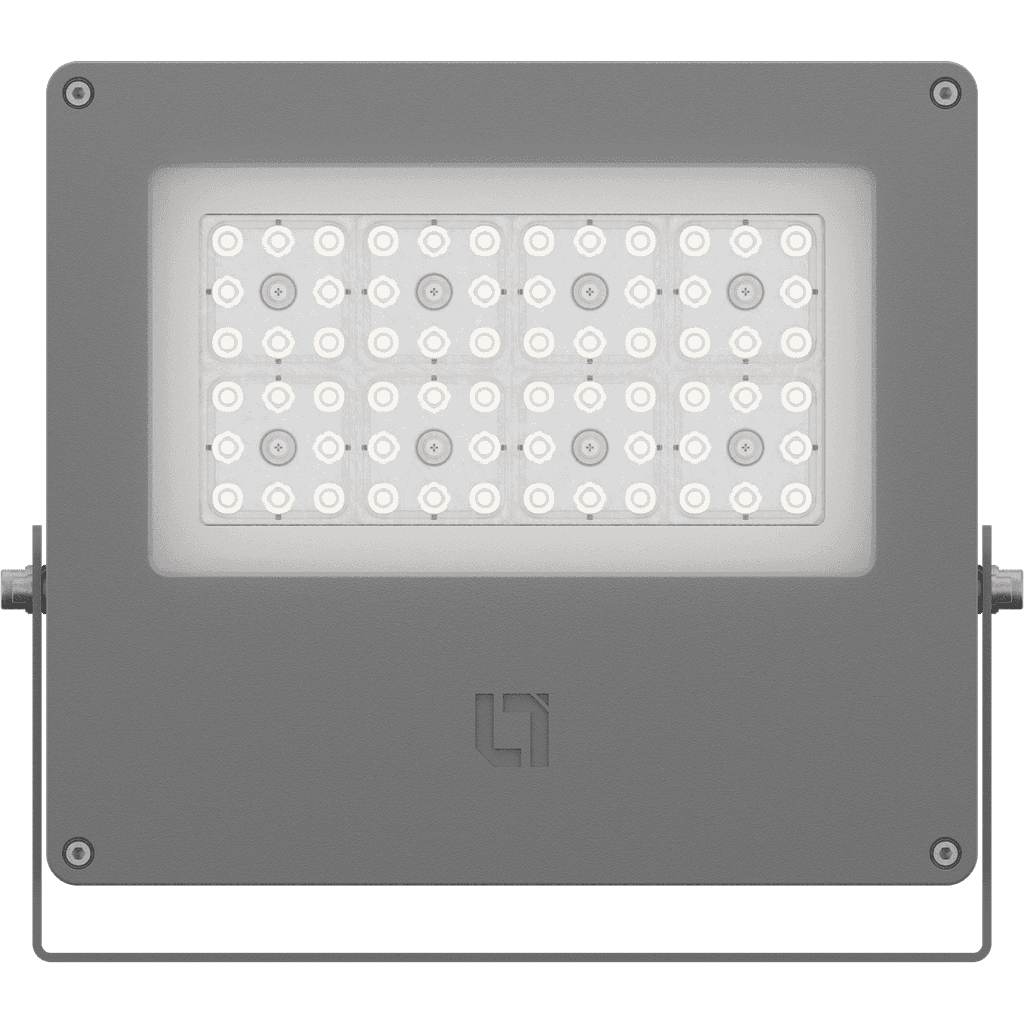

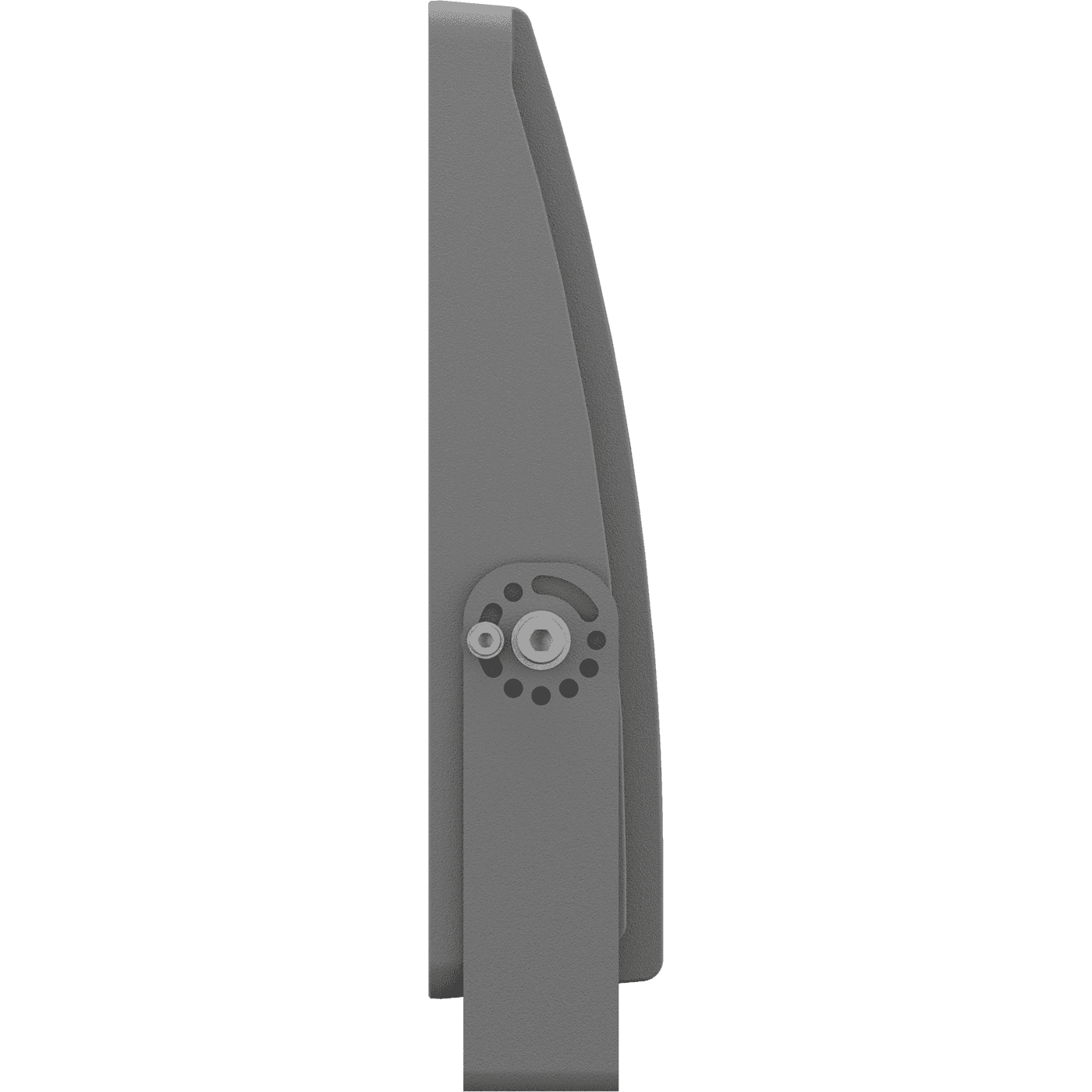

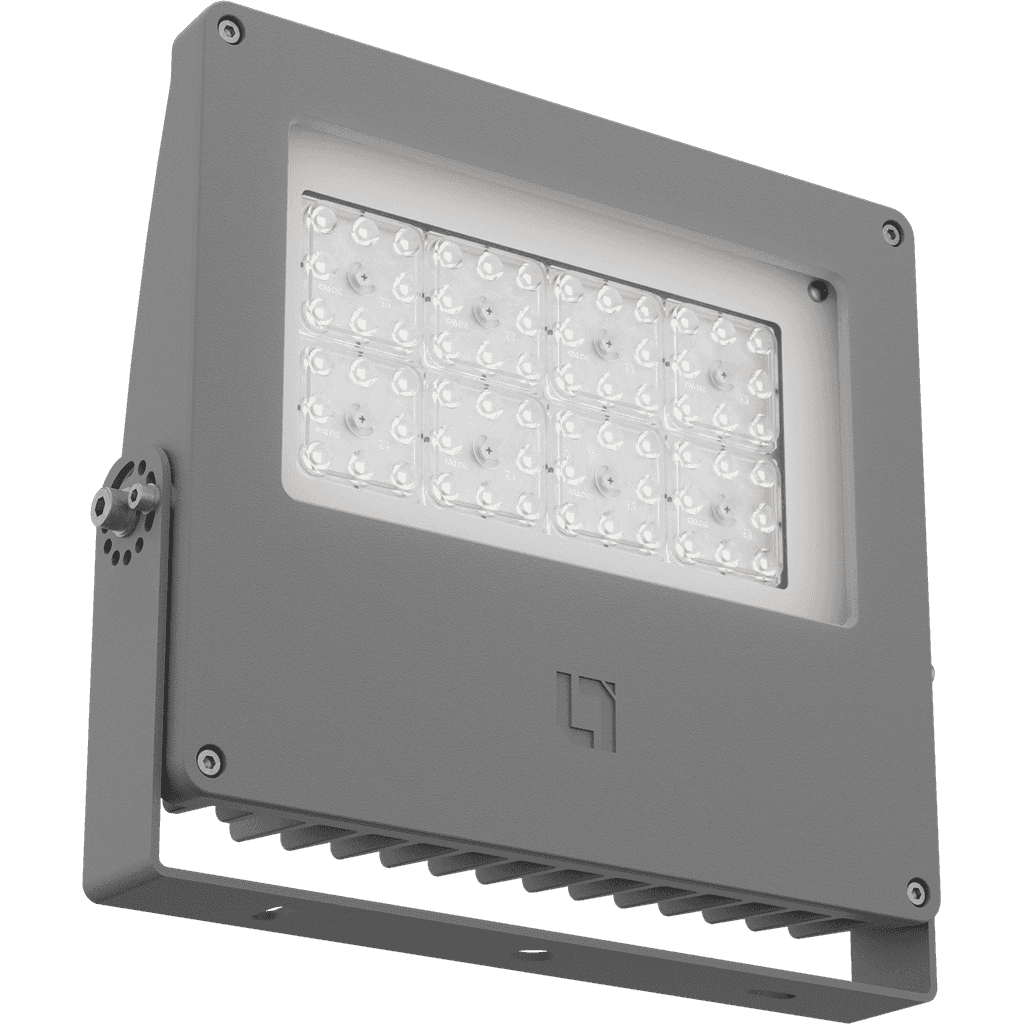

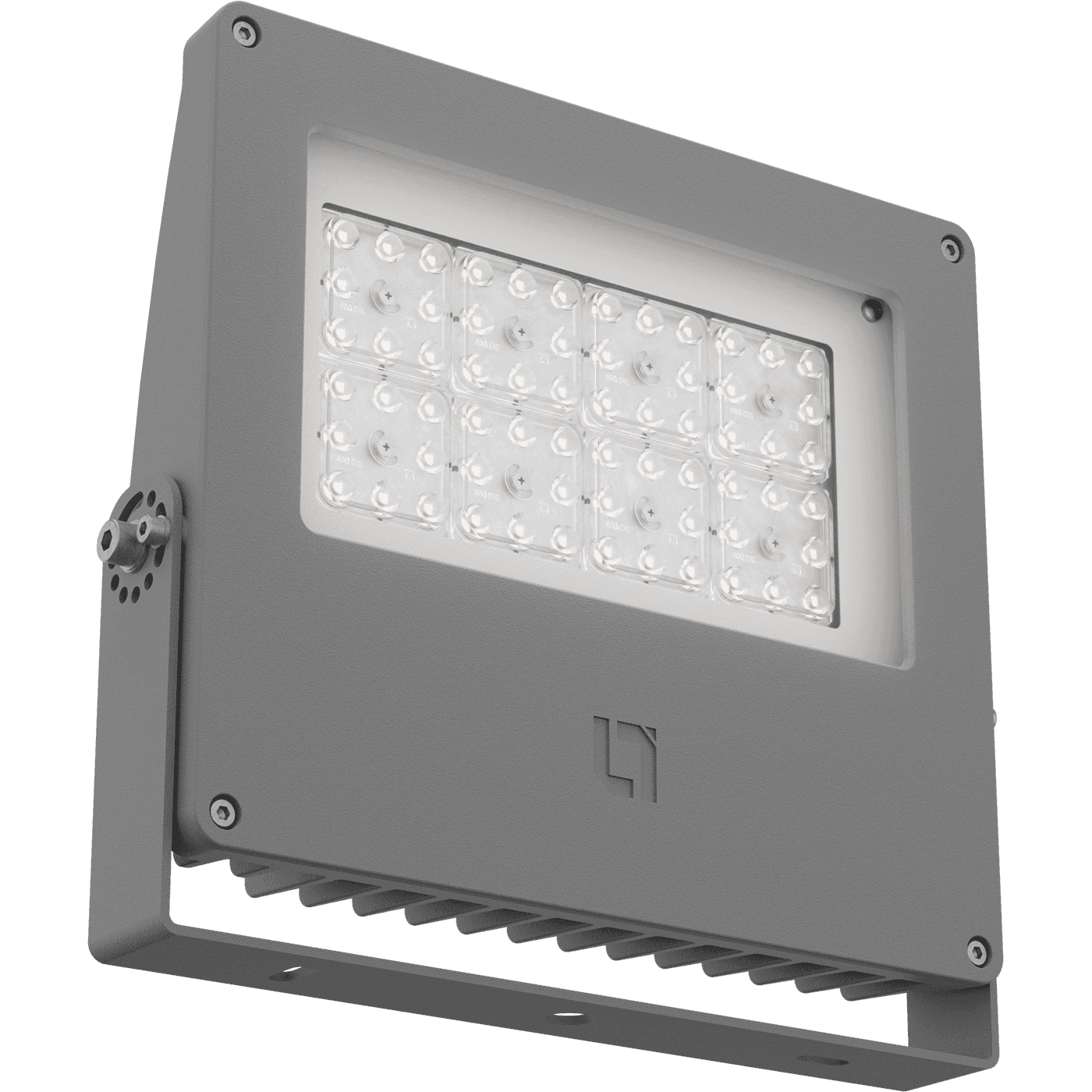

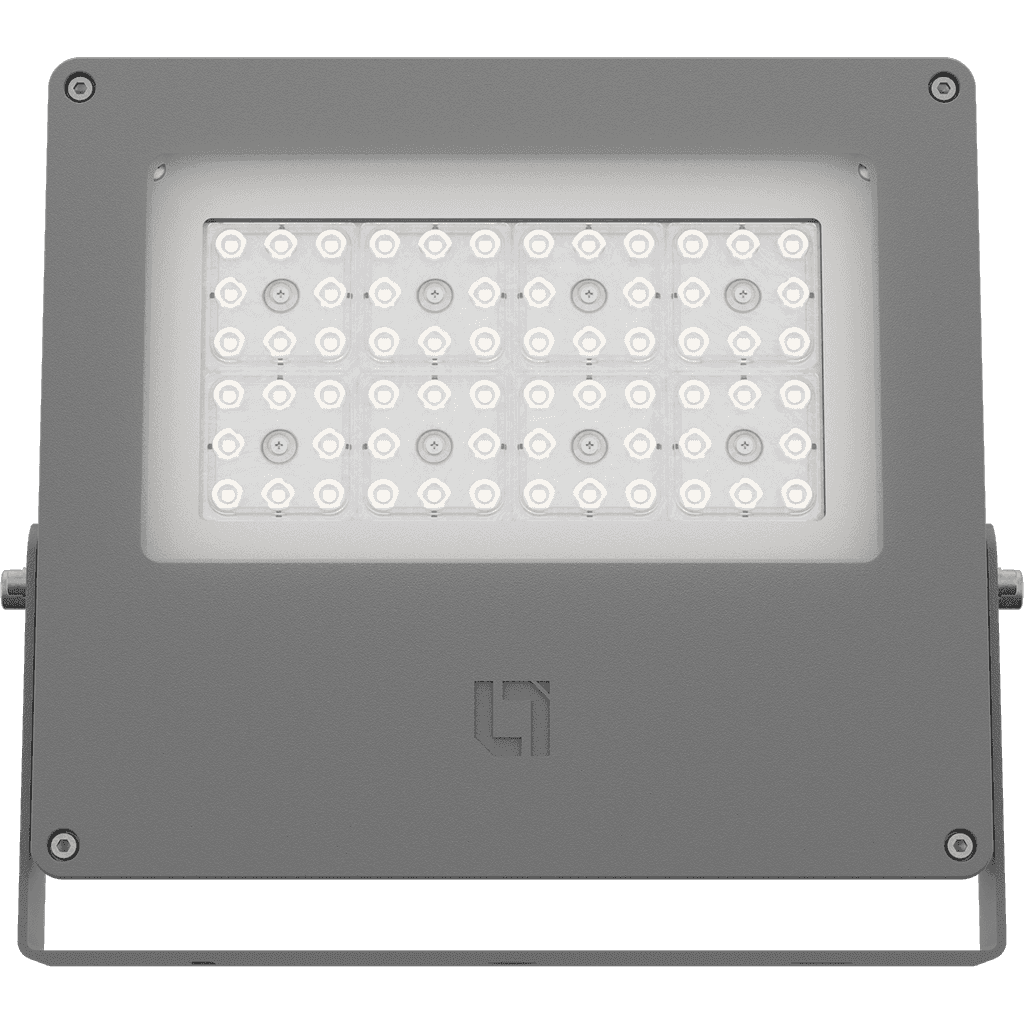

LEADER LED 50W D75 730 RAL9006 EXTREME
LEADER LED 50W D75 730 RAL9006 EXTREME
52 Wluminaire power
7600 lmlight flow
146 lm/Wenergy efficiency
code1350002230
beam angleD75
color temperature3000
weight4.85 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
146 lm/Wcolor rendition index (CRI)
>70light flow
7600 lmflickering factor
<5%beam angle
D75color temperature
3000light source type
LEDemission color
Белыйilluminating
energy efficiency
146 lm/W
color rendition index (CRI)
>70
light flow
7600 lm
flickering factor
<5%
beam angle
D75
color temperature
3000
light source type
LED
emission color
Белый
electrical
luminaire power
52 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,95
constructional
climatic performance
УХЛ1
fire safety class
П-I,II,IIa,ІІІ
width, mm
295 mm
height, mm
64 mm
installation length, mm
200 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
335 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
weight
4.85 kg
common
code
1350002230
warranty
60 month
energy efficiency class
A++
temperature range
от -60 до +40 C
service life, hour
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

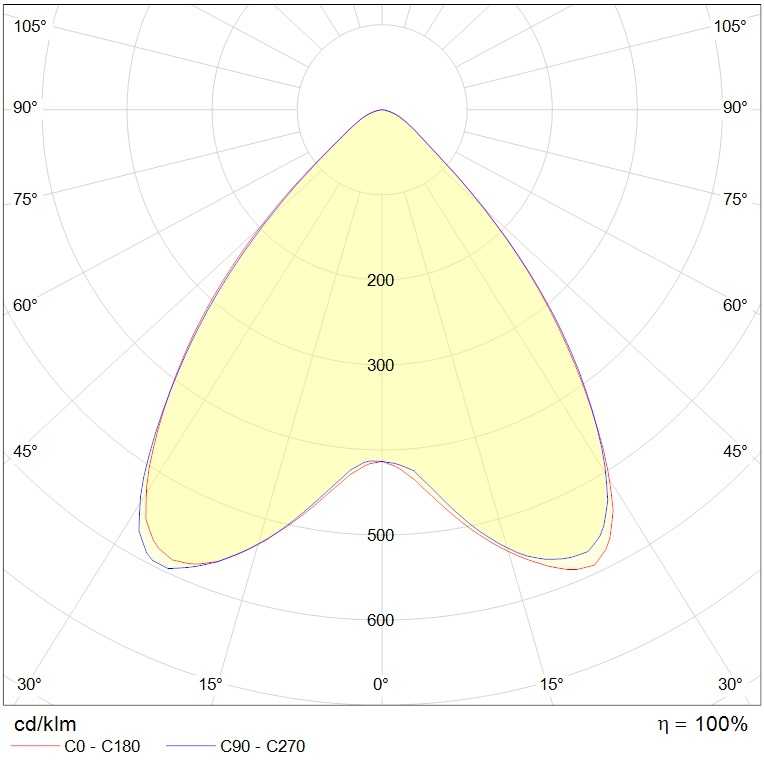

photometric files
сертификаты
photometric files
ies107.1 kB
jpg85.2 kB
ldt62 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
