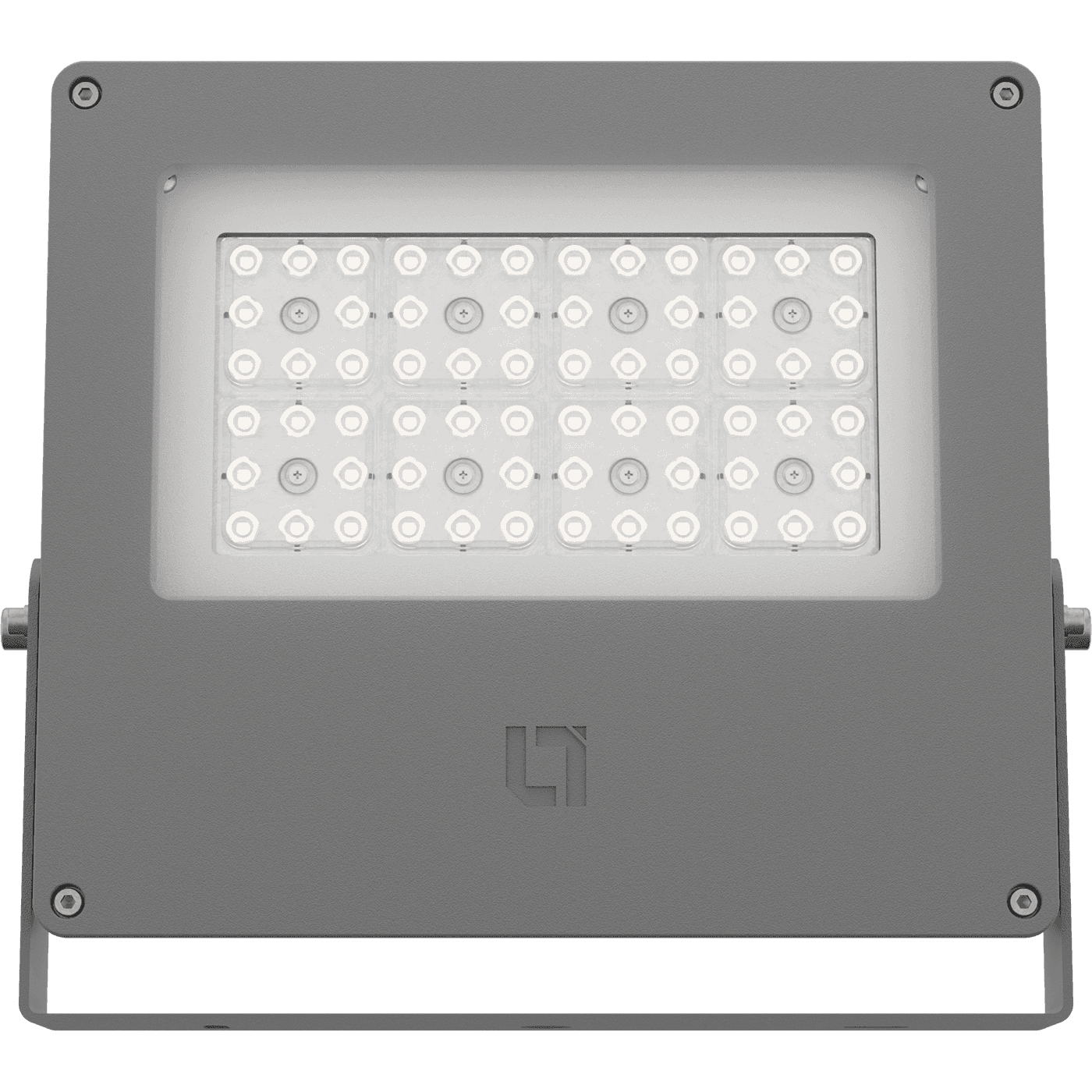

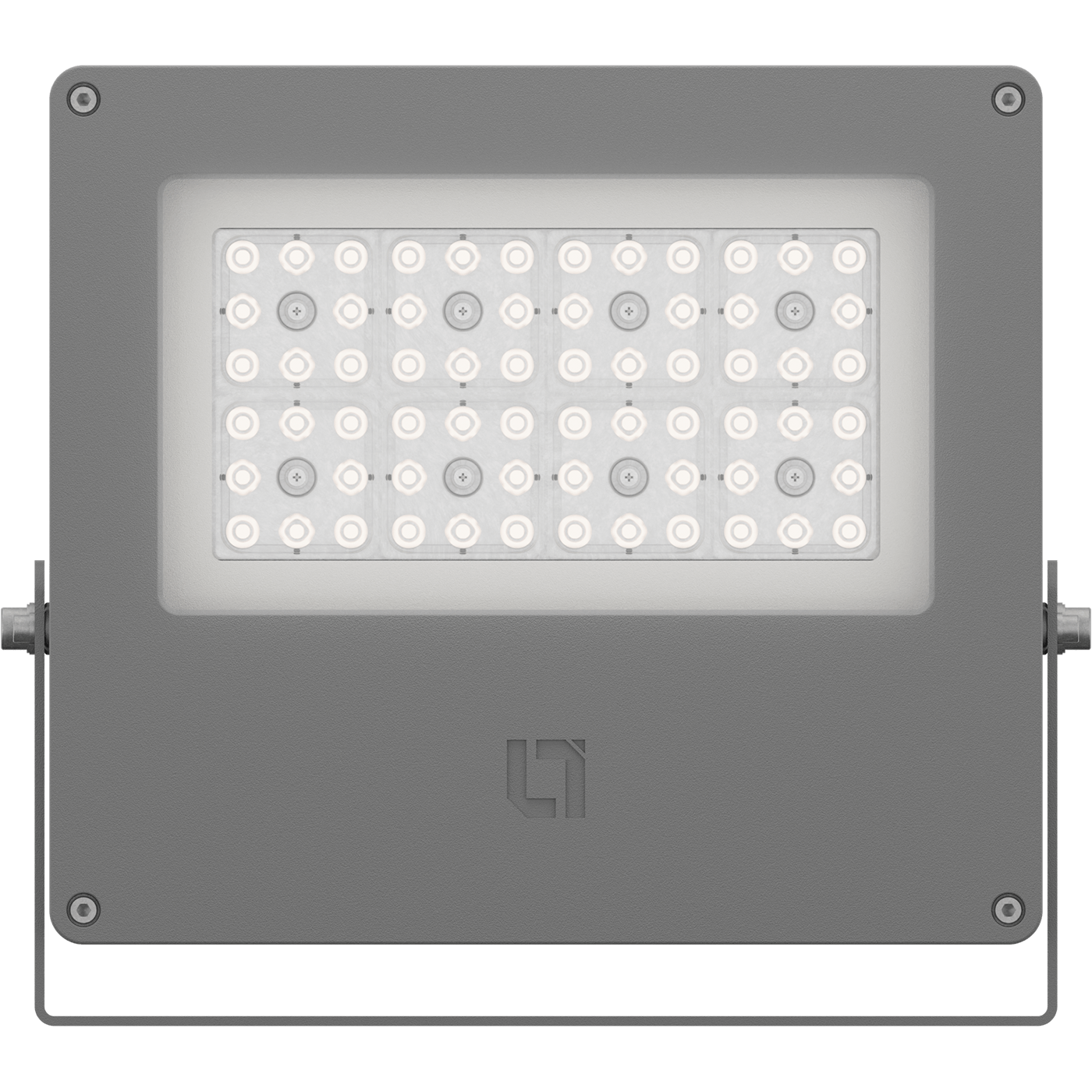

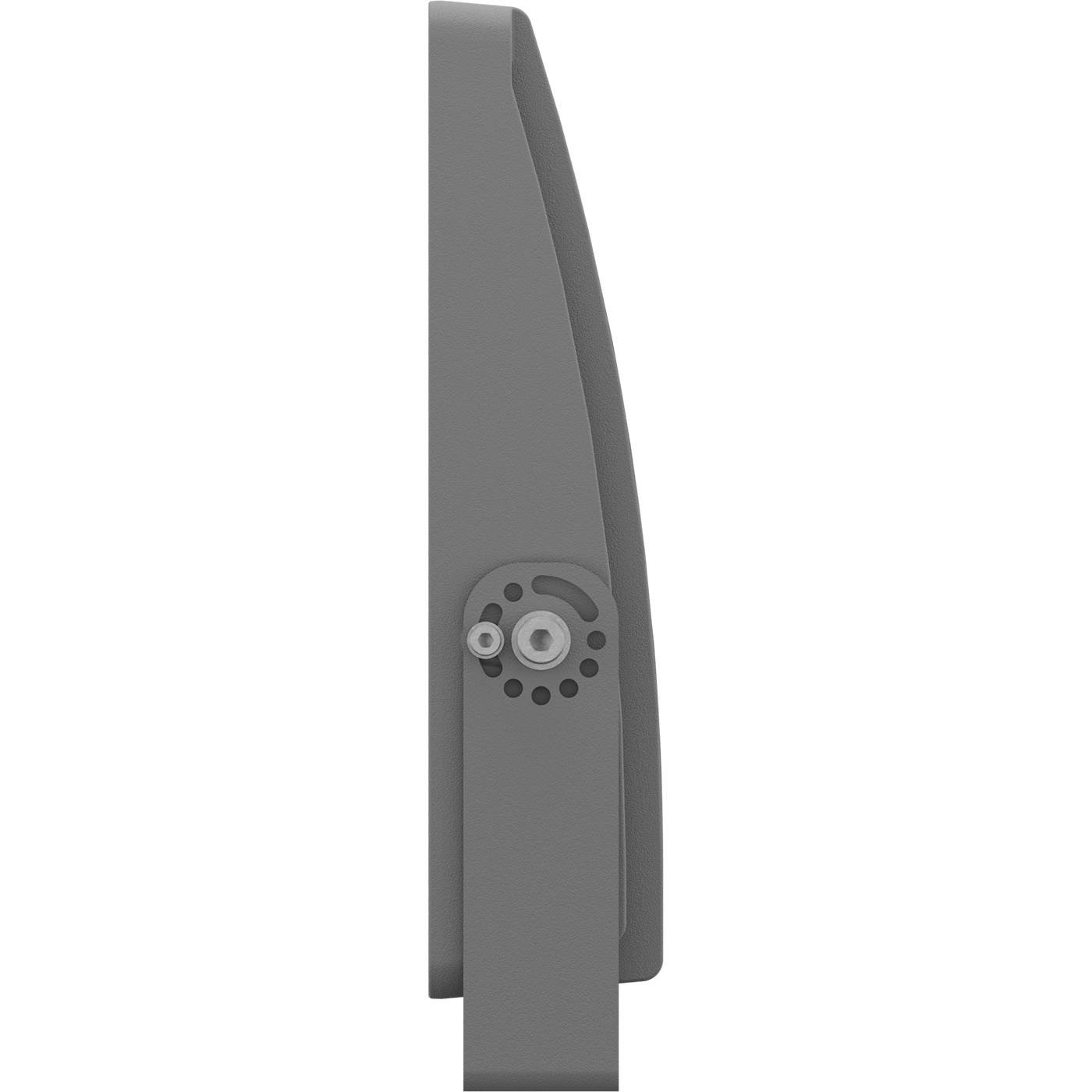

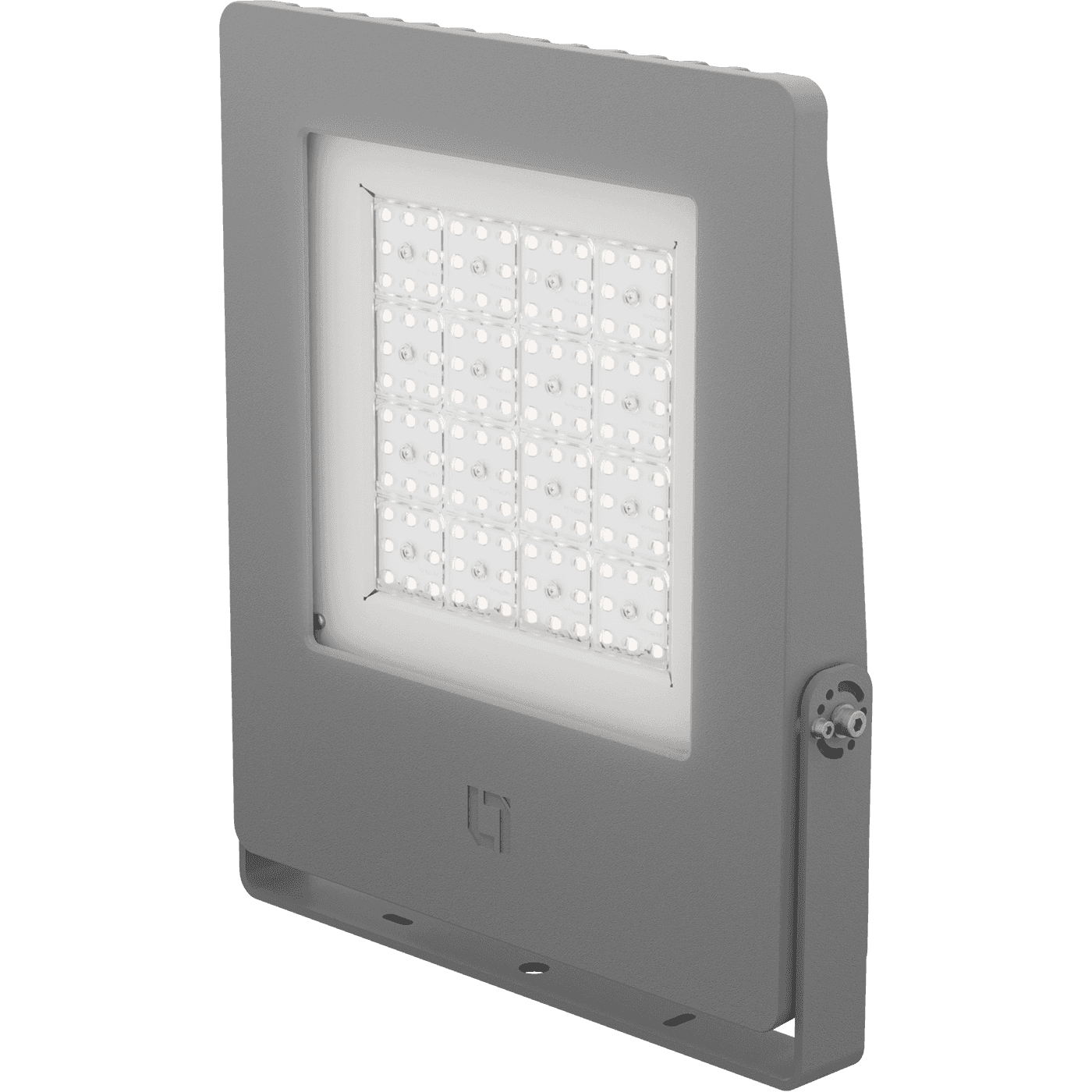

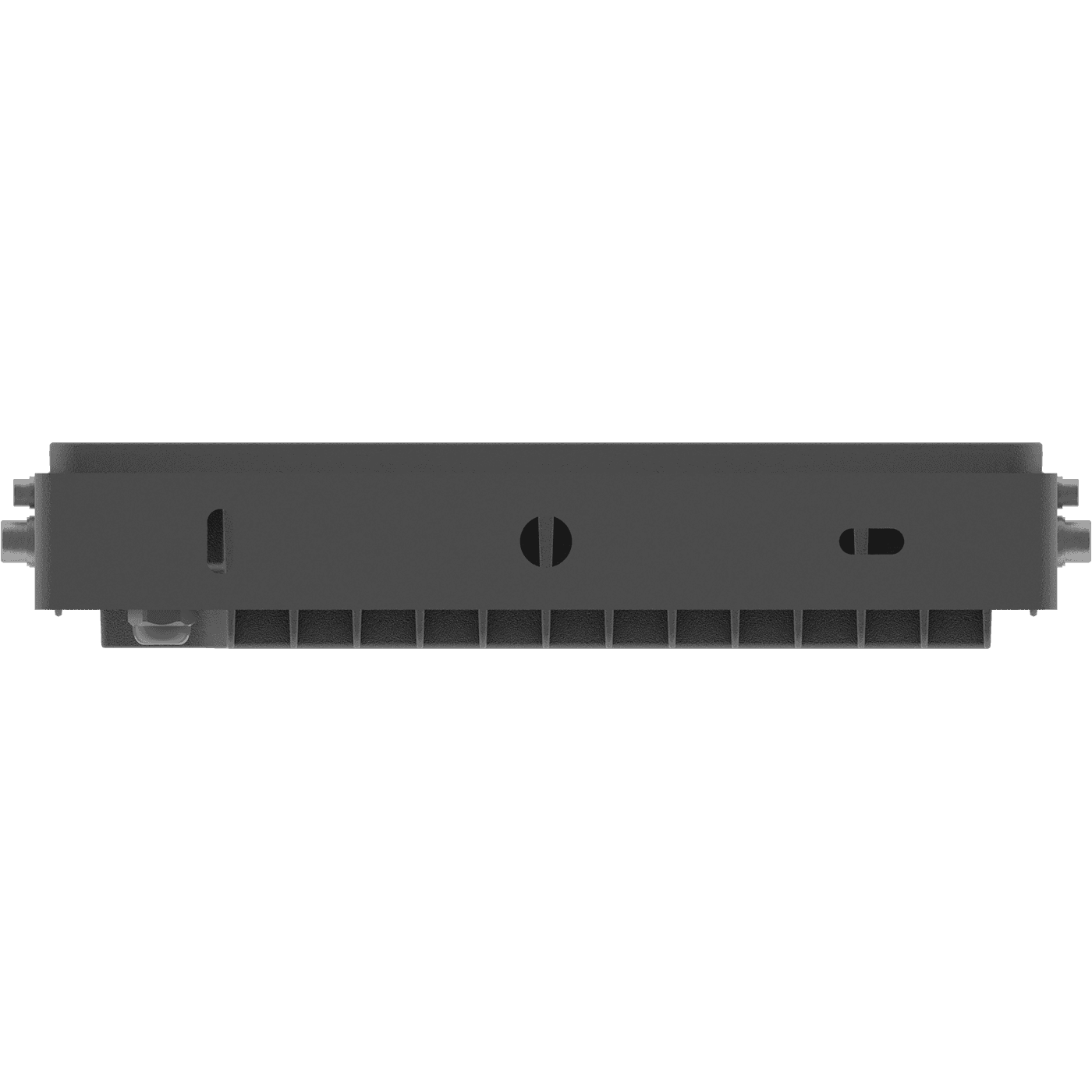

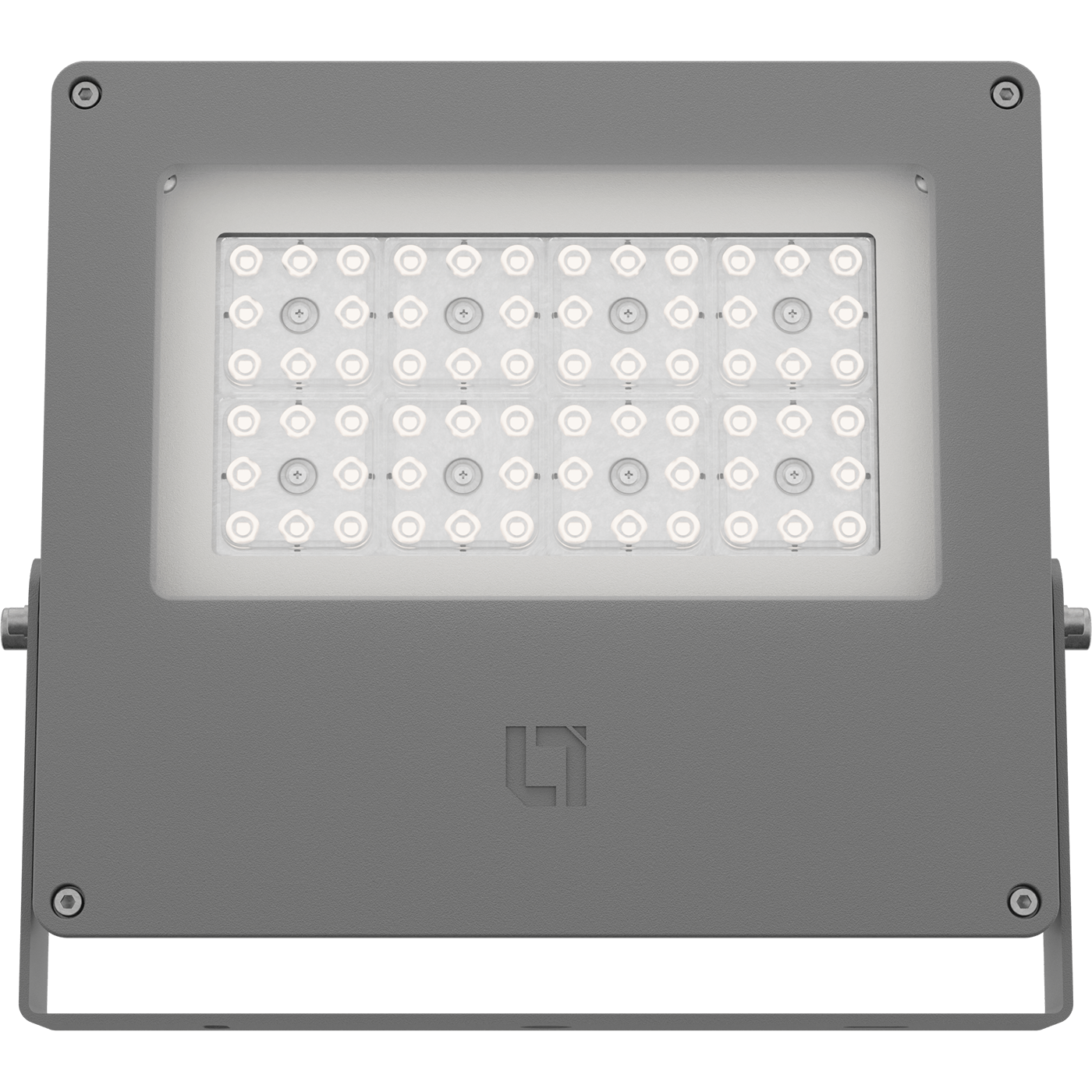

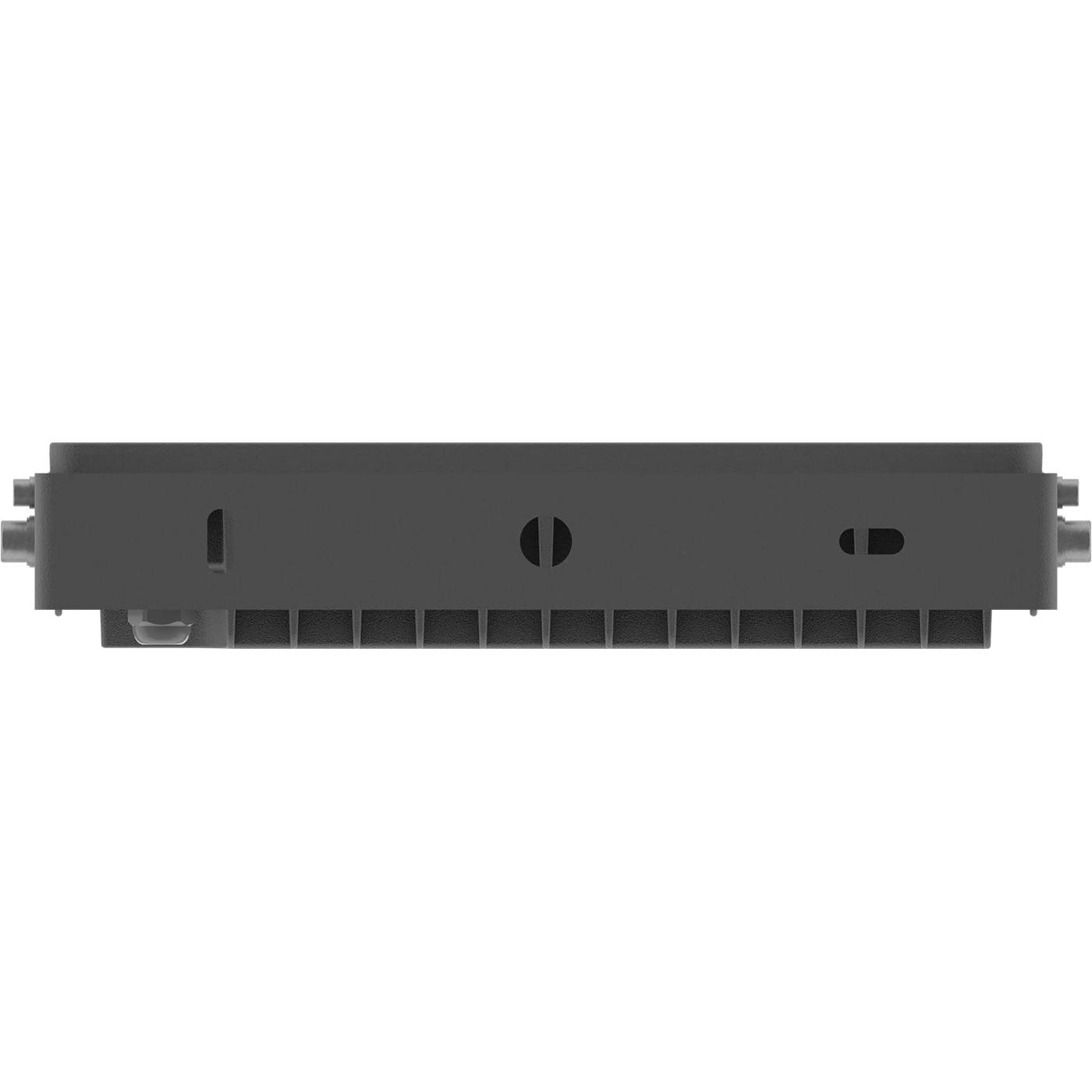

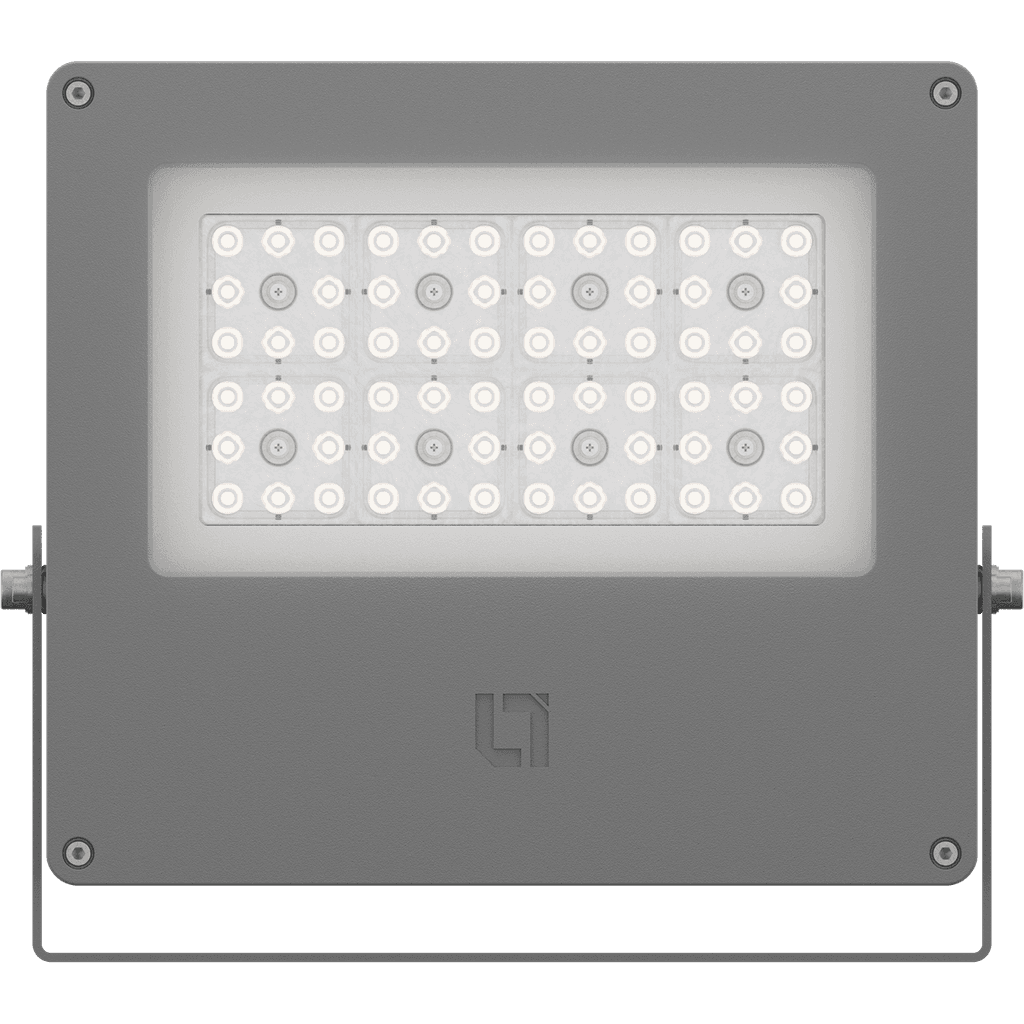

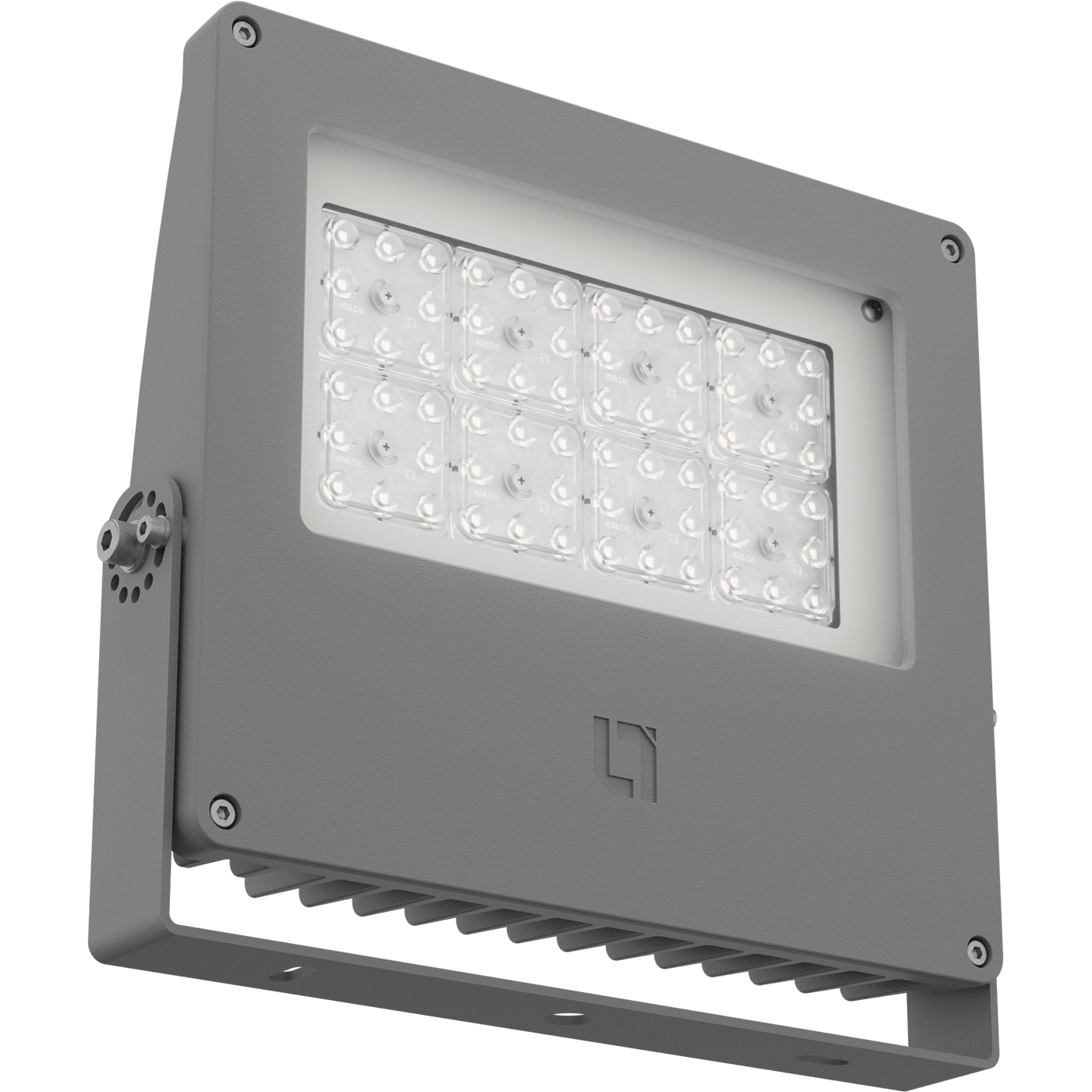

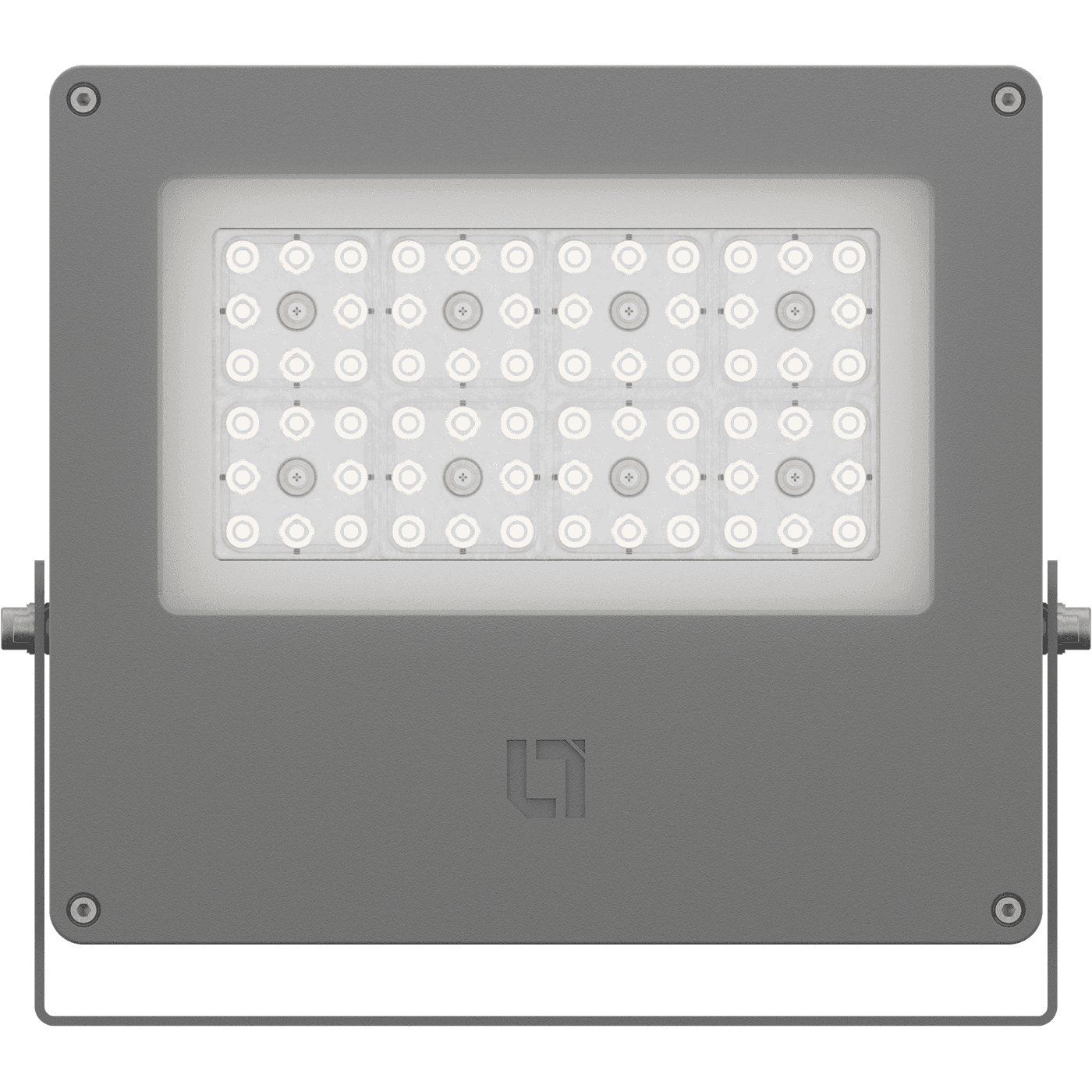

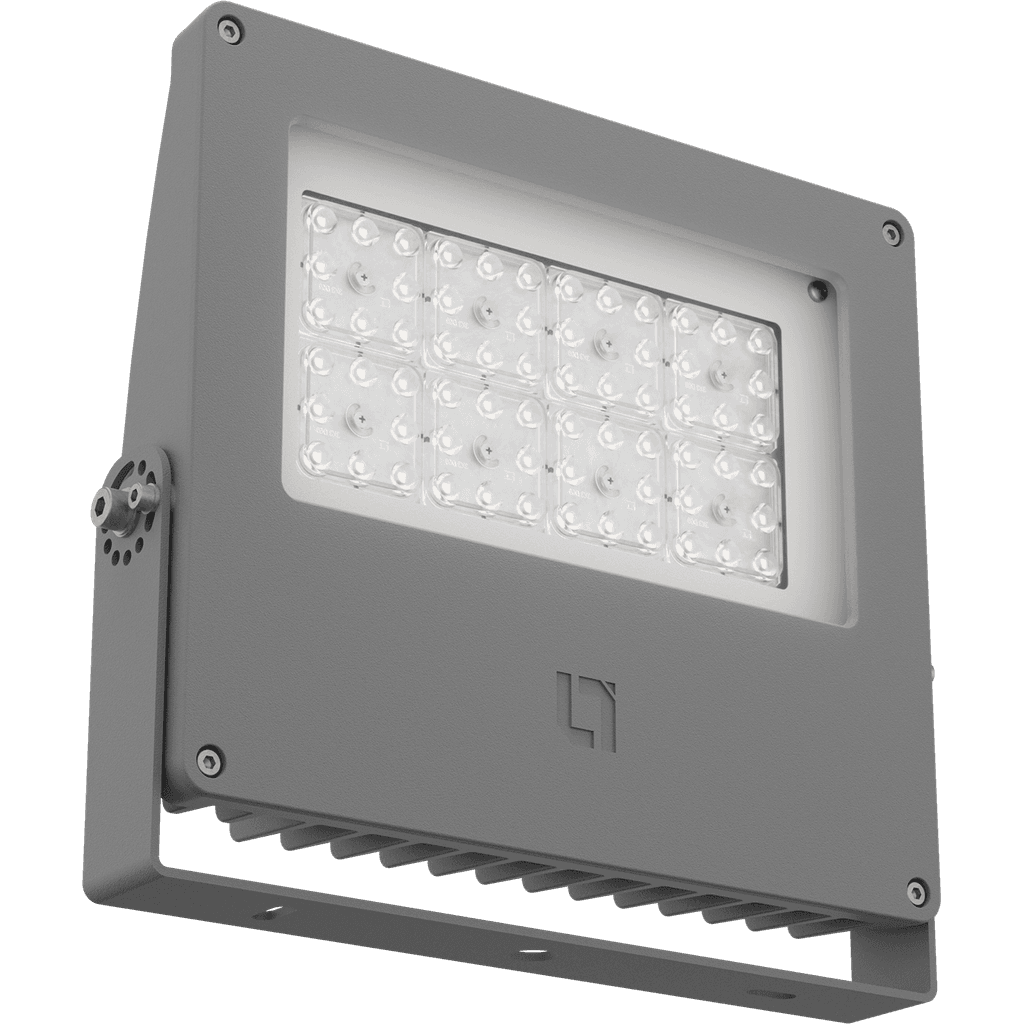

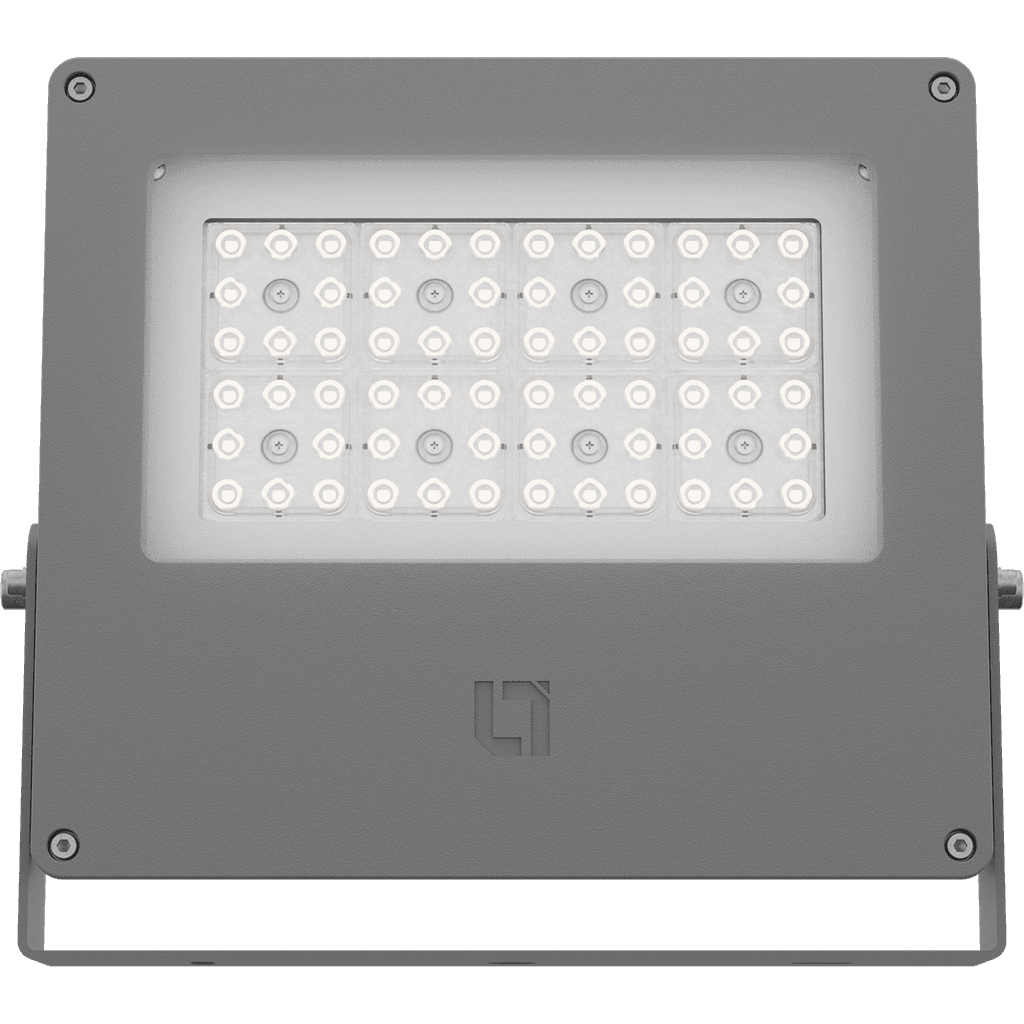

LEADER LED 30W D75 750 RAL9006 EXTREME
LEADER LED 30W D75 750 RAL9006 EXTREME
26 Wluminaire power
4000 lmlight flow
154 lm/Wenergy efficiency
code1350001500
beam angleD75
color temperature5000 K
weight4.85 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
154 lm/Wcolor rendition index (CRI)
>70light flow
4000 lmflickering factor
<5%beam angle
D75color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
154 lm/W
color rendition index (CRI)
>70
light flow
4000 lm
flickering factor
<5%
beam angle
D75
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
luminaire power
26 W
electric shock protection
I
starting current pulse time
200 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
55 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
127-420 V
supply voltage, alternating current
90-305 V
power factor
> 0,95
constructional
fire safety class
П-I,II,IIa,ІІІ
length
335 mm
height
64 mm
installation length
200 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
295 mm
material
Алюминий
climatic performance
УХЛ1
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
weight
4.85 kg
common
code
1350001500
warranty
60 month
energy efficiency class
A++
temperature range
от -60 до +40 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

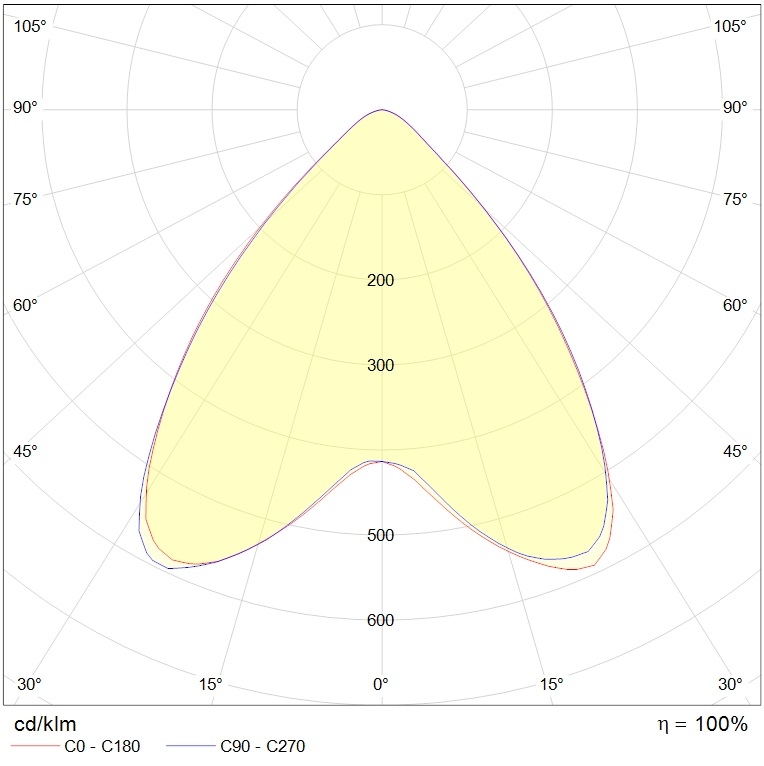

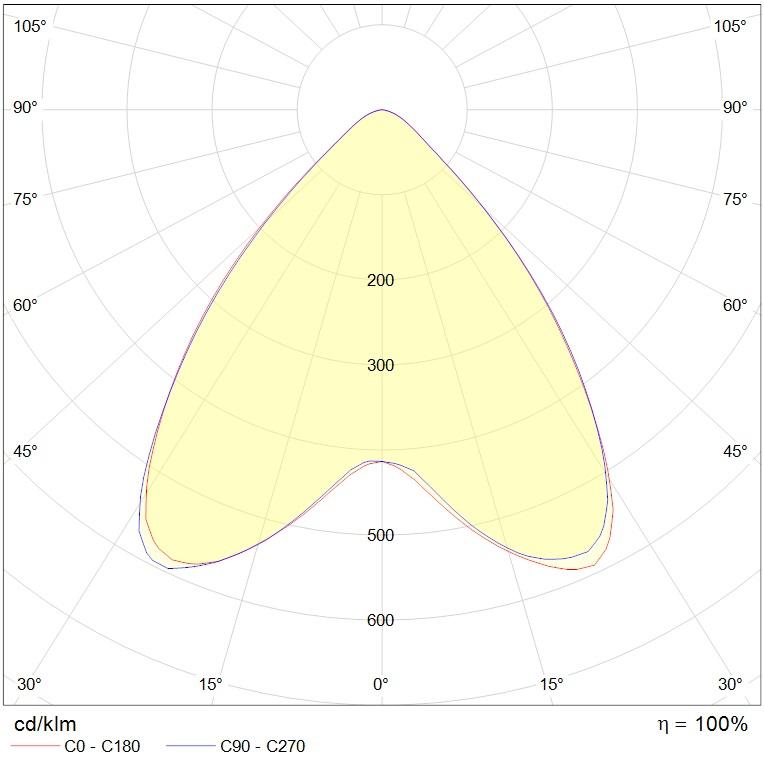

photometric files
documents
сертификаты
photometric files
ies107.1 kB
jpg85.2 kB
ldt62 kB
documents
passport4.5 mB
сертификаты
Russian origin329.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
