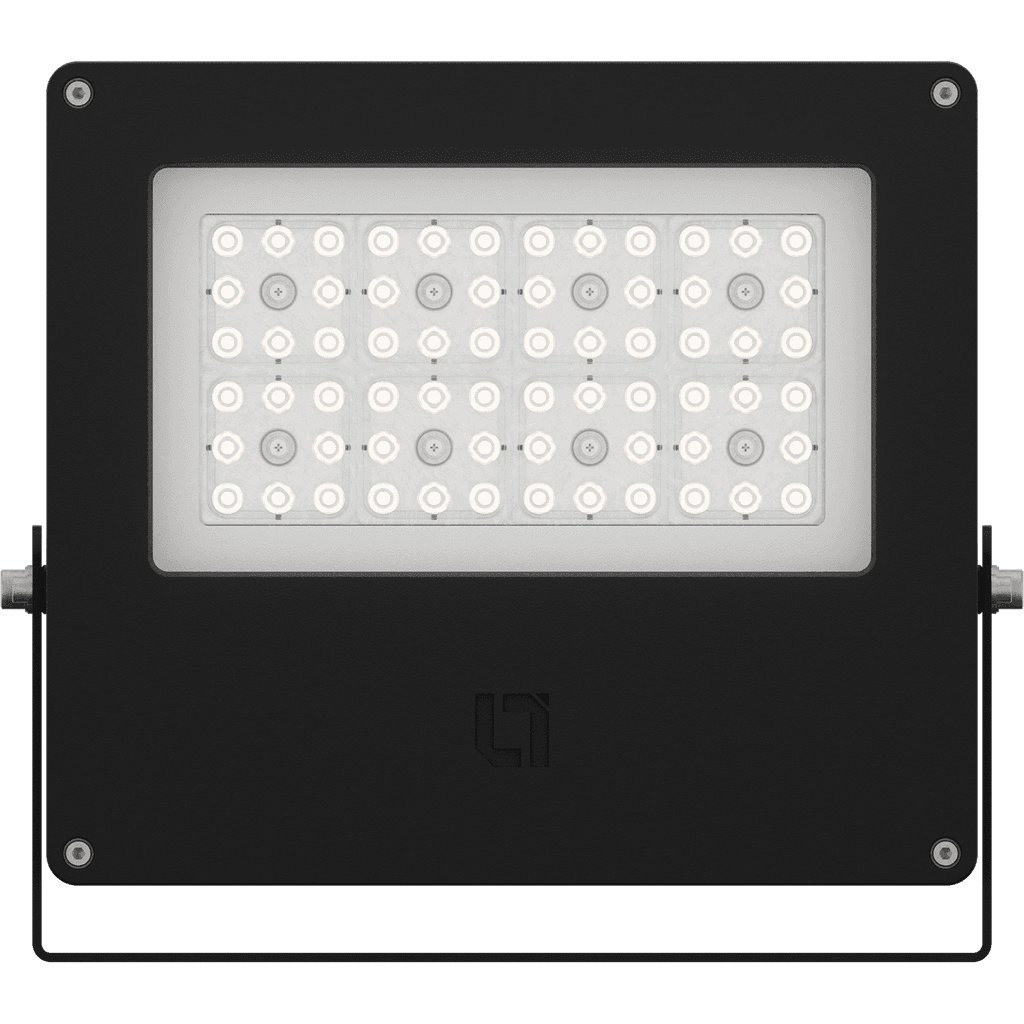

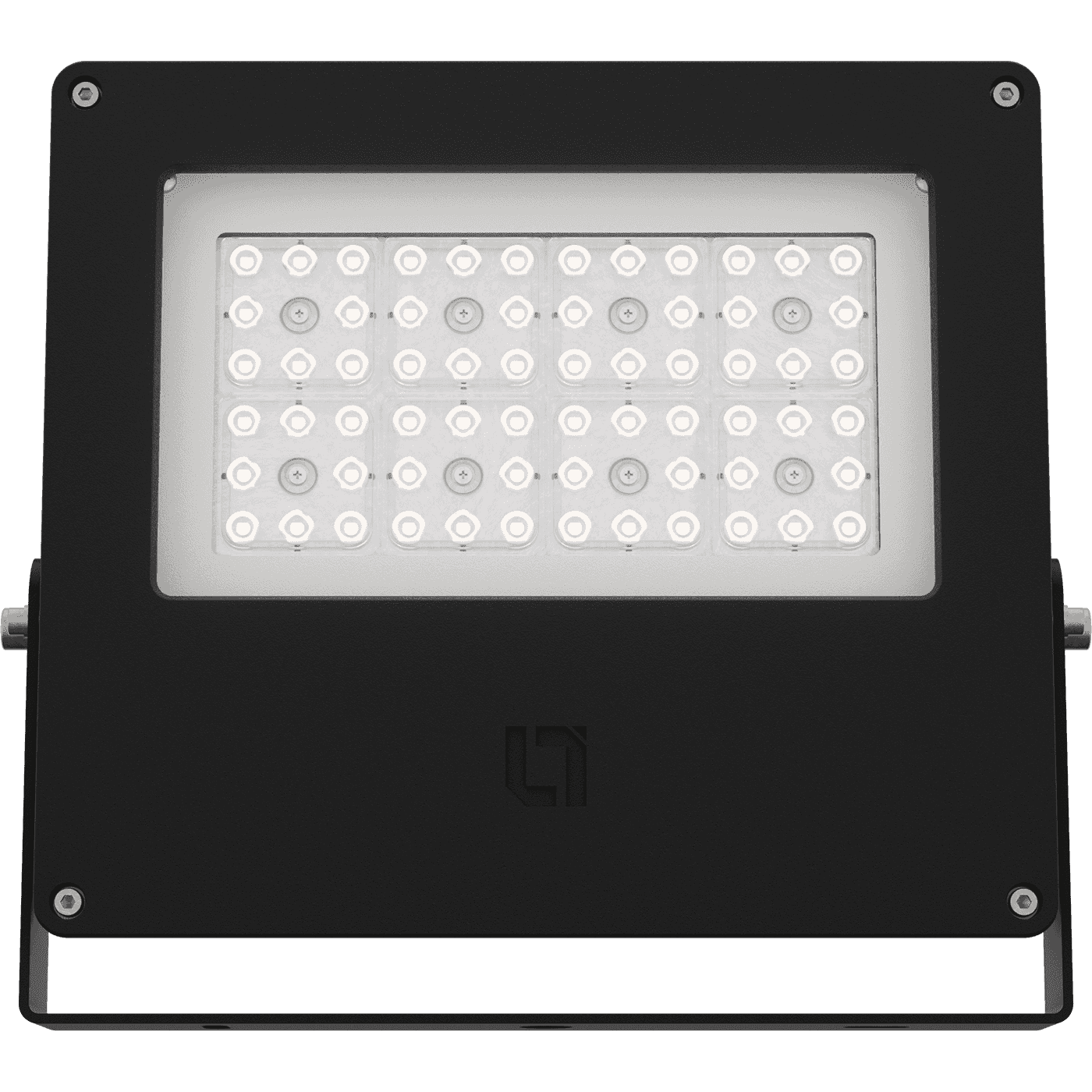

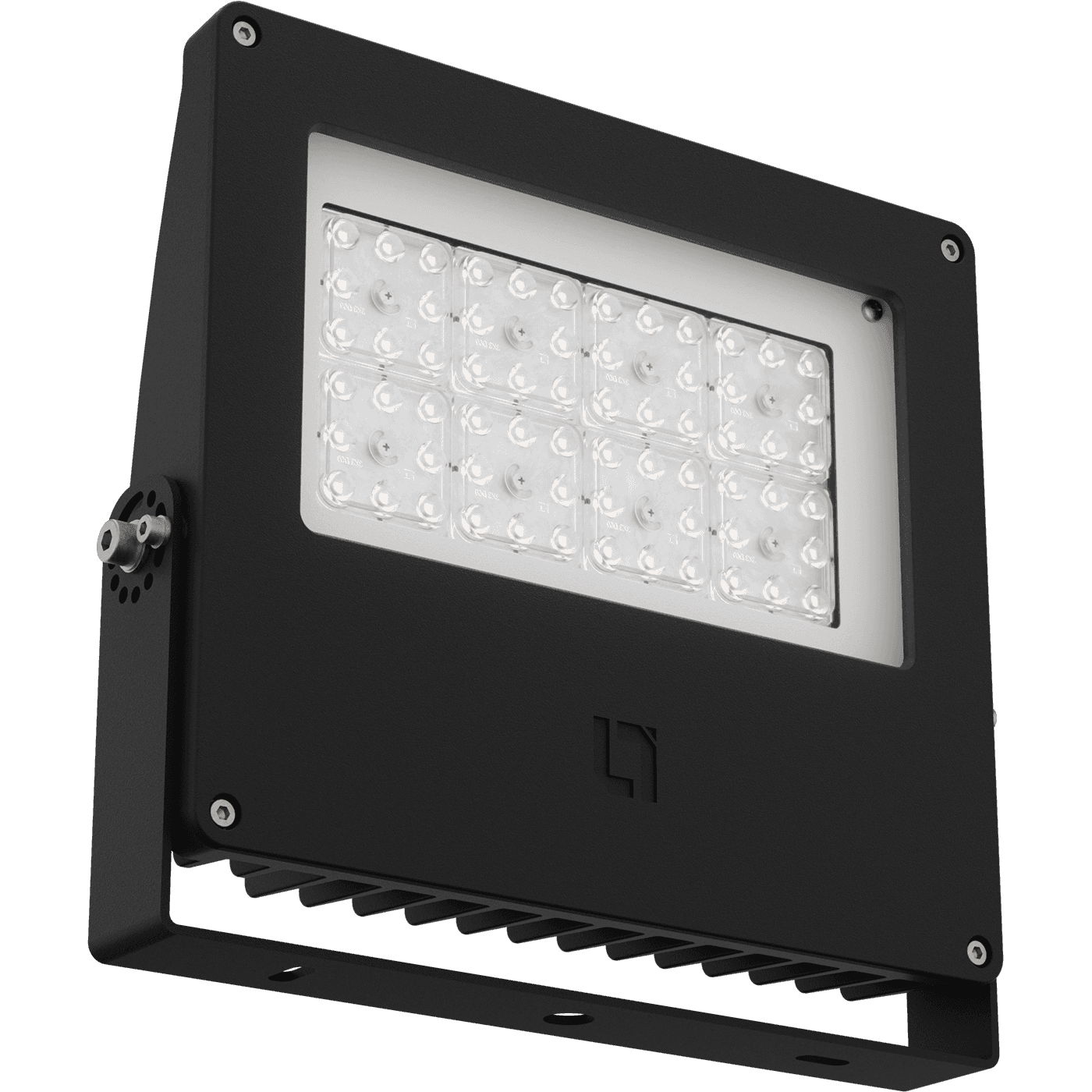

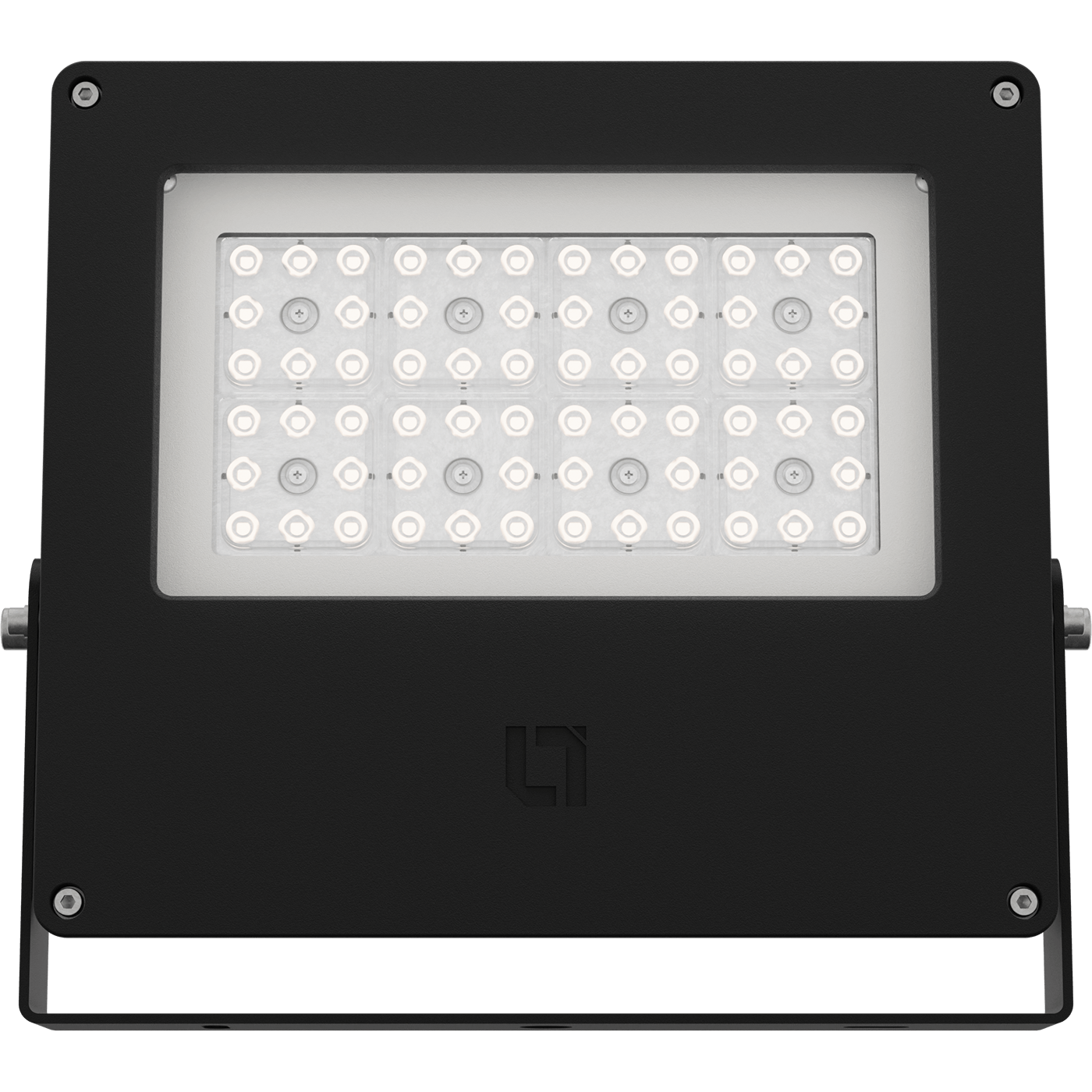

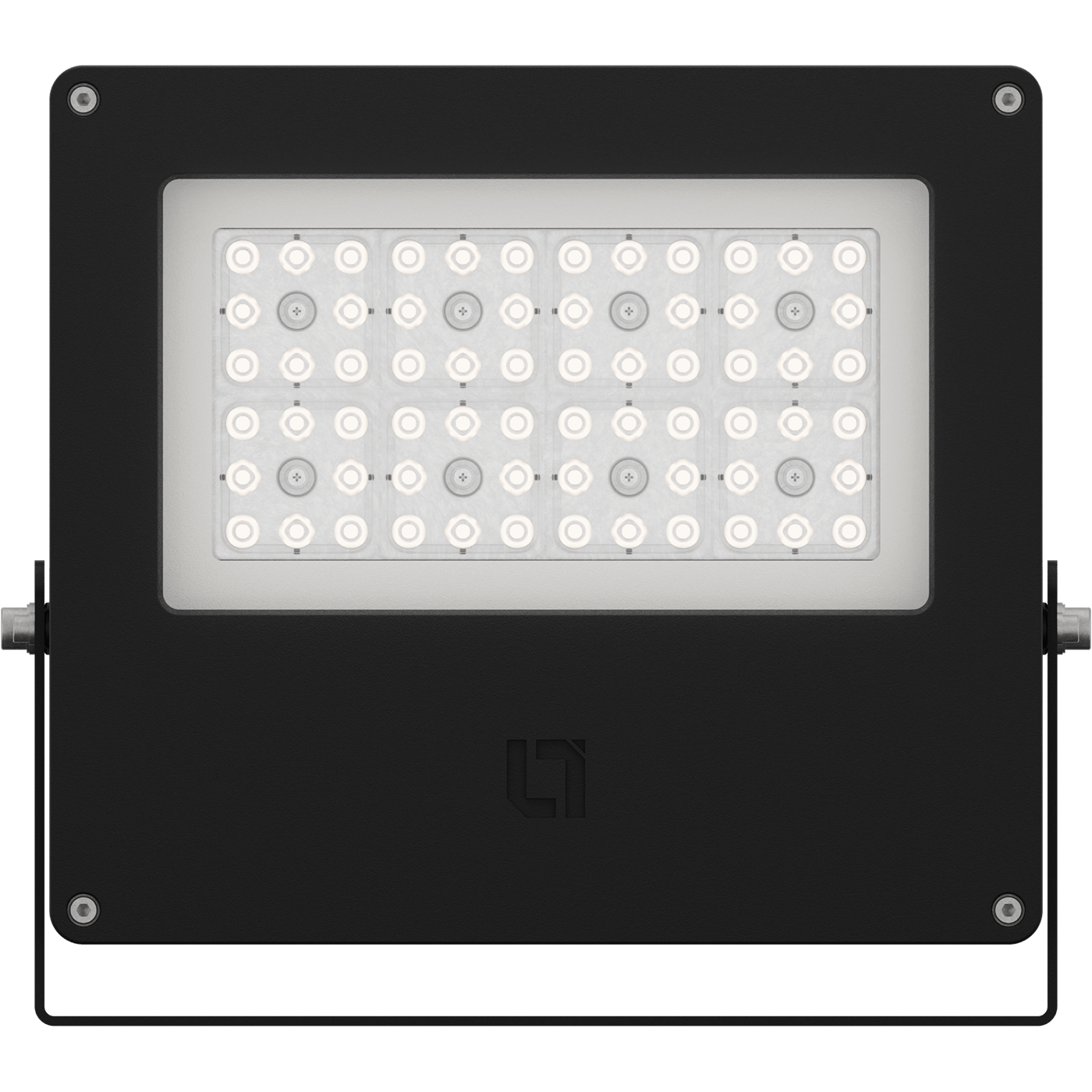

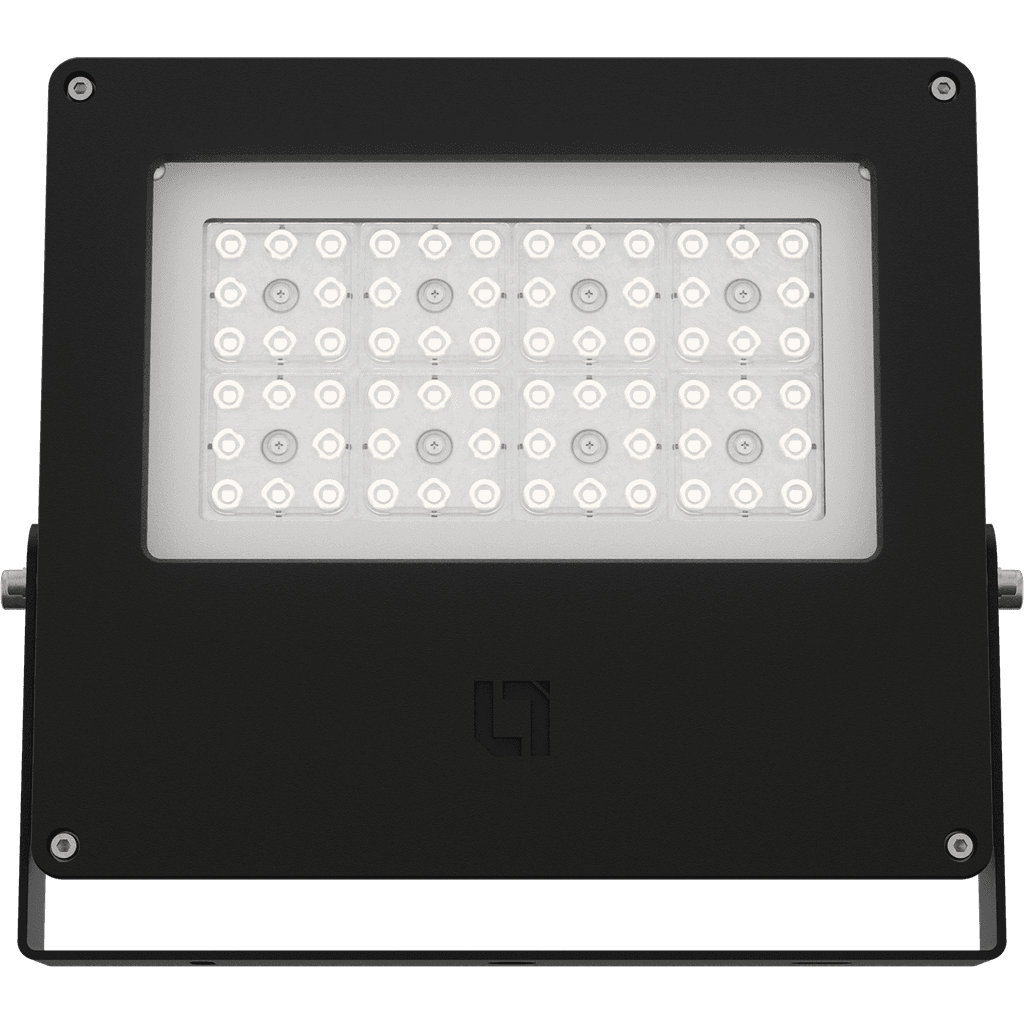

LEADER LED 30W D15 830 RAL9005
LEADER LED 30W D15 830 RAL9005
26 Wluminaire power
3400 lmlight flow
131 lm/Wenergy efficiency
code1350000430
beam angleD15
color temperature3000 K
weight4.4 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
131 lm/Wcolor rendition index (CRI)
>80light flow
3400 lmflickering factor
<5%beam angle
D15color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
131 lm/W
color rendition index (CRI)
>80
light flow
3400 lm
flickering factor
<5%

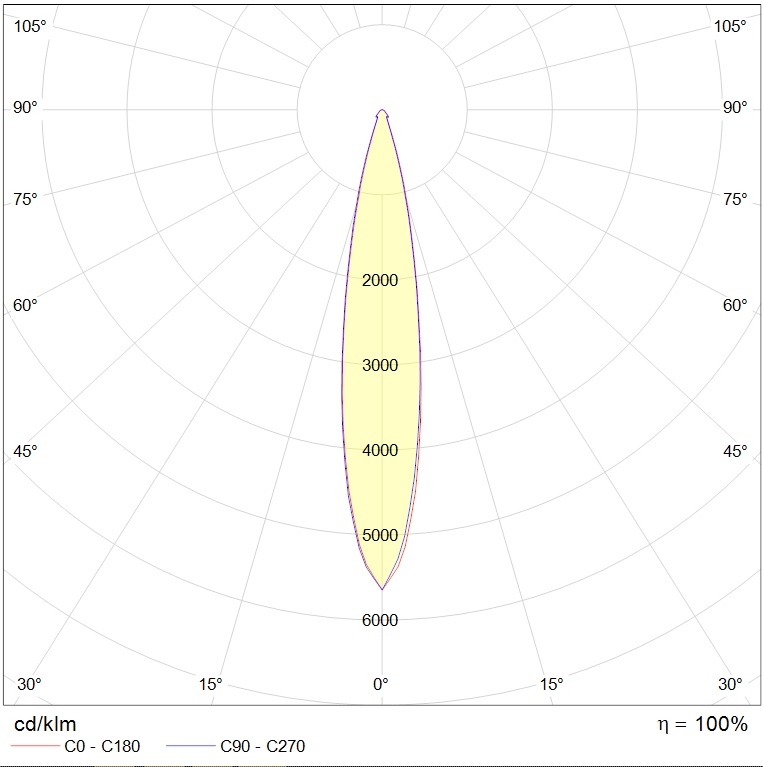

beam angle
D15
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
luminaire power
26 W
electric shock protection
I
starting current pulse time
350 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
50 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
142-431 V
supply voltage, alternating current
90-305 V
power factor
> 0,95
constructional
fire safety class
П-I,II,IIa,ІІІ
length
335 mm
height
64 mm
installation length
200 mm
housing color
Черный
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
295 mm
material
Алюминий
climatic performance
УХЛ1*
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
weight
4.4 kg
common
code
1350000430
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

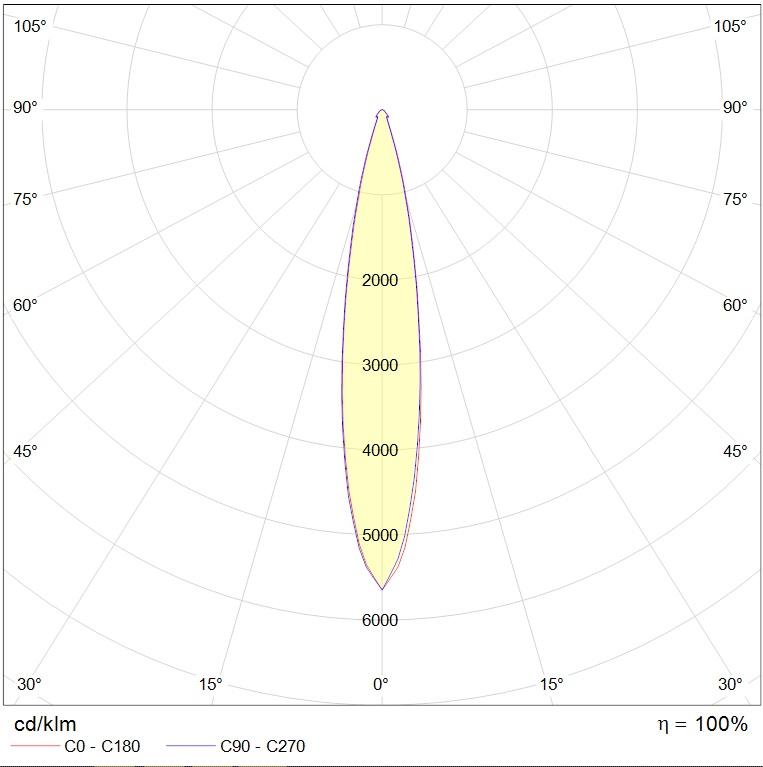

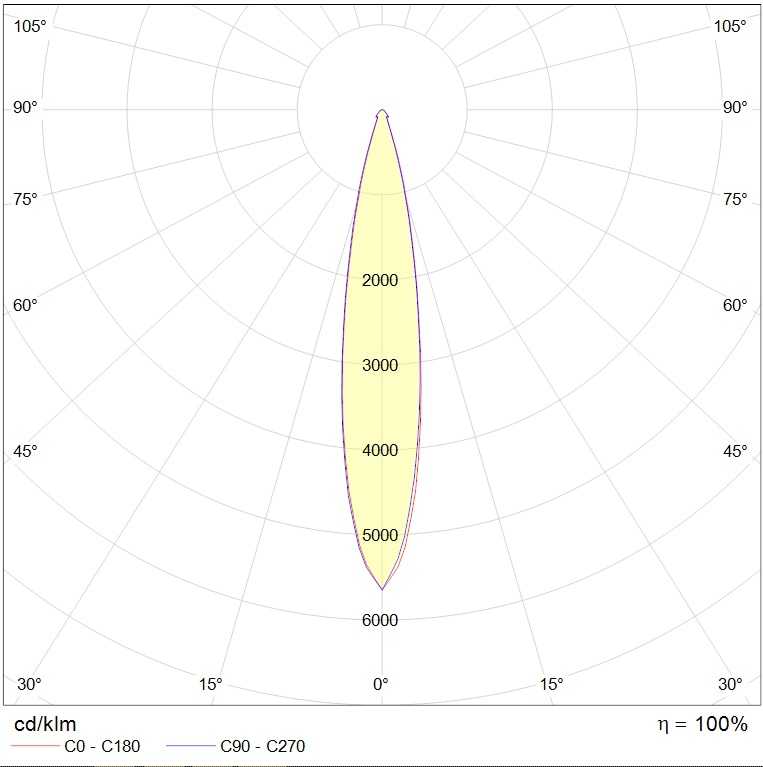

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg83.6 kB
ldt64 kB
documents
passport2 mB
сертификаты
Russian origin329.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
