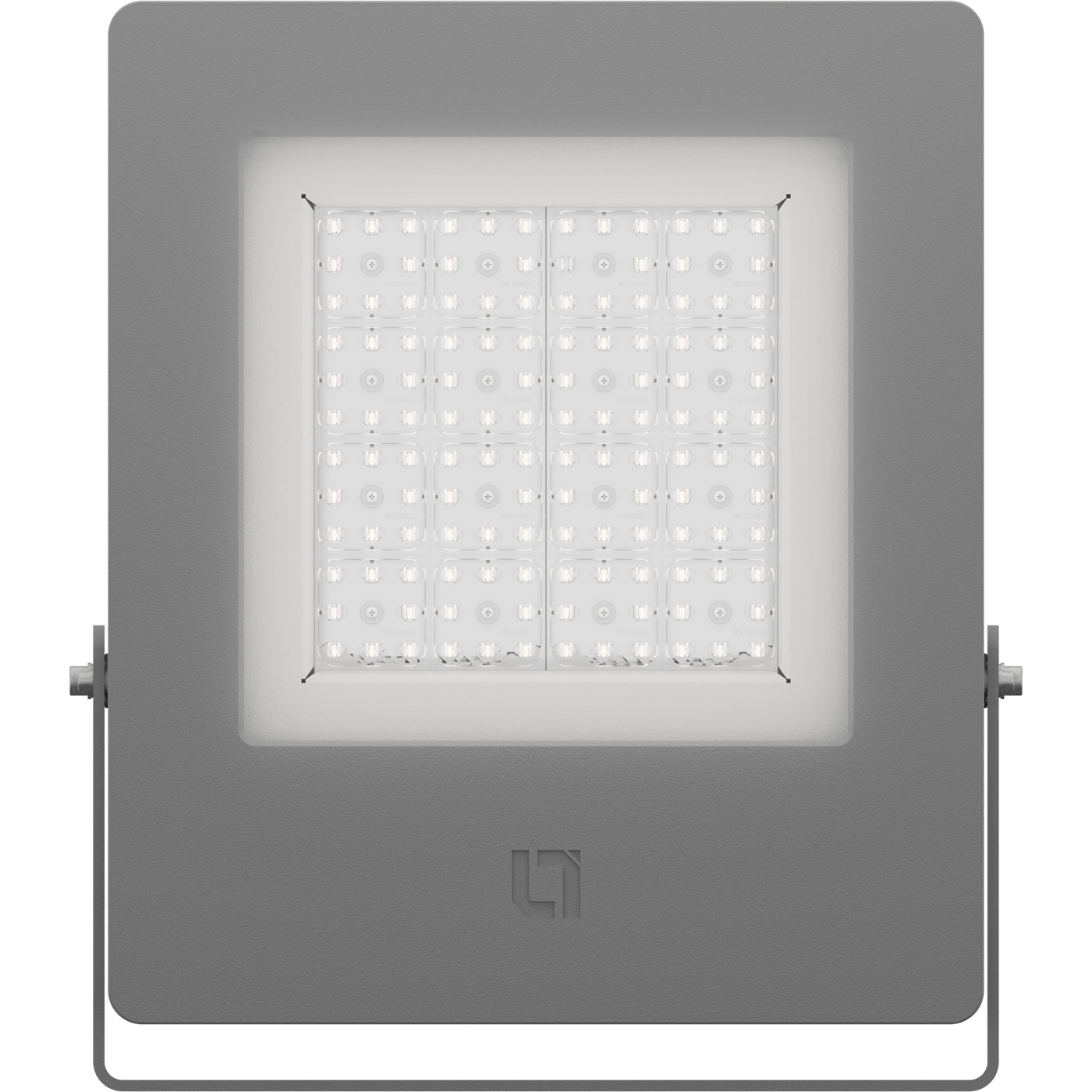

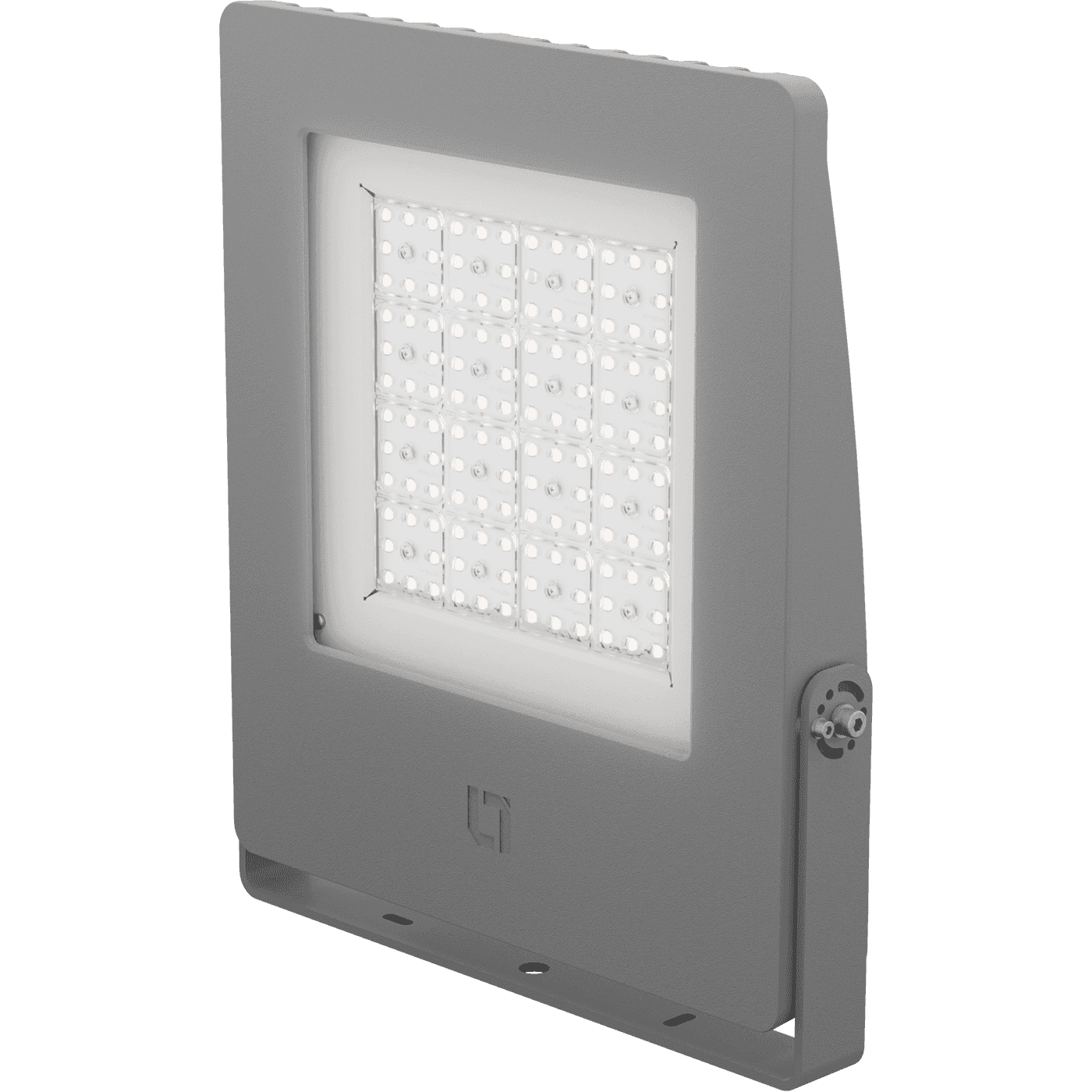

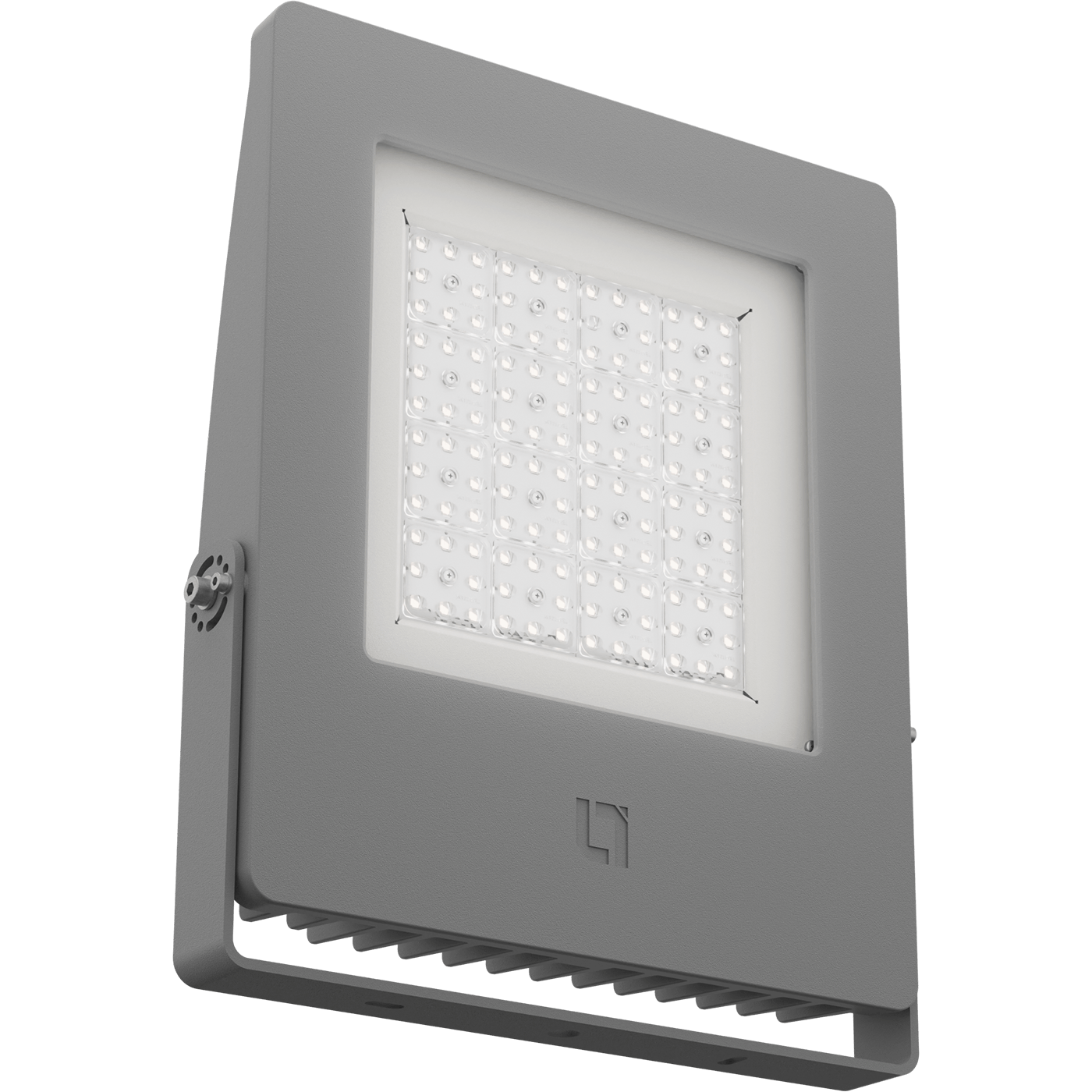

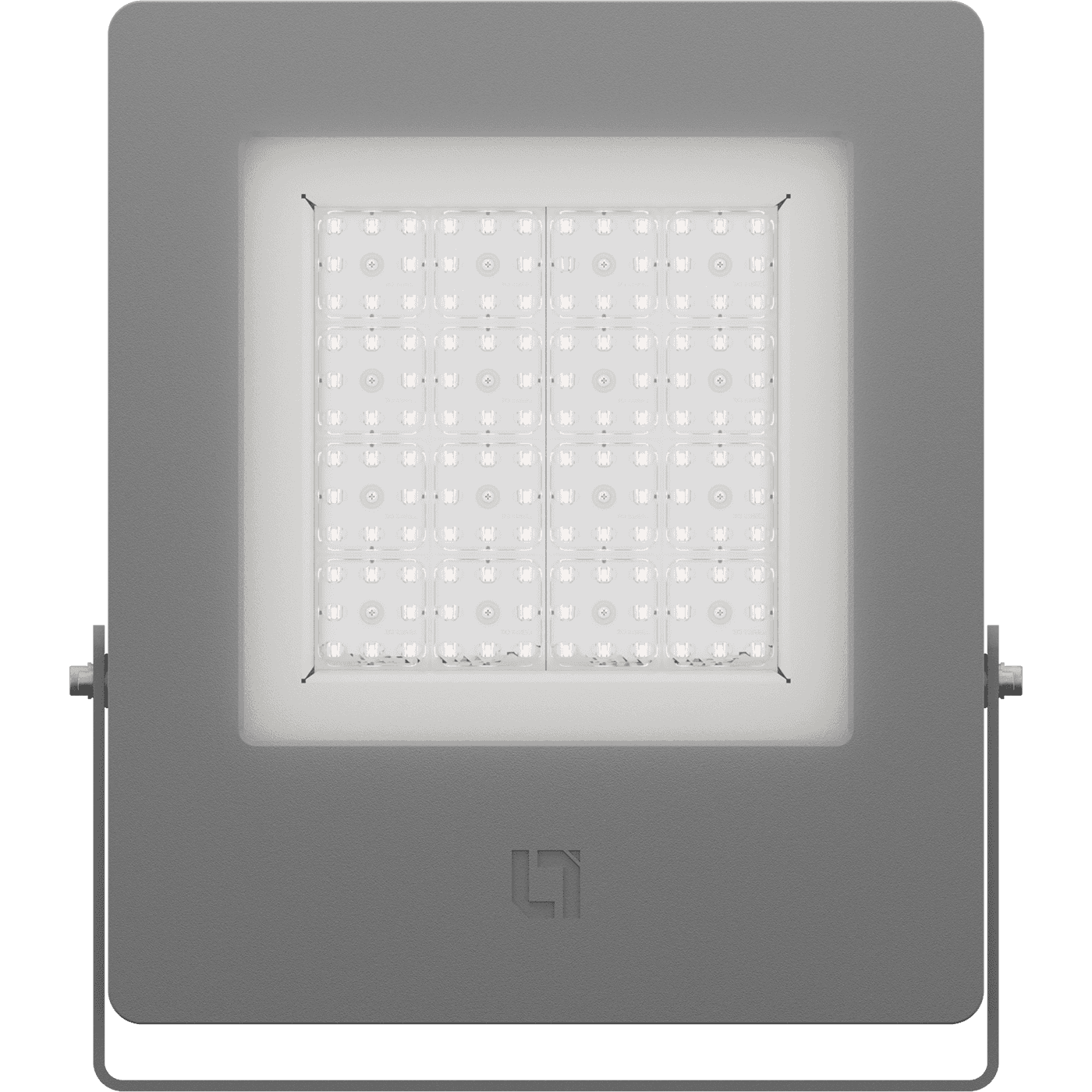

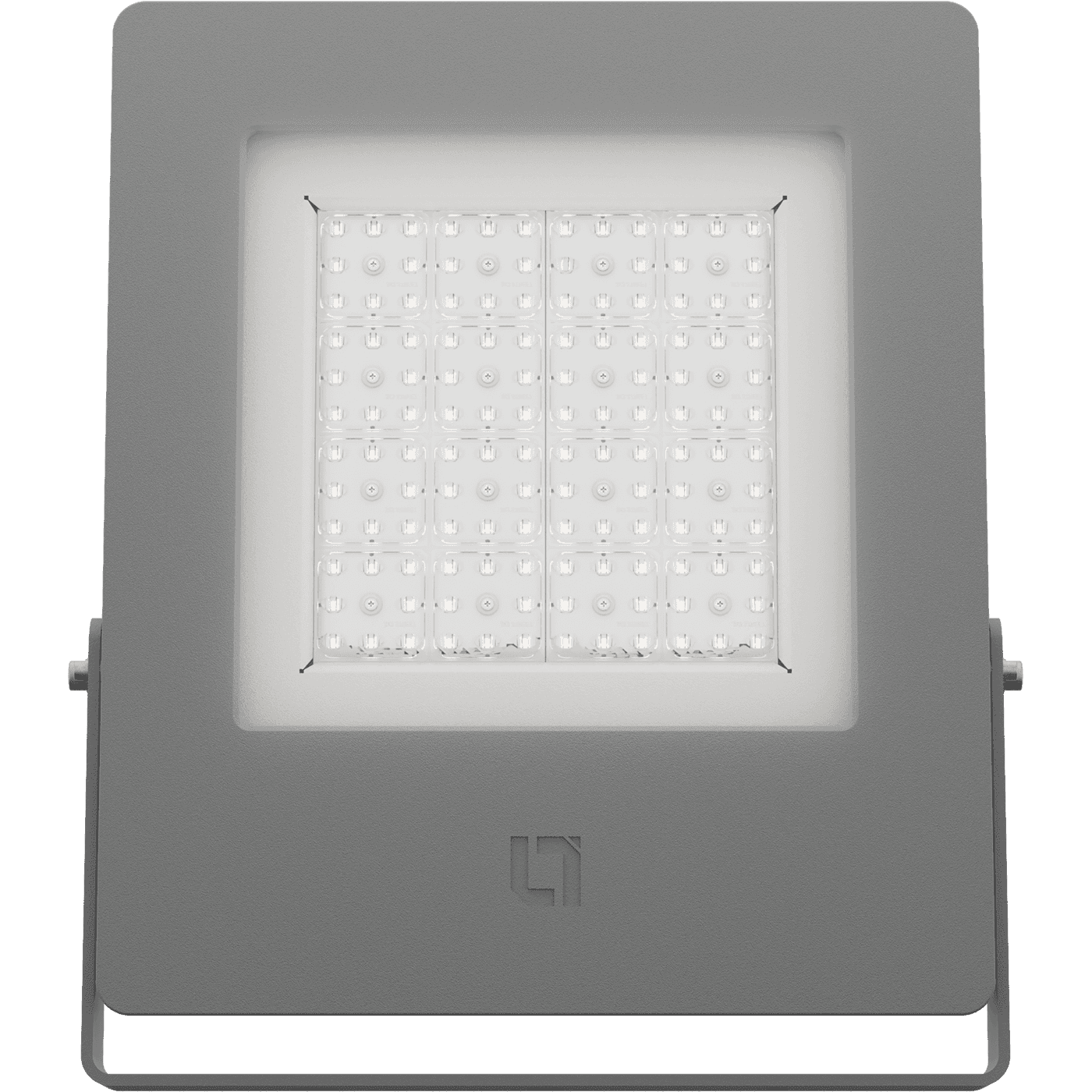

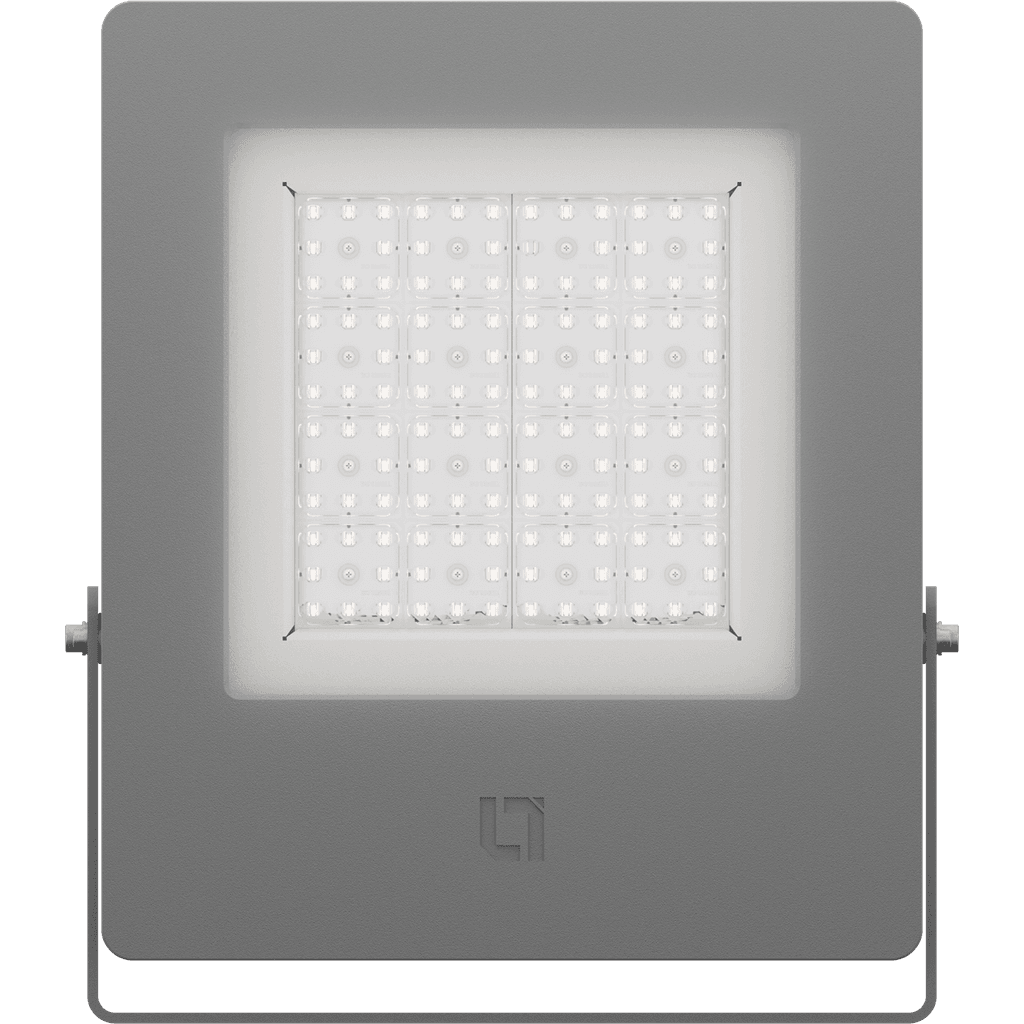

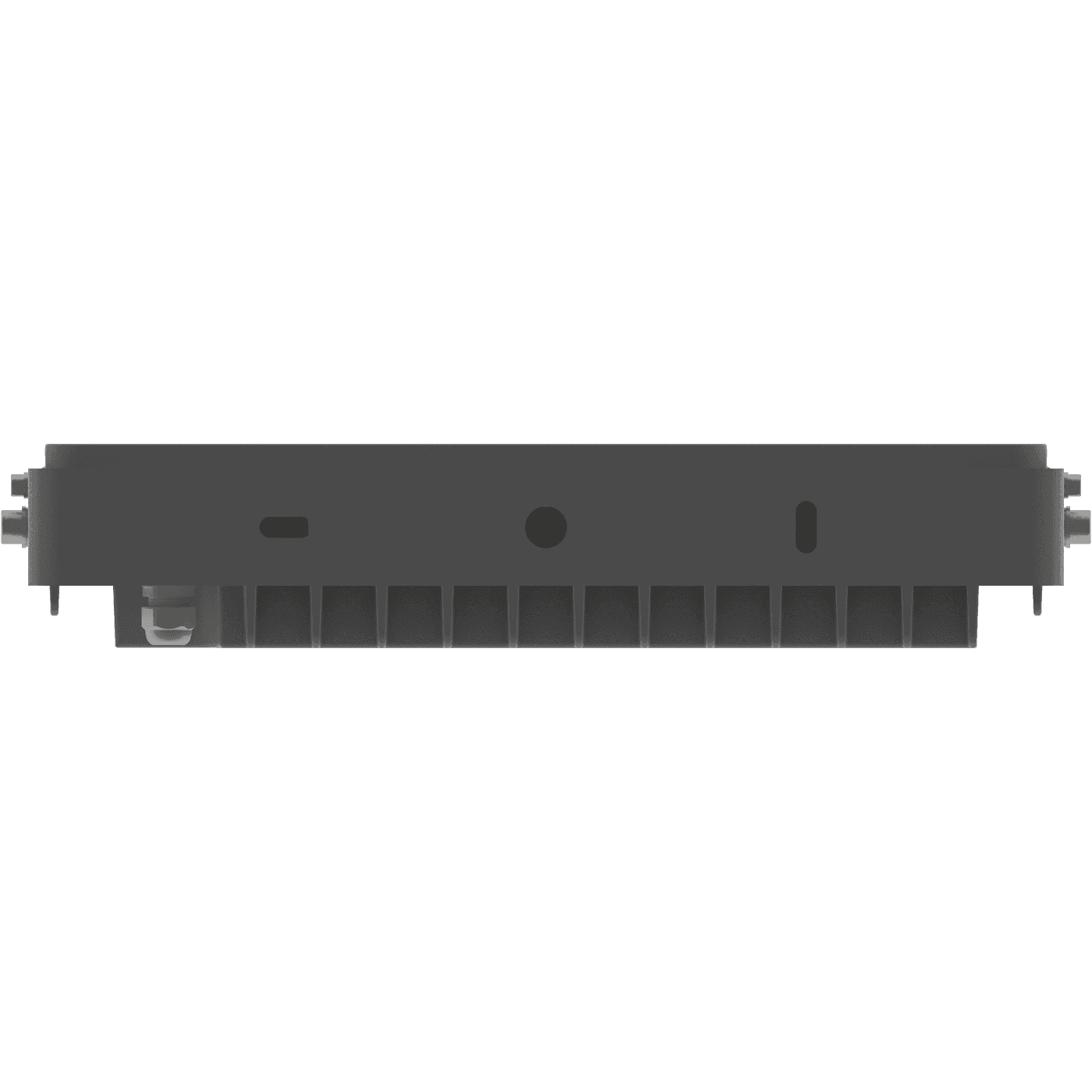

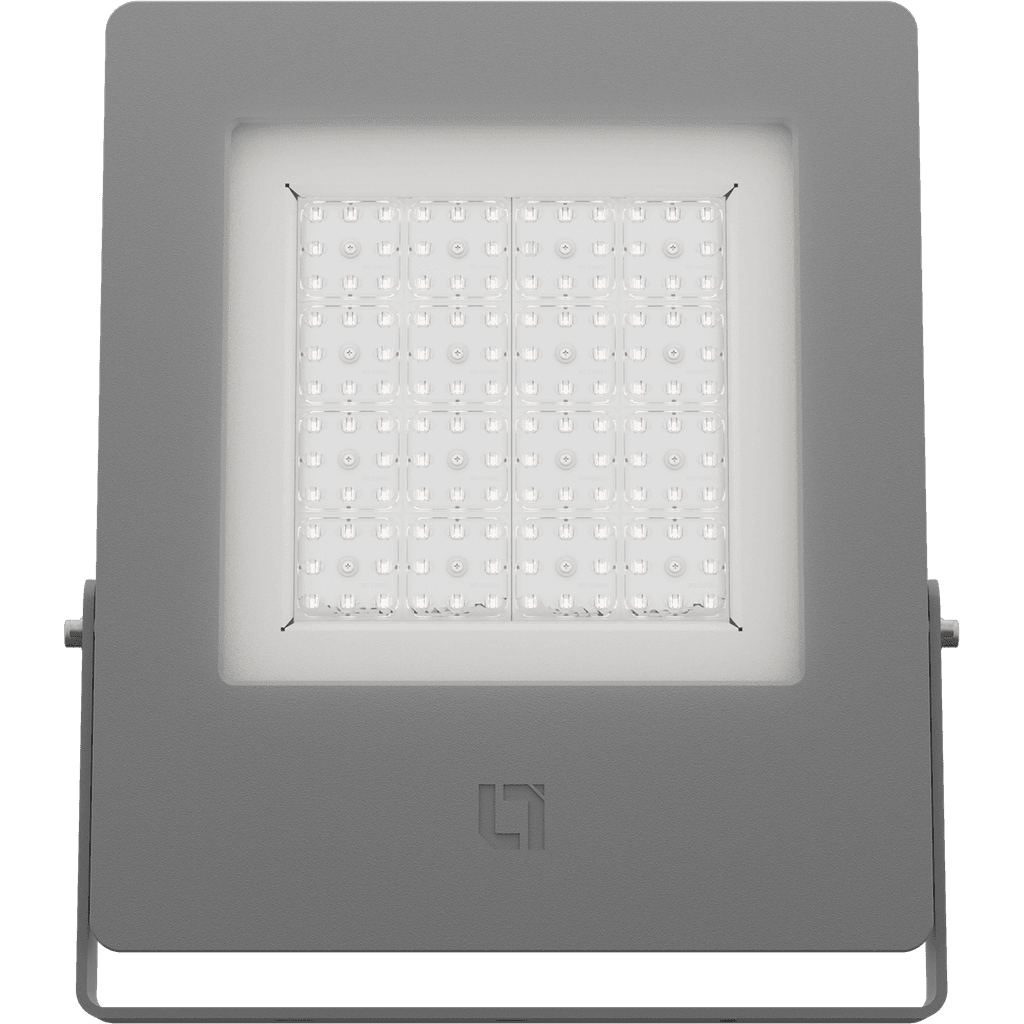

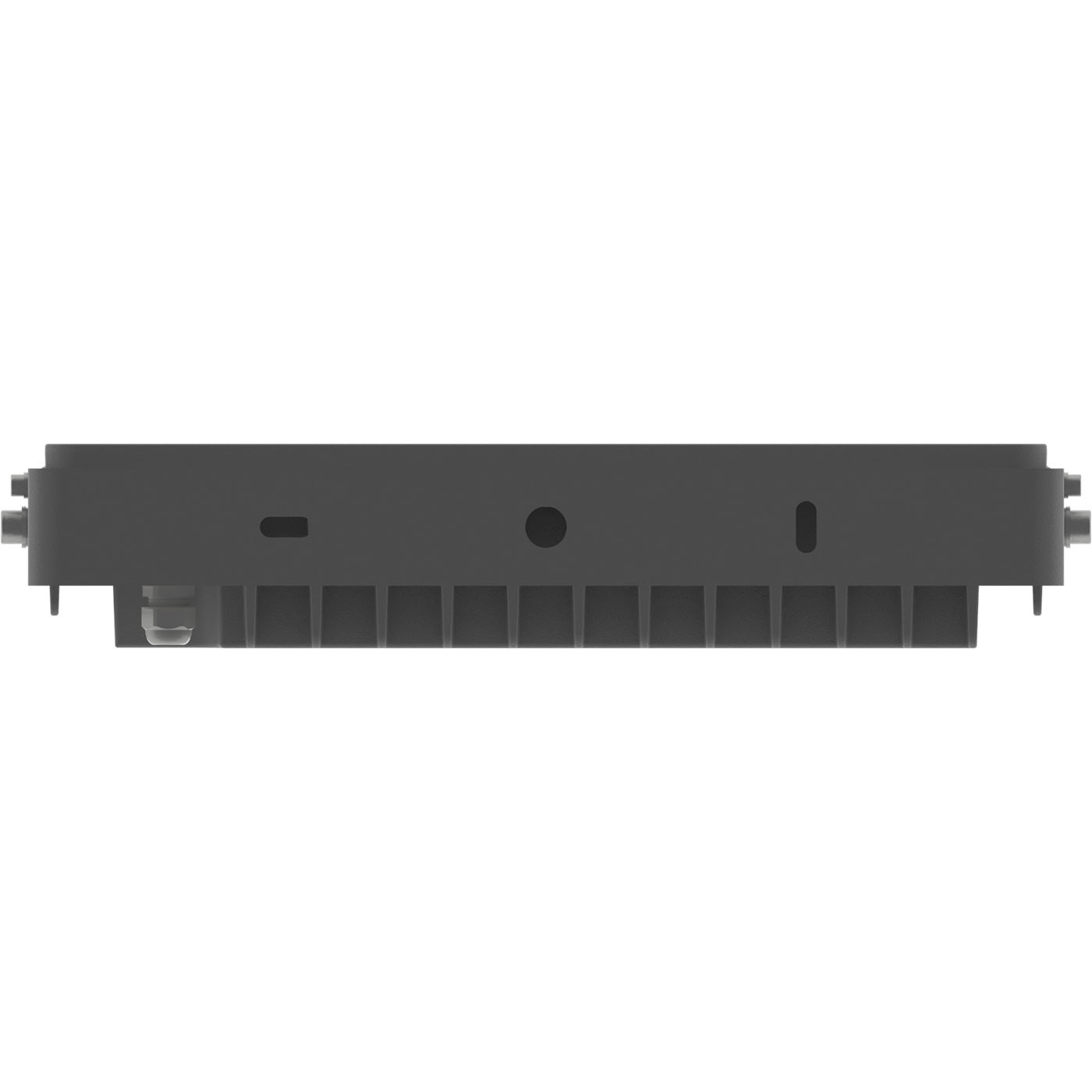

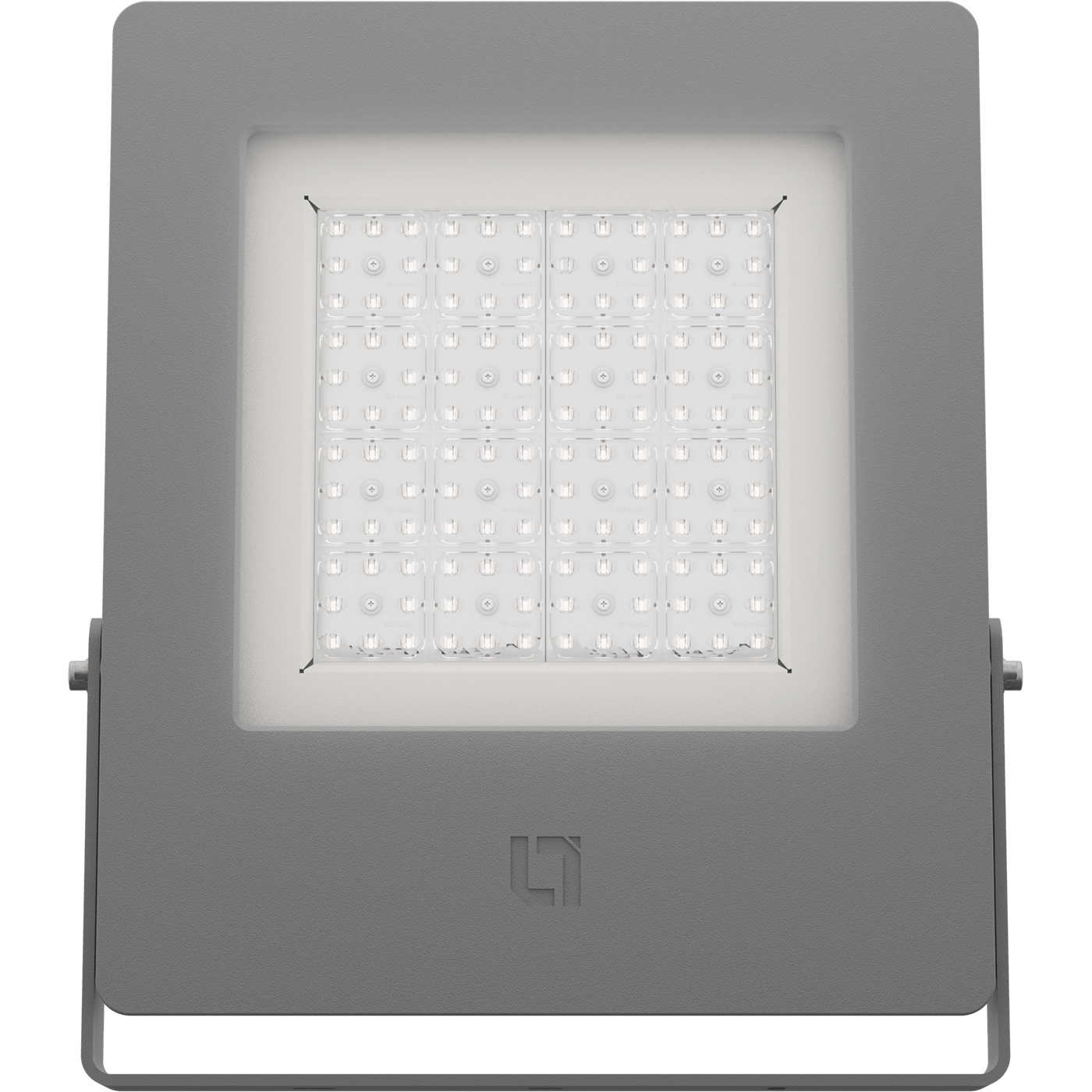

LEADER LED 200W DW 740 RAL9006
model is discontinued
model is discontinued
LEADER LED 200W DW 740 RAL9006
205 Wluminaire power
29000 lmlight flow
141 lm/Wenergy efficiency
code1350002360
beam angleD150/80
color temperature4000
weight11.5 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
141 lm/Wcolor rendition index (CRI)
>70light flow
29000 lmflickering factor
<5%beam angle
D150/80color temperature
4000light source type
LEDemission color
Белыйilluminating
energy efficiency
141 lm/W
color rendition index (CRI)
>70
light flow
29000 lm
flickering factor
<5%
beam angle
D150/80
color temperature
4000
light source type
LED
emission color
Белый
electrical
luminaire power
205 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,95
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
width, mm
480 mm
height, mm
80 mm
installation length, mm
200 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
length, mm
420 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
weight
11.5 kg
common
code
1350002360
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +40 C
service life, hour
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
