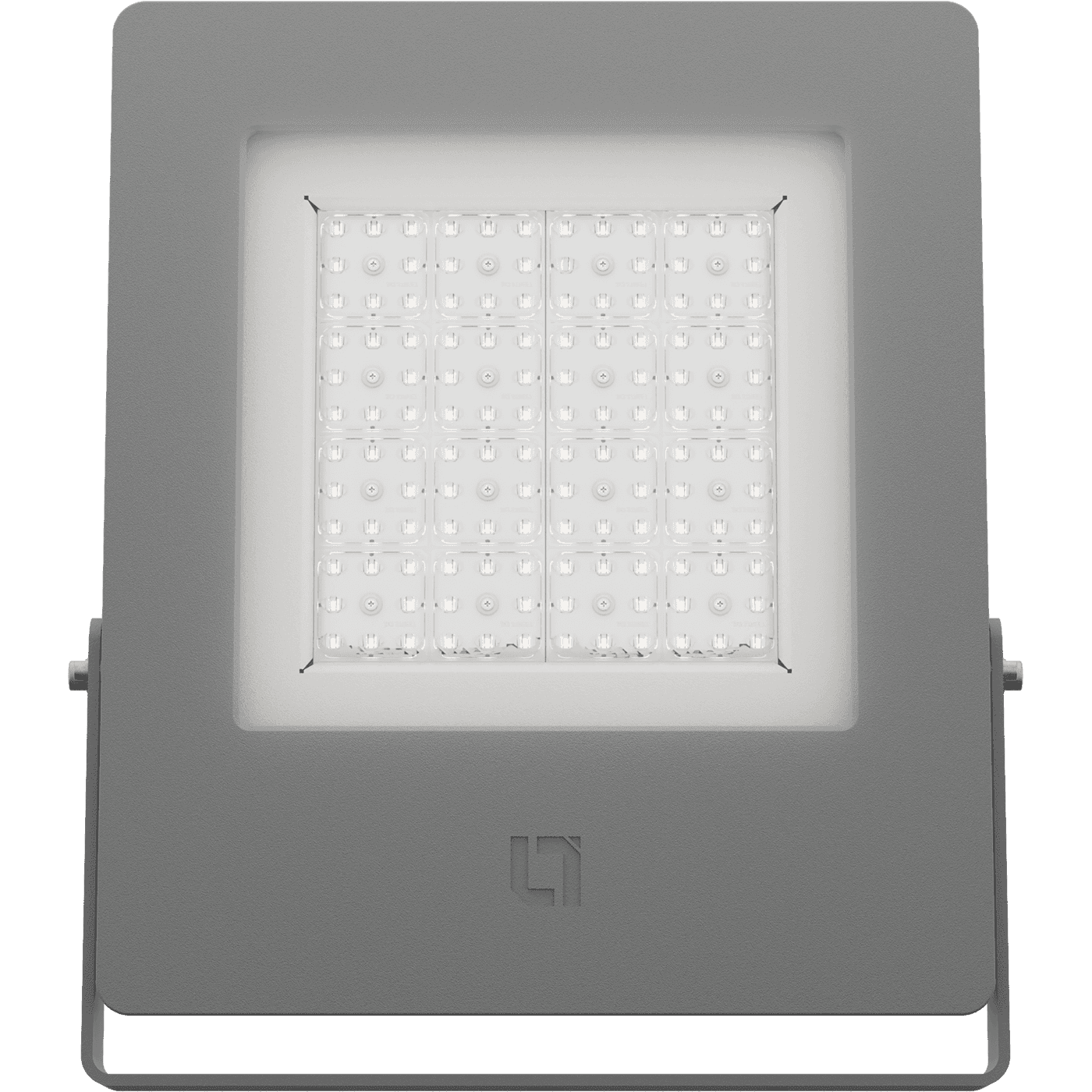

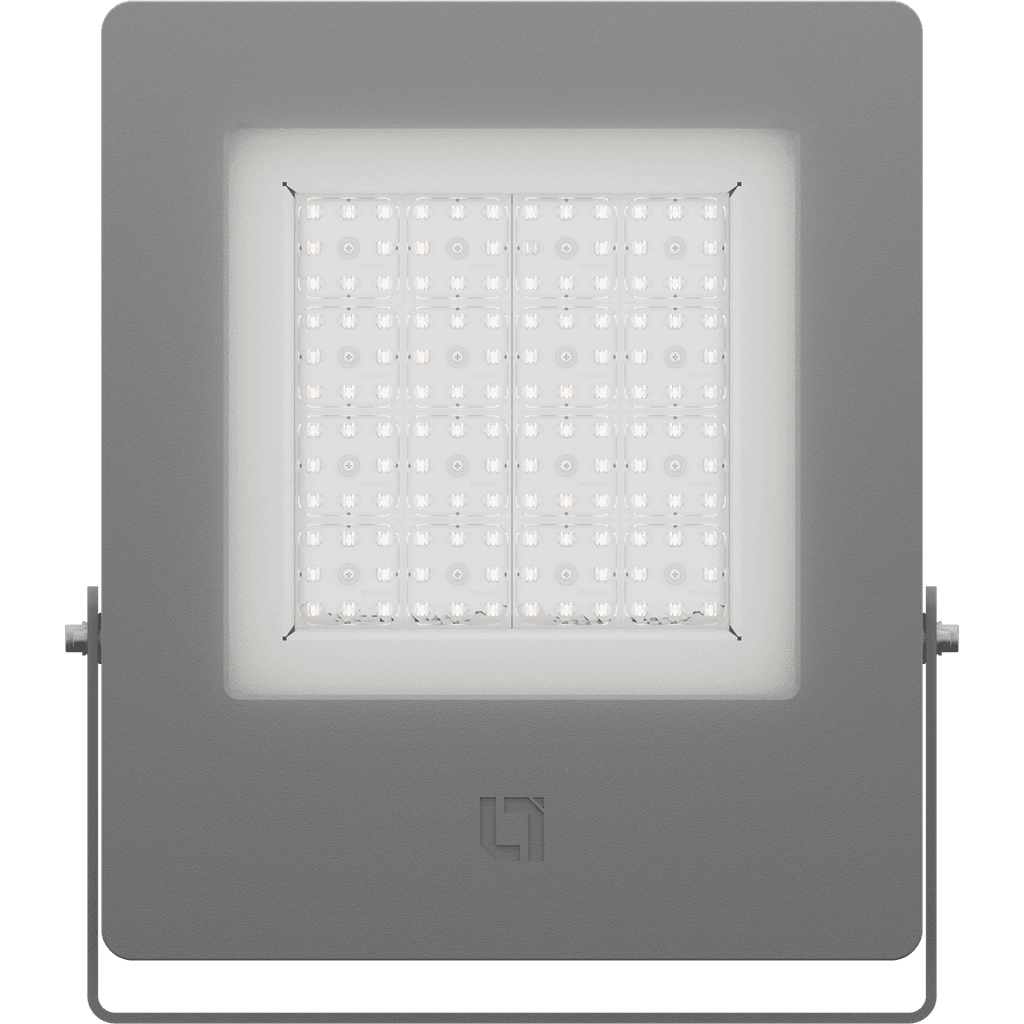

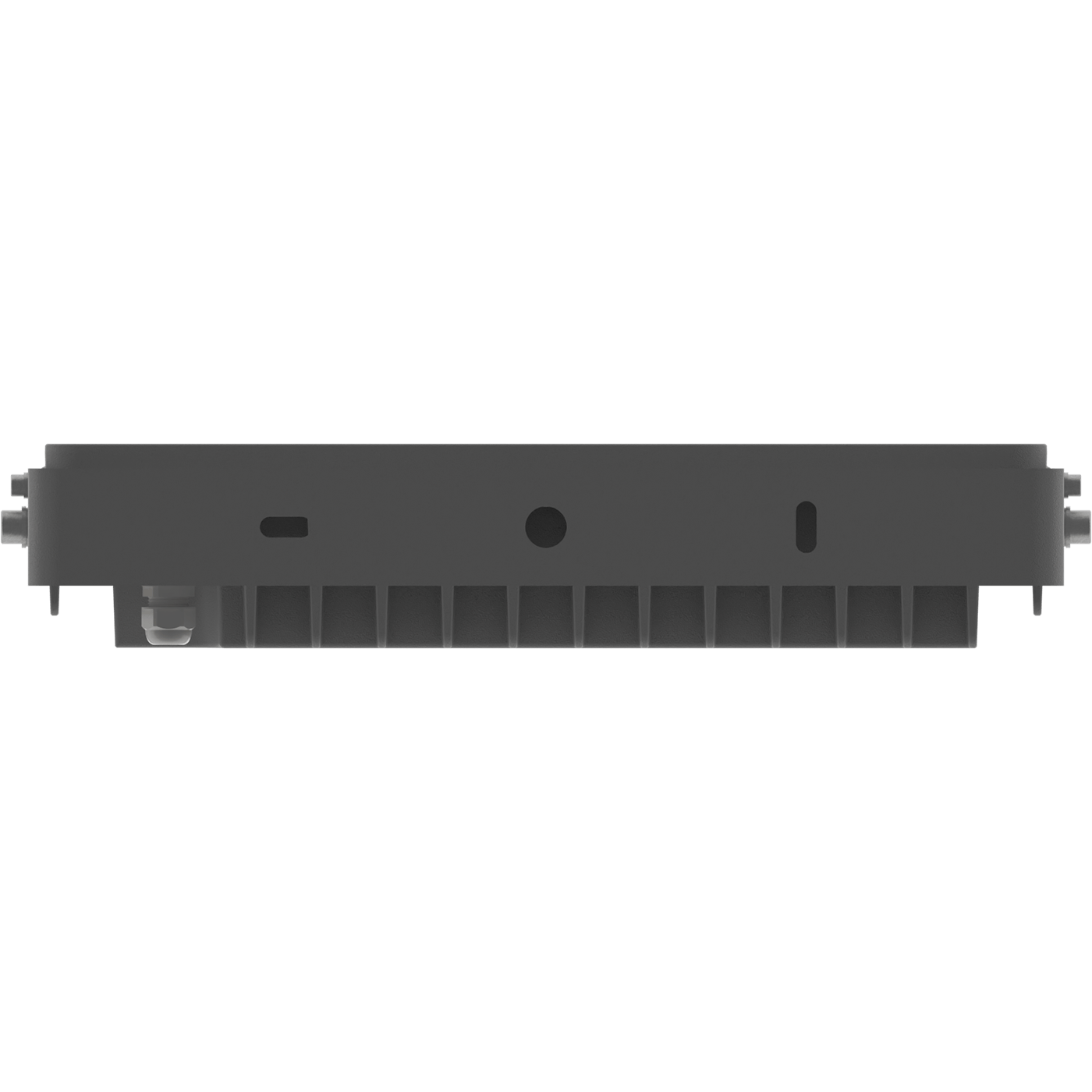

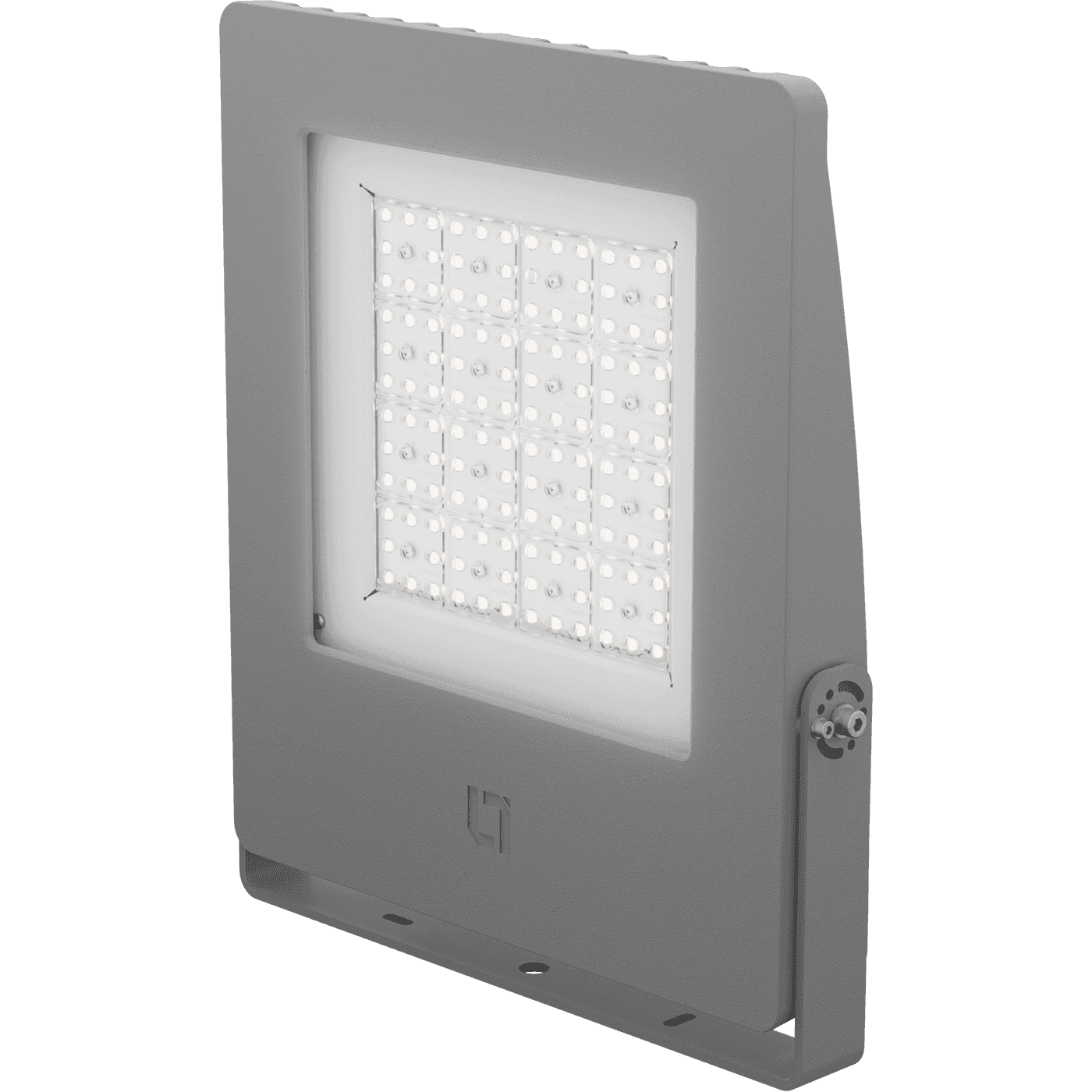

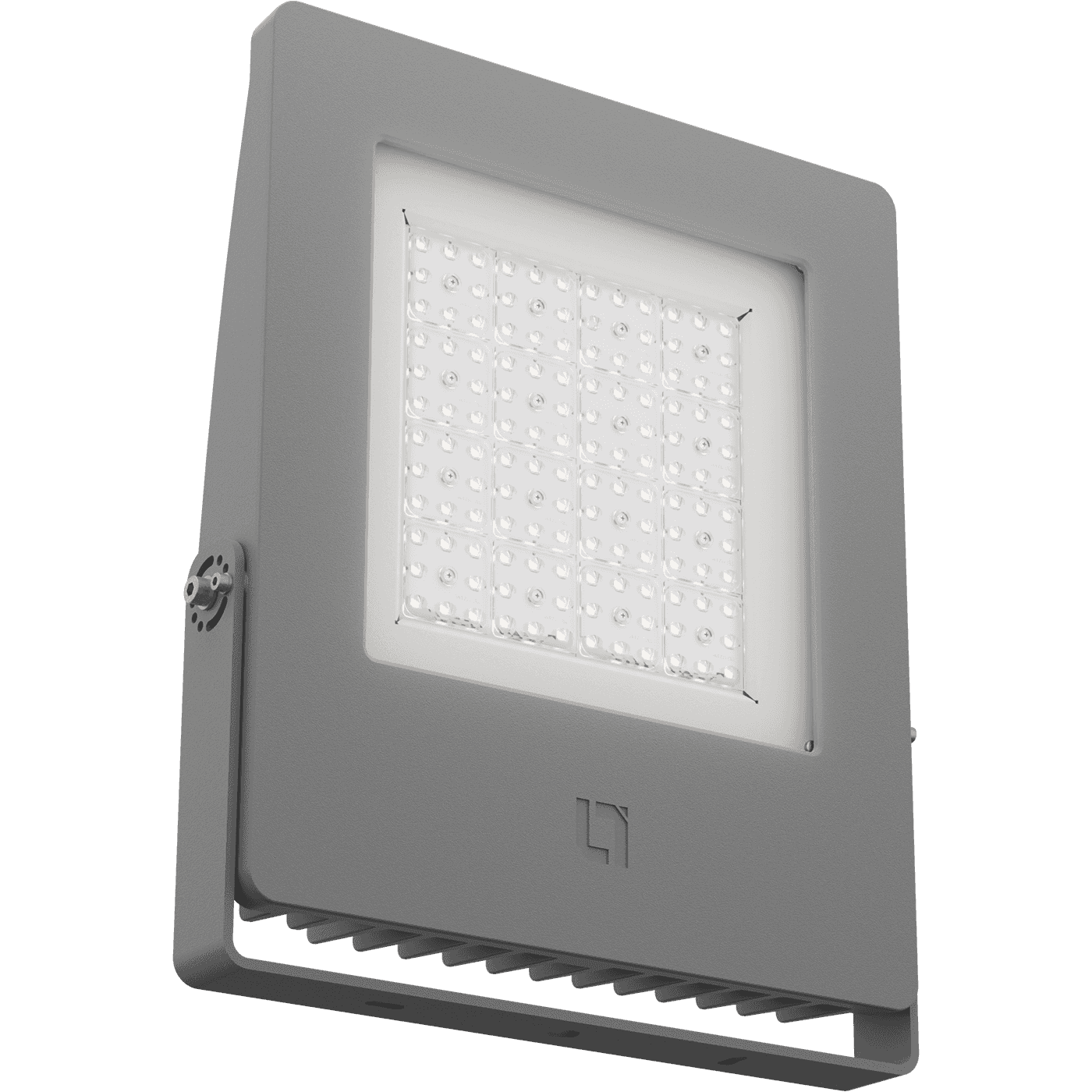

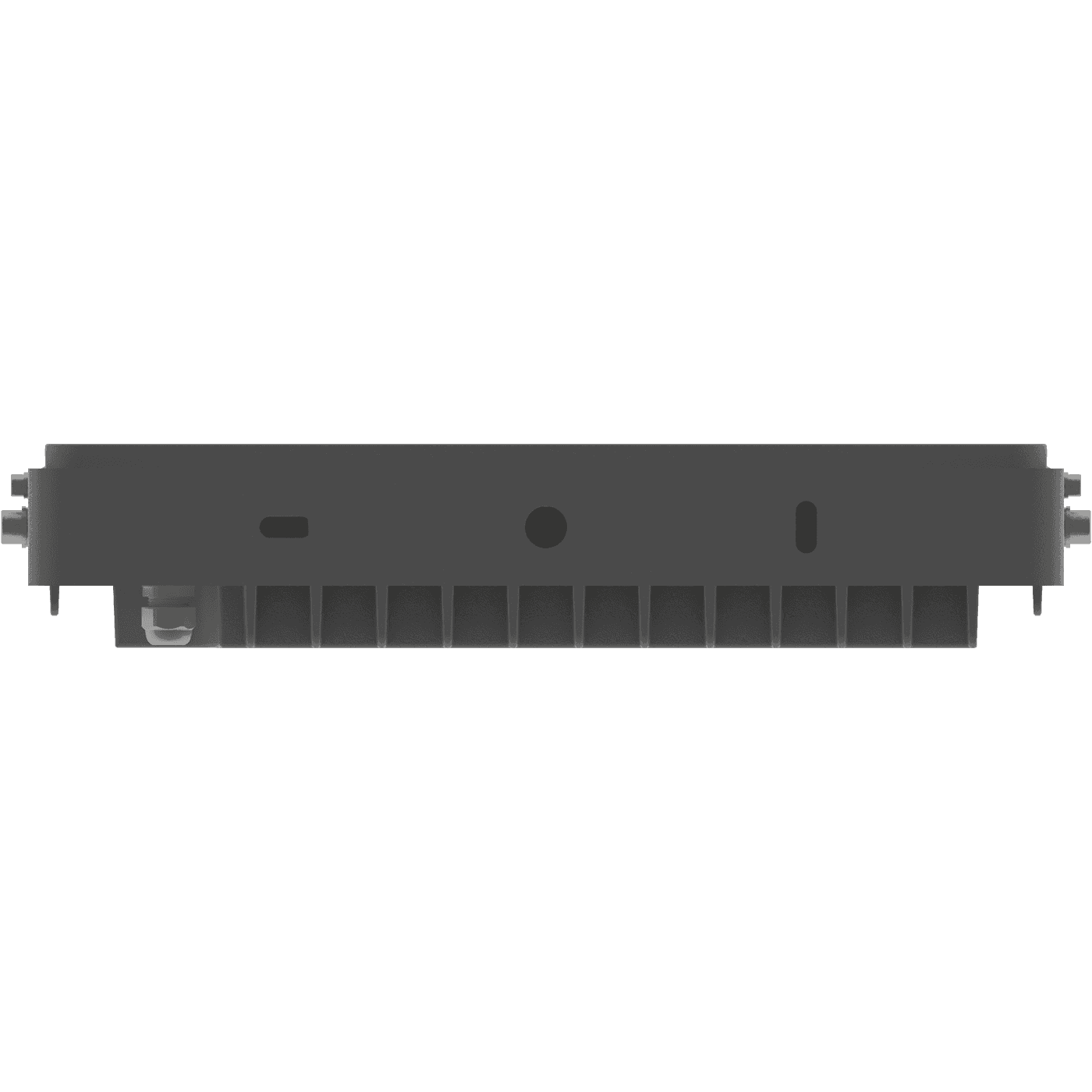

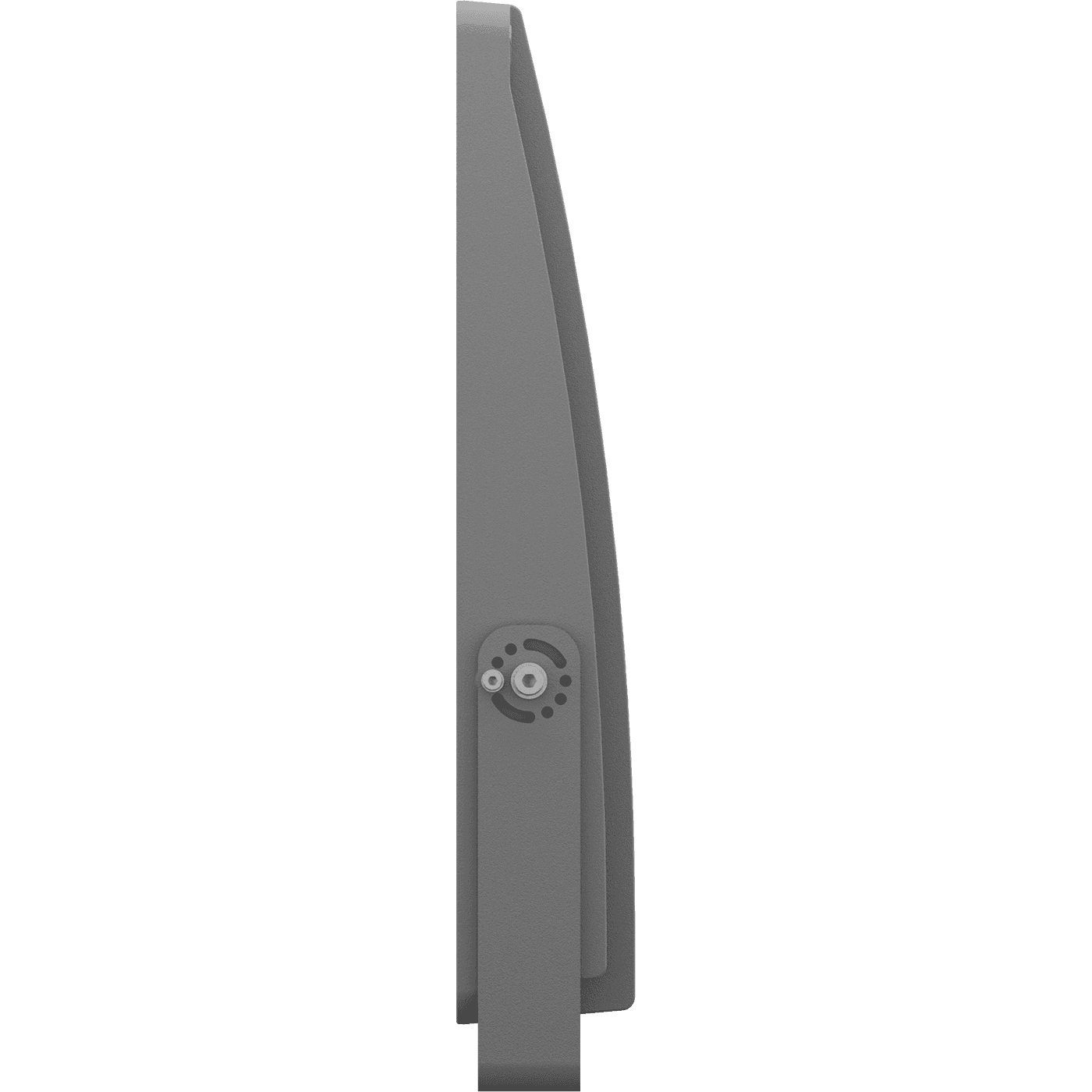

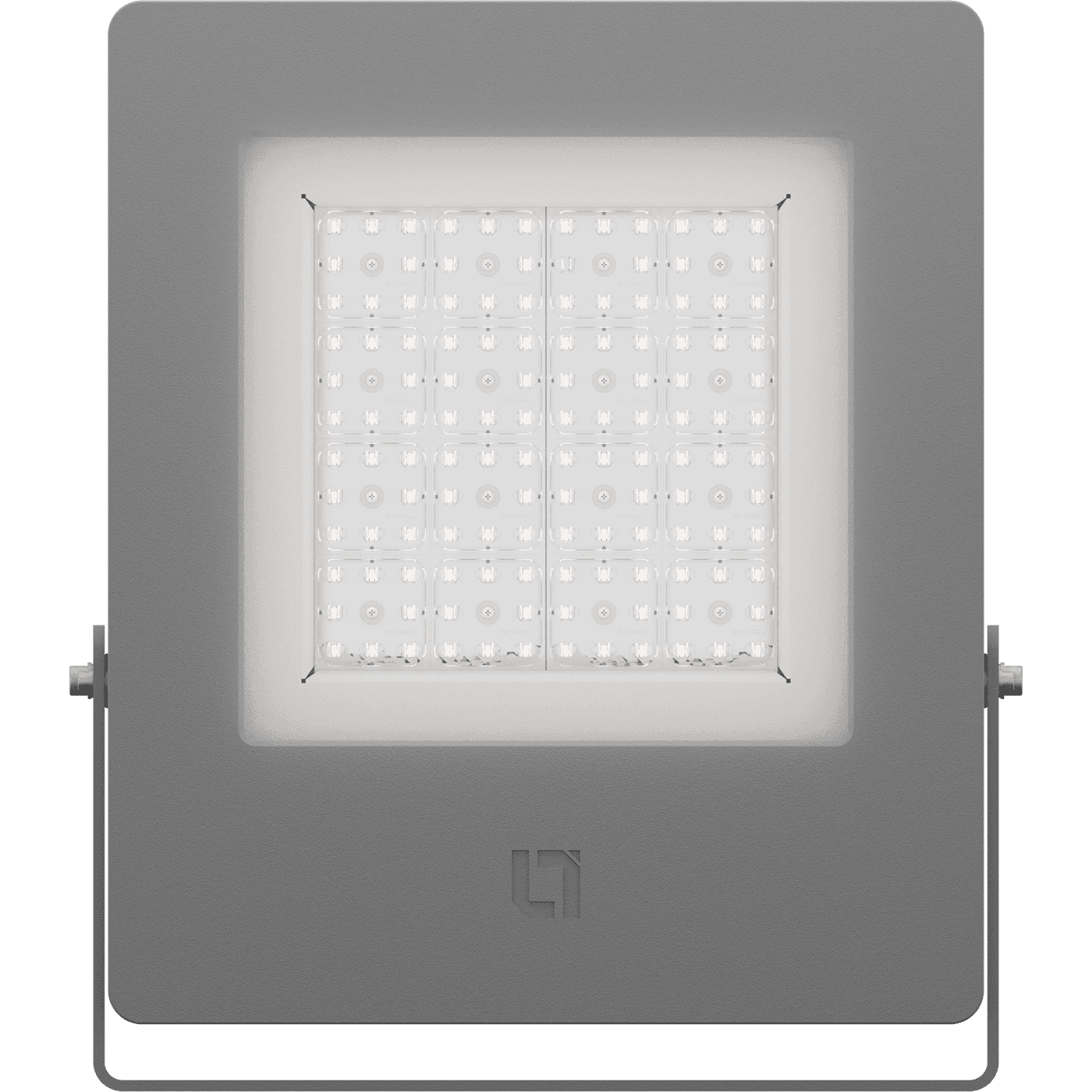

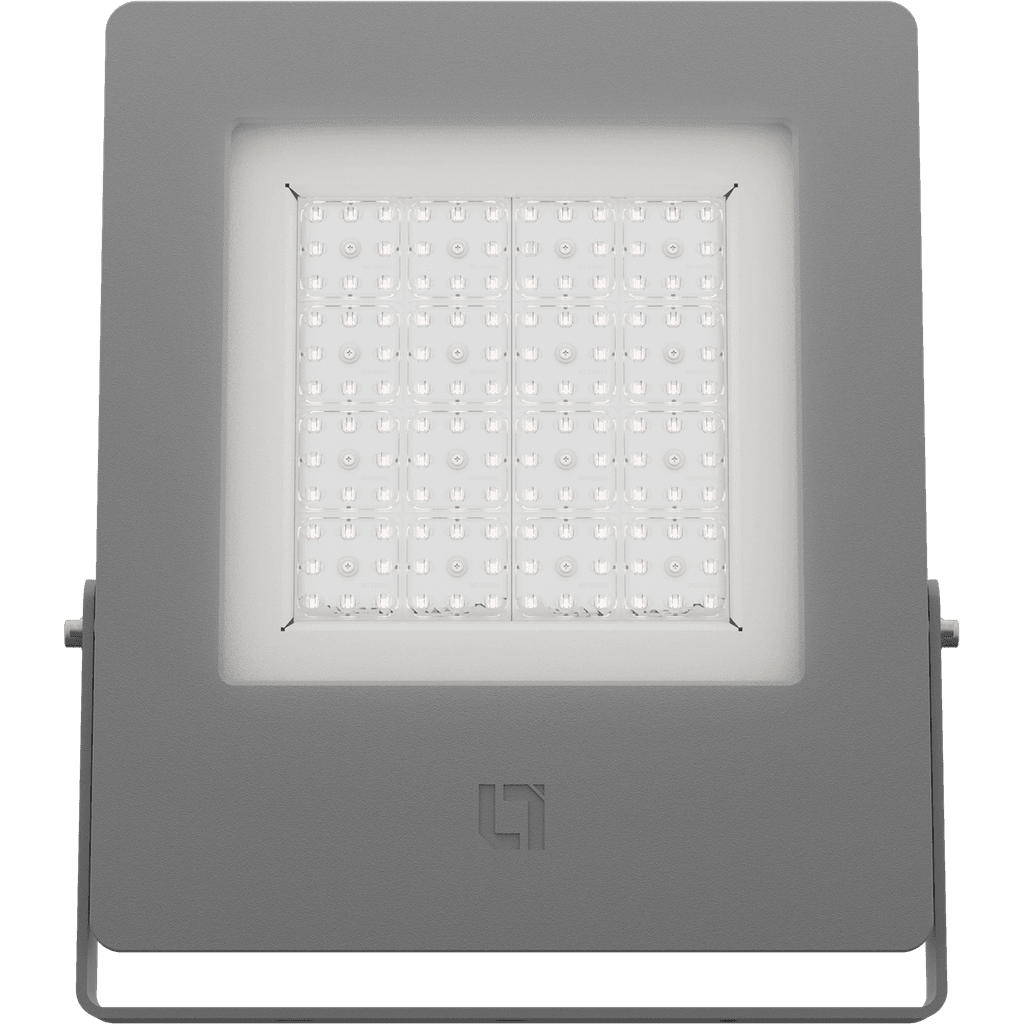

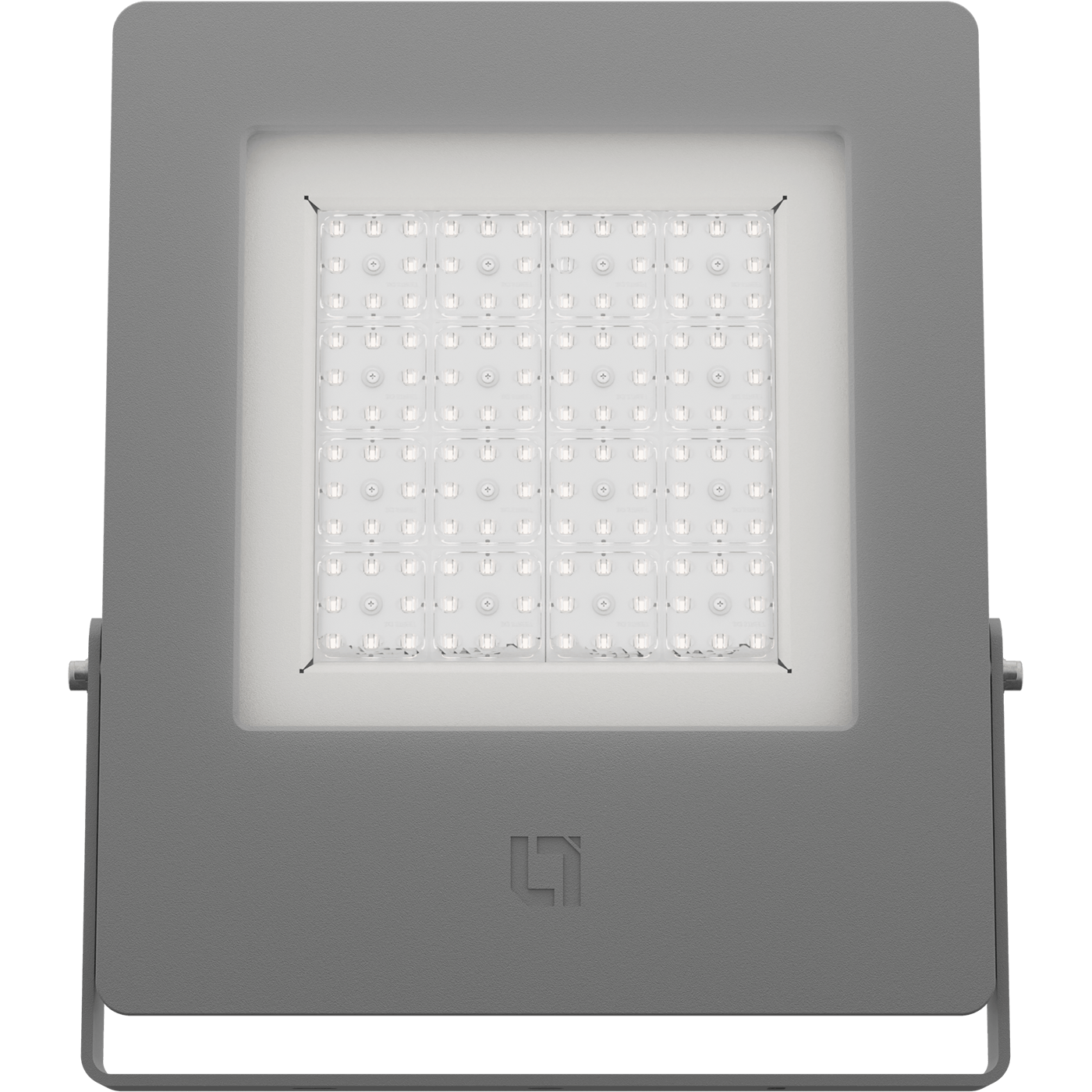

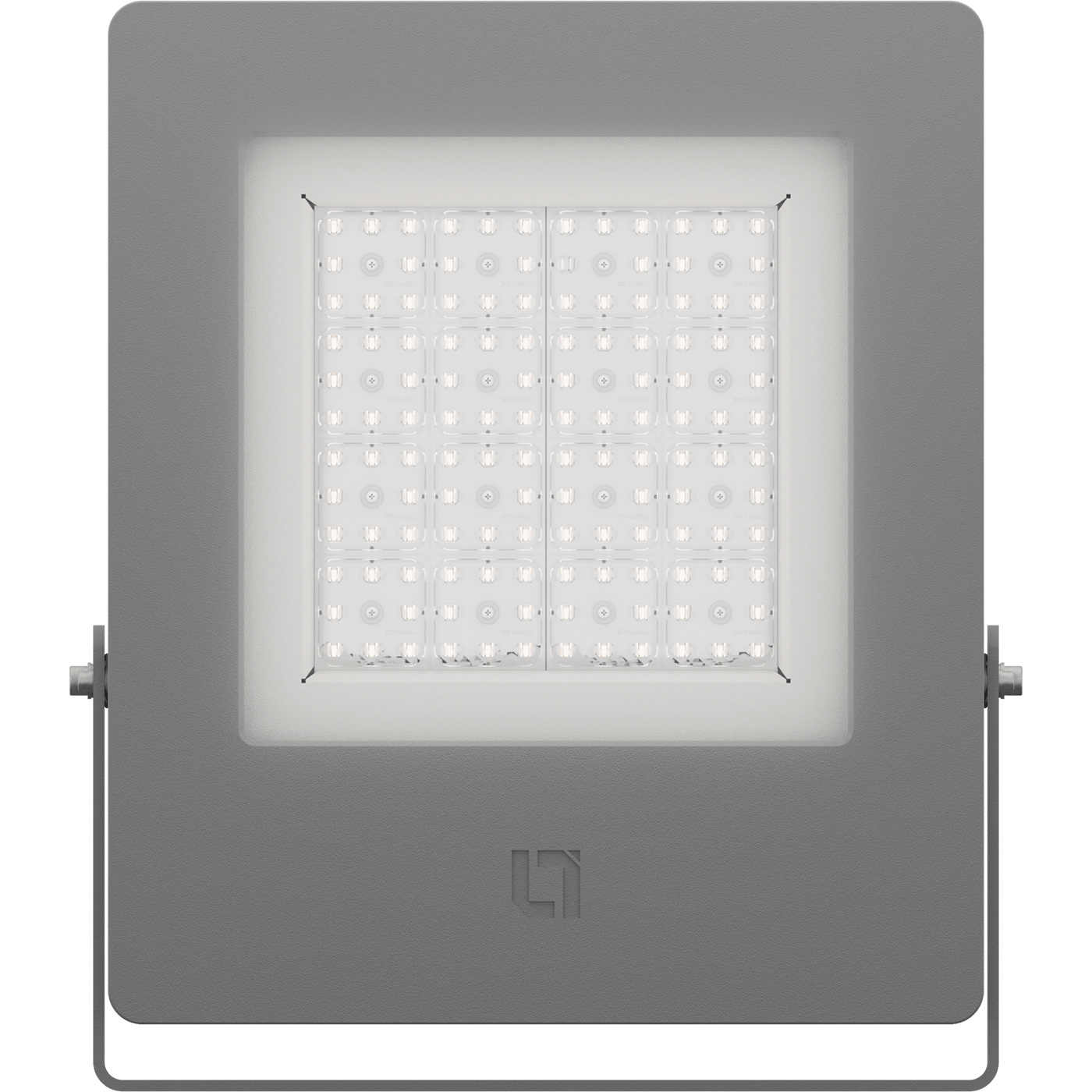

LEADER LED 200W DW 730 RAL9006
archive
archive
LEADER LED 200W DW 730 RAL9006
205 Wluminaire power
25000 lmlight flow
122 lm/Wenergy efficiency
code1350002370
beam angleD150/80
color temperature3000
weight11.5 kg
options
свернуть все
constructionalelectricalcommonilluminating
ingress protection (IP)
IP66housing color
Металликlength, mm
420 mmwidth, mm
480 mmheight, mm
80 mmweight
11.5 kgfire safety class
П-I,II,IIa,ІІІclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
2.5material
Алюминийshock resistance (IK)
IK08/5 Джinstallation length, mm
200 mmlamp socket
LEDnumber of lamps
1ballast
Драйверconstructional
ingress protection (IP)
IP66
housing color
Металлик
length, mm
420 mm
width, mm
480 mm
height, mm
80 mm
weight
11.5 kg
fire safety class
П-I,II,IIa,ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
material
Алюминий
shock resistance (IK)
IK08/5 Дж
installation length, mm
200 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
electrical
electric shock protection
I
starting current
85 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
205 W
power factor
> 0,95
supply voltage
230 V
common
code
1350002370
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>70
light flow
25000 lm
energy efficiency
122 lm/W
flickering factor
<5%
beam angle
D150/80
color temperature
3000
light source type
LED
emission color
Белый
model files
model files
documents
сертификаты
documents
passport4.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
