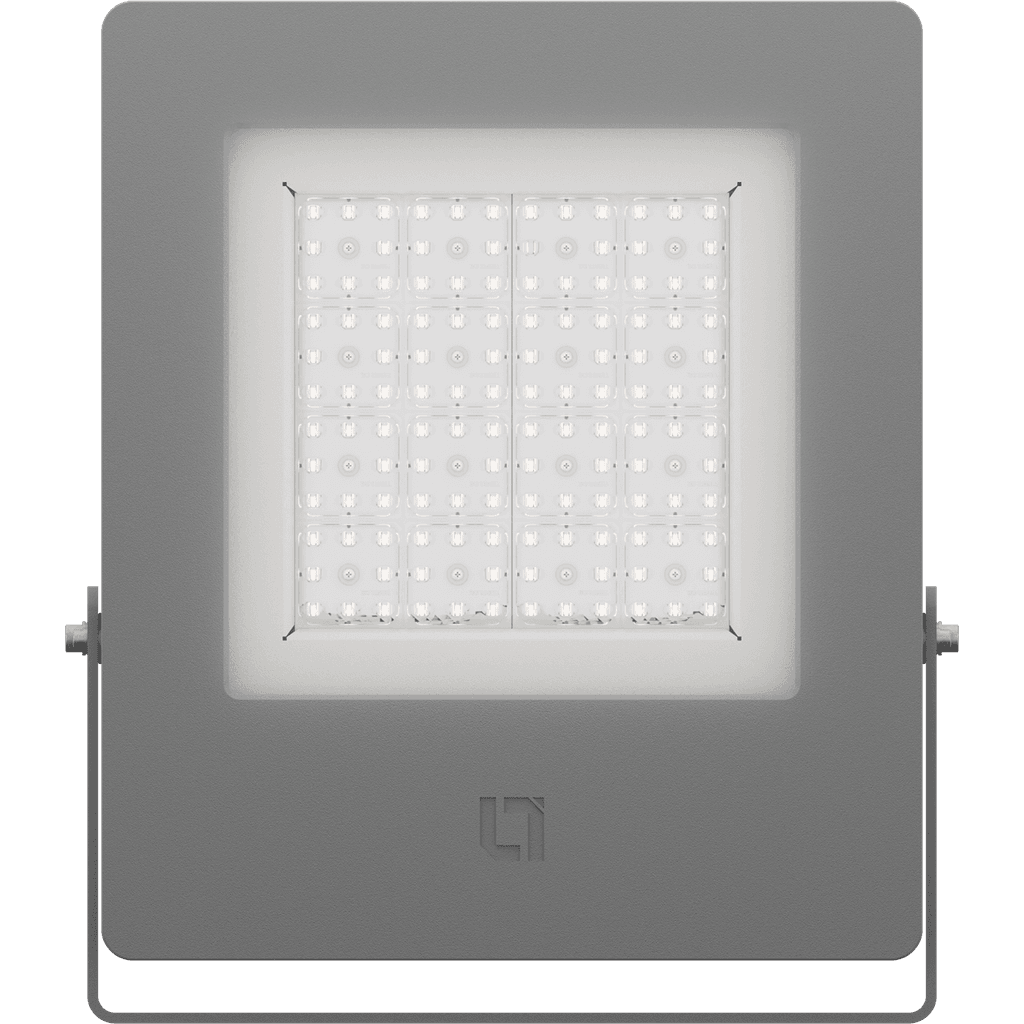

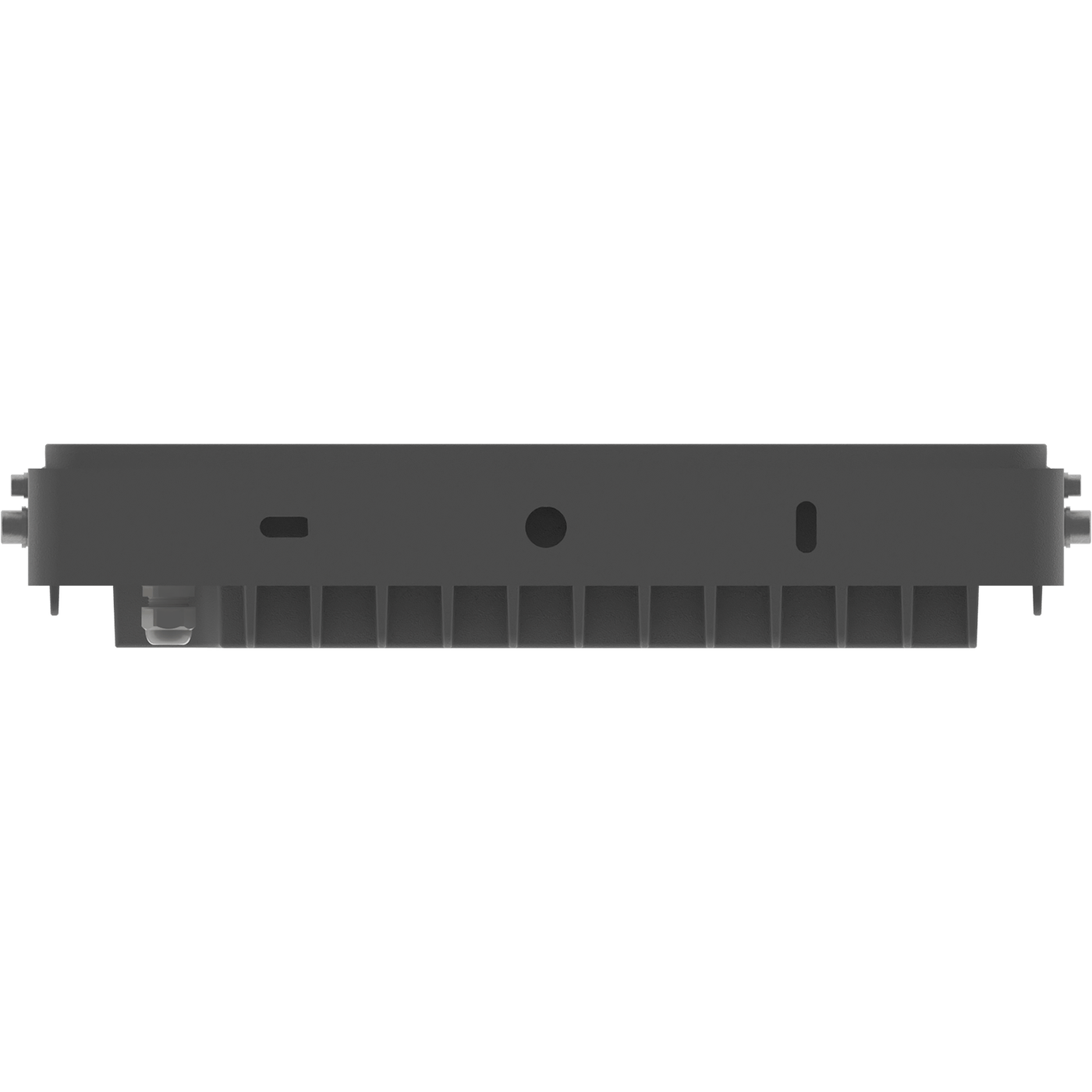

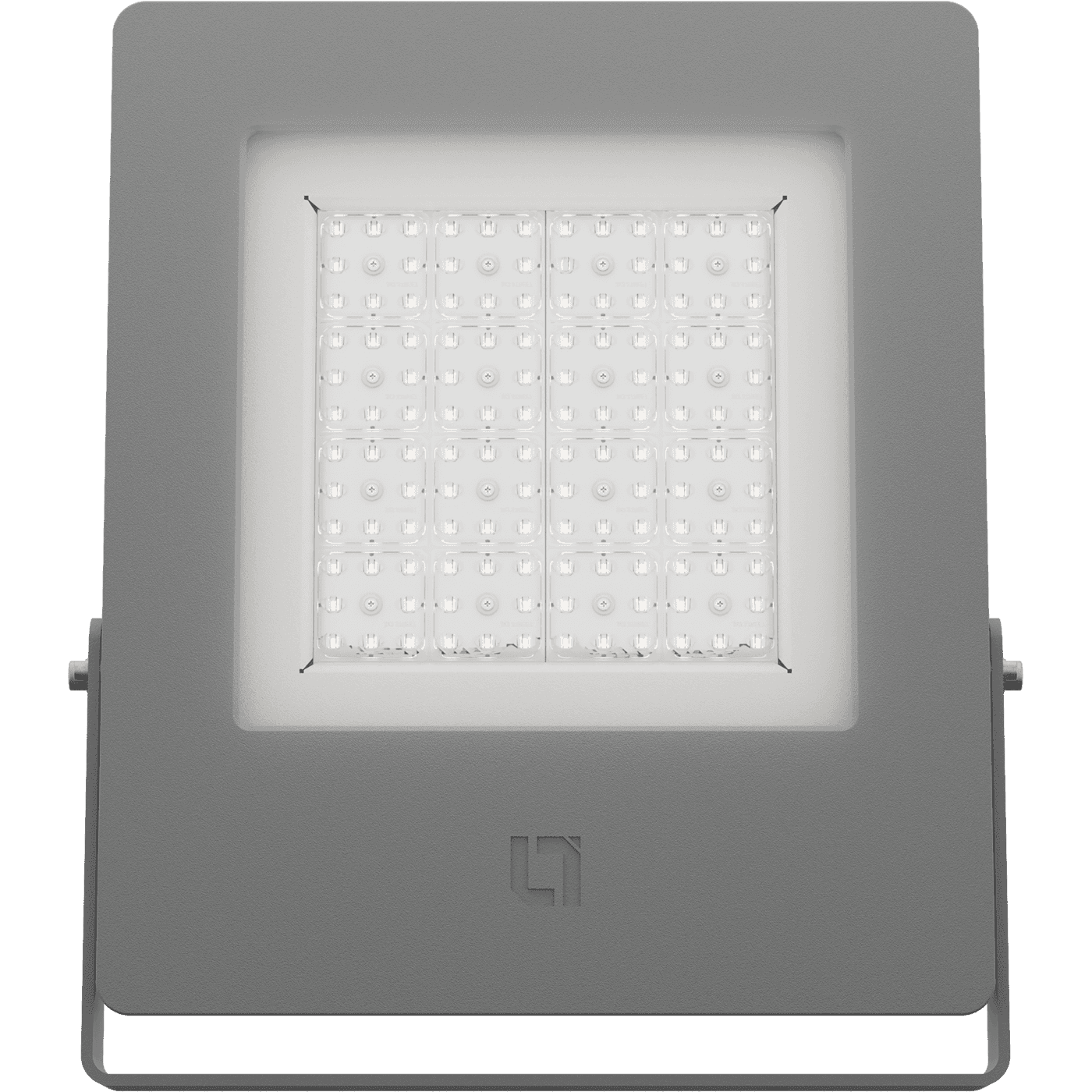

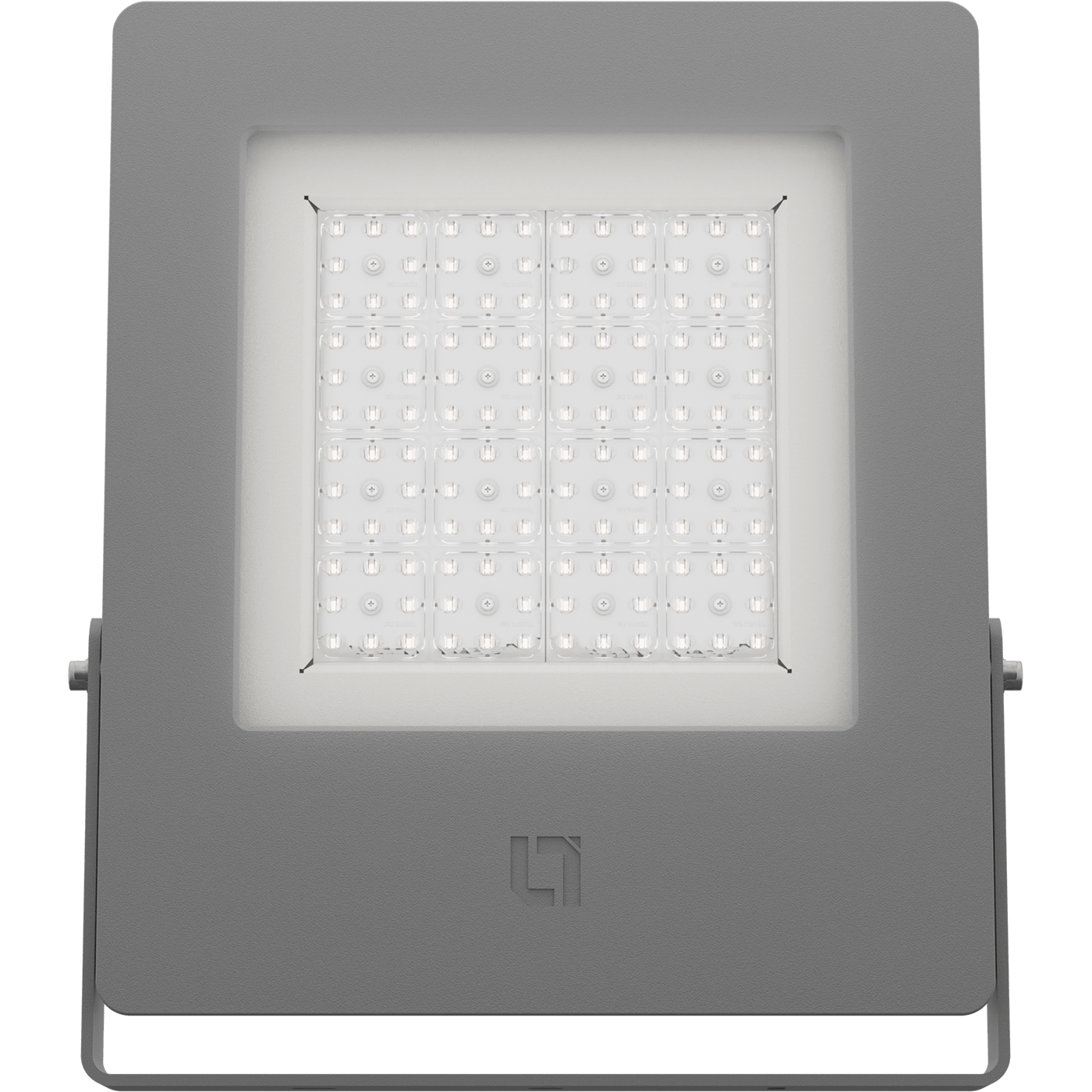

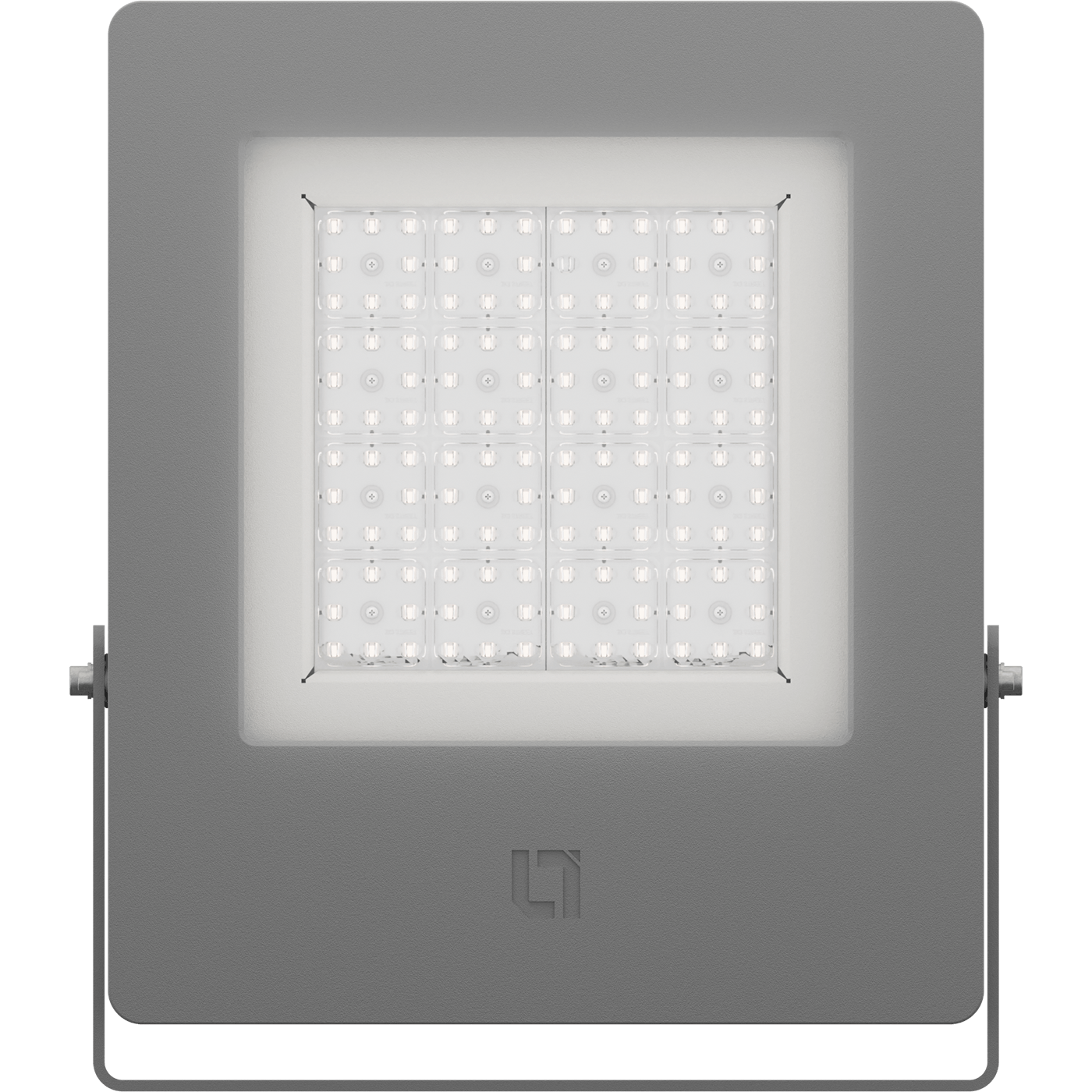

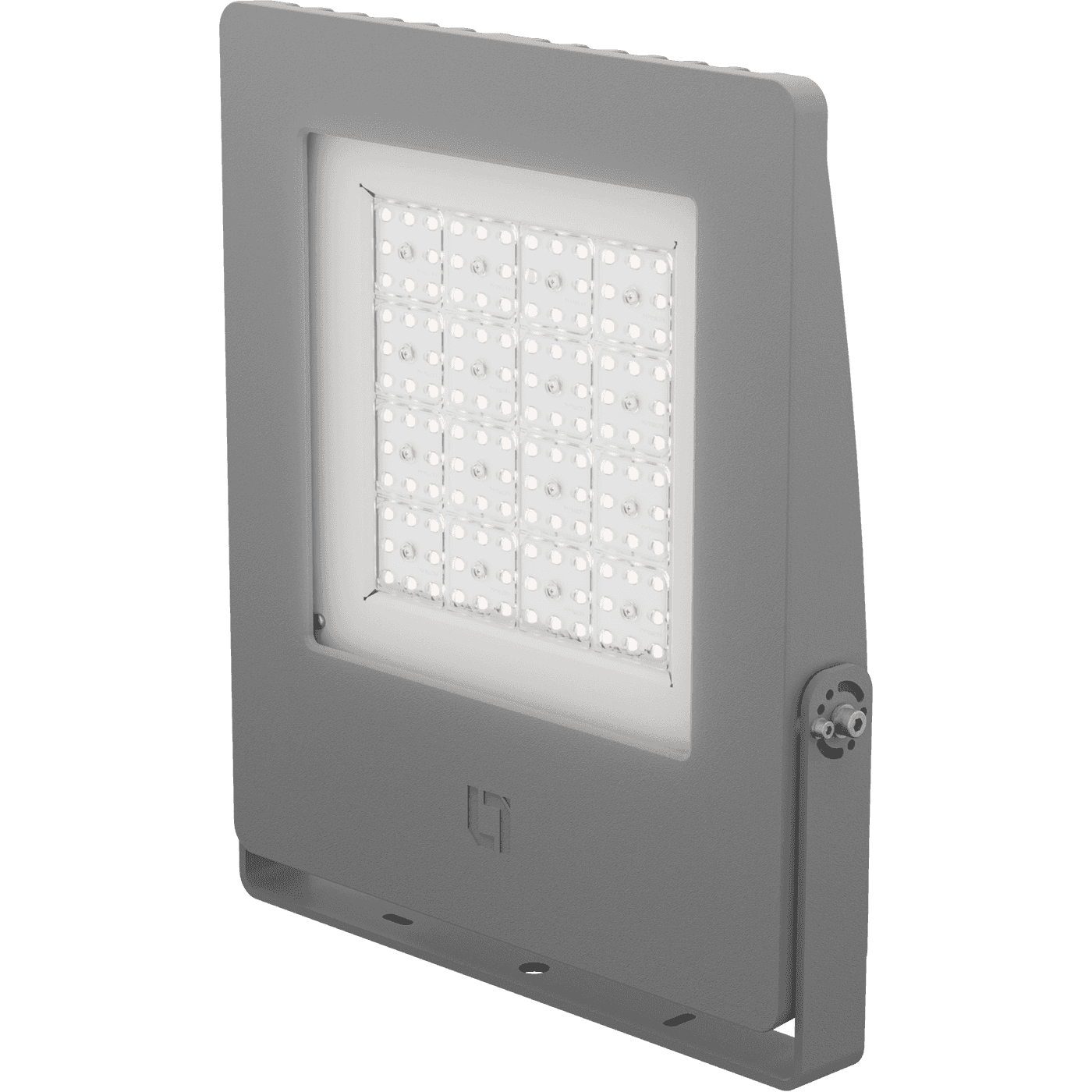

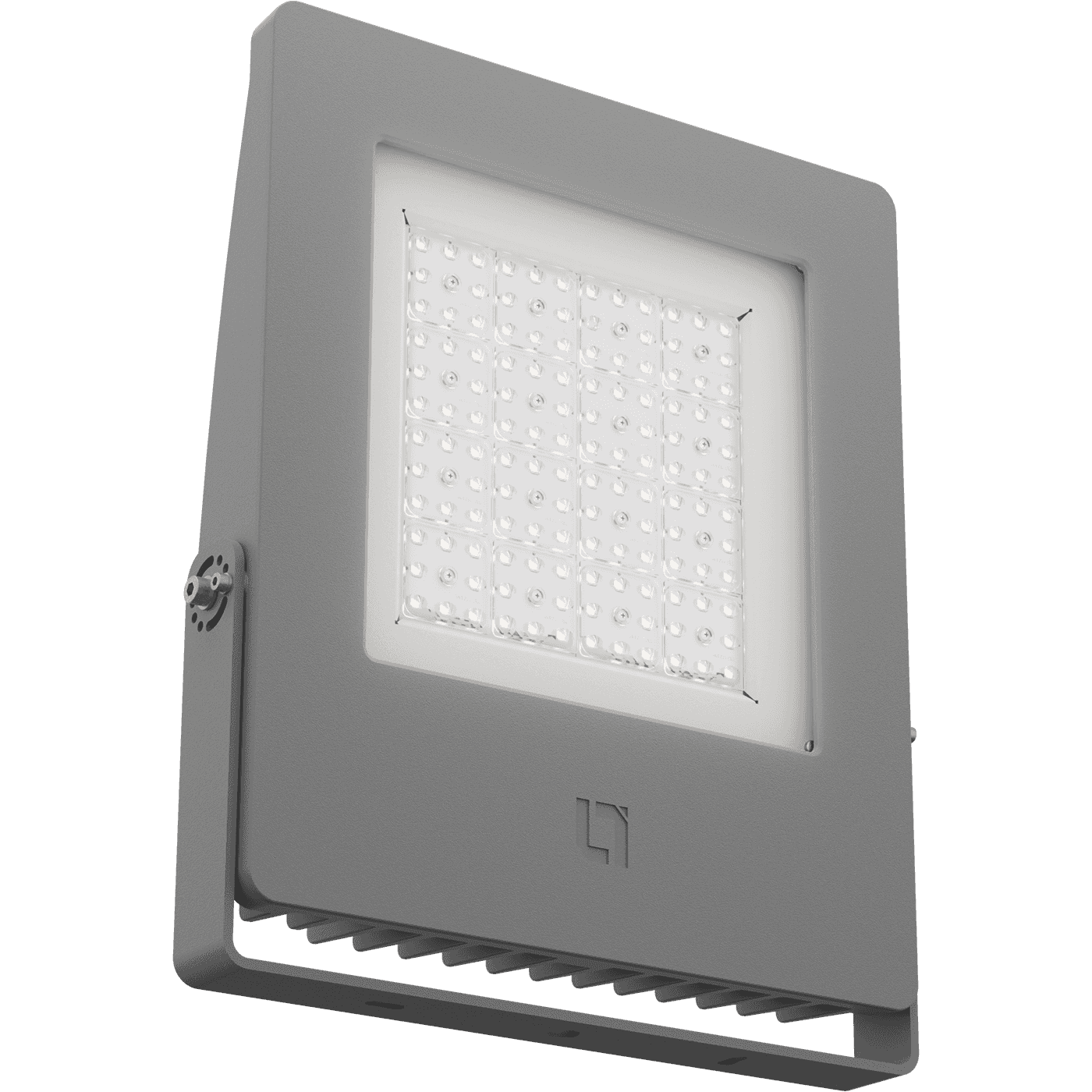

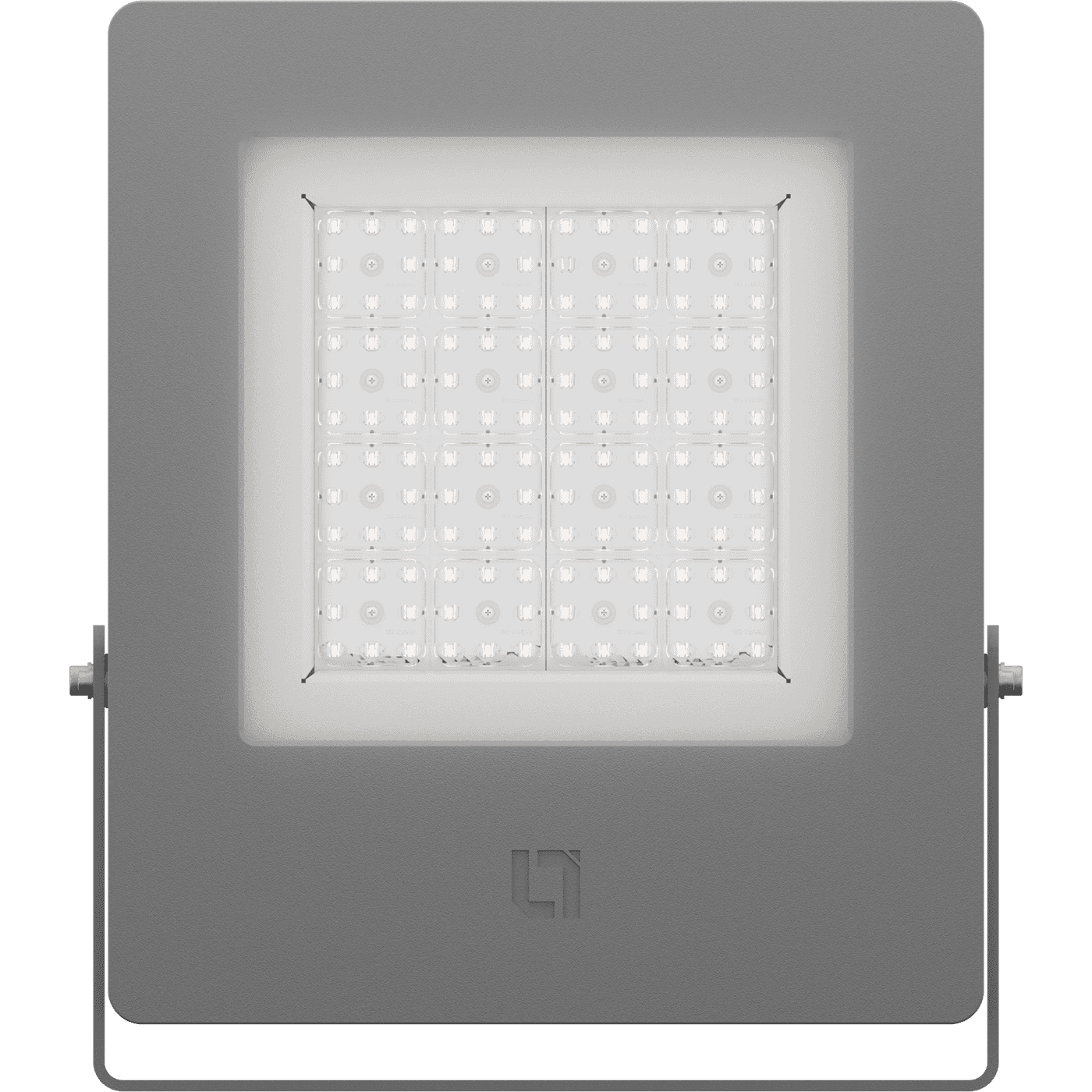

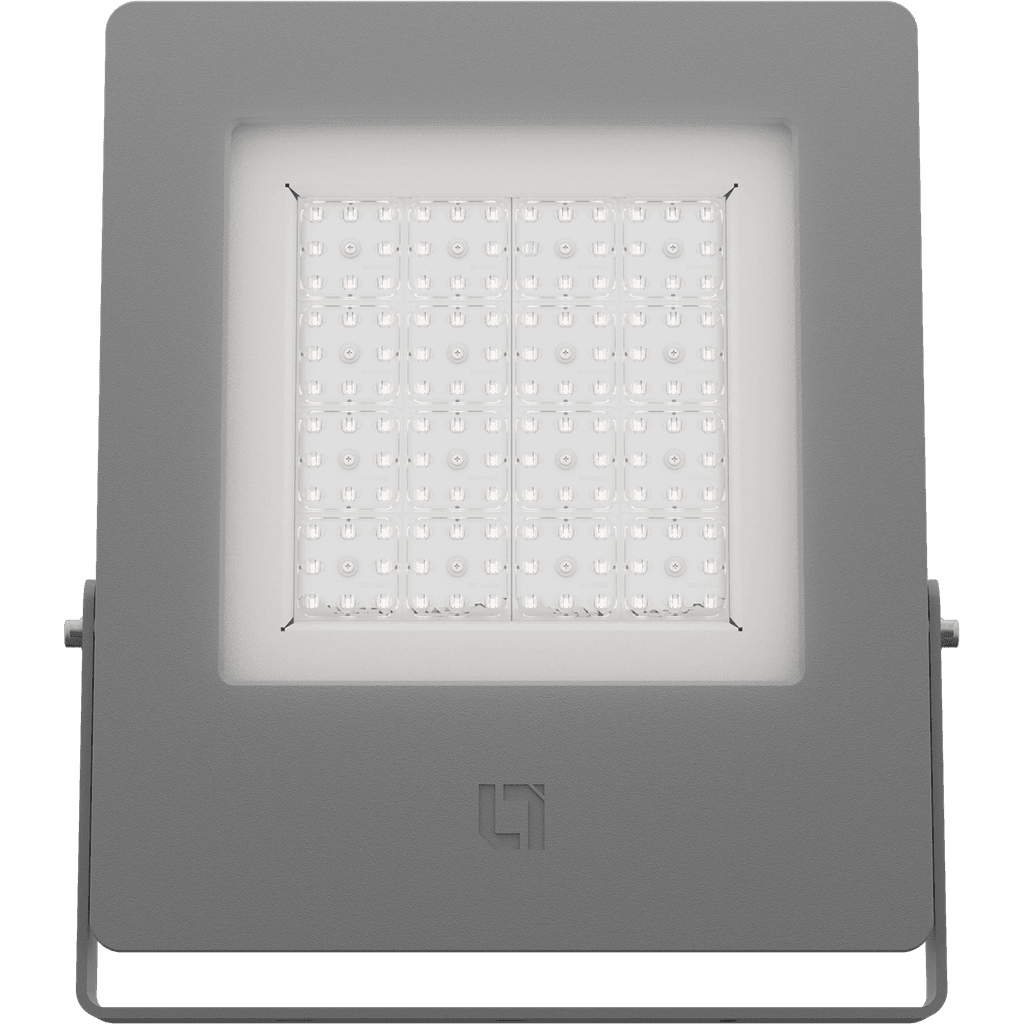

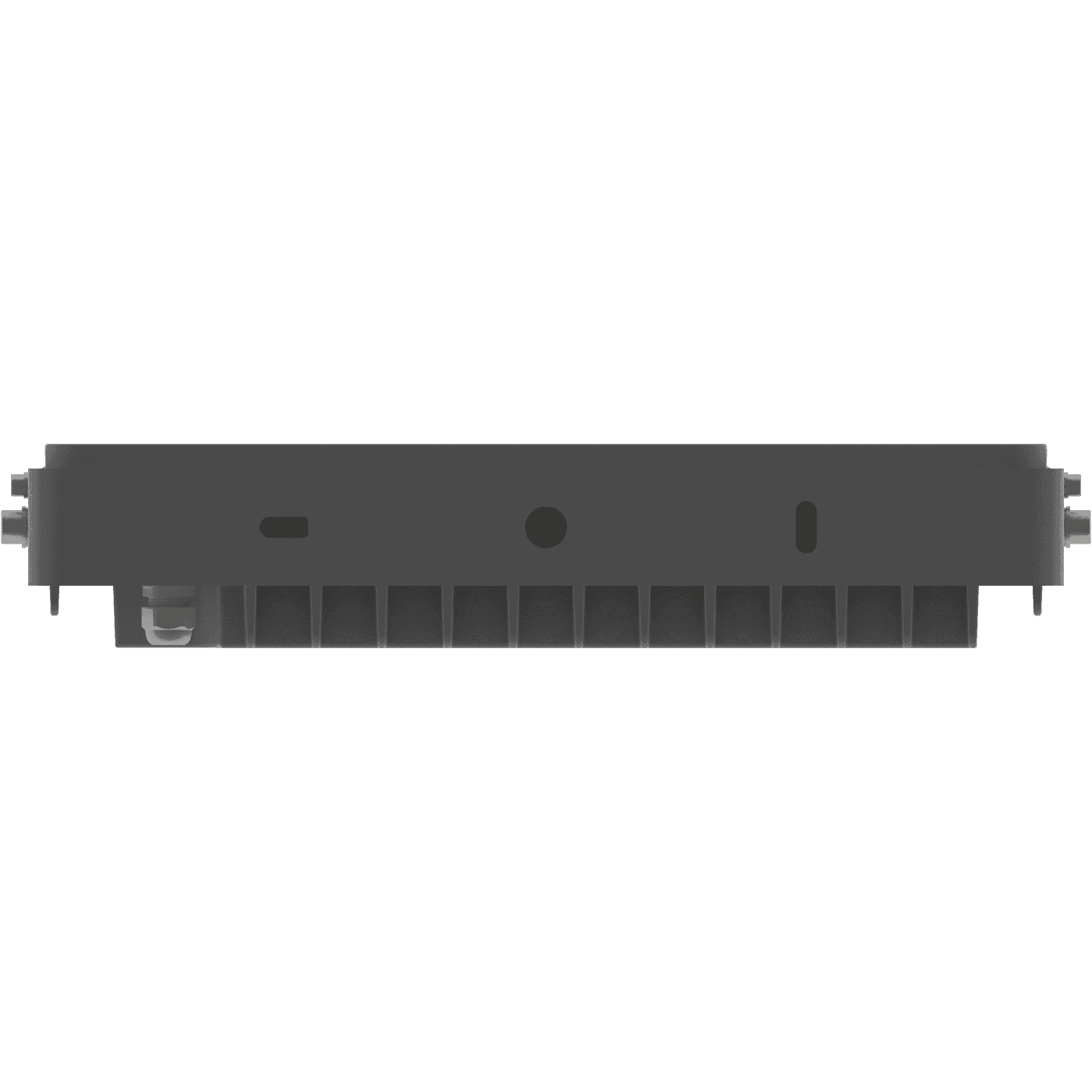

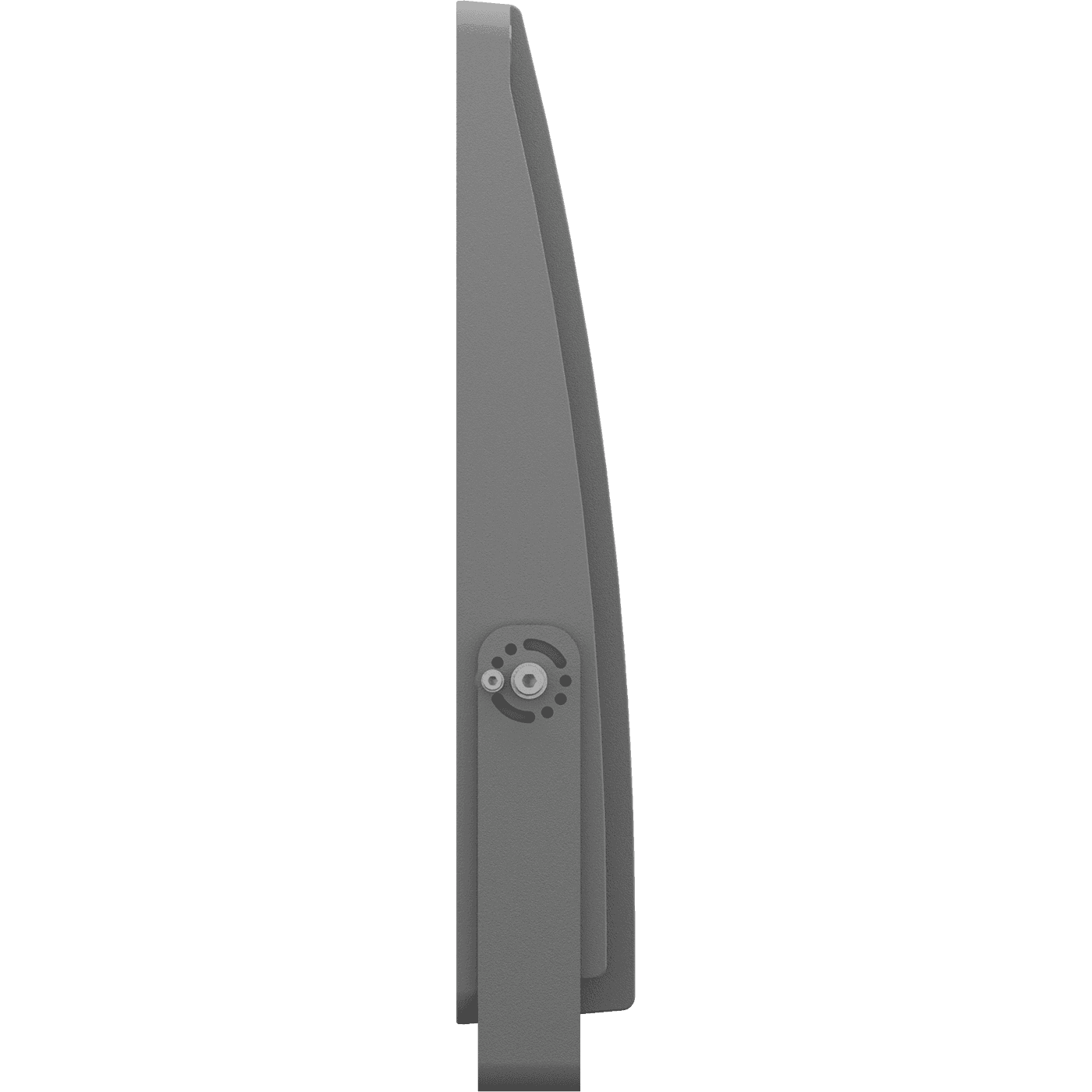

LEADER LED 200W A30 740 RAL9006 EXTREME
LEADER LED 200W A30 740 RAL9006 EXTREME
205 Wluminaire power
29000 lmlight flow
141 lm/Wenergy efficiency
code1350002140
beam angleA30
color temperature4000
weight11.1 kg
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
205 Welectric shock protection
Ipower factor
> 0,95supply voltage
230 Velectrical
luminaire power
205 W
electric shock protection
I
power factor
> 0,95
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
11.1 kg
length, mm
420 mm
width, mm
480 mm
height, mm
80 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/5 Дж
installation length, mm
200 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1350002140
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
30 000 h
illuminating
energy efficiency
141 lm/W
color rendition index (CRI)
>70
light flow
29000 lm
flickering factor
<5%
beam angle
A30
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

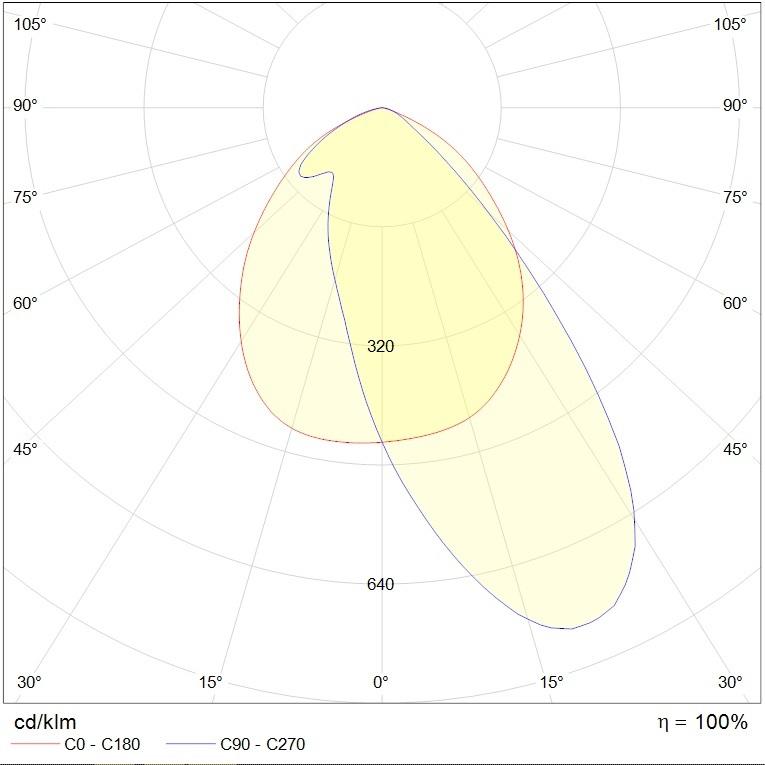

photometric files
сертификаты
photometric files
ies107 kB
jpg78.1 kB
ldt71.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
