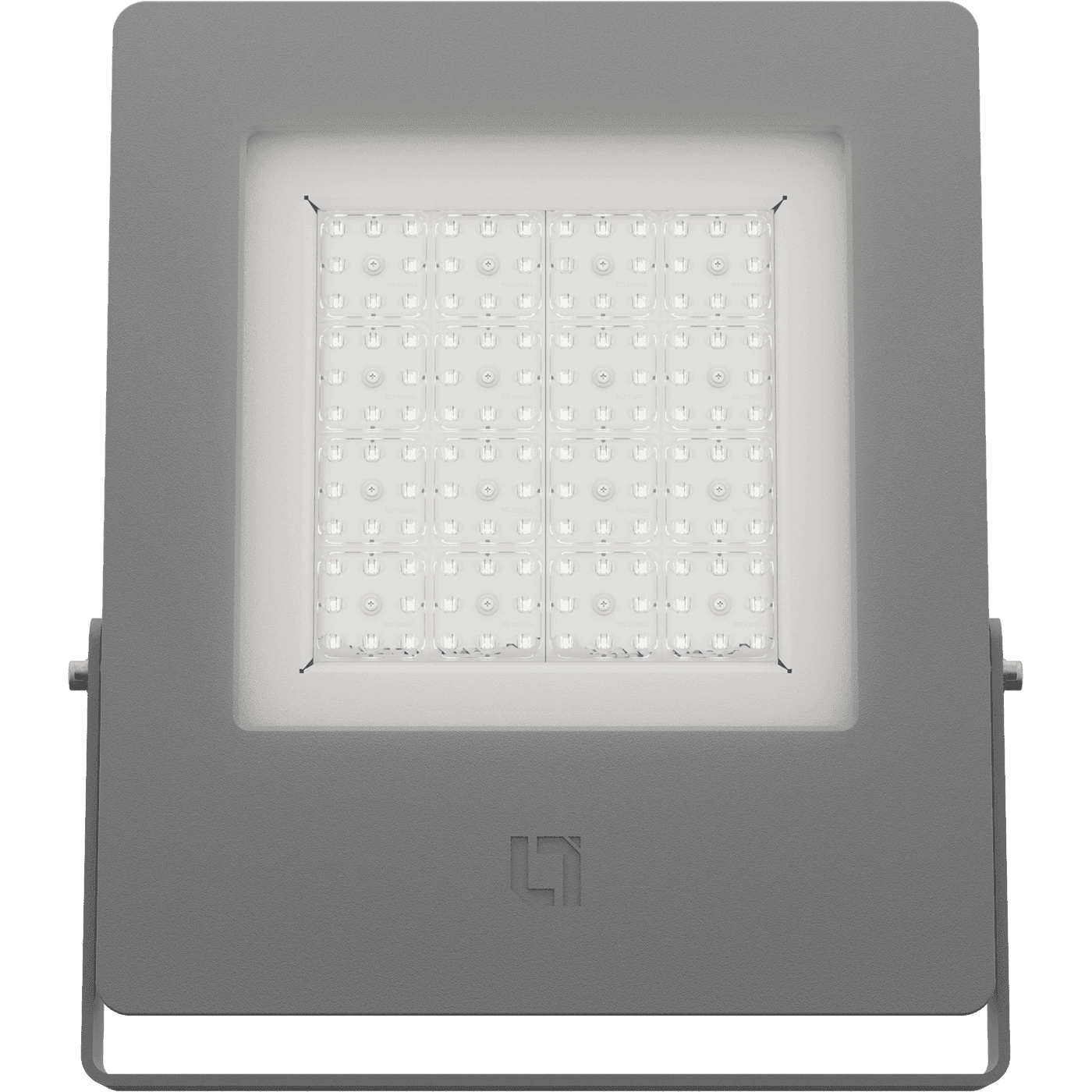

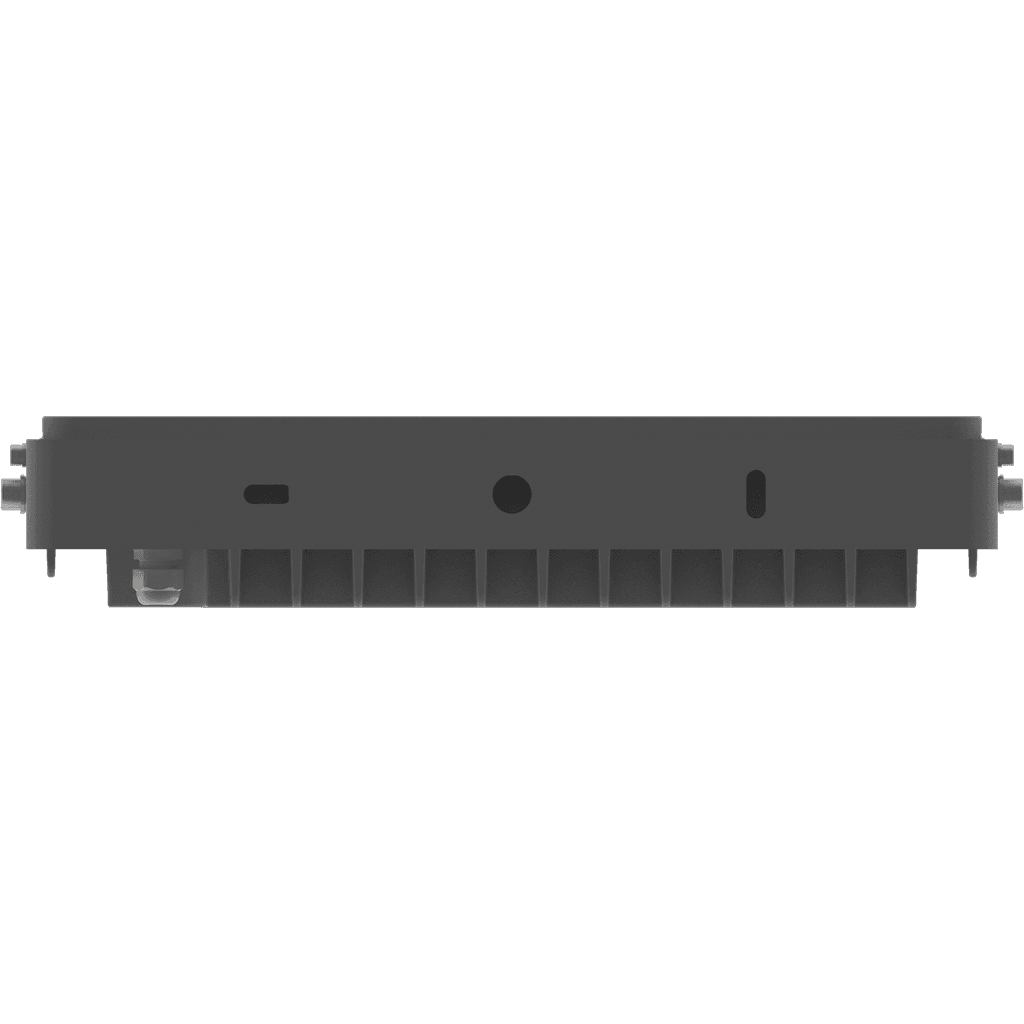

LEADER LED 200W A30 740 RAL9006 CRH
LEADER LED 200W A30 740 RAL9006 CRH
205 Wluminaire power
27000 lmlight flow
132 lm/Wenergy efficiency
code1350001870
beam angleA30
color temperature4000 K
weight11.5 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
132 lm/Wcolor rendition index (CRI)
>70light flow
27000 lmflickering factor
<5%beam angle
A30color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
132 lm/W
color rendition index (CRI)
>70
light flow
27000 lm
flickering factor
<5%
beam angle
A30
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
205 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,95
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
width
480 mm
height
80 mm
installation length
200 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
length
420 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
weight
11.5 kg
LMS options
dimming
0-10 V
common
code
1350001870
warranty
60 month
energy efficiency class
A+
temperature range
от -40 до +40 C
service life
30 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files
photometric files
сертификаты

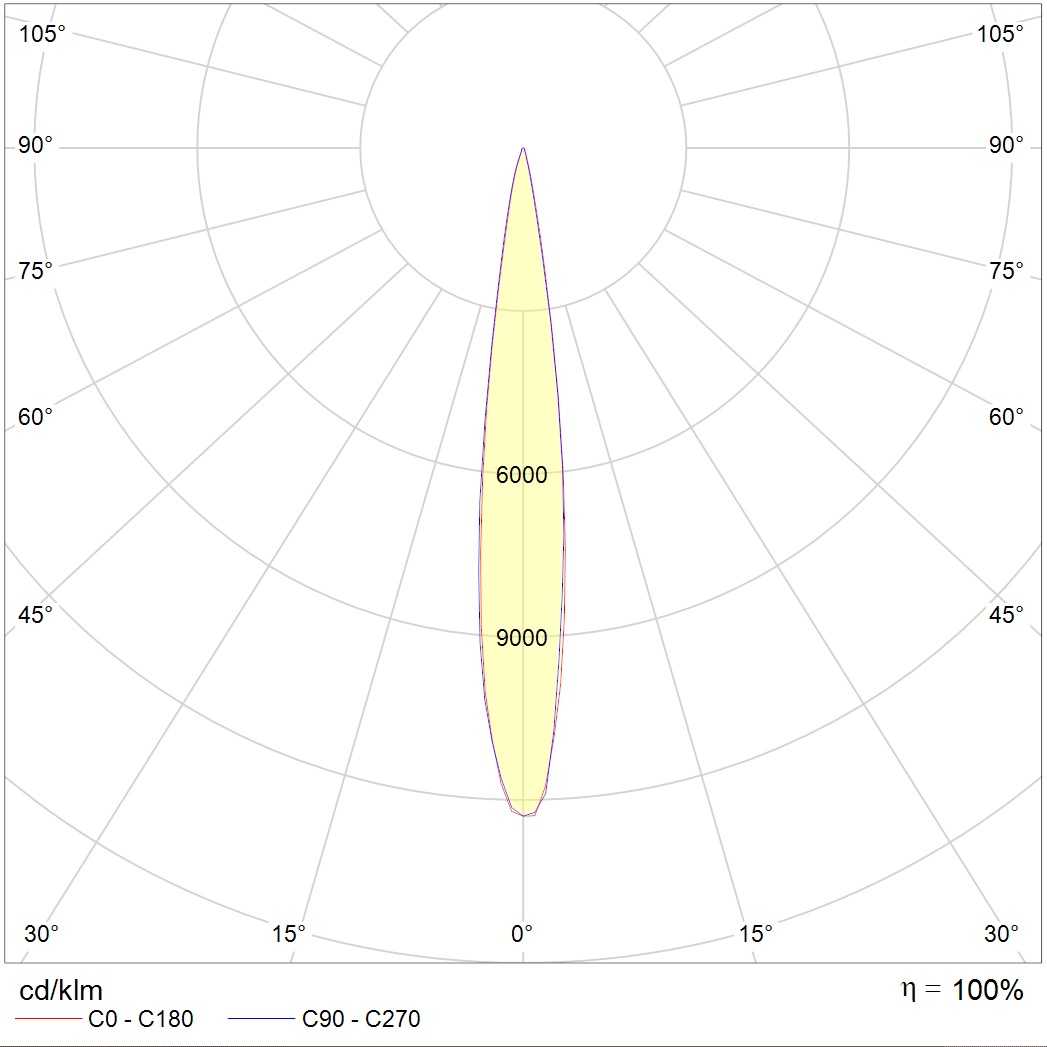

photometric files
ies107 kB
jpg113.2 kB
ldt71.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
