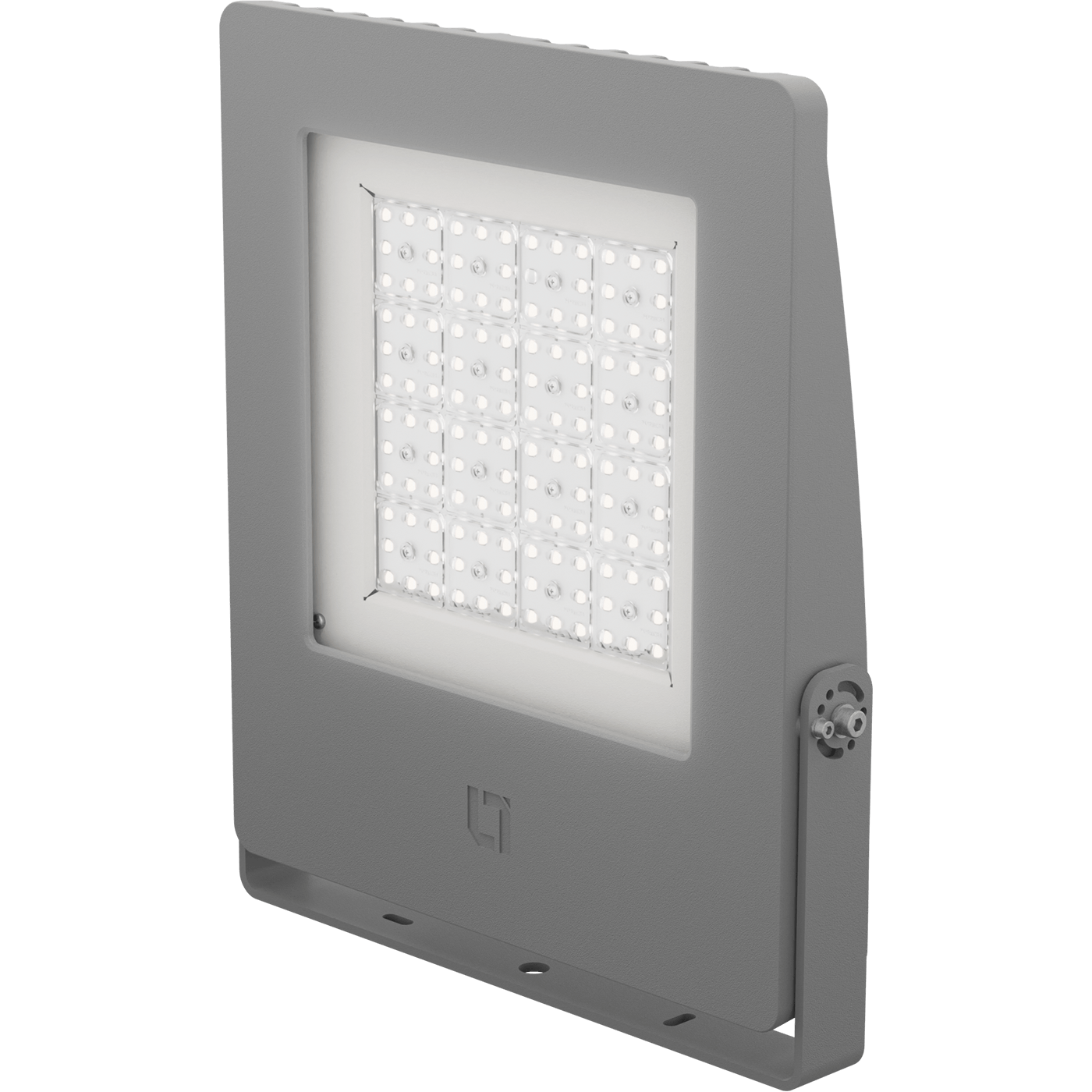

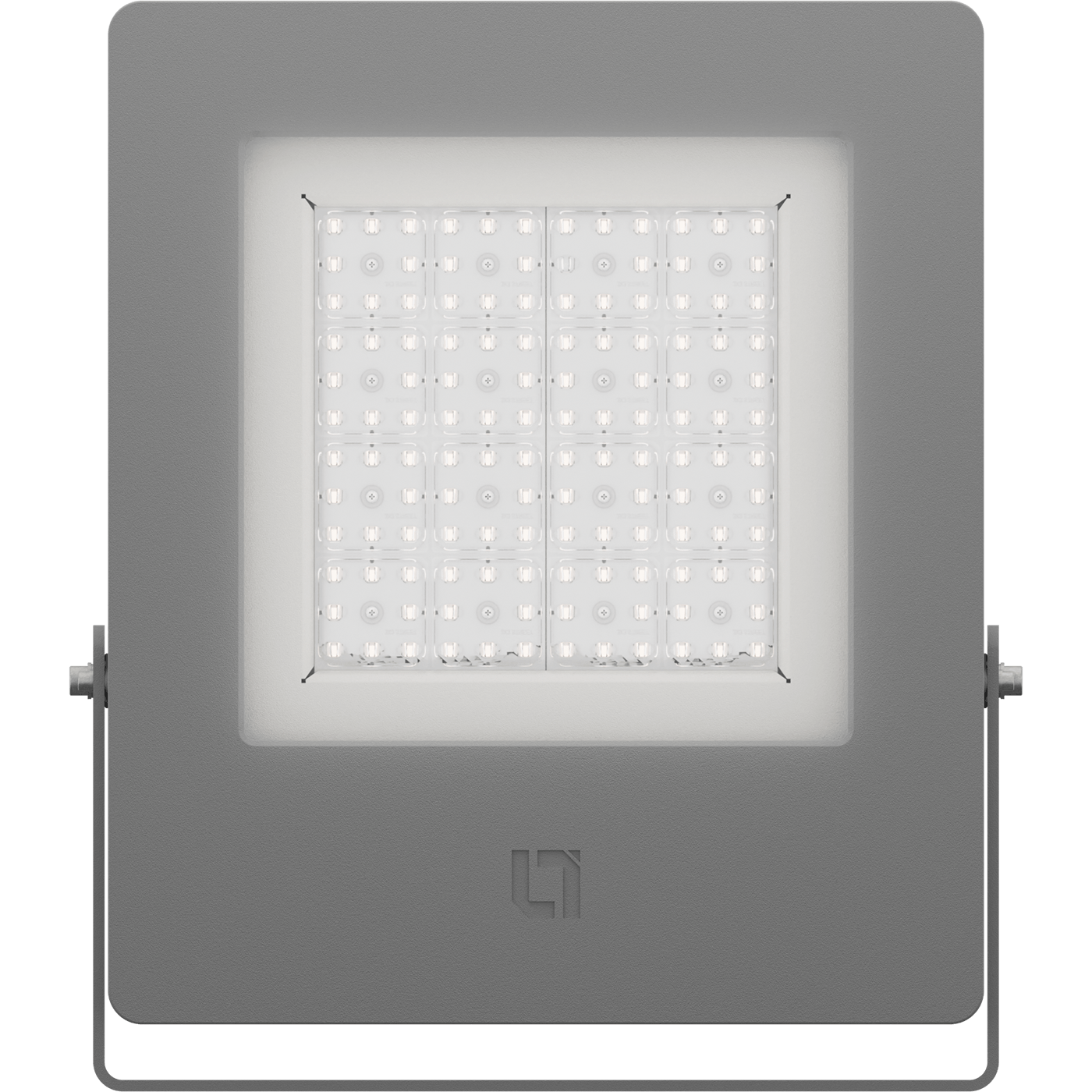

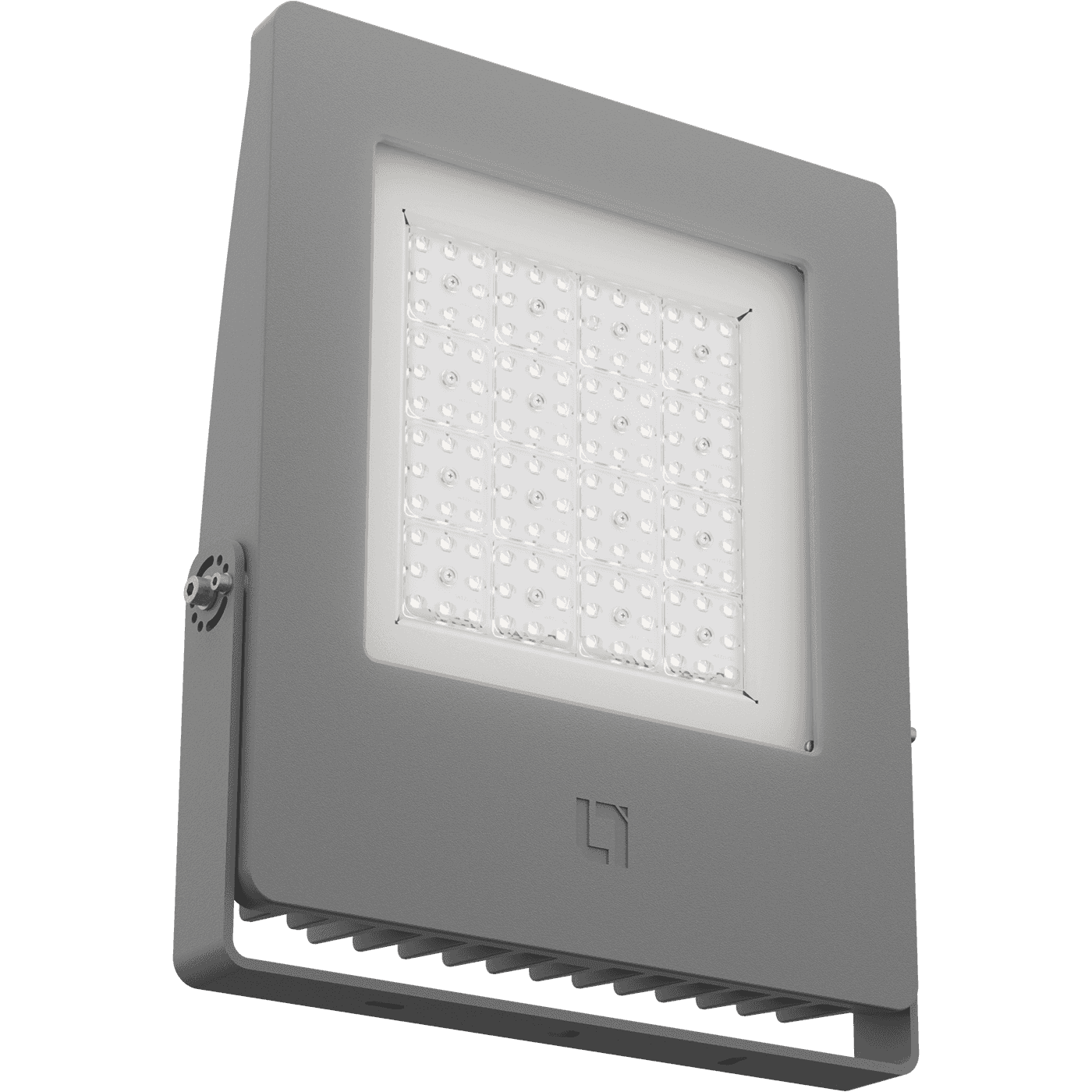

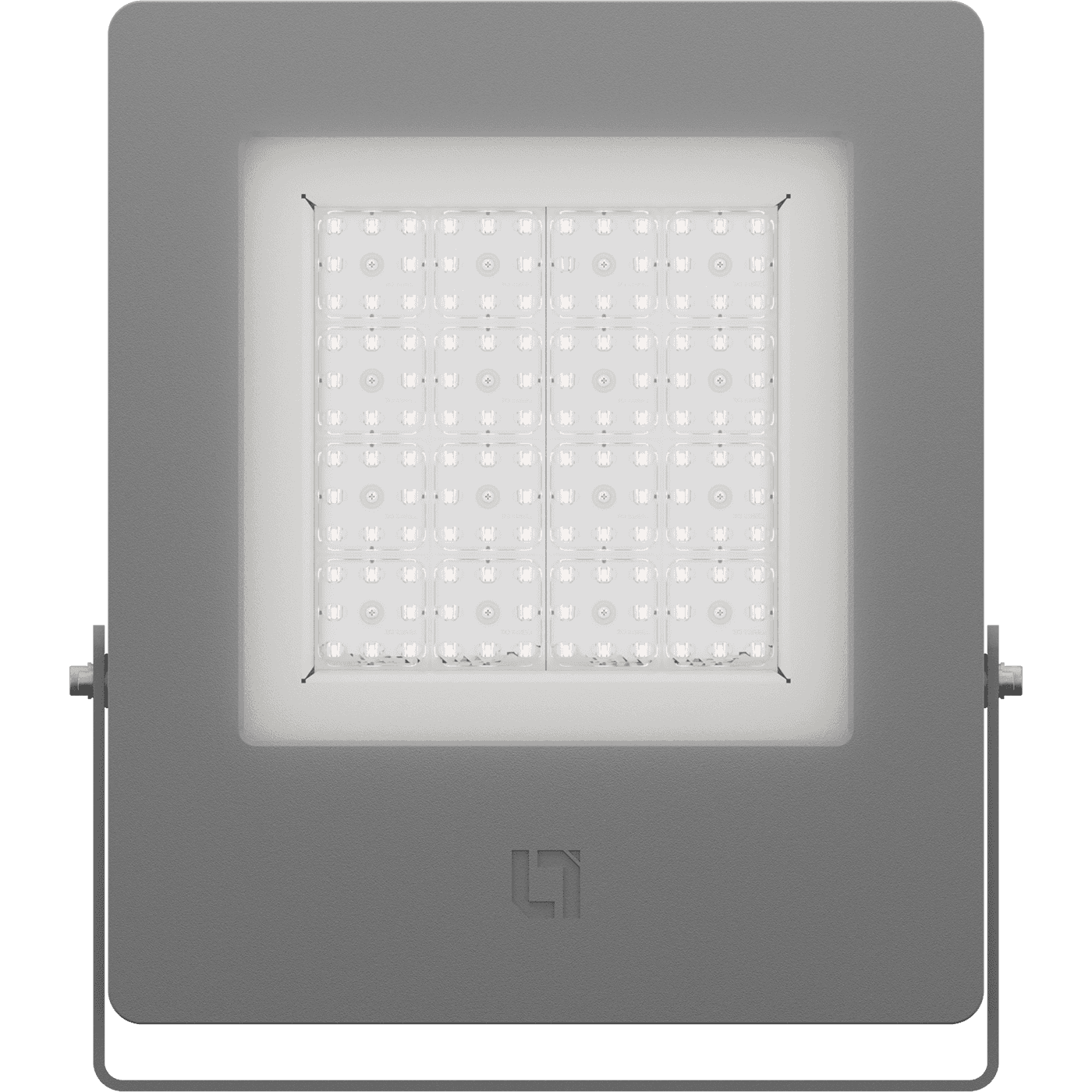

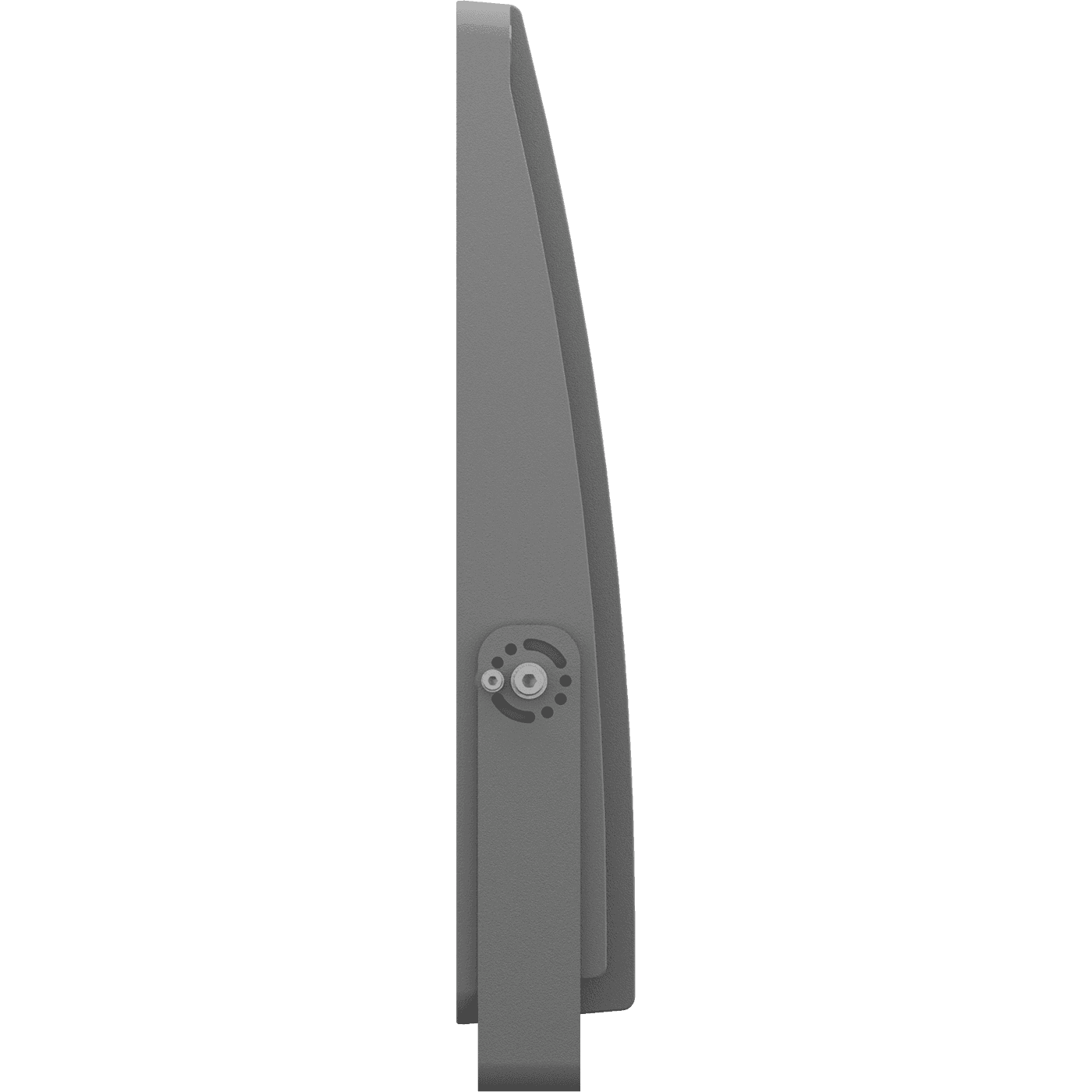

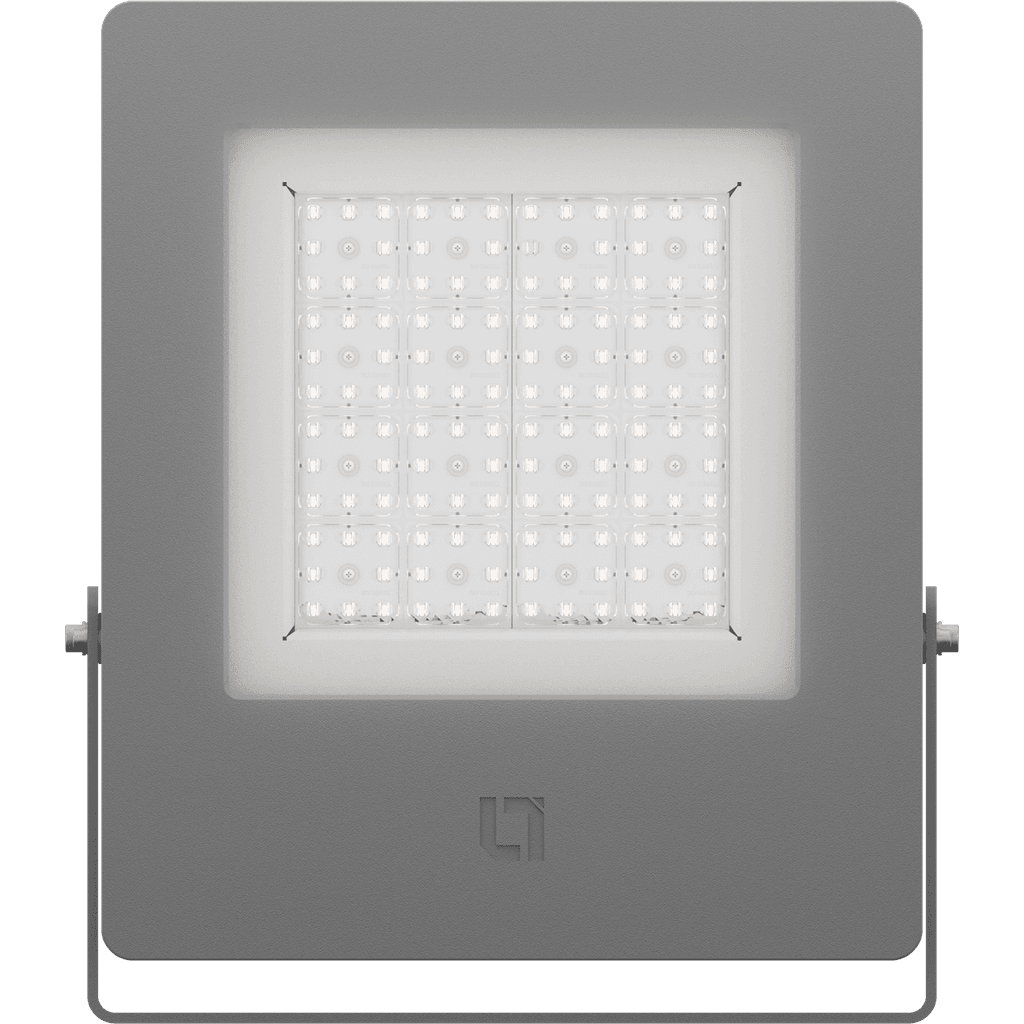

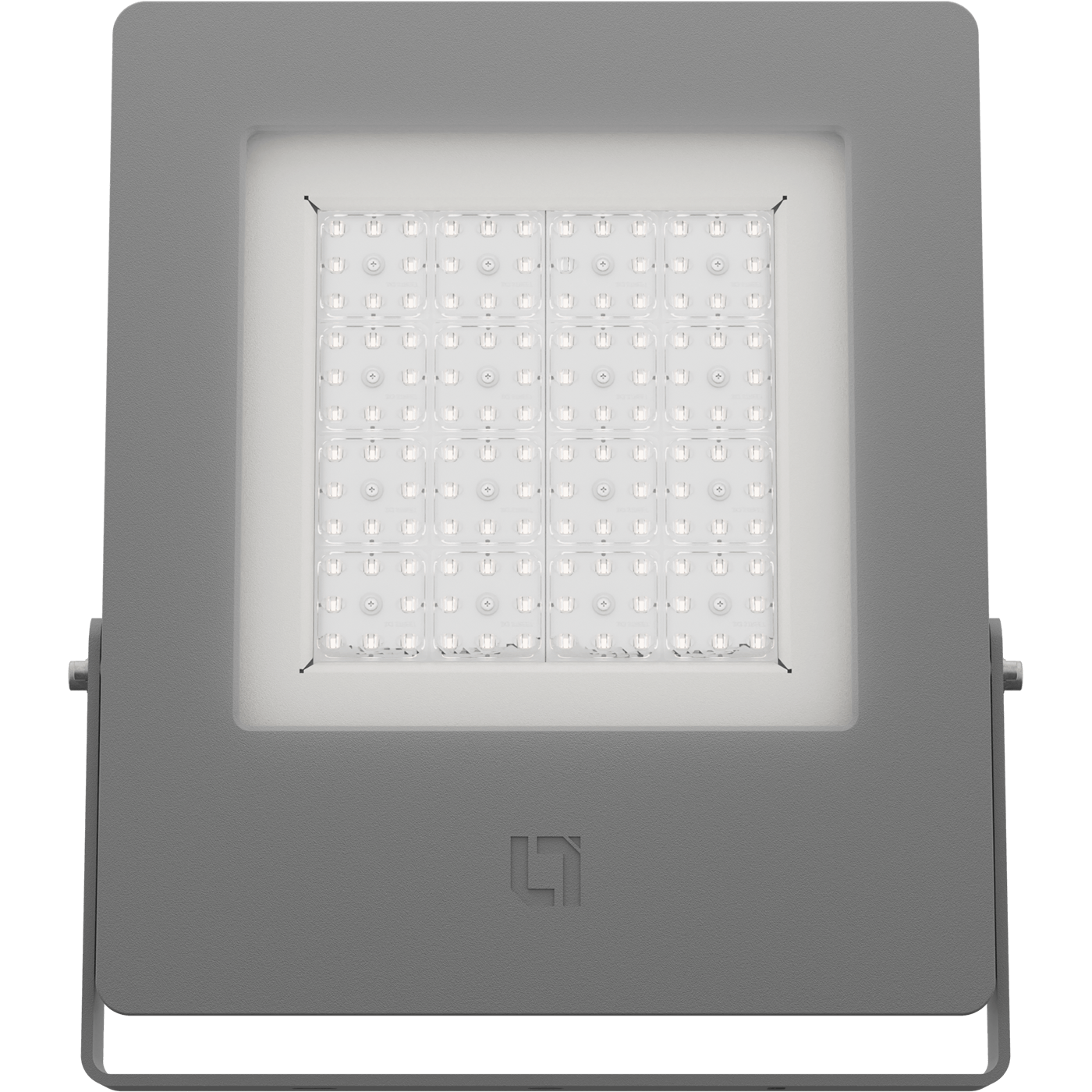

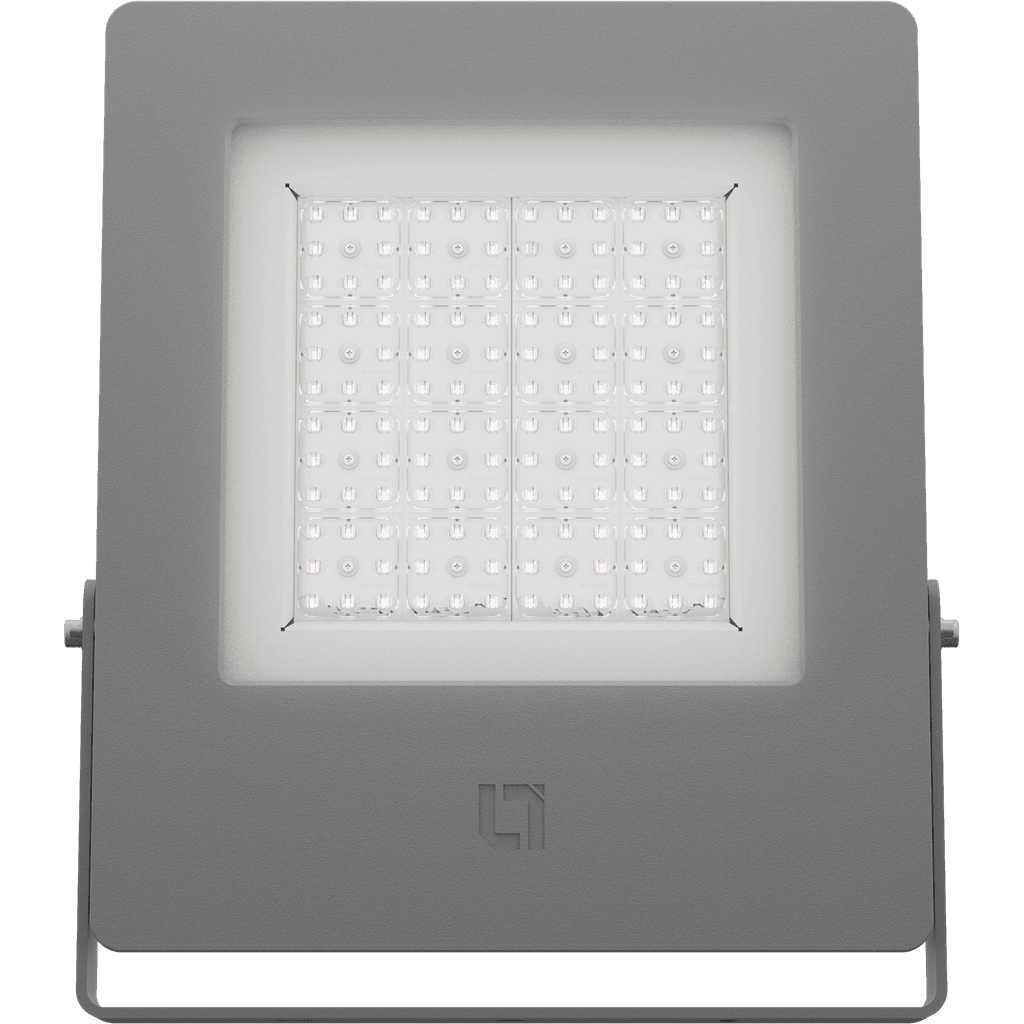

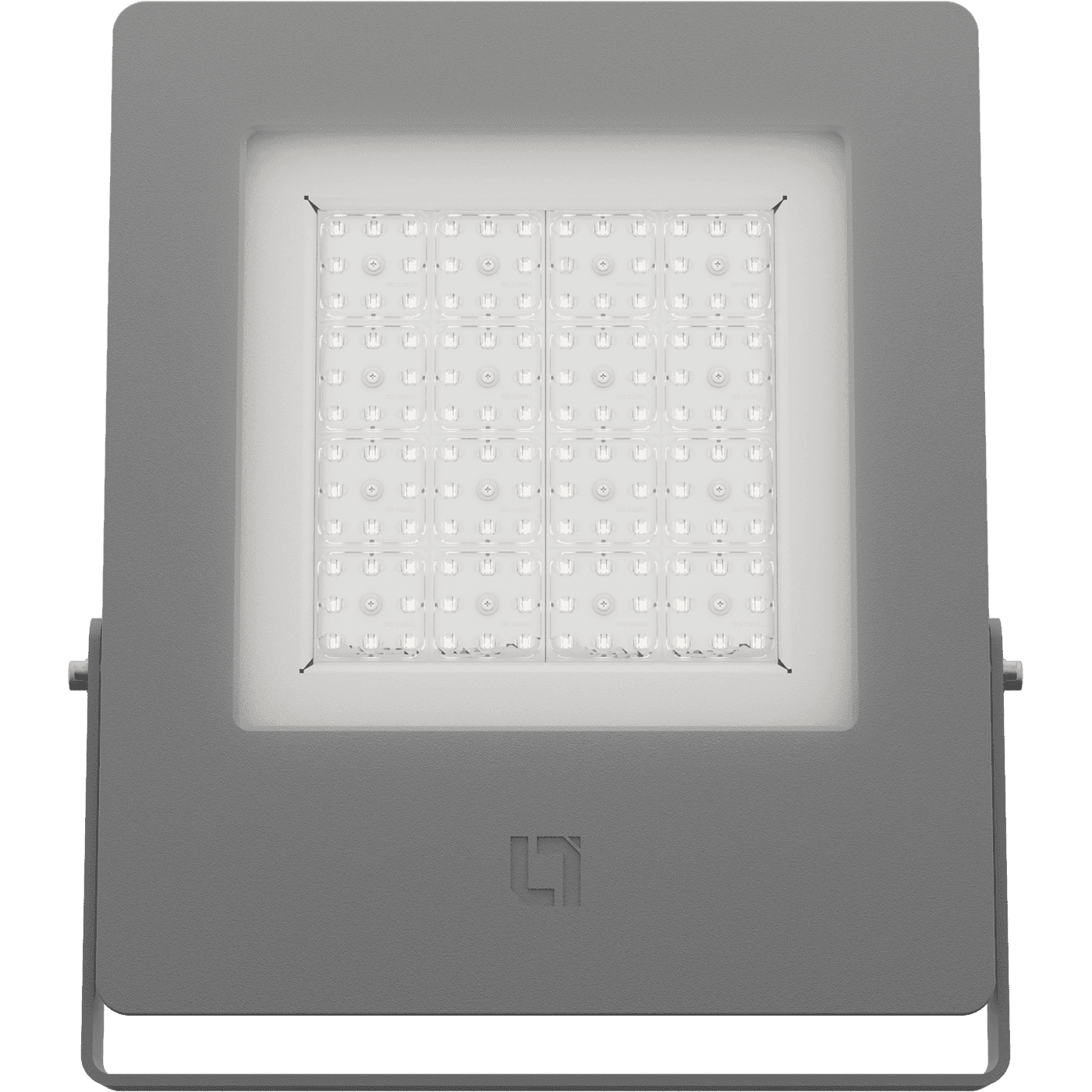

LEADER LED 140W D15 750 RAL9006 EXTREME
LEADER LED 140W D15 750 RAL9006 EXTREME
142 Wluminaire power
20800 lmlight flow
146 lm/Wenergy efficiency
code1350001530
beam angleD15
color temperature5000 K
weight11.1 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
146 lm/Wcolor rendition index (CRI)
>70light flow
20800 lmflickering factor
<5%beam angle
D15color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
146 lm/W
color rendition index (CRI)
>70
light flow
20800 lm
flickering factor
<5%
beam angle
D15
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
luminaire power
142 W
electric shock protection
I
starting current pulse time
500 µs
rated supply voltage, alternating current
230 V
supply voltage
230 V
starting current
65 A
maximum cross-section of the connected cable
2.5 mm2
supply voltage, direct current
232-420 V
supply voltage, alternating current
150-305 V
power factor
> 0,98
constructional
fire safety class
П-I,II,IIa,ІІІ
length
420 mm
height
80 mm
installation length
200 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер
width
480 mm
material
Алюминий
climatic performance
УХЛ1
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
weight
11.1 kg
common
code
1350001530
warranty
60 month
energy efficiency class
A++
temperature range
от -60 до +40 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

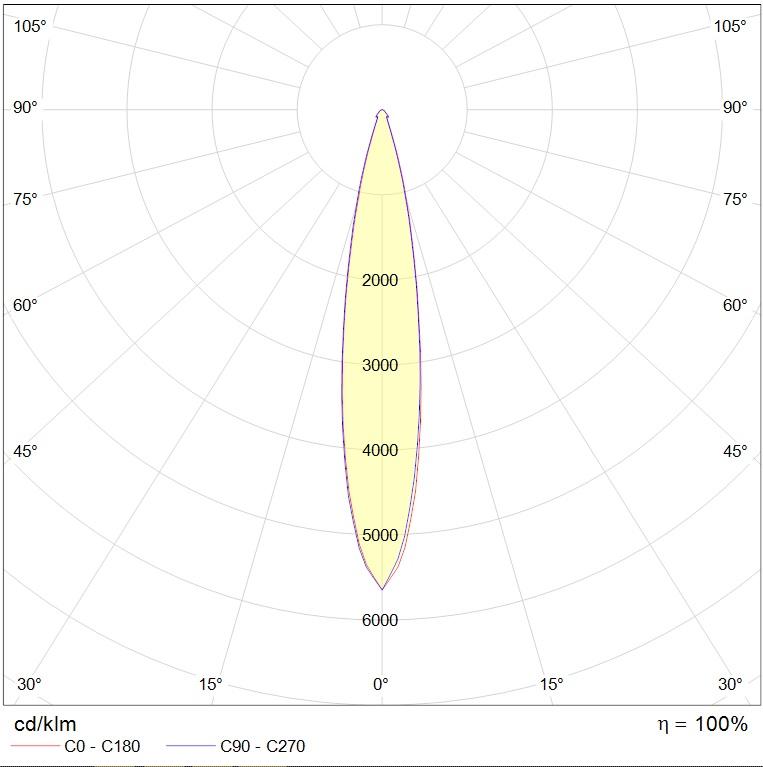

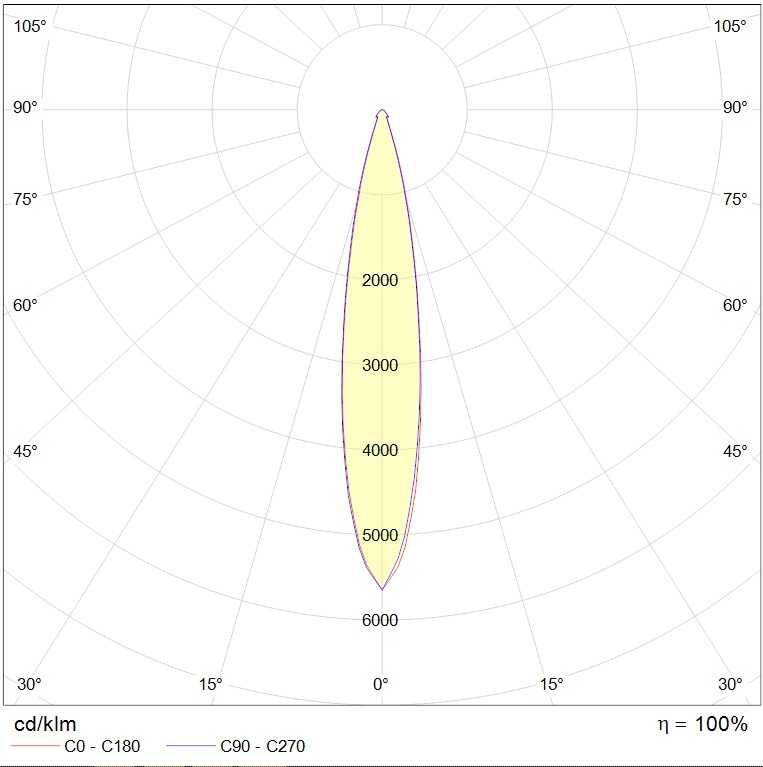

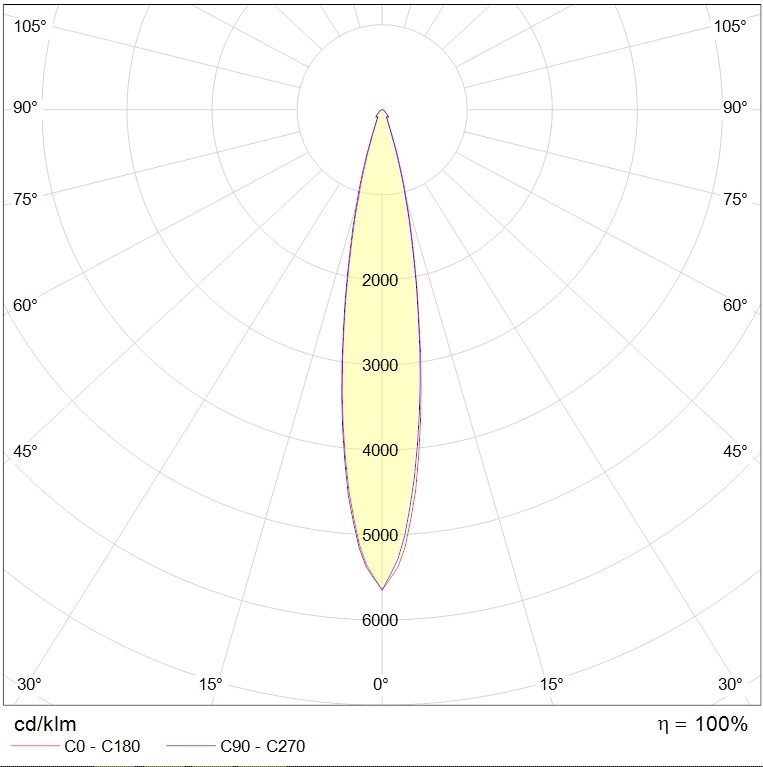

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg83.6 kB
ldt64 kB
documents
passport4.5 mB
сертификаты
Russian origin329.9 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
