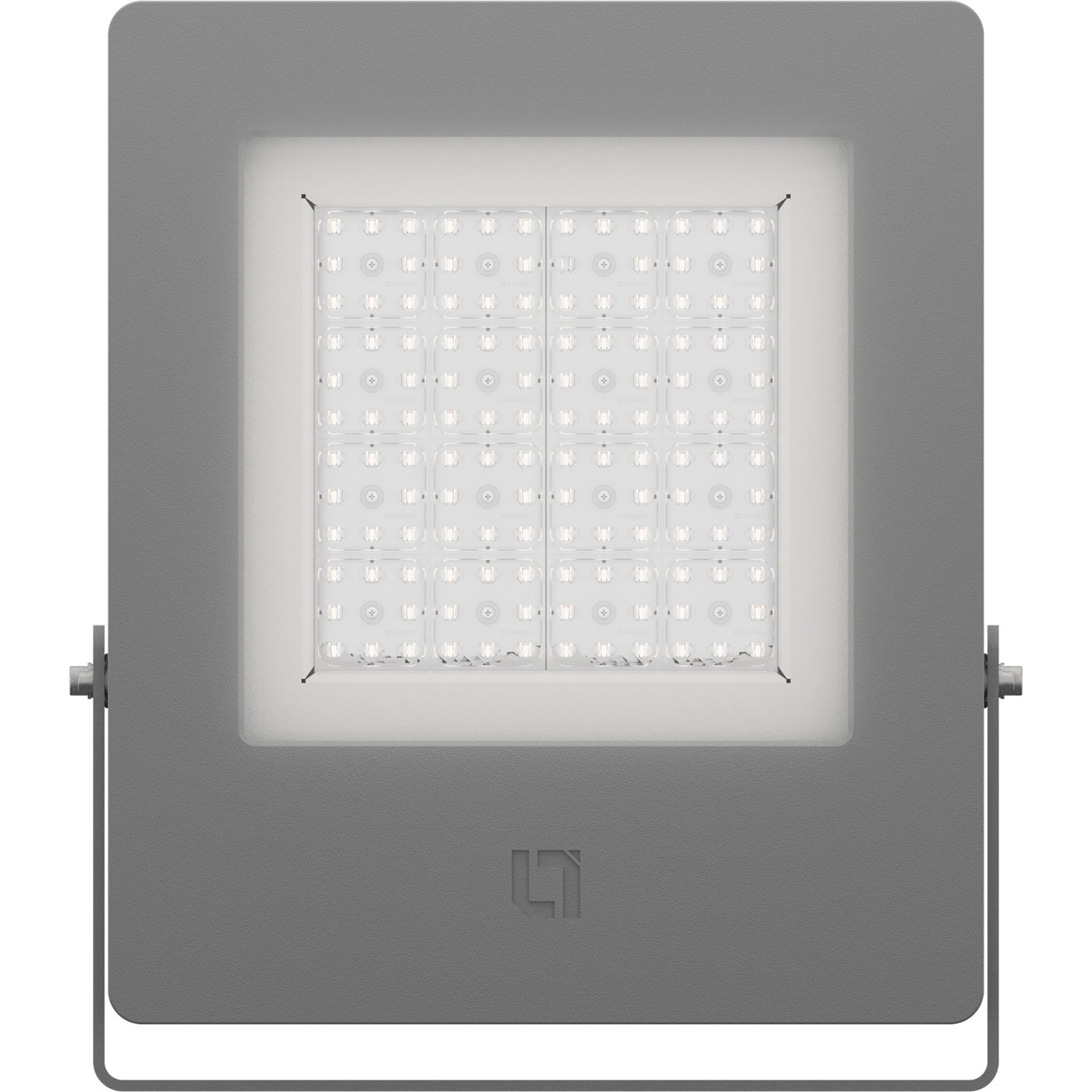

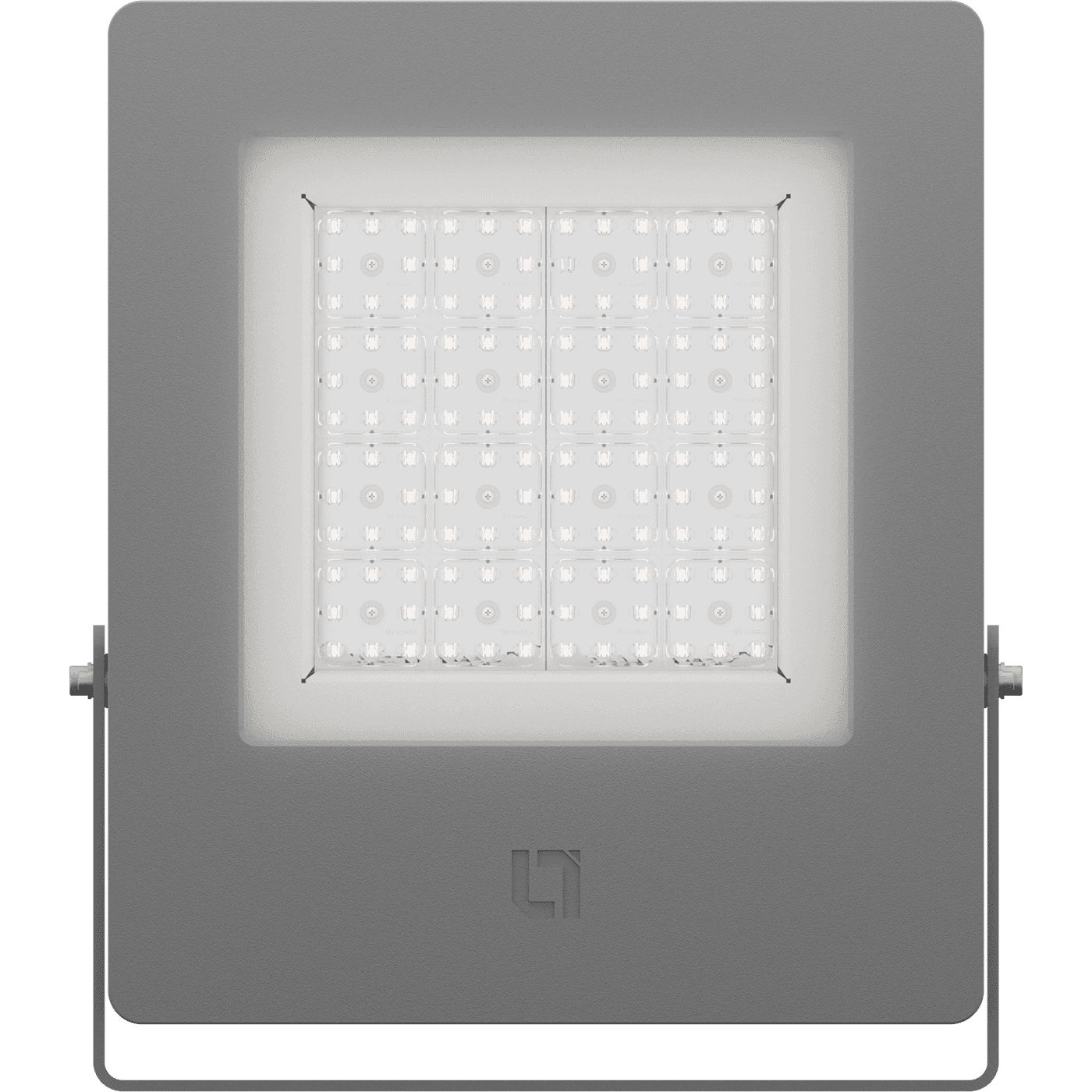

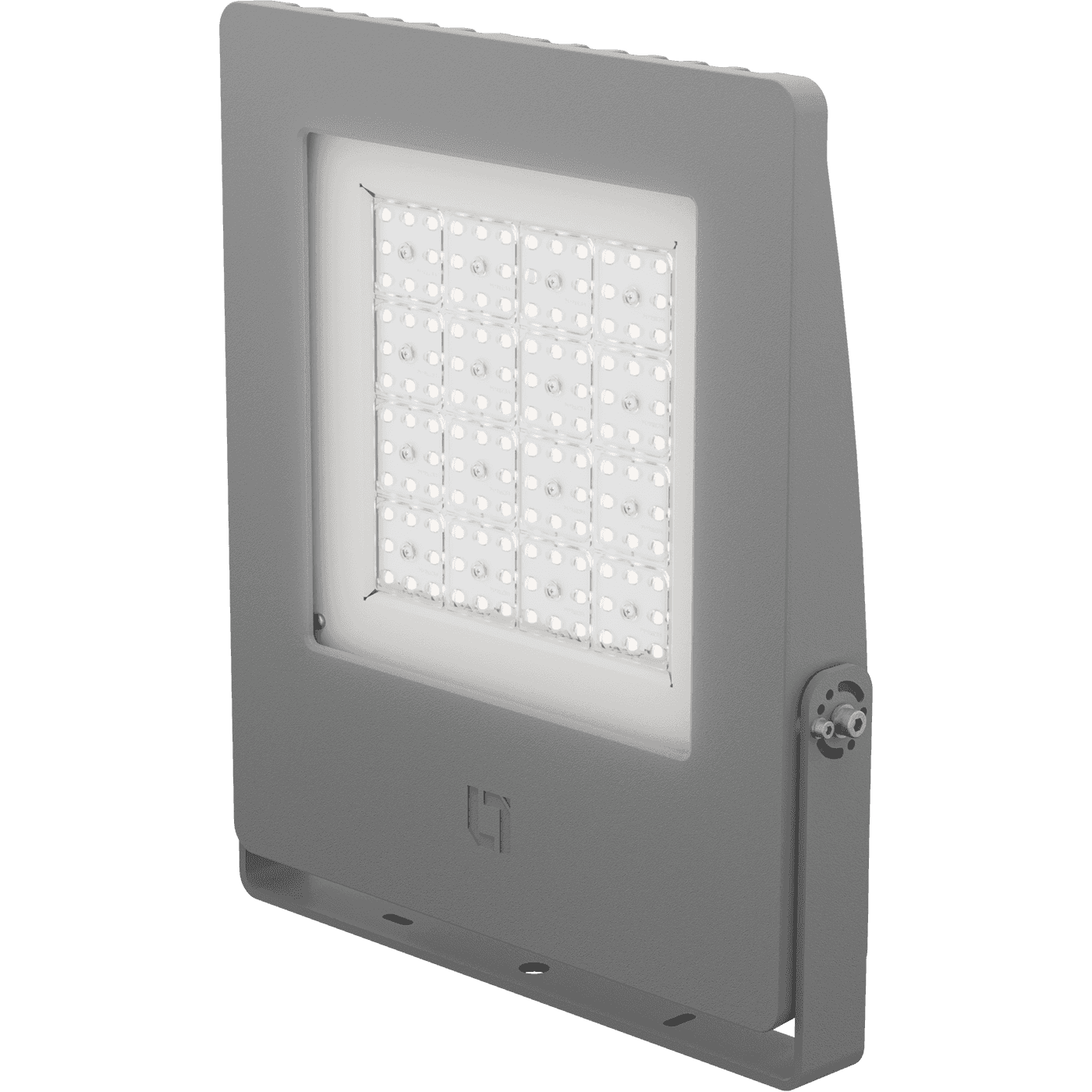

LEADER LED 140W A15x140 740 RAL9006
LEADER LED 140W A15x140 740 RAL9006
142 Wluminaire power
20800 lmlight flow
146 lm/Wenergy efficiency
code1350000380
beam angleA15x140
color temperature4000
weight11.1 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
500 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
142 Welectric shock protection
Ipower factor
> 0,98supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
142 W
electric shock protection
I
power factor
> 0,98
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
11.1 kg
length, mm
420 mm
width, mm
480 mm
height, mm
80 mm
housing color
Металлик
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/5 Дж
installation length, mm
200 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1350000380
ETIM class
Прожектор / Светильник направленного света
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
energy efficiency
146 lm/W
color rendition index (CRI)
>70
light flow
20800 lm
flickering factor
<5%
beam angle
A15x140
color temperature
4000
light source type
LED
emission color
Белый
model files
model files
CAD/BIM files

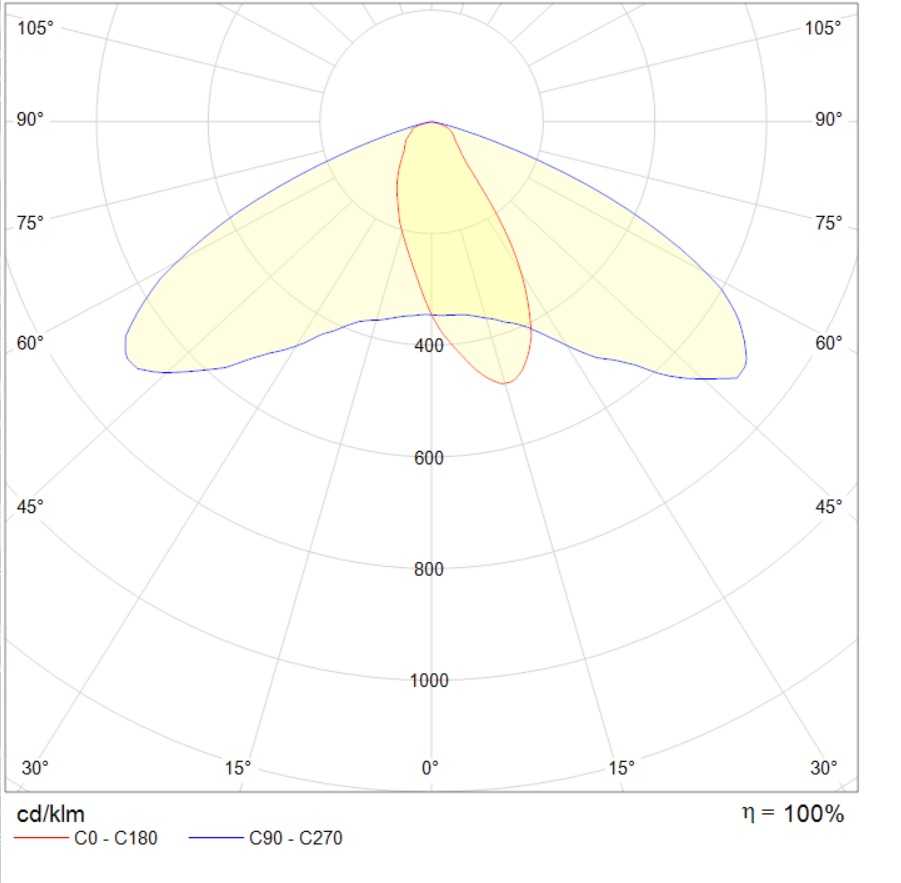

photometric files
documents
сертификаты
CAD/BIM files
CAD model 3DS688.2 kB
model 3dMax3.8 mB

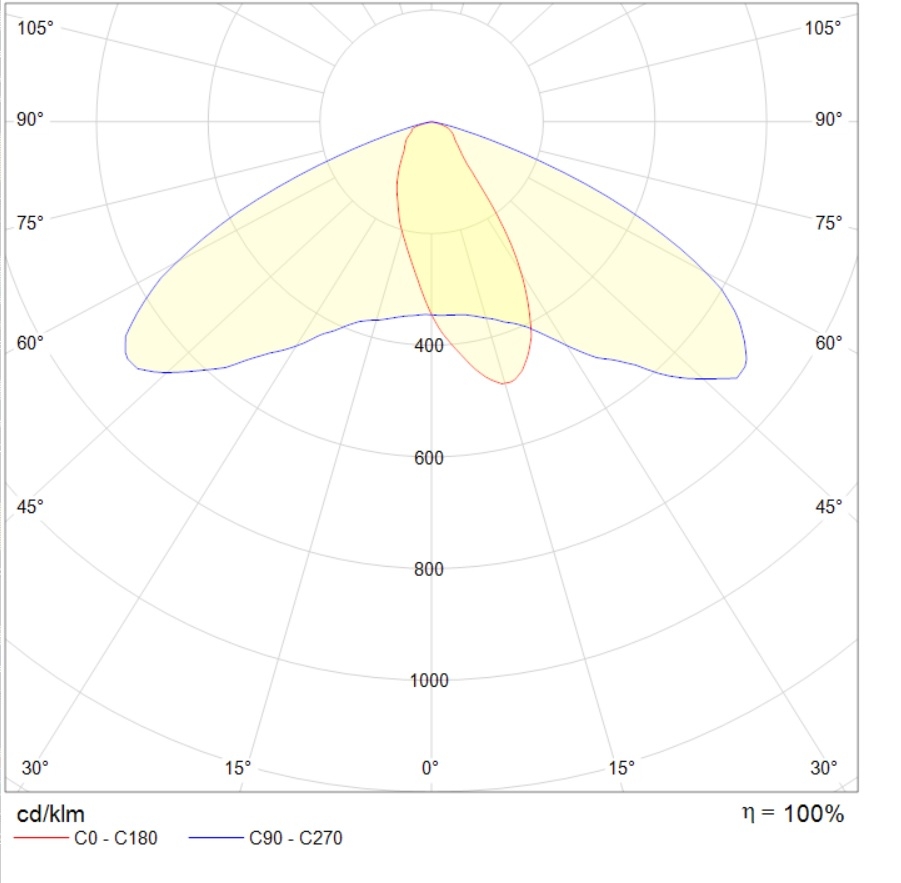

photometric files
ies107.1 kB
jpg83.9 kB
ldt61.3 kB
documents
passport4.5 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
