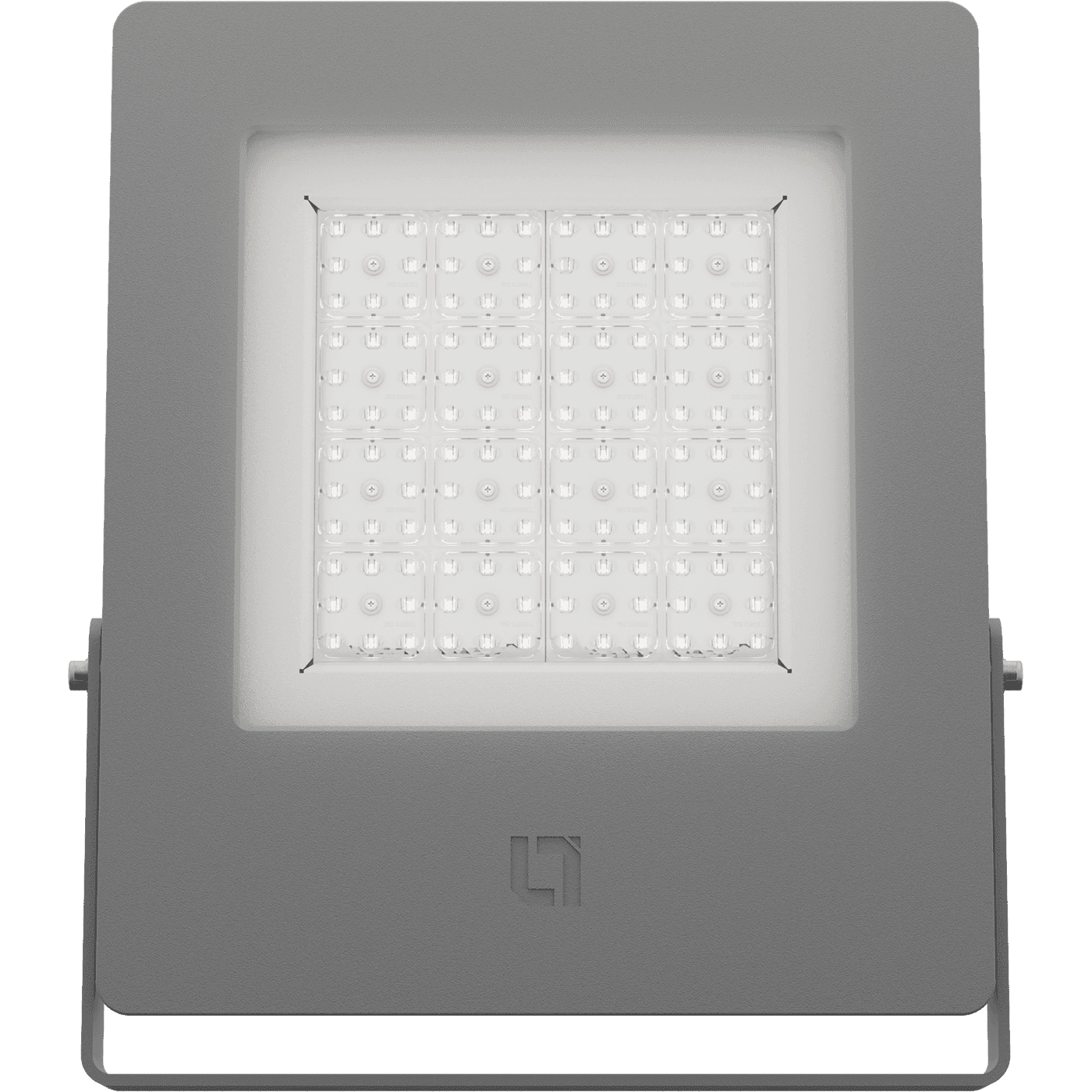

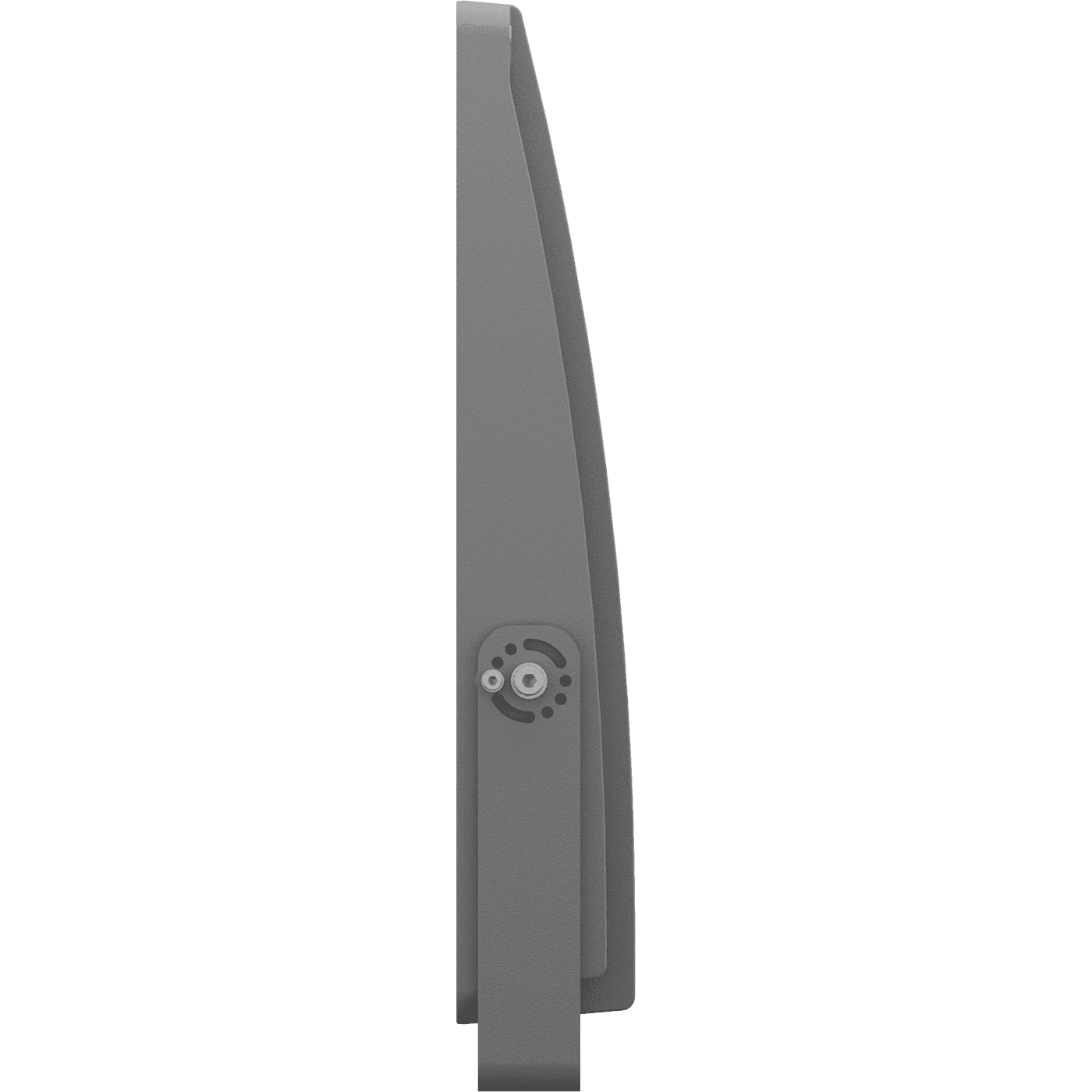

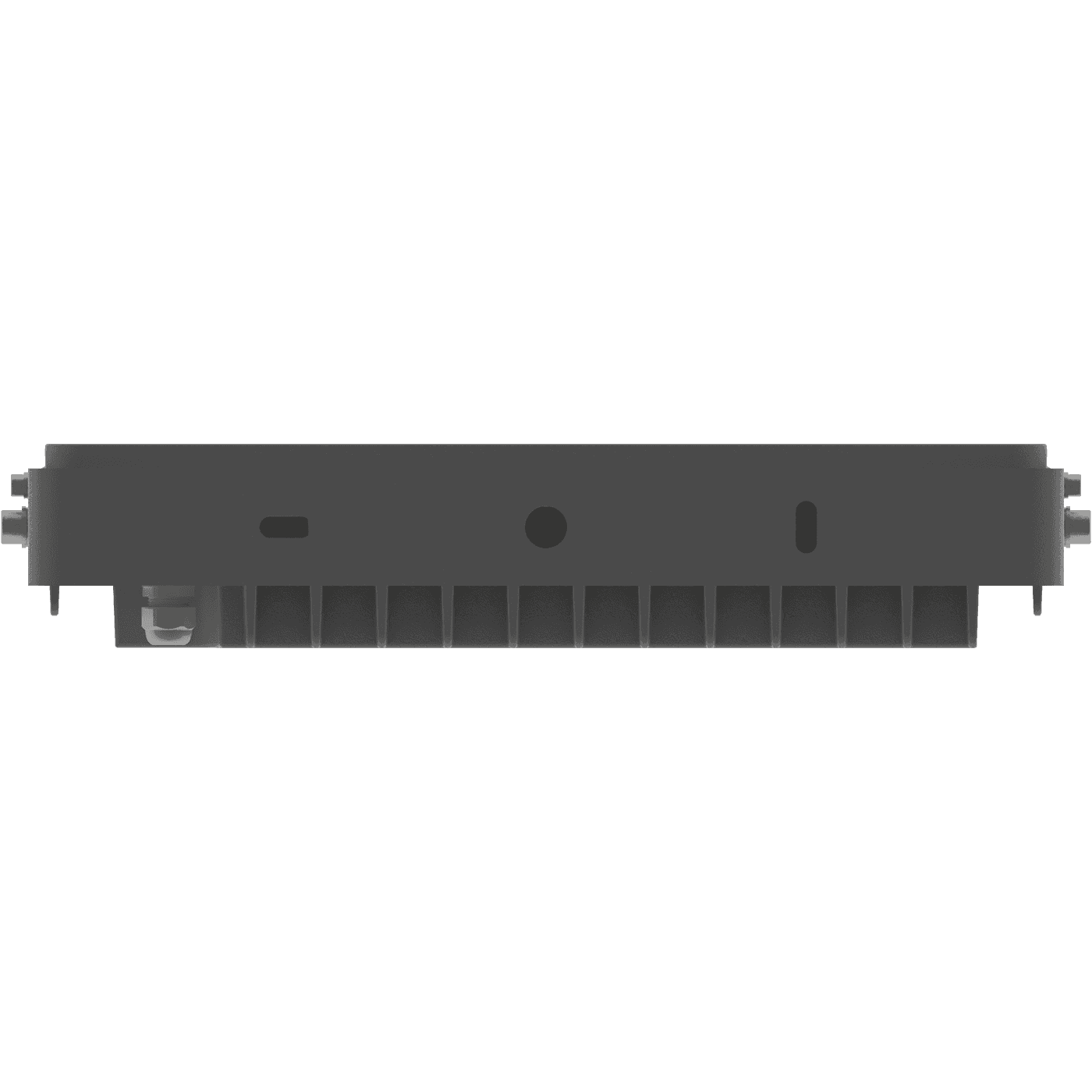

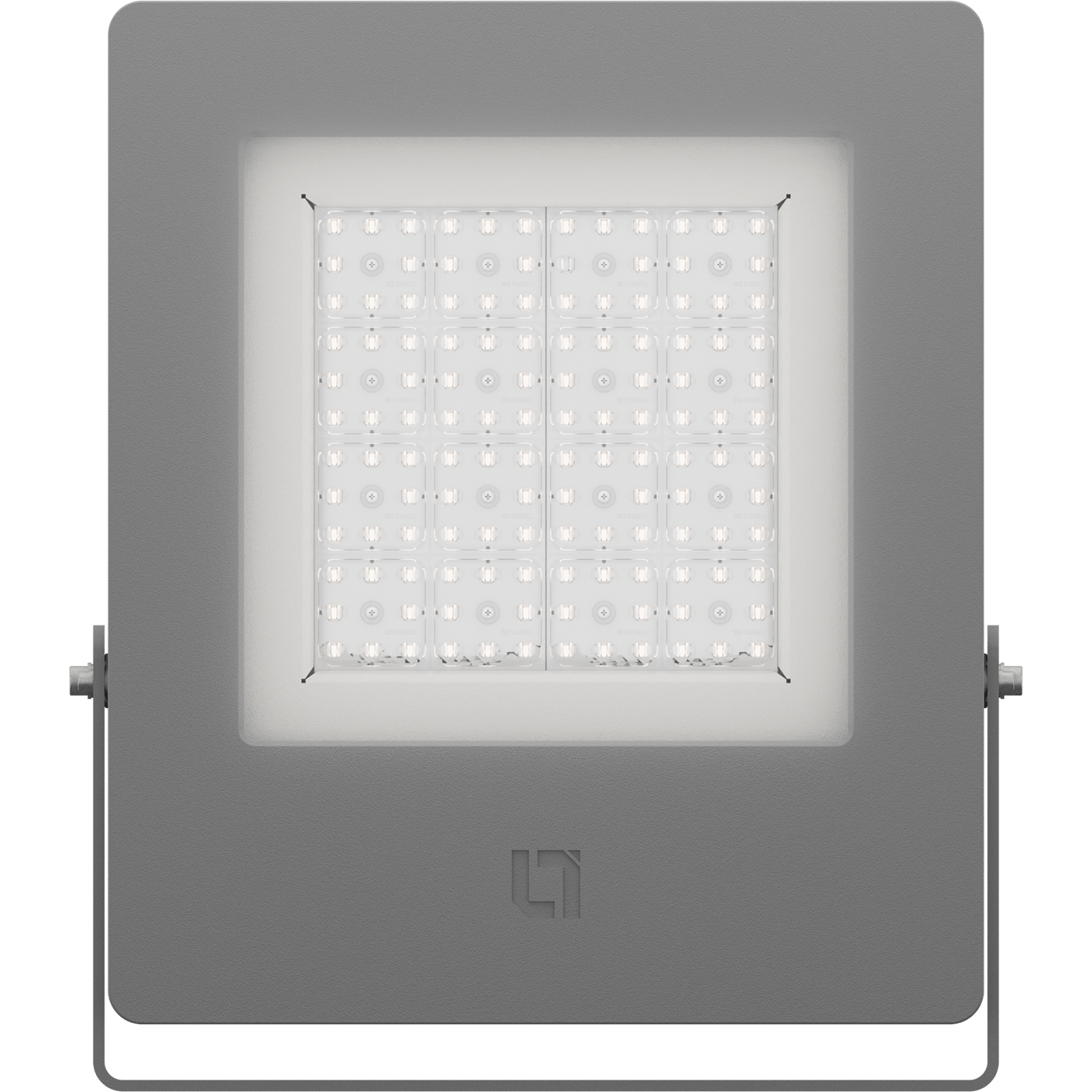

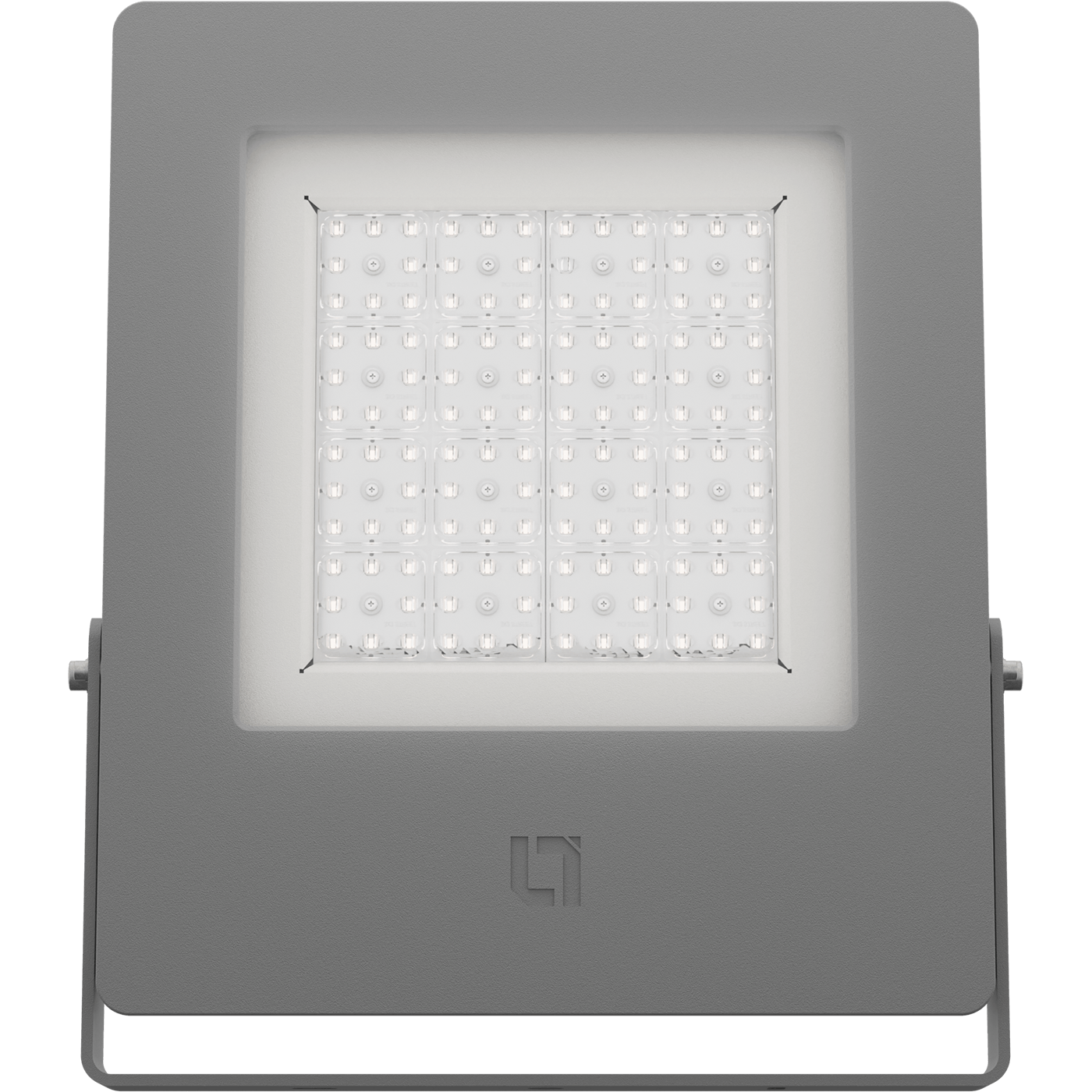

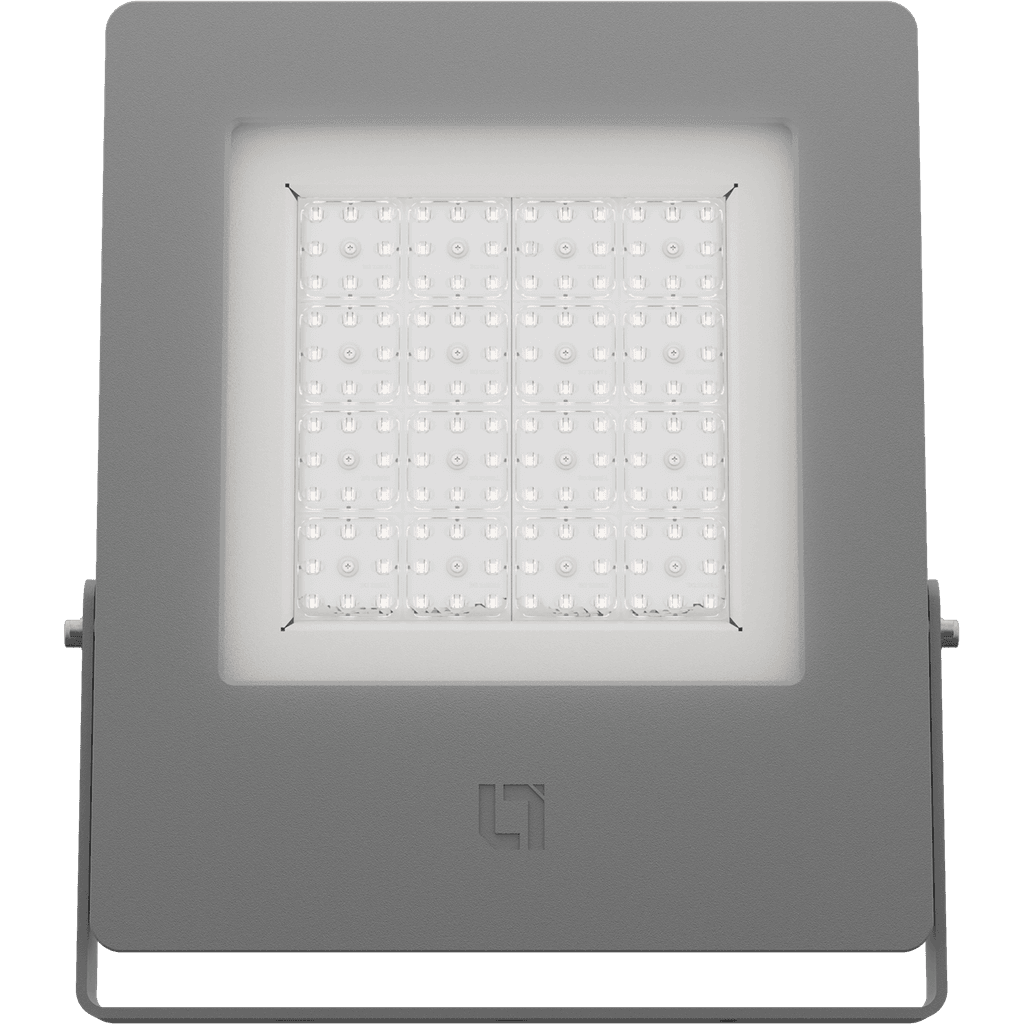

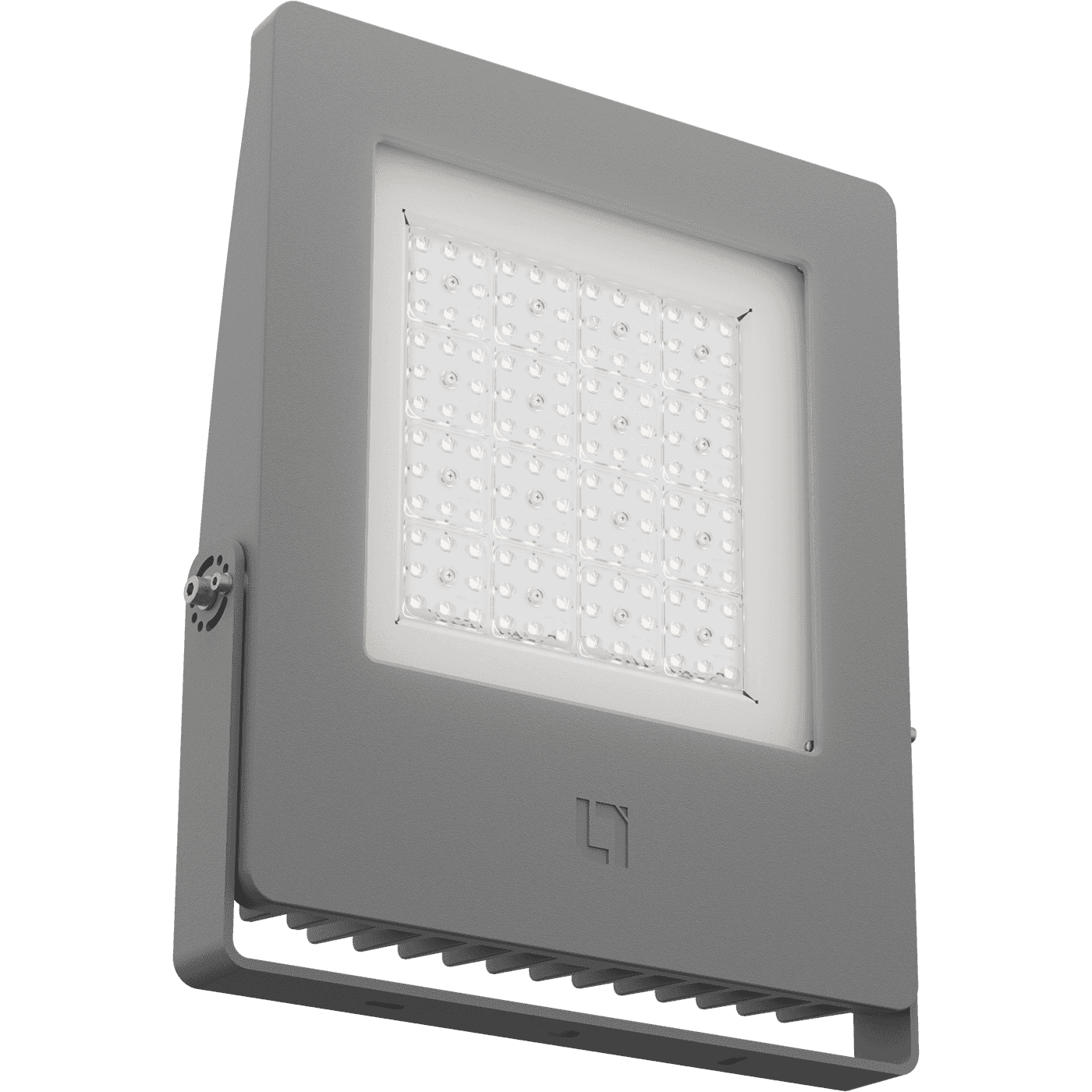

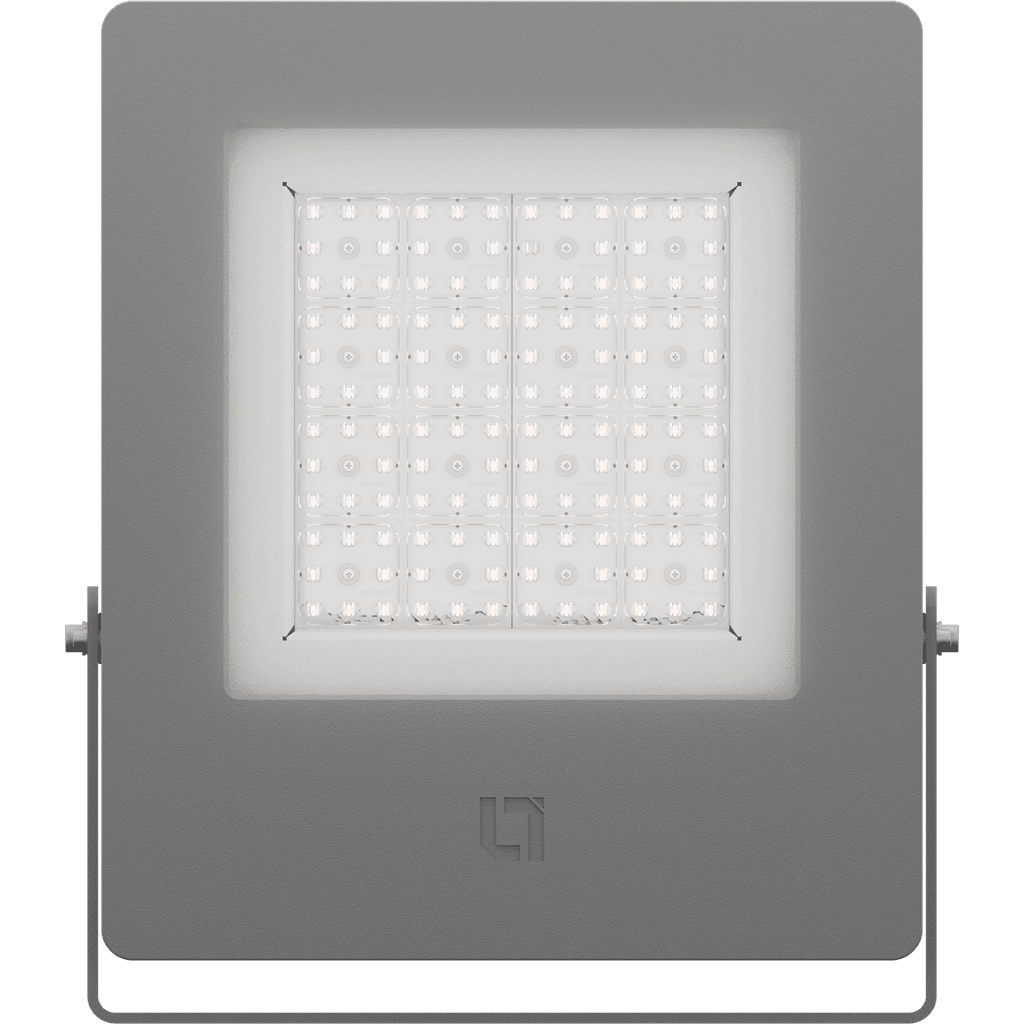

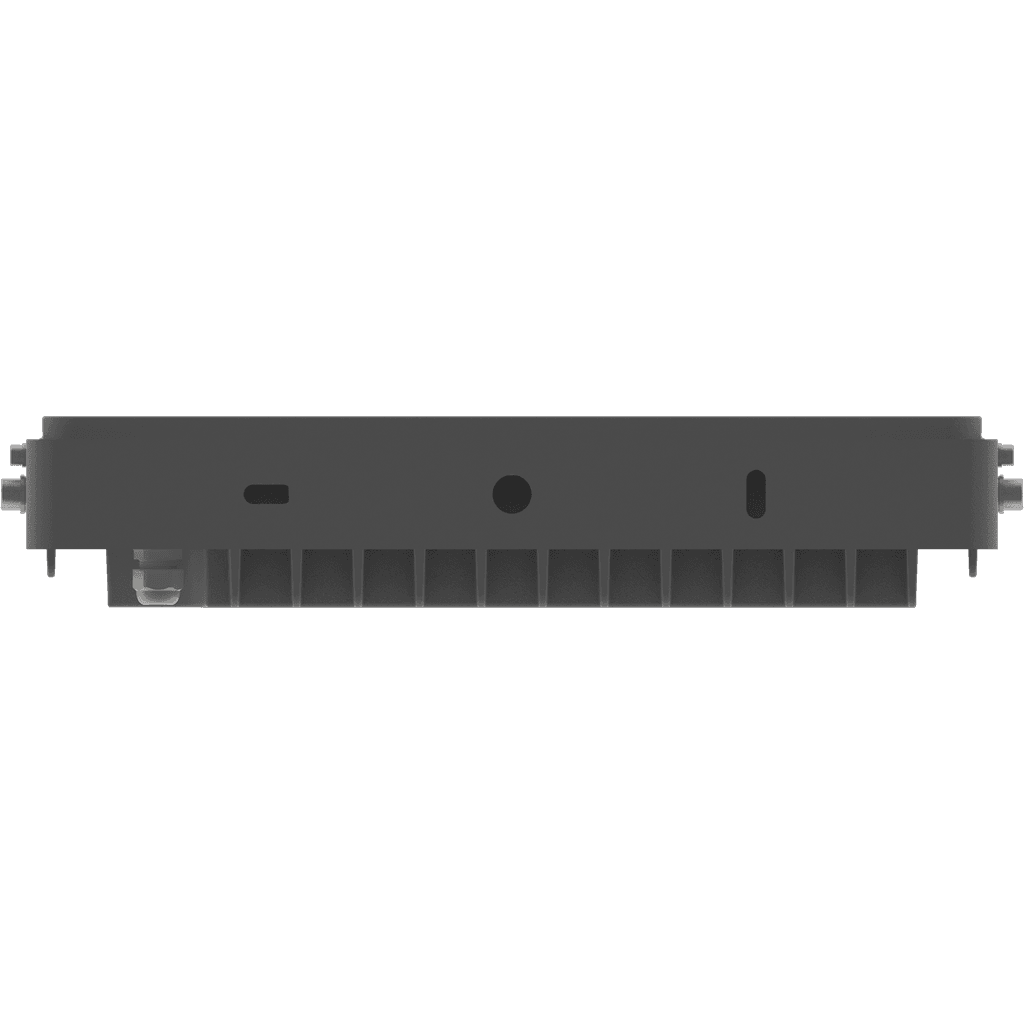

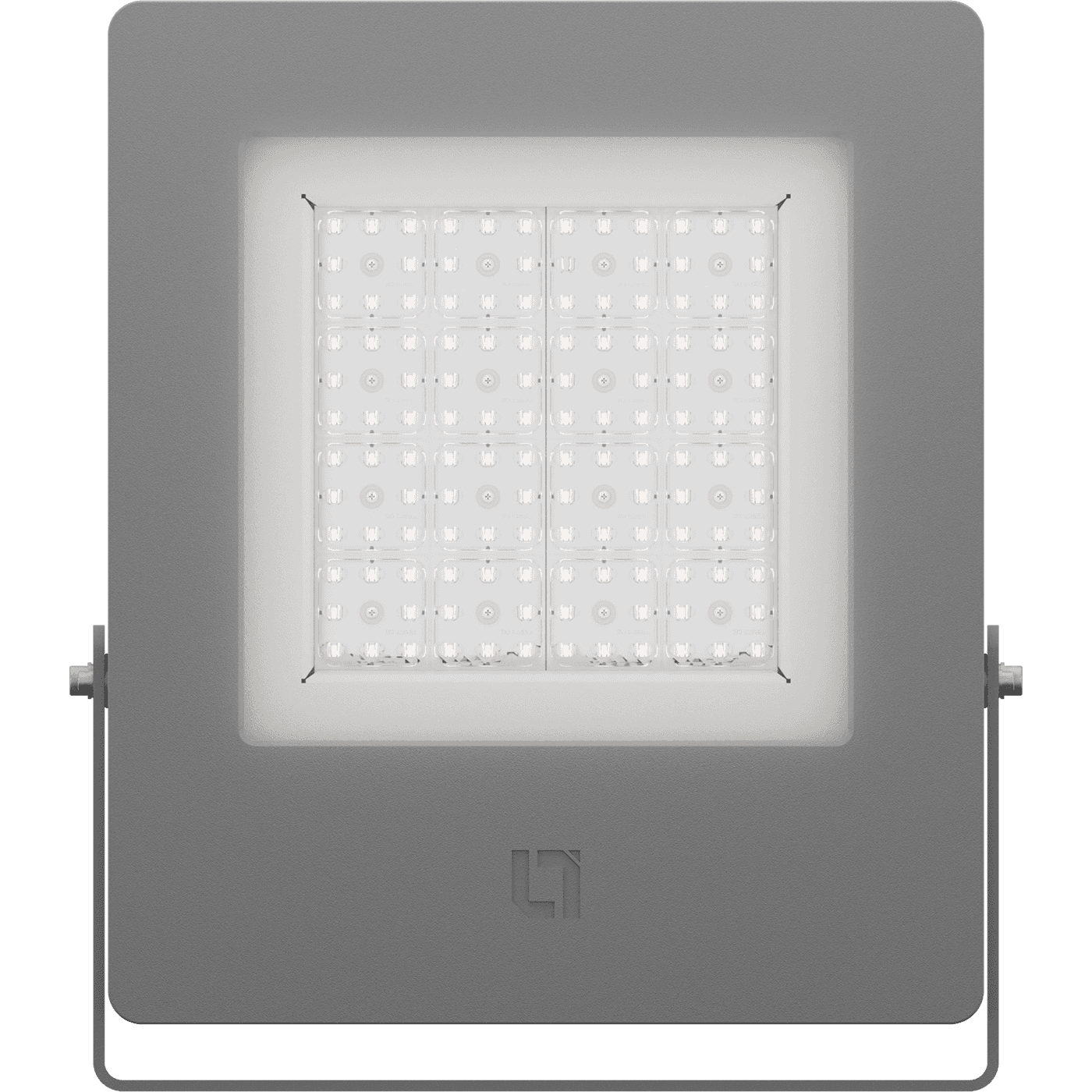

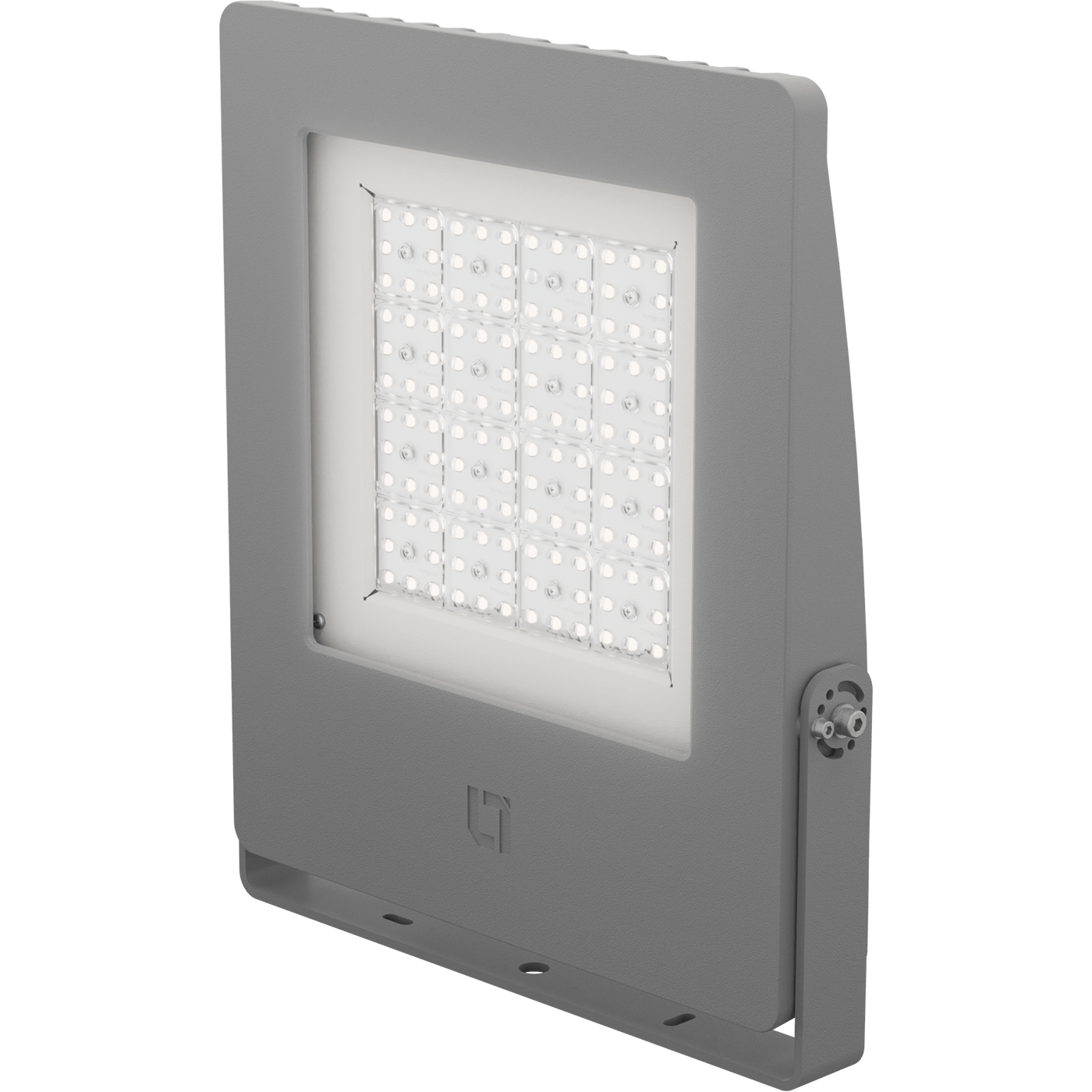

LEADER LED 100W D30 740 RAL9006 CRH

LEADER LED 100W D30 740 RAL9006 CRH
100 Wluminaire power
15000 lmlight flow
150 lm/Wenergy efficiency
code1350001770
beam angleD30
color temperature4000 K
weight4.85 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
150 lm/W
color rendition index (CRI)
>70
light flow
15000 lm
flickering factor
<5%
beam angle
D30
color temperature
4000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
150 lm/W
color rendition index (CRI)
>70
light flow
15000 lm
flickering factor
<5%
beam angle
D30
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
100 W
electric shock protection
I
supply voltage
230 V
maximum cross-section of the connected cable
2.5 mm2
power factor
> 0,95
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
width
480 mm
height
80 mm
installation length
200 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер 0-10В
length
420 mm
material
Алюминий
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
weight
4.85 kg
LMS options
dimming
0-10 V
common
code
1350001770
warranty
60 month
energy efficiency class
A++
temperature range
от -40 до +40 C
service life
50 000 h
ETIM class
Прожектор / Светильник направленного света
model files
model files

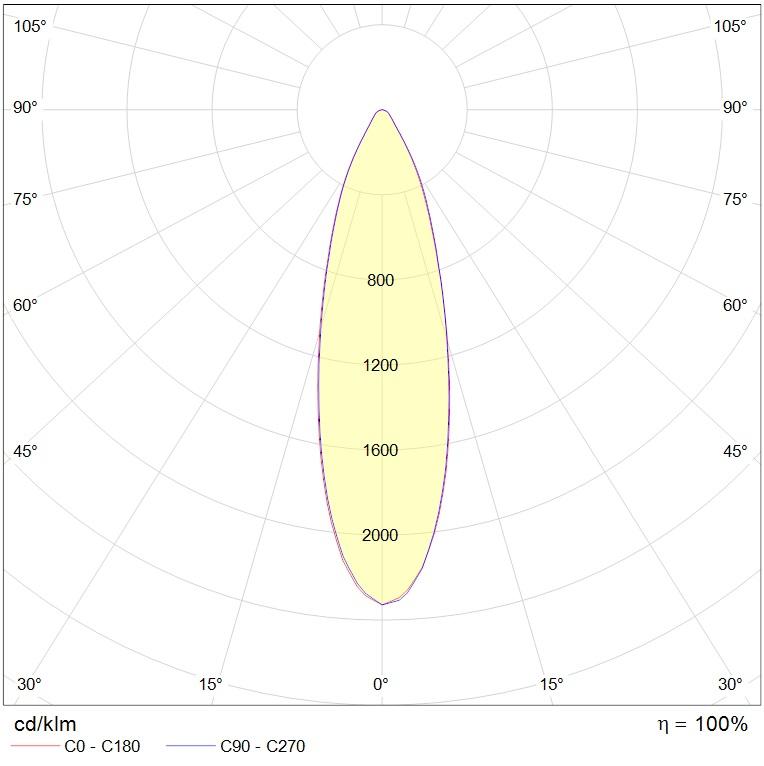

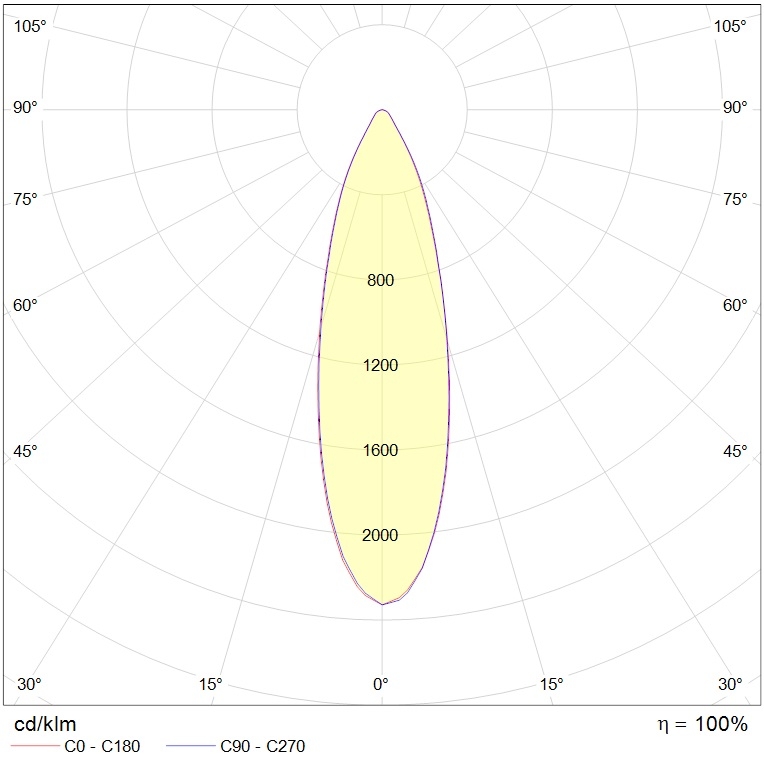

photometric files
ies107.1 kB
jpg80.5 kB
ldt64.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
photometric files
ies107.1 kB
jpg80.5 kB
ldt64.1 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20111.2 mB
Declaration of Conformity EAEU TR 037/2016505.1 kB
