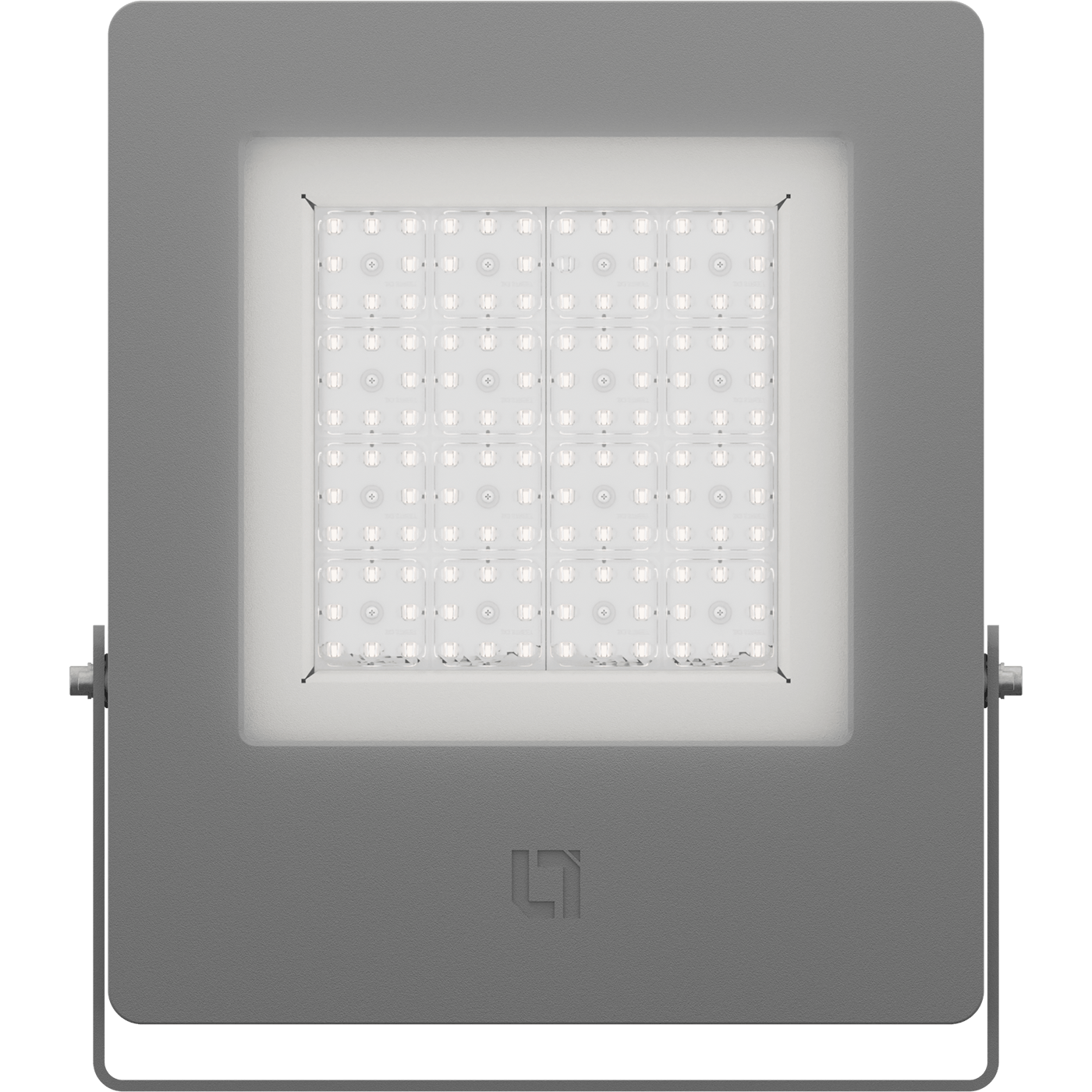

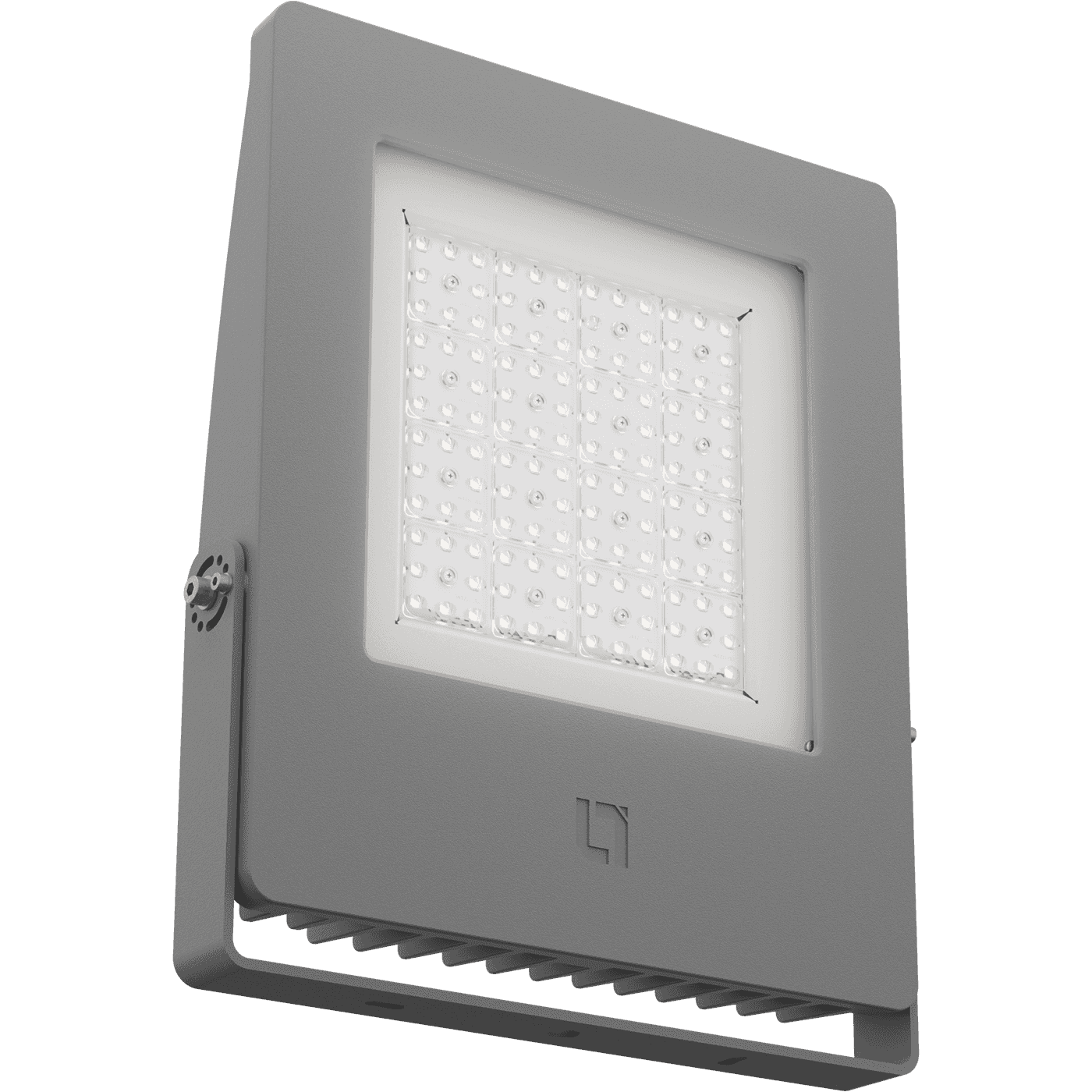

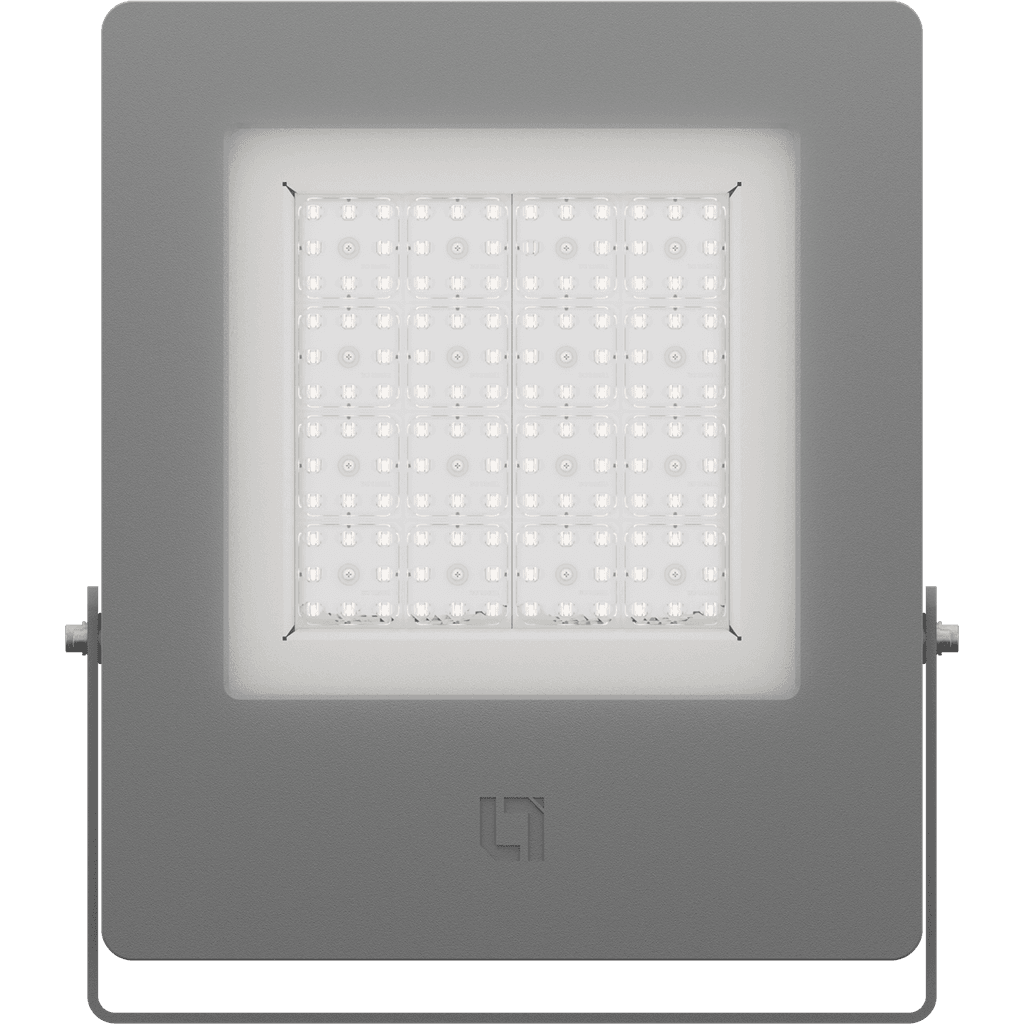

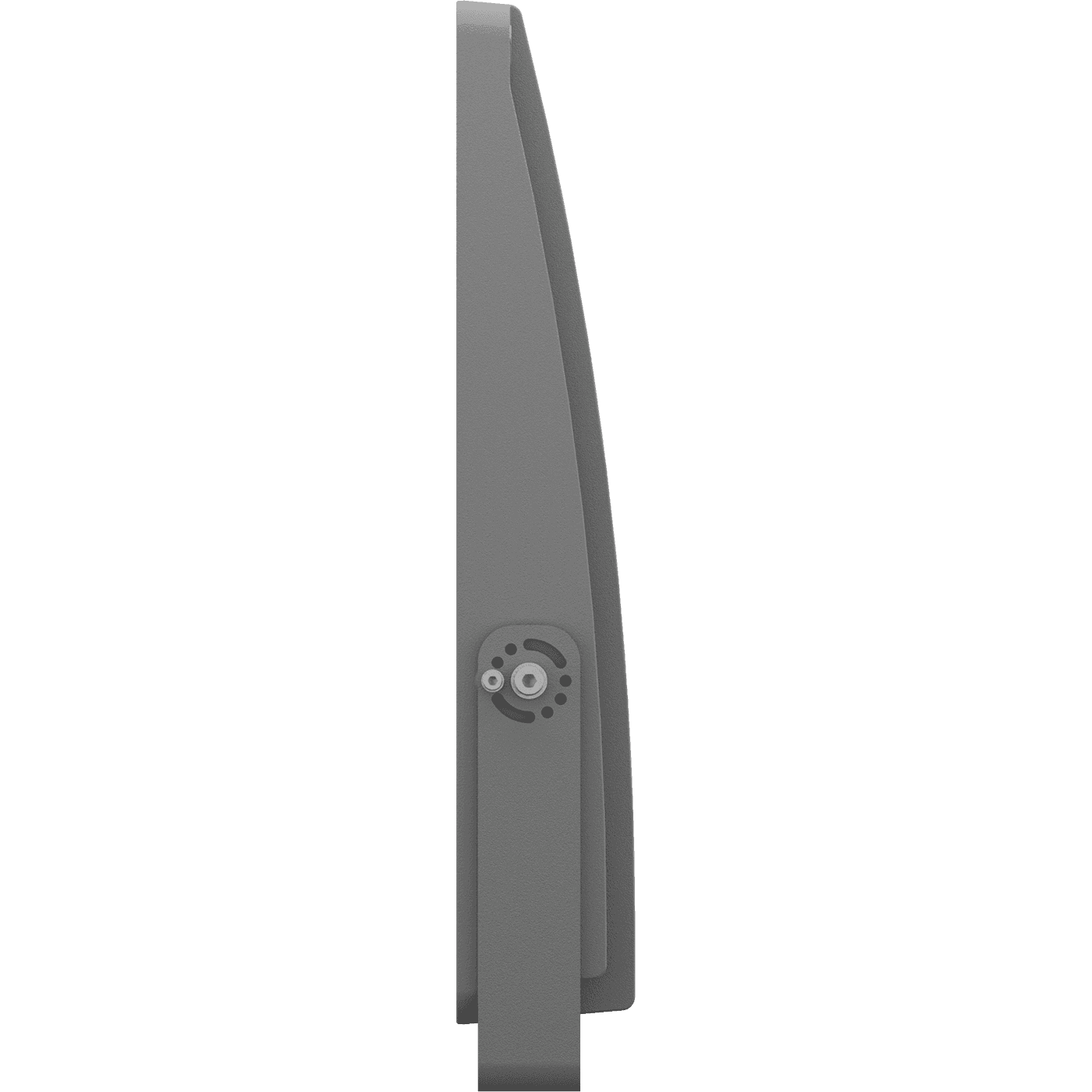

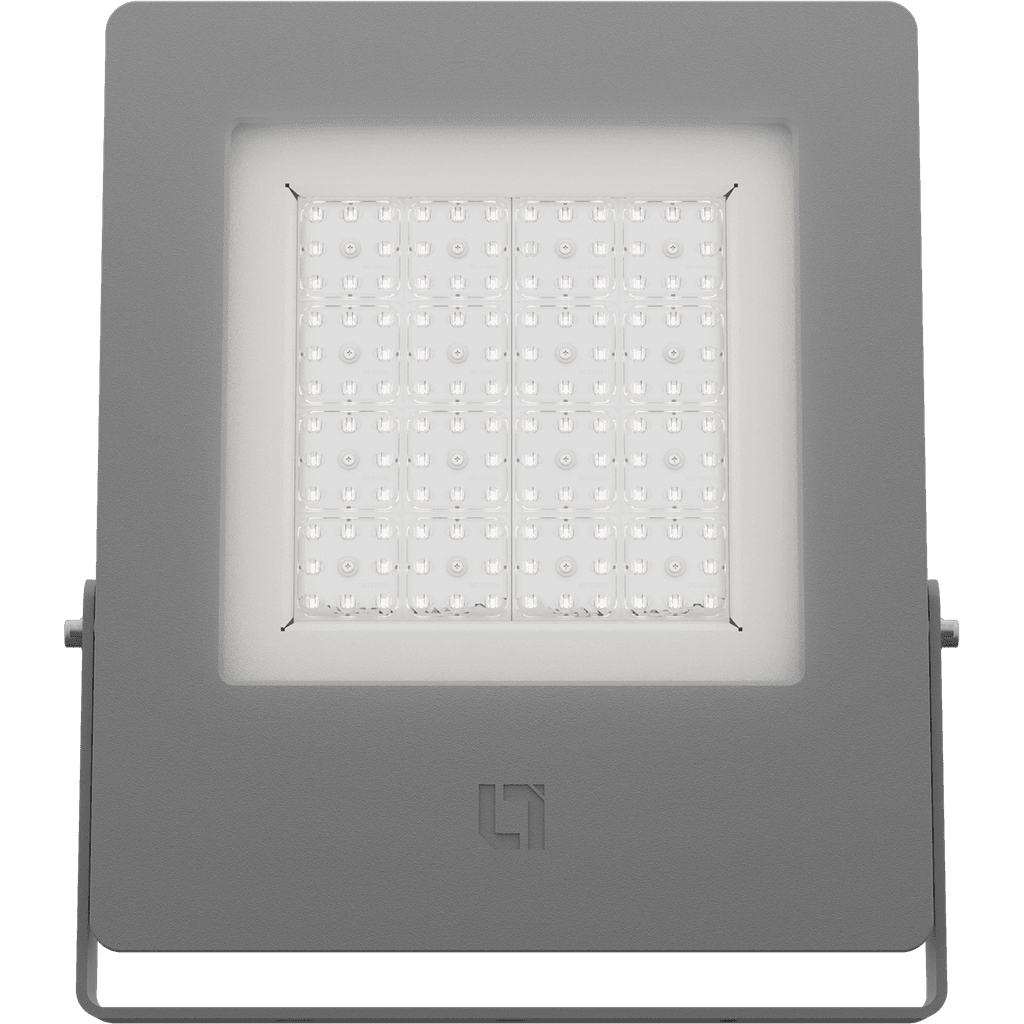

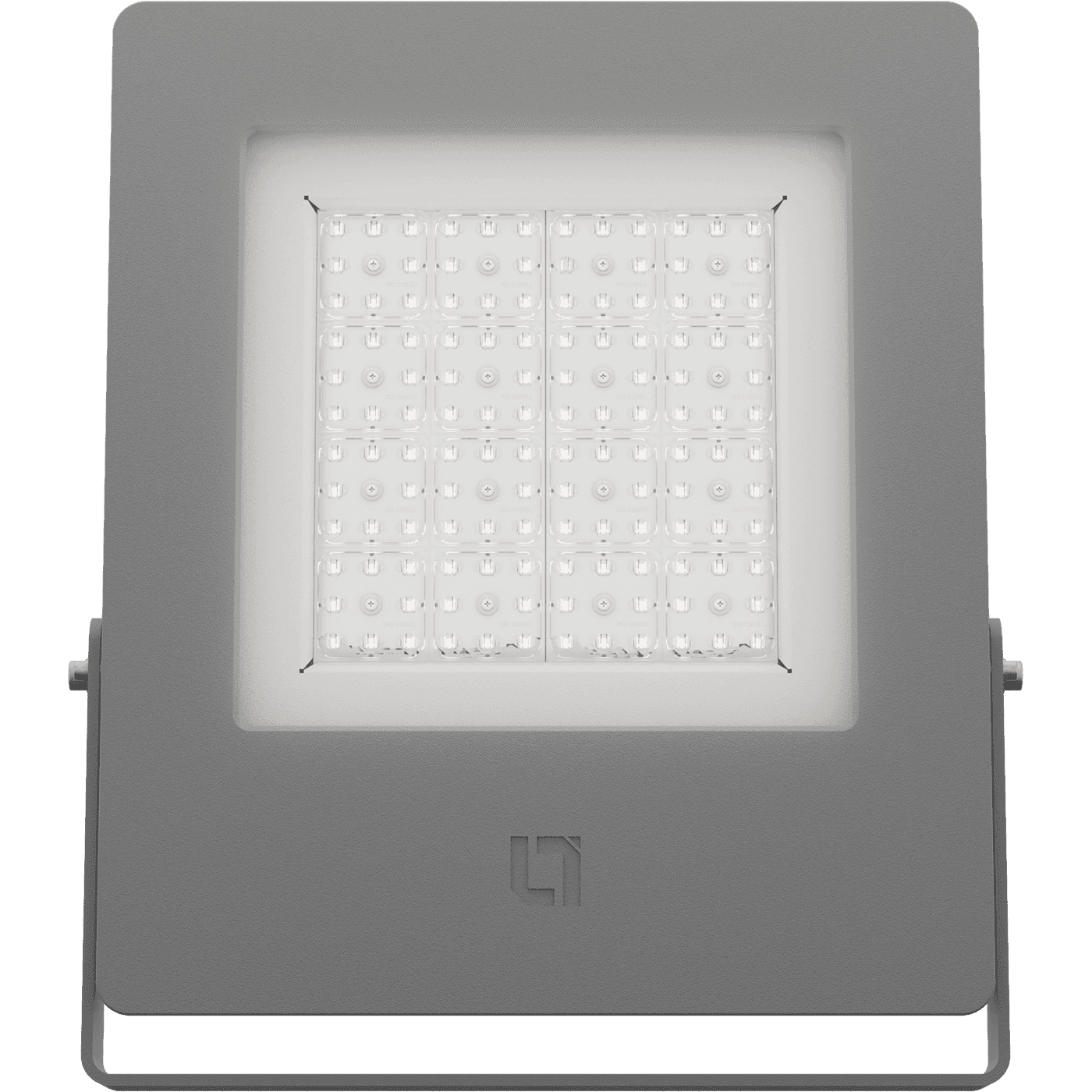

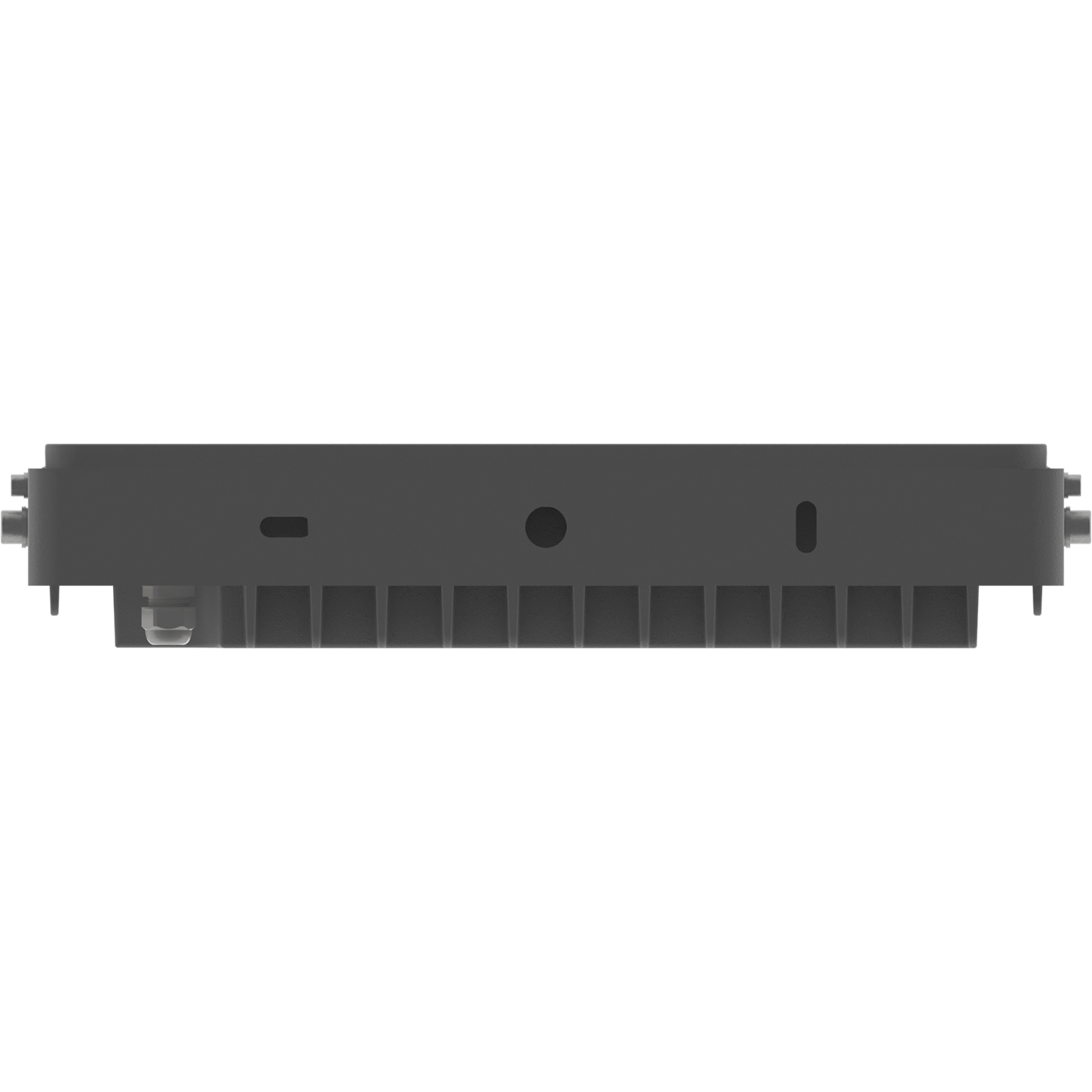

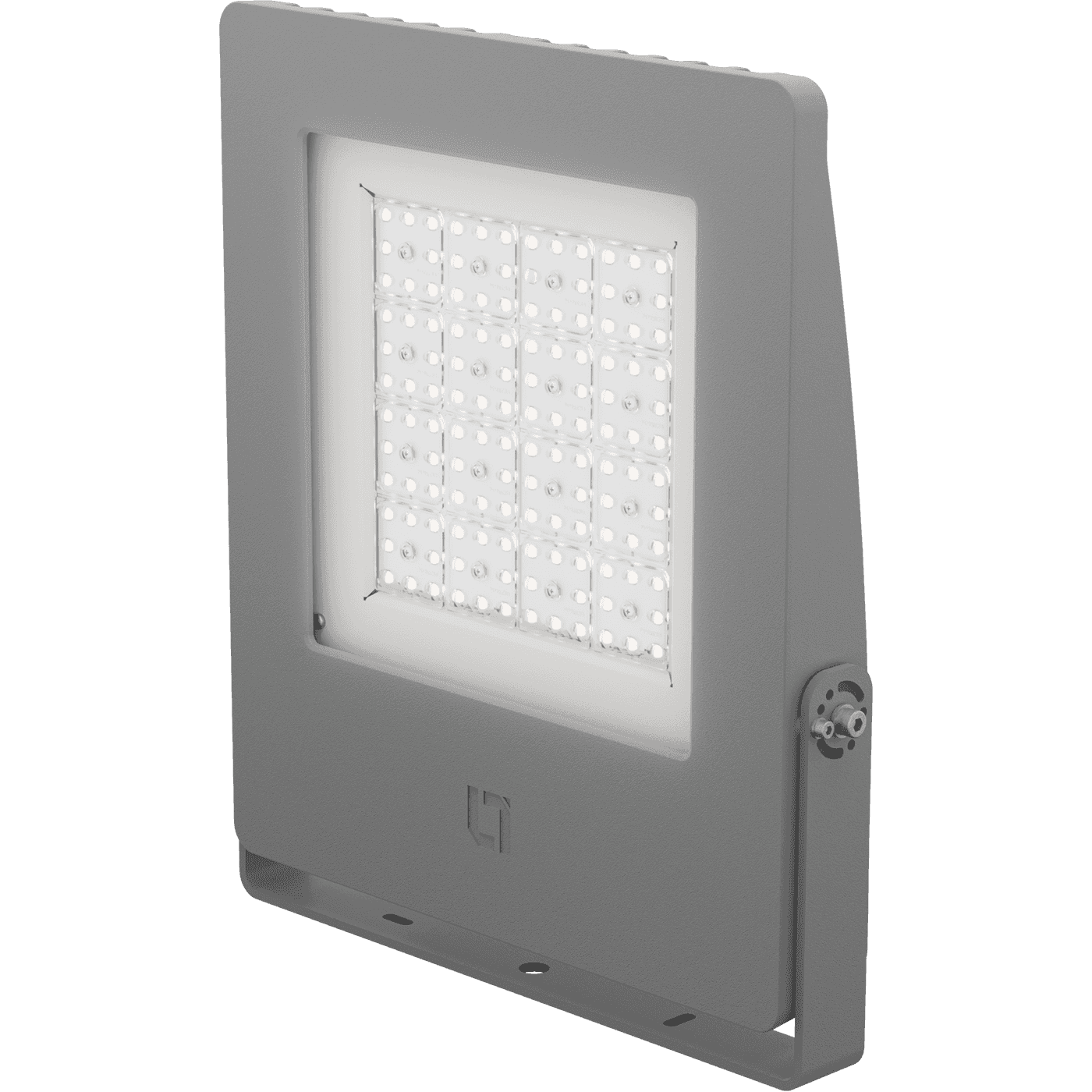

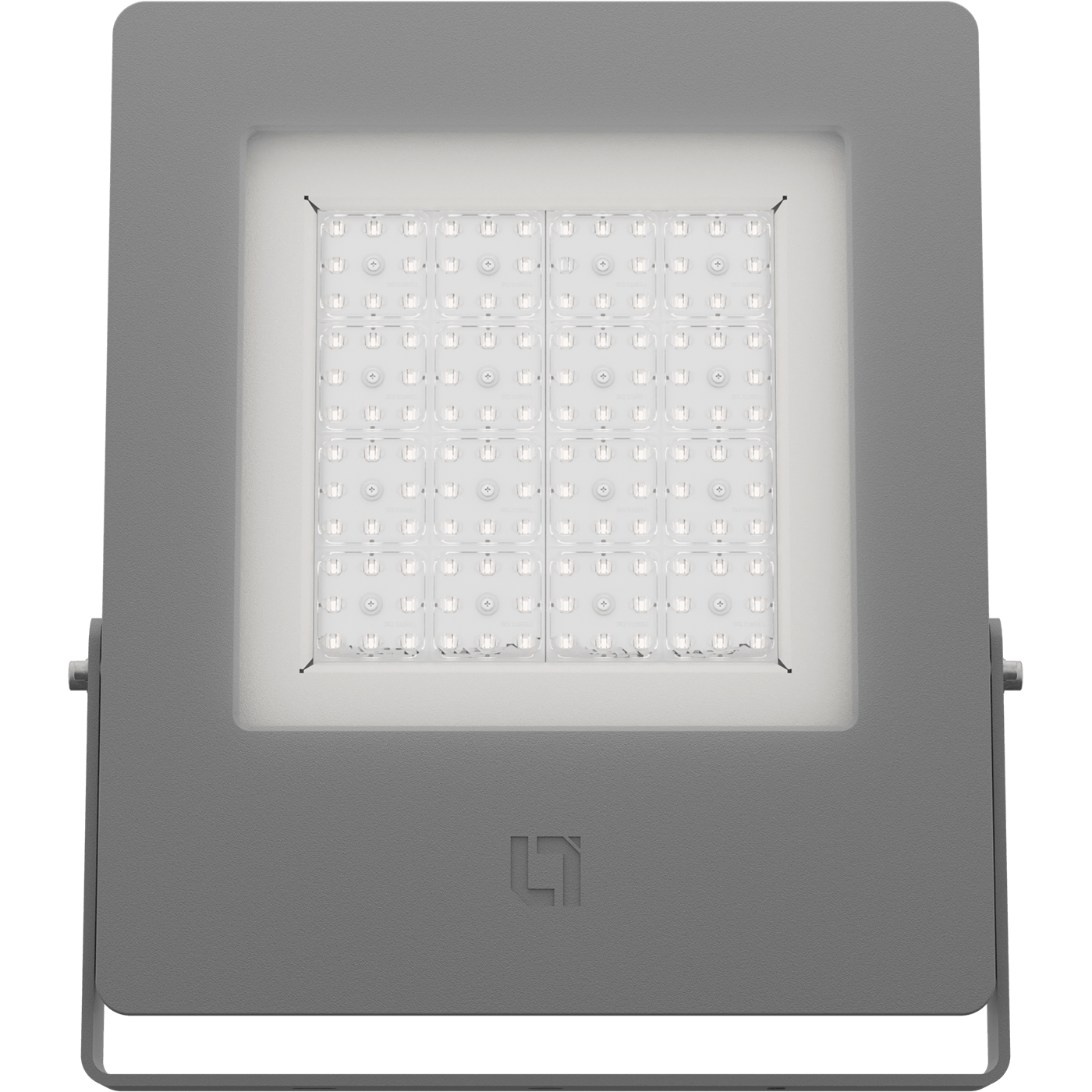

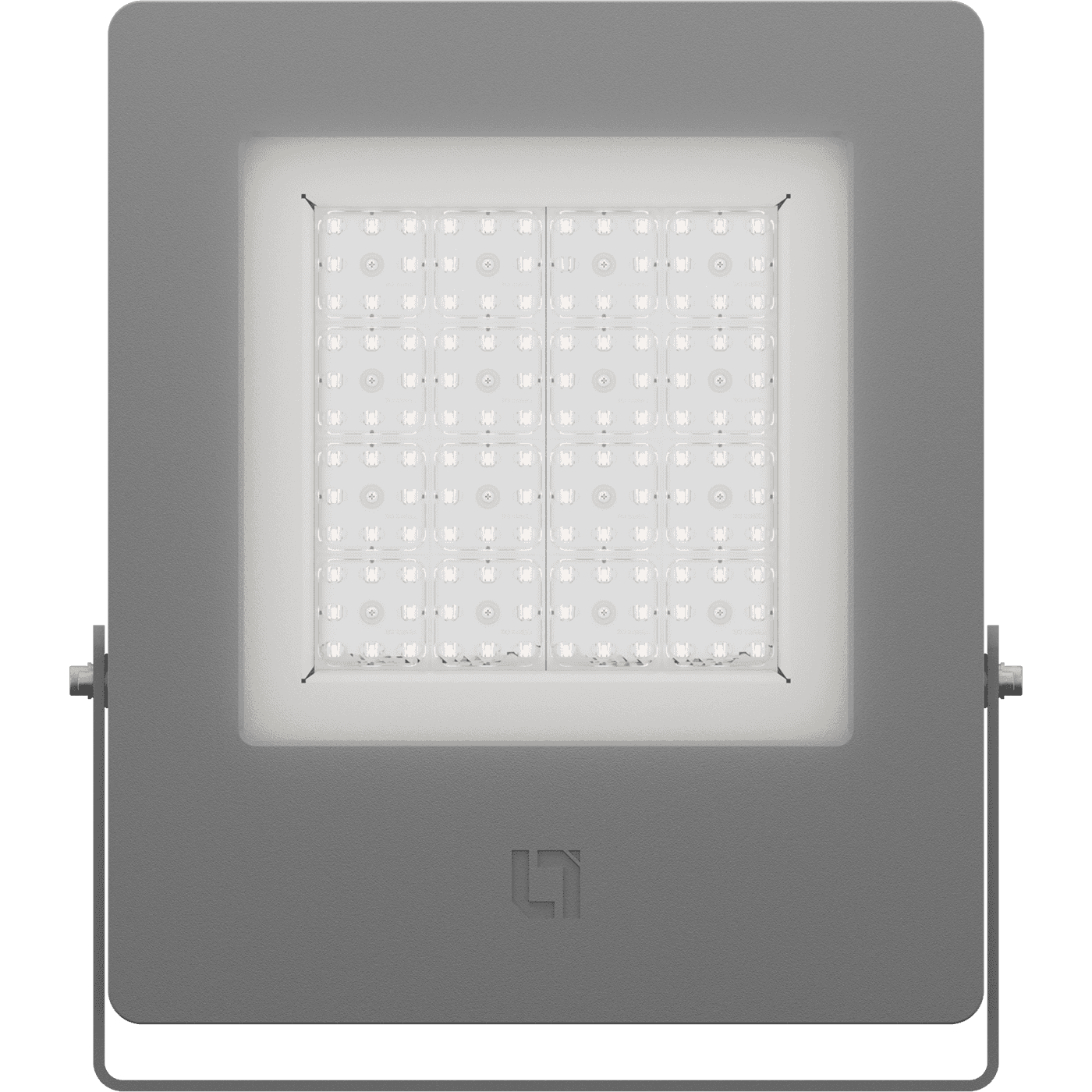

LEADER LED MARINE 100 D75 4000K
LEADER LED MARINE 100 D75 4000K
102 Wluminaire power
14800 lmlight flow
145 lm/Wenergy efficiency
code
1840000260
color temperature
4000 K
beam angle
D75
- main page
- catalog
- by product type
- special application
- shipbuilding
- LEADER LED MARINE
- LEADER LED MARINE 100 D75 4000K
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
color rendition index (CRI)
>70light flow
14800 lmenergy efficiency
145 lm/Wbeam angle
D75color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
14800 lm
energy efficiency
145 lm/W
beam angle
D75
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
luminaire power
102 W
electric shock protection
I
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
material
Алюминий
width
480 mm
height
80 mm
housing color
Серый
mounting type
length
420 mm
weight
11.1 kg
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
climatic performance
ОМ1
fire safety class
П-I,II,IIa,ІІІ
emergency
emergency power supply
Нет
common
code
1840000260
ETIM class
Прожектор / Светильник направленного света
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +45 C
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
model files
model files
сертификаты
сертификаты
Certificate of Russian maritime register of shipping1.2 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20111.4 mB
Declaration of Conformity EAEU TR 037/2016555.9 kB
