KVARTA LED 8W D40 830 SL DALI
model is discontinued
model is discontinued
KVARTA LED 8W D40 830 SL DALI
8 Wluminaire power
750 lmlight flow
94 lm/Wenergy efficiency
code1100200110
beam angleD40
color temperature3000 K
weight1.6 kg
options
свернуть все
illuminatingelectricalconstructionalLMS optionscommon
energy efficiency
94 lm/Wcolor rendition index (CRI)
>80light flow
750 lmflickering factor
<5%beam angle
D40color temperature
3000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
94 lm/W
color rendition index (CRI)
>80
light flow
750 lm
flickering factor
<5%
beam angle
D40
color temperature
3000 K
light source type
LED
emission color
Белый
electrical
luminaire power
8 W
electric shock protection
I
rated supply voltage, alternating current
230 V
supply voltage
230 V
maximum cross-section of the connected cable
1.5 mm2
power factor
> 0,75
constructional
climatic performance
УХЛ1*

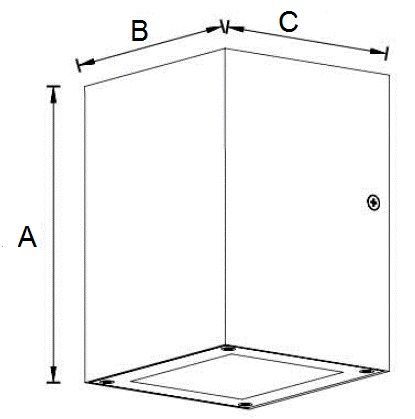

width
100 mm
height
90 mm
housing color
Металлик
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
length
130 mm
material
Алюминий
ingress protection (IP)
IP65
shock resistance (IK)
IK02/0,2 Дж
weight
1.6 kg
LMS options
dimming
DALI
common
code
1100200110
warranty
36 month
energy efficiency class
A+
temperature range
от -20 до +40 C
service life
50 000 h
ETIM class
Настенно-потолочный светильник
model files
model files
сертификаты
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
