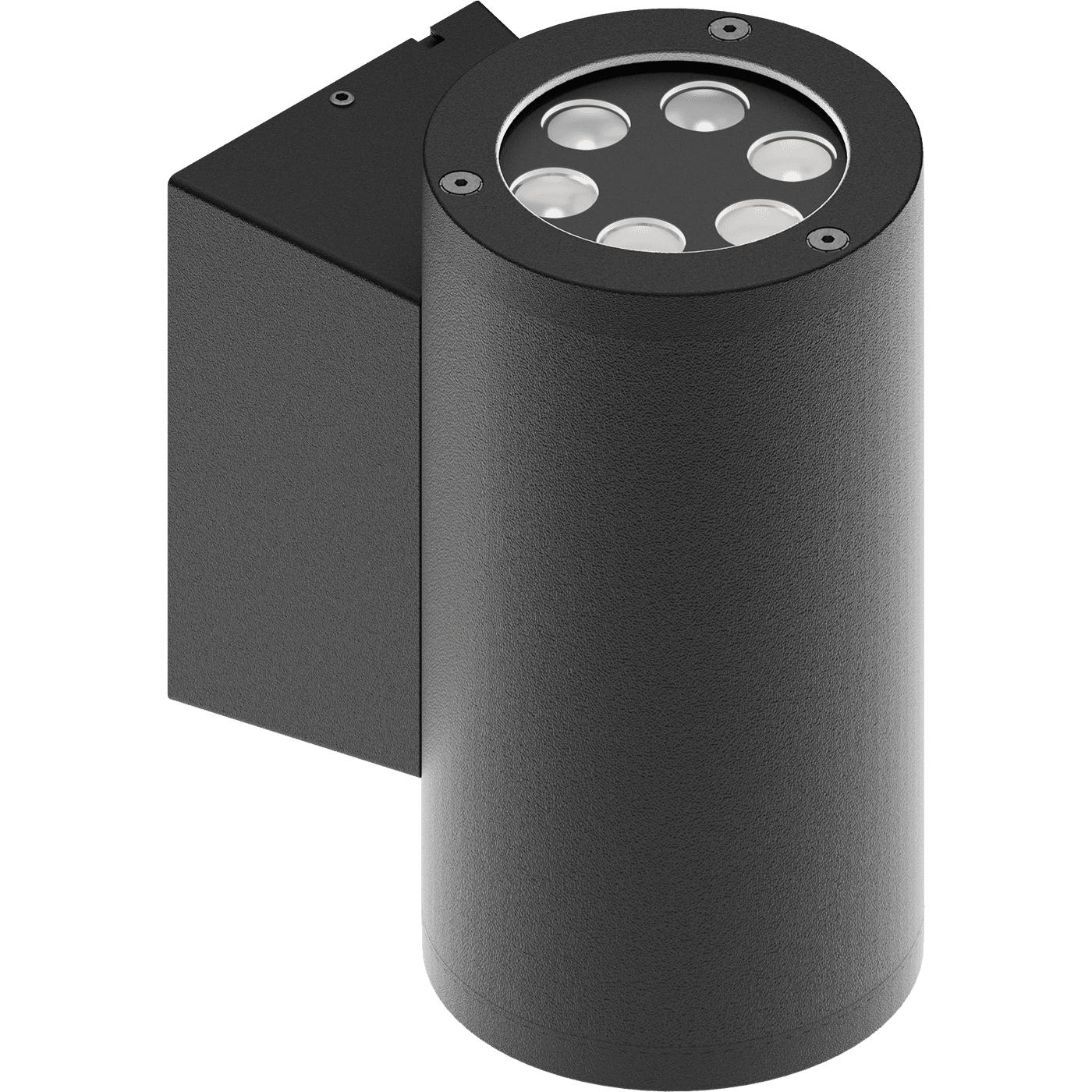

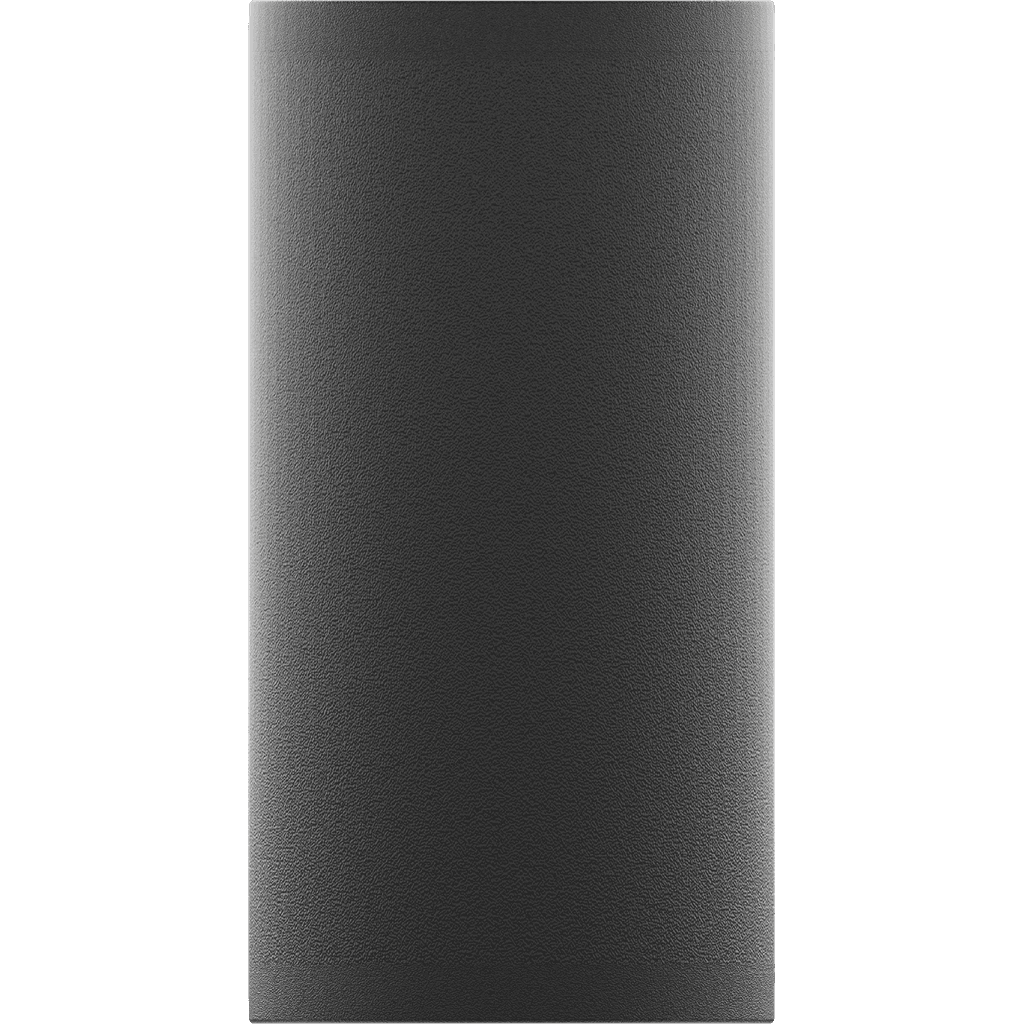

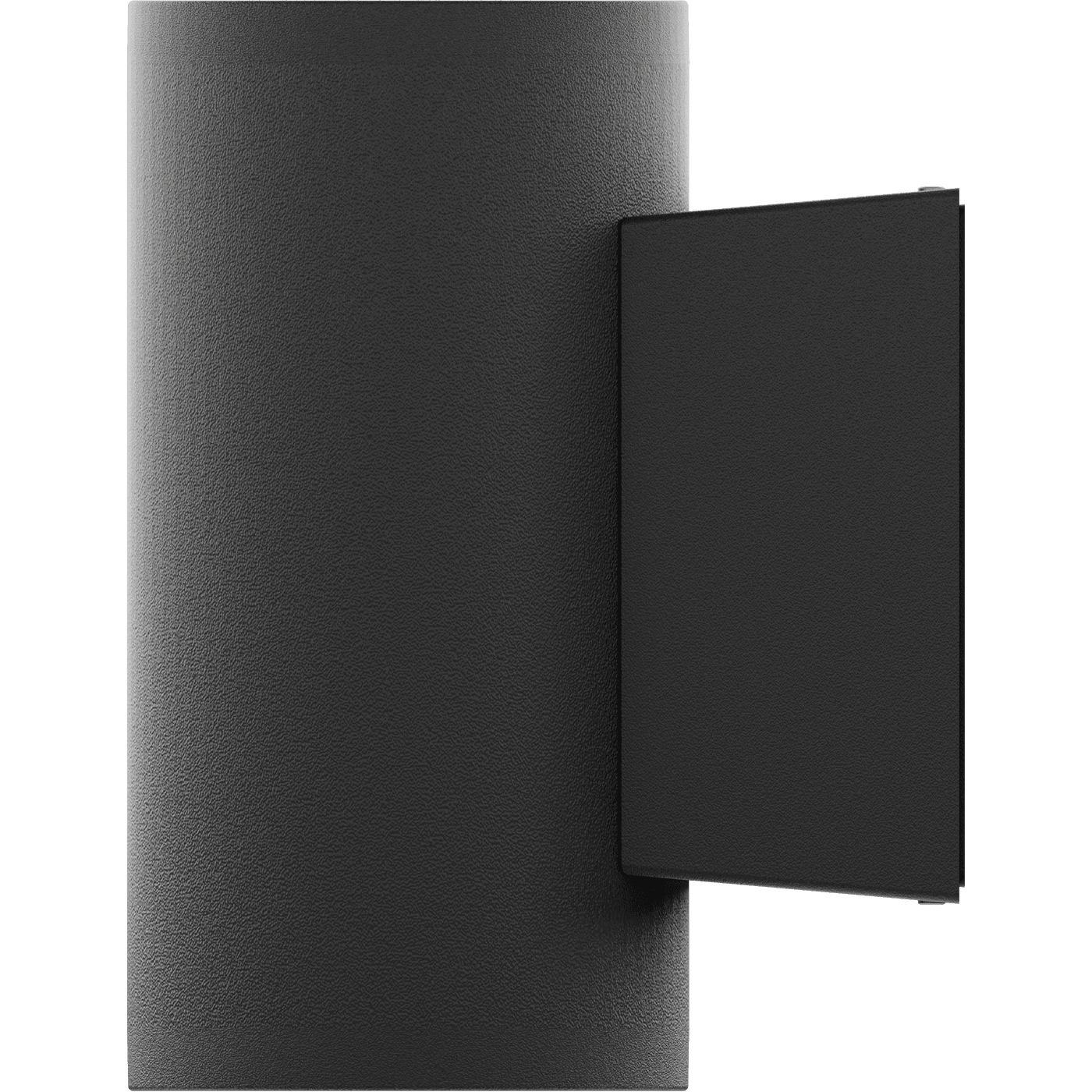

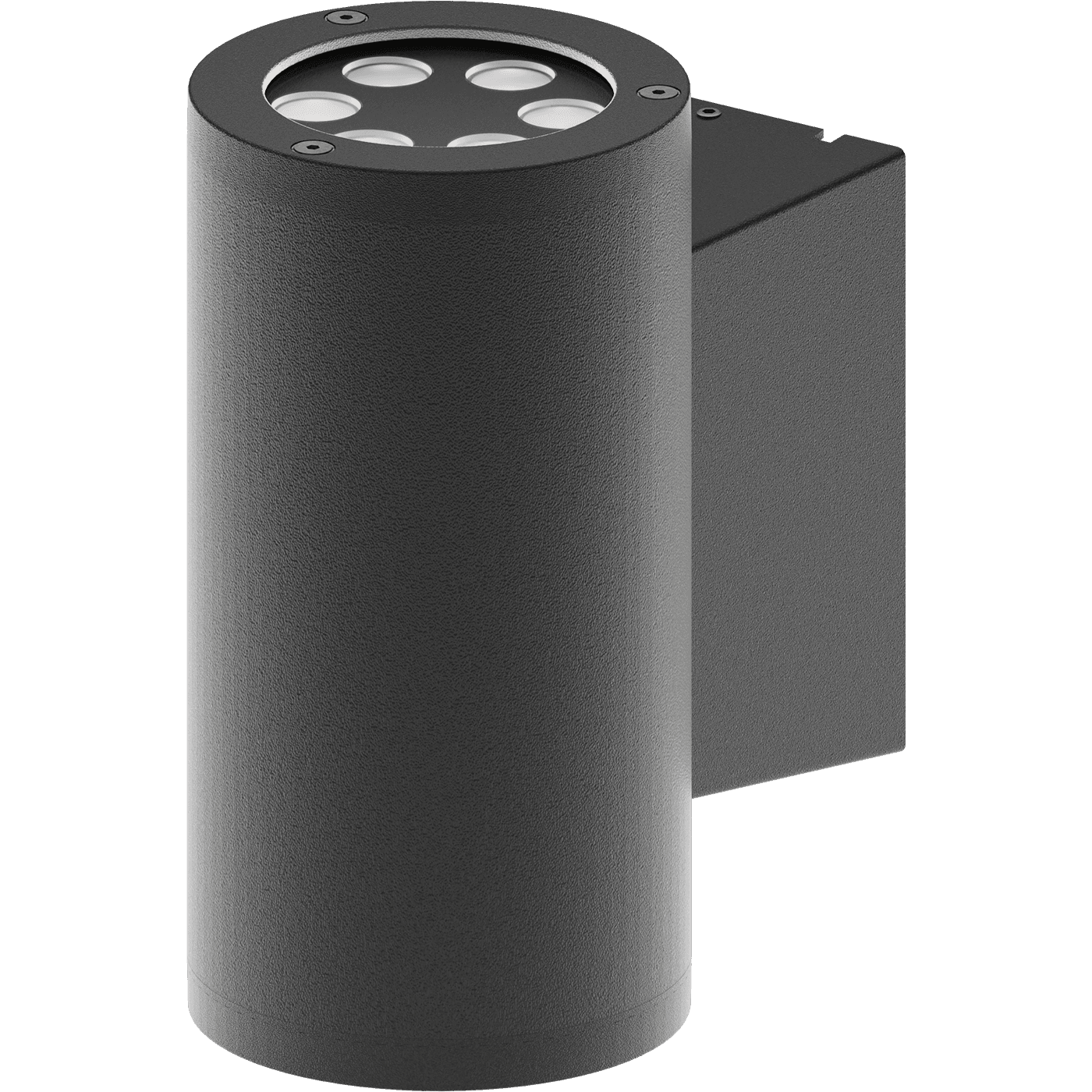

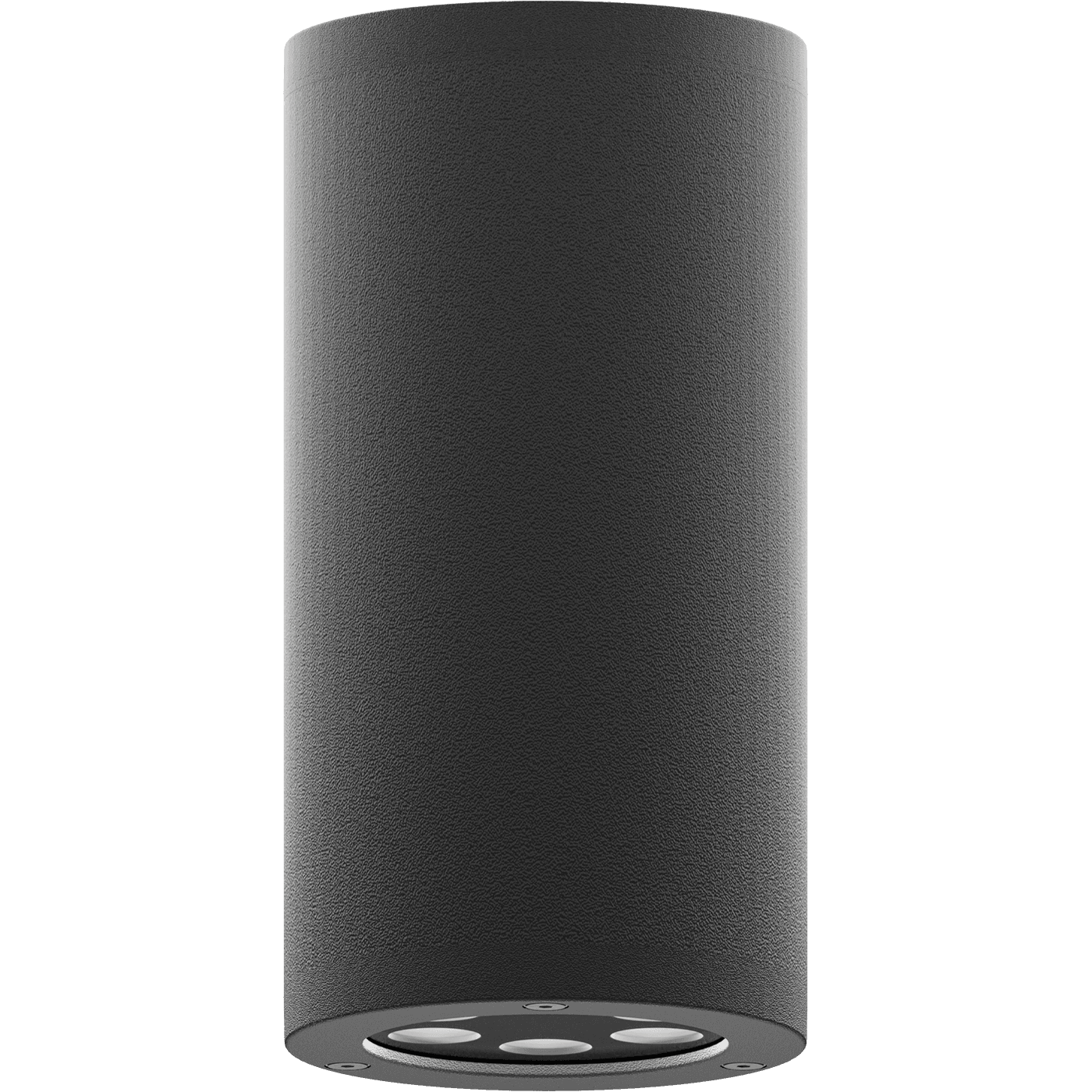

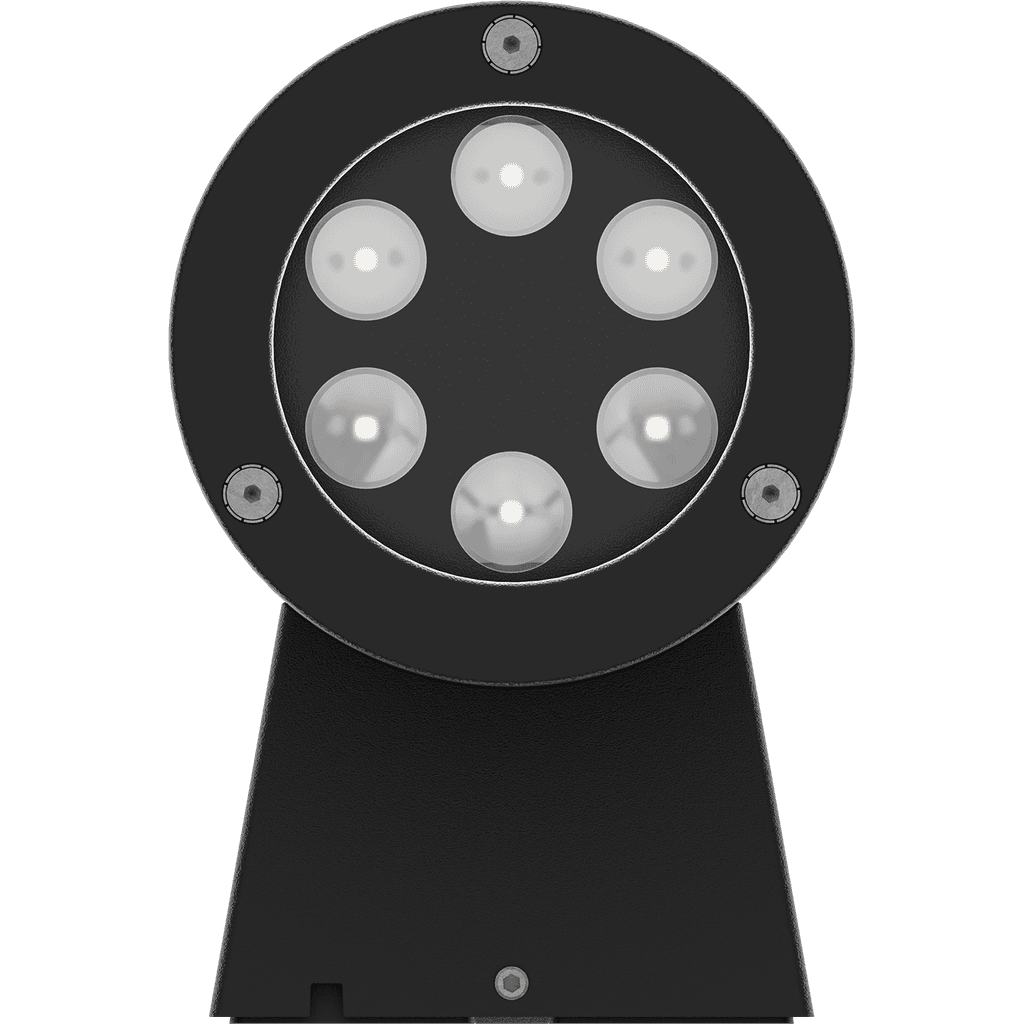

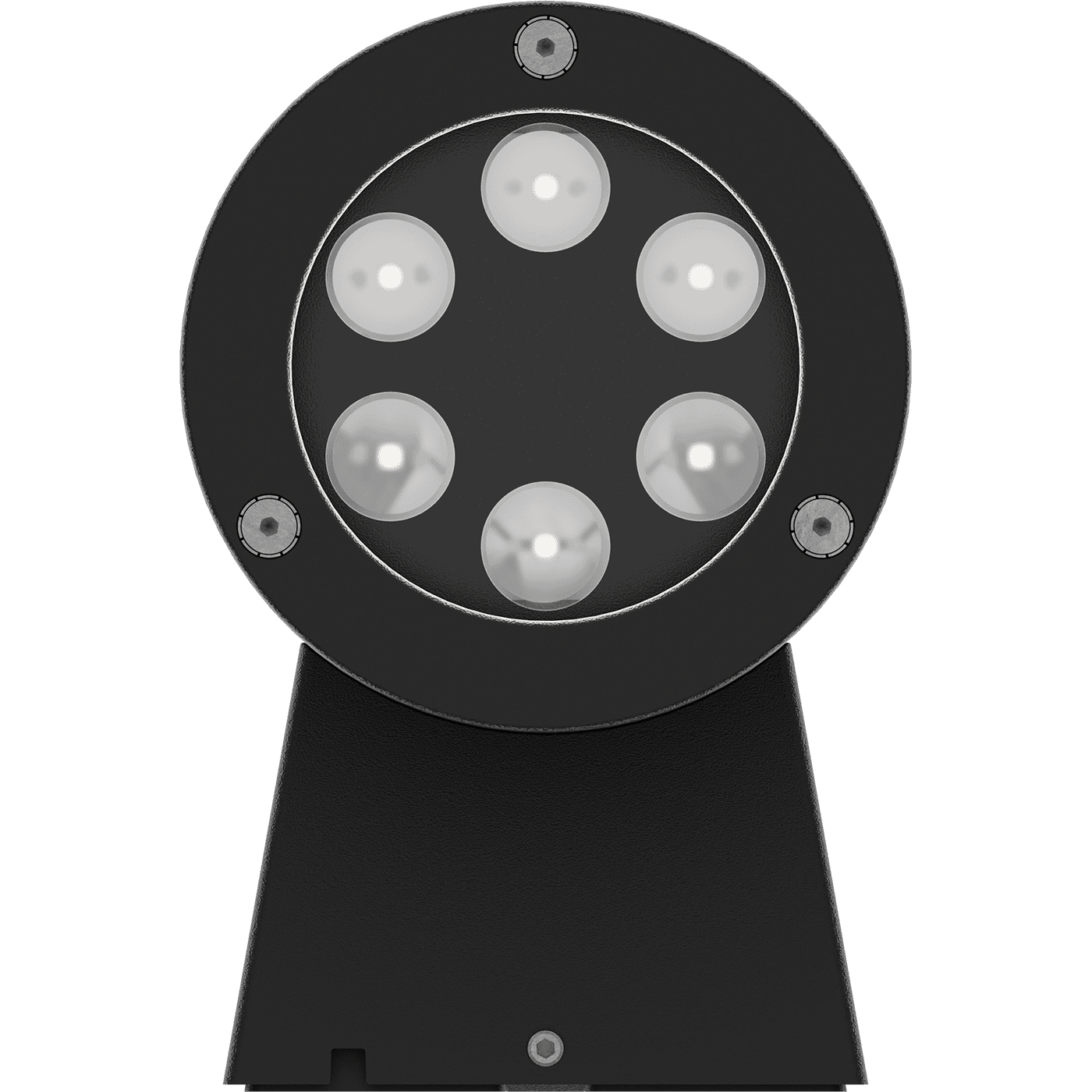

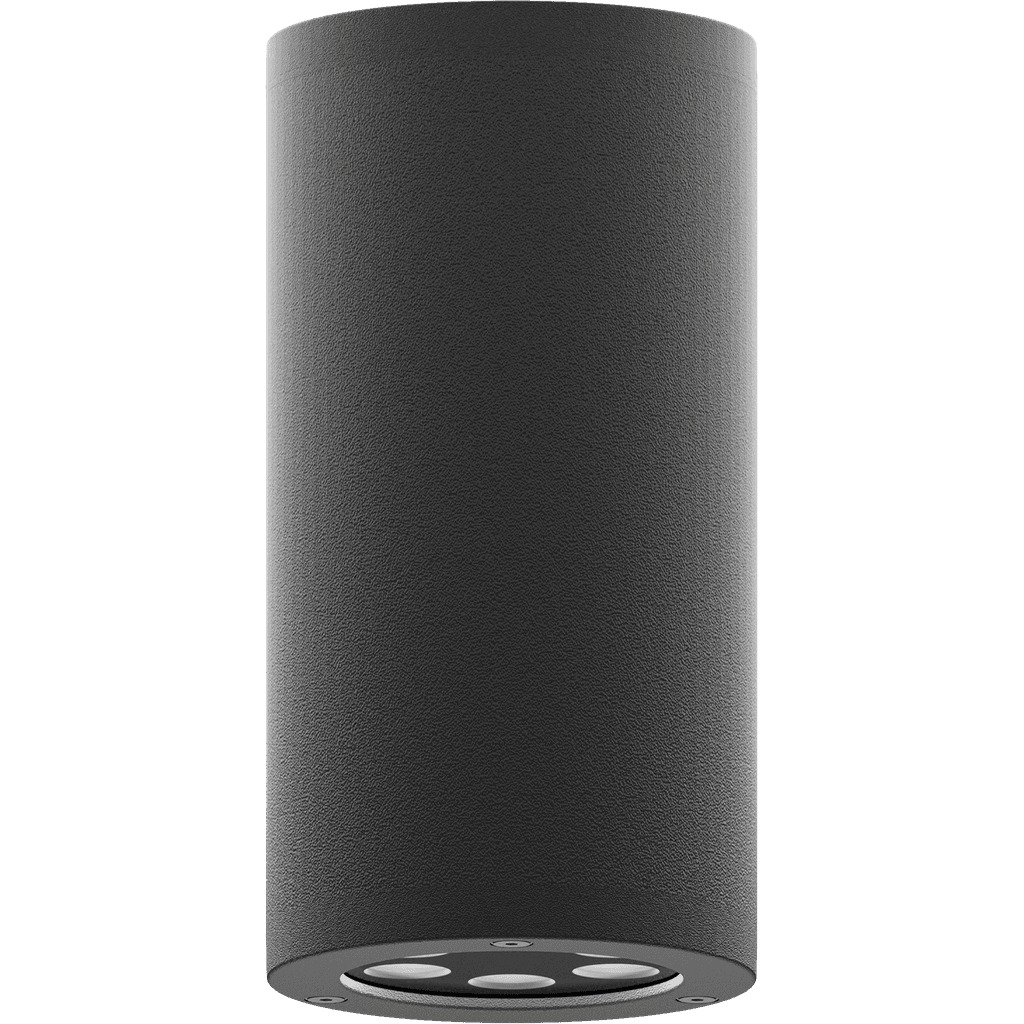

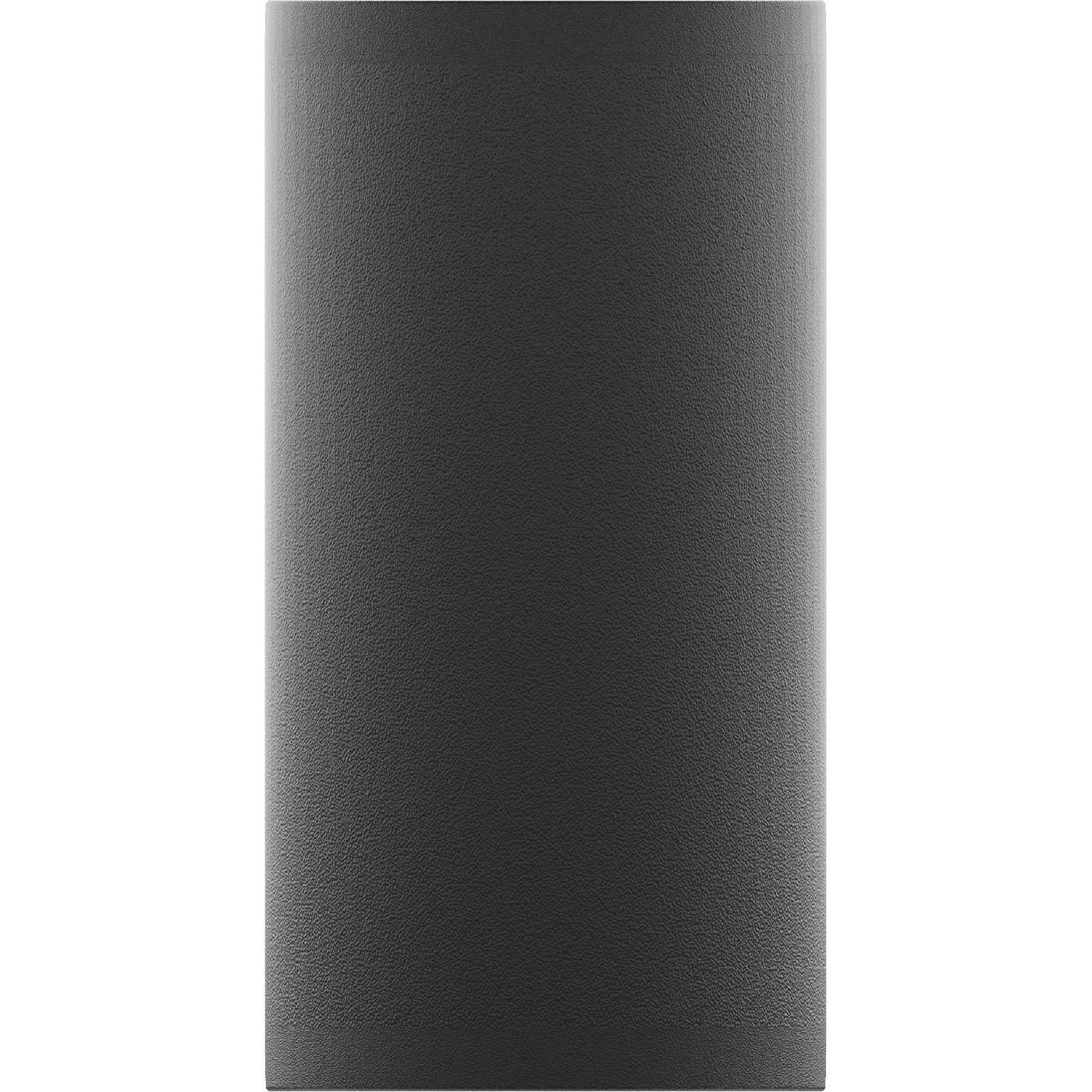

JIMMY LED 18W D50 827 BL DALI
JIMMY LED 18W D50 827 BL DALI
15 Wluminaire power
1200 lmlight flow
80 lm/Wenergy efficiency
code1874000250
beam angleD50
color temperature2700
weight1.55 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
30 Astarting current pulse time, µs
500 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
100-240 Vluminaire power
15 Welectric shock protection
Ipower factor
> 0,90supply voltage
230 Velectrical
starting current
30 A
starting current pulse time, µs
500 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
100-240 V
luminaire power
15 W
electric shock protection
I
power factor
> 0,90
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІІ
material
Алюминий
weight
1.55 kg
length, mm
198 mm
width, mm
102 mm
height, mm
152 mm
housing color
Черный
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
1
shock resistance (IK)
IK07/2 Дж
installation length, mm
67 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
common
code
1874000250
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -20 до +40 C
energy efficiency class
A
service life, hour
50 000 h
illuminating
energy efficiency
80 lm/W
color rendition index (CRI)
>80
light flow
1200 lm
flickering factor
<1%
beam angle
D50
color temperature
2700
light source type
LED
emission color
Белый
LMS options
dimming
DALI
model files
model files

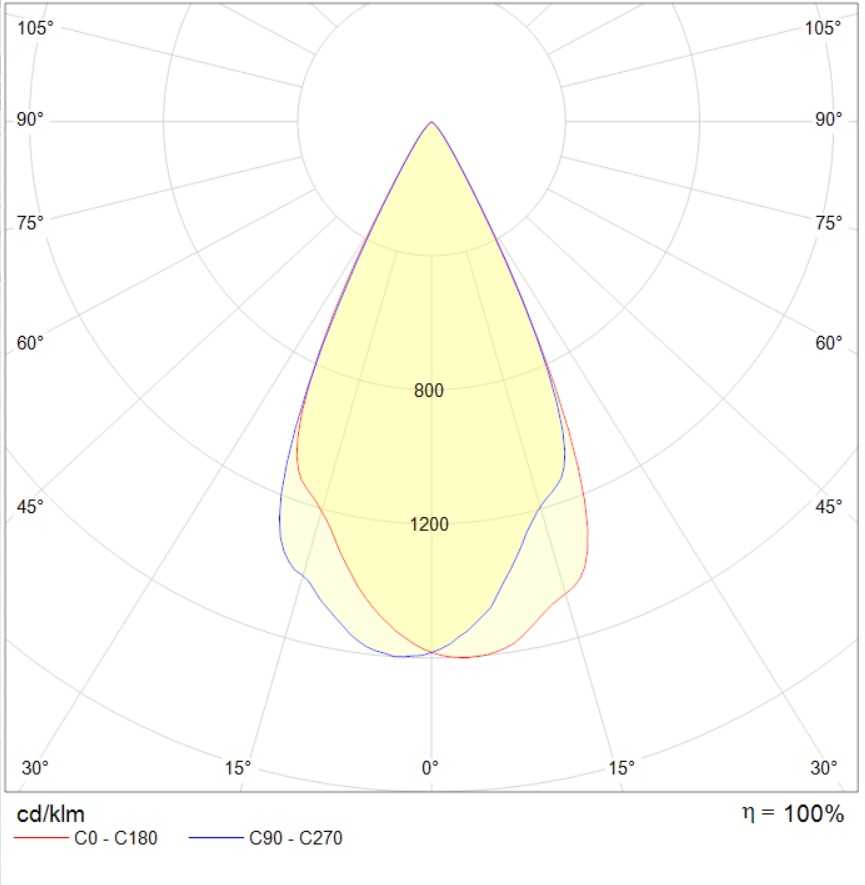

photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg82.1 kB
ldt171.2 kB
documents
passport2.8 mB
сертификаты
Russian origin275.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
