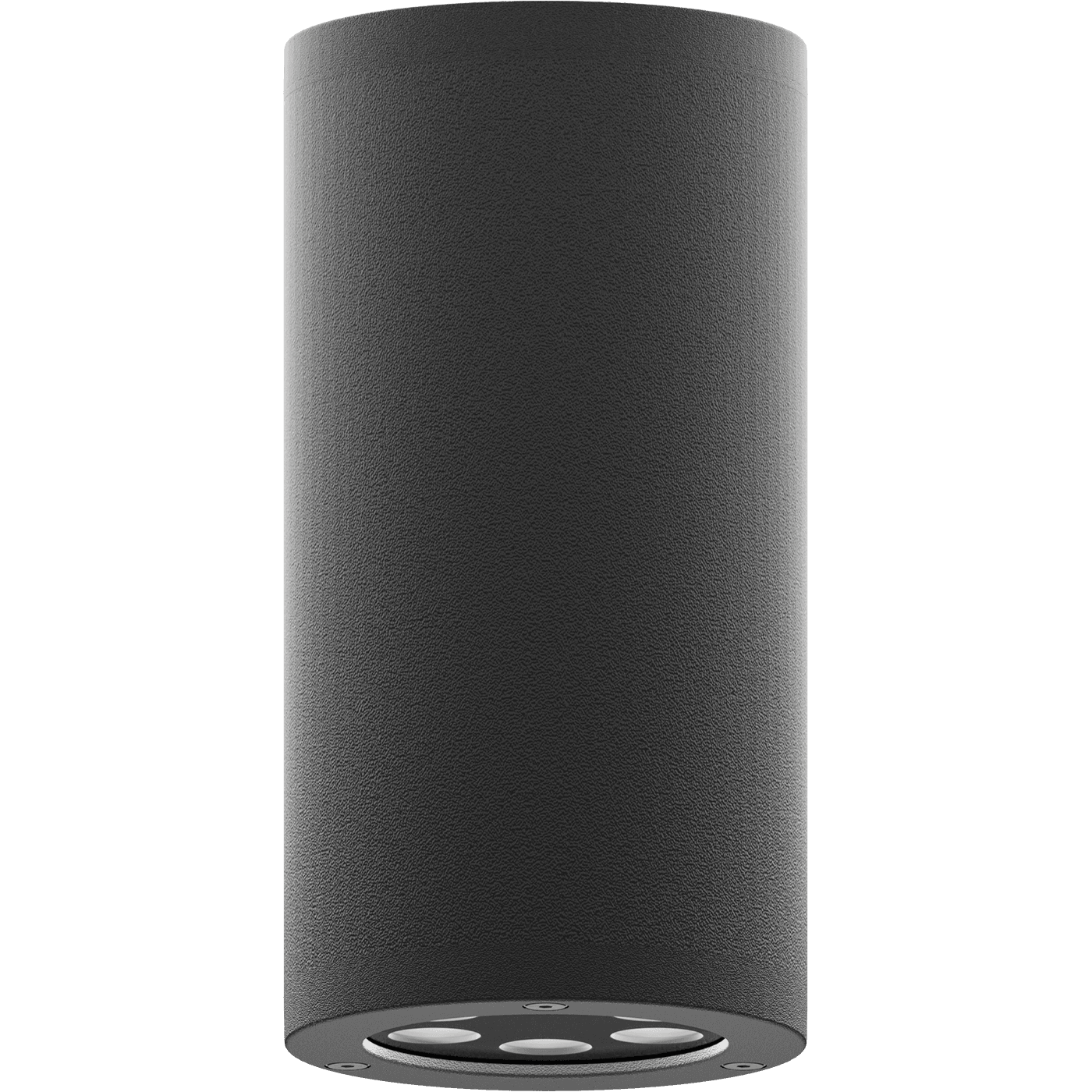

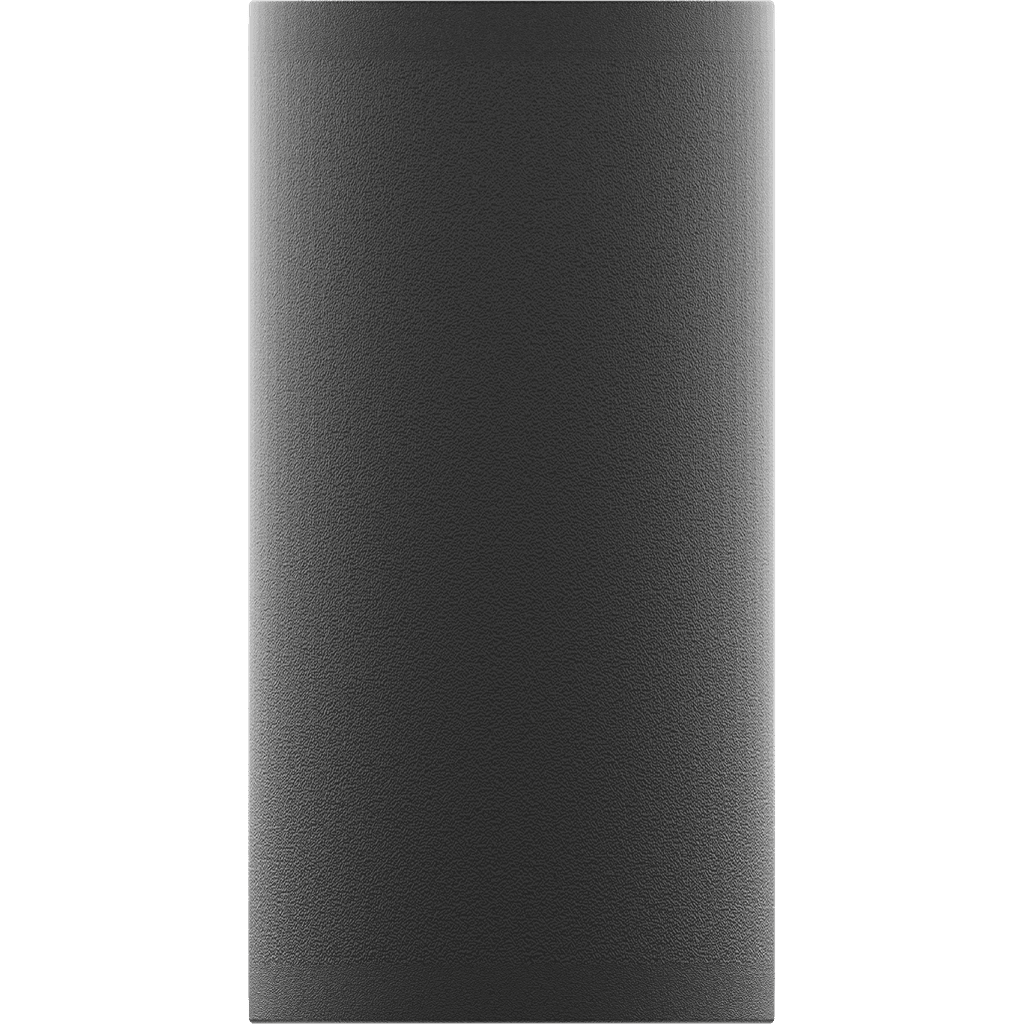

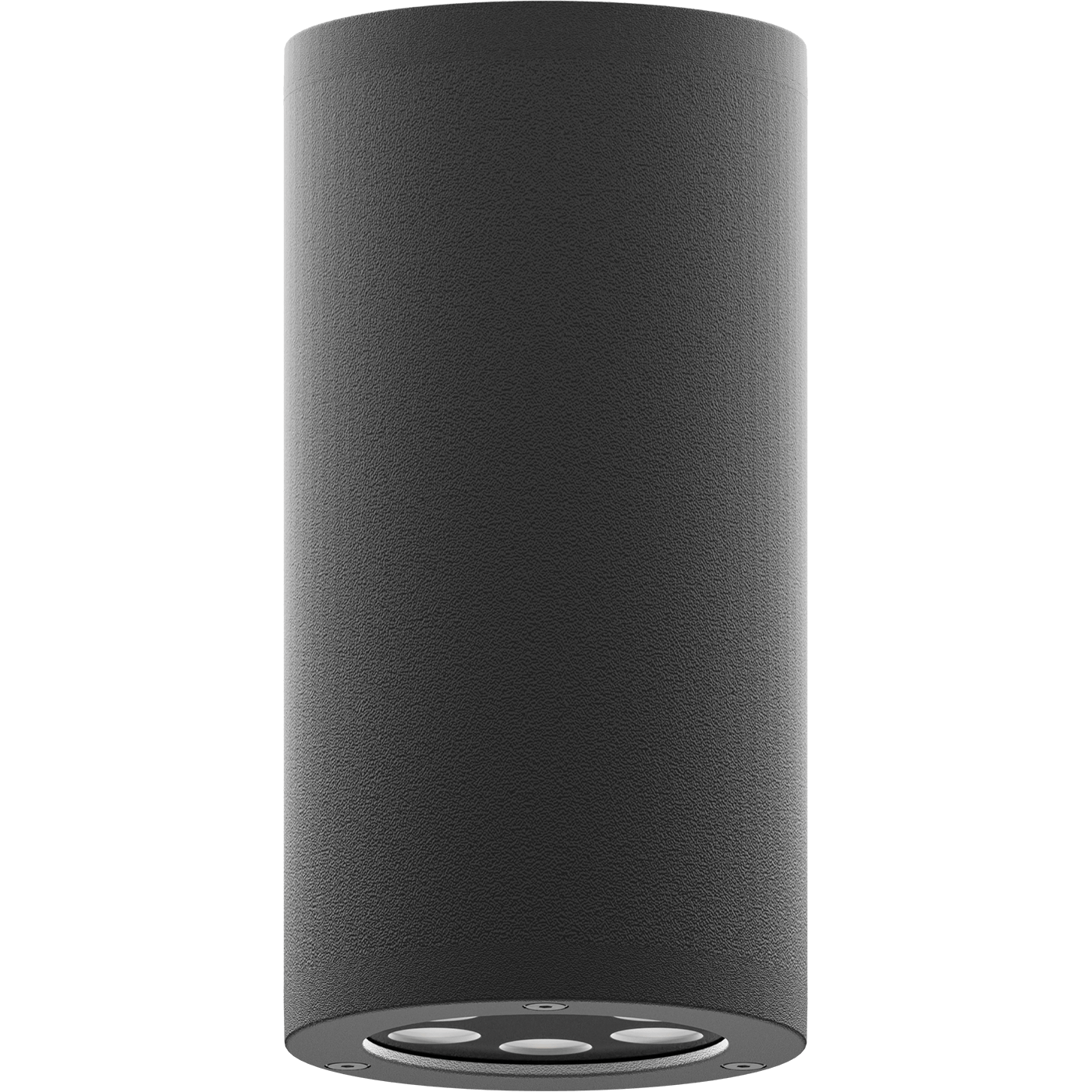

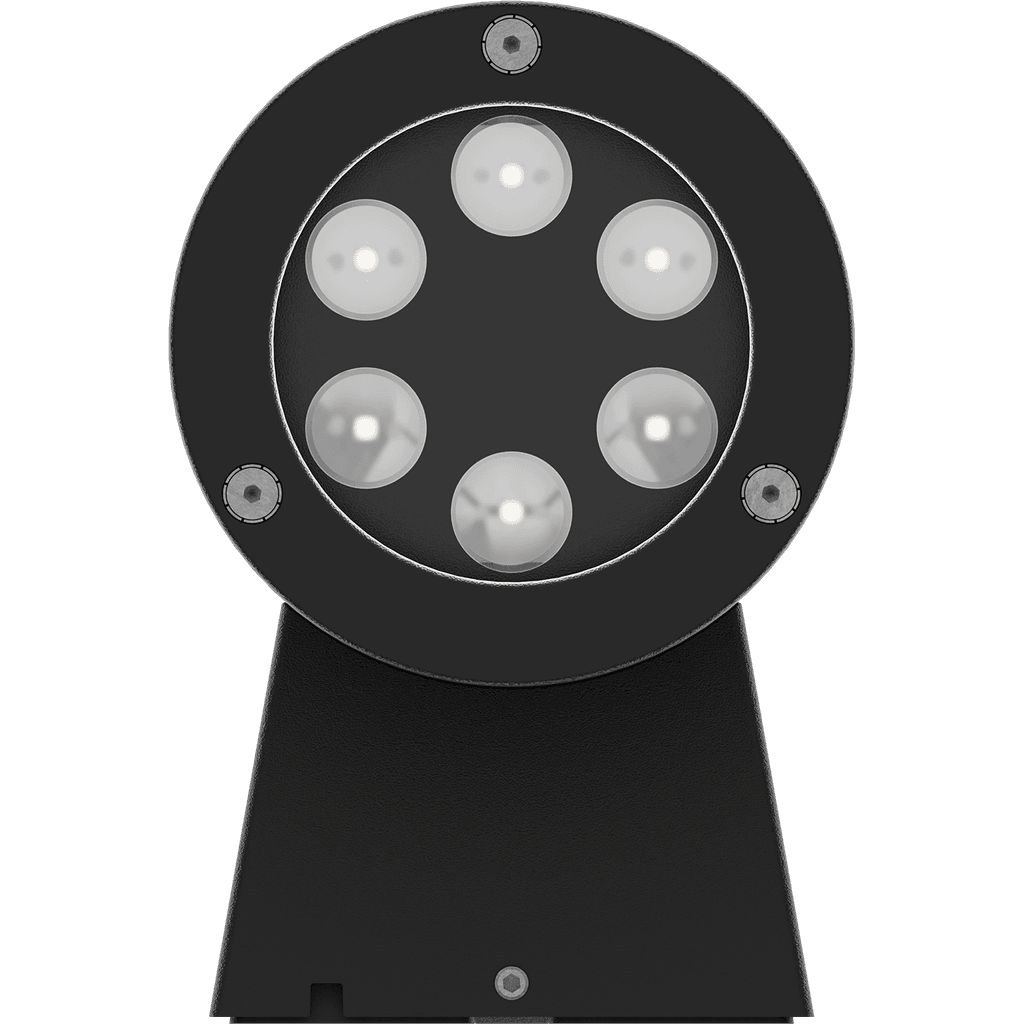

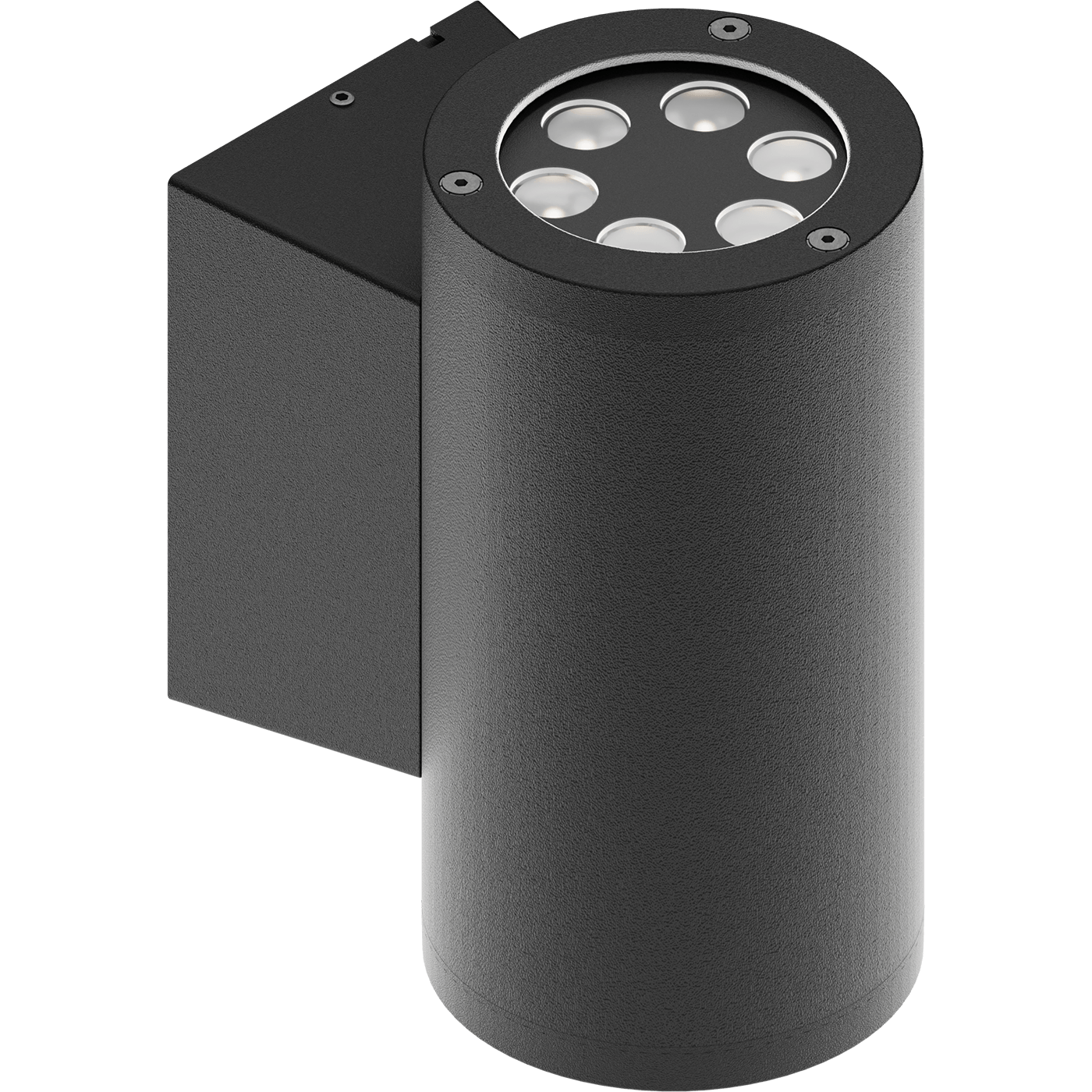

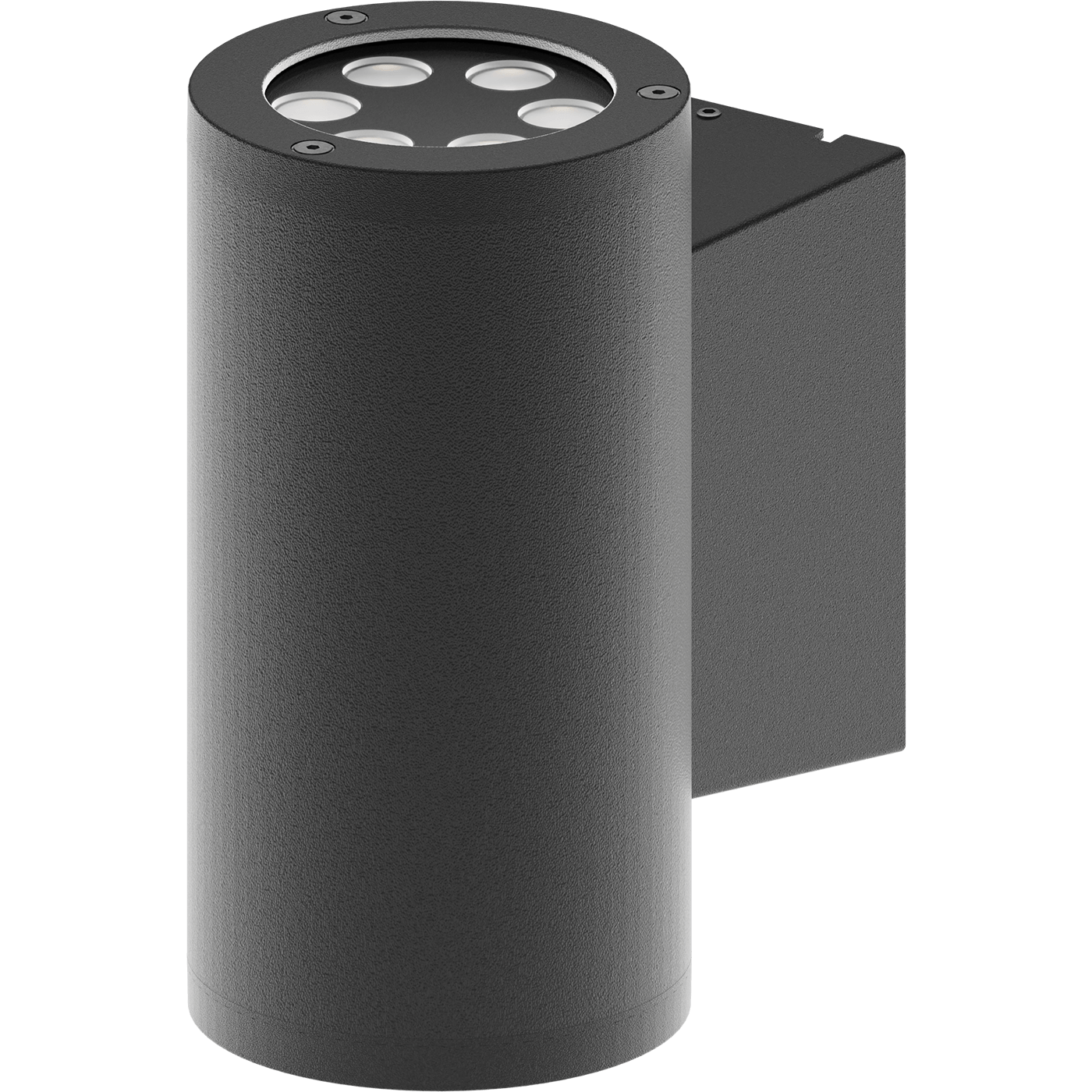

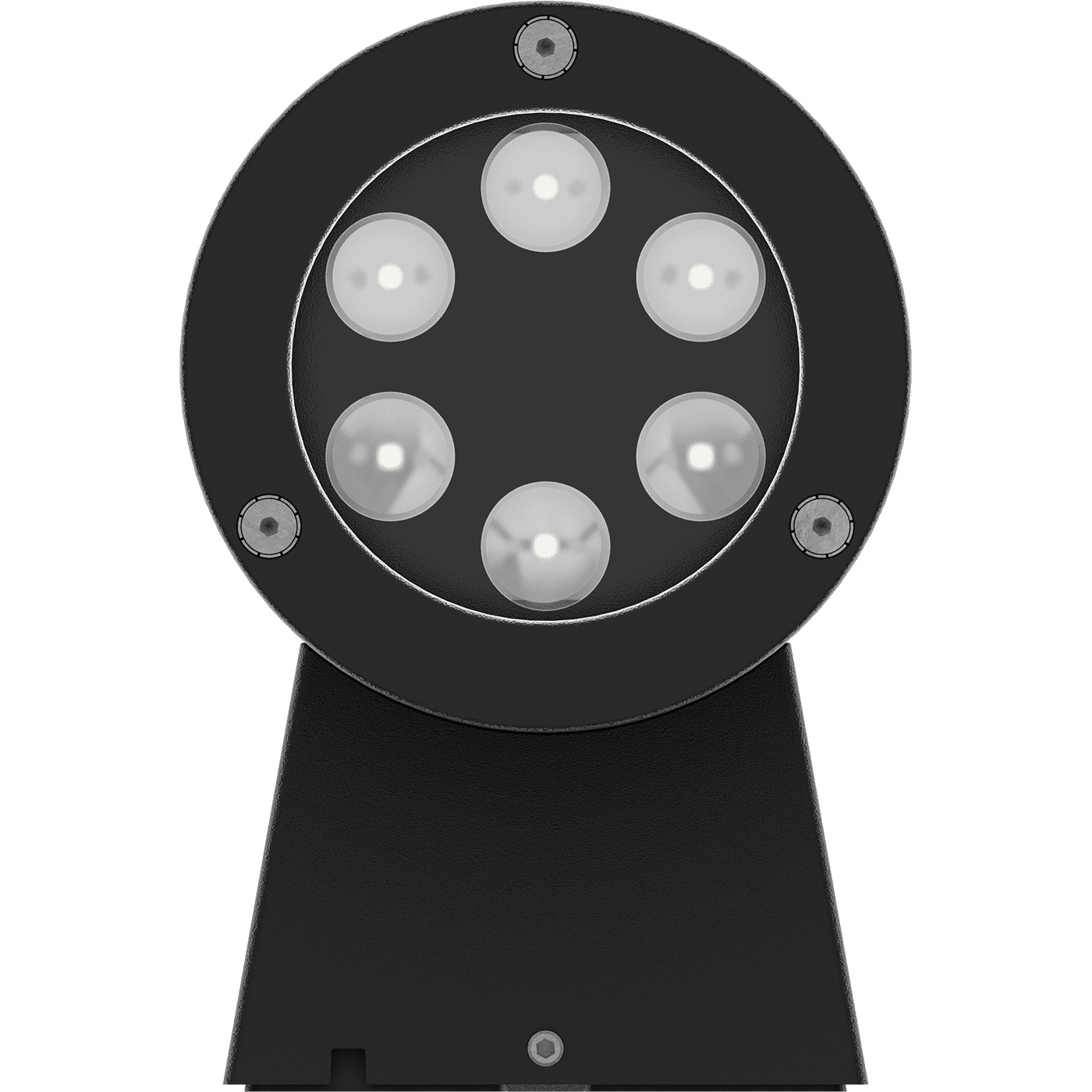

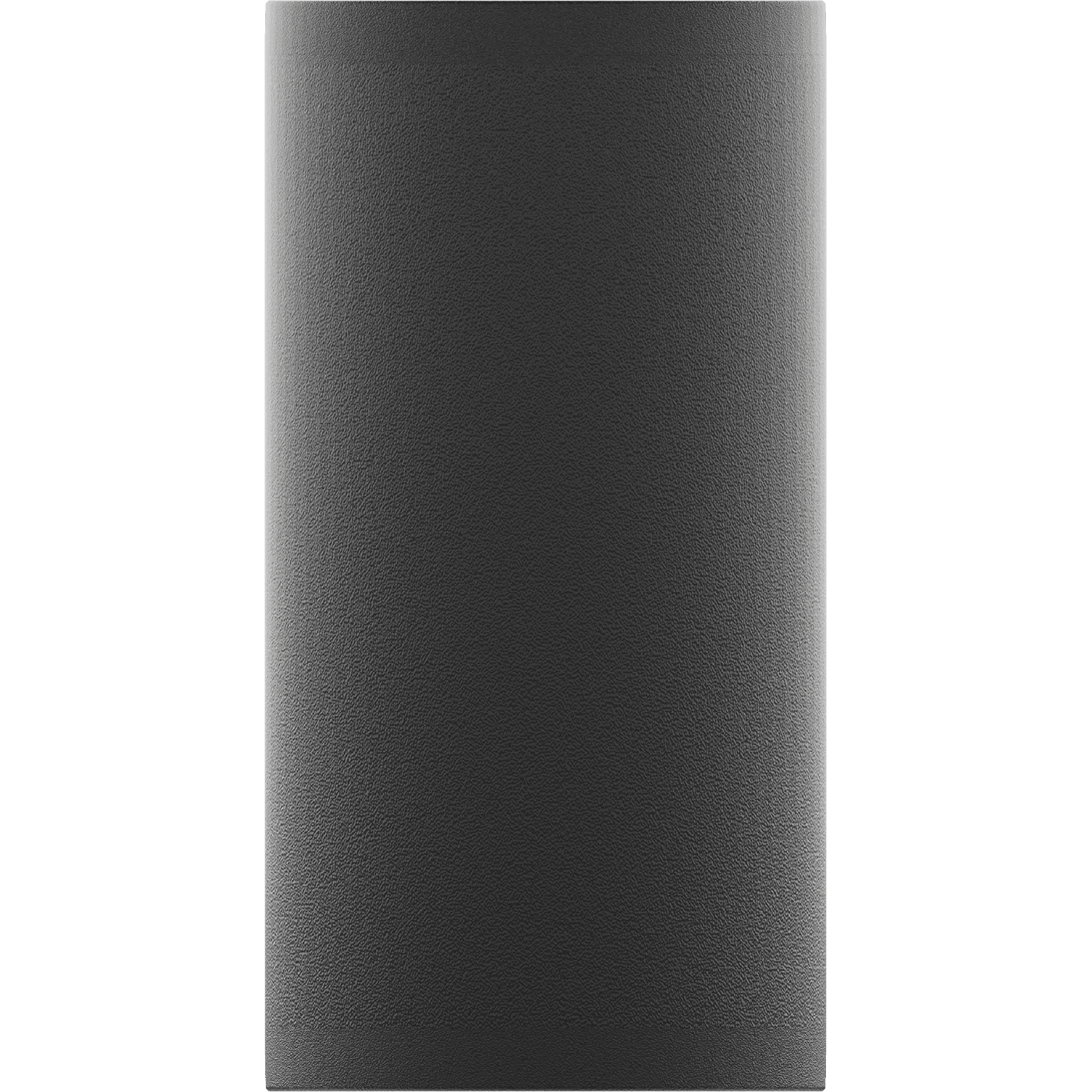

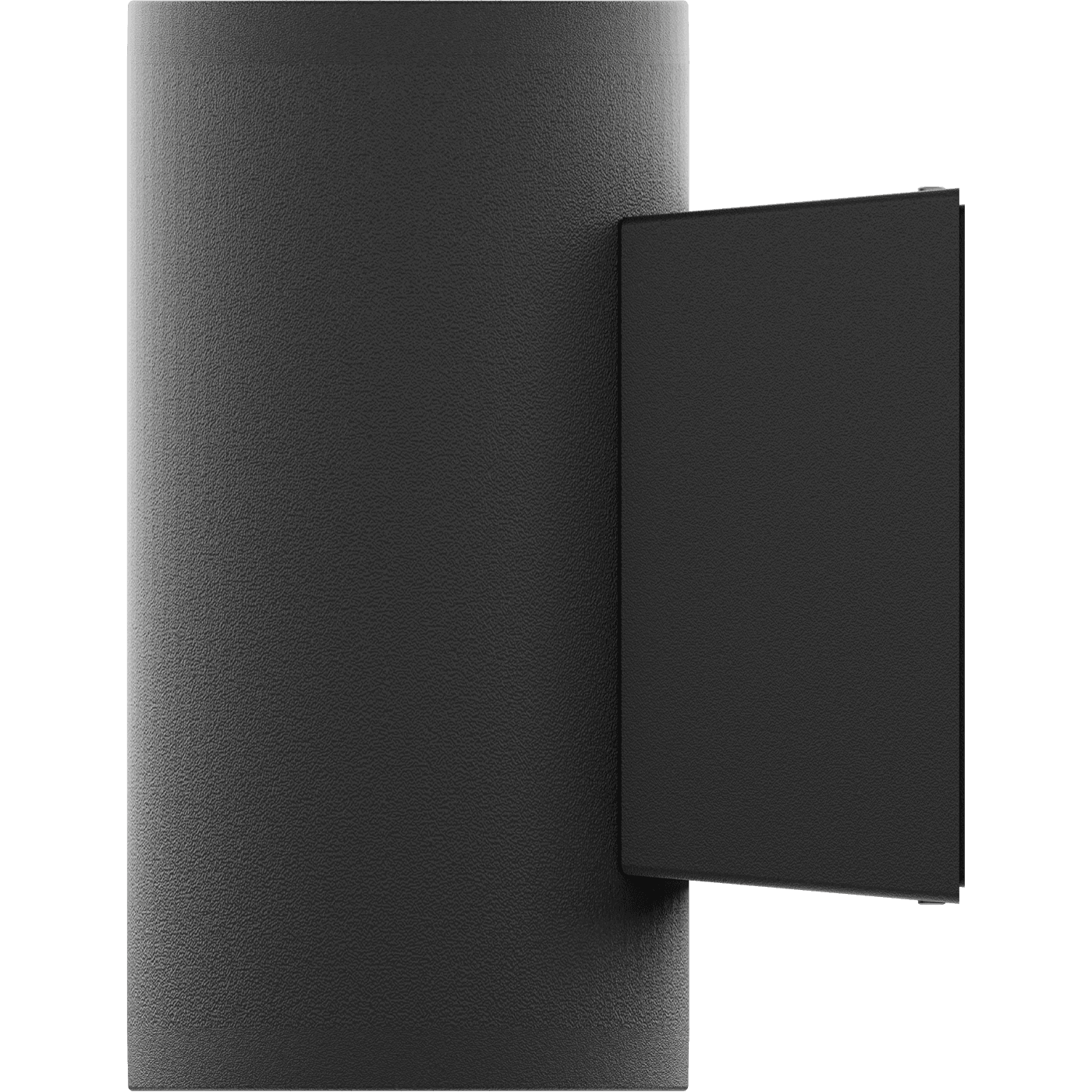

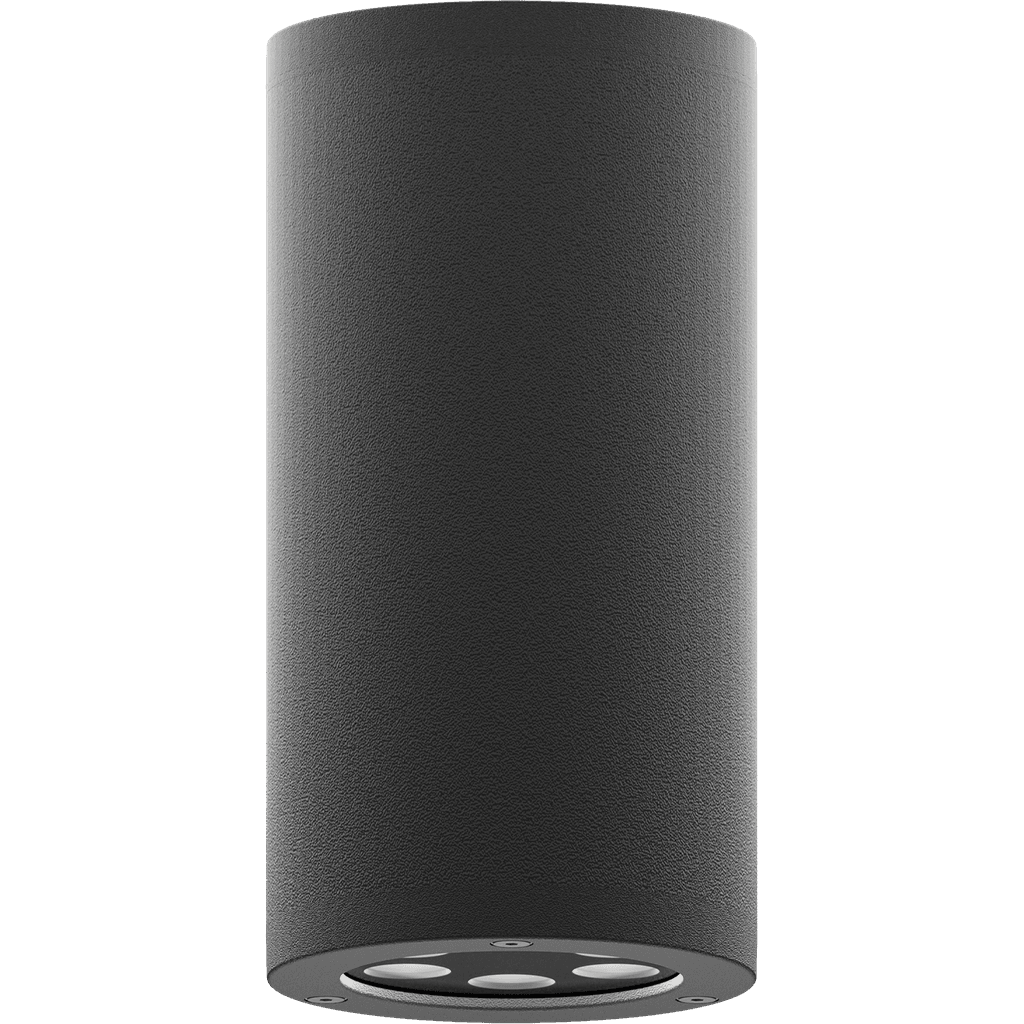

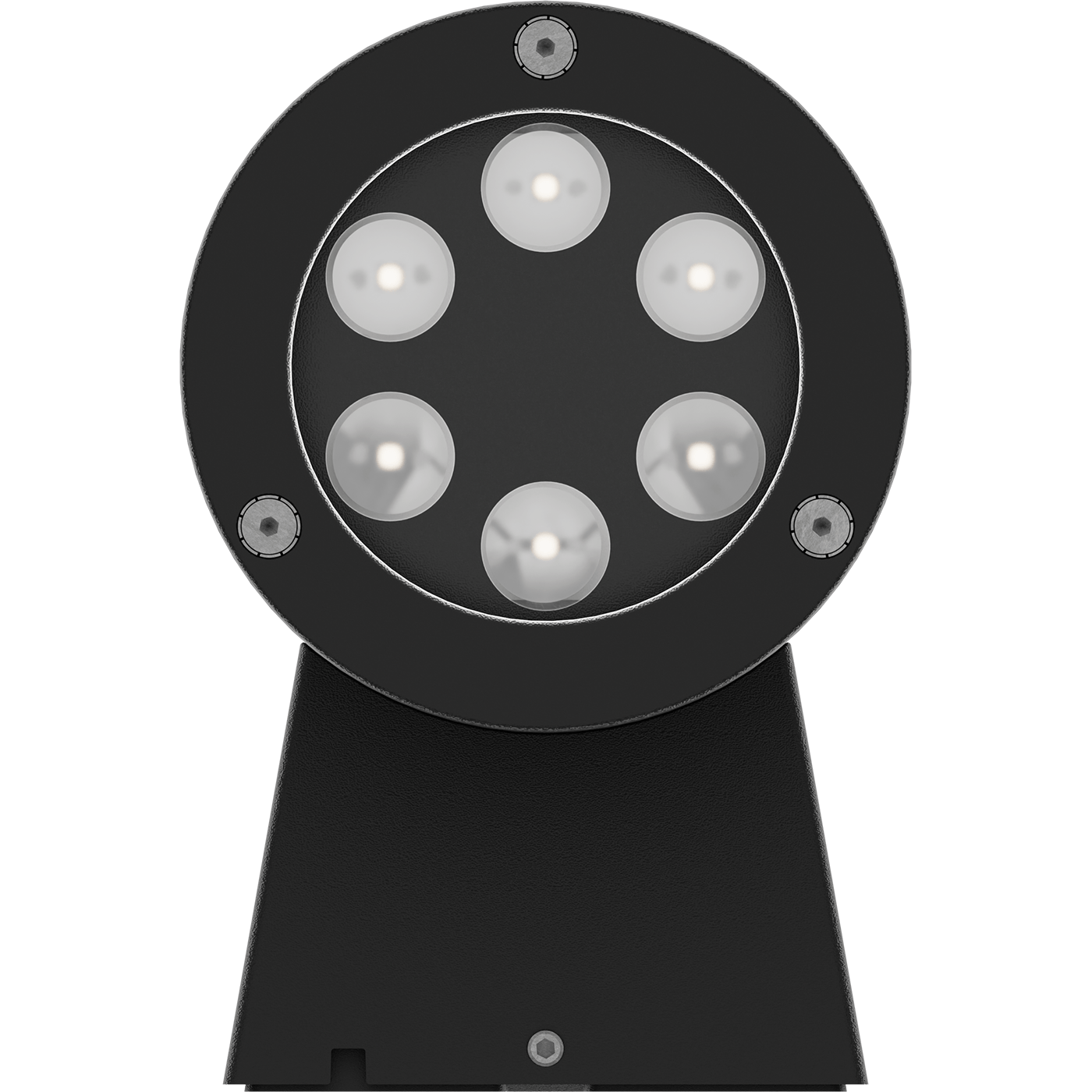

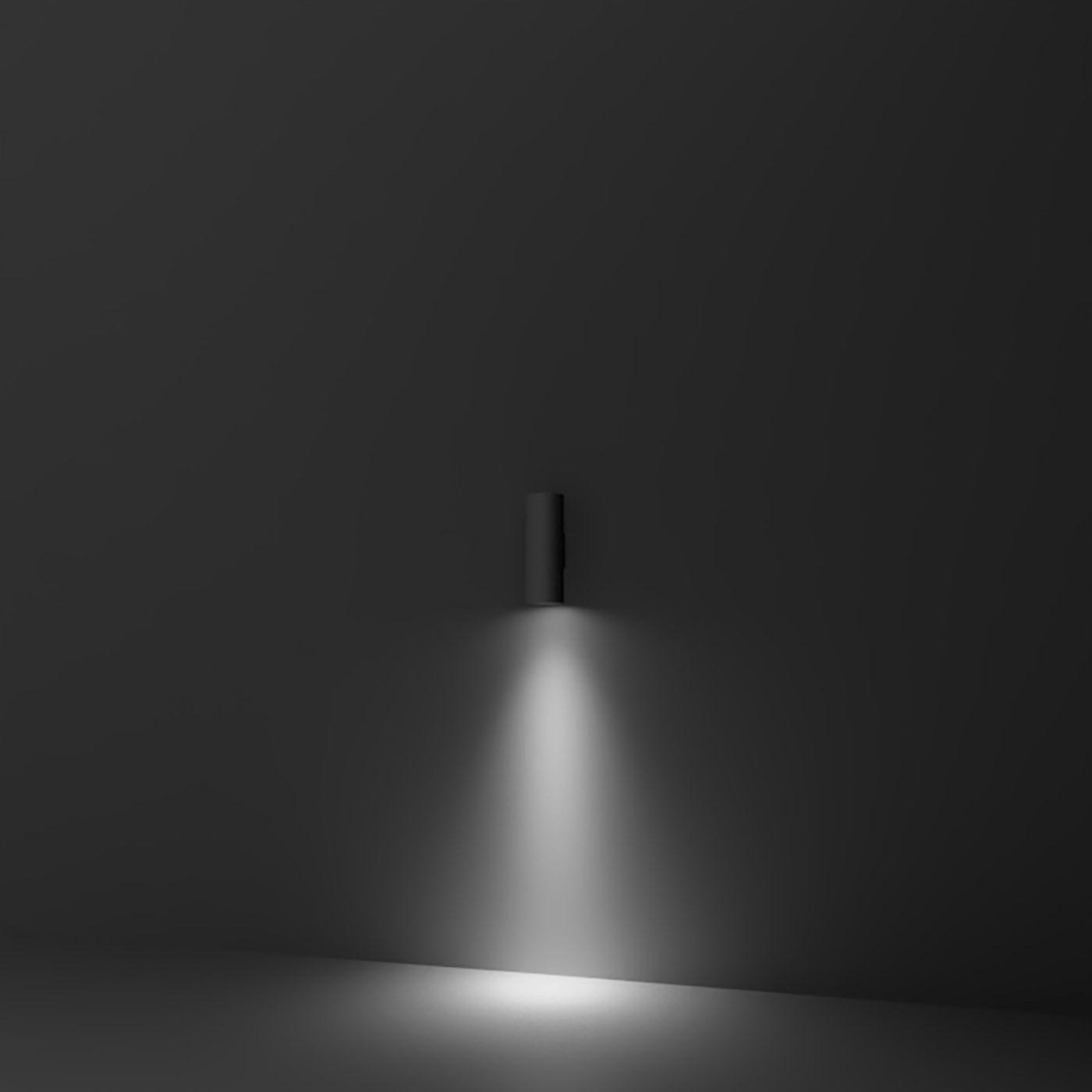

JIMMY LED 18W D15 827 BL
JIMMY LED 18W D15 827 BL
15 Wluminaire power
1200 lmlight flow
80 lm/Wenergy efficiency
code1874000160
beam angleD15
color temperature2700
weight1.55 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
350 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
142-431 Vluminaire power
15 Welectric shock protection
Ipower factor
> 0,90supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
350 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
142-431 V
luminaire power
15 W
electric shock protection
I
power factor
> 0,90
supply voltage
230 V
constructional
ingress protection (IP)
IP65
fire safety class
П-ІІІ
material
Алюминий
weight
1.55 kg
length, mm
198 mm
width, mm
102 mm
height, mm
152 mm
housing color
Черный
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
1
shock resistance (IK)
IK07/2 Дж
installation length, mm
67 mm
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
code
1874000160
ETIM class
Настенно-потолочный светильник
warranty
36 month
temperature range
от -40 до +40 C
energy efficiency class
A
service life, hour
50 000 h
illuminating
energy efficiency
80 lm/W
color rendition index (CRI)
>80
light flow
1200 lm
flickering factor
<1%

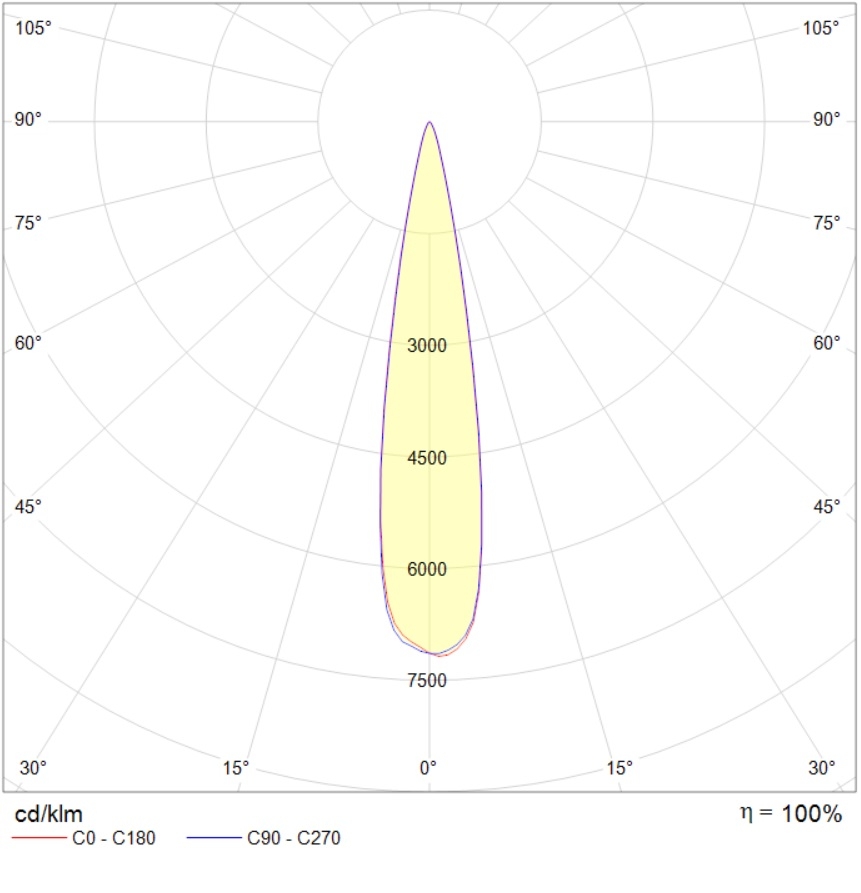

beam angle
D15
color temperature
2700
light source type
LED
emission color
Белый
model files
model files
photometric files
documents
сертификаты

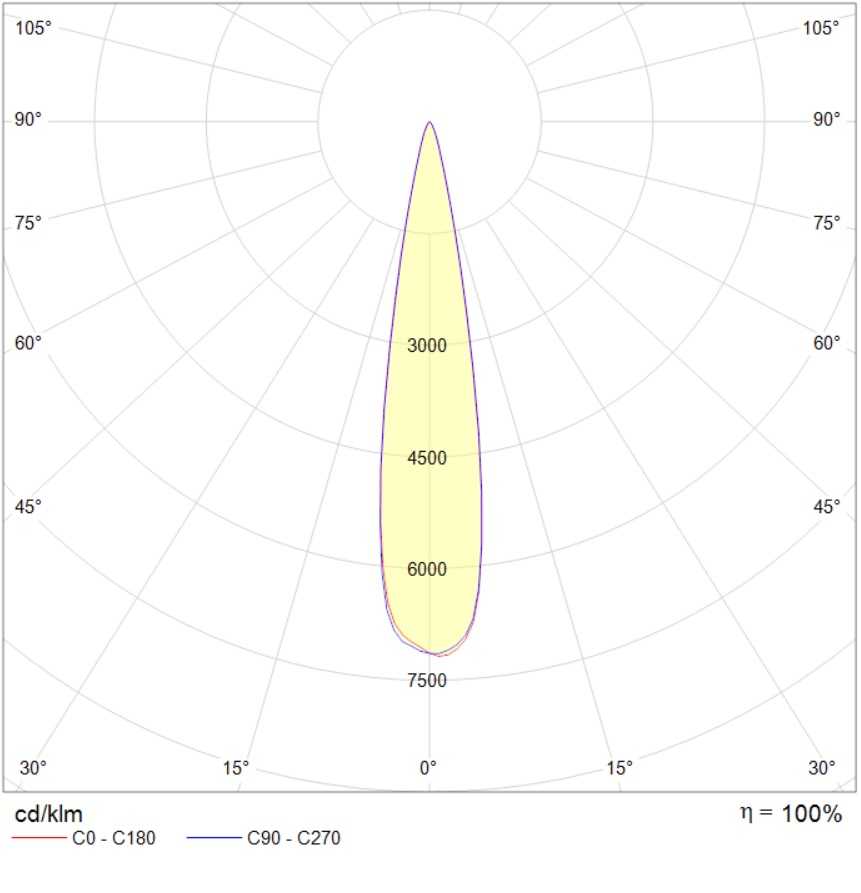

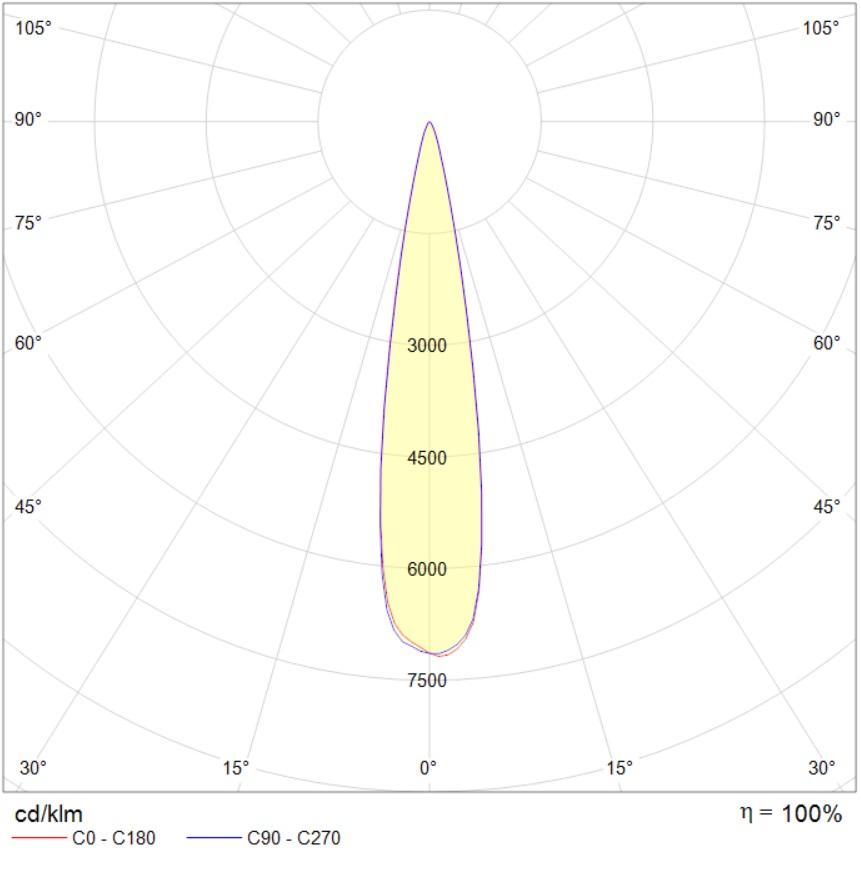

photometric files
ies656 kB
jpg80.1 kB
ldt426 kB
documents
passport2.8 mB
сертификаты
Russian origin275.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
