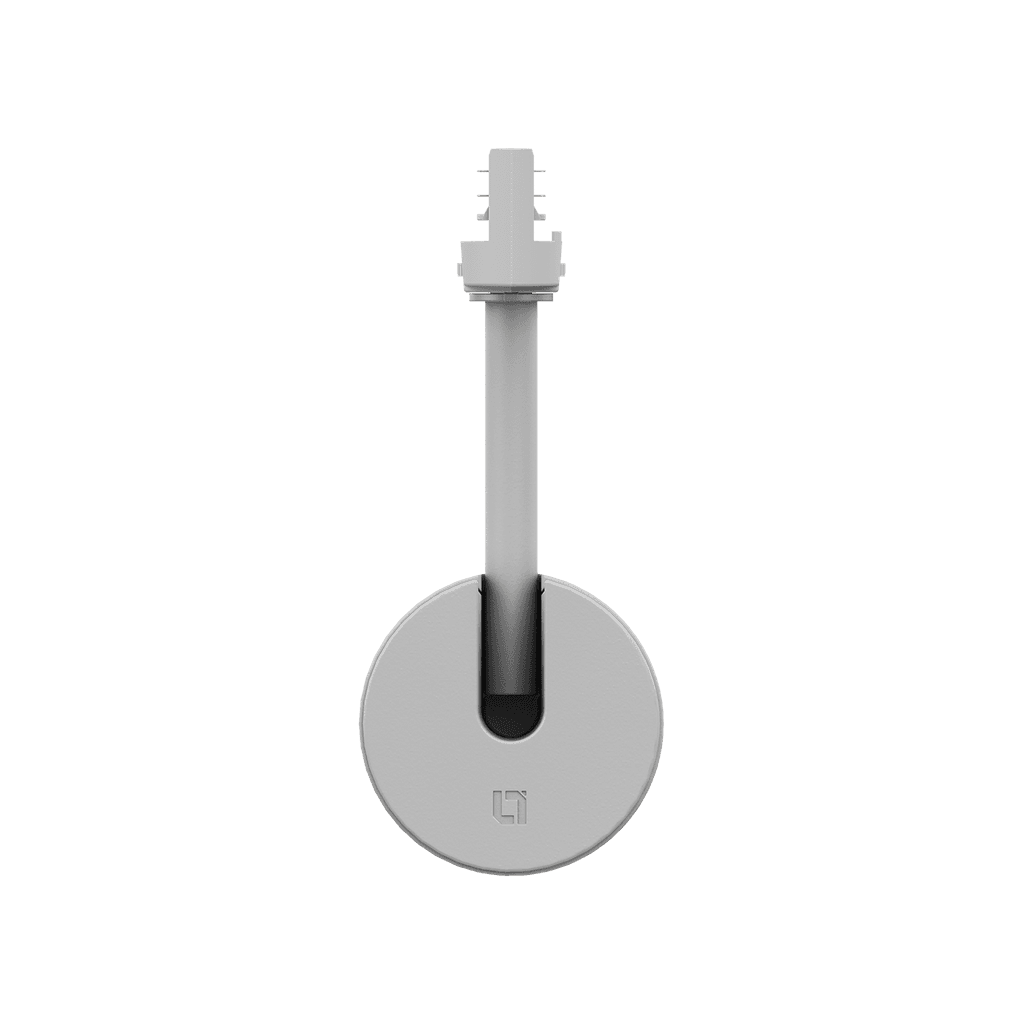

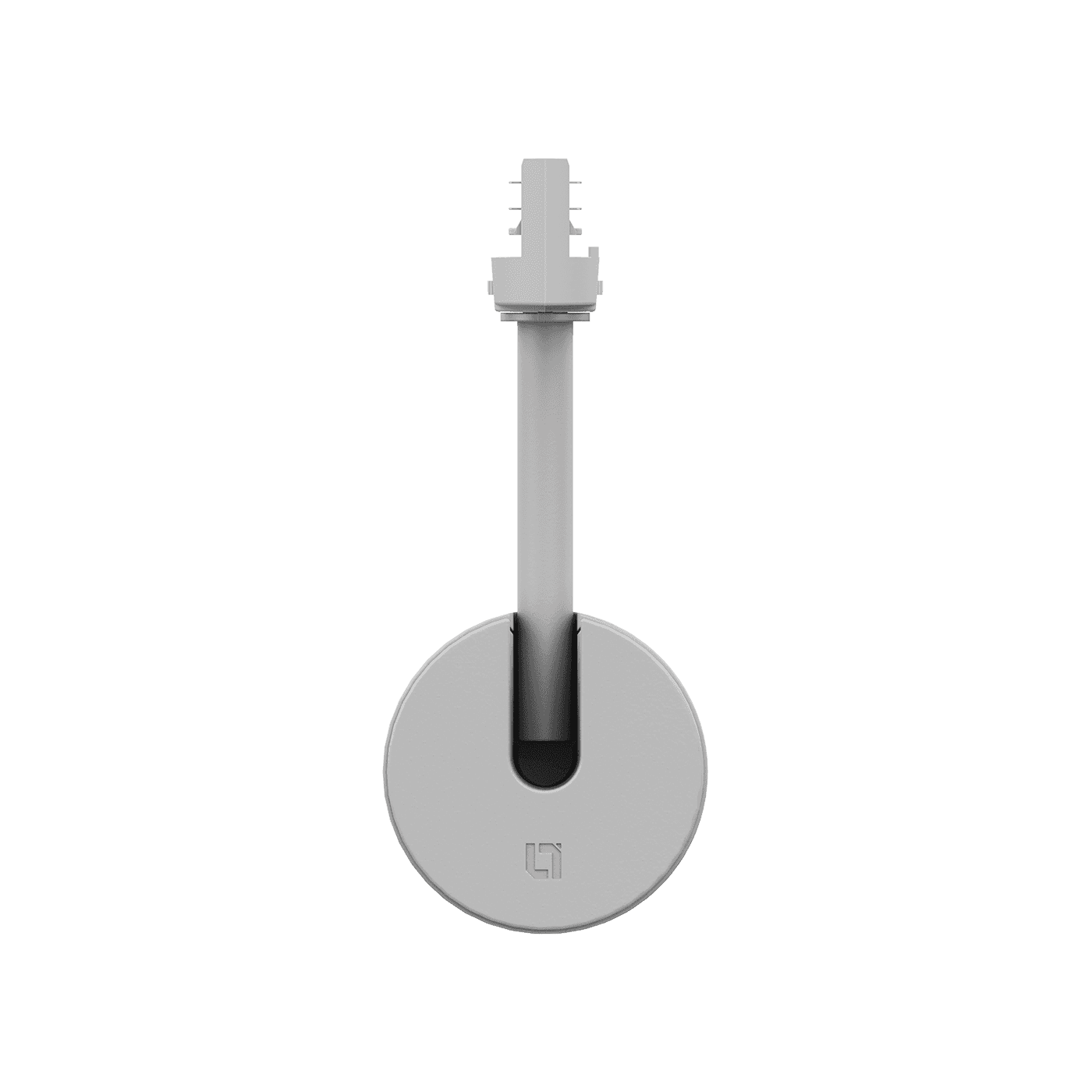

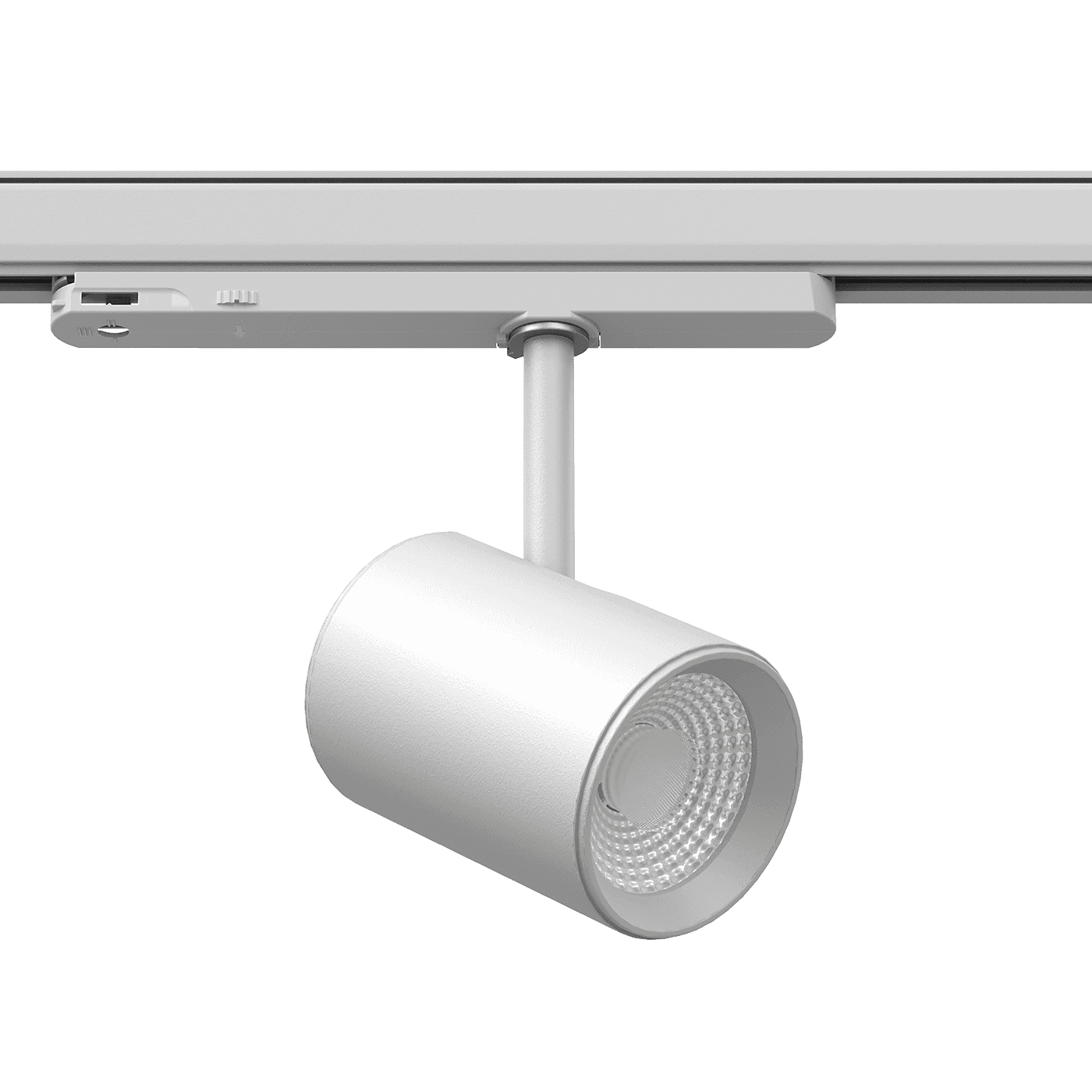

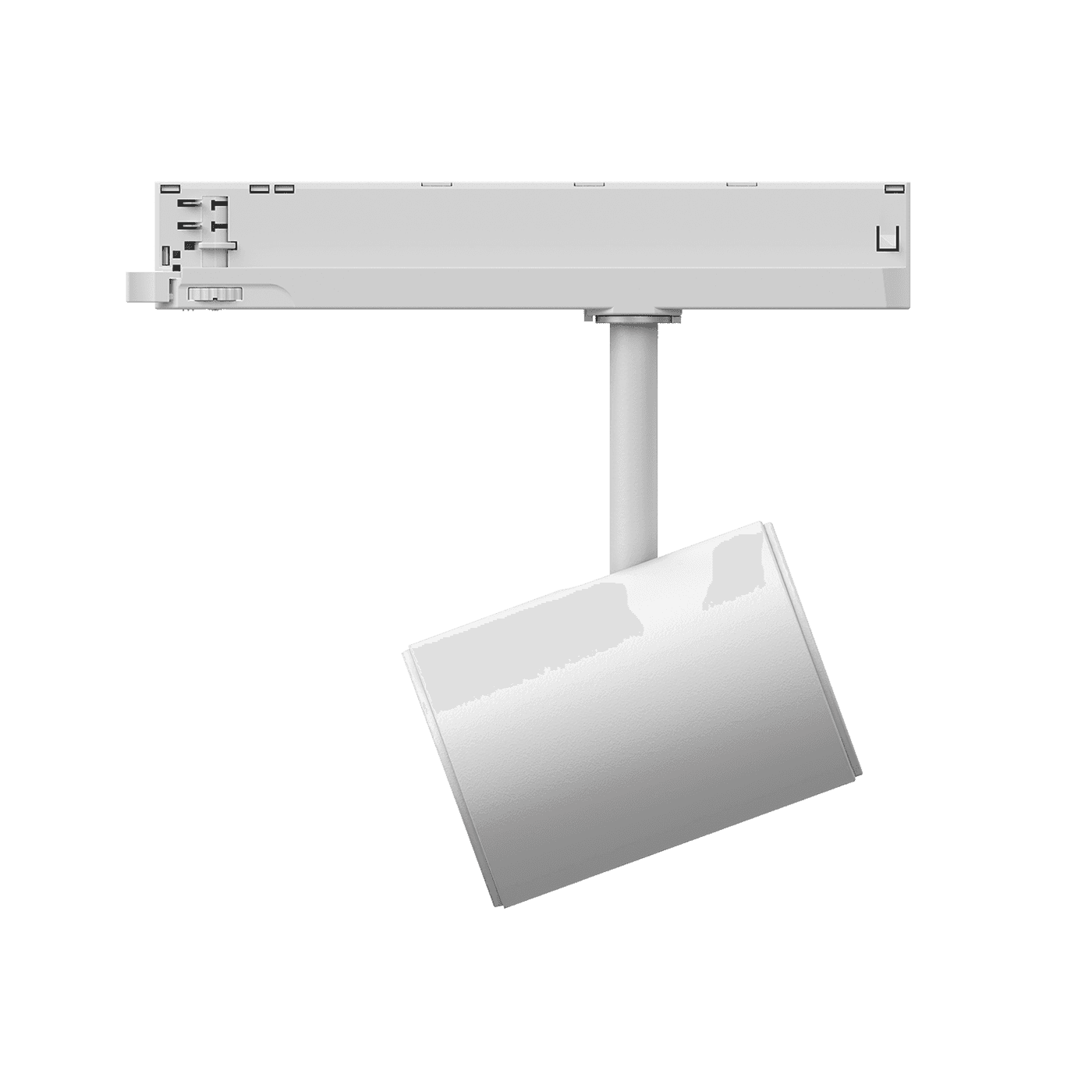

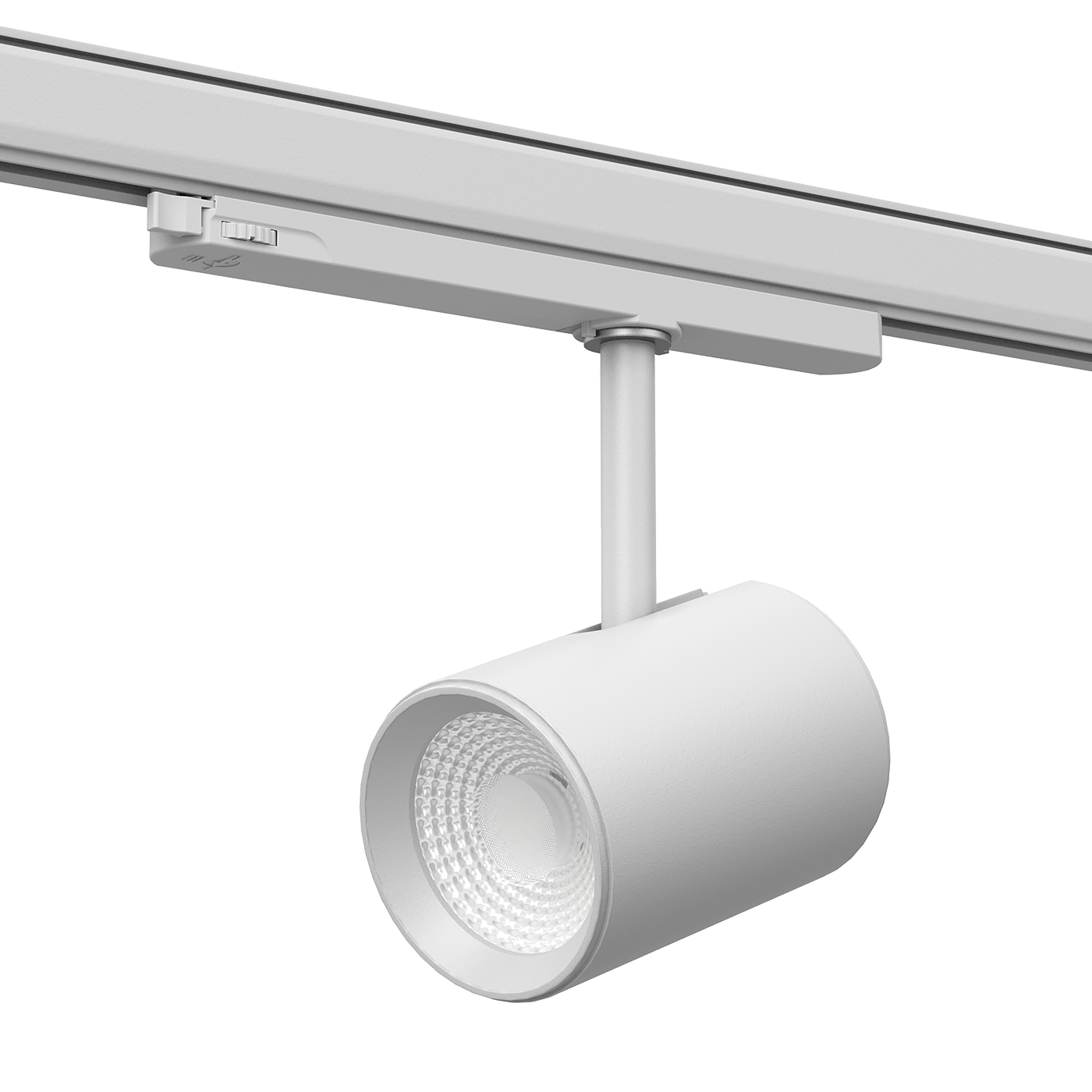

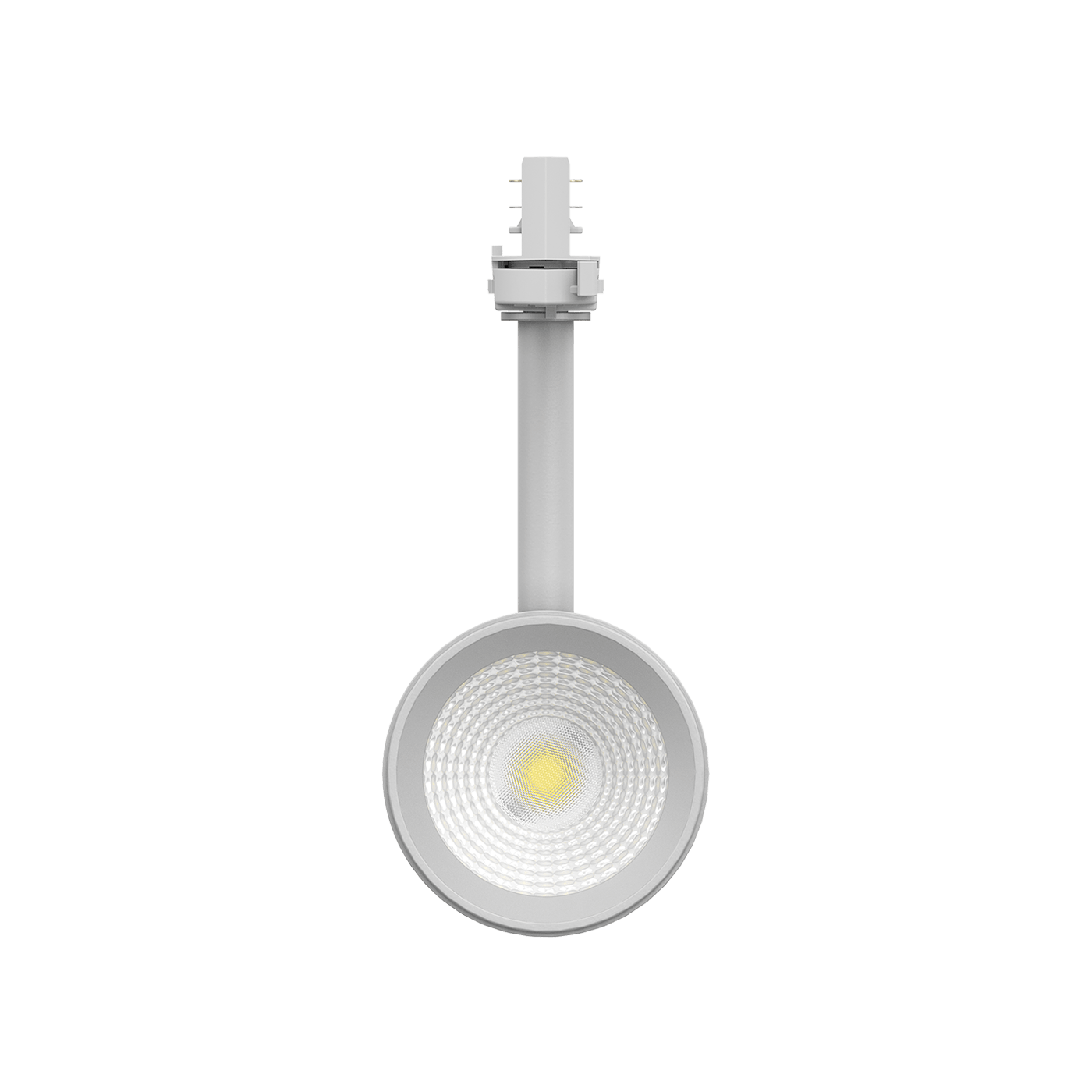

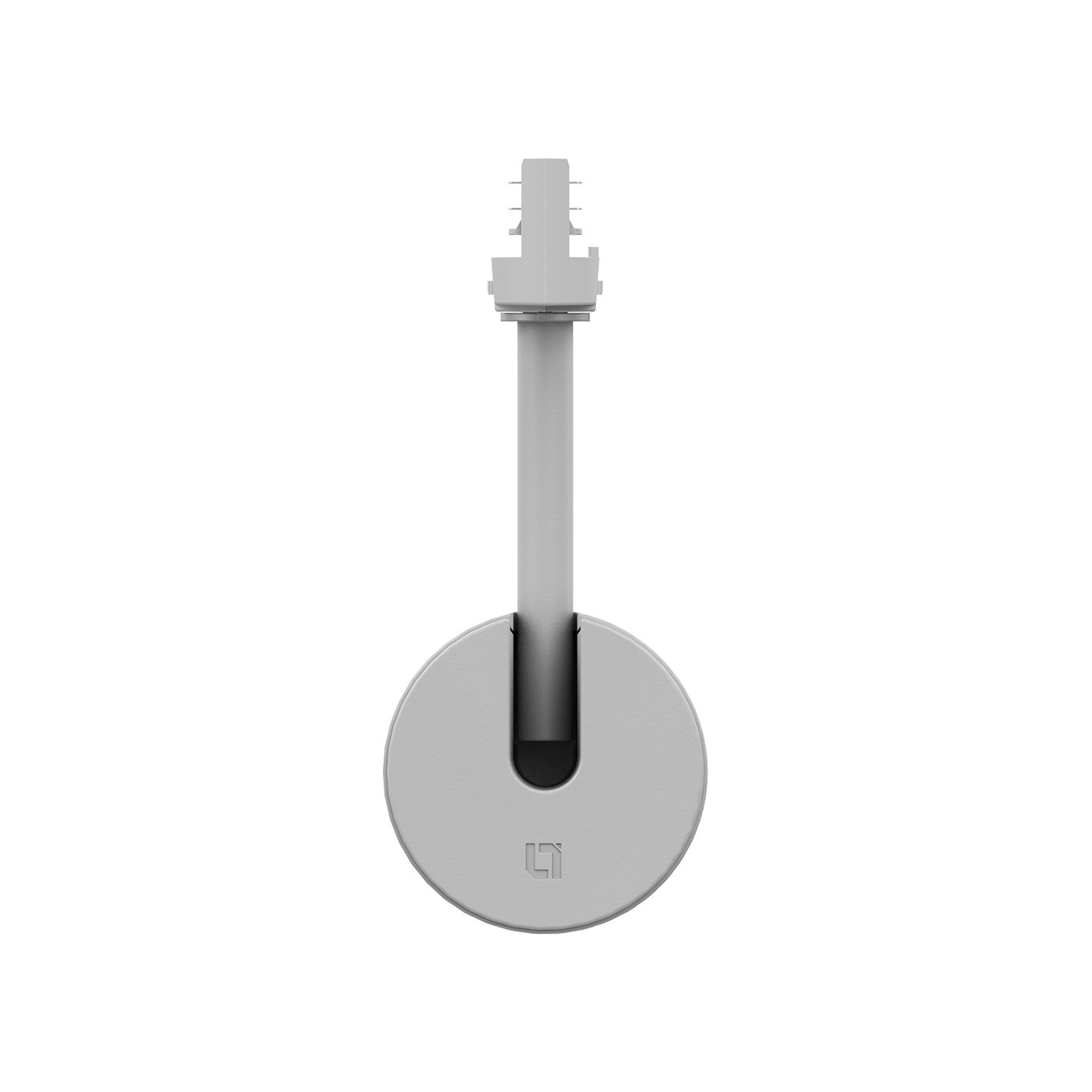

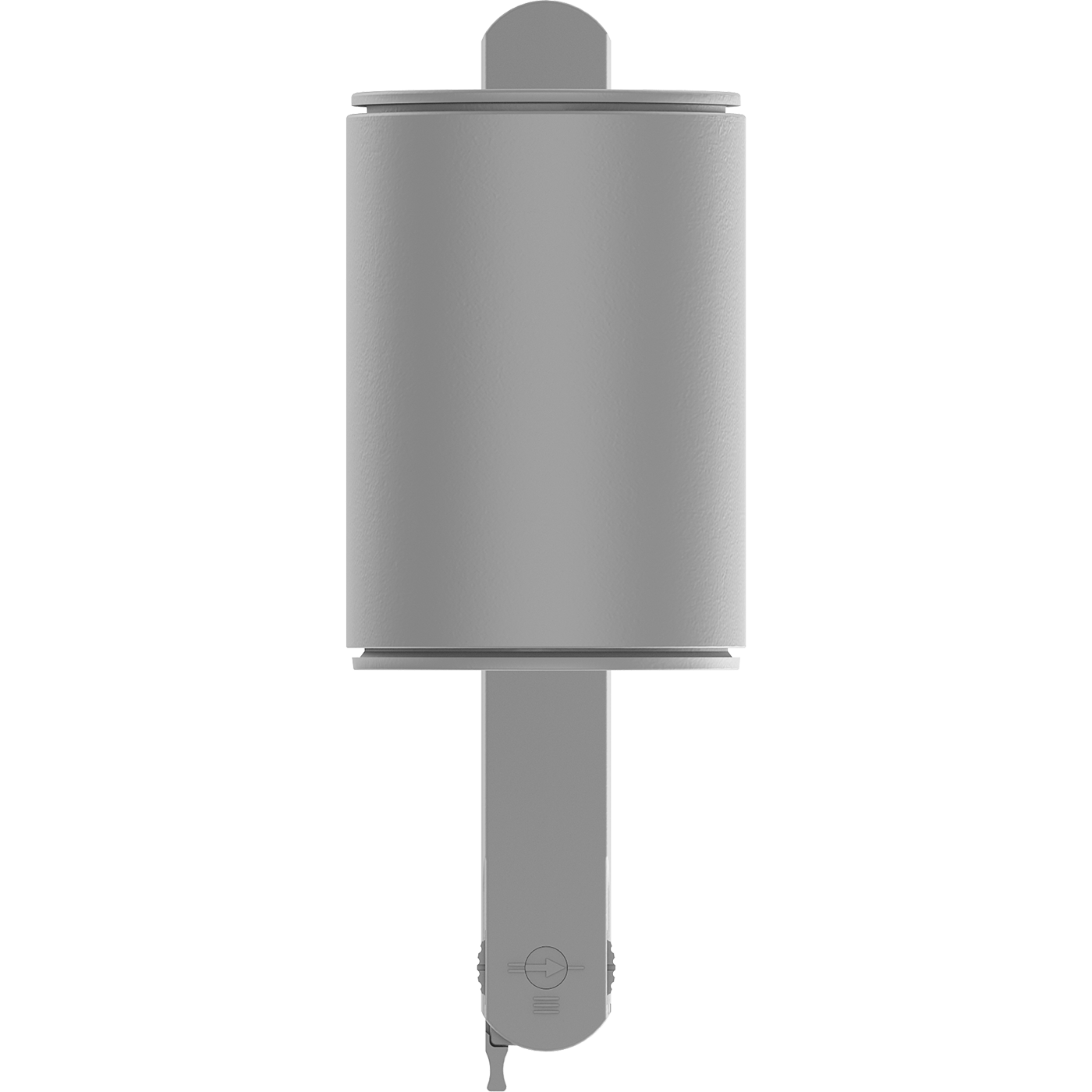

IRIS/T 28W D45 840 WH
archive
archive
IRIS/T 28W D45 840 WH
28 Wluminaire power
3400 lmlight flow
121 lm/Wenergy efficiency
code1763000070
color temperature4000
beam angleD45
old nameIRIS/T LED 28 WH D45 4000K
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
luminaire power
28 Welectric shock protection
IIpower factor
> 0,94supply voltage
230 Velectrical
luminaire power
28 W
electric shock protection
II
power factor
> 0,94
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Алюминий
weight
2 kg
diameter, mm
93 mm
height, mm
247 mm
housing color
Белый
installation length, mm
118 mm
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1763000070
illuminating
color rendition index (CRI)
>80
light flow
3400 lm
flickering factor
<5%
energy efficiency
121 lm/W
beam angle
D45
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

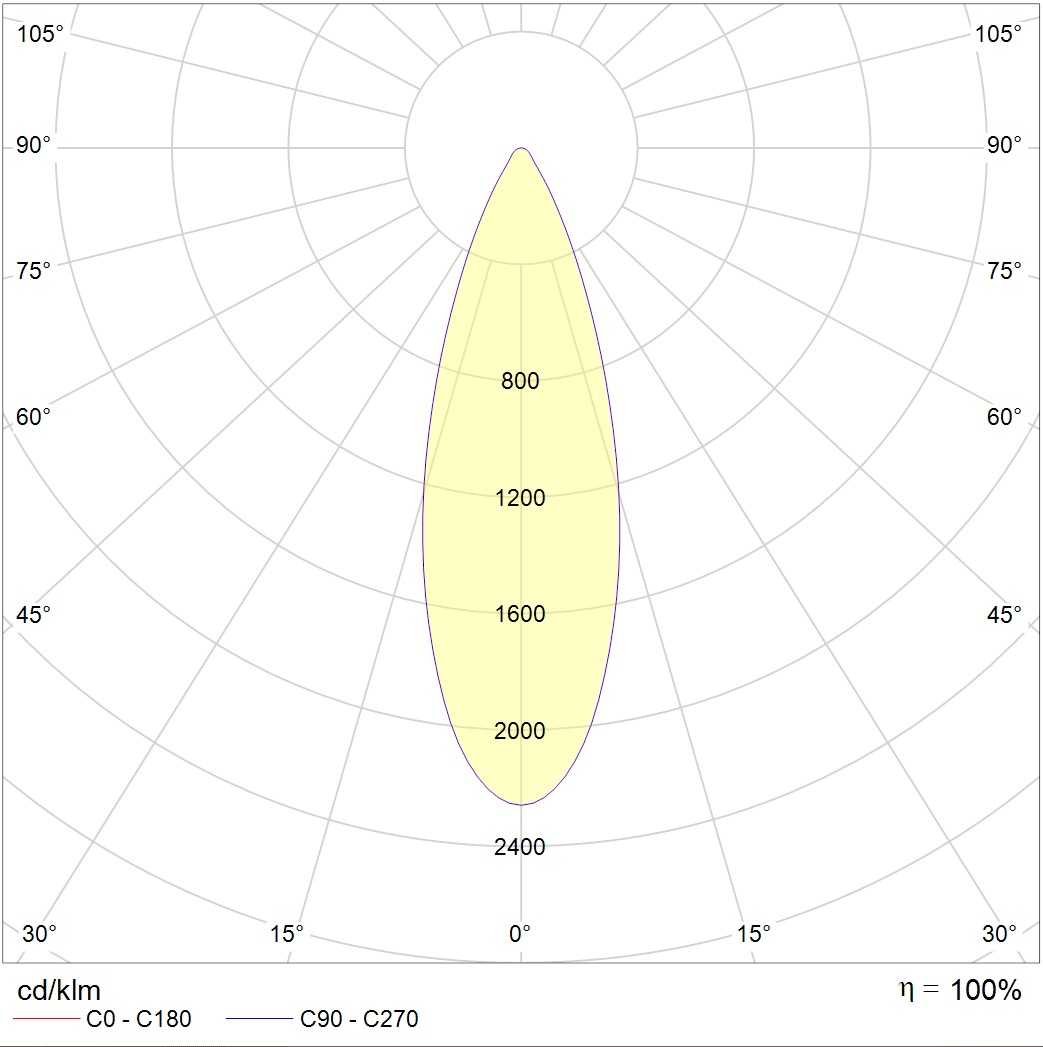

photometric files
сертификаты
photometric files
ies3.2 kB
jpg131.9 kB
ldt2.3 kB
сертификаты
Russian origin281.2 kB
Voluntary certificate2.7 mB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
