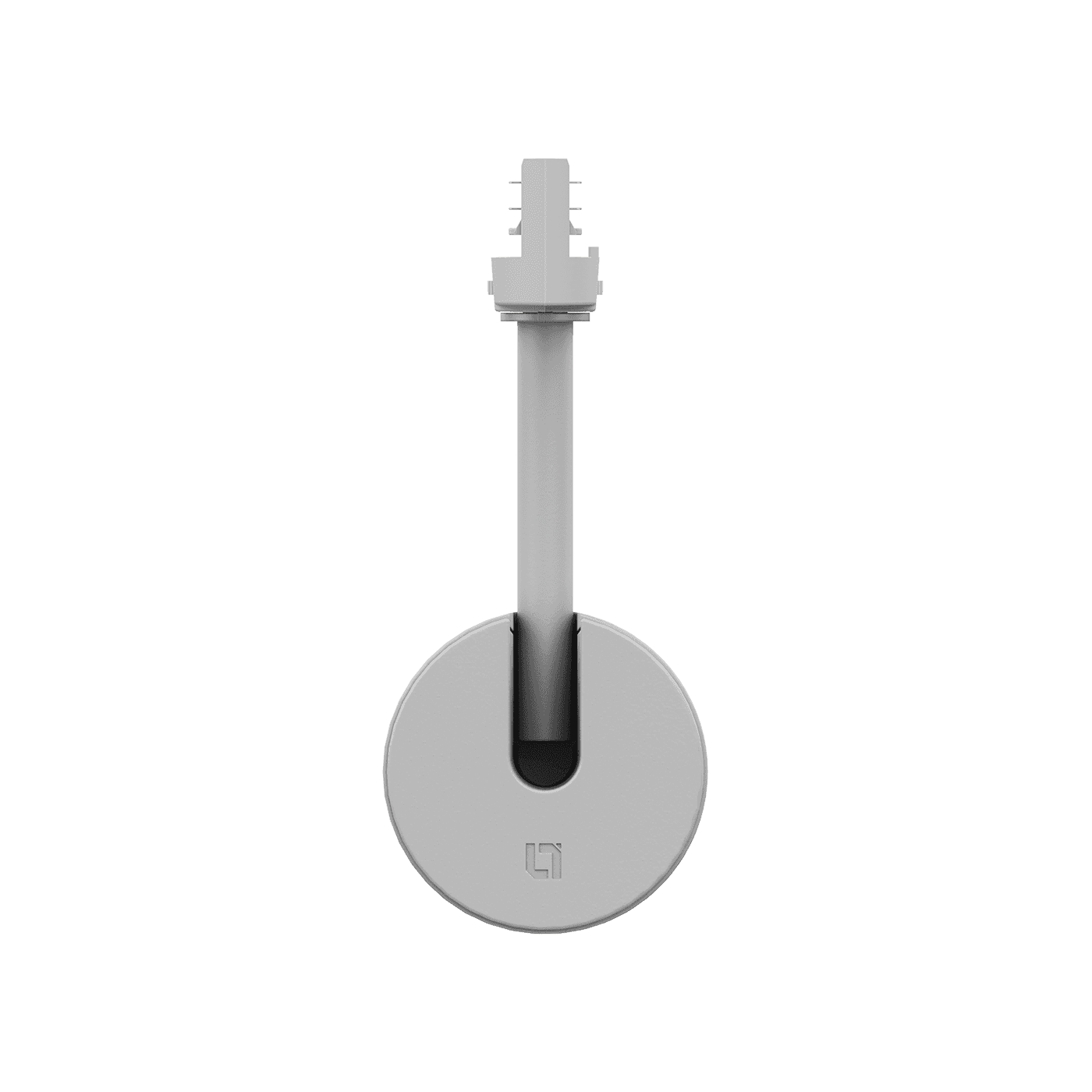

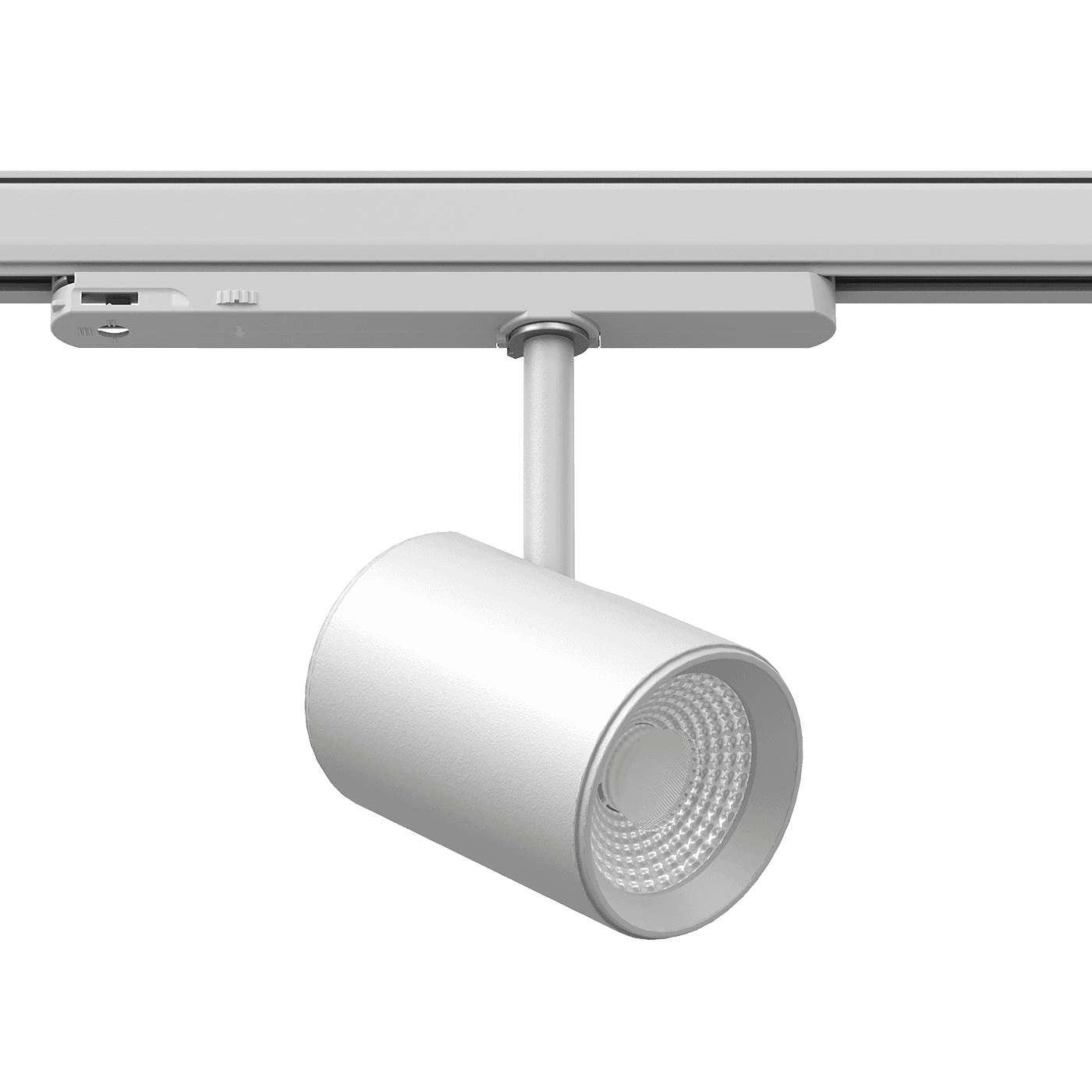

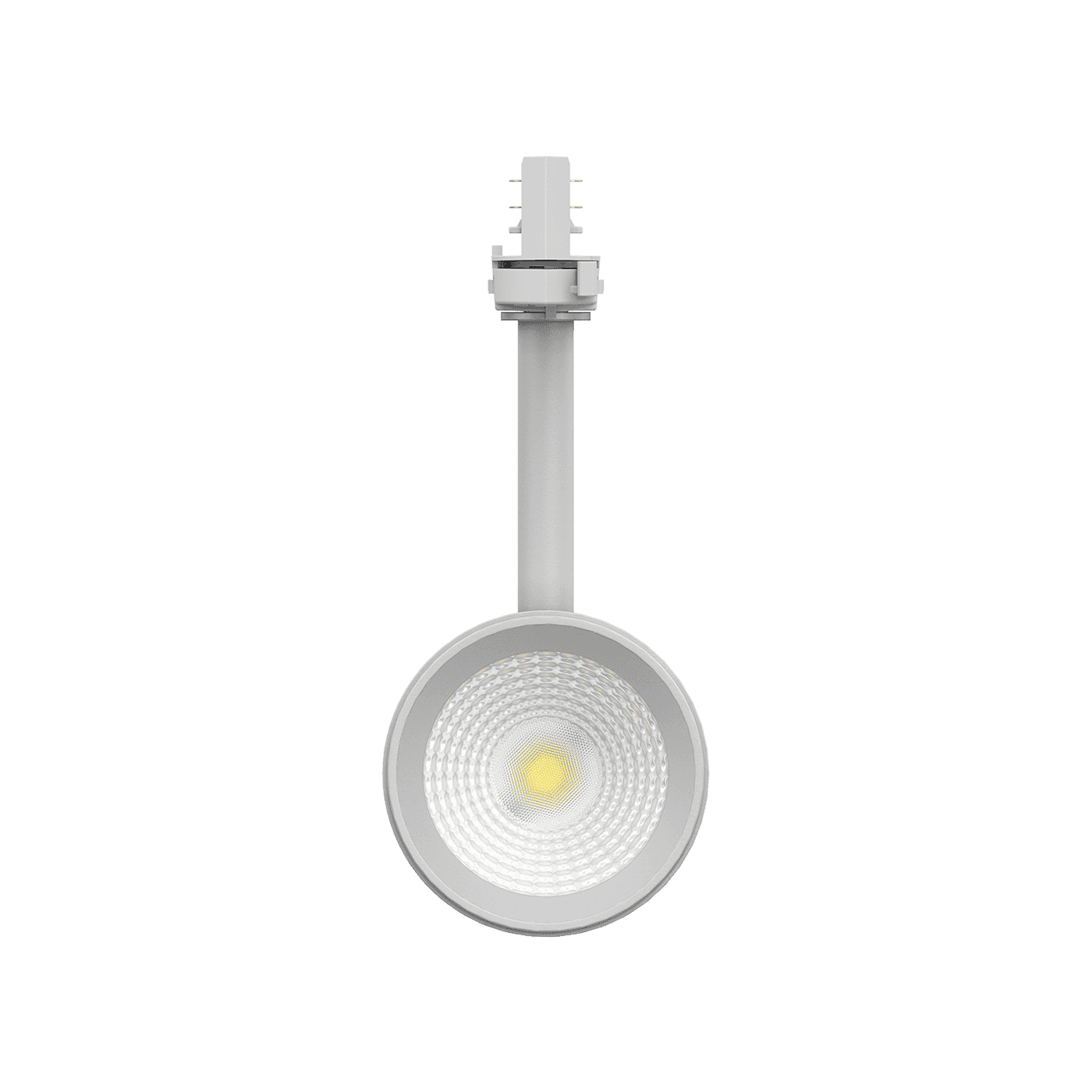

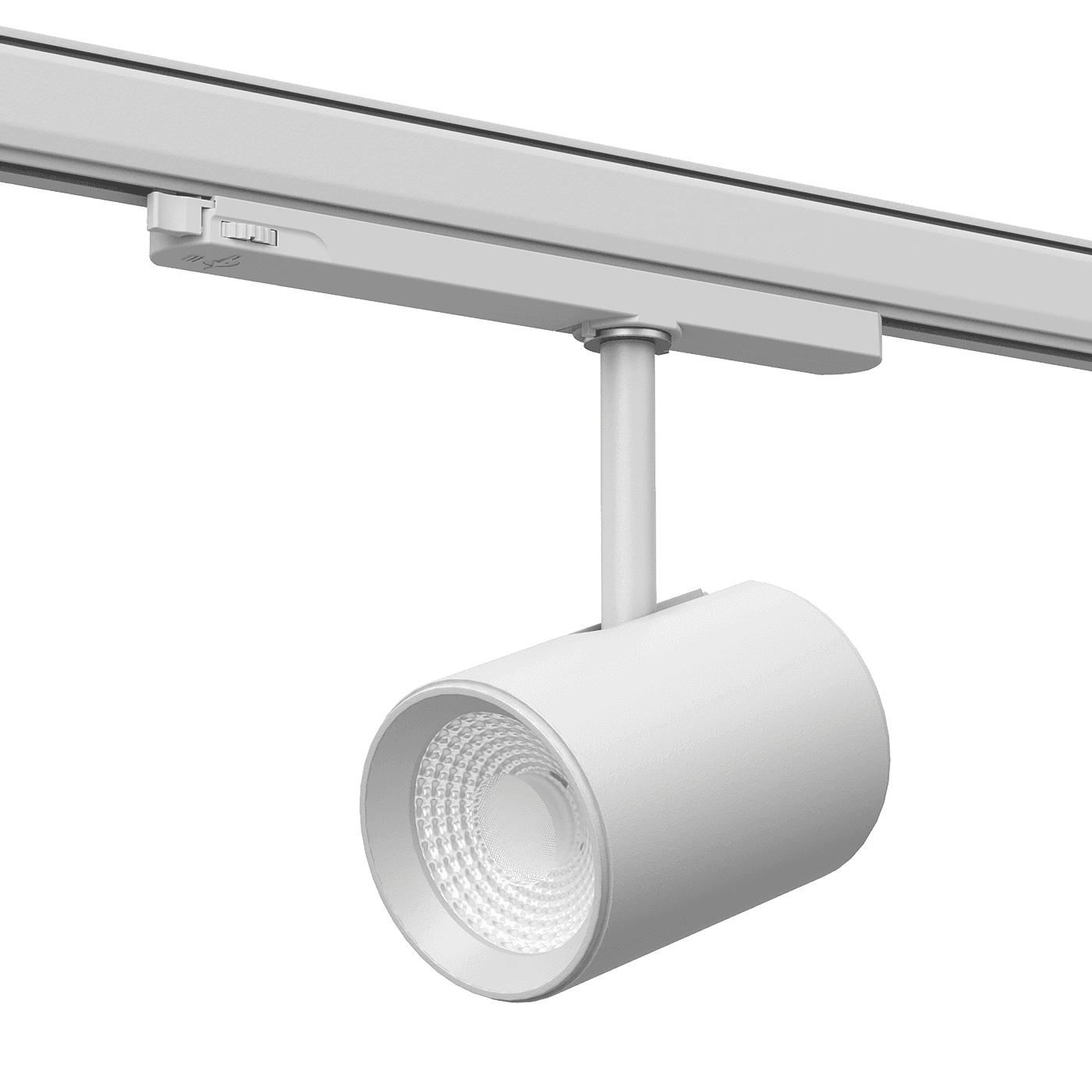

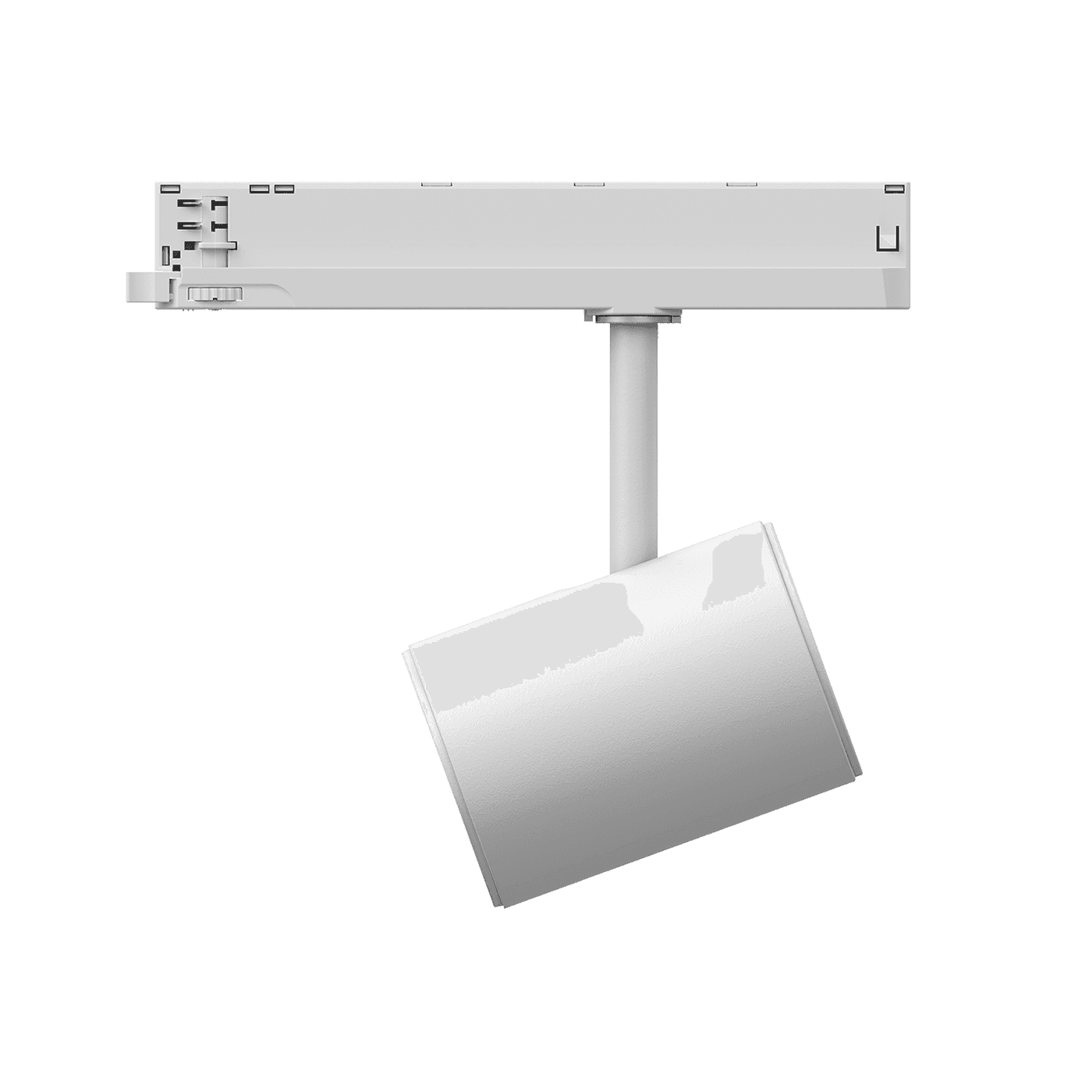

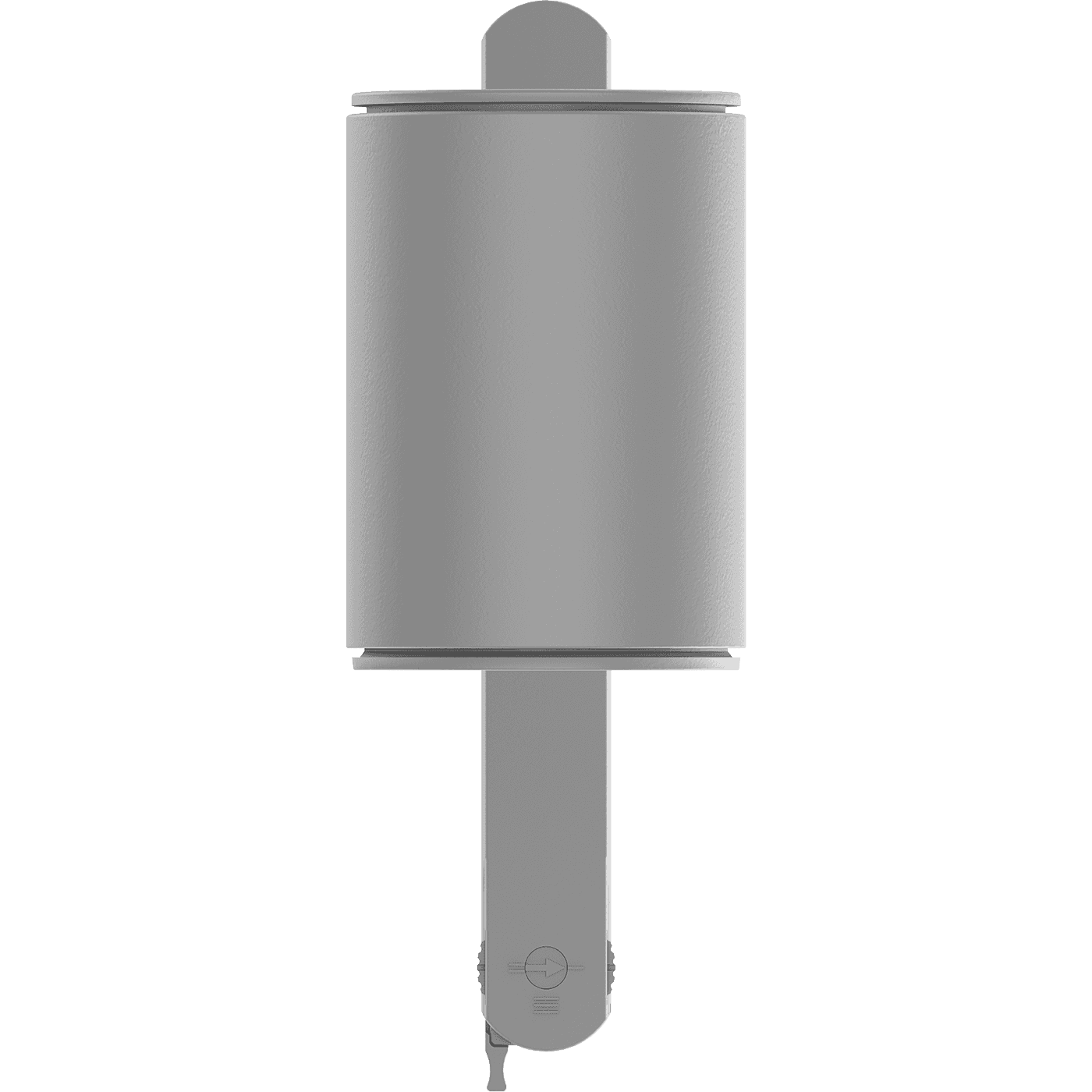

IRIS/T 15W D45 840 WH
archive
archive
IRIS/T 15W D45 840 WH
14 Wluminaire power
1800 lmlight flow
129 lm/Wenergy efficiency
code1763000030
color temperature4000
beam angleD45
old nameIRIS/T LED 15 WH D45 4000K
number of lamps1
performance factor100
options
свернуть все
electricalconstructionalcommonilluminating
starting current
18 Astarting current pulse time, µs
2.8 mksrated supply voltage, alternating current
230 Vsupply voltage, alternating current
176-264 Vluminaire power
14 Welectric shock protection
IIpower factor
> 0,95supply voltage
230 Velectrical
starting current
18 A
starting current pulse time, µs
2.8 mks
rated supply voltage, alternating current
230 V
supply voltage, alternating current
176-264 V
luminaire power
14 W
electric shock protection
II
power factor
> 0,95
supply voltage
230 V
constructional
maximum cross-section of the connected cable, sq. mm
1.5
ingress protection (IP)
IP20
climatic performance
УХЛ4*
material
Алюминий
weight
0.99 kg
diameter, mm
93 mm
height, mm
247 mm
housing color
Белый
shock resistance (IK)
IK02/0,2 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
ETIM class
Прожектор / Светильник направленного света
warranty
36 month
temperature range
от +5 до +35 C
energy efficiency class
A+
service life, hour
50 000 h
code
1763000030
illuminating
color rendition index (CRI)
>80
light flow
1800 lm
flickering factor
<5%
energy efficiency
129 lm/W
beam angle
D45
color temperature
4000
light source type
LED
emission color
Белый
model files
model files

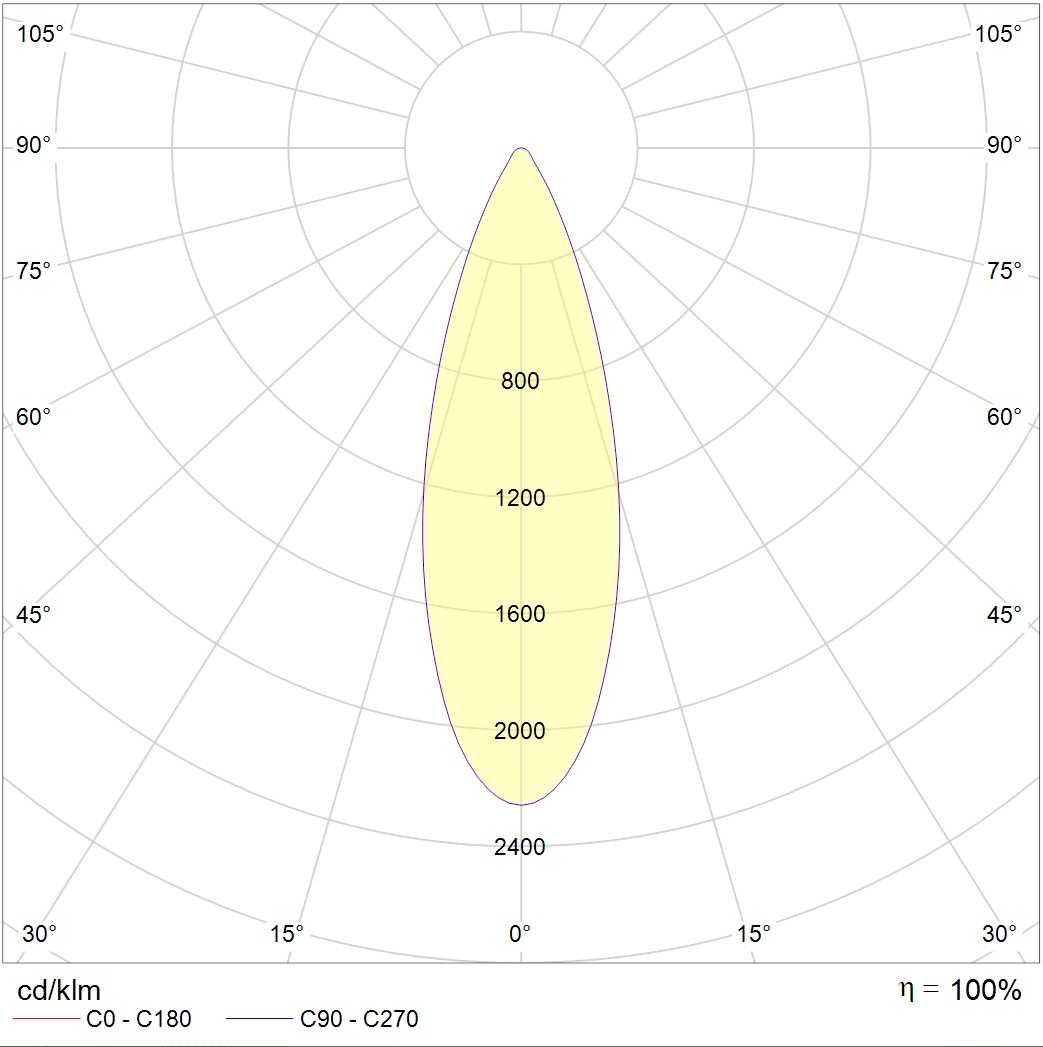

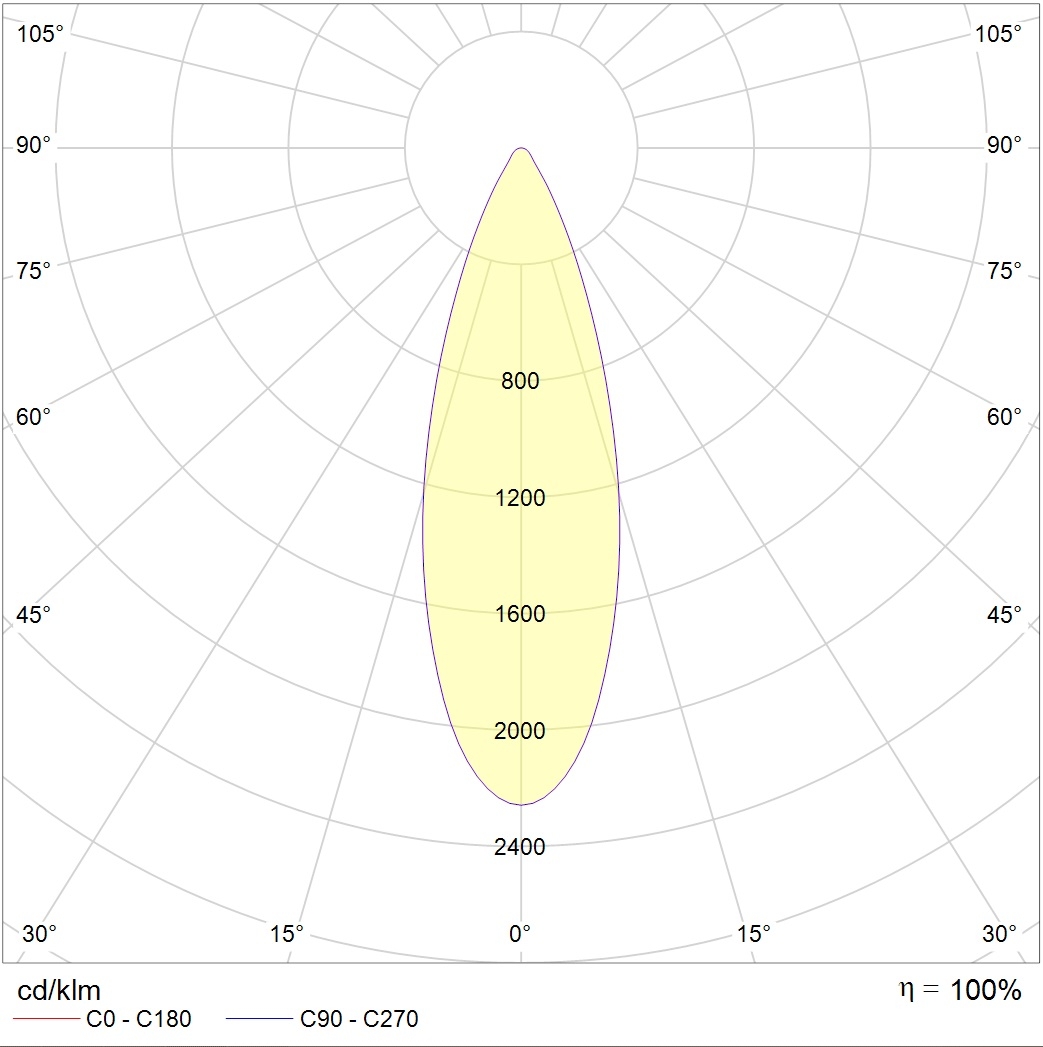

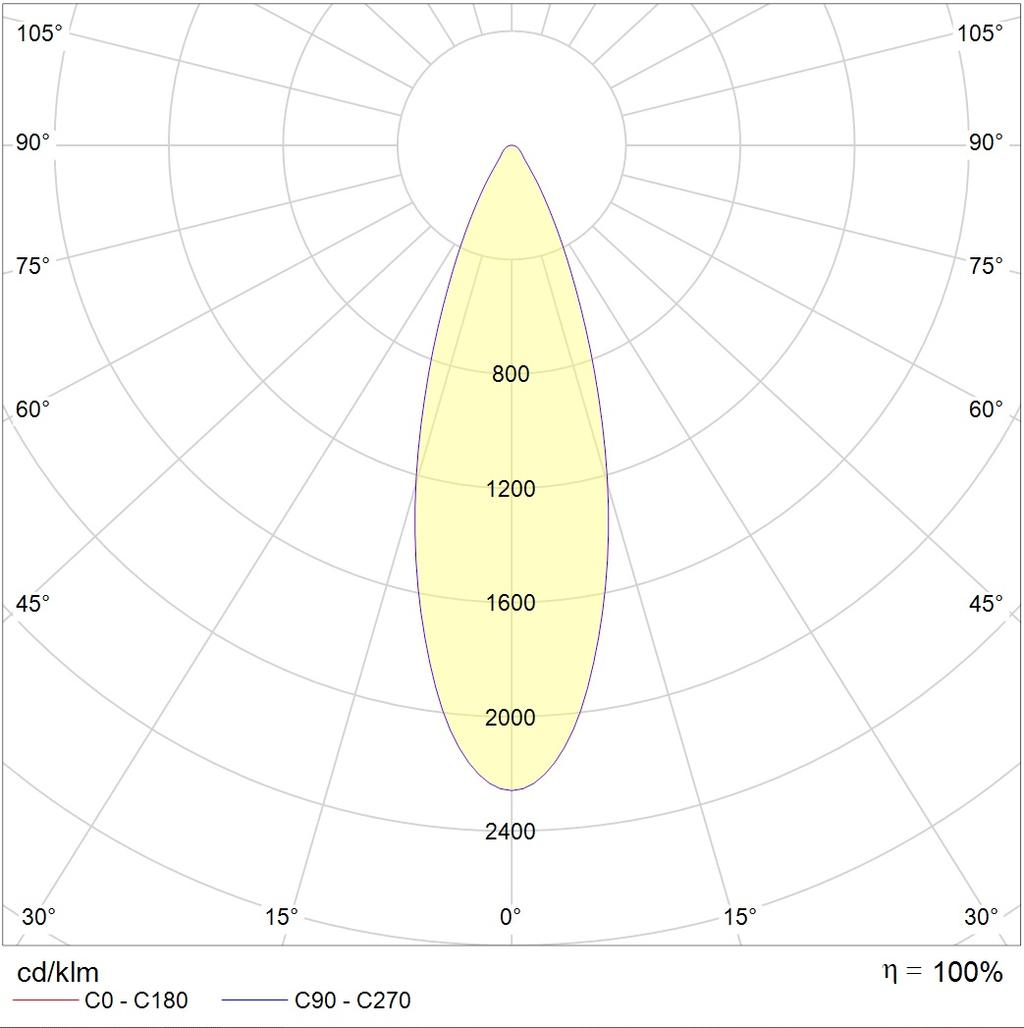

photometric files
documents
сертификаты
photometric files
ies3.2 kB
jpg131.9 kB
ldt2.3 kB
documents
passport1.3 mB
сертификаты
Russian origin281.2 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
