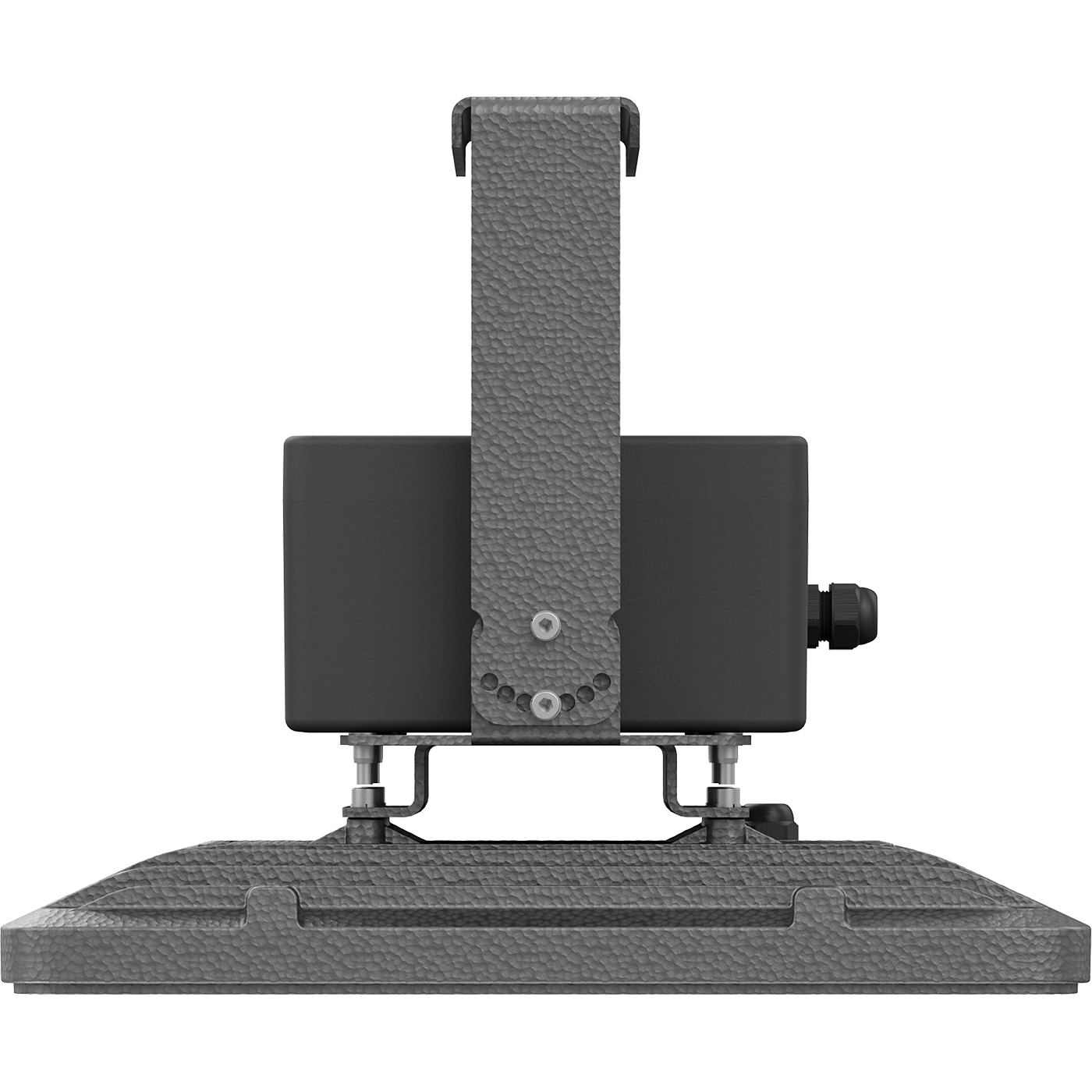

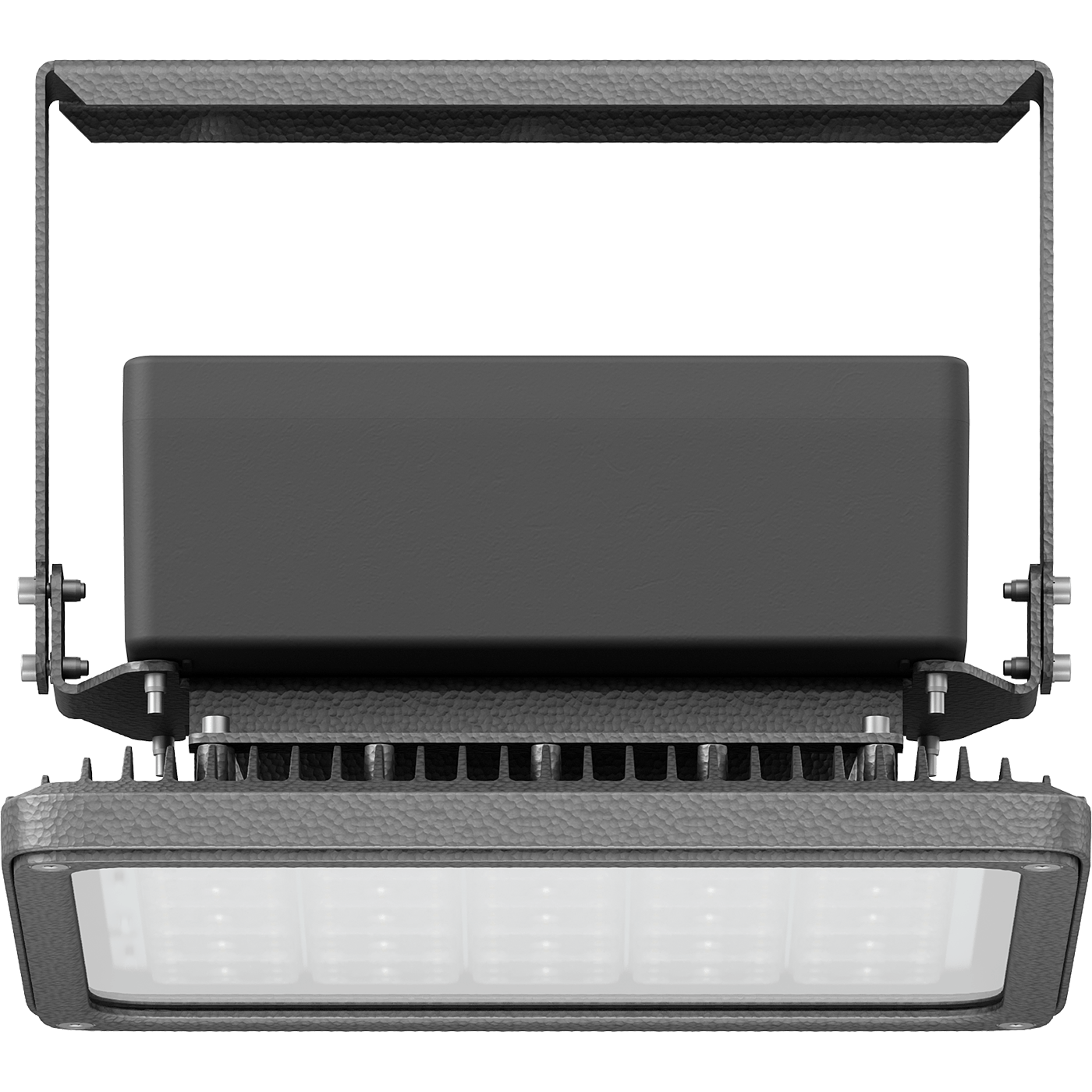

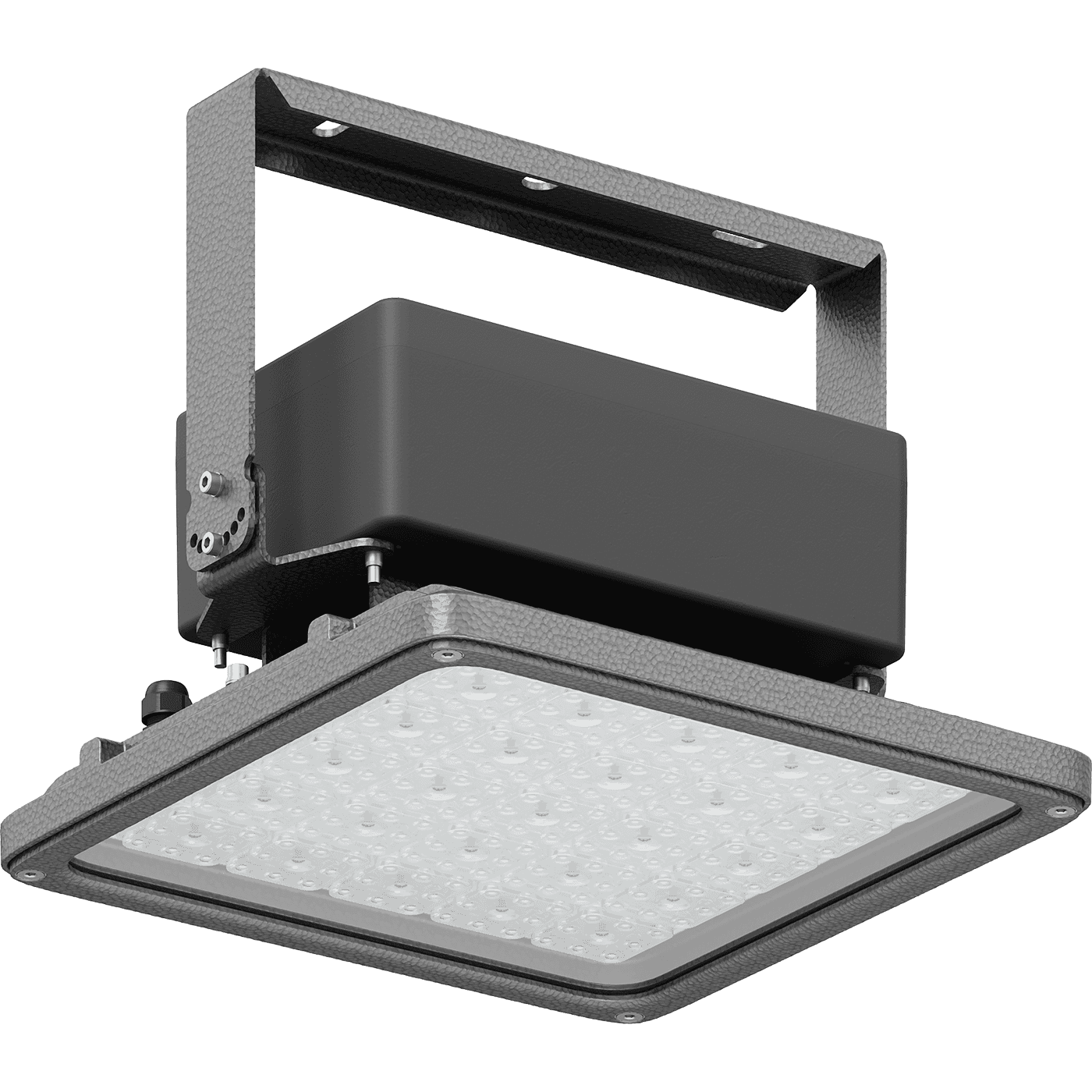

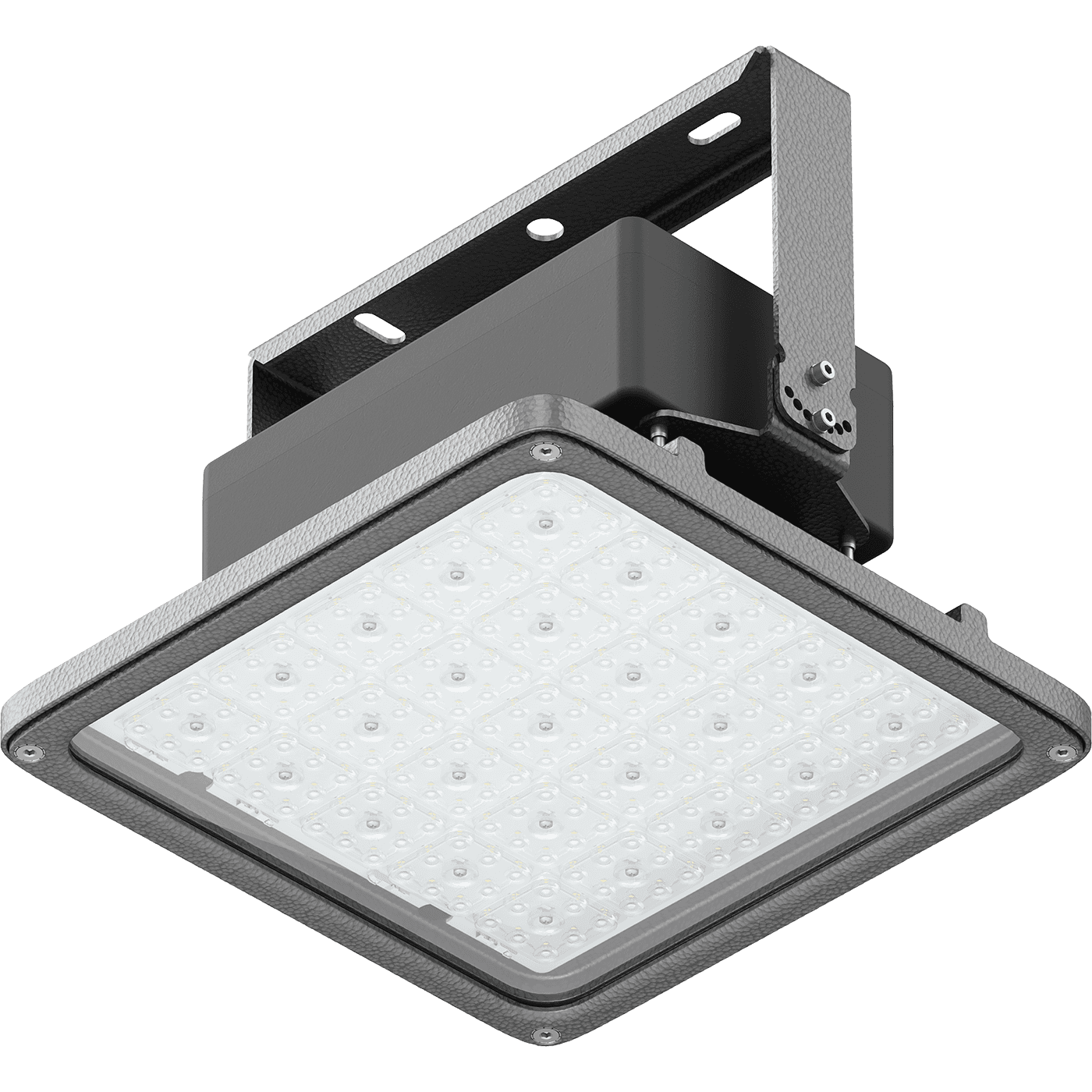

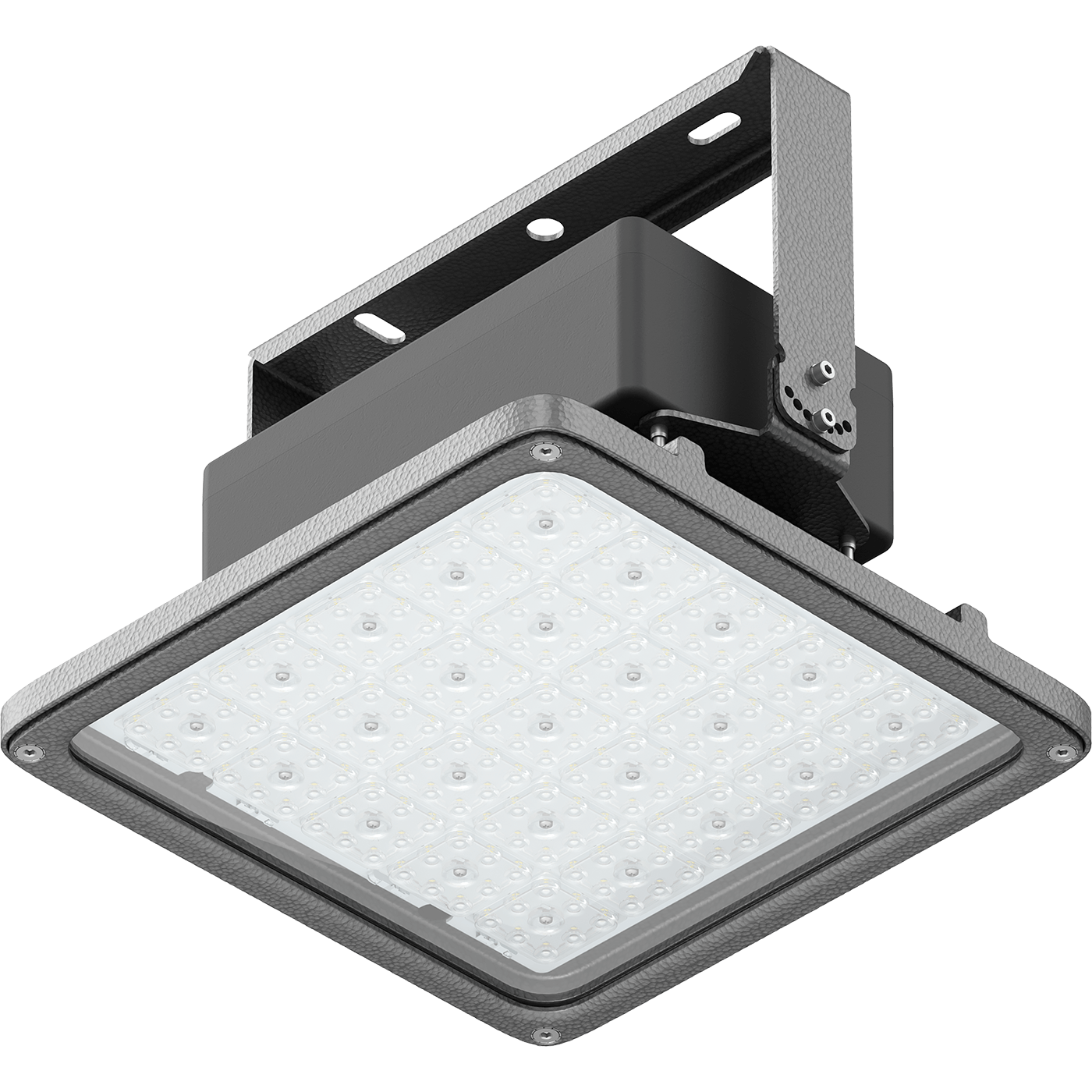

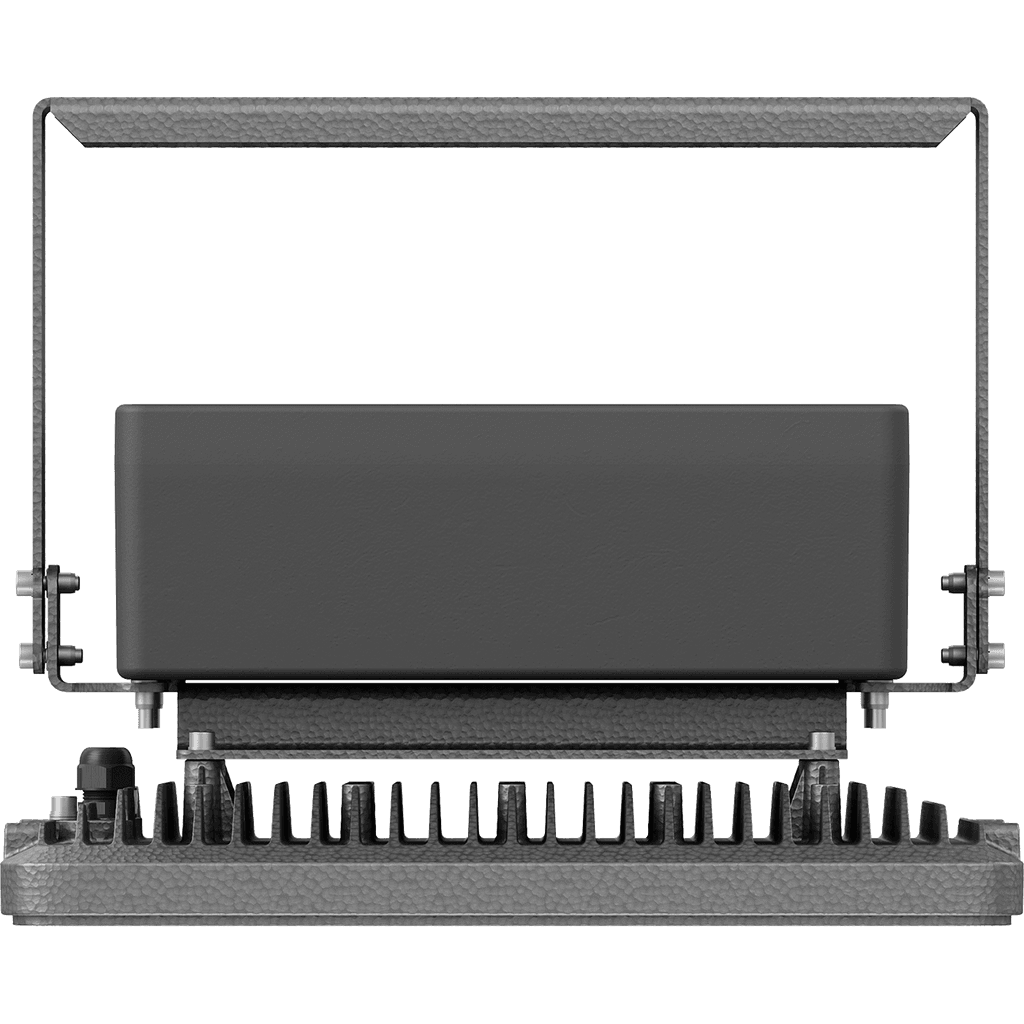

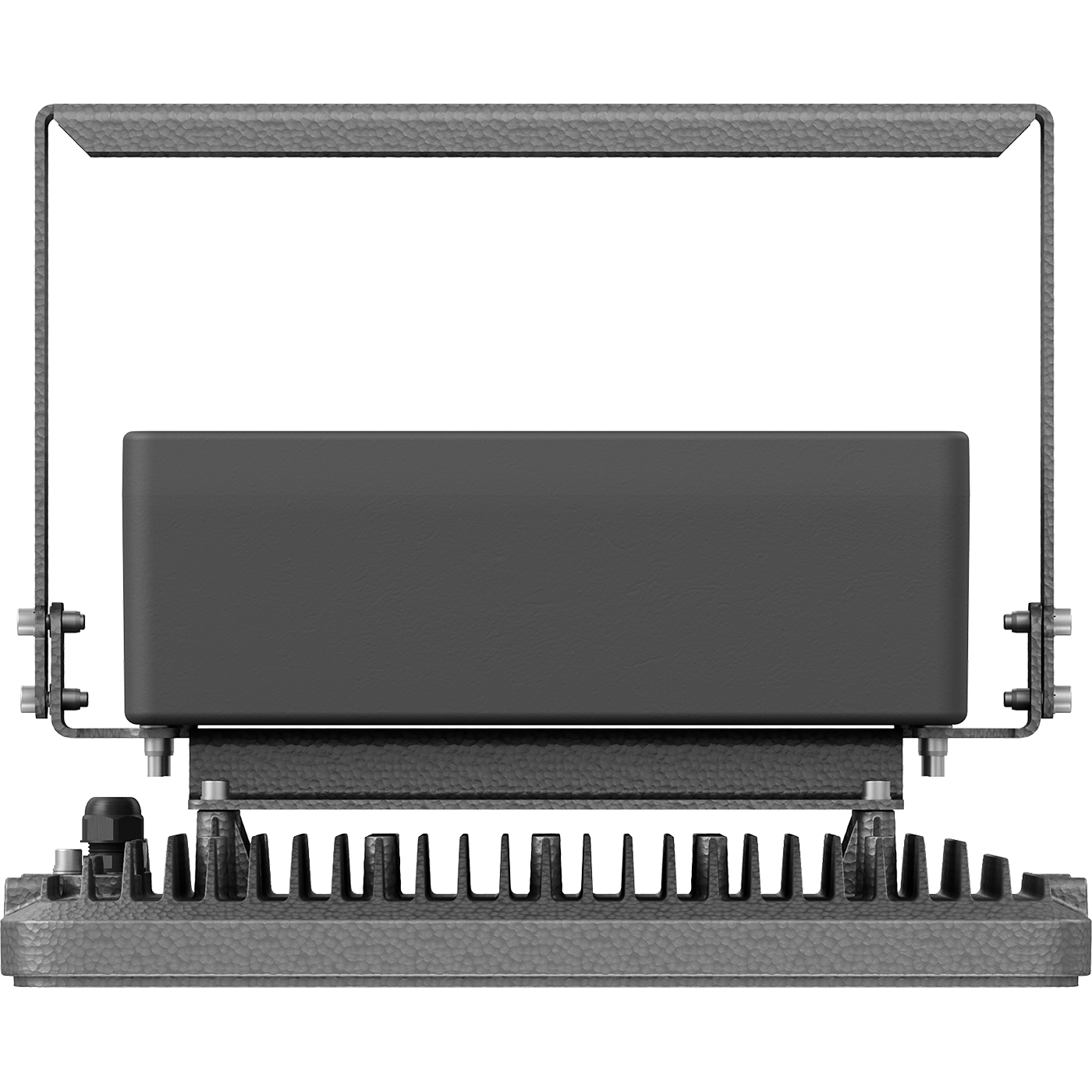

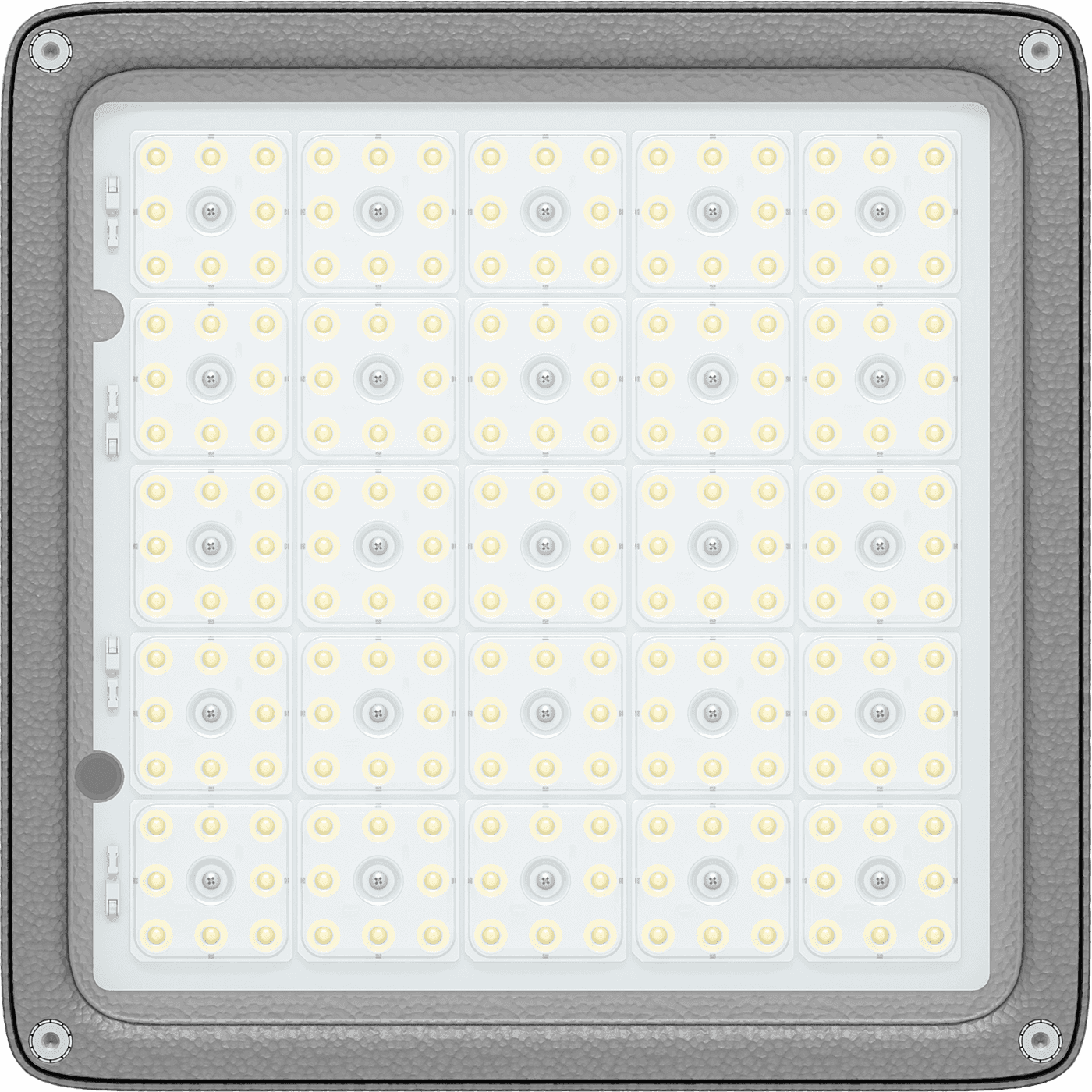

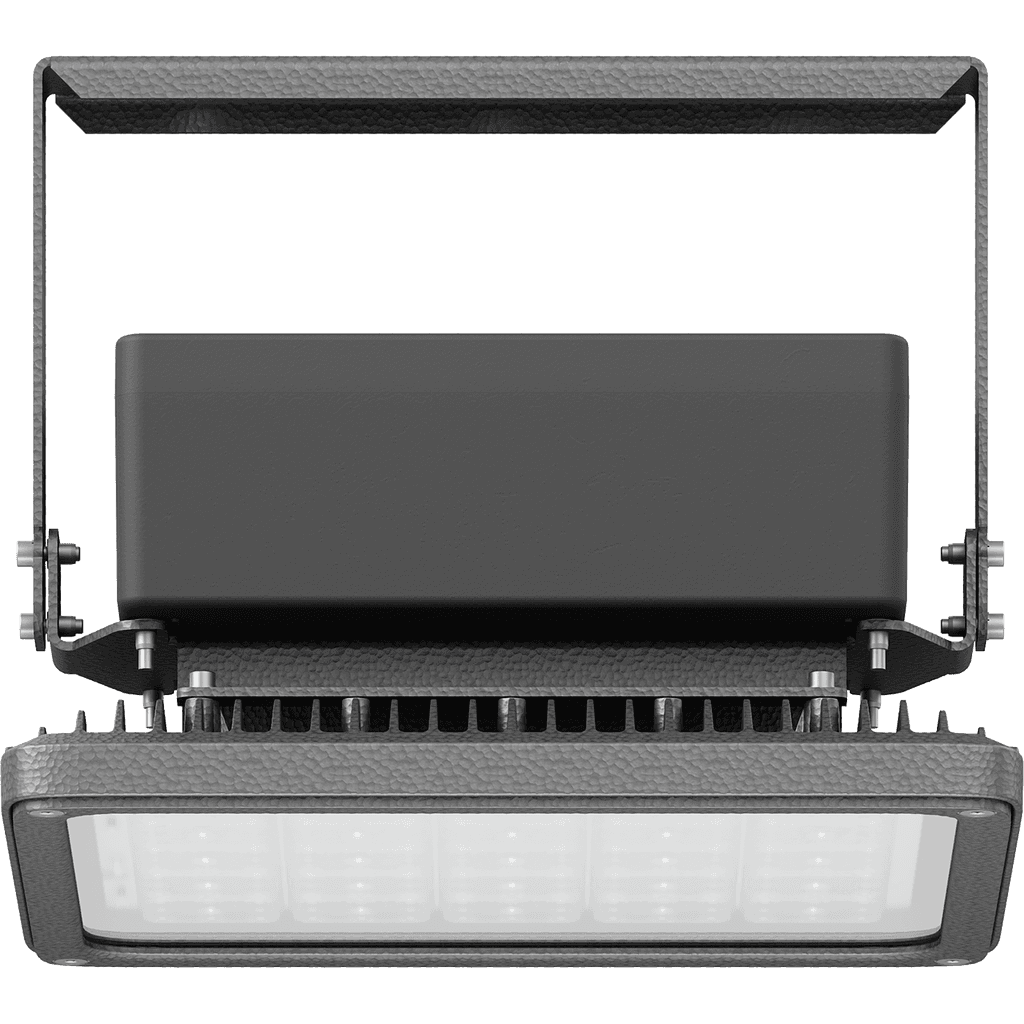

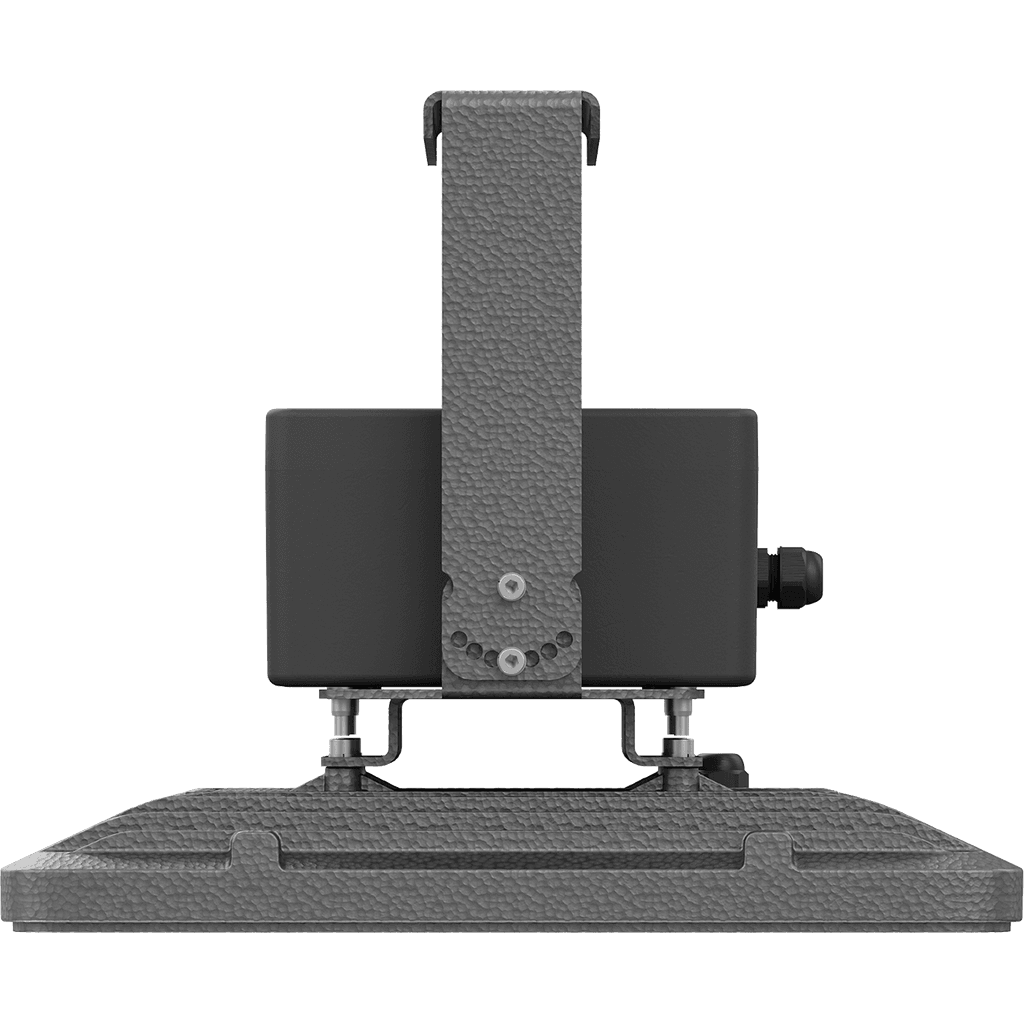

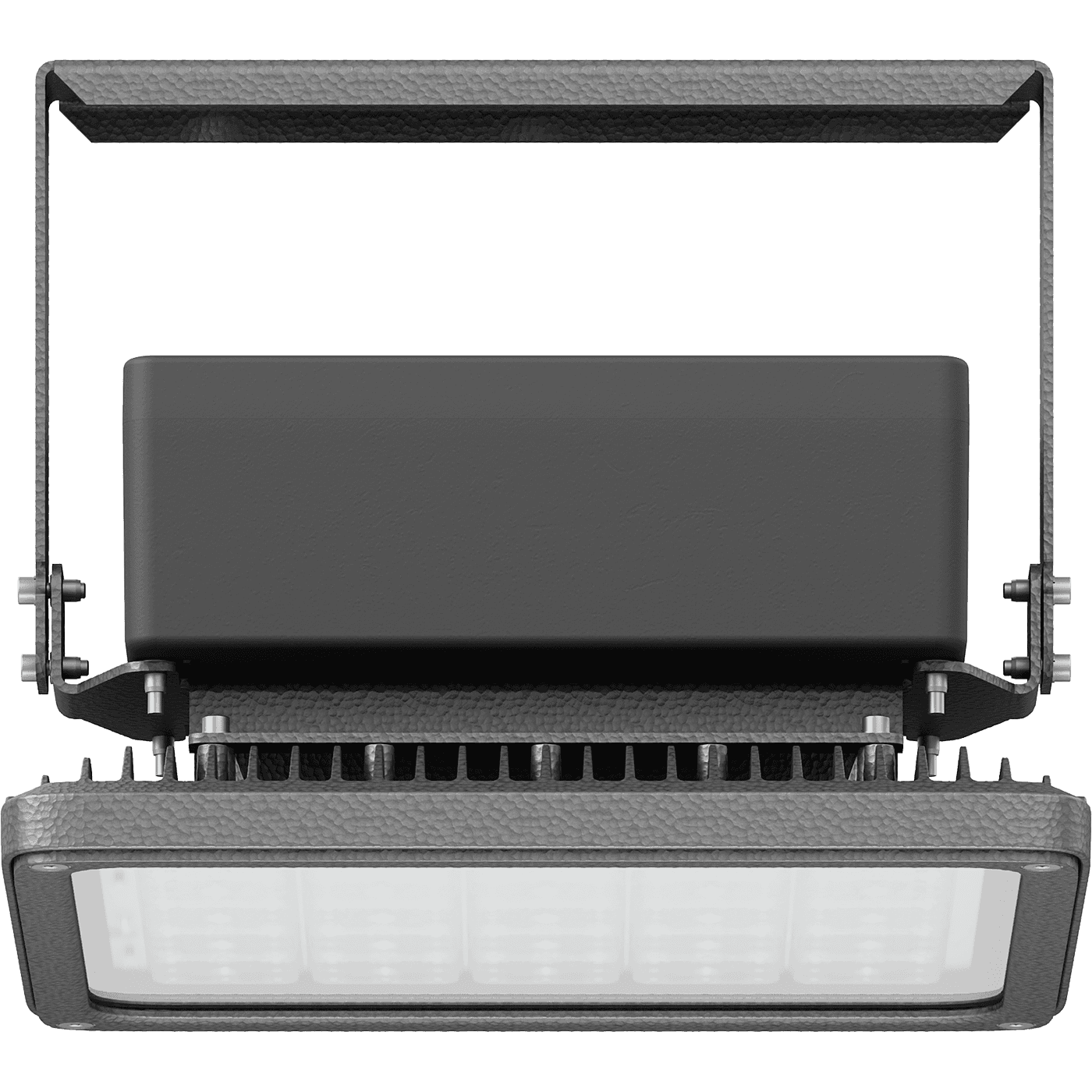

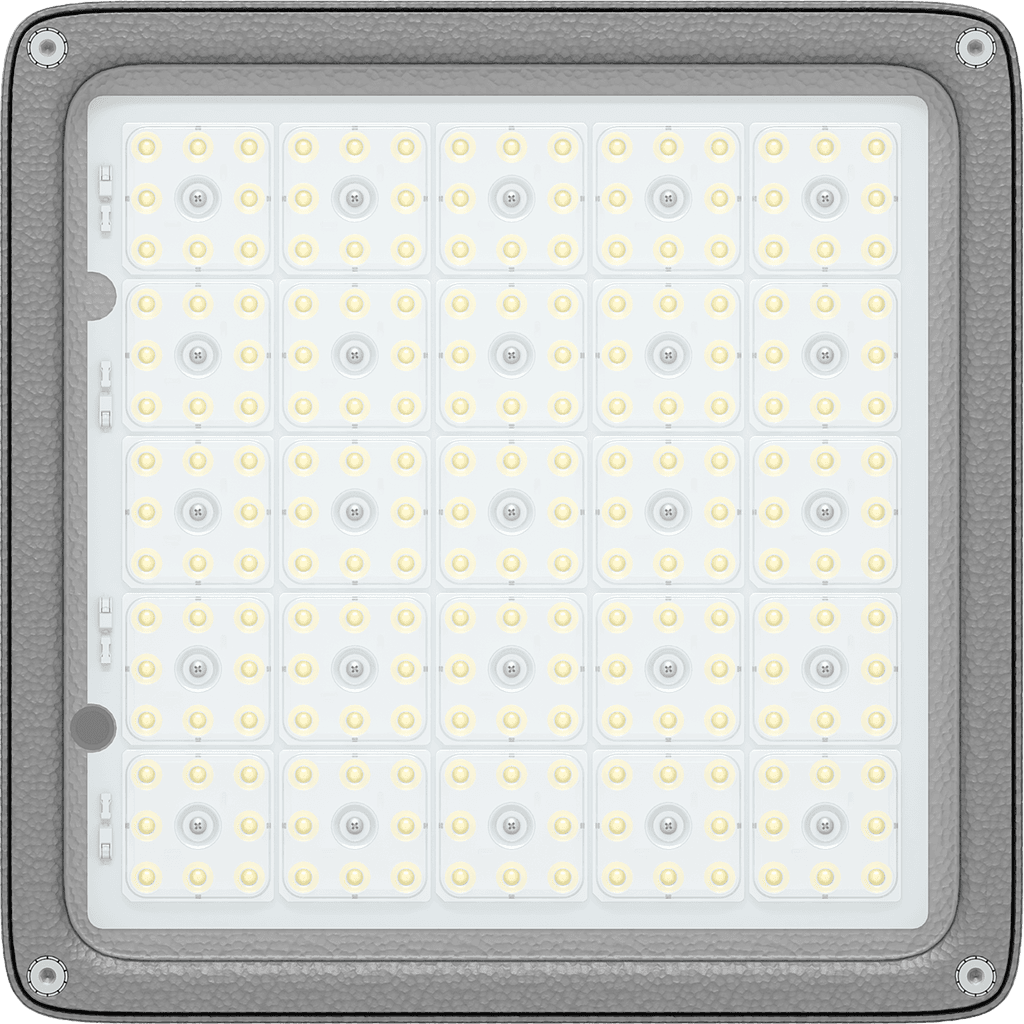

INSEL LB/S LED 70 D120 Ex 5000K GI
INSEL LB/S LED 70 D120 Ex 5000K GI
68 Wluminaire power
10200 lmlight flow
150 lm/Wenergy efficiency
code1334004100
color temperature5000
gas marking2 Ex e mb II T5 Gс
dust markingEx tb IIIC T100 C Db
beam angleD120
weight10 kg
options
свернуть все
constructionalelectricalcommonilluminatingexplosion-proof
ingress protection (IP)
IP66material
Сплав алюминиевыйhousing color
Серыйlength, mm
331 mmwidth, mm
331 mmheight, mm
266 mmweight
10 kgfire safety class
П-I,II,IIa,ІІІclimatic performance
УХЛ1*maximum cross-section of the connected cable, sq. mm
2.5shock resistance (IK)
IK08/7 Джinstallation length, mm
200 mmconstructional
ingress protection (IP)
IP66
material
Сплав алюминиевый
housing color
Серый

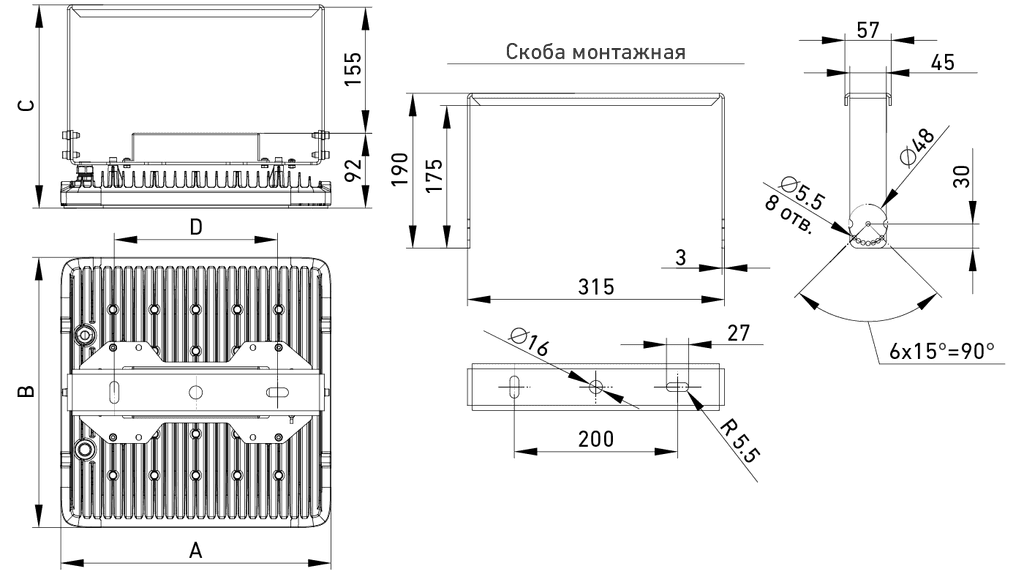

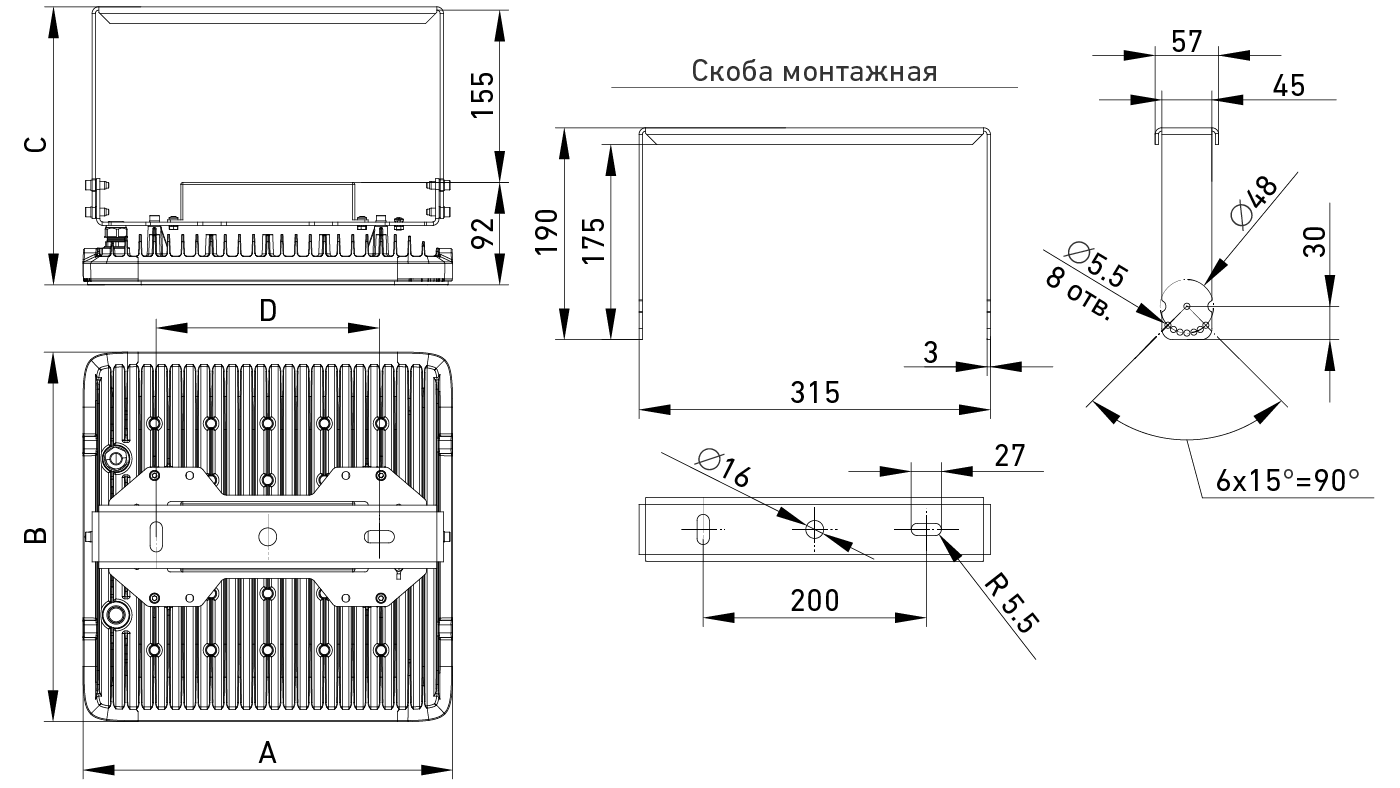

length, mm
331 mm
width, mm
331 mm
height, mm
266 mm
weight
10 kg
fire safety class
П-I,II,IIa,ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/7 Дж
installation length, mm
200 mm
electrical
electric shock protection
I
starting current pulse time, µs
200 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-420 V
starting current
55 A
luminaire power
68 W
power factor
> 0,96
common
code
1334004100
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
10200 lm
energy efficiency
150 lm/W
flickering factor
<1%

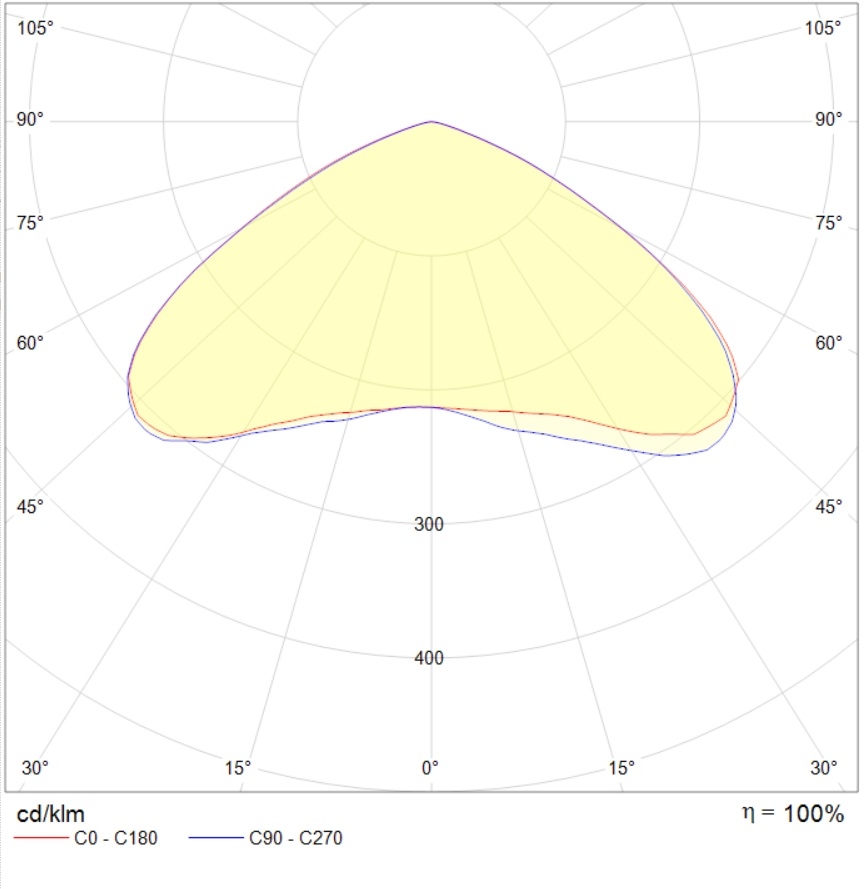

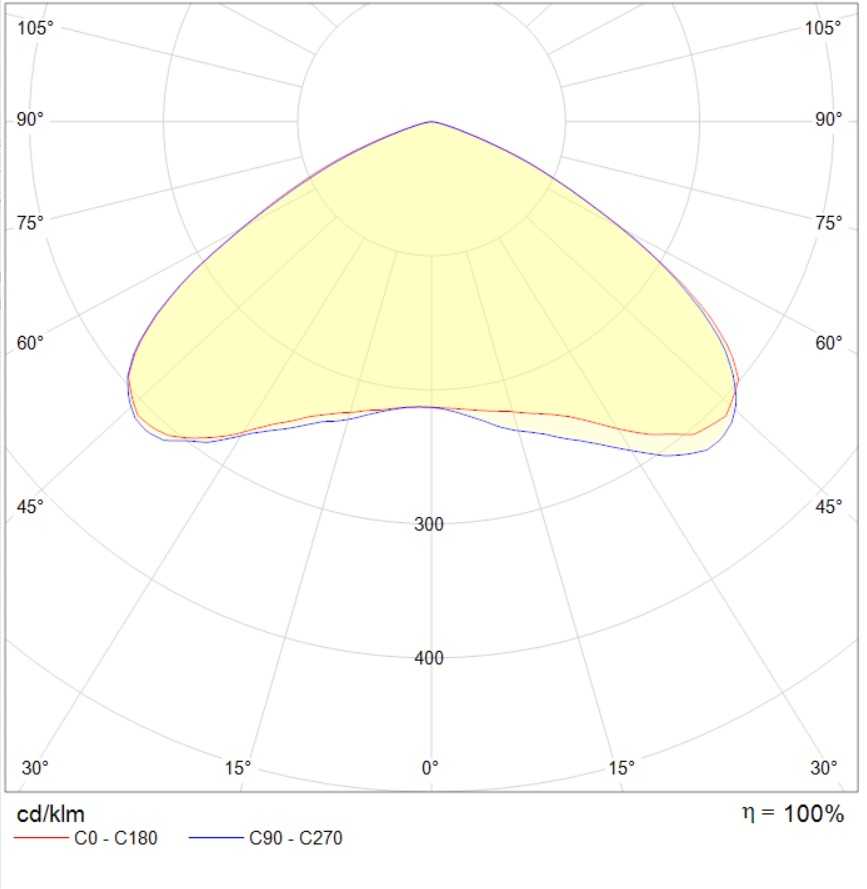

beam angle
D120
color temperature
5000

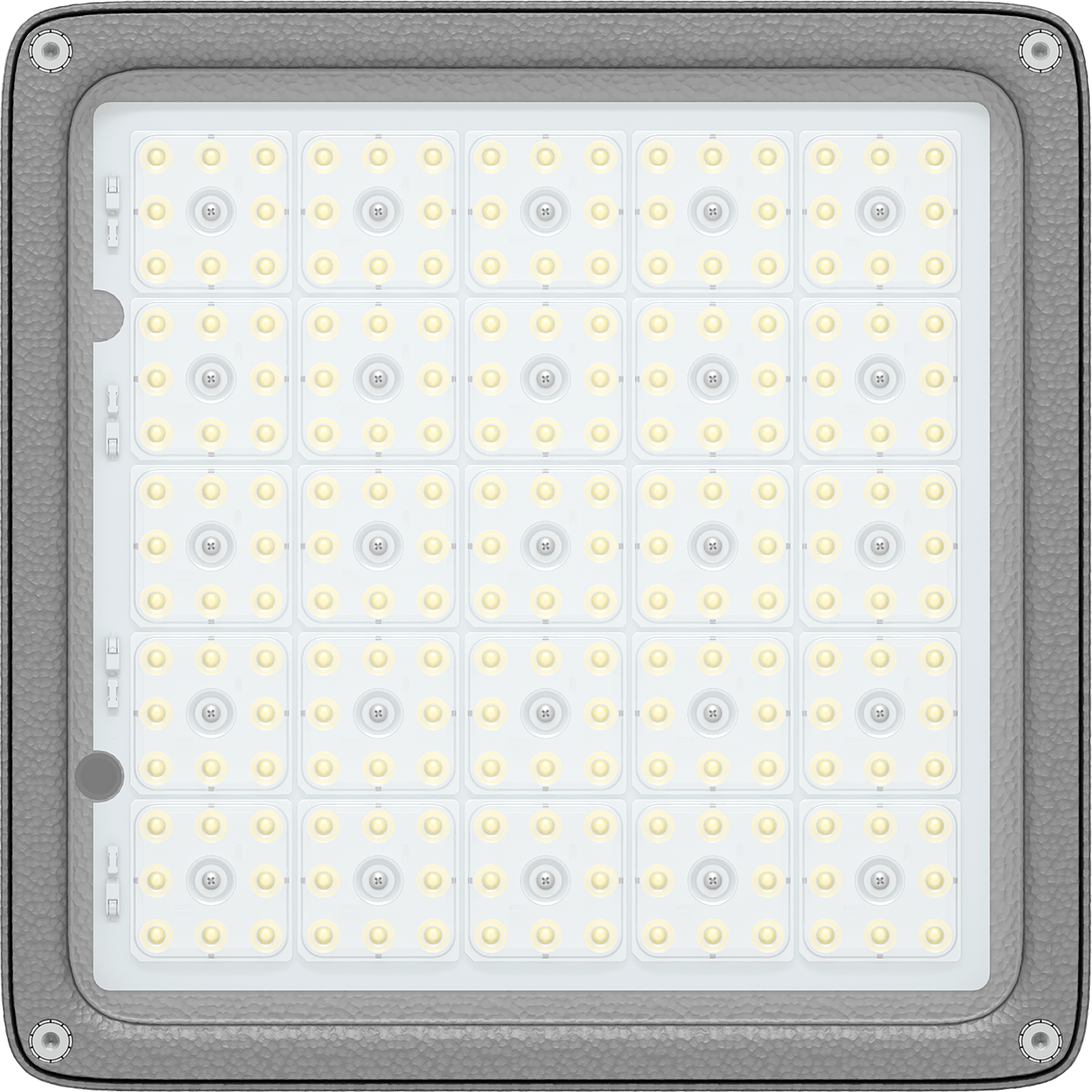

light source type
LED
emission color
Белый
Synchronization of flashing mode
Нет
explosion-proof
gas marking
2 Ex e mb II T5 Gс
dust marking
Ex tb IIIC T100 C Db
gas explosion-proof (type)
Ex e mb
gas explosion-proof (zones)
2
gas explosion-proof (groups of equipment)
II
T6 - temperature class
T5
model files
model files
photometric files
documents
сертификаты
photometric files
ies263.2 kB
jpg81.5 kB
ldt162.3 kB
documents
passport1.6 mB
сертификаты
Certificate of conformity TRTS 012/2011398.4 kB
Declaration of Conformity TRTS 020/2011201.4 kB
Certificate of seismic resistance834.7 kB
Declaration of Conformity EAEU TR 037/2016197.5 kB
Fire Safety Certificate471.1 kB
