INSEL LB/S LED 120 D120 Ex 5000K

INSEL LB/S LED 120 D120 Ex 5000K
120 Wluminaire power
18000 lmlight flow
150 lm/Wenergy efficiency
code1334000560
color temperature5000
gas marking2 Ex e mb II T5 Gс
dust markingEx tb IIIC T100 C Db
beam angleD120
weight10 kg
options
свернуть все
constructionalelectricalcommonilluminatingexplosion-proof
ingress protection (IP)
IP66
material
Сплав алюминиевый
housing color
Серый

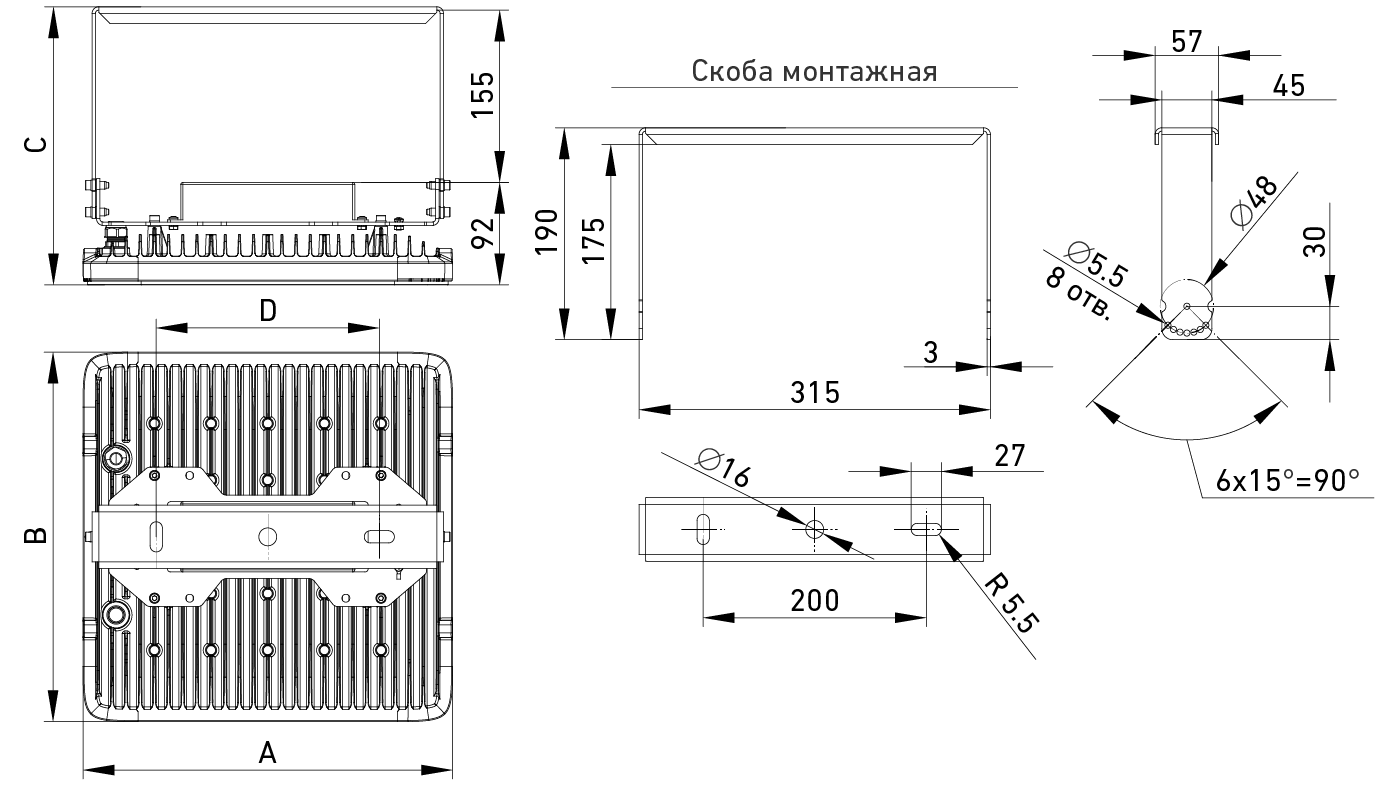

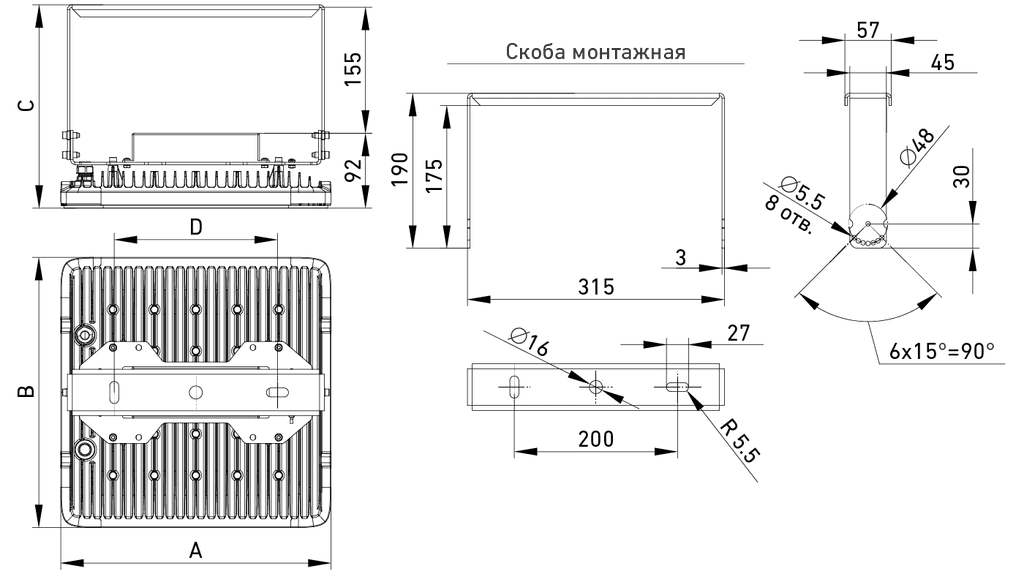

length, mm
331 mm
width, mm
331 mm
height, mm
266 mm
weight
10 kg
fire safety class
П-I,II,IIa,ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/7 Дж
installation length, mm
200 mm
constructional
ingress protection (IP)
IP66
material
Сплав алюминиевый
housing color
Серый
length, mm
331 mm
width, mm
331 mm
height, mm
266 mm
weight
10 kg
fire safety class
П-I,II,IIa,ІІІ
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
shock resistance (IK)
IK08/7 Дж
installation length, mm
200 mm
electrical
electric shock protection
I
starting current pulse time, µs
400 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-420 V
starting current
57 A
luminaire power
120 W
power factor
> 0,98
common
code
1334000560
ETIM class
Светильник взрывобезопасный/взрывозащищенный стационарный (фиксиров. установки)
warranty
36 month
temperature range
от -60 до +55 C
energy efficiency class
A++
service life, hour
50 000 h
illuminating
color rendition index (CRI)
>80
light flow
18000 lm
energy efficiency
150 lm/W
flickering factor
<1%
beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
Synchronization of flashing mode
Нет
explosion-proof
gas marking
2 Ex e mb II T5 Gс
dust marking
Ex tb IIIC T100 C Db
gas explosion-proof (type)
Ex e mb
gas explosion-proof (zones)
2
gas explosion-proof (groups of equipment)
II
T6 - temperature class
T5
