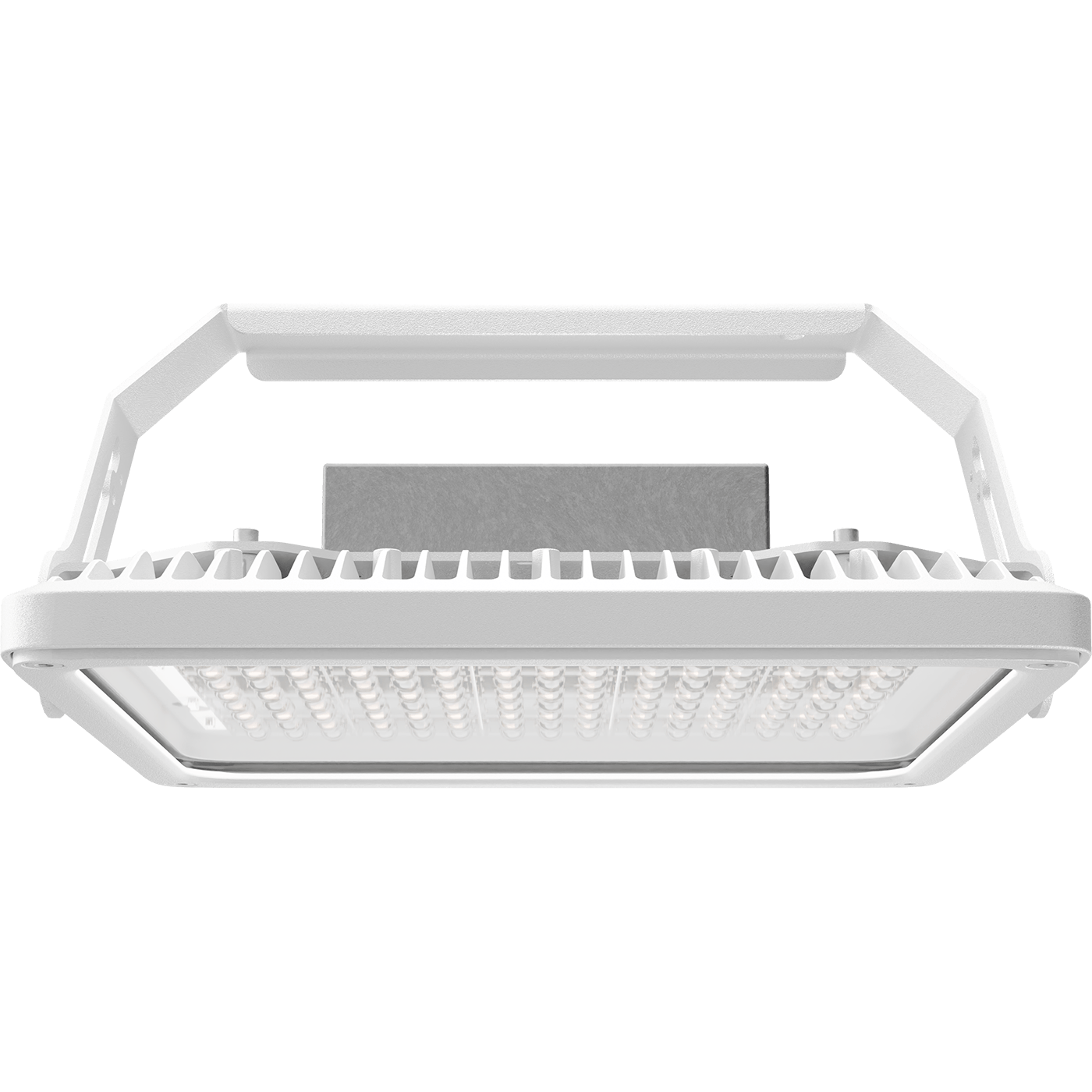

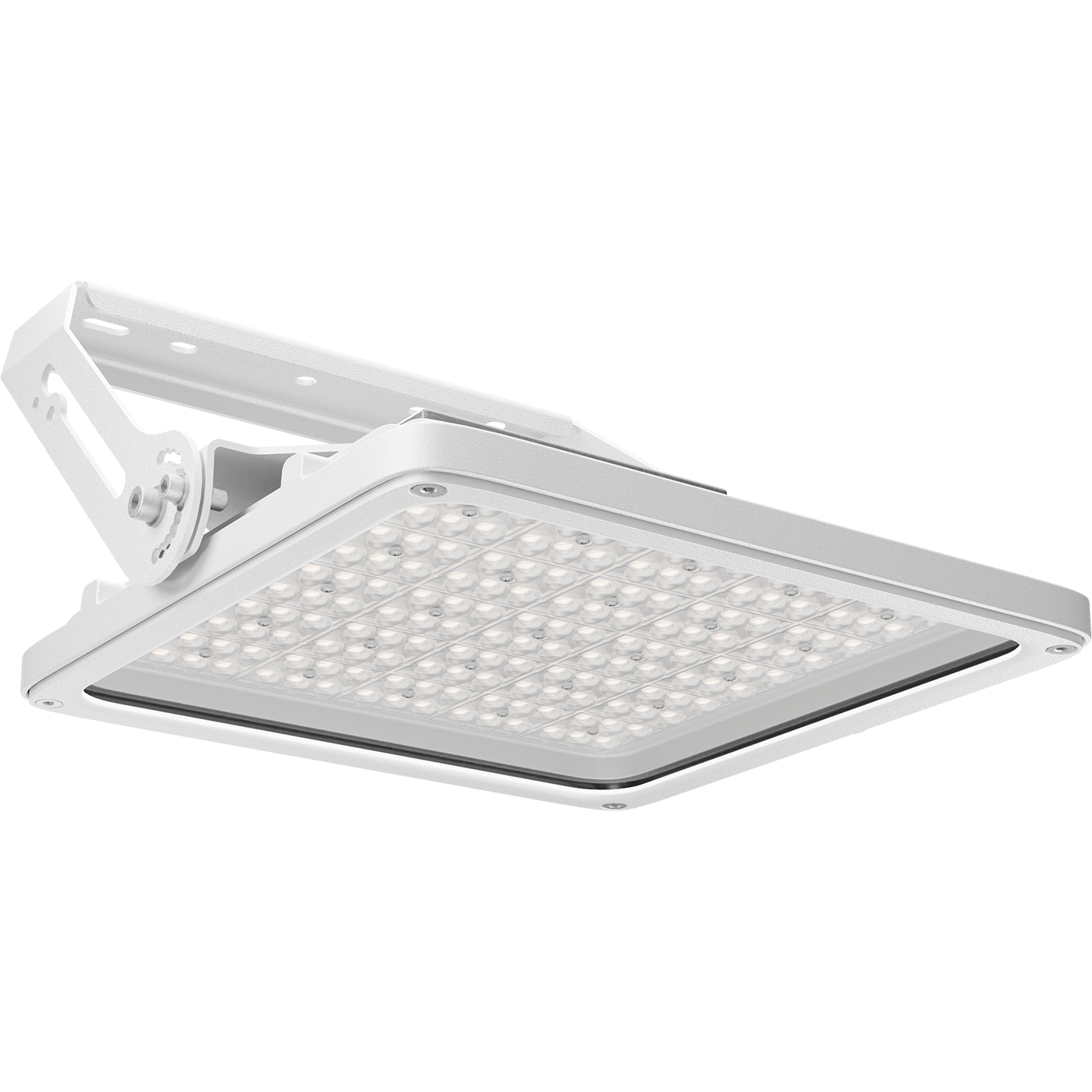

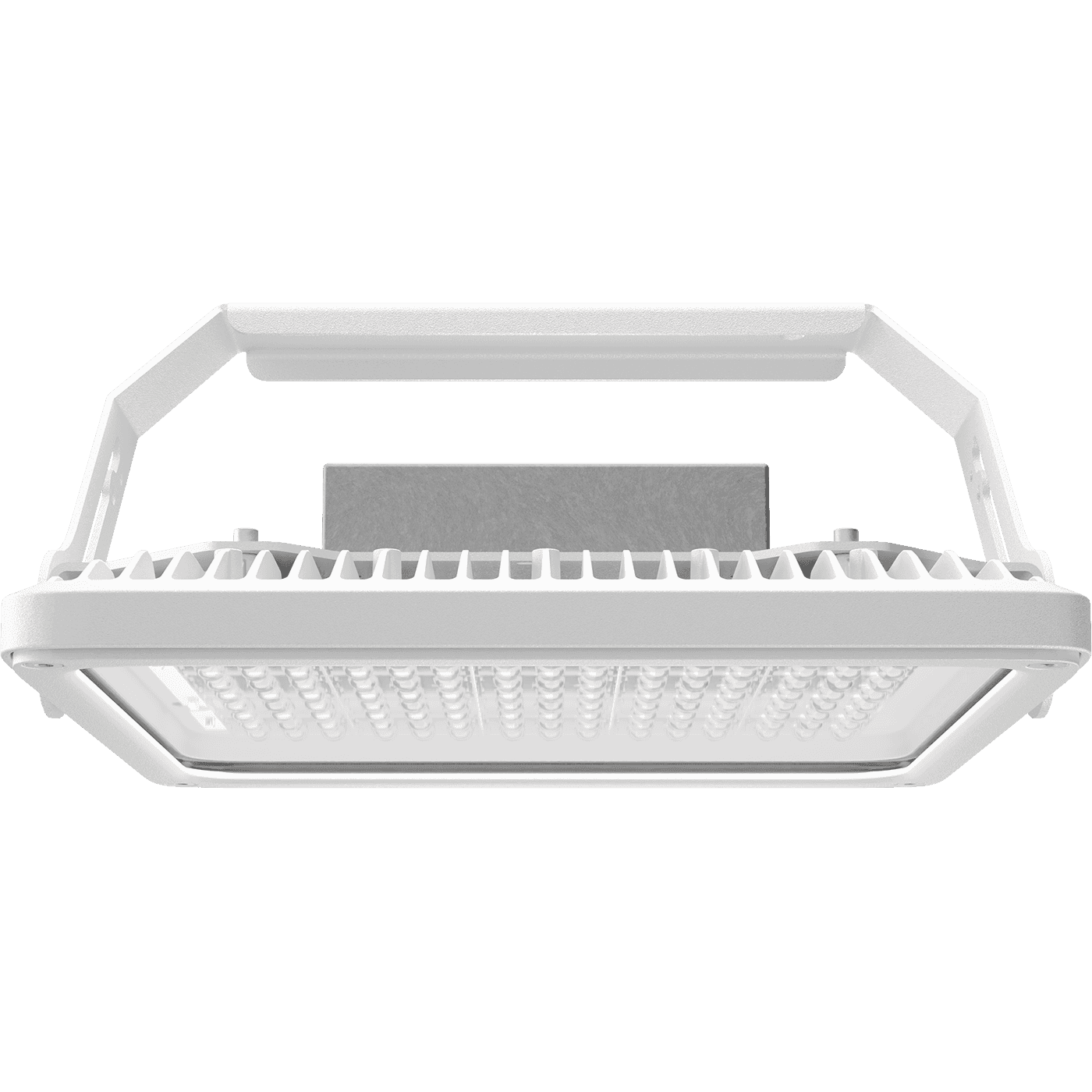

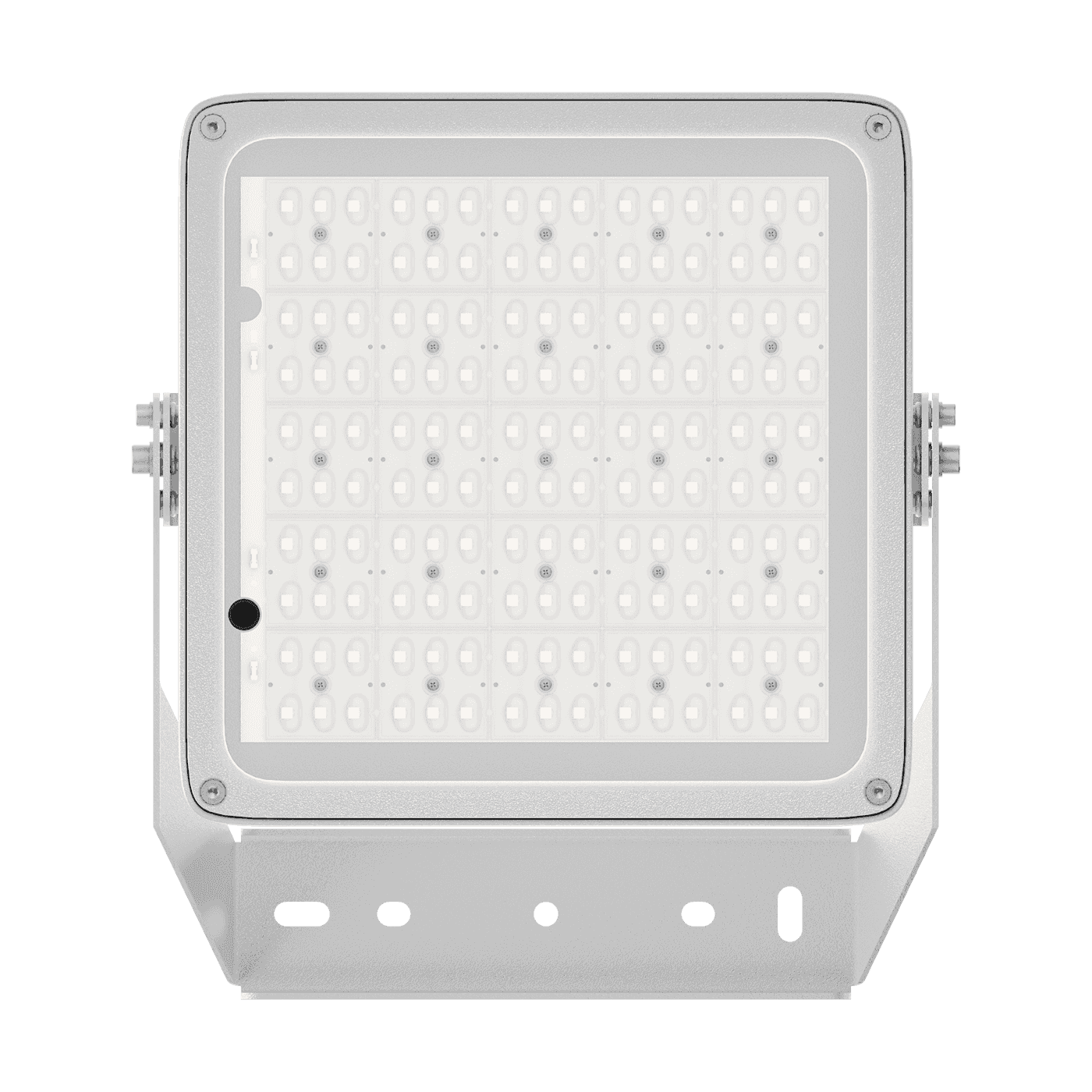

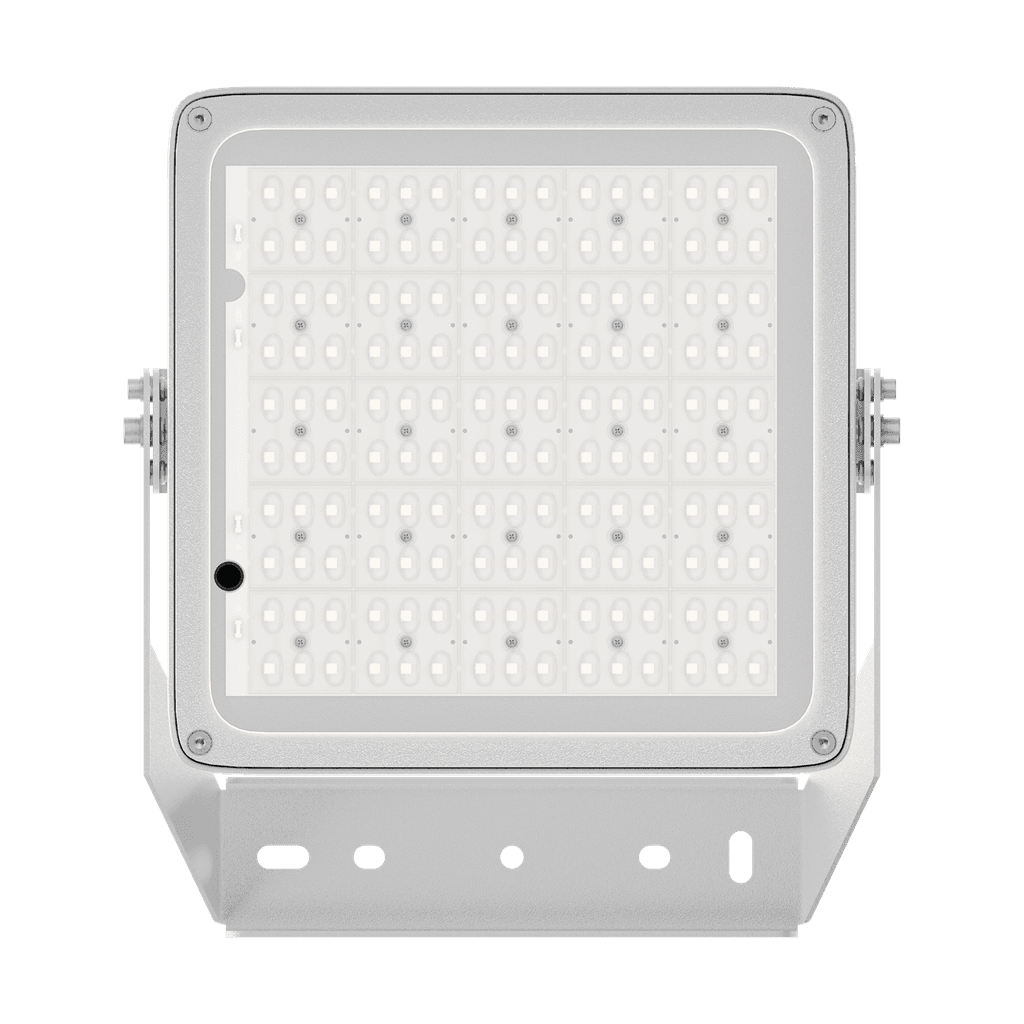

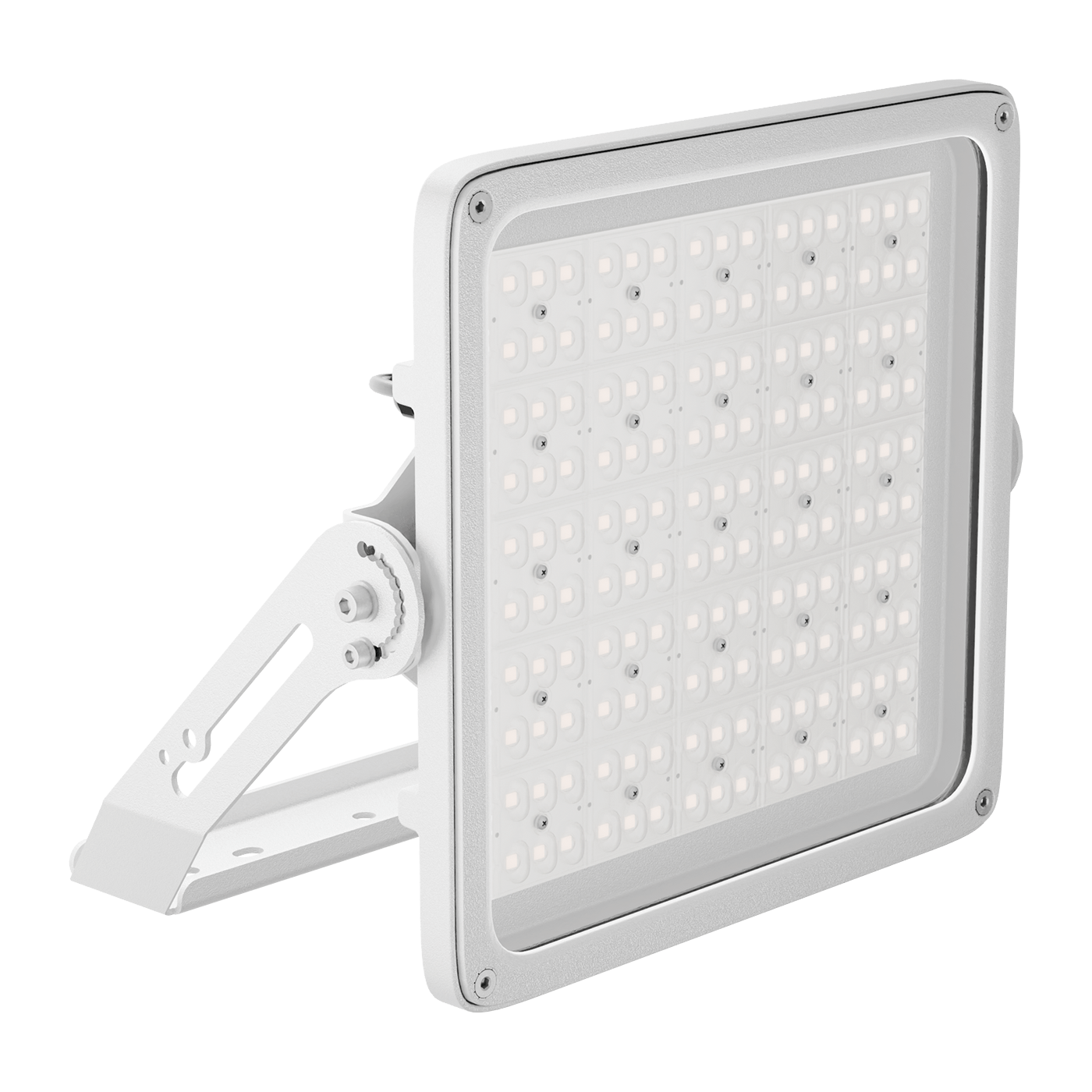

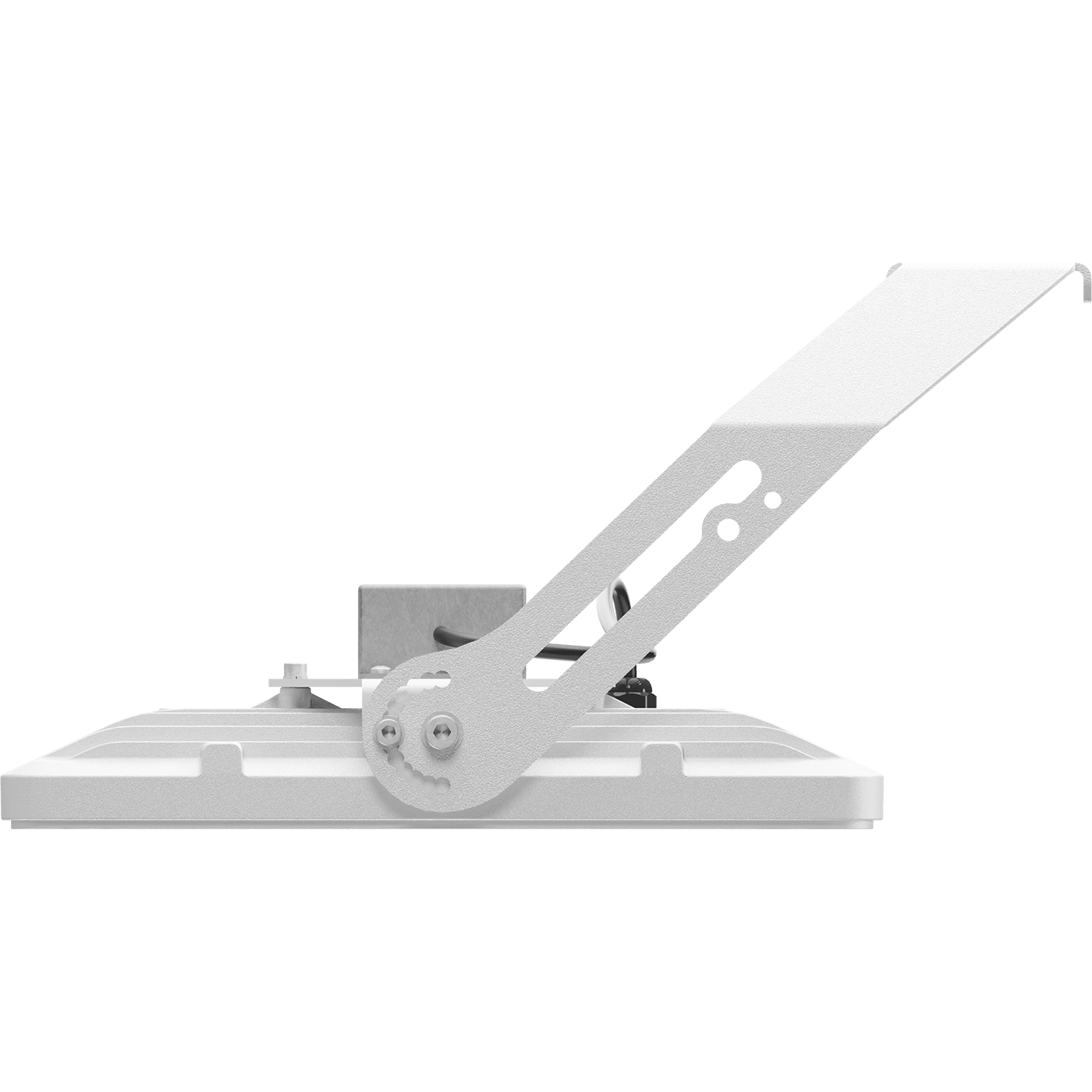

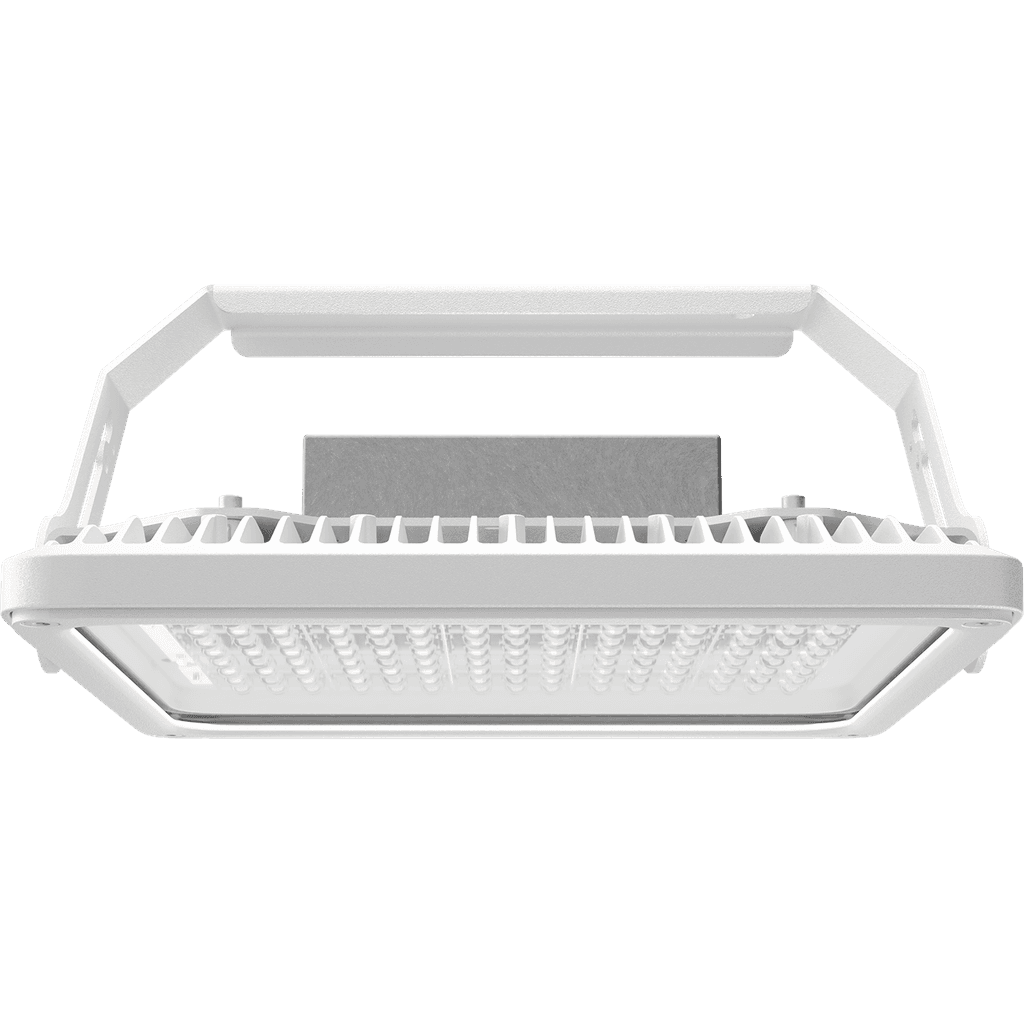

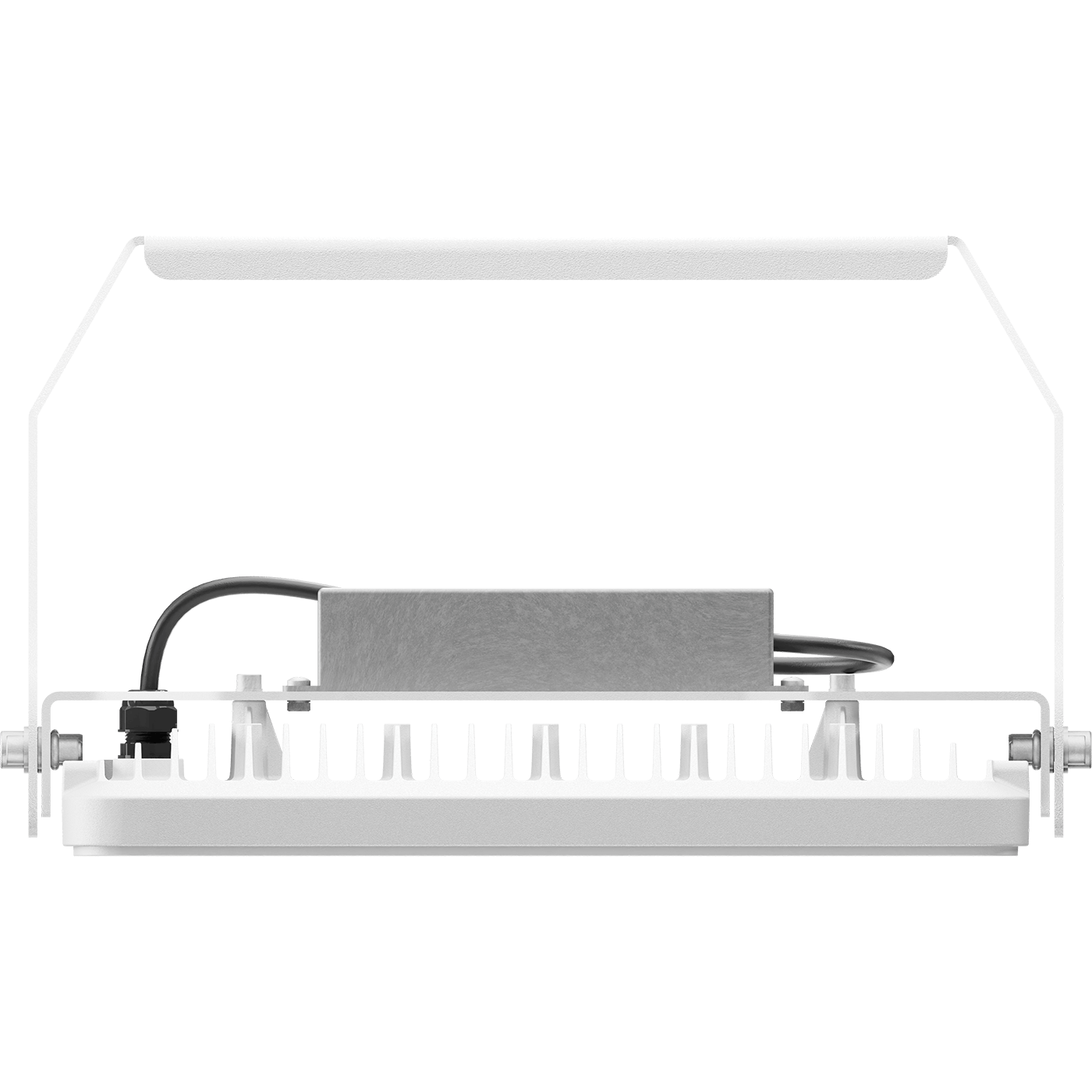

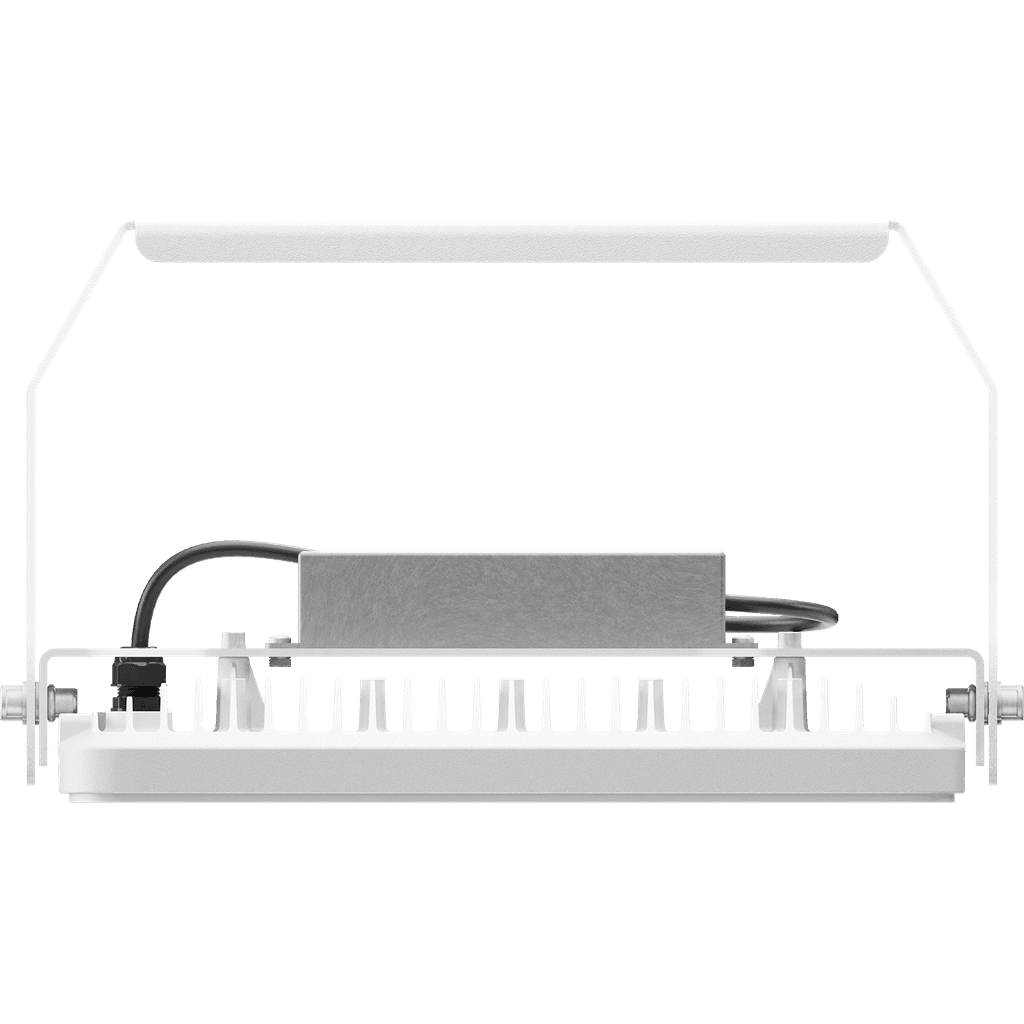

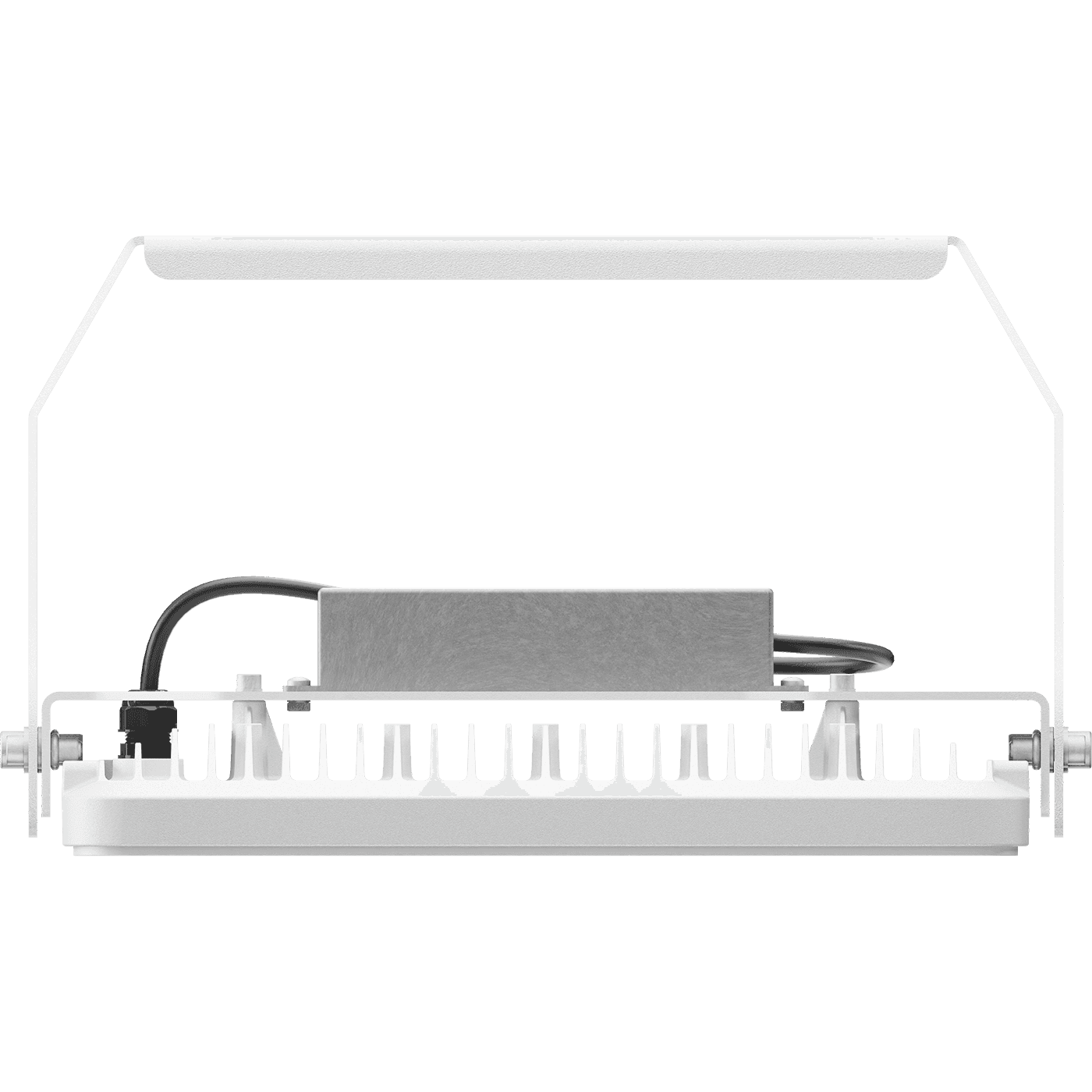

INSEL LB/S LED G3 70W D120 850 WH FB
INSEL LB/S LED G3 70W D120 850 WH FB
76 Wluminaire power
11600 lmlight flow
153 lm/Wenergy efficiency
code1334005340
color temperature5000
beam angleD120
weight8 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
50 Astarting current pulse time, µs
300 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
76 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
50 A
starting current pulse time, µs
300 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
76 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
8 kg
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5

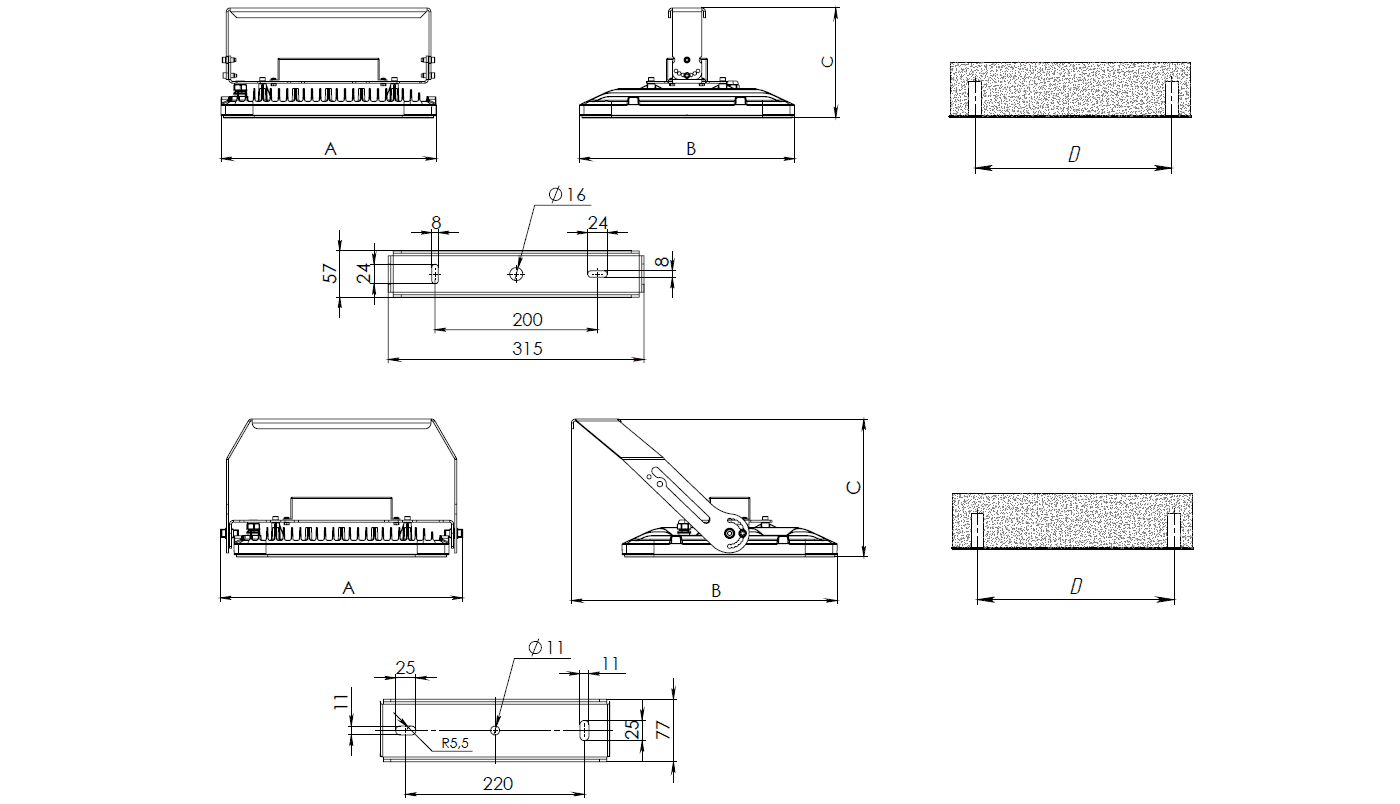

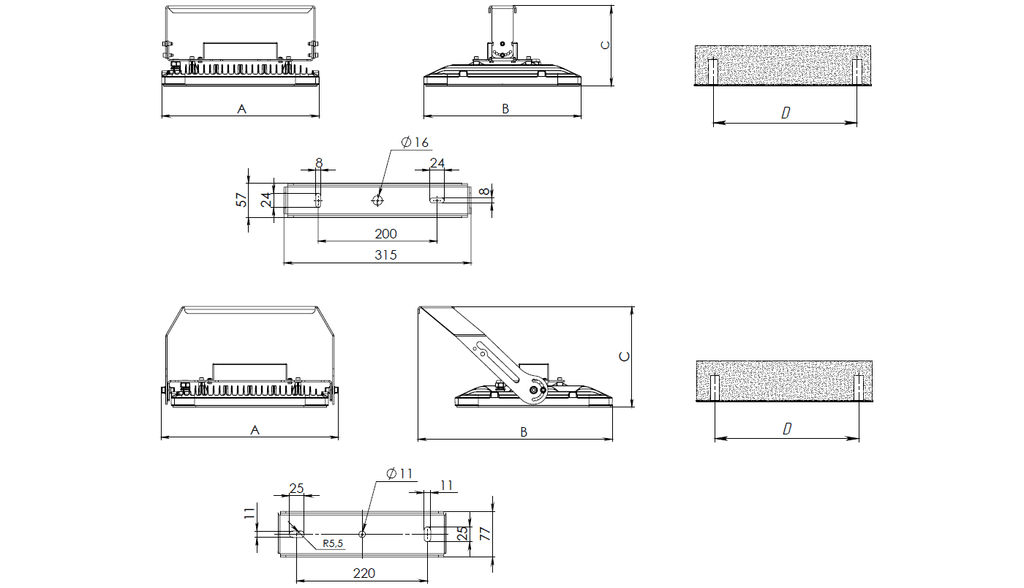

length, mm
385 mm
width, mm
410 mm
height, mm
215 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
220 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A++
service life, hour
100 000 h
code
1334005340
illuminating
light flow
11600 lm
flickering factor
<1%
energy efficiency
153 lm/W

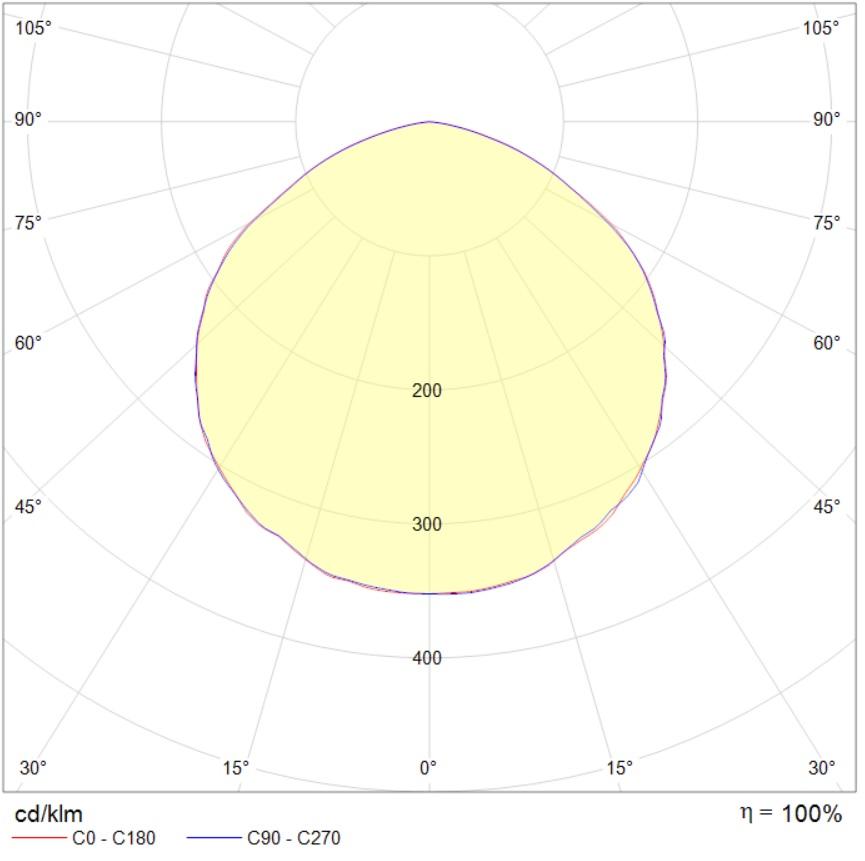

beam angle
D120
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files
documents
сертификаты
documents
passport4 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
