INSEL LB/S LED G3 260W D30 840 WH SB
INSEL LB/S LED G3 260W D30 840 WH SB
280 Wluminaire power
37400 lmlight flow
134 lm/Wenergy efficiency
code1334006270
color temperature4000
beam angleD30
weight7 kg
options
свернуть все
electricalconstructionalcommonilluminating
supply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
280 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
280 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66/IP67
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
7 kg
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
331 mm
width, mm
331 mm
height, mm
169 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
200 mm
installation width, mm
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1334006270
illuminating
light flow
37400 lm
flickering factor
<5%
energy efficiency
134 lm/W
beam angle
D30
color temperature
4000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

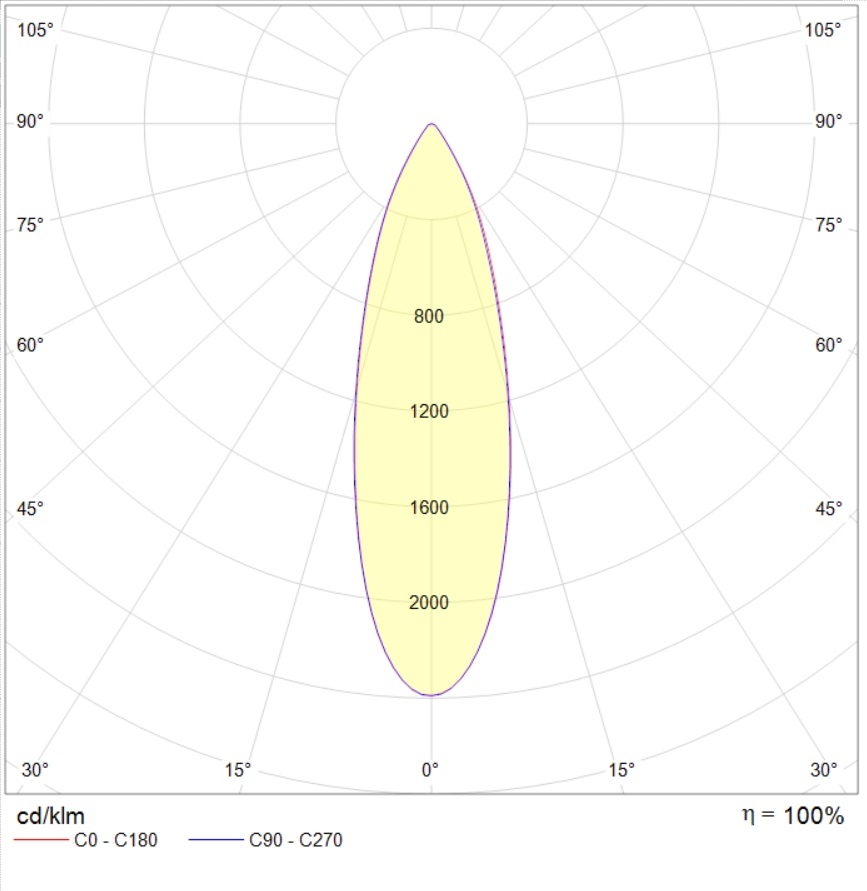

photometric files
сертификаты
photometric files
ies263.2 kB
jpg84.4 kB
ldt165.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
