INSEL LB/S LED G3 260W D120 850 WH SB
зарегистрирована в реестре российской промышленной продукции
INSEL LB/S LED G3 260W D120 850 WH SB
260 Wluminaire power
36400 lmlight flow
140 lm/Wenergy efficiency
code
1334002870
number from the register of Russian industrial products
10512419
color temperature
5000 K
beam angle
D120
weight
7.4 kg
- main page
- catalog
- by product type
- industrial lighting
- 5-12 meters
- свыше 12 метров
- INSEL LB/S LED G3
- INSEL LB/S LED G3 260W D120 850 WH SB
options
свернуть все
illuminatingelectricalconstructionalemergencycommonpackage
color rendition index (CRI)
>80light flow
36400 lmflickering factor
<2%energy efficiency
140 lm/Wbeam angle
D120color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
36400 lm
flickering factor
<2%
energy efficiency
140 lm/W
beam angle
D120
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
260 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
100 A
supply voltage
230 V
starting current pulse time
400 µs
constructional
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
mounting type
shock resistance (IK)
IK08/5 Дж
weight
7.4 kg
ingress protection (IP)
IP66
length
331 mm
width
331 mm
height
169 mm
installation length
200 mm
emergency
emergency power supply
Нет
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +40 C
code
1334002870
package
Package contents
Светильник - 1 шт.
Паспорт - 1 шт.
Упаковка - 1 шт.
Кронштейн - 1 шт.
model files
model files
photometric files
documents
сертификаты
media

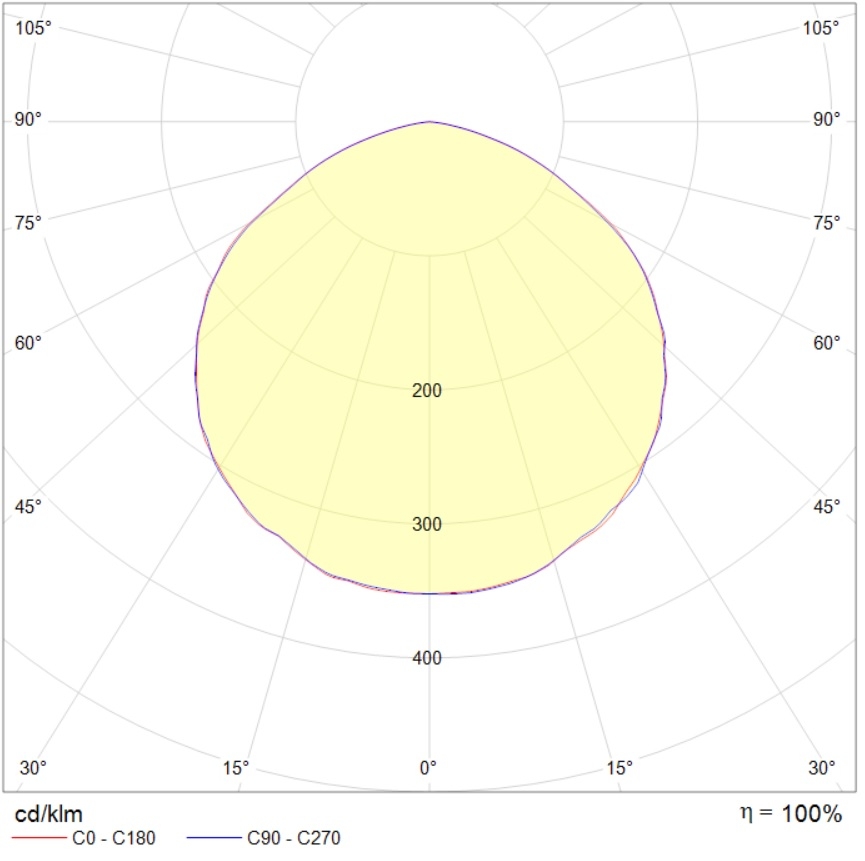

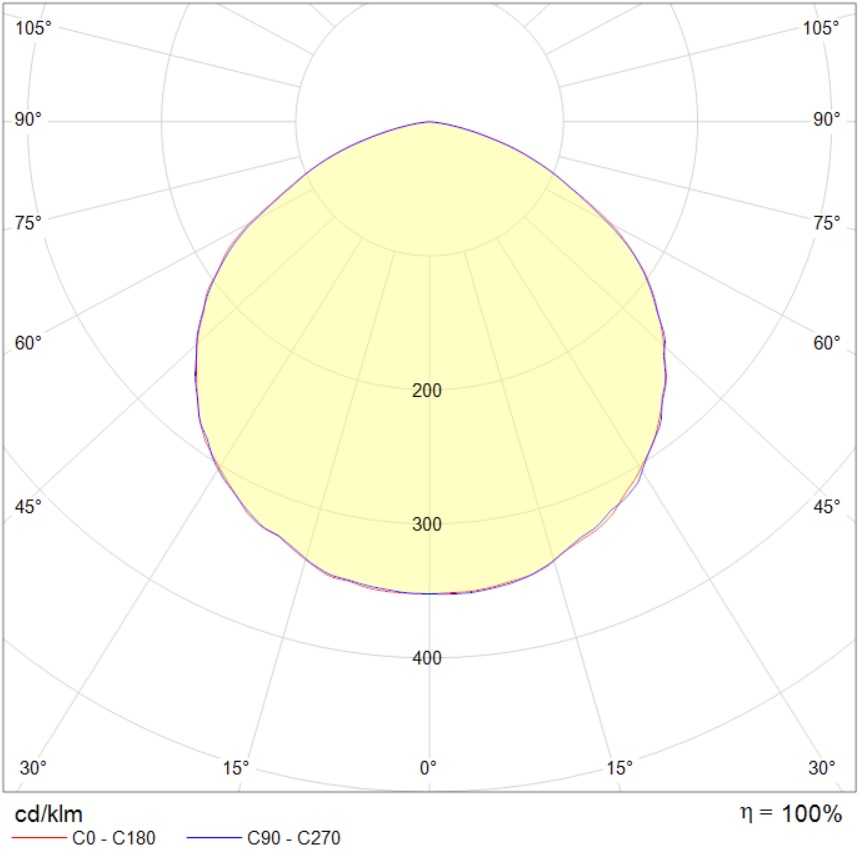

photometric files
ies107.1 kB
jpg76.5 kB
ldt72.1 kB
csv443 B
documents
passport4.2 mB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
media
brochure5.7 mB
