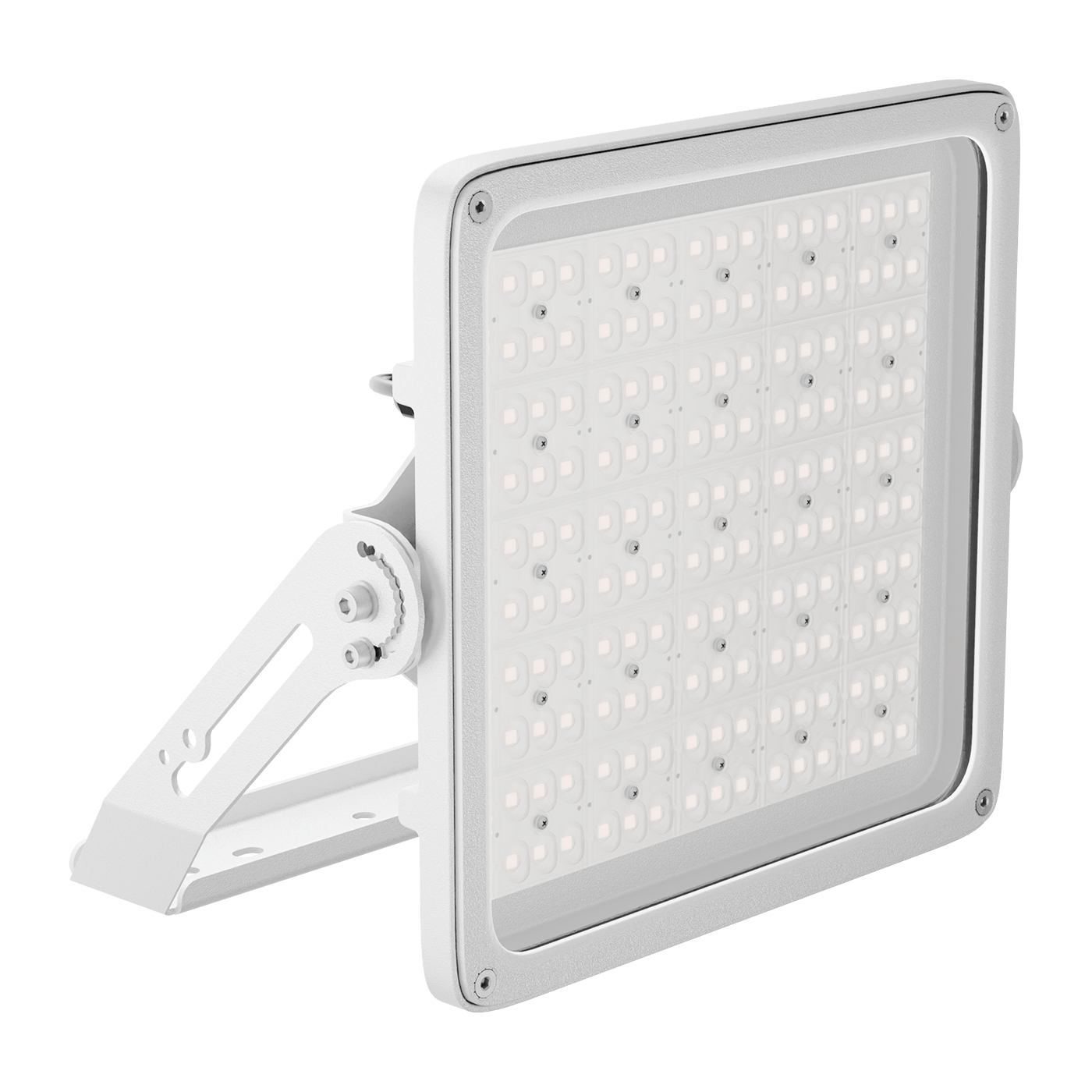

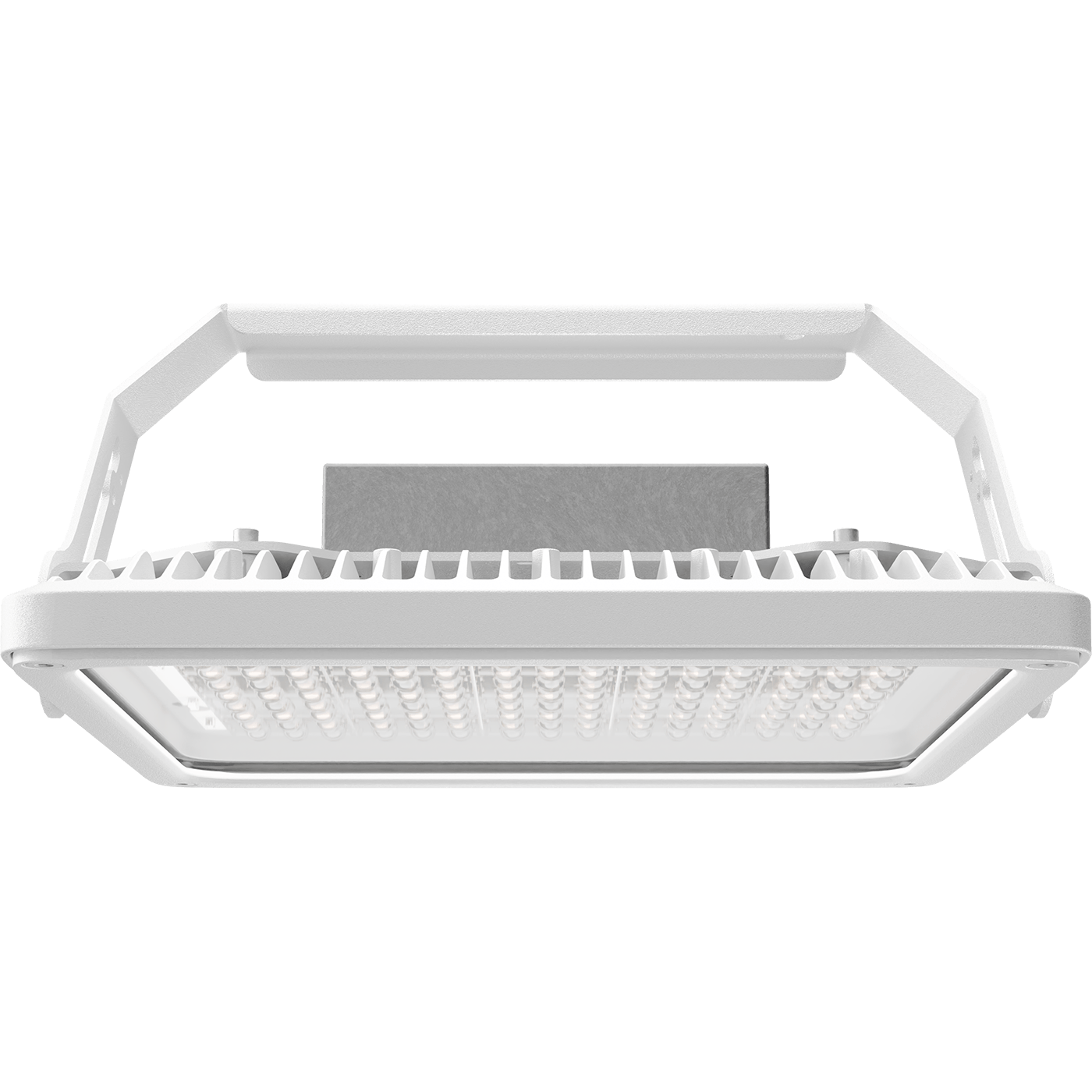

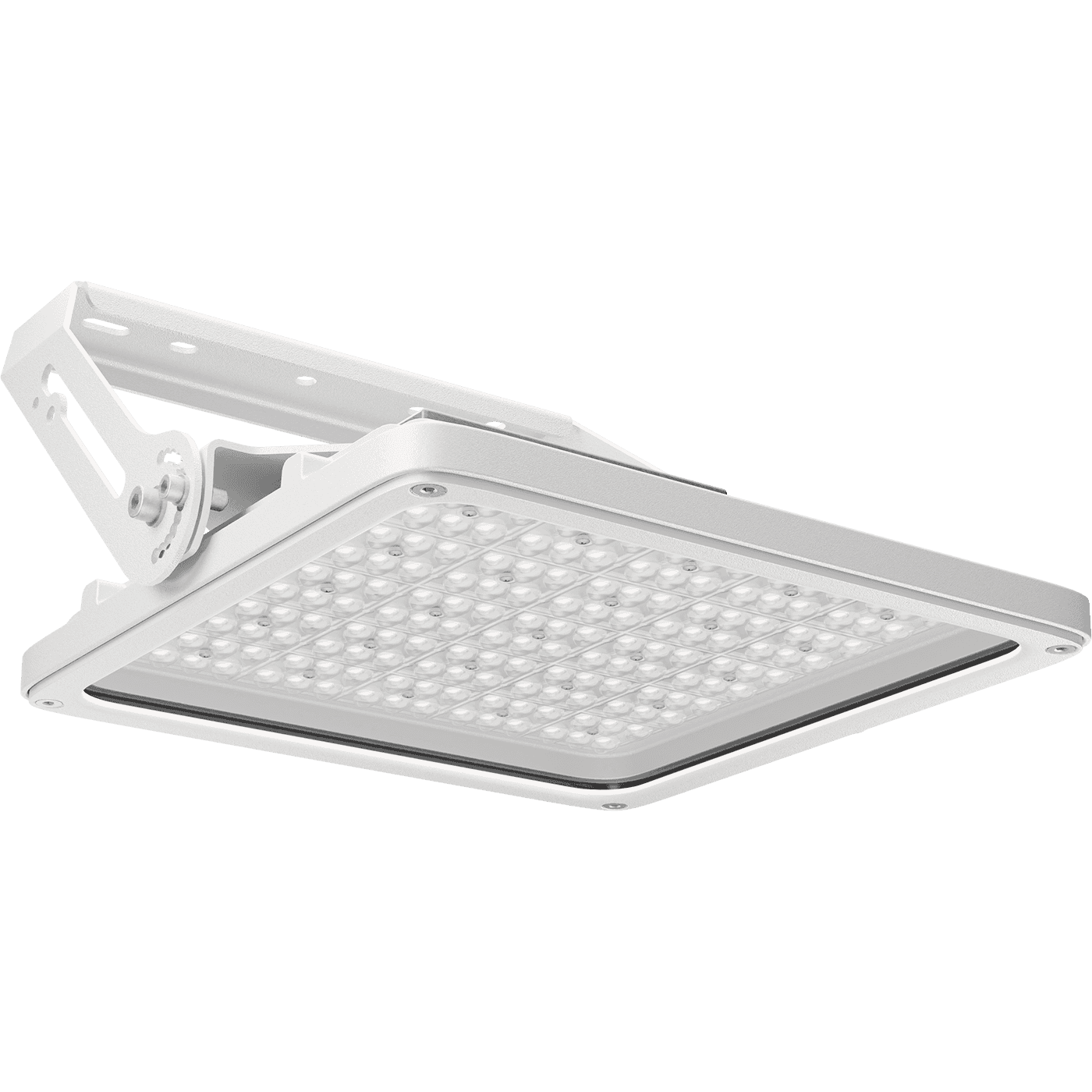

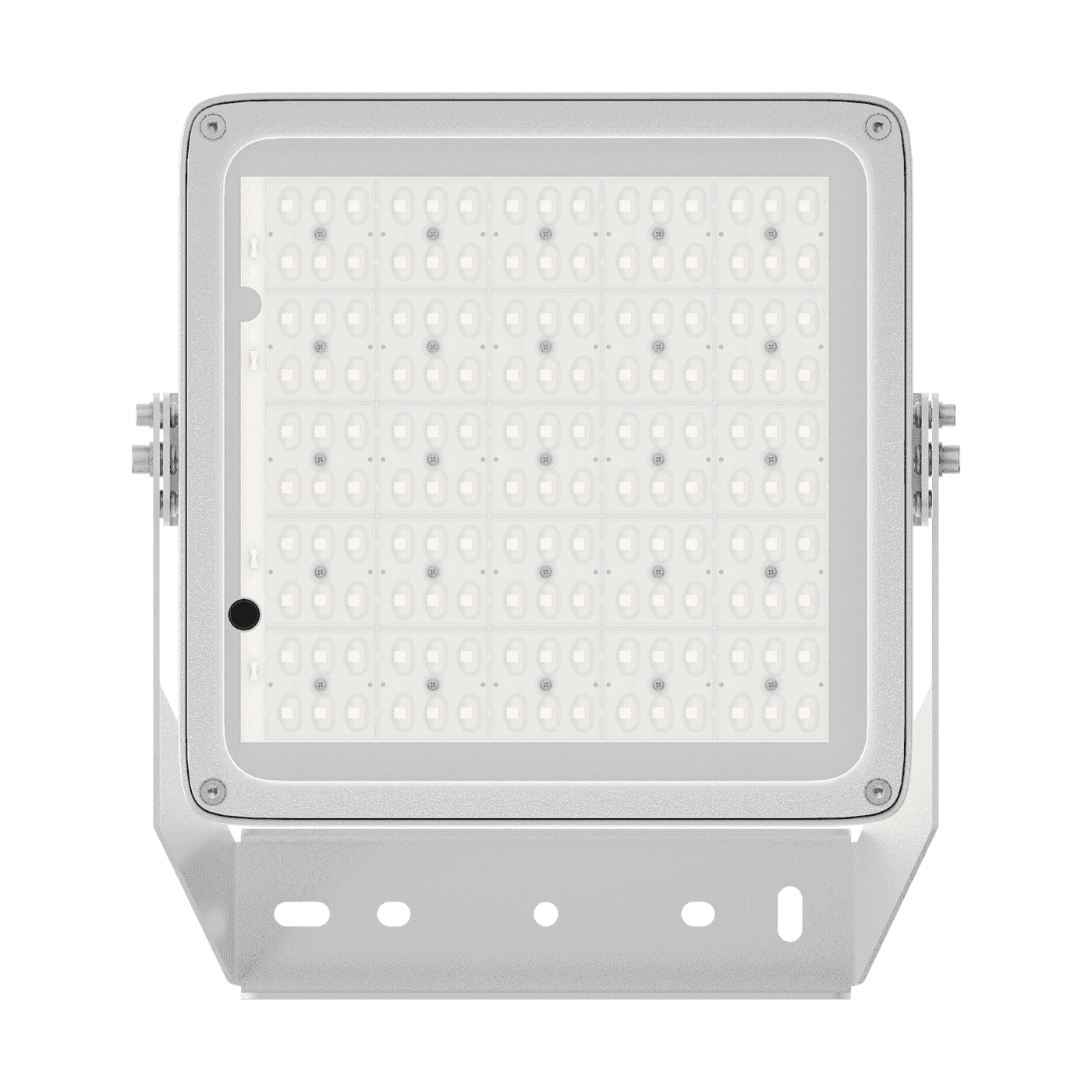

INSEL LB/S LED G3 230W D30 850 WH FB
INSEL LB/S LED G3 230W D30 850 WH FB
250 Wluminaire power
34000 lmlight flow
136 lm/Wenergy efficiency
code1334005120
color temperature5000

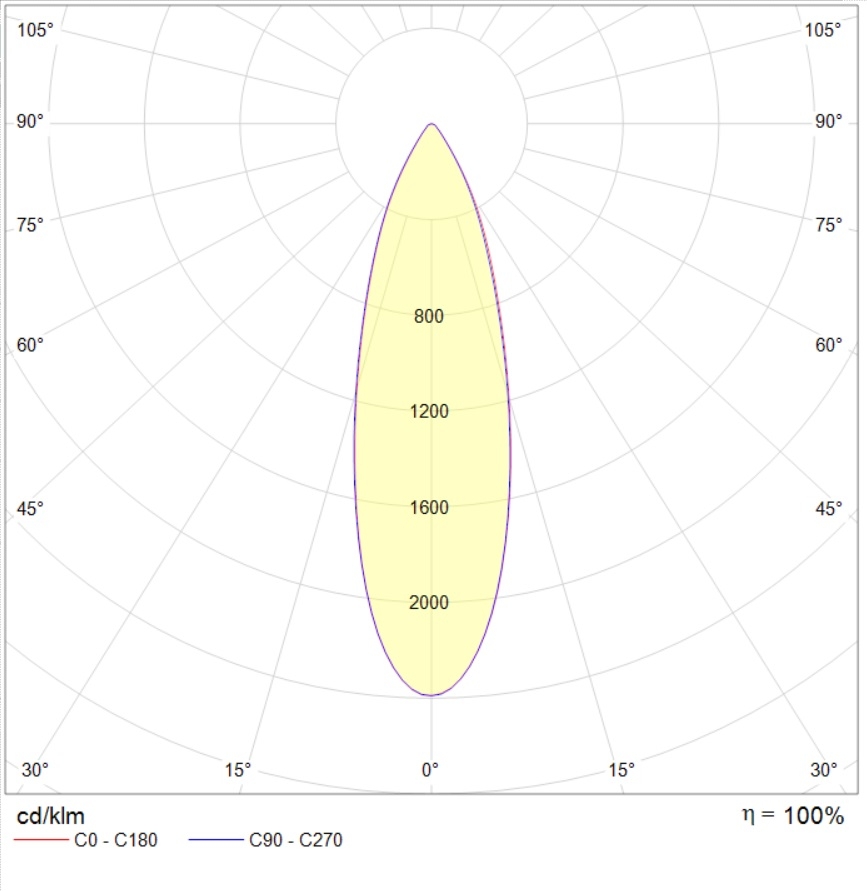

beam angleD30
weight8 kg
options
свернуть все
electricalilluminatingconstructionalcommon
supply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Velectric shock protection
Iluminaire power
250 Wmaximum cross-section of the connected cable, sq. mm
2.5power factor
> 0,96supply voltage
230 Velectrical
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
electric shock protection
I
luminaire power
250 W
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,96
supply voltage
230 V
illuminating
color rendition index (CRI)
>80
light flow
34000 lm
flickering factor
<5%
energy efficiency
136 lm/W
beam angle
D30
color temperature
5000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP66/IP67
material
Алюминий
housing color
Белый
length, mm
385 mm
width, mm
410 mm
height, mm
215 mm
weight
8 kg
fire safety class
П-I,II,IIa,ІІІ
climatic performance
УХЛ1*
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
220 mm
installation width, mm
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A+
service life, hour
50 000 h
code
1334005120
model files
model files
photometric files
сертификаты
photometric files
ies263.2 kB
jpg84.4 kB
ldt165.6 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
