INSEL LB/S LED G3 230W D30 757 WH SB
INSEL LB/S LED G3 230W D30 757 WH SB
240 Wluminaire power
36200 lmlight flow
151 lm/Wenergy efficiency
code1334002910
color temperature5700 K
beam angleD30
weight7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>70light flow
36200 lmflickering factor
<5%energy efficiency
151 lm/Wbeam angle
D30color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
36200 lm
flickering factor
<5%
energy efficiency
151 lm/W
beam angle
D30
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
240 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
supply voltage
230 V
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66
weight
7 kg
length
331 mm
width
331 mm
height
169 mm
installation length
200 mm
installation width
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +40 C
code
1334002910
model files
model files

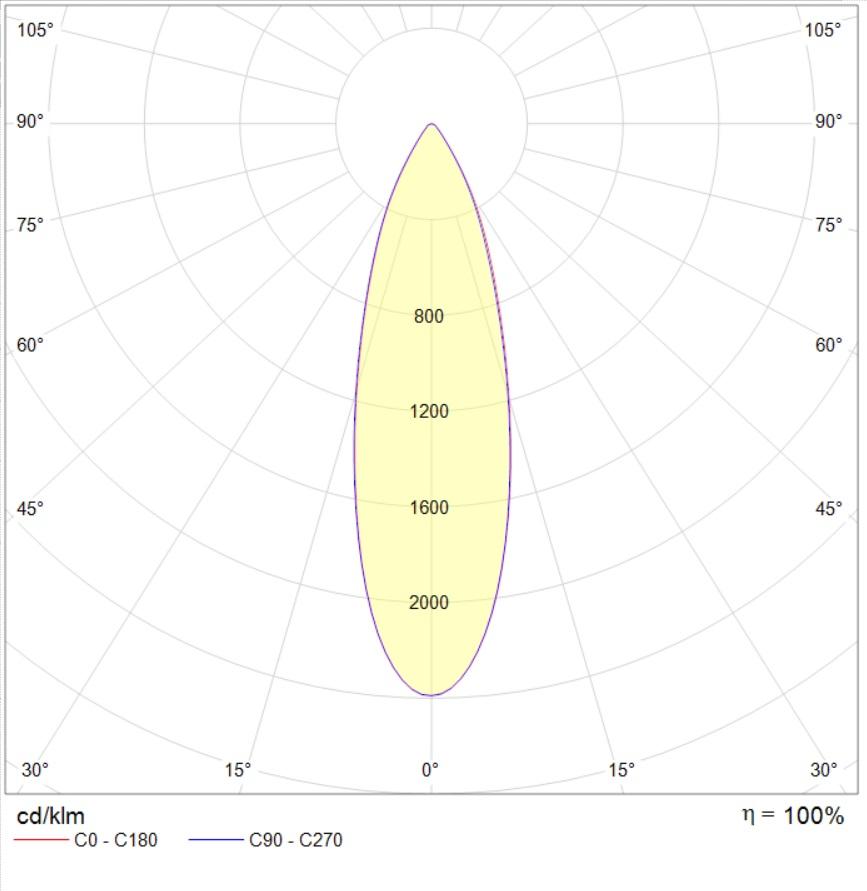

photometric files
сертификаты
photometric files
ies263.2 kB
jpg84.4 kB
ldt165.6 kB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
