INSEL LB/S LED G3 200W D90 840 WH SB
INSEL LB/S LED G3 200W D90 840 WH SB
200 Wluminaire power
33800 lmlight flow
169 lm/Wenergy efficiency
code1334006030
color temperature4000 K
beam angleD90
performance factor100
weight7.3 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
169 lm/Wcolor rendition index (CRI)
>80light flow
33800 lmflickering factor
<2%beam angle
D90color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
169 lm/W
color rendition index (CRI)
>80
light flow
33800 lm
flickering factor
<2%
beam angle
D90
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
1200 µs
electric shock protection
I
luminaire power
200 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
45 A
constructional
length
331 mm
width
331 mm
height
169 mm
installation length
200 mm
weight
7.3 kg
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от -40 до +40 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Светильник для освещения высоких пролетов (хайбей)
code
1334006030
model files
model files

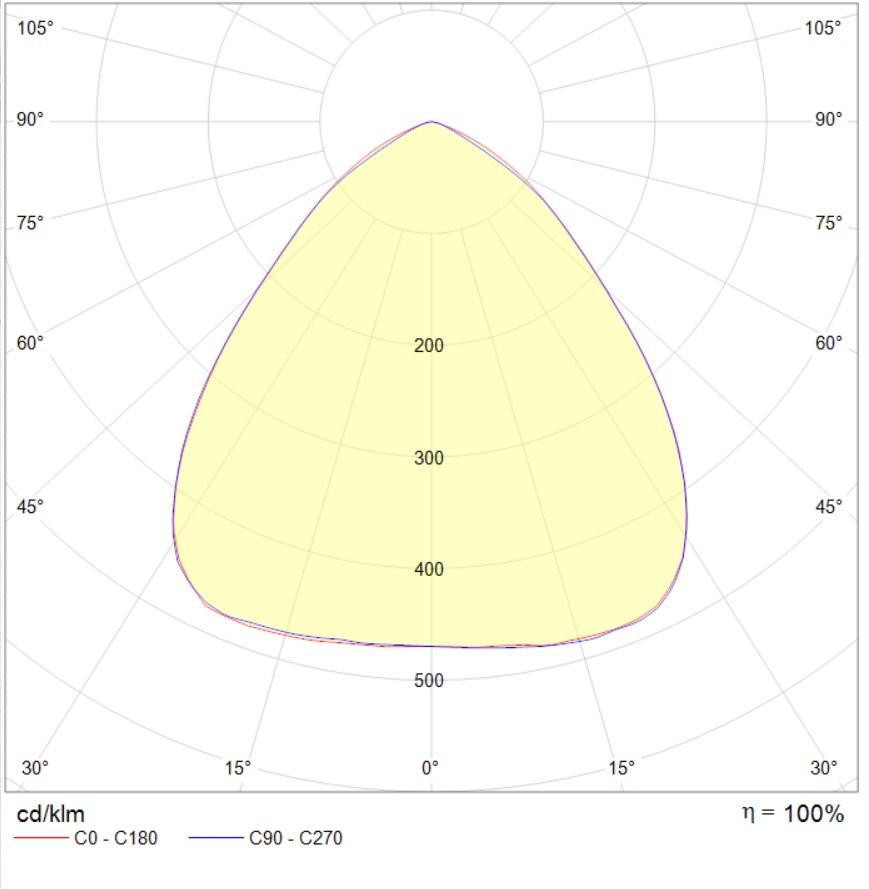

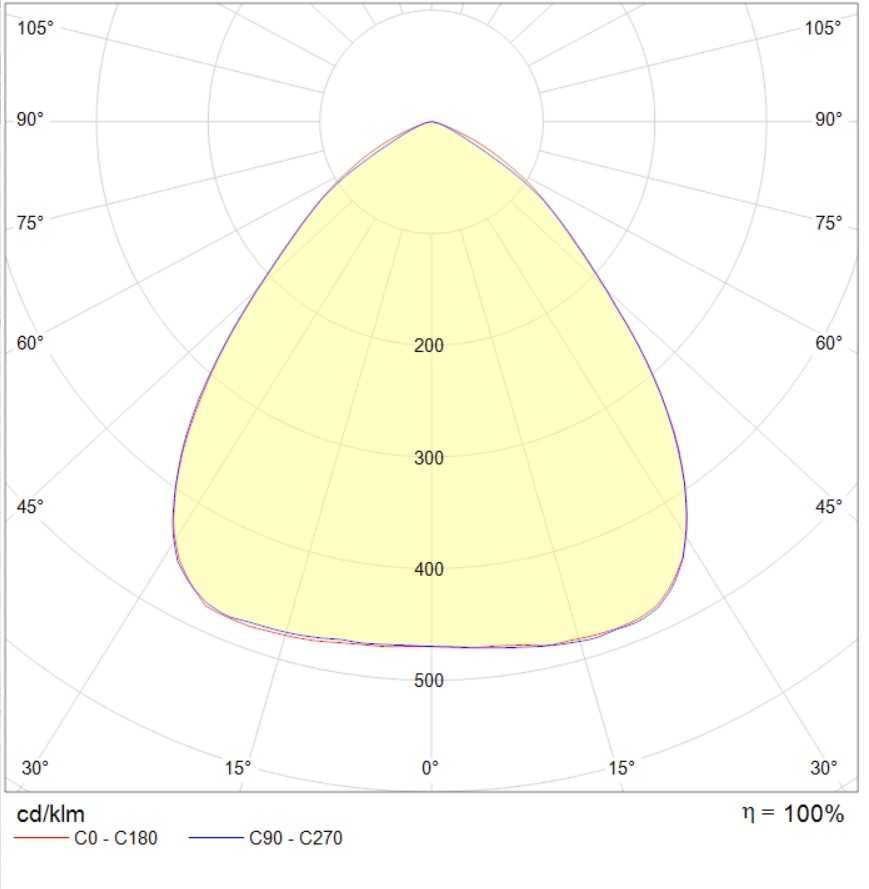

photometric files
сертификаты
photometric files
ies107 kB
jpg84.4 kB
ldt71.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
