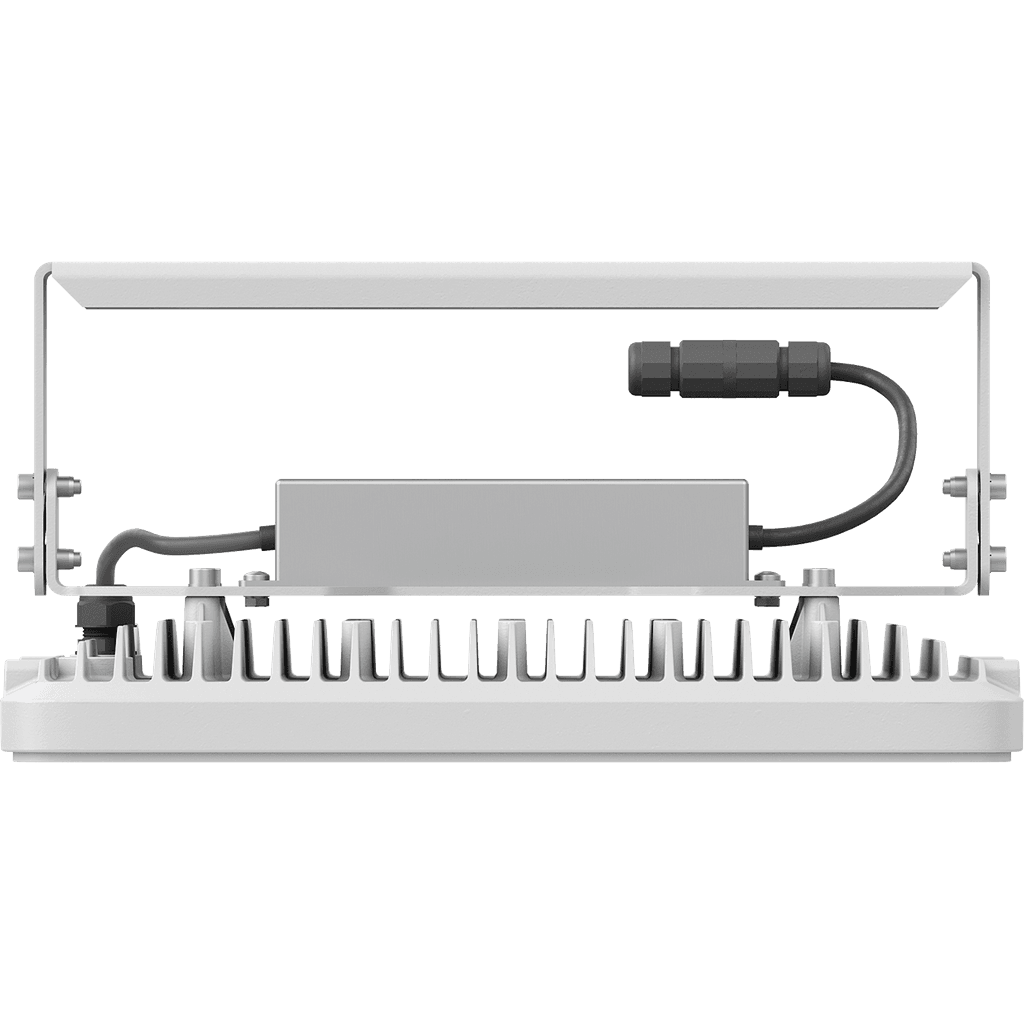

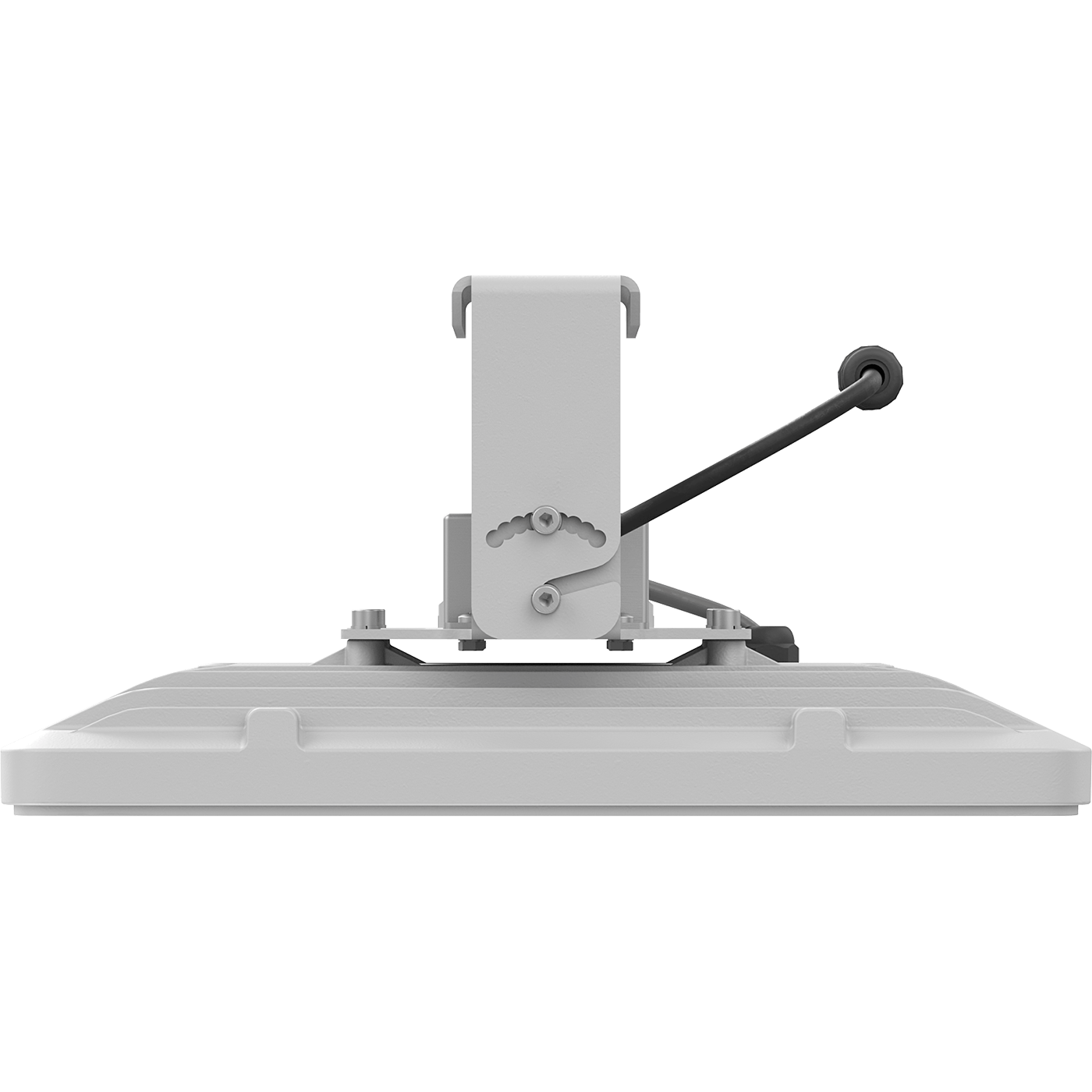

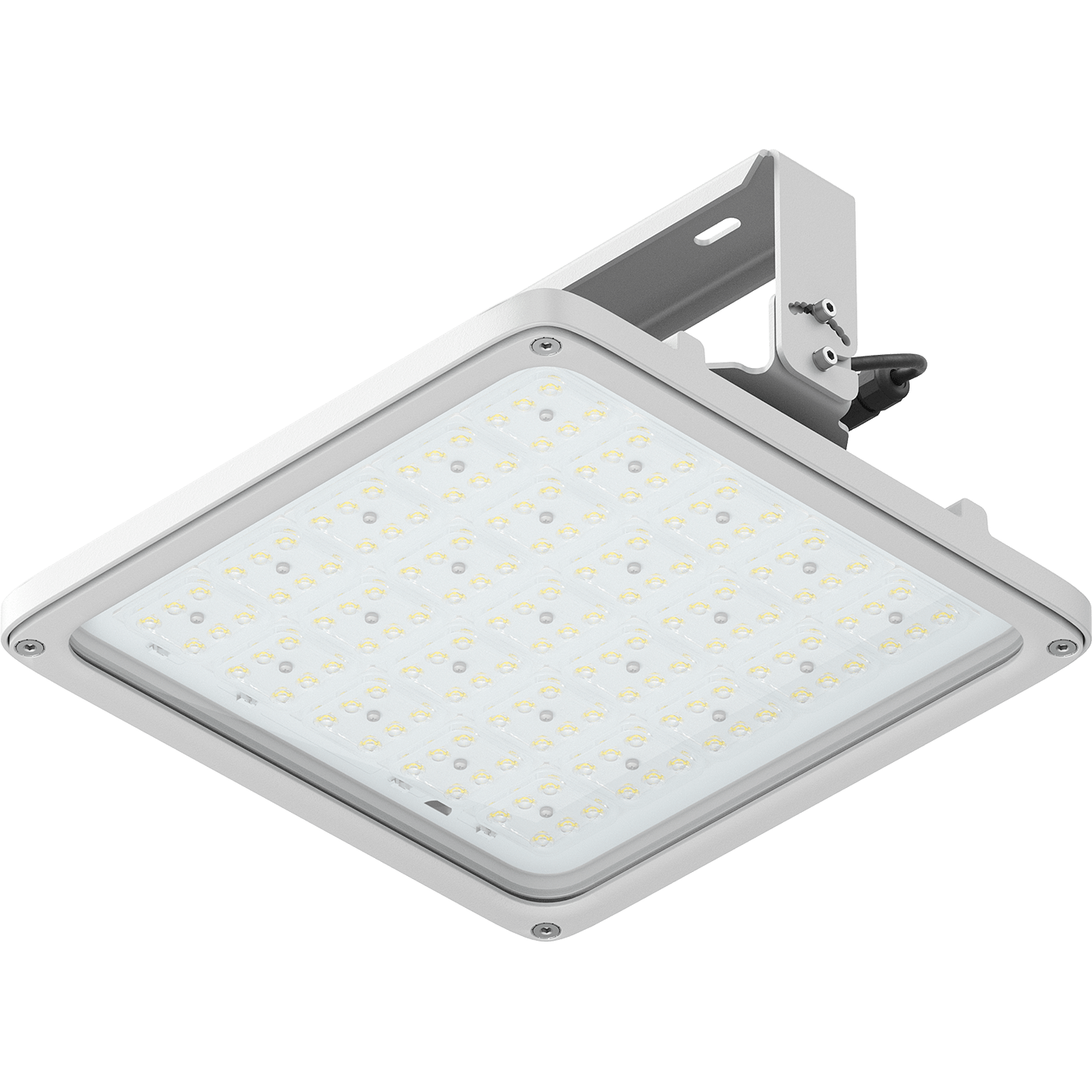

INSEL LB/S LED G3 200W D60 850 WH DALI SB
INSEL LB/S LED G3 200W D60 850 WH DALI SB
215 Wluminaire power
32800 lmlight flow
153 lm/Wenergy efficiency
code1334005450
color temperature5000
beam angleD60
weight7.4 kg
options
свернуть все
electricalconstructionalcommonilluminatingLMS options
starting current
54 Astarting current pulse time, µs
600 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
127-420 Vluminaire power
215 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
54 A
starting current pulse time, µs
600 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-420 V
luminaire power
215 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
7.4 kg
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
331 mm
width, mm
331 mm
height, mm
169 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер DALI
installation length, mm
200 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A++
service life, hour
50 000 h
code
1334005450
illuminating
light flow
32800 lm
flickering factor
<2%
energy efficiency
153 lm/W
beam angle
D60
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
LMS options
dimming
DALI
model files
model files

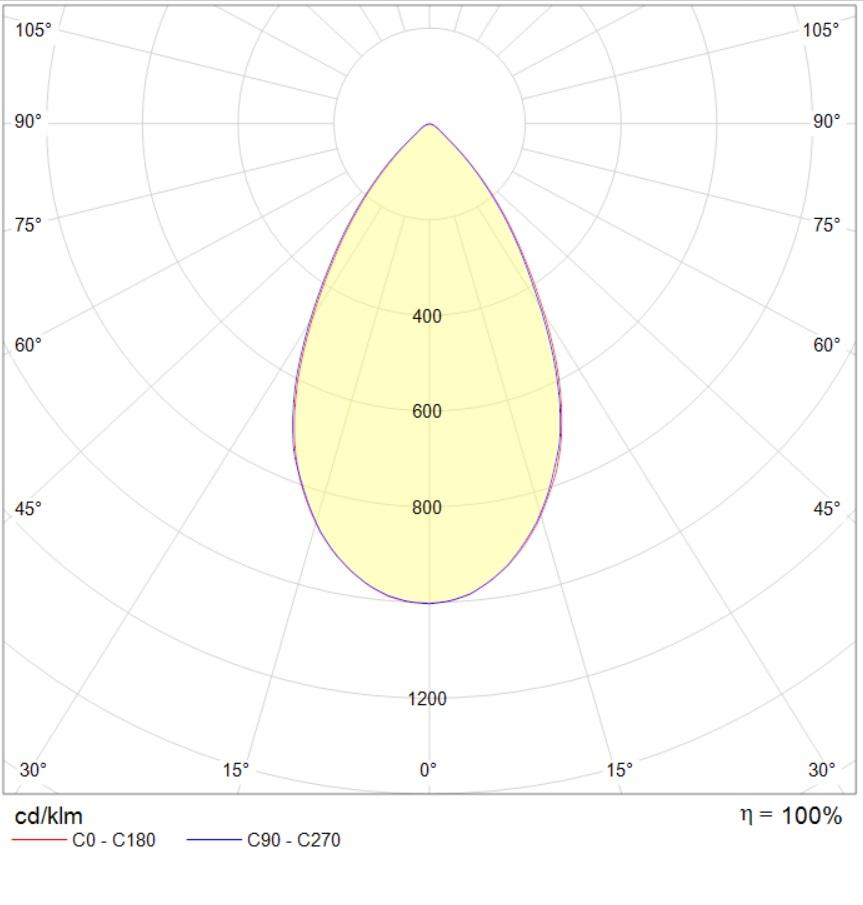

photometric files
сертификаты
photometric files
ies107 kB
jpg83.4 kB
ldt70.3 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
