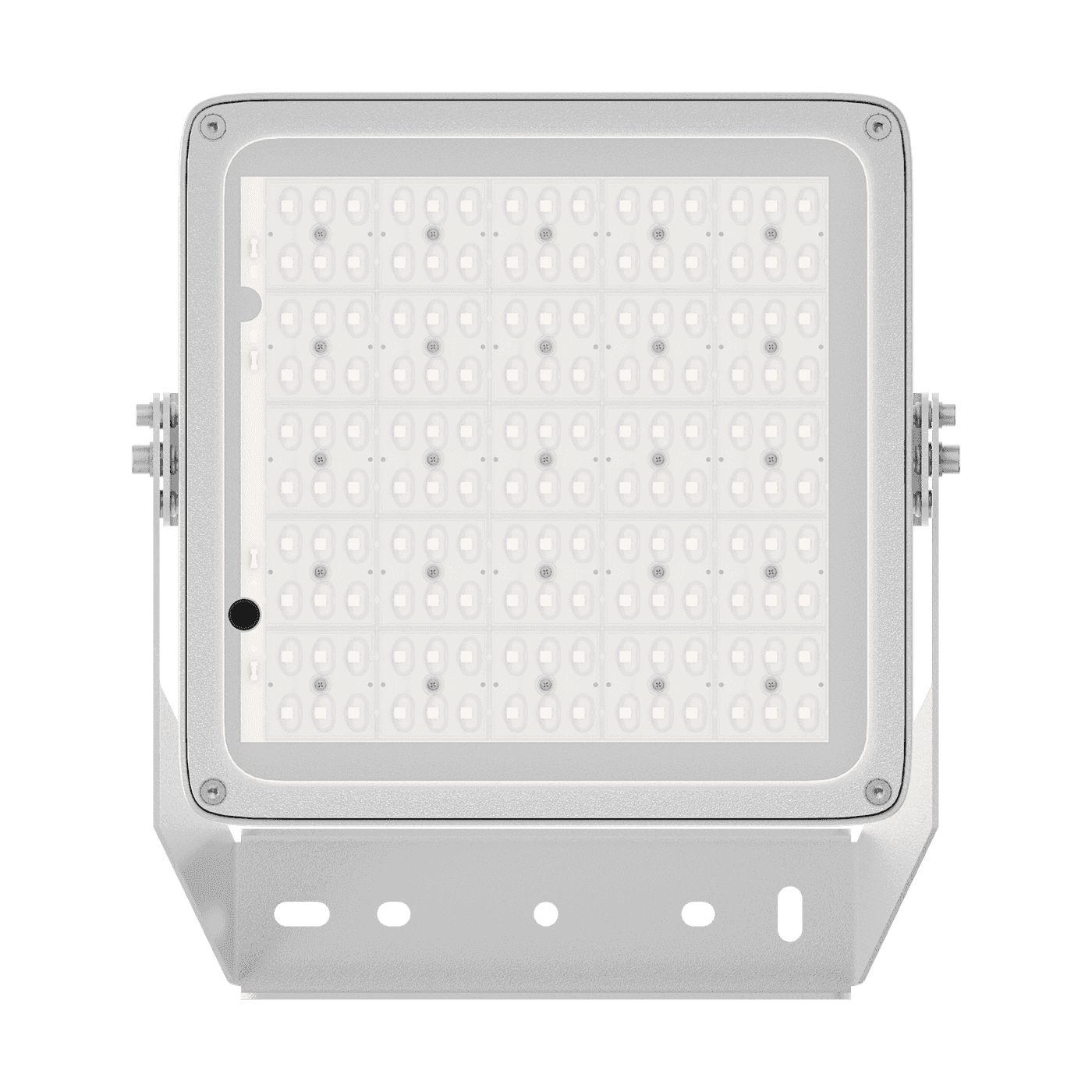

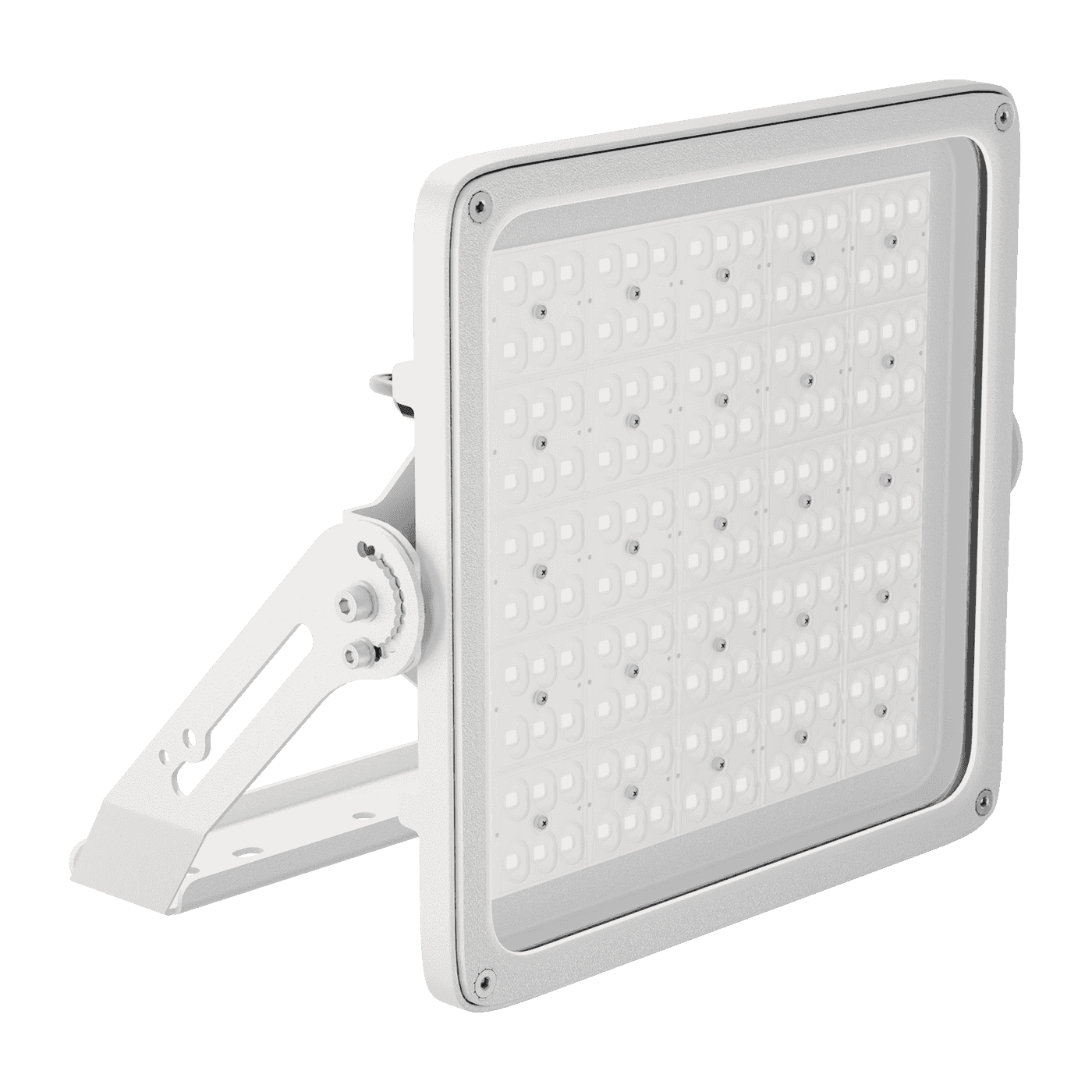

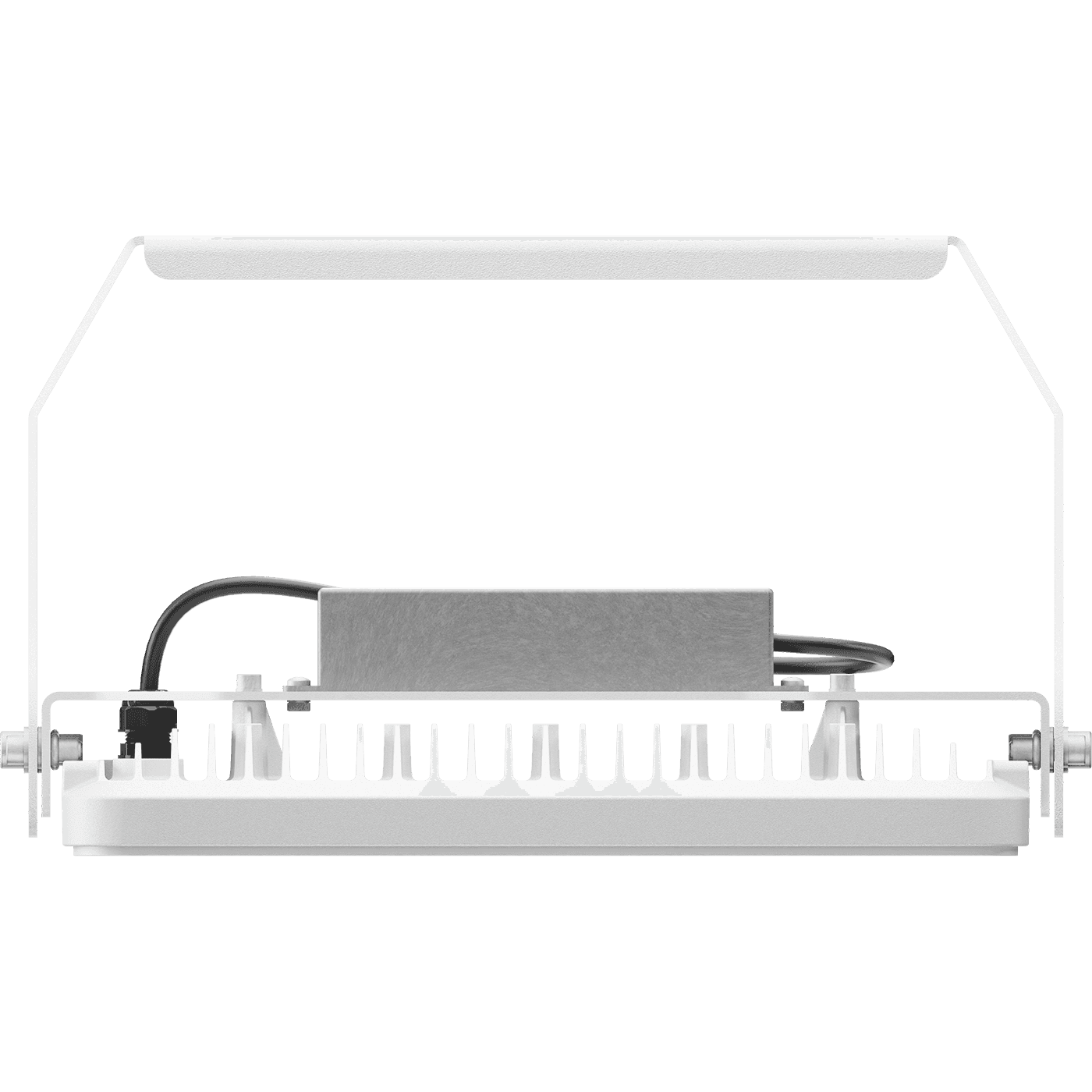

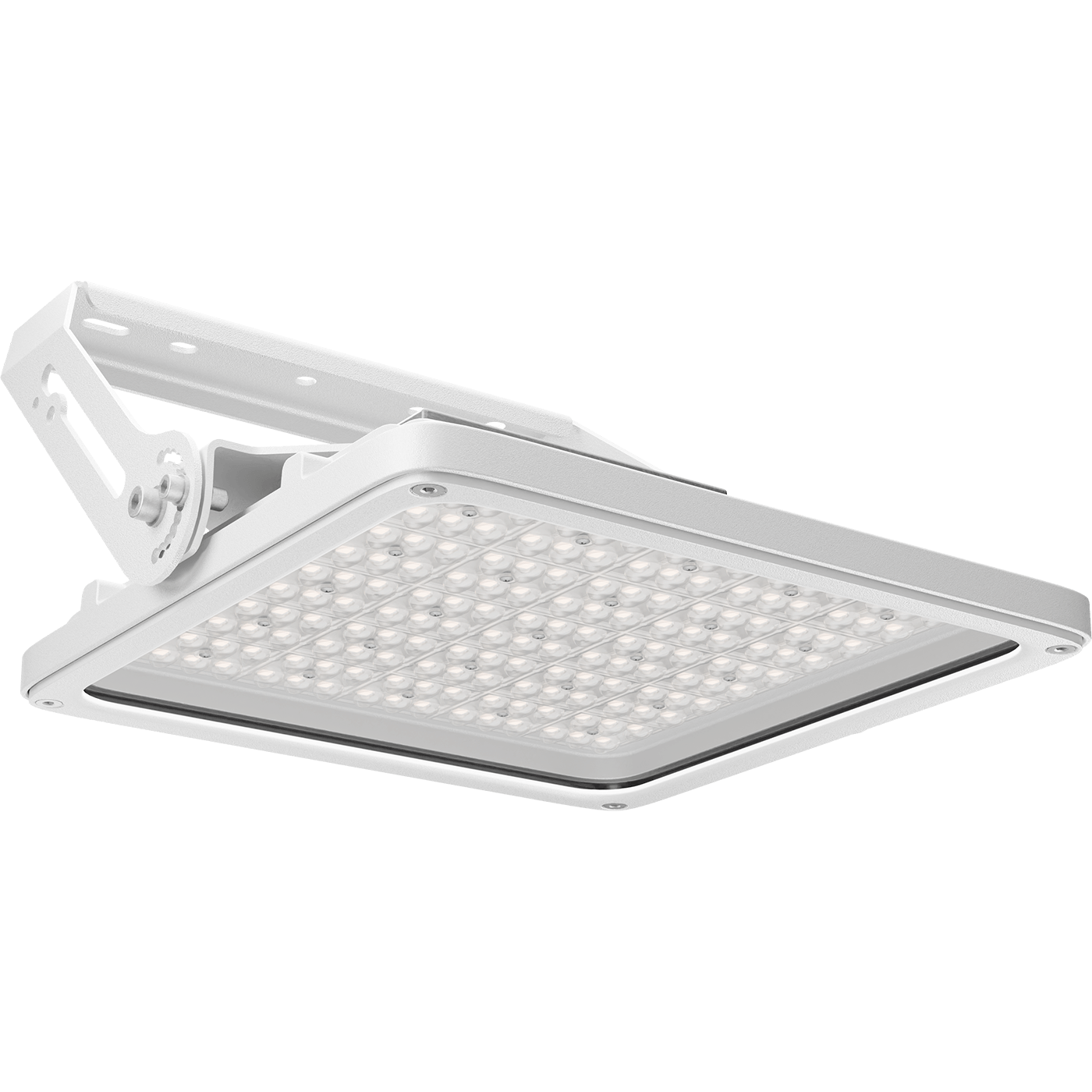

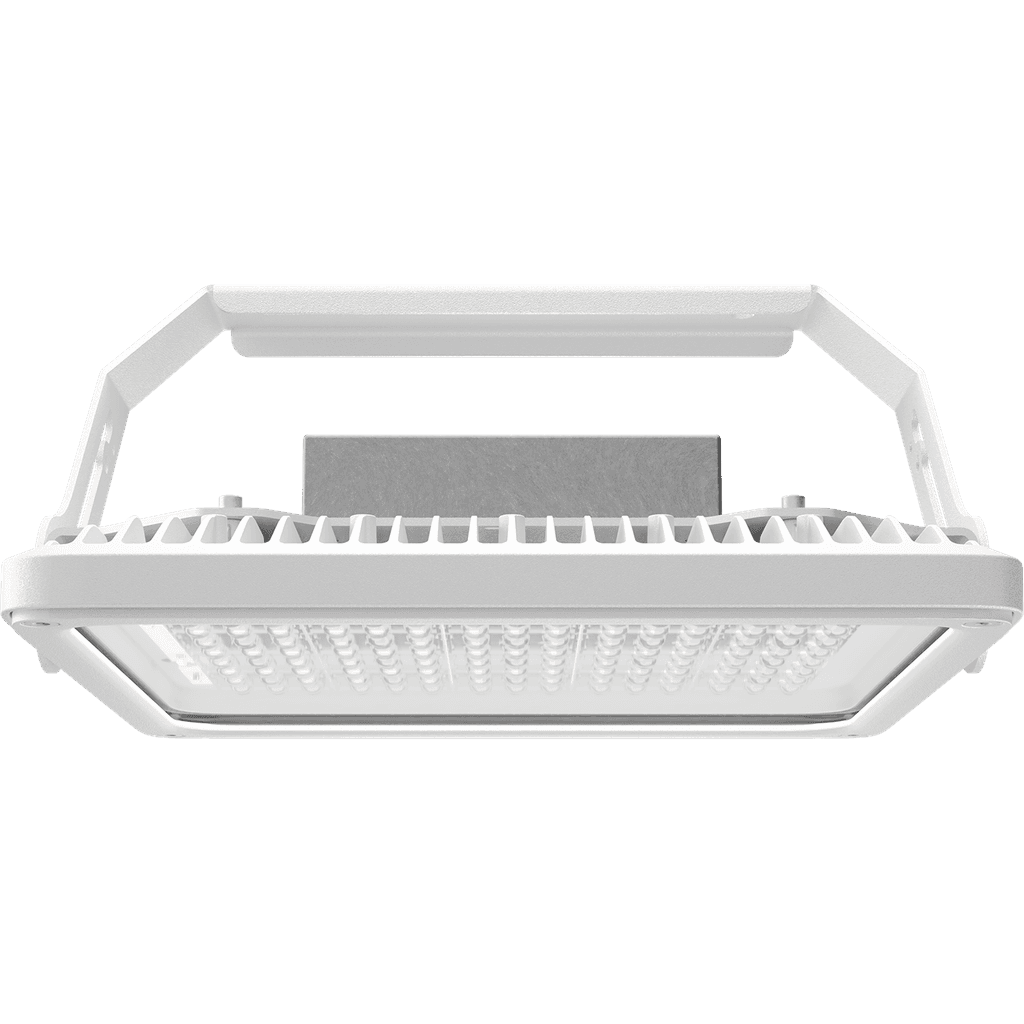

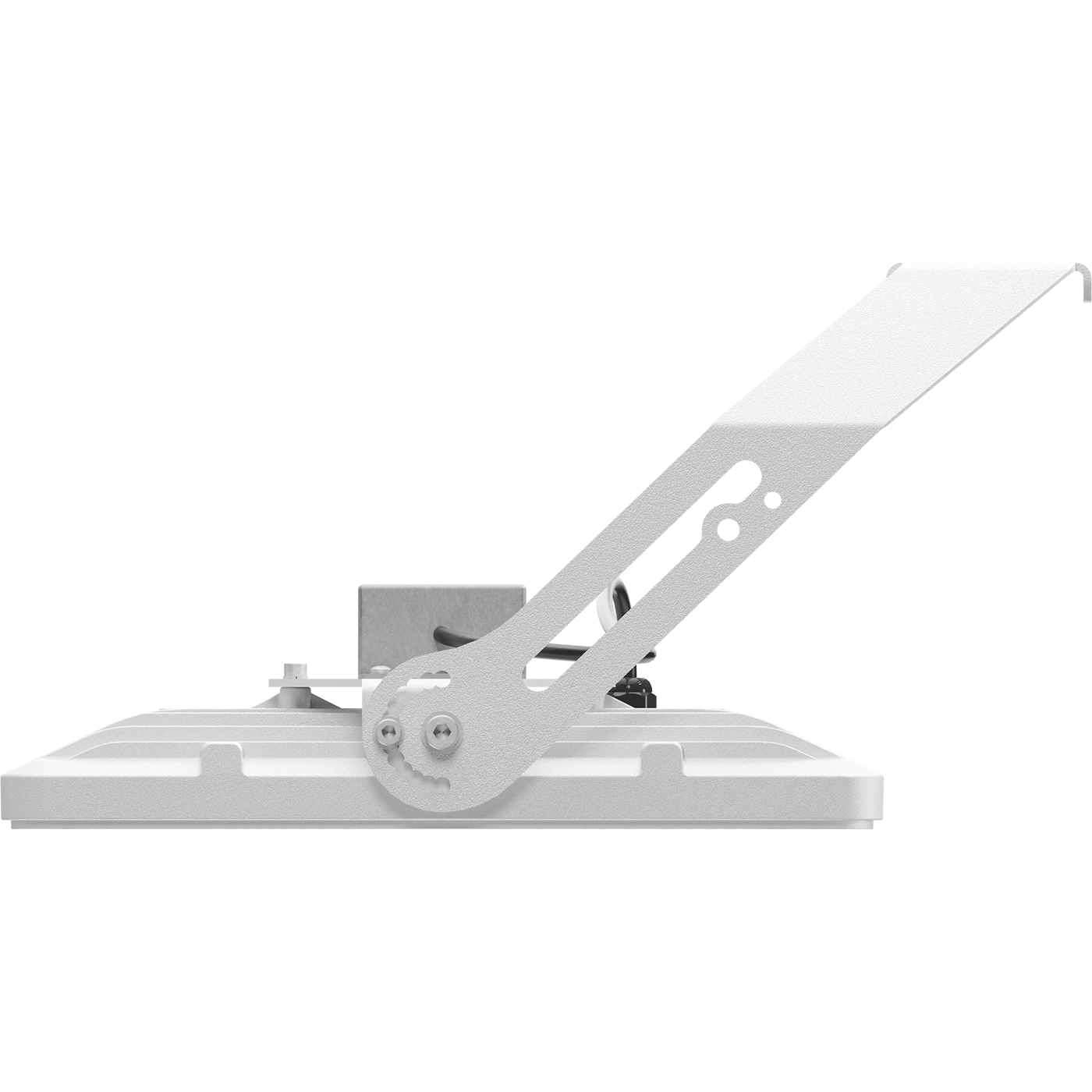

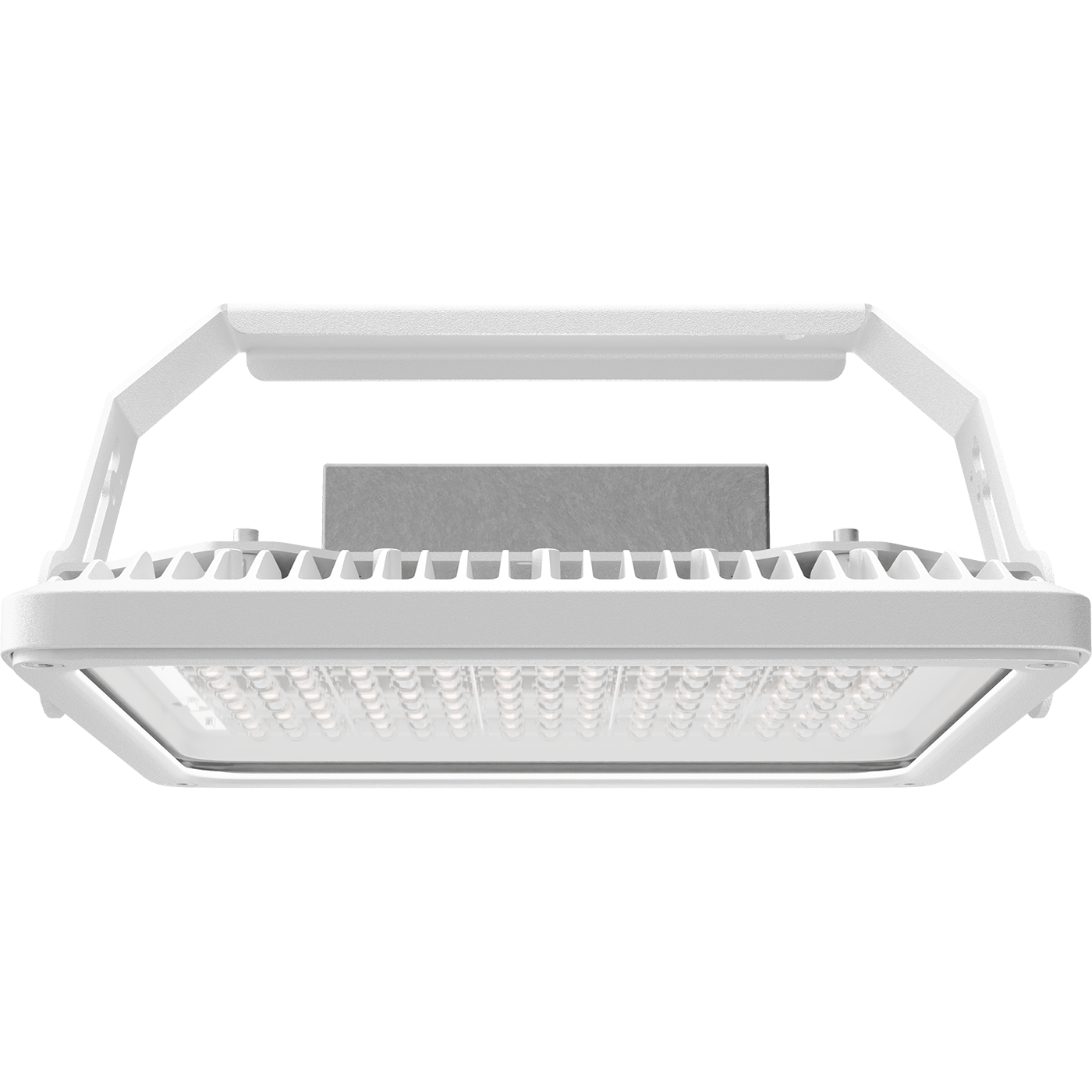

INSEL LB/S LED G3 200W D15 850 WH FB
INSEL LB/S LED G3 200W D15 850 WH FB
200 Wluminaire power
30600 lmlight flow
153 lm/Wenergy efficiency
code1334004970
color temperature5000 K
beam angleD15
performance factor100
weight8 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
153 lm/Wcolor rendition index (CRI)
>80light flow
30600 lmflickering factor
<5%beam angle
D15color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
153 lm/W
color rendition index (CRI)
>80
light flow
30600 lm
flickering factor
<5%
beam angle
D15
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
electric shock protection
I
luminaire power
200 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
constructional
length
385 mm
width
410 mm
height
215 mm
installation length
220 mm
installation width
360 mm
weight
8 kg
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от -40 до +40 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Светильник для освещения высоких пролетов (хайбей)
code
1334004970
model files
model files

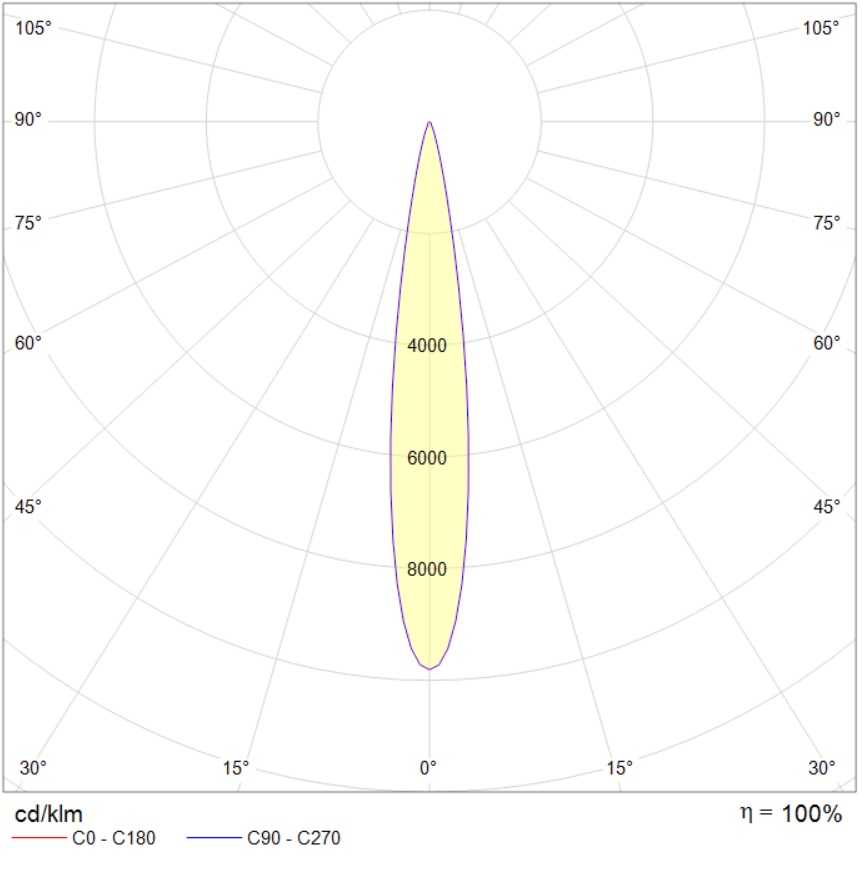

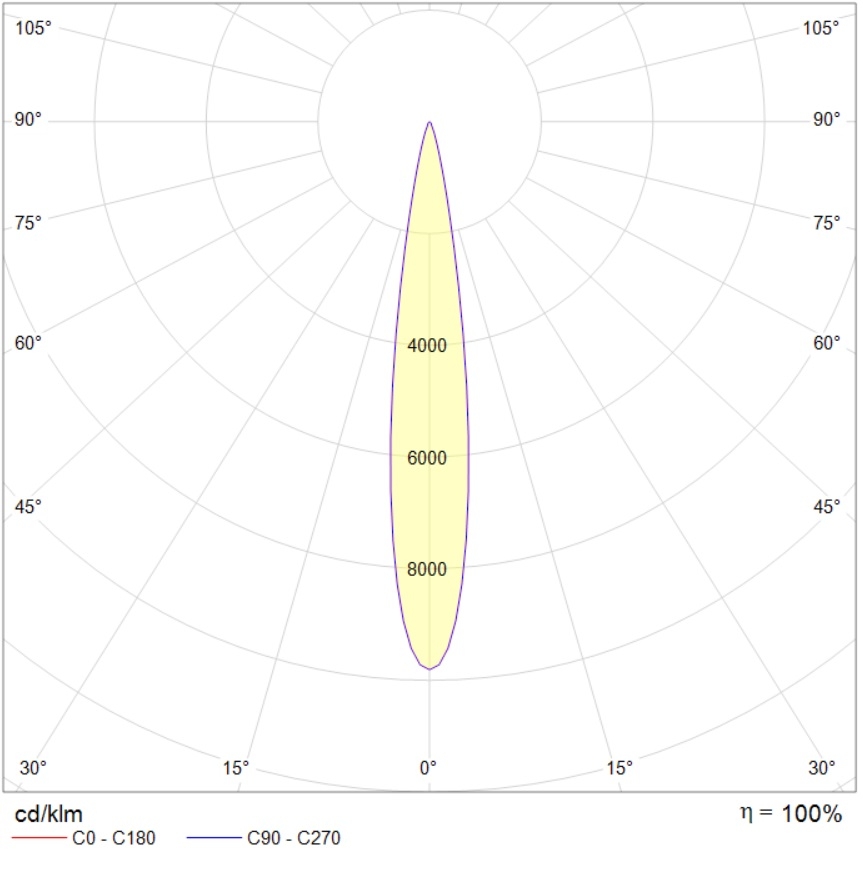

photometric files
сертификаты
photometric files
ies134.1 kB
jpg78.9 kB
ldt84.4 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
