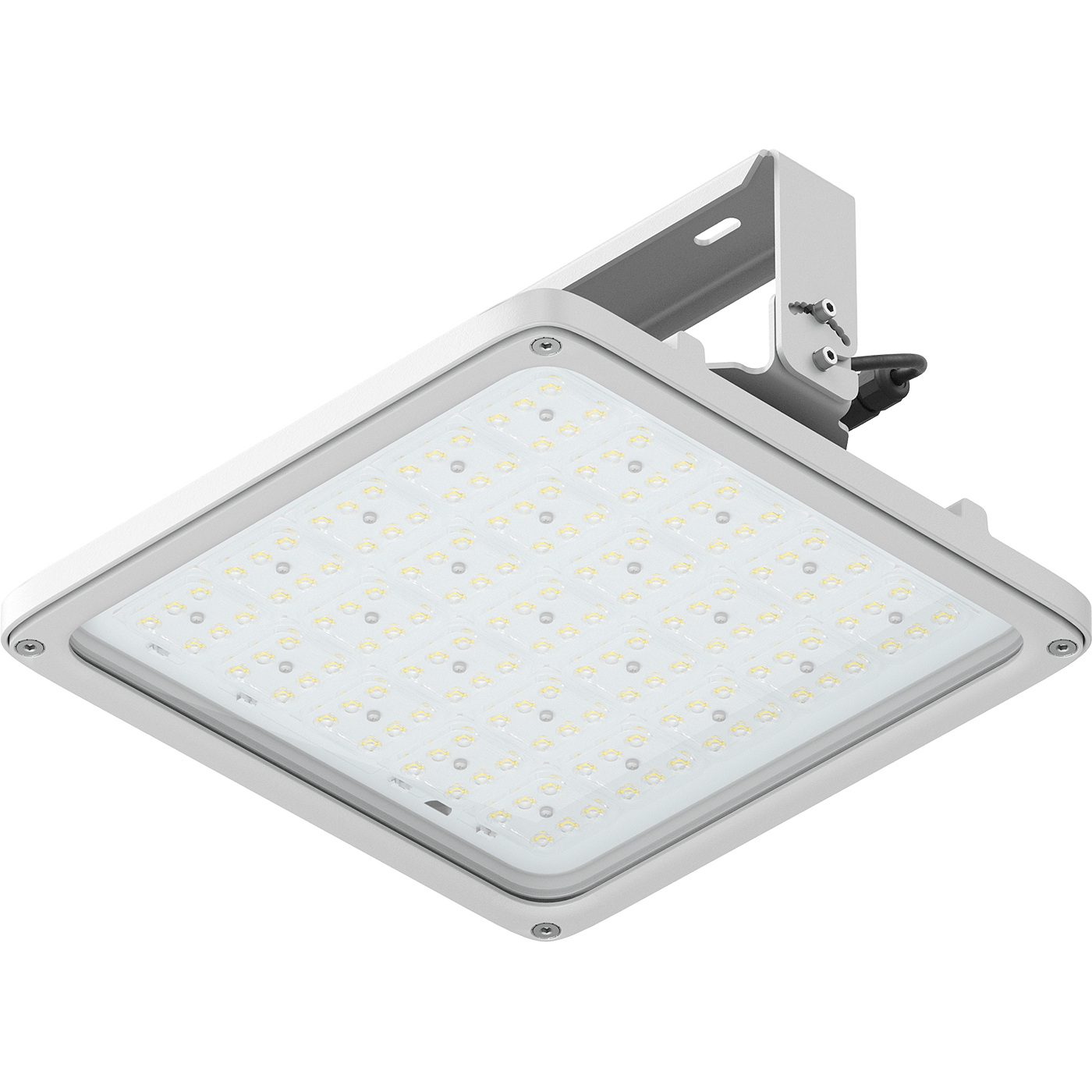

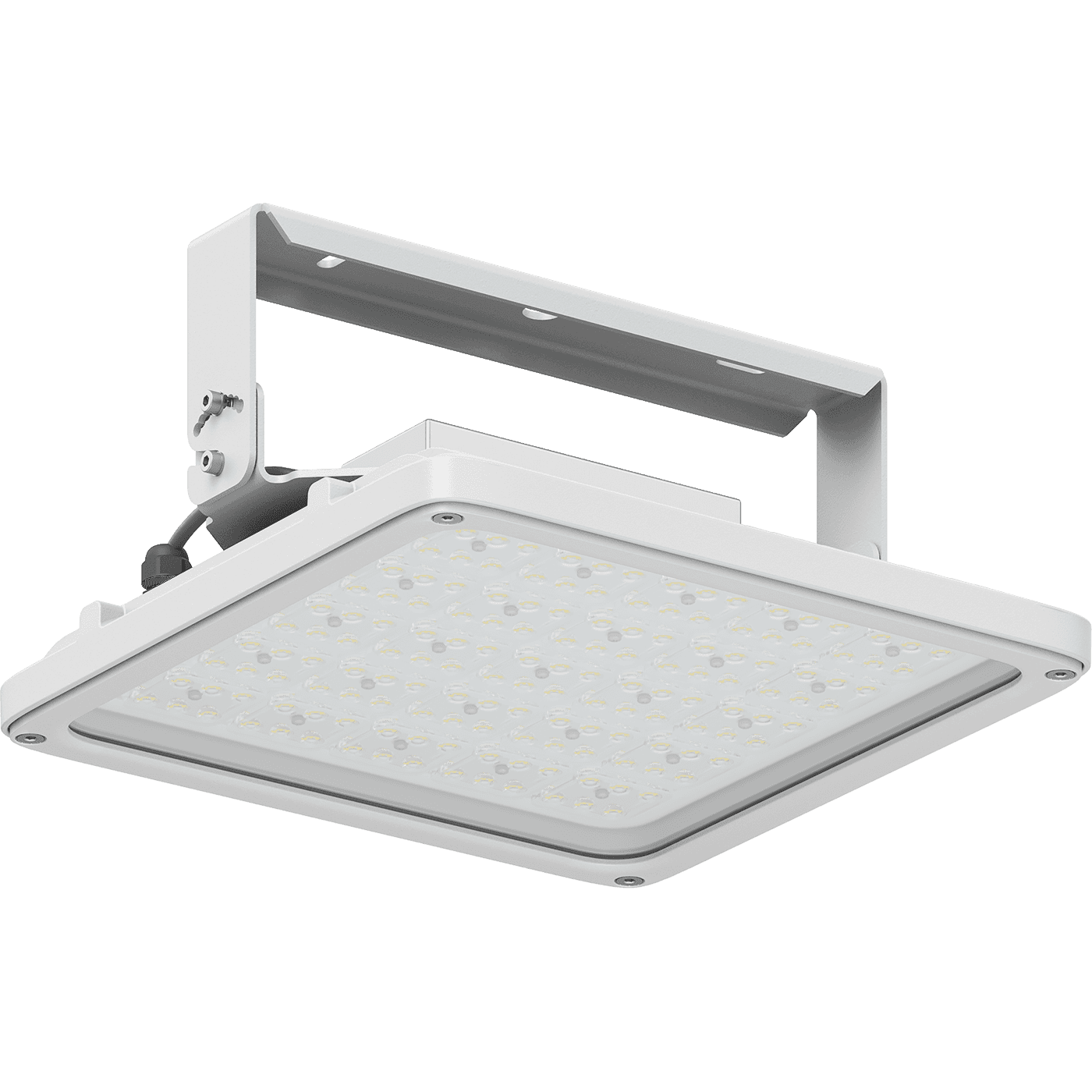

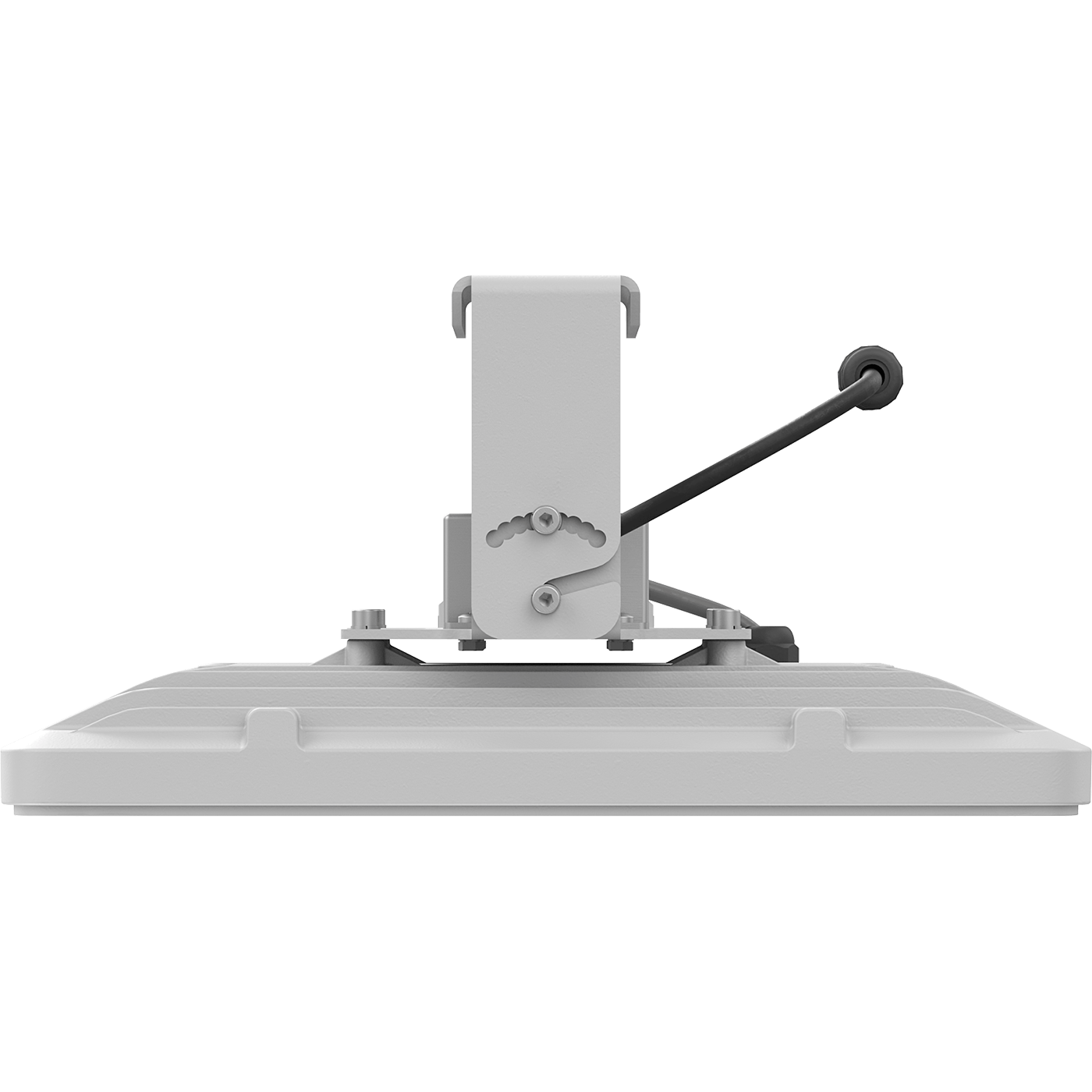

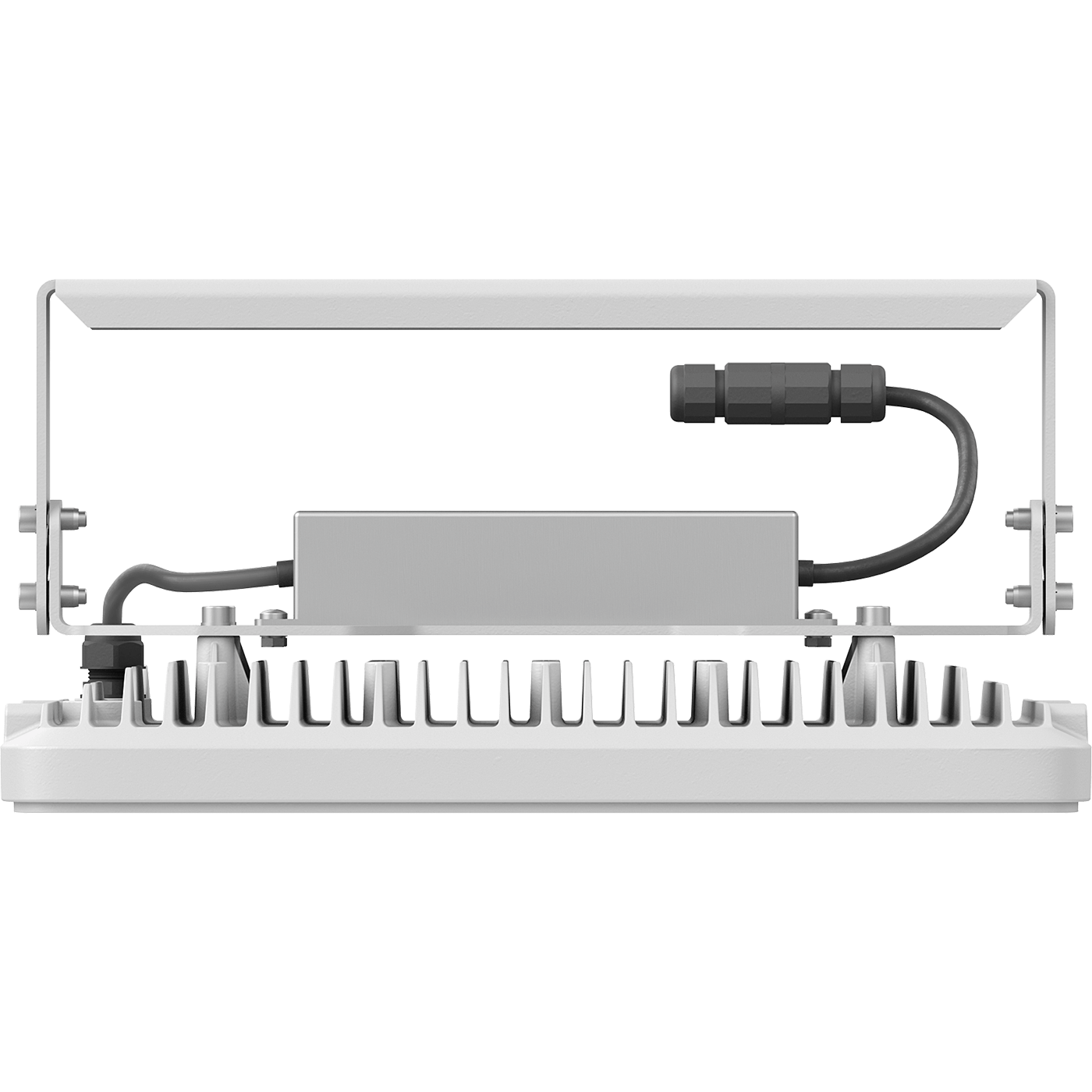

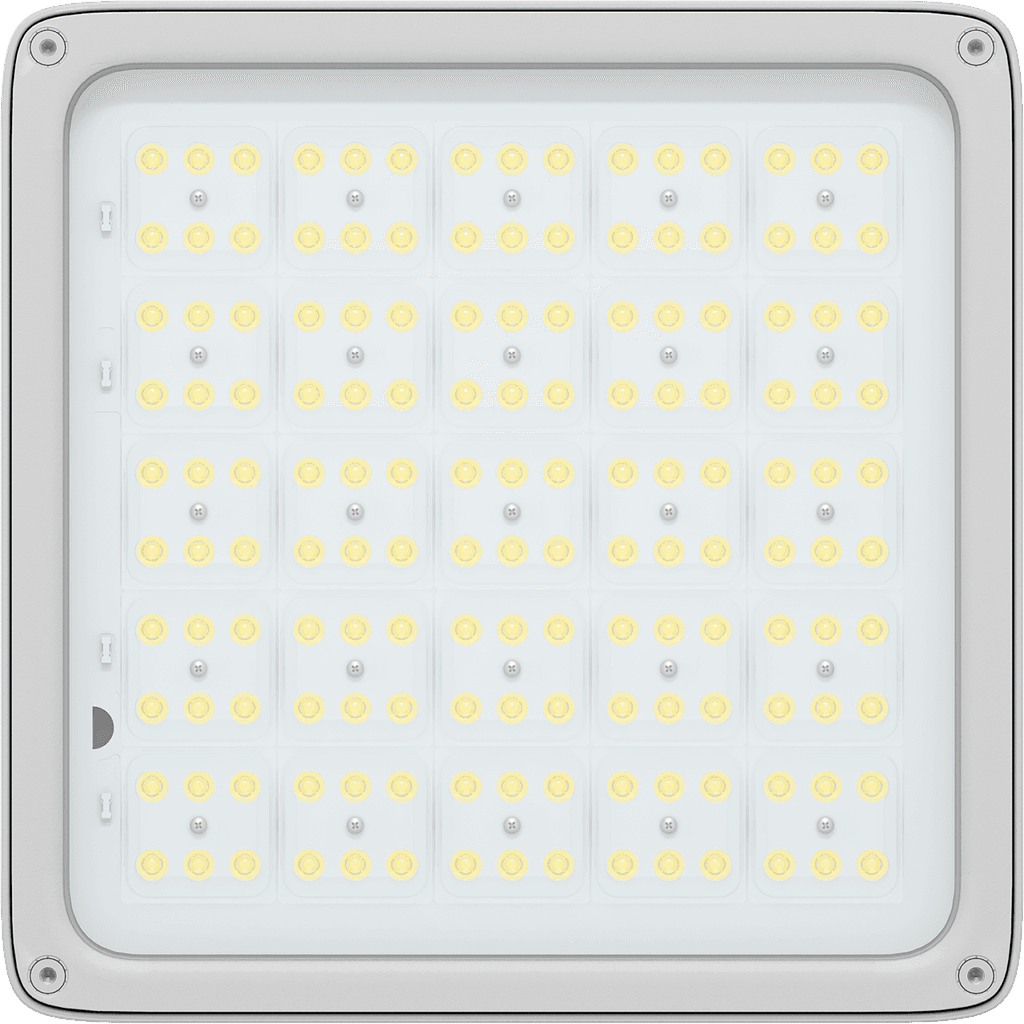

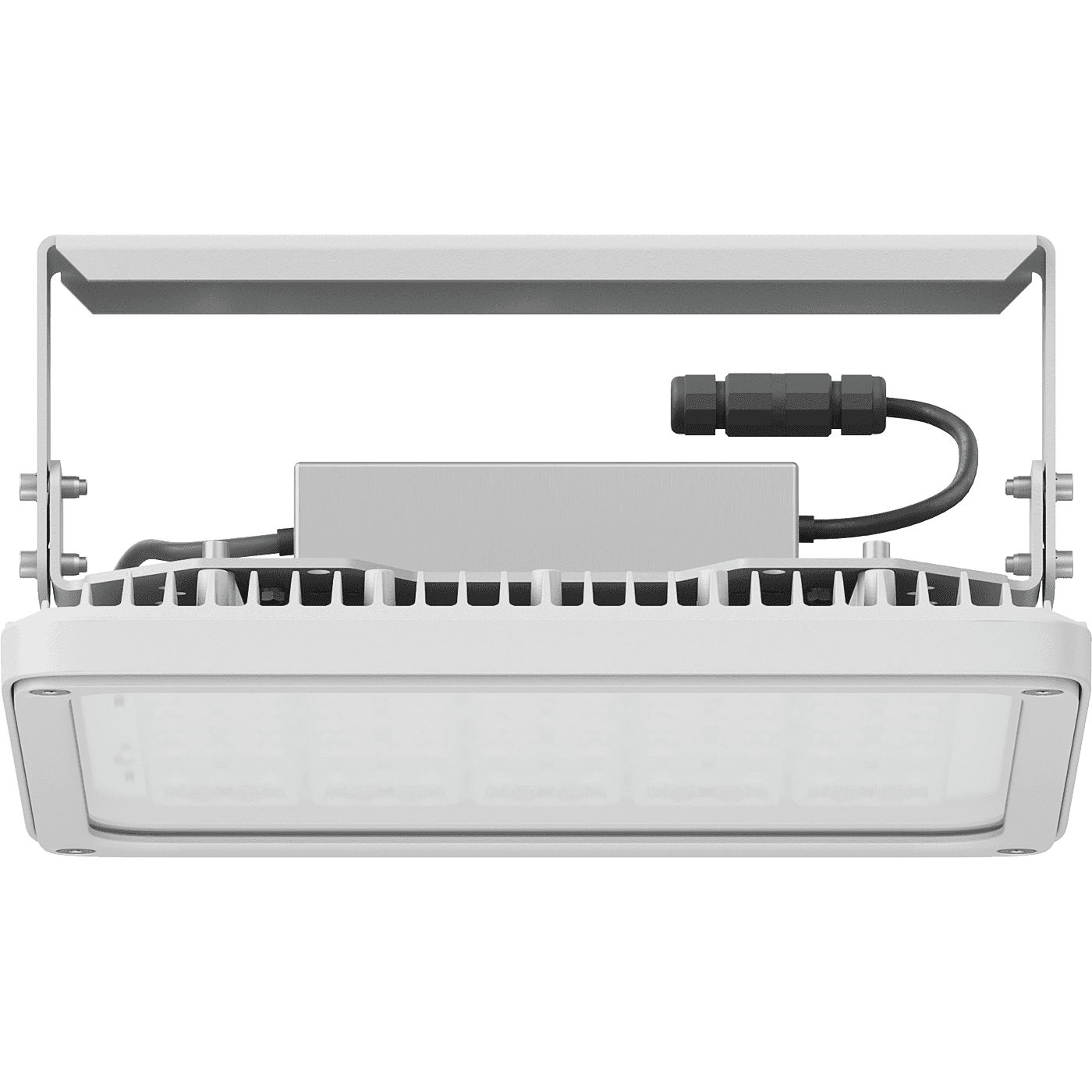

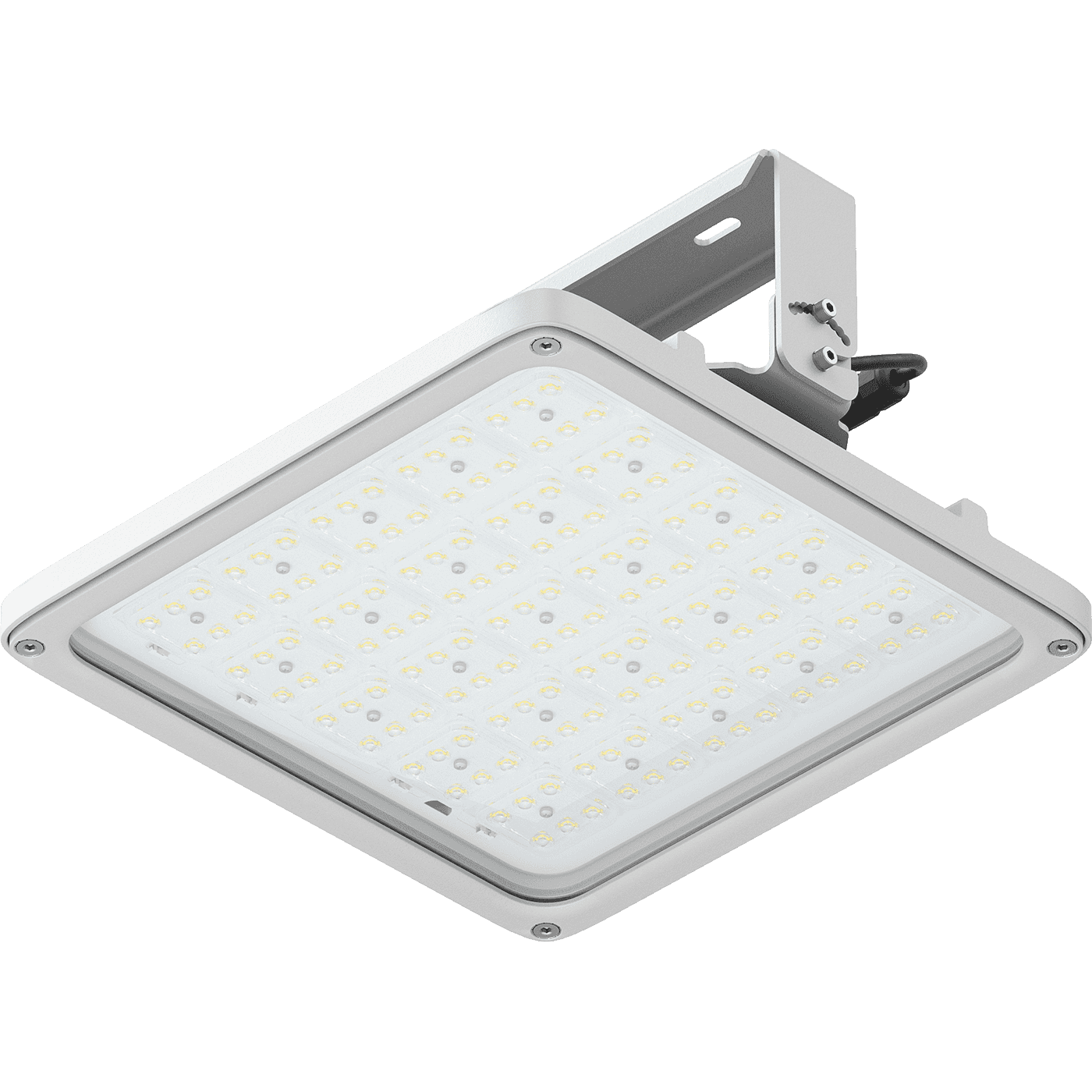

INSEL LB/S LED G3 170W D90 850 WH SB
INSEL LB/S LED G3 170W D90 850 WH SB
185 Wluminaire power
29000 lmlight flow
157 lm/Wenergy efficiency
code1334003280
color temperature5000
beam angleD90
weight6.9 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
51 Astarting current pulse time, µs
800 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
90-305 Vsupply voltage, direct current
127-250 Vluminaire power
185 Welectric shock protection
Ipower factor
> 0,97supply voltage
230 Velectrical
starting current
51 A
starting current pulse time, µs
800 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
90-305 V
supply voltage, direct current
127-250 V
luminaire power
185 W
electric shock protection
I
power factor
> 0,97
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
6.9 kg
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
331 mm
width, mm
331 mm
height, mm
169 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
200 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +60 C
energy efficiency class
A++
service life, hour
50 000 h
code
1334003280
illuminating
light flow
29000 lm
flickering factor
<1%
energy efficiency
157 lm/W
beam angle
D90
color temperature
5000
light source type
LED
emission color
Белый
color rendition index (CRI)
>80
model files
model files

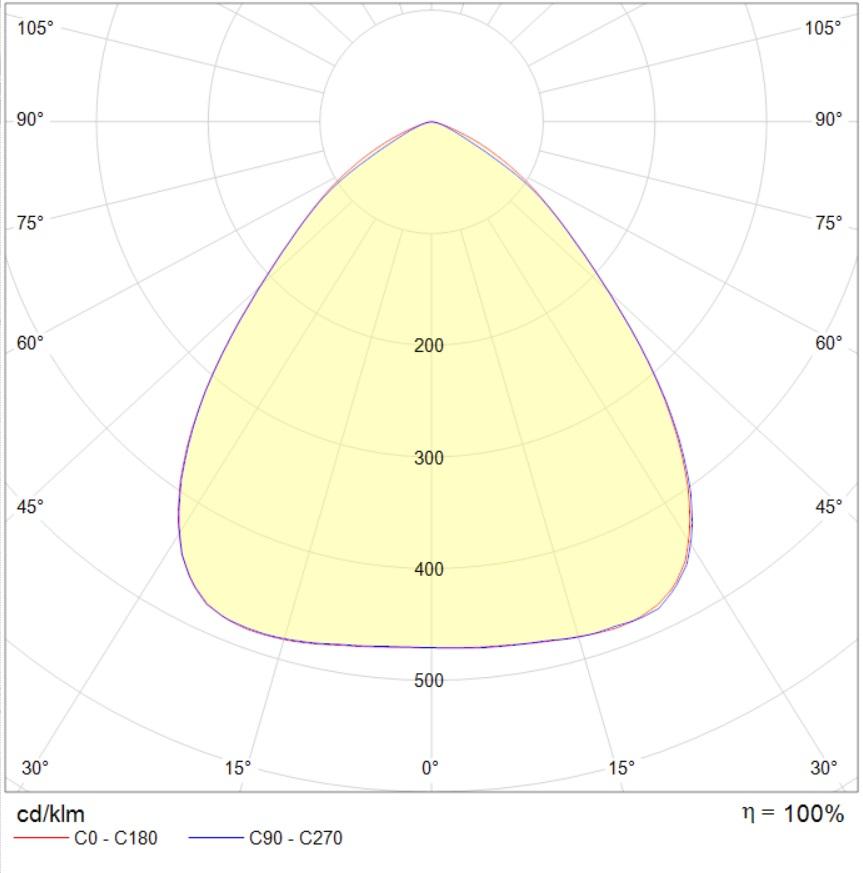

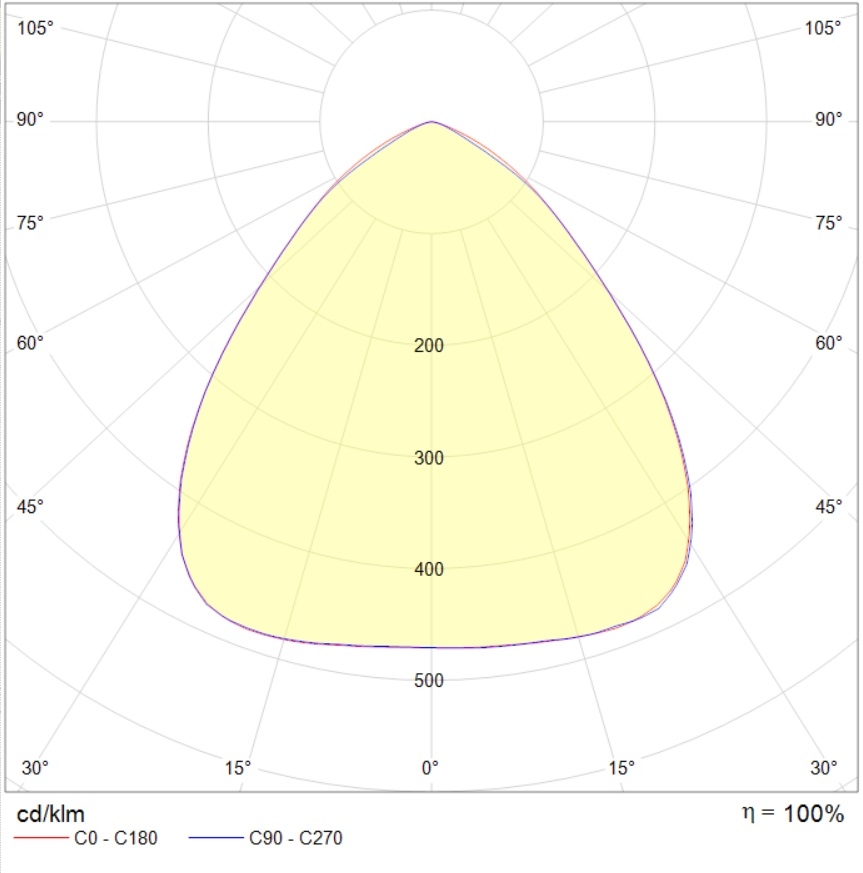

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg83.7 kB
ldt71.2 kB
csv430 B
documents
passport4 mB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
