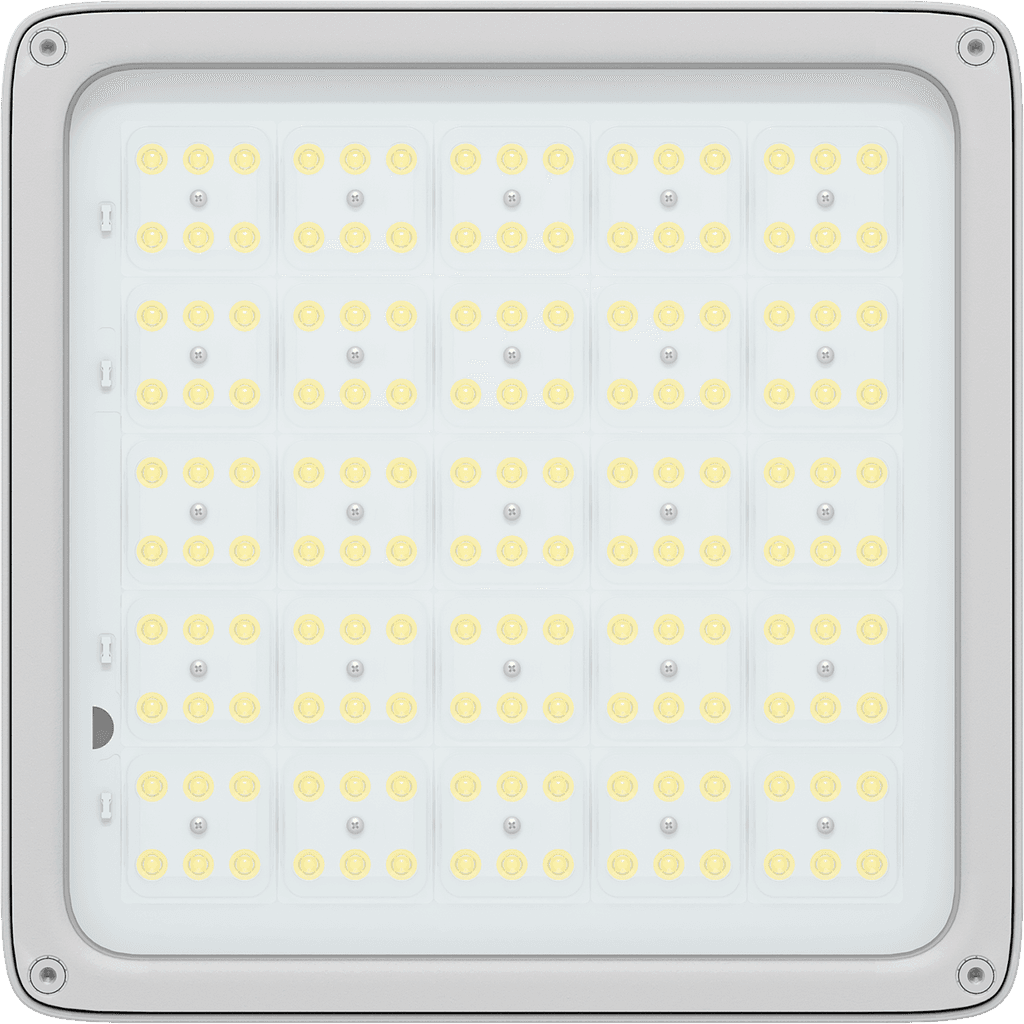

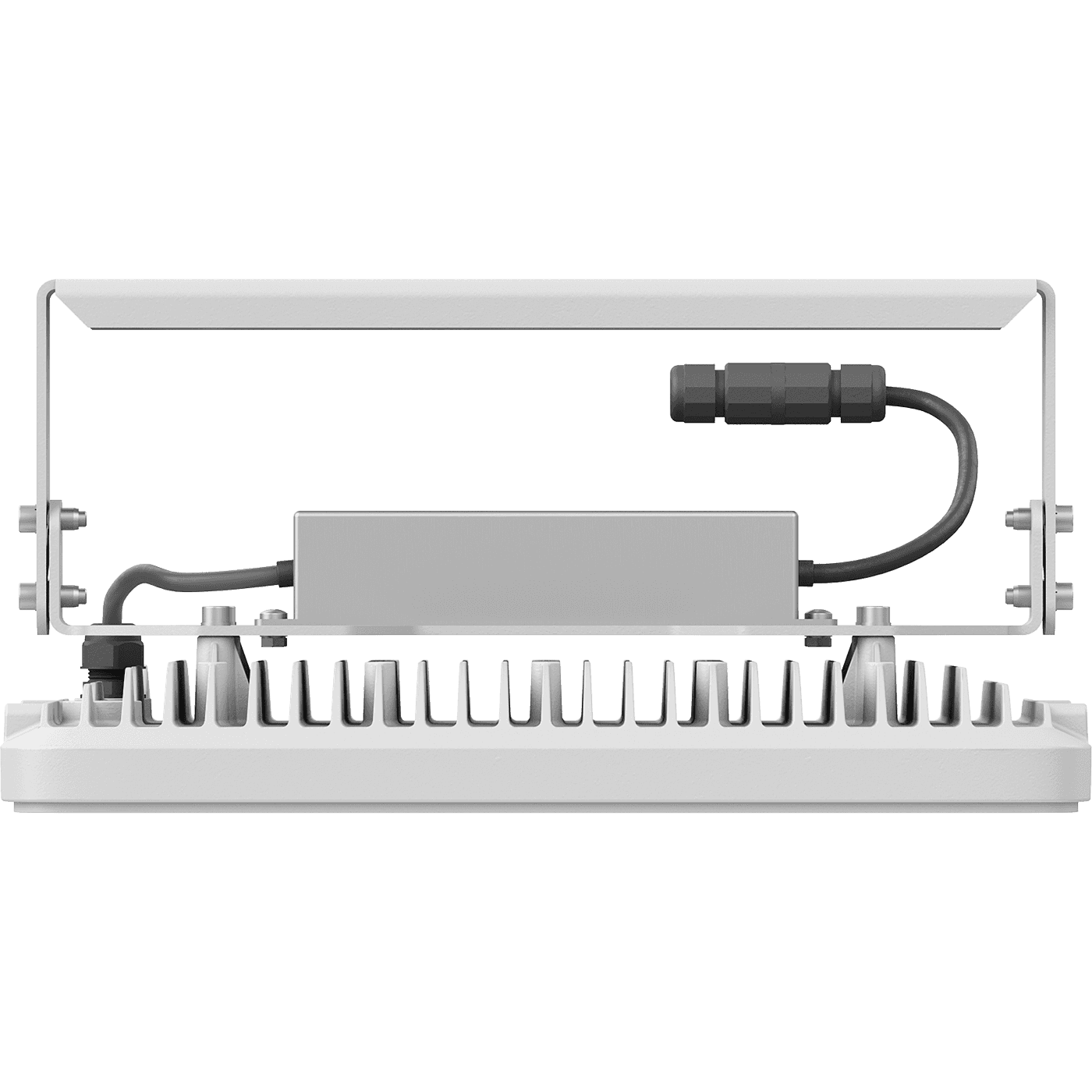

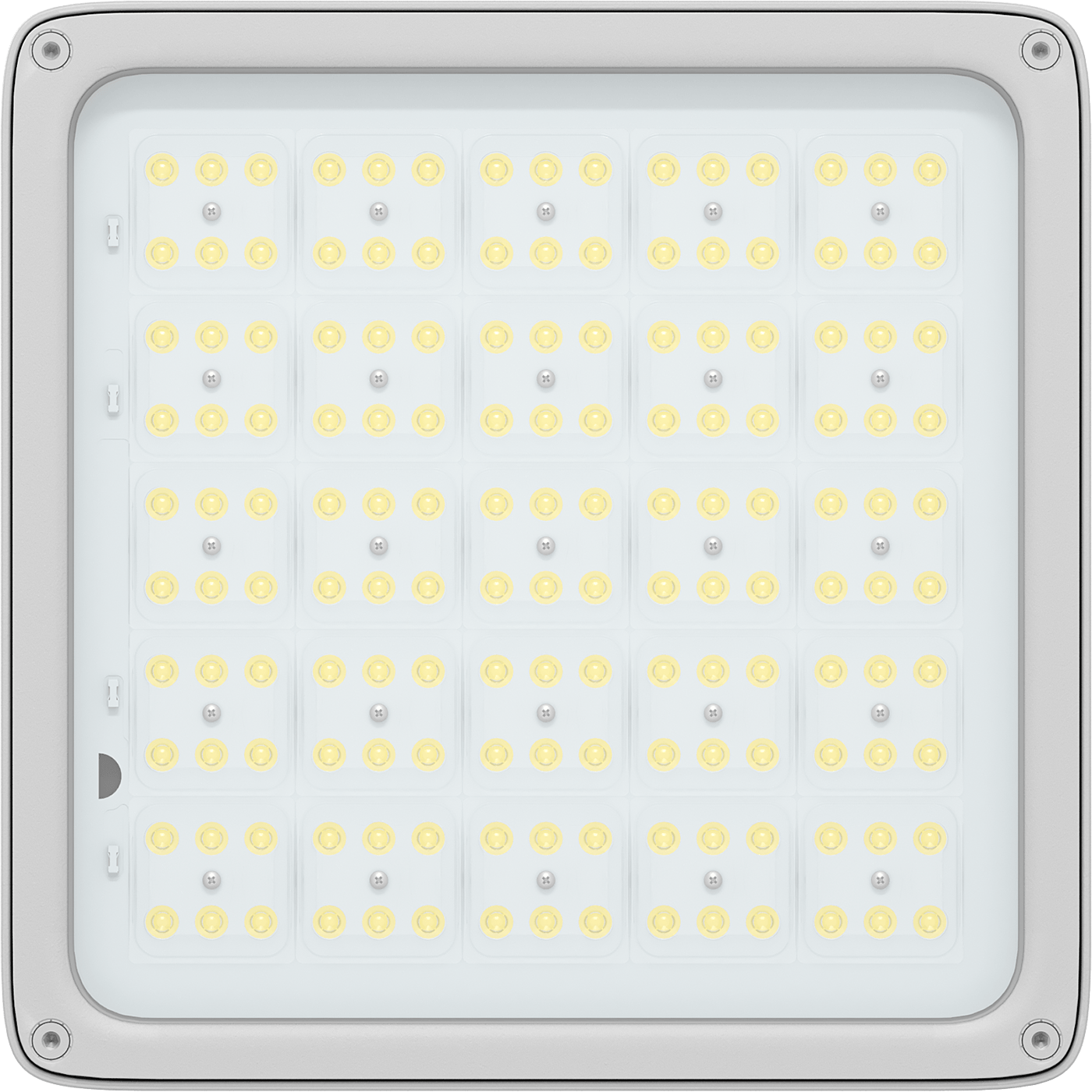

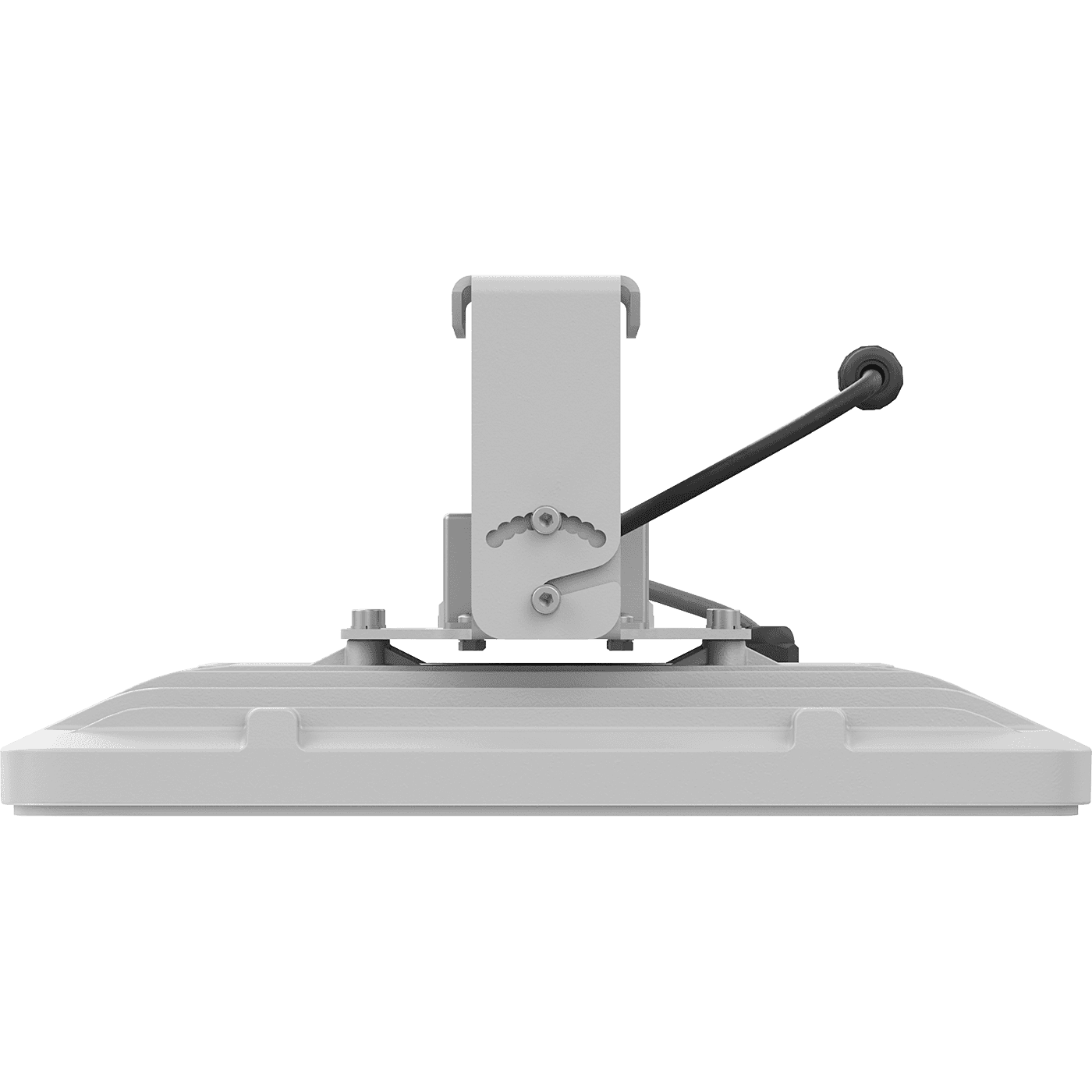

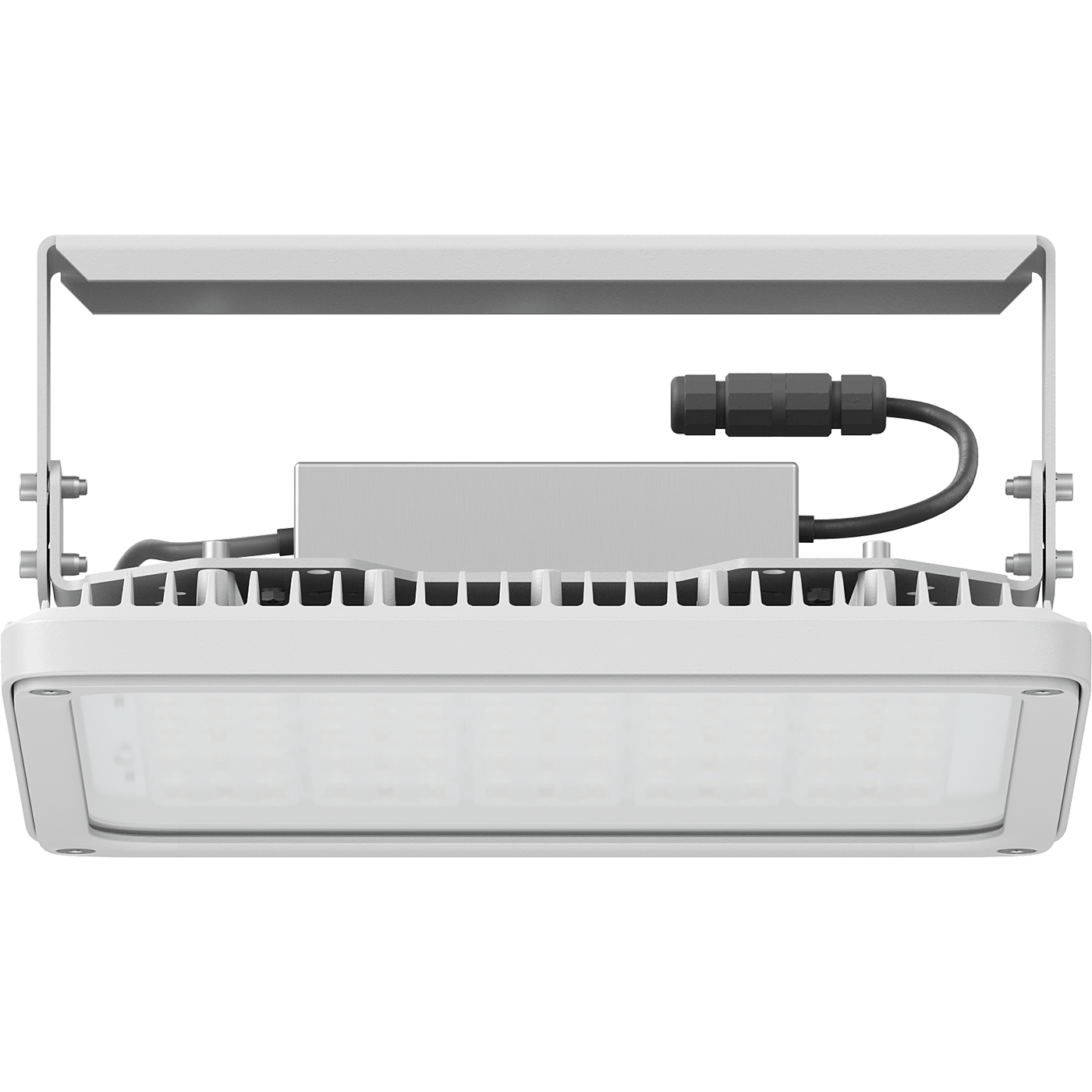

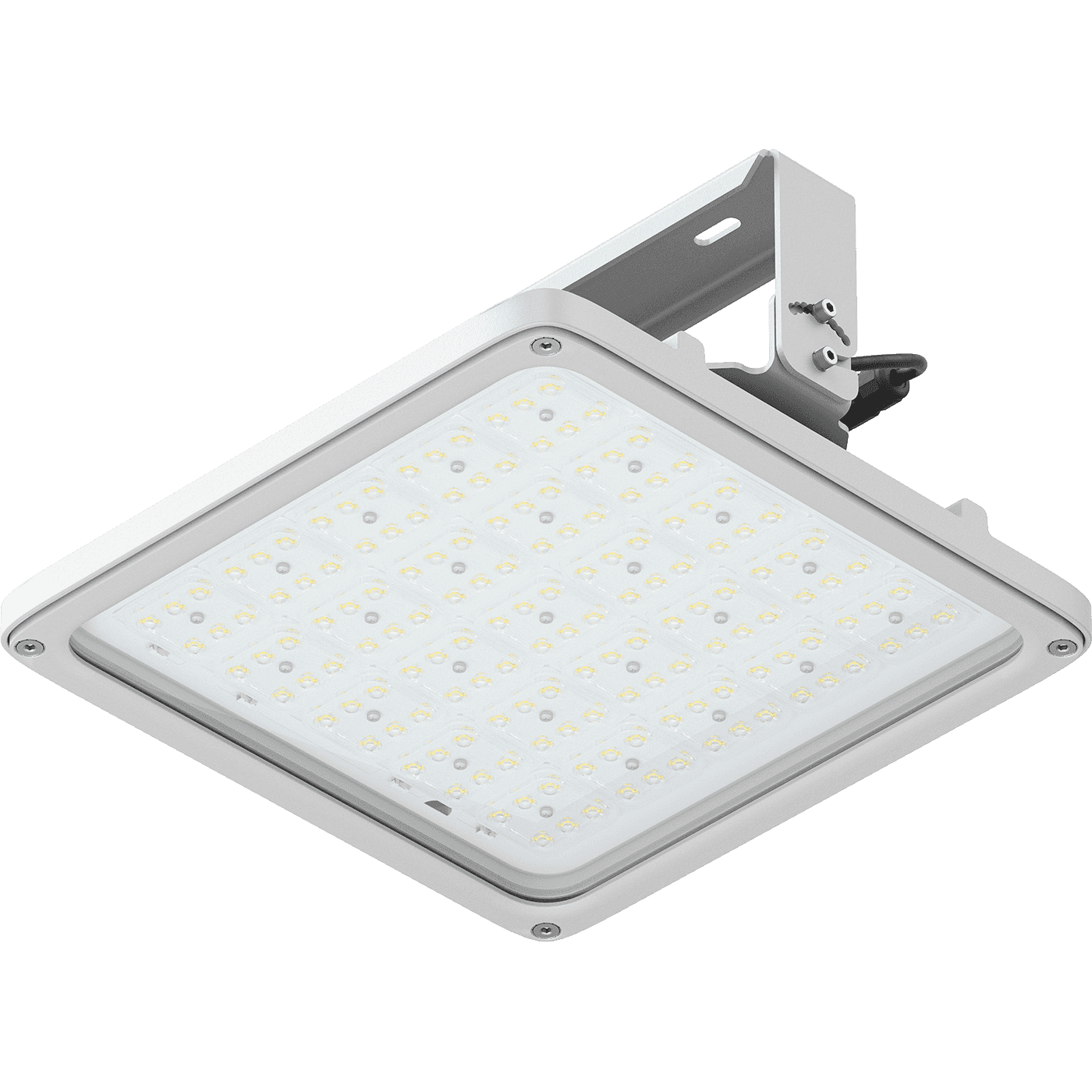

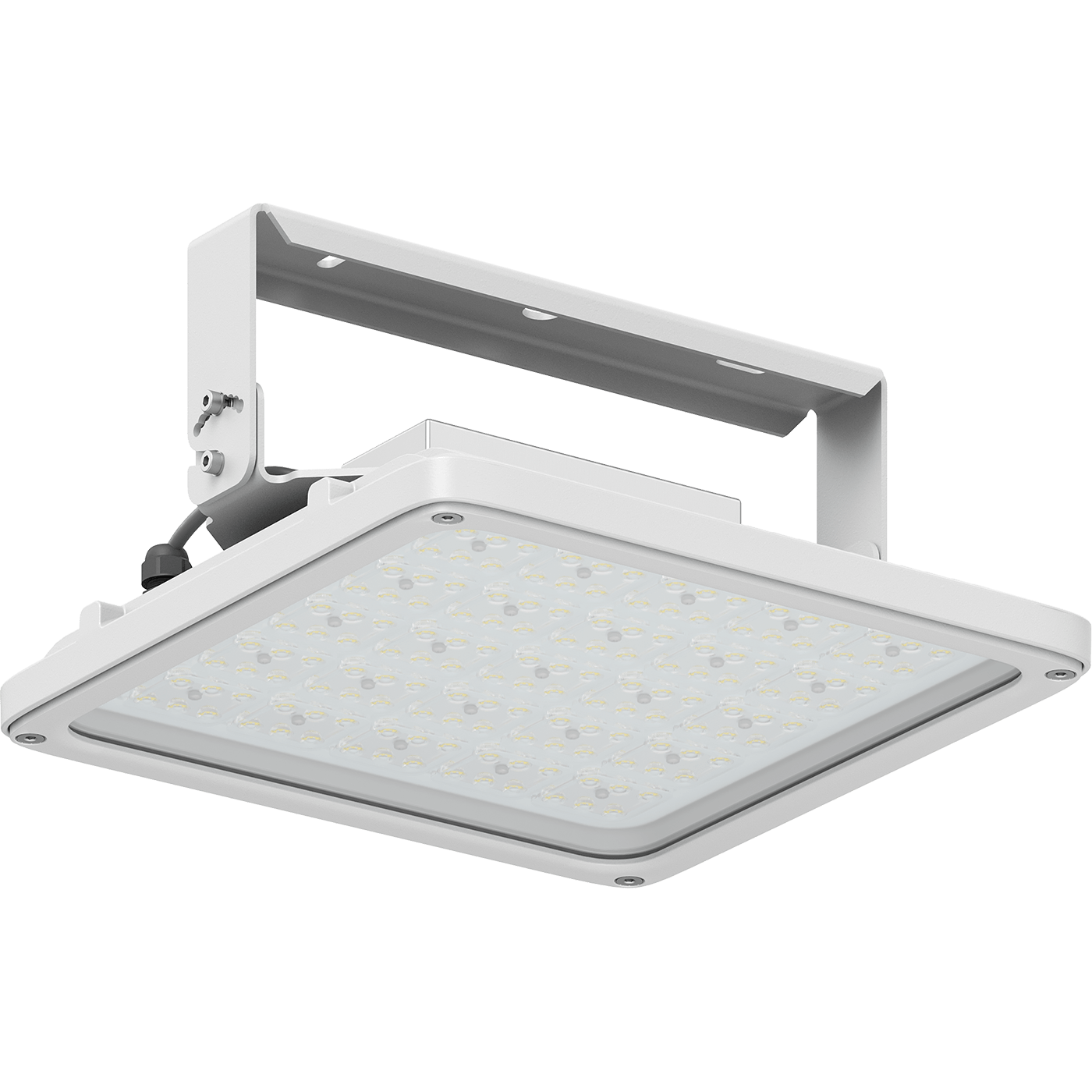

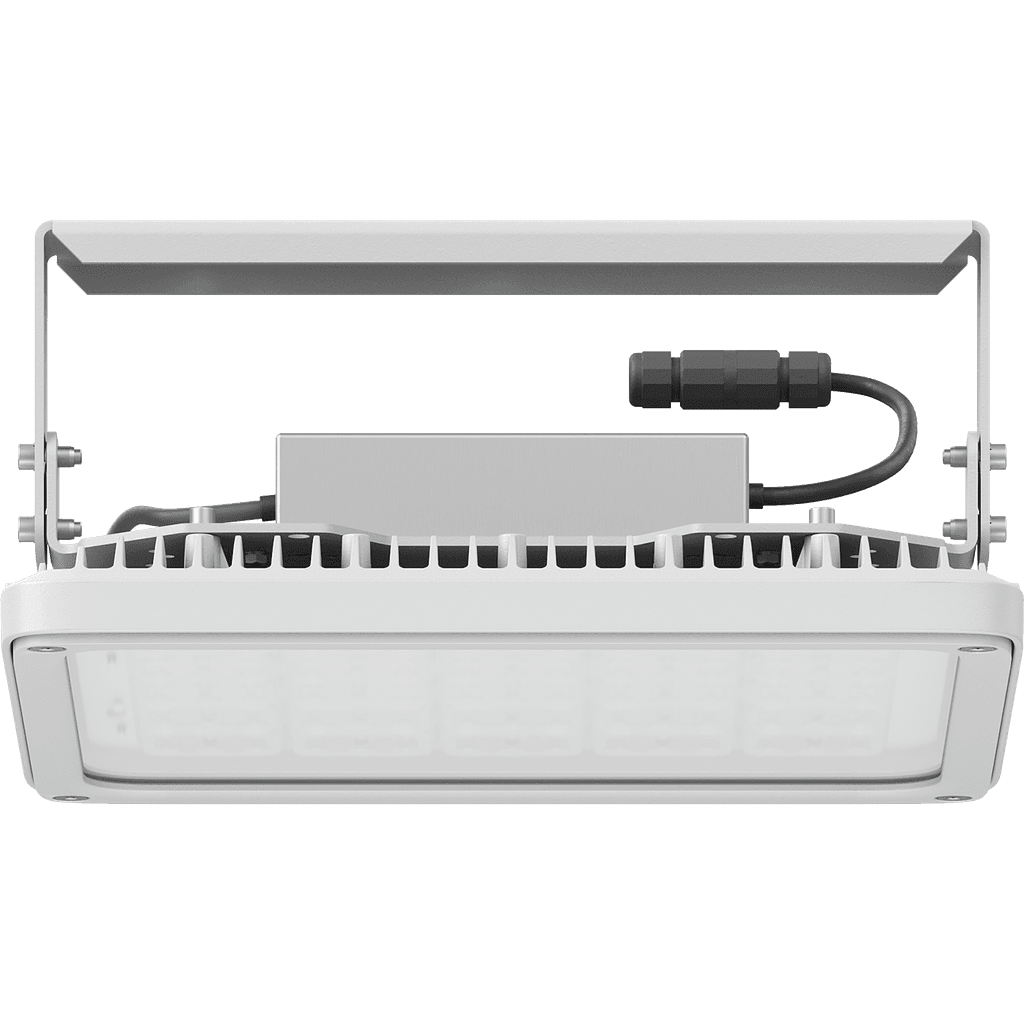

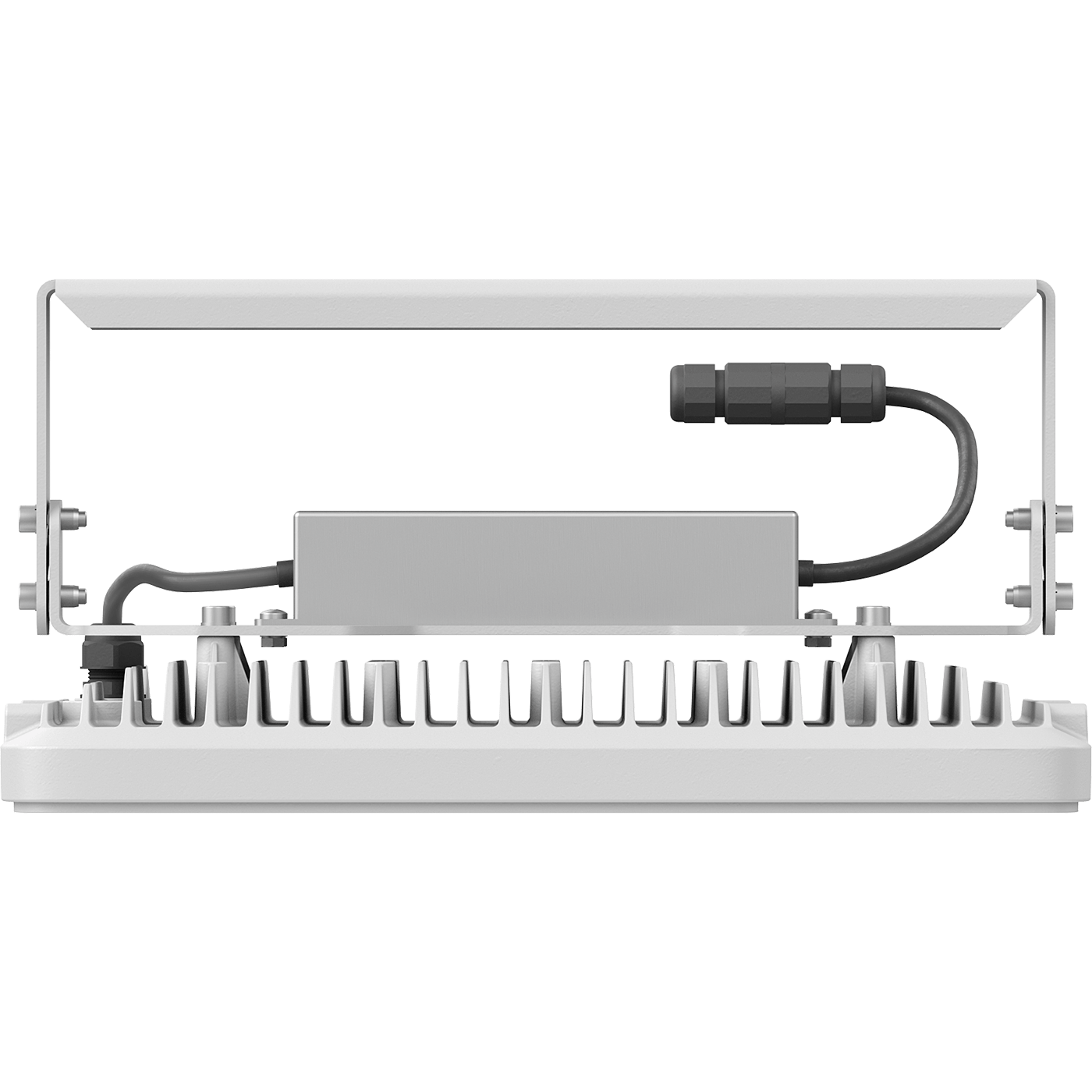

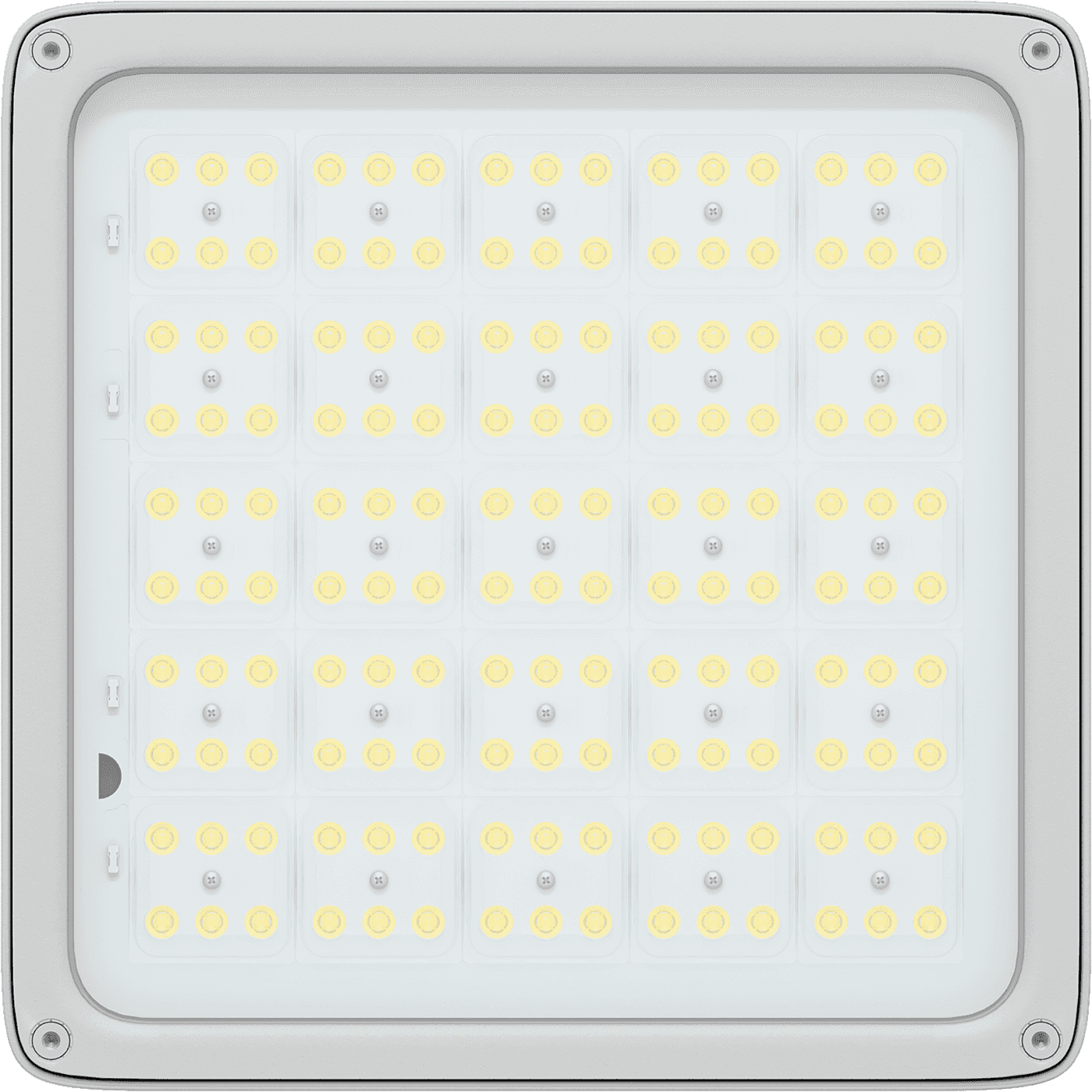

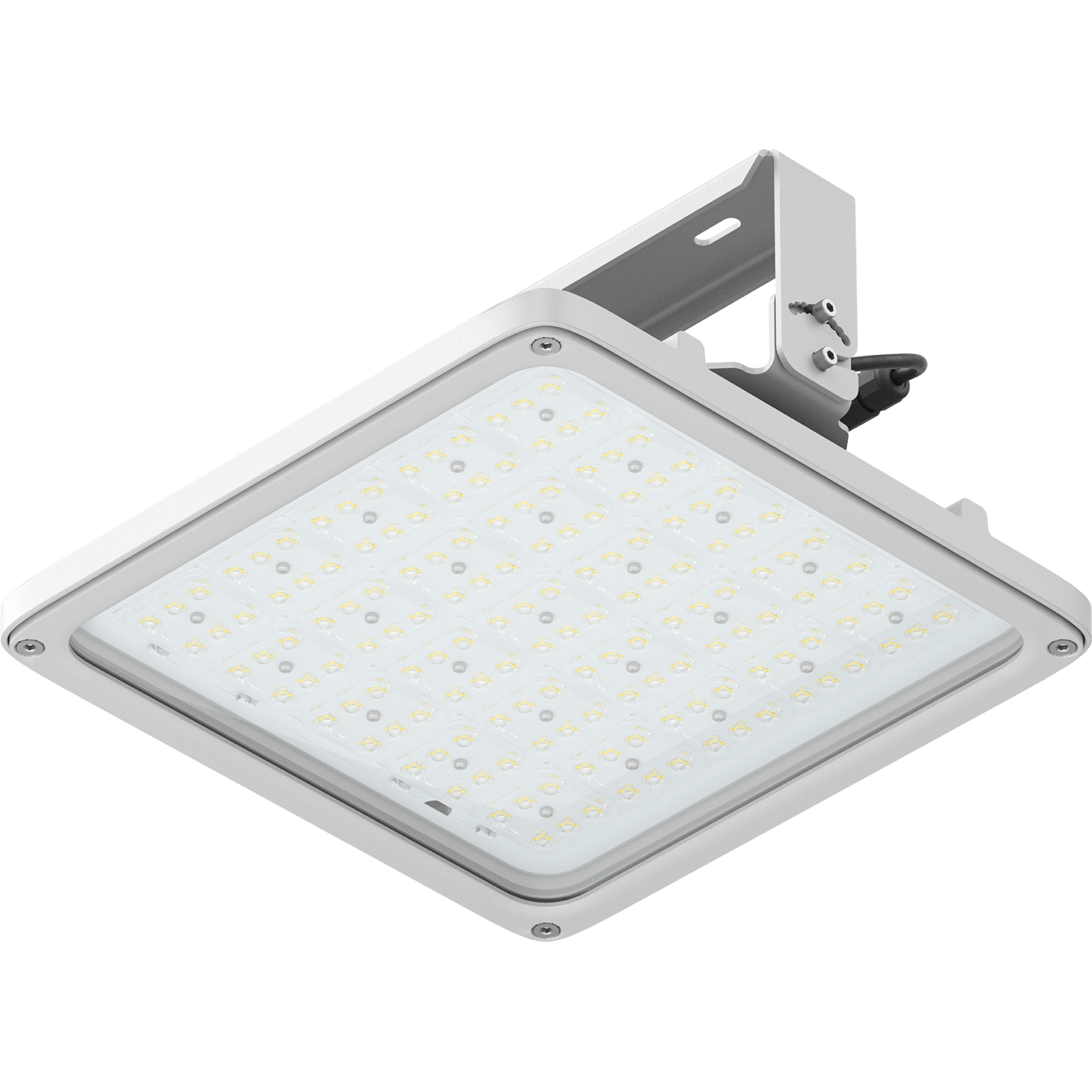

INSEL LB/S LED G3 170W D90 840 WH SB
INSEL LB/S LED G3 170W D90 840 WH SB
185 Wluminaire power
29000 lmlight flow
157 lm/Wenergy efficiency
code1334005880
color temperature4000
beam angleD90
weight6.9 kg
options
свернуть все
electricalilluminatingconstructionalcommon
supply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Velectric shock protection
Istarting current
50 Astarting current pulse time, µs
500 mksluminaire power
185 Wrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vmaximum cross-section of the connected cable, sq. mm
2.5power factor
> 0,97supply voltage
230 Velectrical
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
electric shock protection
I
starting current
50 A
starting current pulse time, µs
500 mks
luminaire power
185 W
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
maximum cross-section of the connected cable, sq. mm
2.5
power factor
> 0,97
supply voltage
230 V
illuminating
color rendition index (CRI)
>80
light flow
29000 lm
flickering factor
<1%
energy efficiency
157 lm/W
beam angle
D90
color temperature
4000
light source type
LED
emission color
Белый
constructional
ingress protection (IP)
IP66/IP67
material
Алюминий
housing color
Белый
length, mm
331 mm
width, mm
331 mm
height, mm
169 mm
weight
6.9 kg
fire safety class
П-I,II,IIa,ІІІ
climatic performance
УХЛ1*
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
200 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
code
1334005880
model files
model files

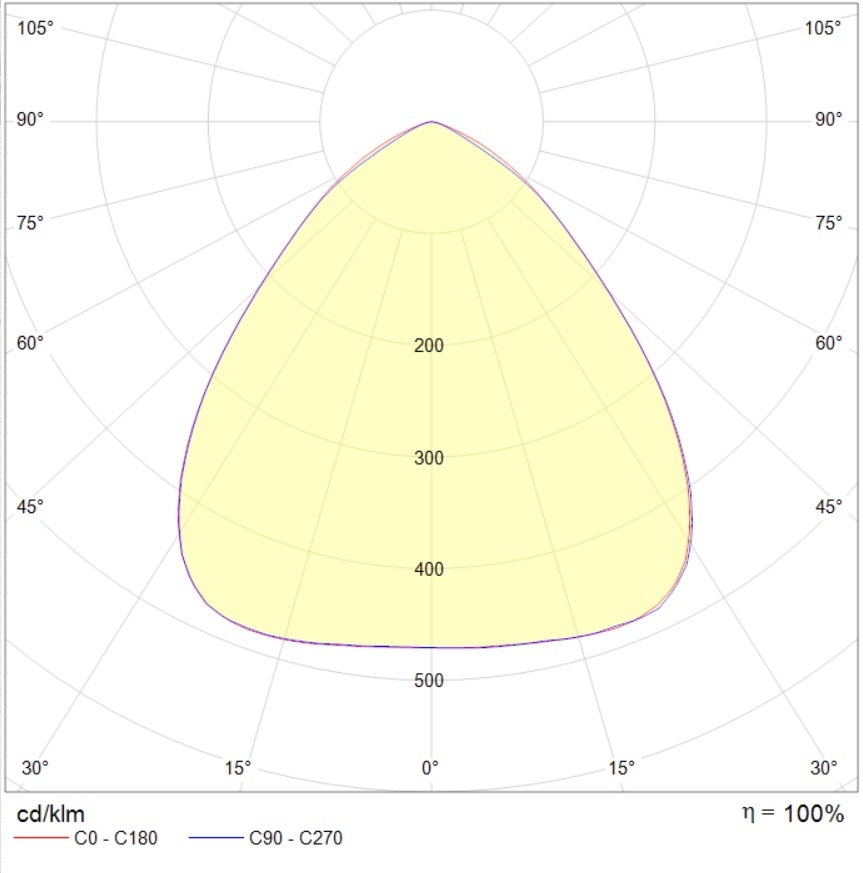

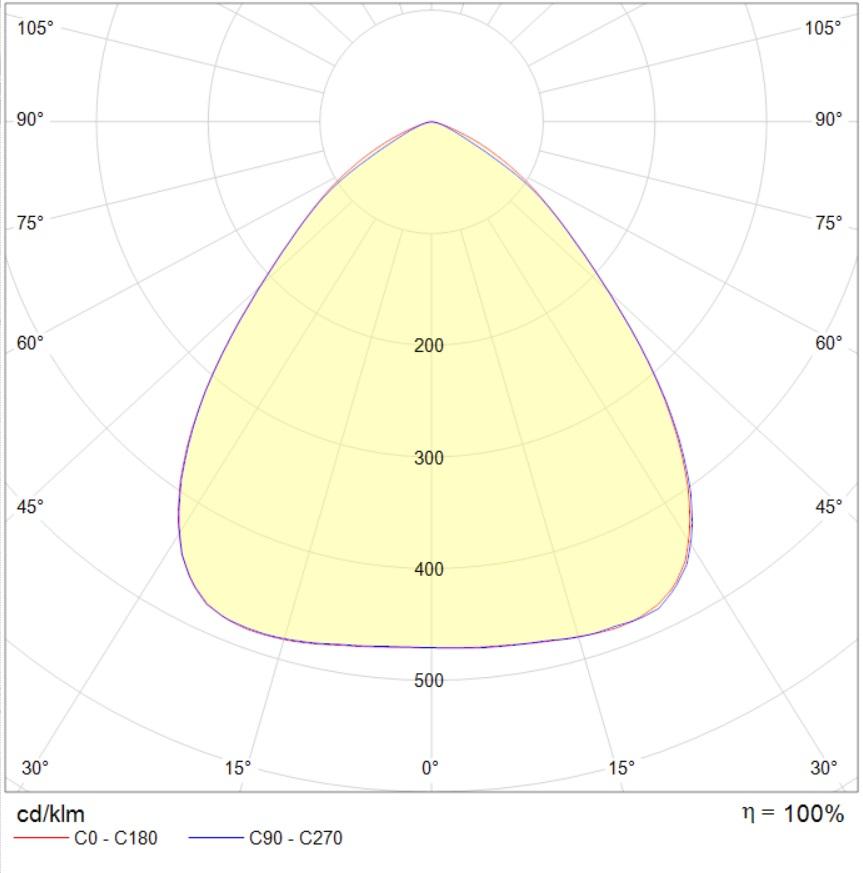

photometric files
сертификаты
photometric files
ies107.1 kB
jpg83.7 kB
ldt71.2 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
