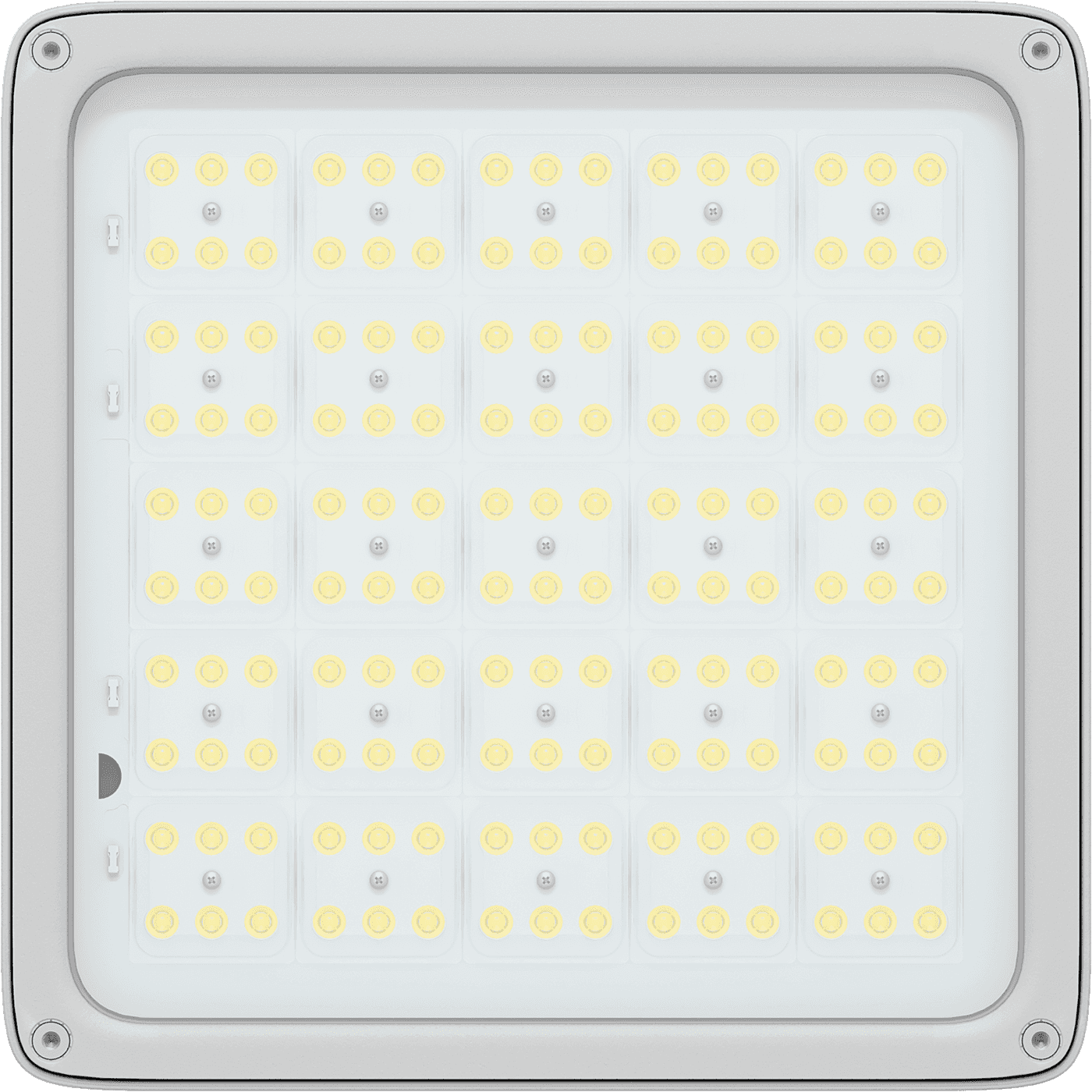

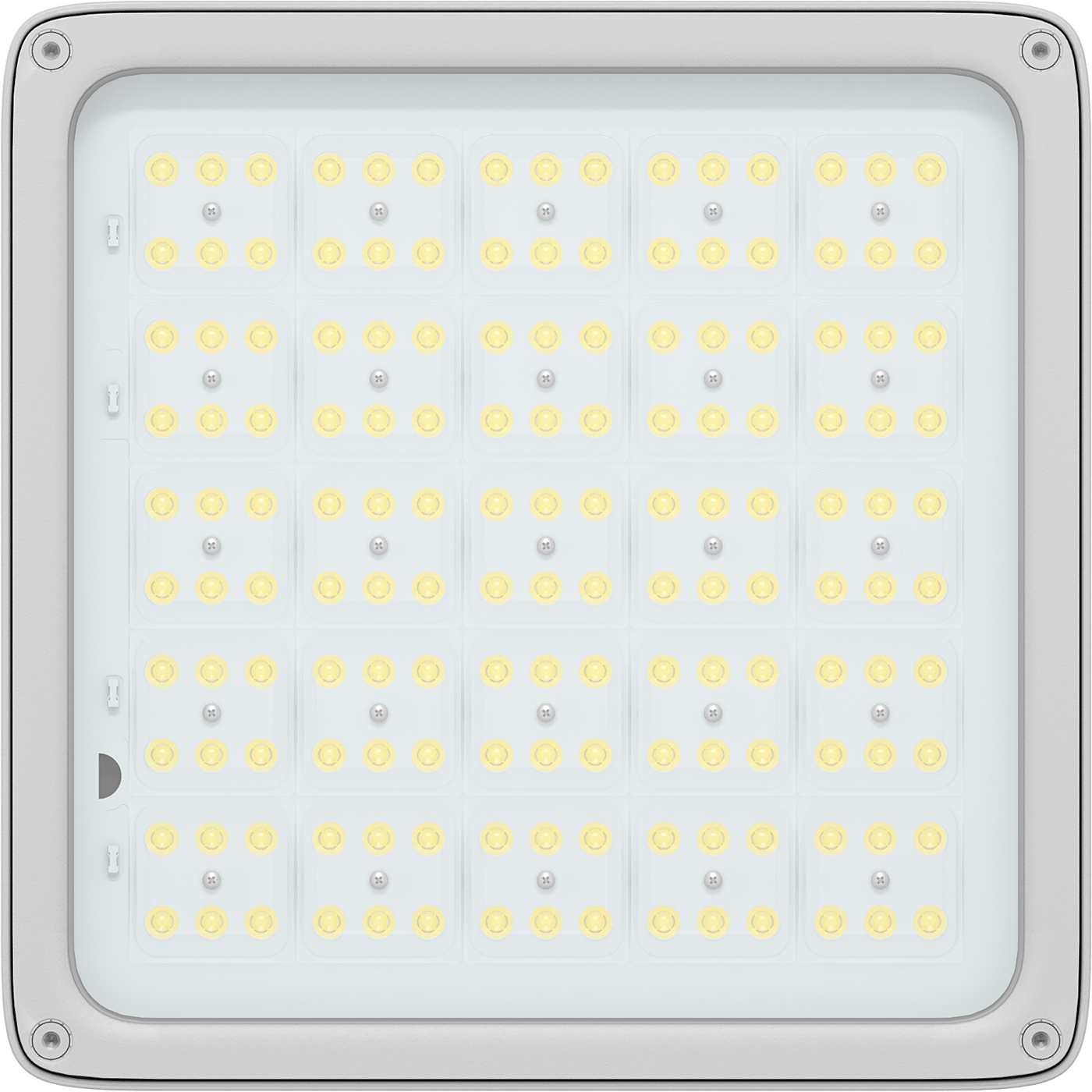

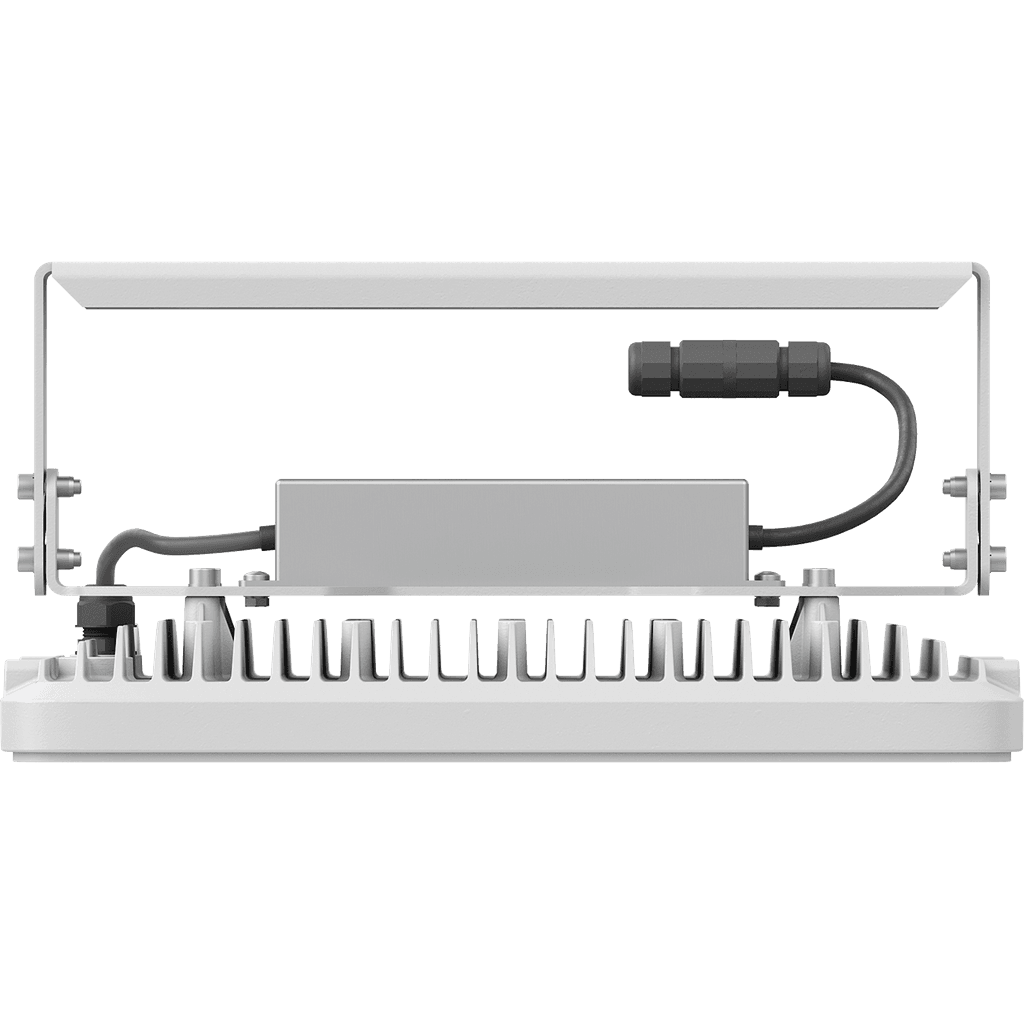

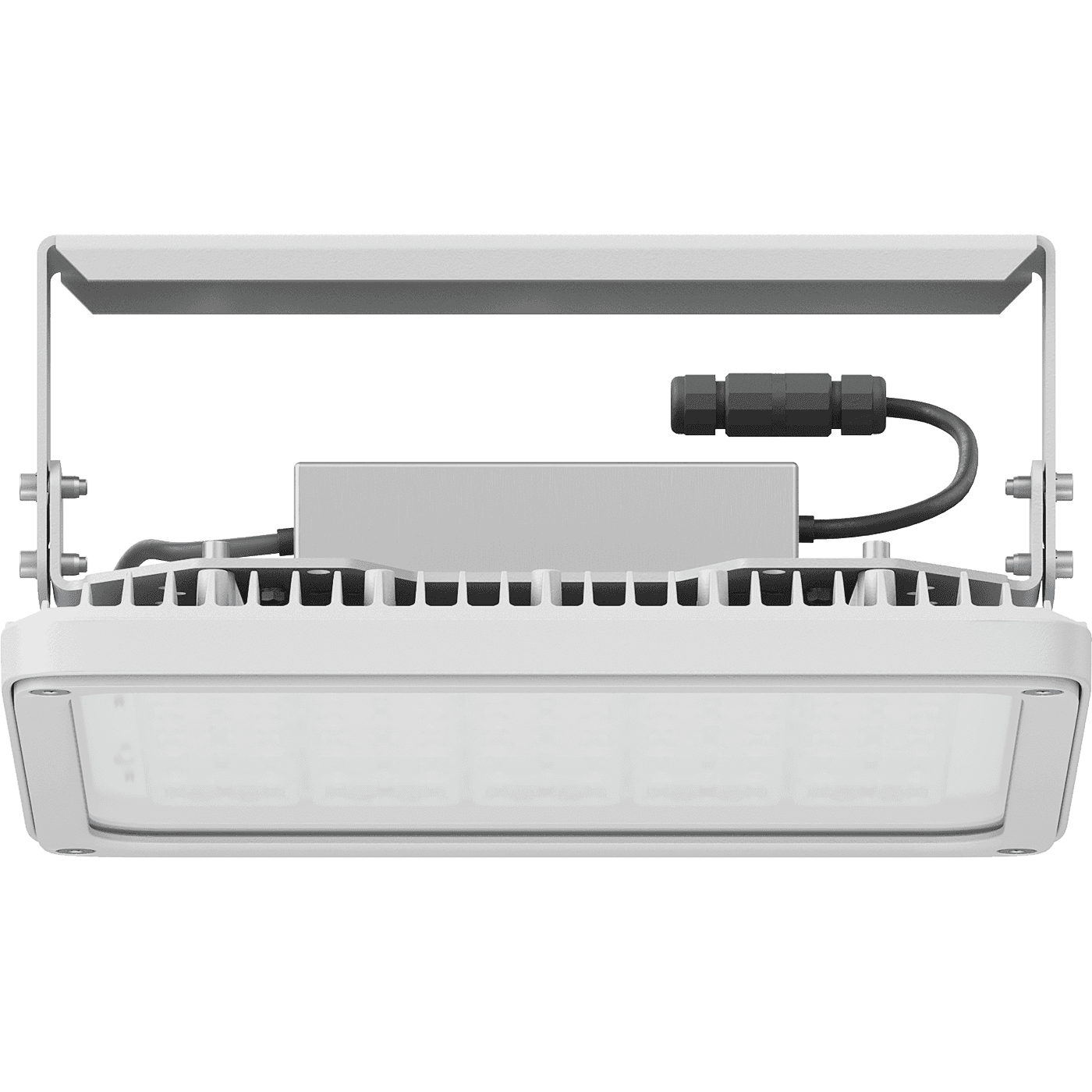

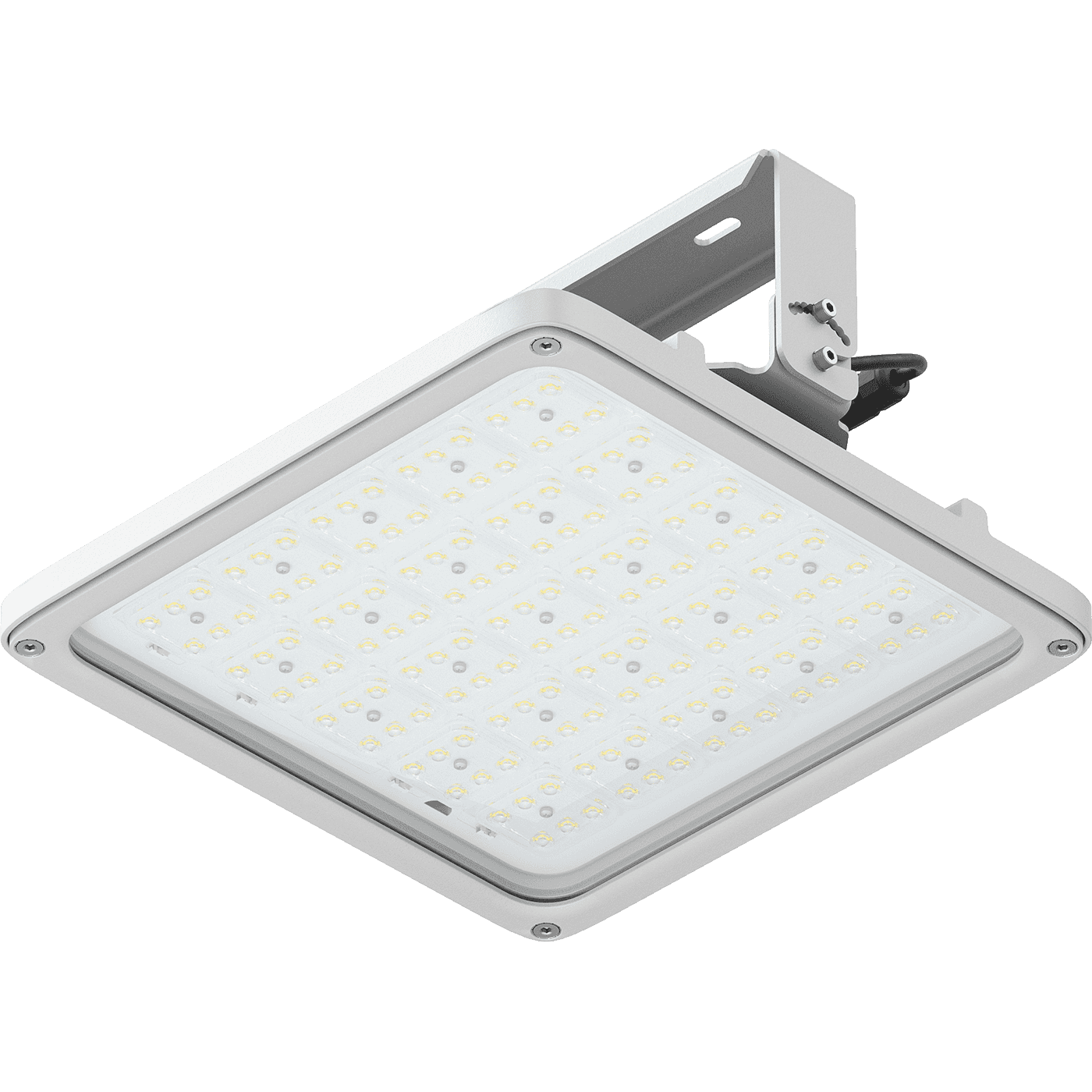

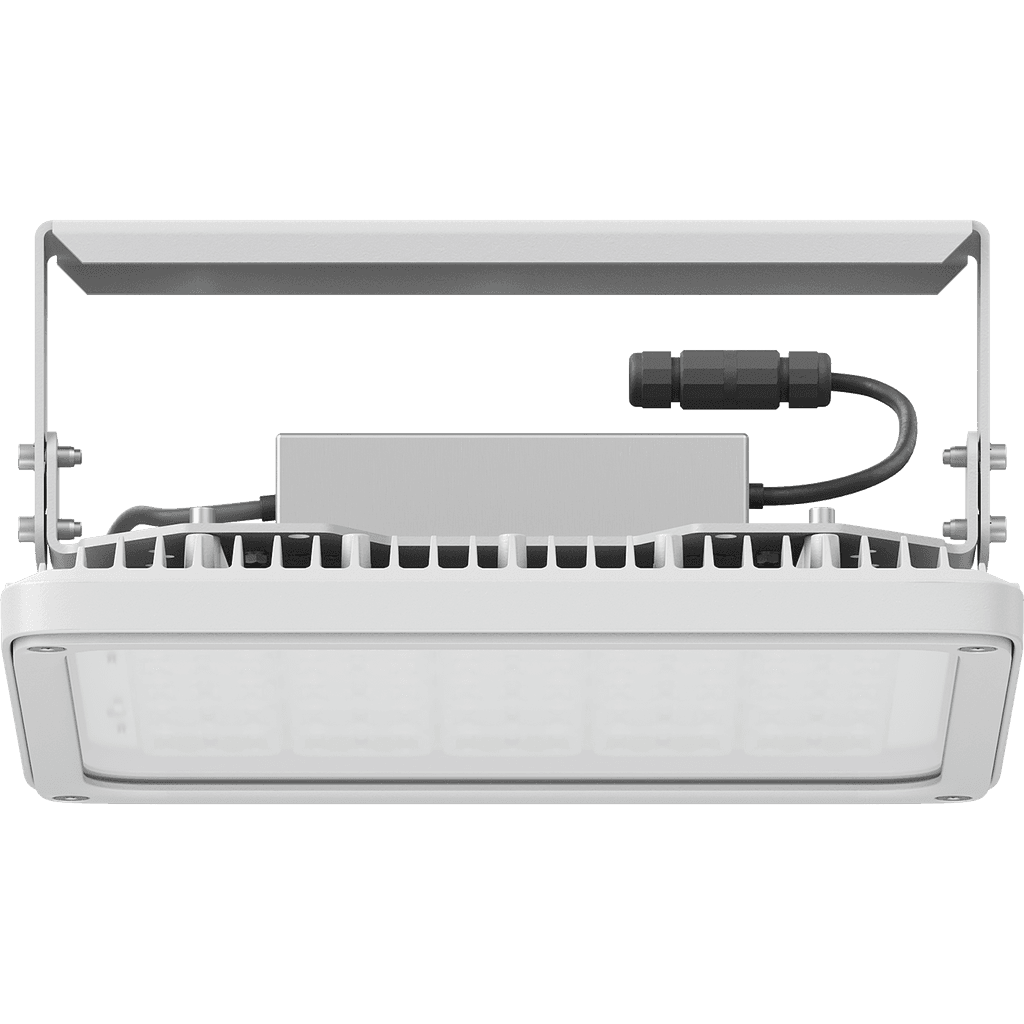

INSEL LB/S LED G3 170W D130 757 WH SB
INSEL LB/S LED G3 170W D130 757 WH SB
185 Wluminaire power
30000 lmlight flow
162 lm/Wenergy efficiency
code1334003230
color temperature5700
beam angleD130
weight7 kg
options
свернуть все
electricalconstructionalcommonilluminating
starting current
51 Astarting current pulse time, µs
800 mksrated supply voltage, alternating current
230 Vrated supply voltage, direct current
230 Vsupply voltage, alternating current
100-305 Vsupply voltage, direct current
142-431 Vluminaire power
185 Welectric shock protection
Ipower factor
> 0,96supply voltage
230 Velectrical
starting current
51 A
starting current pulse time, µs
800 mks
rated supply voltage, alternating current
230 V
rated supply voltage, direct current
230 V
supply voltage, alternating current
100-305 V
supply voltage, direct current
142-431 V
luminaire power
185 W
electric shock protection
I
power factor
> 0,96
supply voltage
230 V
constructional
ingress protection (IP)
IP66
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
weight
7 kg
housing color
Белый
climatic performance
УХЛ1*
maximum cross-section of the connected cable, sq. mm
2.5
length, mm
331 mm
width, mm
331 mm
height, mm
169 mm
shock resistance (IK)
IK08/5 Дж
lamp socket
LED
number of lamps
1
ballast
Драйвер
installation length, mm
200 mm
installation width, mm
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
temperature range
от -40 до +40 C
energy efficiency class
A++
service life, hour
50 000 h
code
1334003230
illuminating
light flow
30000 lm
flickering factor
<1%
energy efficiency
162 lm/W
beam angle
D130
color temperature
5700
light source type
LED
emission color
Белый
color rendition index (CRI)
>70
model files
model files

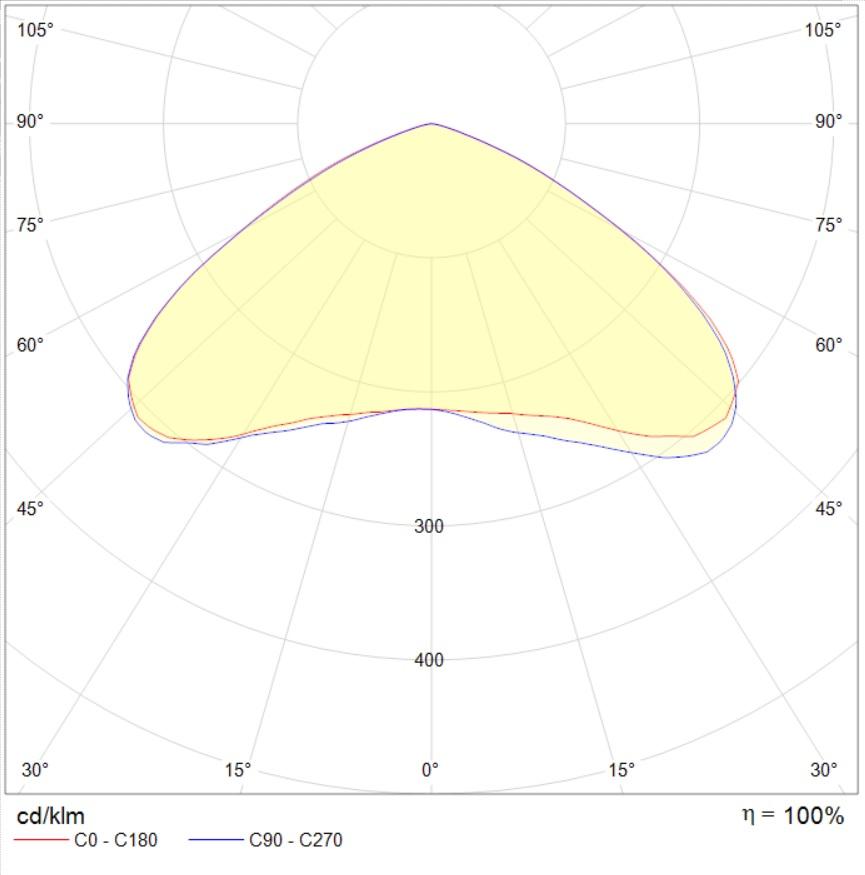

photometric files
сертификаты
photometric files
ies107 kB
jpg77.8 kB
ldt65.7 kB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016588 kB
Fire Safety Certificate2.5 mB
