INSEL LB/S LED G3 170W D120 757 WH SB
INSEL LB/S LED G3 170W D120 757 WH SB
170 Wluminaire power
30000 lmlight flow
176 lm/Wenergy efficiency
code1334003220
color temperature5700 K
beam angleD120
weight7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>70light flow
30000 lmflickering factor
<1%energy efficiency
176 lm/Wbeam angle
D120color temperature
5700 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>70
light flow
30000 lm
flickering factor
<1%
energy efficiency
176 lm/W
beam angle
D120
color temperature
5700 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
170 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
51 A
supply voltage
230 V
starting current pulse time
800 µs
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66
weight
7 kg
length
331 mm
width
331 mm
height
169 mm
installation length
200 mm
installation width
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +40 C
code
1334003220
model files
model files

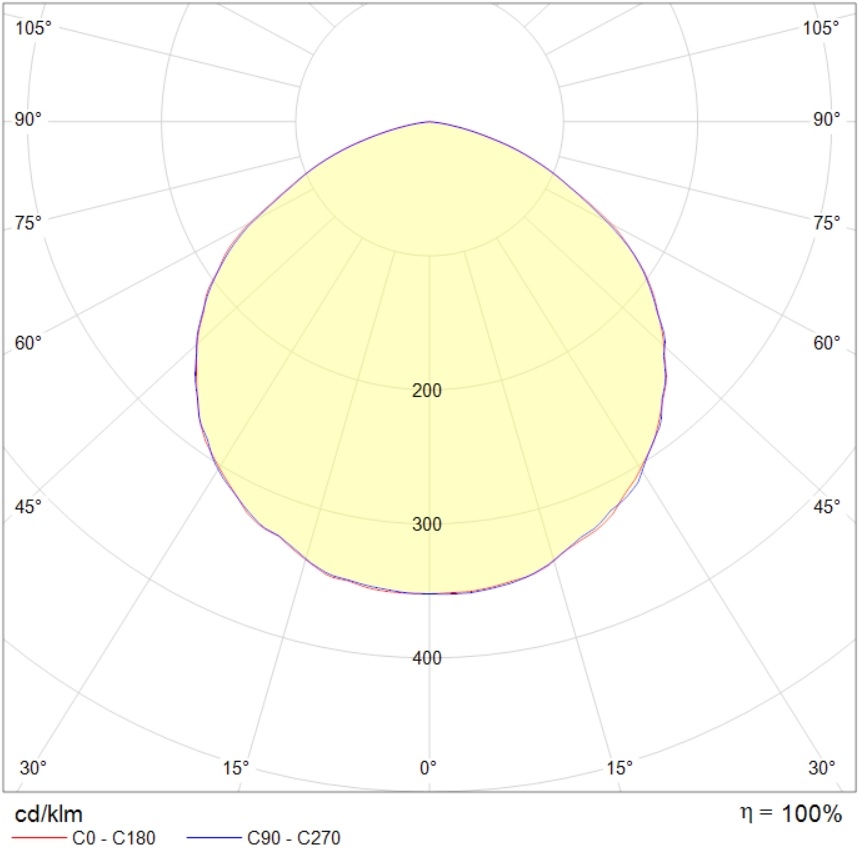

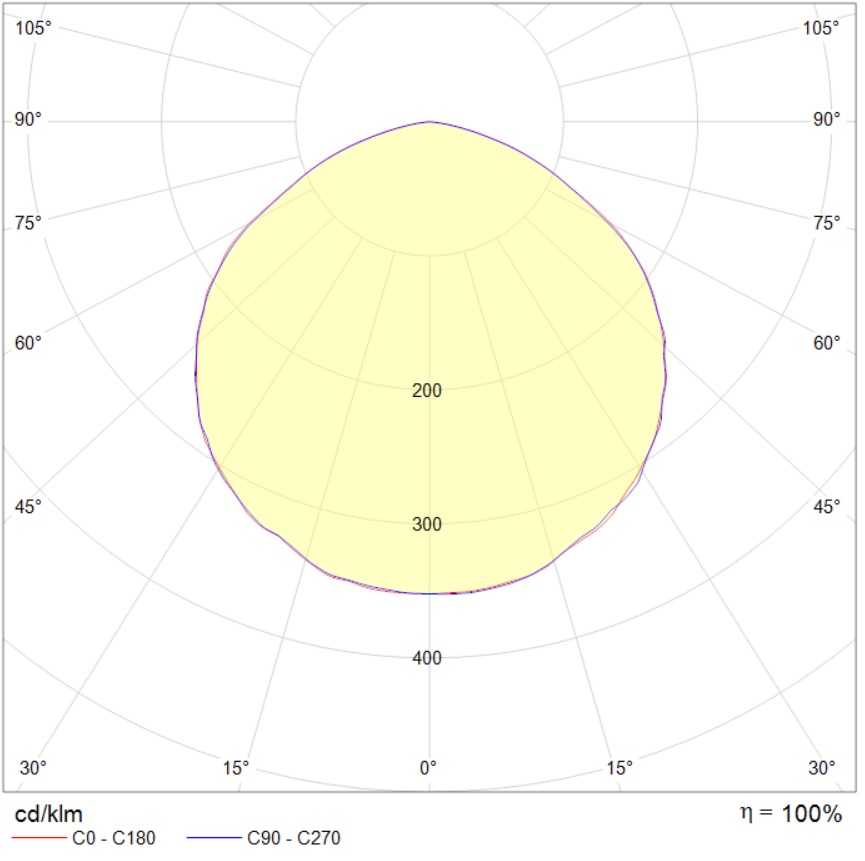

photometric files
сертификаты
photometric files
ies107.1 kB
jpg76.5 kB
ldt72 kB
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
