INSEL LB/S LED G3 130W D90 850 WH SB

INSEL LB/S LED G3 130W D90 850 WH SB
134 Wluminaire power
21800 lmlight flow
163 lm/Wenergy efficiency
code1334003420
color temperature5000 K
beam angleD90
performance factor100
weight6.7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
163 lm/W
color rendition index (CRI)
>80
light flow
21800 lm
flickering factor
<1%
beam angle
D90
color temperature
5000 K
light source type
LED
emission color
Белый
illuminating
energy efficiency
163 lm/W
color rendition index (CRI)
>80
light flow
21800 lm
flickering factor
<1%
beam angle
D90
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
360 µs
electric shock protection
I
luminaire power
134 W
supply voltage
230 V
power factor
> 0,97
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
50 A
constructional
length
331 mm
width
331 mm
height
169 mm
installation length
200 mm
weight
6.7 kg
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от -40 до +60 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Светильник для освещения высоких пролетов (хайбей)
code
1334003420
model files
model files

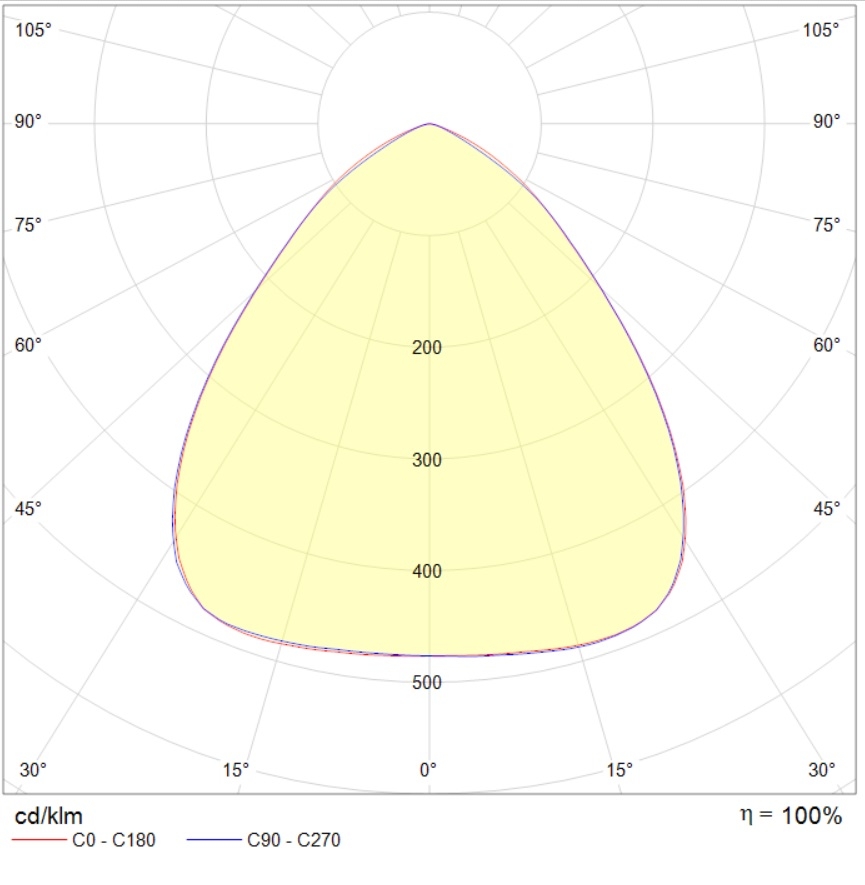

photometric files
