INSEL LB/S LED G3 130W D15 840 WH SB
INSEL LB/S LED G3 130W D15 840 WH SB
134 Wluminaire power
20200 lmlight flow
151 lm/Wenergy efficiency
code1334005700
color temperature4000 K
beam angleD15
performance factor100
weight7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
151 lm/Wcolor rendition index (CRI)
>80light flow
20200 lmflickering factor
<1%beam angle
D15color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
151 lm/W
color rendition index (CRI)
>80
light flow
20200 lm
flickering factor
<1%
beam angle
D15
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
500 µs
electric shock protection
I
luminaire power
134 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
50 A
constructional
length
331 mm
width
331 mm
height
169 mm
installation length
200 mm
weight
7 kg
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от -40 до +60 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Светильник для освещения высоких пролетов (хайбей)
code
1334005700
model files
model files
photometric files
сертификаты

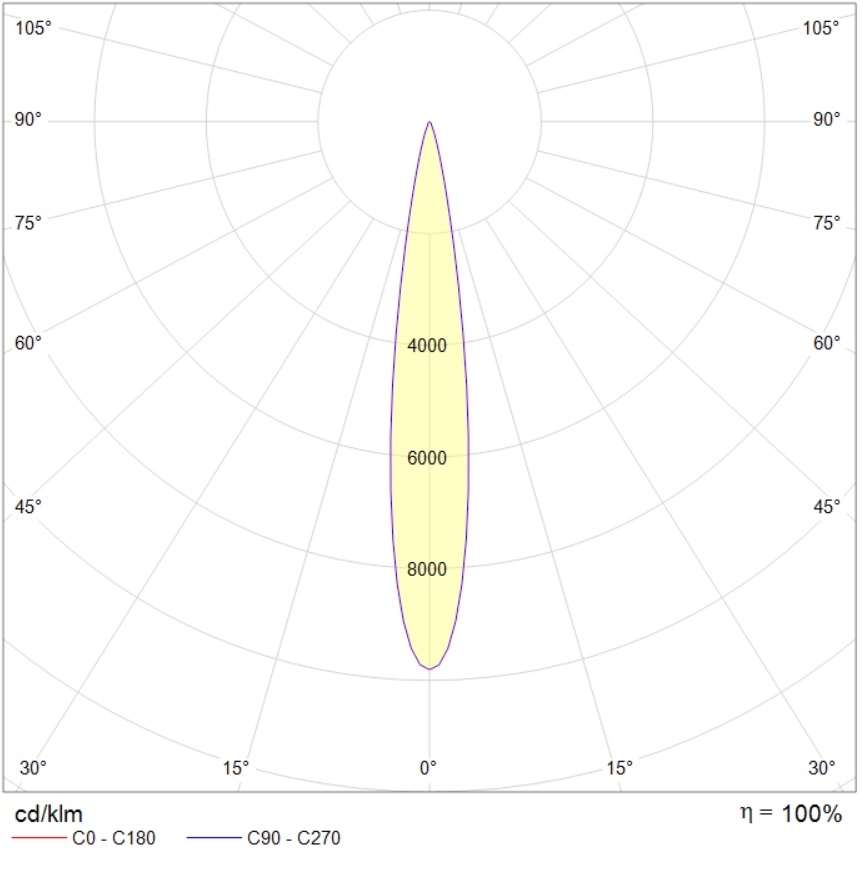

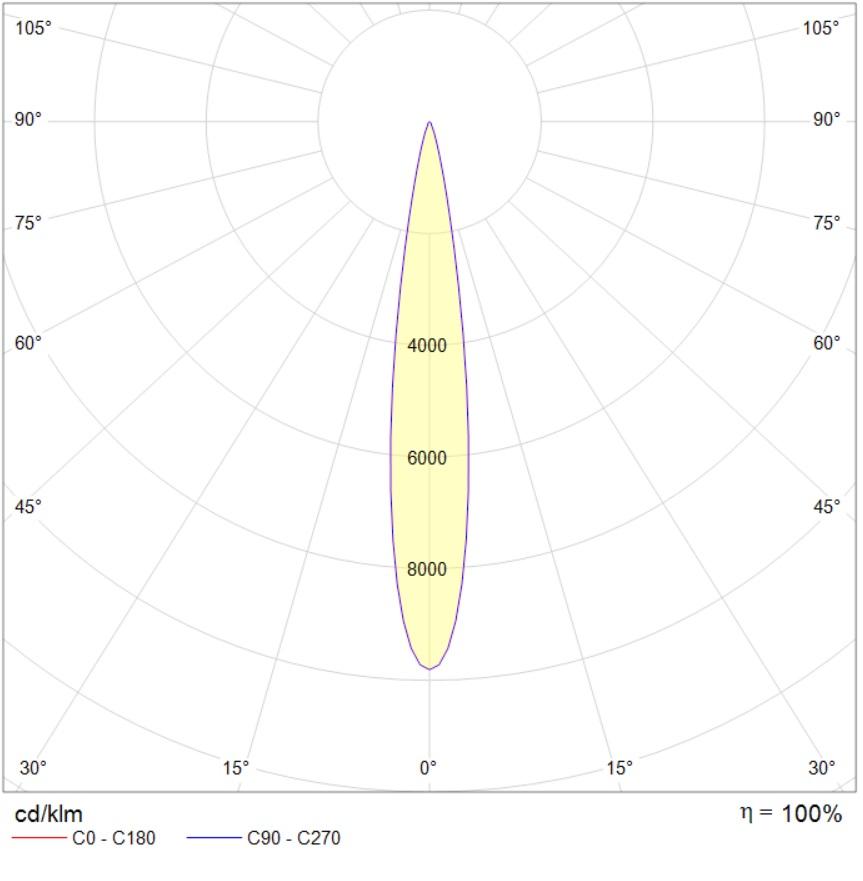

photometric files
ies134.1 kB
jpg78.9 kB
ldt84.4 kB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
