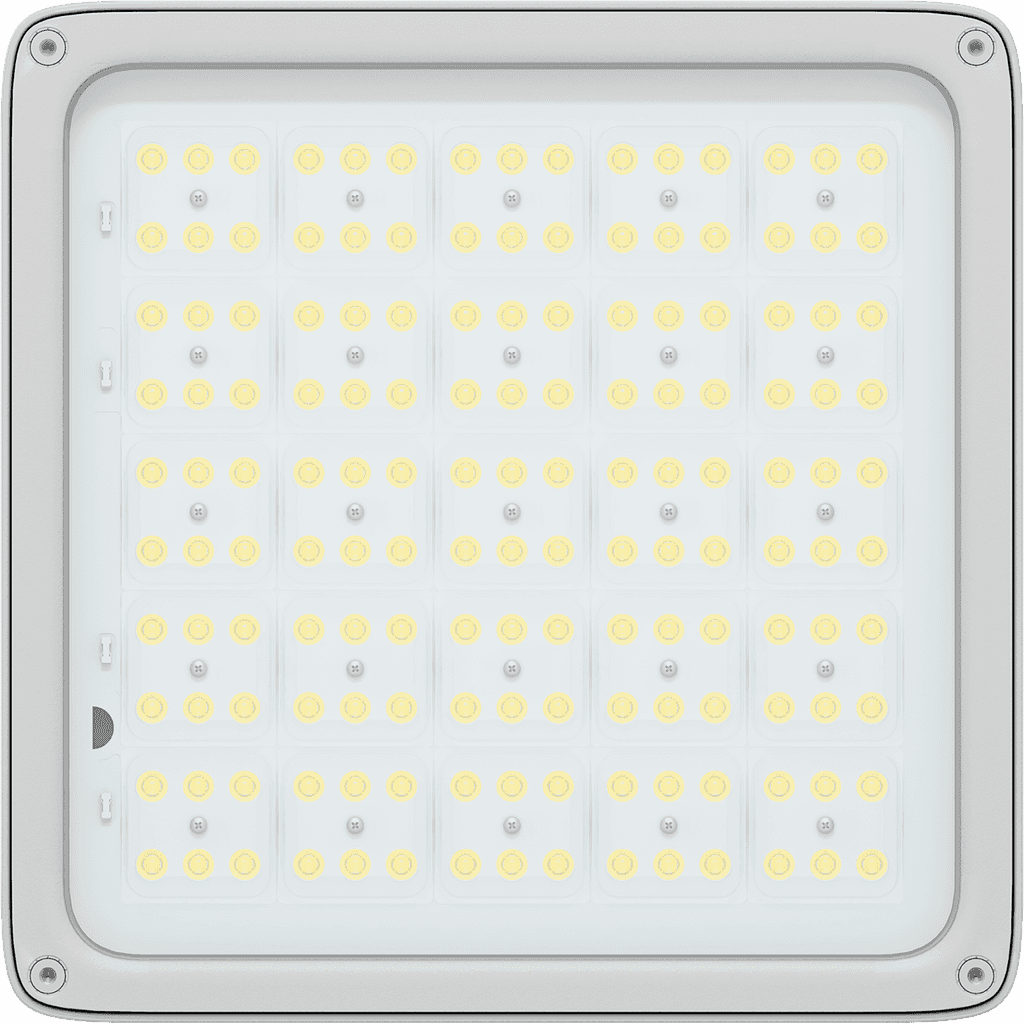

INSEL LB/S LED G3 100W D130 840 WH SB
INSEL LB/S LED G3 100W D130 840 WH SB
100 Wluminaire power
16200 lmlight flow
162 lm/Wenergy efficiency
code1334005550
color temperature4000 K
beam angleD130
performance factor100
weight7 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
energy efficiency
162 lm/Wcolor rendition index (CRI)
>80light flow
16200 lmflickering factor
<1%beam angle
D130color temperature
4000 Klight source type
LEDemission color
Белыйilluminating
energy efficiency
162 lm/W
color rendition index (CRI)
>80
light flow
16200 lm
flickering factor
<1%
beam angle
D130
color temperature
4000 K
light source type
LED
emission color
Белый
electrical
starting current pulse time
360 µs
electric shock protection
I
luminaire power
100 W
supply voltage
230 V
power factor
> 0,96
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
rated supply voltage
230 V
starting current
50 A
constructional
length
331 mm
width
331 mm
height
169 mm
installation length
200 mm
weight
7 kg
ingress protection (IP)
IP66
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
common
warranty
60 month
temperature range
от -40 до +60 C
service life
50 000 h
energy efficiency class
A++
ETIM class
Светильник для освещения высоких пролетов (хайбей)
code
1334005550
model files
model files

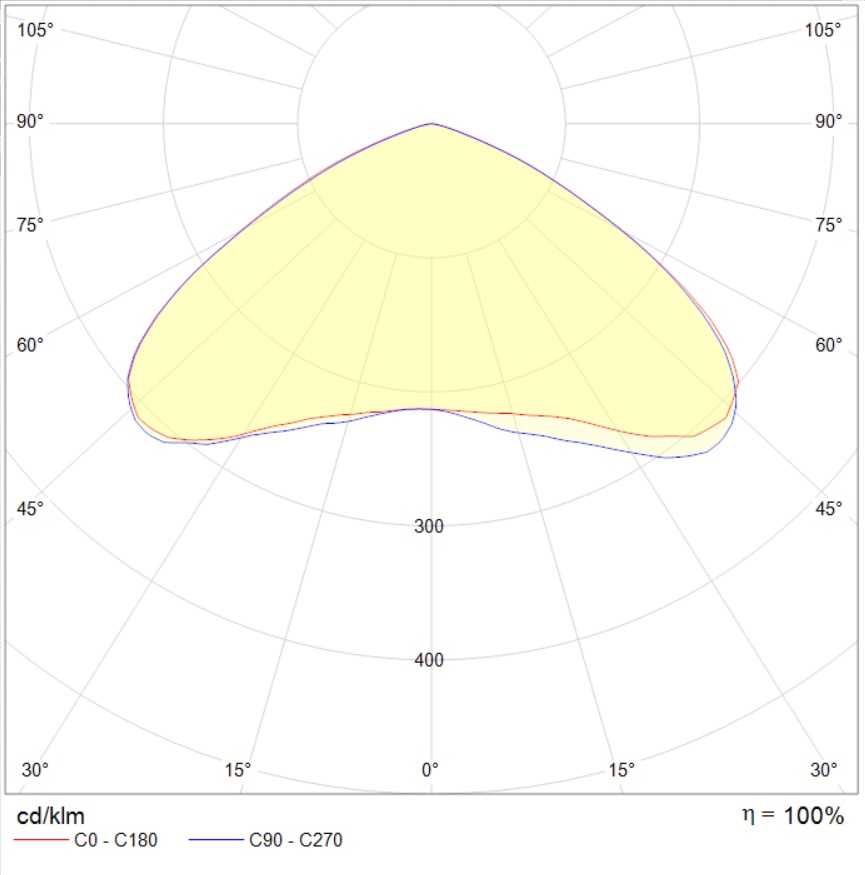

photometric files
documents
сертификаты
photometric files
ies107 kB
jpg77.8 kB
ldt65.7 kB
documents
passport4.1 mB
сертификаты
Certificate of conformity TRTS 020/2011, TRTS 004/20113.2 mB
Declaration of Conformity EAEU TR 037/2016658.3 kB
Fire Safety Certificate2.5 mB
