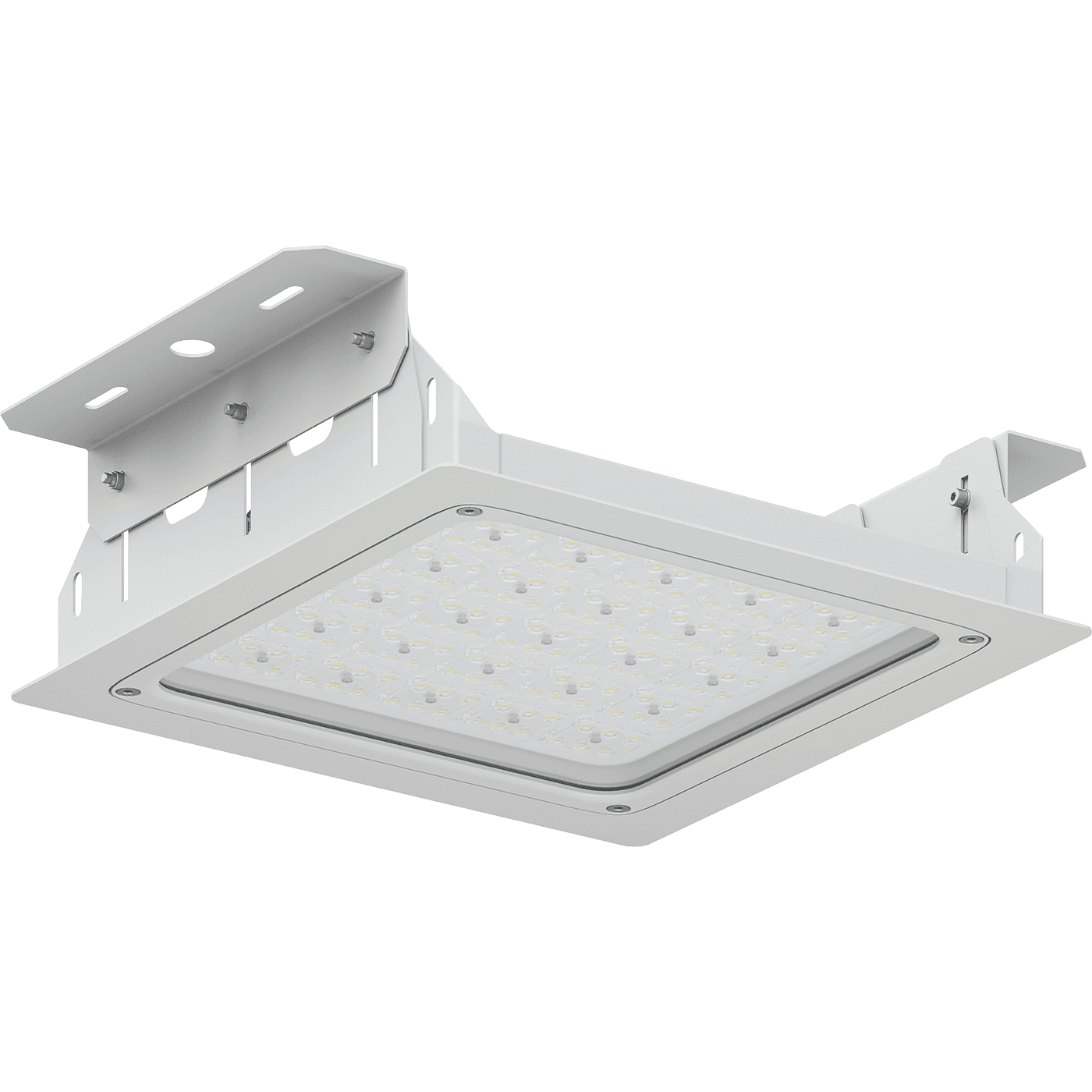

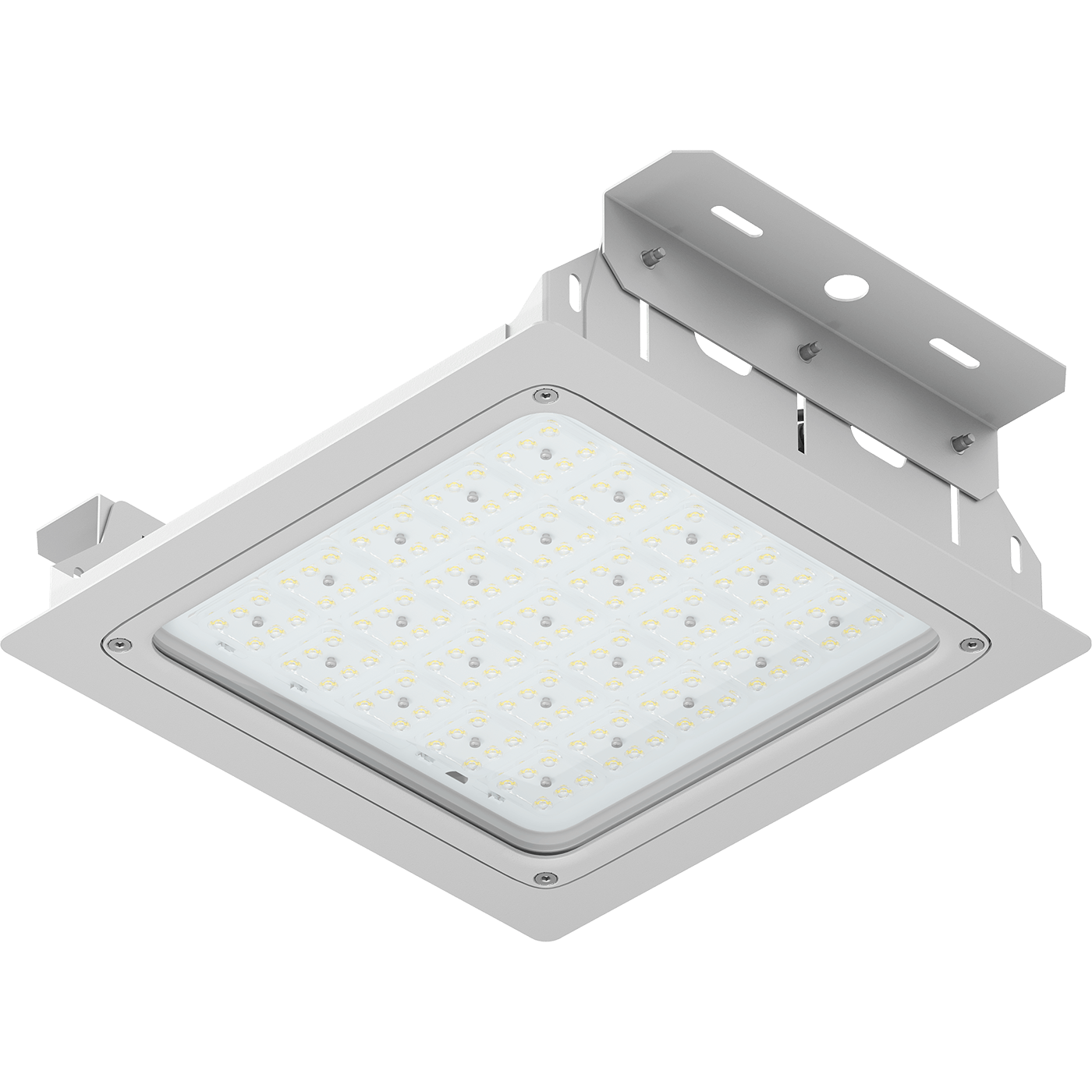

INSEL LB/R LED G3 200W D90 850 WH
INSEL LB/R LED G3 200W D90 850 WH
200 Wluminaire power
33800 lmlight flow
169 lm/Wenergy efficiency
code1332002080
color temperature5000 K
beam angleD90
weight8.4 kg
options
свернуть все
illuminatingelectricalconstructionalcommon
color rendition index (CRI)
>80light flow
33800 lmflickering factor
<2%energy efficiency
169 lm/Wbeam angle
D90color temperature
5000 Klight source type
LEDemission color
Белыйilluminating
color rendition index (CRI)
>80
light flow
33800 lm
flickering factor
<2%
energy efficiency
169 lm/W
beam angle
D90
color temperature
5000 K
light source type
LED
emission color
Белый
electrical
power factor
> 0,96
luminaire power
200 W
electric shock protection
I
maximum cross-section of the connected cable
2.5 mm2
rated supply voltage, alternating current
230 V
starting current
75 A
supply voltage
230 V
starting current pulse time
440 µs
constructional
shock resistance (IK)
IK08/5 Дж
climatic performance
УХЛ1*
fire safety class
П-I,II,IIa,ІІІ
material
Алюминий
housing color
Белый
lamp socket
LED
number of lamps
1
ballast
Драйвер
ingress protection (IP)
IP66/IP67
weight
8.4 kg
length
390 mm
width
390 mm
height
112 mm
installation length
360 mm
installation width
360 mm
common
ETIM class
Светильник для освещения высоких пролетов (хайбей)
warranty
60 month
energy efficiency class
A++
service life
50 000 h
temperature range
от -40 до +40 C
code
1332002080
model files
model files

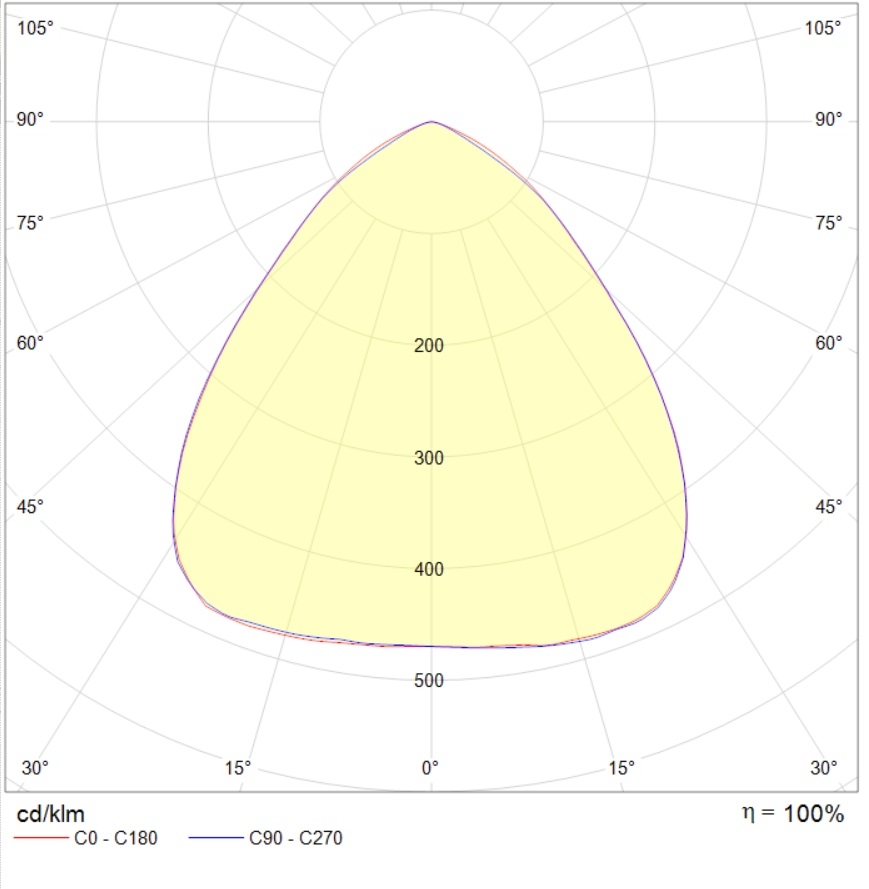

photometric files
сертификаты

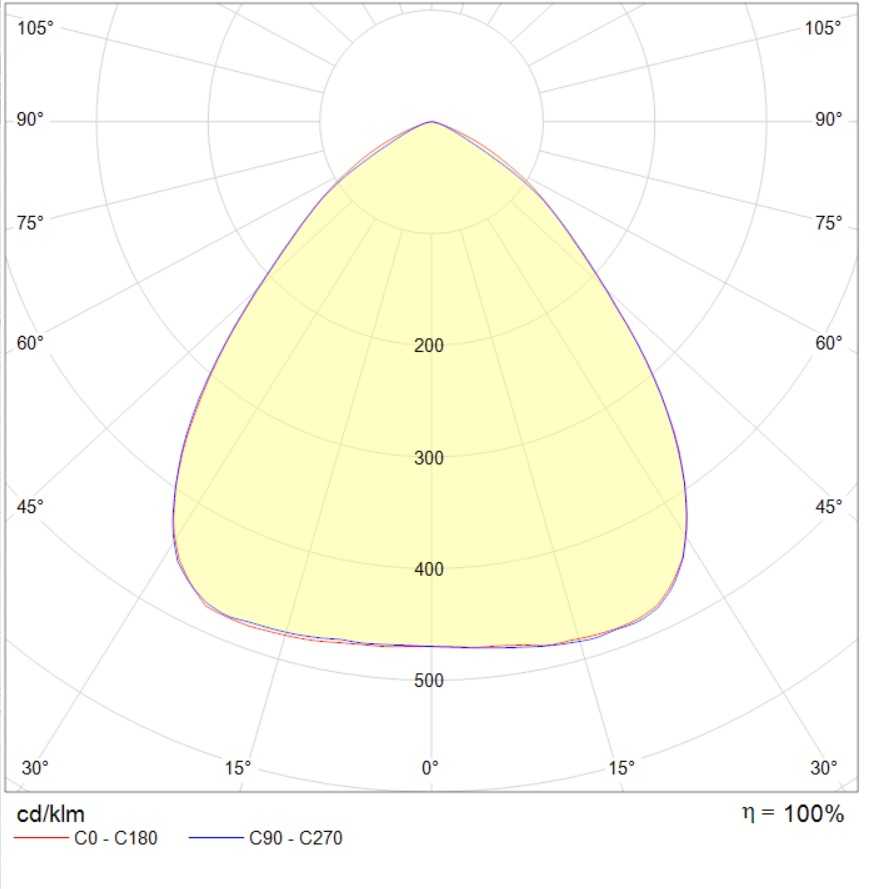

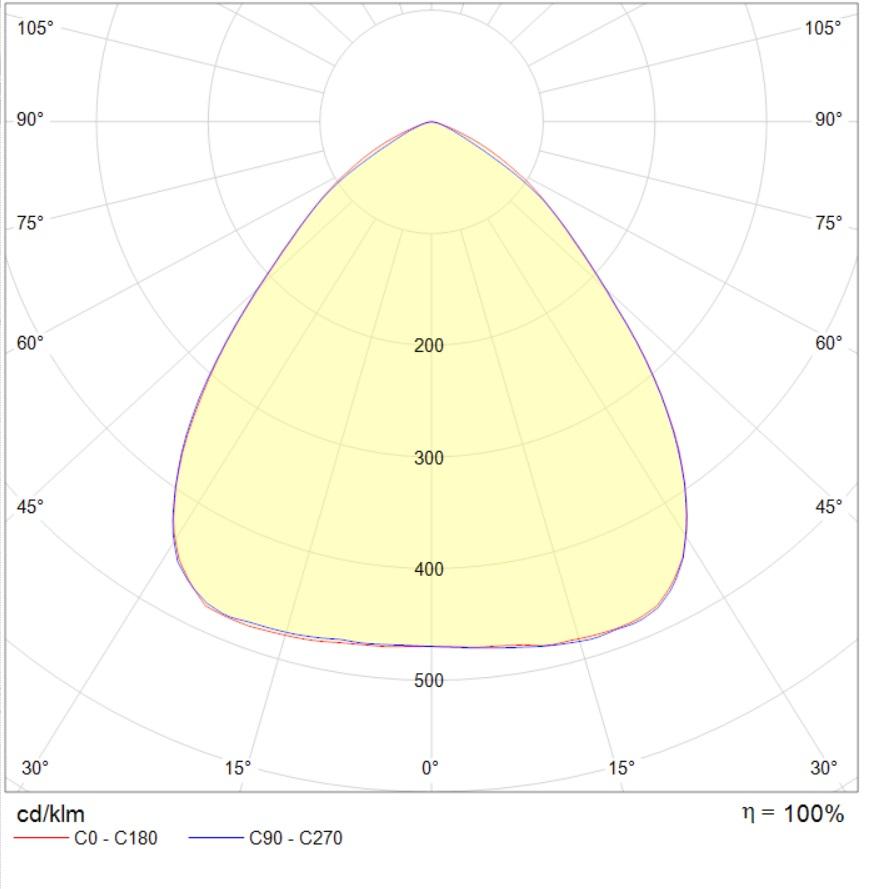

photometric files
ies107 kB
jpg84.4 kB
ldt71.2 kB
csv427 B
сертификаты
Russian origin279.6 kB
Certificate of conformity TRTS 020/2011, TRTS 004/20112.4 mB
Declaration of Conformity EAEU TR 037/2016541.4 kB
Fire Safety Certificate1.7 mB
